How to connect your SMA inverter to the grid: A comprehensive step-by-step guide

Why connect your SMA inverter to the Wi-Fi network?

Connecting your SMA inverter to the internet marks a turning point in the management of your solar power system. This connection opens the door to real-time monitoring, allowing you to track your solar energy production from your smartphone, tablet or computer, wherever you are.

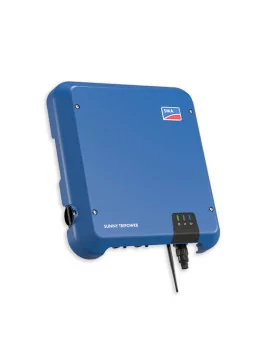

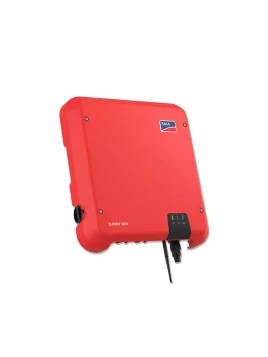

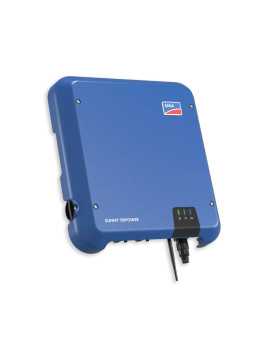

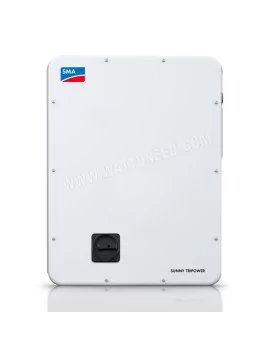

At Wattuneed, we offer a full range of SMA inverters, from the compact Sunny Boy 2.0 for small installations to the three-phase Sunny Tripower models for larger systems.

Prerequisites before starting the connection

Essential technical checks

Before connecting your SMA inverter, ensure that the following conditions are met:

• Green LED lit: Check that the green LED is lit on the front panel of your inverter
• Compatible device: Smartphone, tablet or computer with a Wi-Fi connection
• Inverter password: Locate the technical data sheet on the right-hand side of your inverter
• Home network access: Your personal Wi-Fi network credentials
• Up-to-date web browser: Updated Chrome, Firefox, Safari or Edge

Suggested image: Photo of an SMA Sunny Boy inverter with the green LED lit and the technical data sheet visible

Equipment required

To successfully connect online, you will need:

1. A mobile device (smartphone, tablet) or a laptop
2. Access to your home internet router
3. The login credentials provided by Wattuneed during installation
4. A web browser to access the configuration interface

Step-by-step guide: Connecting your SMA inverter to Wi-Fi

Step 1: Initial connection to the inverter

The first step is to establish a direct connection with your SMA inverter. Here is the detailed procedure:

1. Scan for WiFi networks: On your mobile device, scan for available WiFi networks
2. Identifying the SMA network: Look for a network whose name begins with "SMA" followed by a series of numbers corresponding to your inverter’s serial number
3. Connecting to the inverter network: Select this network and connect
4. Entering the password: Enter the password shown on the technical data sheet located on the right-hand side of your inverter

Pro tip: The password is usually found on a white label stuck to the right-hand side of the inverter. It is often a combination of letters and numbers, 8 to 12 characters long.

Step 2: Accessing the inverter’s web interface

Once connected to the inverter’s network, you need to access its configuration interface:

1. Opening your browser: Launch your preferred web browser
2. Enter the IP address: In the address bar, type exactly: 192.168.12.3
3. Loading the interface: Press ‘Enter’ or click ‘Search’
4. Login page: The online interface for your SMA inverter will appear

Suggested image: Screenshot of the SMA login interface showing the username and password fields

Step 3: Authentication and access to settings

The login interface asks for several pieces of information:

• Language selection: Select "English" from the drop-down menu
• User group: Select "User" (not "Installer")
• User password: Enter the password provided to you by email during installation

"The SMA user interface is remarkably intuitive. Even without any technical training, I was able to set up my Wi-Fi connection in under 10 minutes," says Sophie, a user of an SMA Sunny Boy 2.5 system installed by Wattuneed.

Advanced configuration: WiFi communication settings

Accessing the configuration menu

Once logged in to the interface, follow these steps to access the network settings:

1. Drop-down menu: Click on the drop-down menu in the top-right corner of the interface
2. Device settings: Select "Device settings"
3. Changing settings: Click on "Change settings"
4. Communication section: Scroll down until you find the "Installation Communication" tab

Home Wi-Fi setup

Configuring the connection to your home network involves several crucial steps:

Scanning for available networks

1. WiFi tab: Open the "WiFi" tab in the communication settings
2. Scan function: Scroll down to “Perform a scan”
3. Running the scan: Open the drop-down menu and select "Run function"
4. Waiting for results: Please wait a few seconds whilst the inverter detects nearby WiFi networks

Security and authentication settings

Configuring the security settings is a critical step:

1. Security tab: Click on the "Security" tab
2. Network name: Enter the exact name (SSID) of your home Wi-Fi network
3. Network password: Enter your Wi-Fi network password (note that it is case-sensitive)
4. Security type: Check that the security type matches your network (usually WPA2-PSK)

Important: Make sure you enter the exact name of your Wi-Fi network, including upper-case letters, lower-case letters and special characters. A typing error will prevent the connection.

Confirmation and saving

To finalise the setup:

1. Verification: Scroll back to the top of the page to check that all changes are correct
2. Save: Click the "Save" button to save the configuration
3. Automatic restart: The UPS will restart automatically to apply the new settings
4. Connection test: Wait 2–3 minutes, then check the connection

Would you like to optimise your solar installation with a high-quality SMA inverter? Discover our full range of SMA inverters and benefit from our expertise for your renewable energy project.

Verification and finalisation of commissioning

Connection test

After saving the settings, it is essential to check that the connection is working correctly:

1. Return to the main menu: In the drop-down menu, select "Home"
2. Checking the status: Scroll to the bottom of the page to view the connection status
3. Connection indicator: Look for the indicator showing "Connected to the WiFi network"
4. Remote access test: Disconnect from the SMA network and reconnect to your home WiFi

Access via your home network

Once configuration is complete, your inverter should be accessible from your home network:

• New IP address: The inverter will have been assigned a new IP address by your internet router
• Access via app: Download the SMA Energy or SMA 360° app for easy access
• Sunny Portal: Create an account on SMA’s Sunny Portal for advanced monitoring

Benefits of online monitoring of your system

Connecting your SMA inverter to the internet offers you many practical benefits:

Optimisation of your return on investment

Monitoring your solar installation allows you to:

• Maximise your self-consumption: Adapt your consumption habits to production peaks
• Detect problems quickly: Take action before losses mount up
• Verify performance: Check that your system is producing in line with forecasts
• Plan maintenance: Anticipate maintenance needs using the data collected

"Thanks to monitoring my Wattuneed system with an SMA inverter, I discovered that a panel was partially shaded in the late afternoon. By simply pruning a branch, I increased my production by 15%!" – says Pierre, a Wattuneed customer in Verviers.

Troubleshooting common connection issues

SMA network connection issues

If you are unable to connect to your inverter’s Wi-Fi network:

• Check the green LED: It should be lit and steady, not flashing
• Move closer to the inverter: The WiFi range is limited (around 10 metres)
• Restart the inverter: Switch off the DC power supply for 30 seconds, then switch it back on
• Check the password: Ensure you enter it exactly as shown, respecting upper and lower case letters

Failed to connect to the home network

If the inverter cannot connect to your Wi-Fi network:

1. Distance between router and inverter: Ensure the distance does not exceed 20 metres
2. Signal strength: Check that the WiFi signal is strong enough at the inverter’s location
3. Network frequency: SMA inverters are compatible with 2.4 GHz (not 5 GHz)
4. Special characters: Avoid using special characters in the network name

Alternative solution: If your inverter is too far from your router, consider installing a WiFi repeater or using an Ethernet cable for a wired connection.

Maintenance and monitoring of your connection

Recommended periodic checks

To ensure a stable connection over time:

• Monthly check: Check that data is being transmitted correctly
• Firmware update: Install the updates provided by SMA
• Clear your browser cache if necessary
• Post-outage test: Check that the connection is re-established after power cuts

Wattuneed Technical Support

If you continue to experience difficulties, our Wattuneed technical team is here to help:

Need help configuring your SMA inverter? Our team of experts is here to assist you. Contact us on +32 87 45 00 34 or by email at info@wattuneed.com for personalised support.

Frequently Asked Questions (FAQ)

Is my SMA inverter compatible with all WiFi networks?

SMA inverters are compatible with most domestic Wi-Fi networks using the 2.4 GHz frequency and WPA/WPA2 security protocols. They are not compatible with 5 GHz-only networks or enterprise networks with advanced authentication.

How long does it take to set up an SMA inverter?

The entire process usually takes between 10 and 15 minutes for a first-time user. Once you are familiar with the interface, setup can be completed in under 5 minutes.

Does the Wi-Fi connection affect generation performance?

No, the Wi-Fi connection is used solely for monitoring and supervision. It has no impact on the power output of your solar installation.

What should I do if I forget my inverter’s password?

The default password is always found on the label stuck to the side of the inverter. If this label is illegible, contact Wattuneed with your inverter’s serial number to request a reset.

Can I connect multiple inverters to the same network?

Yes, you can connect multiple SMA inverters to the same WiFi network. Each inverter will have its own IP address and can be accessed individually via the web interface or the SMA app.
