Assembly diagram 1
Kit 25 panels self-consumption / reinjection tri 8000W SMA without storage
€5,506.17
Tax included
10238
0712971138056
100% secure payments

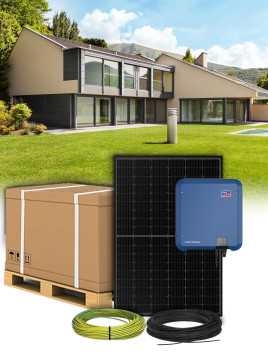

This kit includes
- 25XMULTIWAY Solar panel 435Wp HT54-18X
- 1XThree-phase inverter SMA Sunny Tripower 8.0 TL INT BLUE STP8.0-3AV-40
- 1XEarth cable 1x6 mm2 20m
- 2X2X4mm2 solar cable with MC4 type (sold per metre)
- 1XSchneider 20A tetra circuit breaker
Select products from the sections below

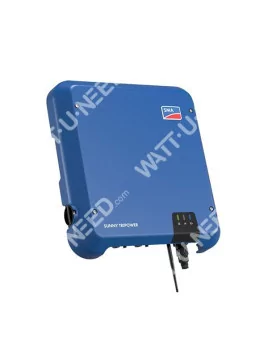

Three-phase inverter SMA Sunny Tripower 8.0 TL INT BLUE STP8.0-3AV-40
Price per unit
€2,630.16 (Tax incl.)
€2,630.16 (Tax incl.)
All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs. You can also see the details of the chosen products directly below the price.
This kit is sized with the general purpose of being installed with the public network.
The basic composition of the kit contains 25 solar panels, an SMA 8.0 sunny tripower STP TL INT Blue inverter, the solar cables to connect the panels to the inverter and from the inverter to your electrical panel, the panel mounting system is available as an option. (The mounting system as well as the wiring and protections can be modified to meet your needs).
SOLAR PANELS:
In its basic version, this photovoltaic system will bring you an average of 30 Kwh per sunny day. The productions will depend on the seasons (summer/winter) on the geographical position and the inclination of the panels.
We invite you to consult Our solar production simulator to determine precisely what your solar production will be.
Warranty 25 years at 80% of the rated power.
NETWORK:
With the Sunny Tripower 8.0, residential photovoltaic installations and small commercial installations are doubling their performance. This high-performance inverter will also offer absolute comfort to its users. Thanks to integrated services and solutions to manage shading, it meets all challenges regardless of the roof. The Sunny Tripower thus guarantees maximum energy production and reduces the electricity bill.
CABLE AND CONNECTORS:
All cables and connections are pre-wired in our workshops. Our kits are very easily assembleable by 'beginners' in electricity. For those who have some reservations about the technical side, our technical team assists you and helps you every day from 8am to 5pm.
ASSEMBLY:
The installation of this kit is very simple. Our instructions are clear and allow easy assembly without special knowledge. We answer all your questions before, during and after the installation of your system.
GUARANTEE:
All products have an individual warranty.
Panels guaranteed 25 years at 80% of the rated power.
SMA warranty: 5 years (extendable 10 years)

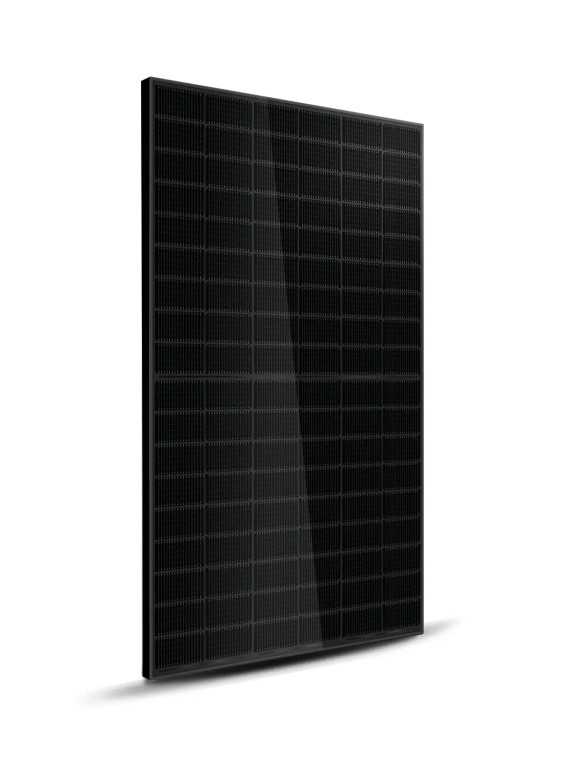

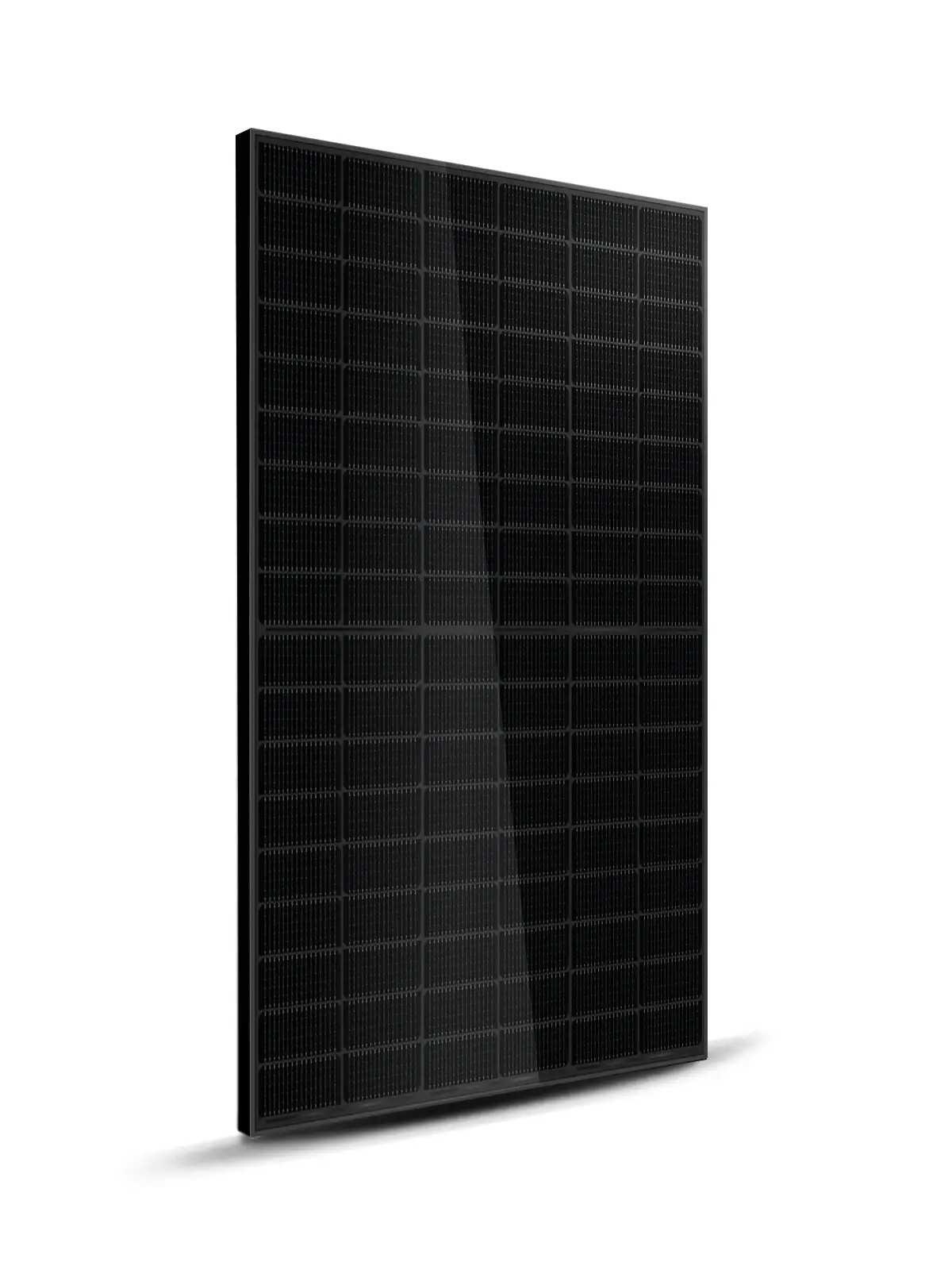

Solar panel
The basic selected panel in this kit has been chosen according to our supplies.
You will find the characteristics of the latter by going to see its product sheet in the panel category.

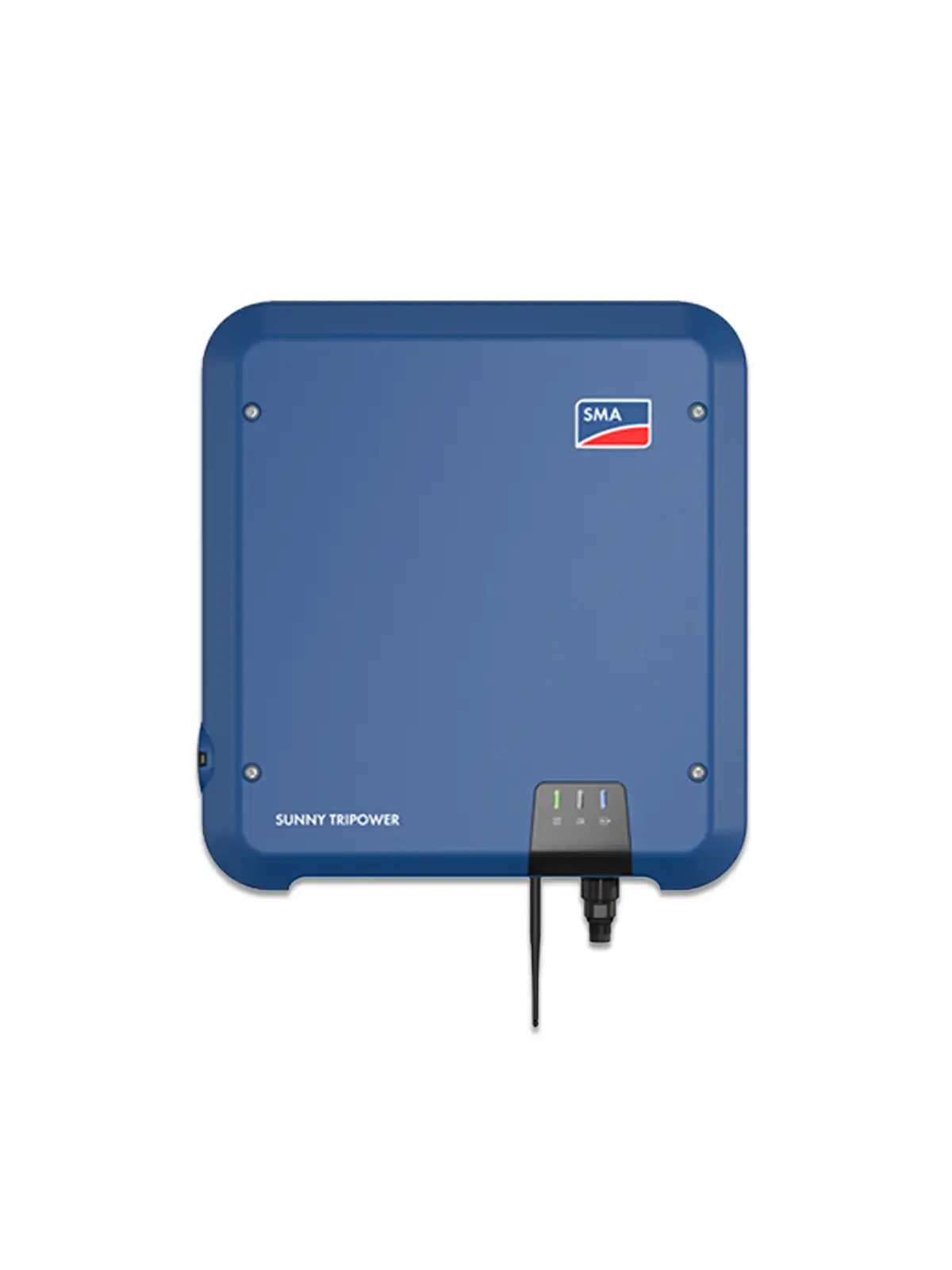

SMA Sunny tripower 8.0
The new Sunny Tripower 8.0 guarantees maximum energy production for households. And to meet the specific requirements of rooftop installations, TS4-R optimizers can be easily added at your convenience, for example in case of shading. Compatible with the latest communication standards, the inverter can be reliably equipped with intelligent energy management and SMA storage solutions at any time.
Characteristics
| Model | Sunny Tripower 8.0 |
| Input (DC) | |
| Max. power of the photovoltaic generator | 15000 Wp |
| Max input voltage | 1000 V |
| MPP voltage range | 260 V to 800 V |
| Rated input voltage | 580 V |
| Min. input voltage / starting input voltage Max. input current A / B input | 125 V / 150 V |
| Min. input current/ starting input voltage | 20 A /12 A |
| Short circuit current max. input A / input B | 30 A / 18 A |
| Number of independent MPP entries / strings per MPP entry | 2/ A:2; B:1 |
| Output (AC) | |
| Rated power (for 230 V, 50 Hz) | 8000 W |
| Apparent power AC max. | 8000 VA |
| Rated AC voltage | 3/N/PE; 220 V / 380 V 3/N/PE; 230 V / 400 V 3/N/PE; 240 V / 415 V |
| AC voltage range | 180 V to 280 V |
| AC network frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
| Rated network frequency / rated network voltage | 50 Hz / 230 V |
| Maximum output current | 3x 12.1A |
| Power Factor at Rated Power / Adjustable Phase Shift Factor | 1 / 0.8 inductive to 0.8 capacitive |
| Injection phases / connection phases | 3/3 |
| Yield | |
| Max. yield / European yield | 98,3 % / 97,7 % |
| General characteristics | |
| Dimensions (W / H / D) | 460 mm / 497 mm / 176 mm (18.1 inches / 19.6 inches / 6.9 inches) |
| Weight | 20.5 kg (45.2 lb) |
| Operating temperature range | −25 °C to +60 °C (−13 °F to +140 °F) |
| Noise emissions, typical | 30 dB(A) |
| Self-consumption (night) | 5.0 W |
| Topology / cooling system | Without transformer / Convection |
| Protection class (according to IEC 60529) | IP65 |
| Climate class (according to IEC 60721-3-4) | 4K4H |
| Maximum allowable value for relative humidity of air (non-condensing) | 100,00% |
Connection diagram
10238
500 Items
Data sheet
- Inverter power
- 8000VA
- Kit output voltage
- 400V
- Type of need
- Self-consumption
- Battery storage
- Without storage
- Wind turbine
- Without
- Number of panels
- 25 panels
- Mains re-injection
- With
- Video Youtube 1 - ID
- zQH0cbvMwj8
Specific References
- UPC
- 712971138056
- EAN13
- 0712971138056
