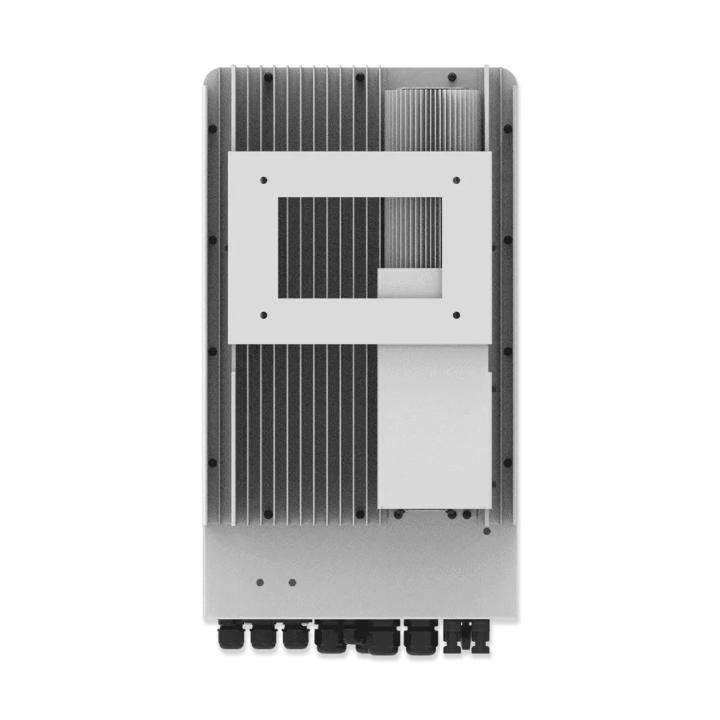

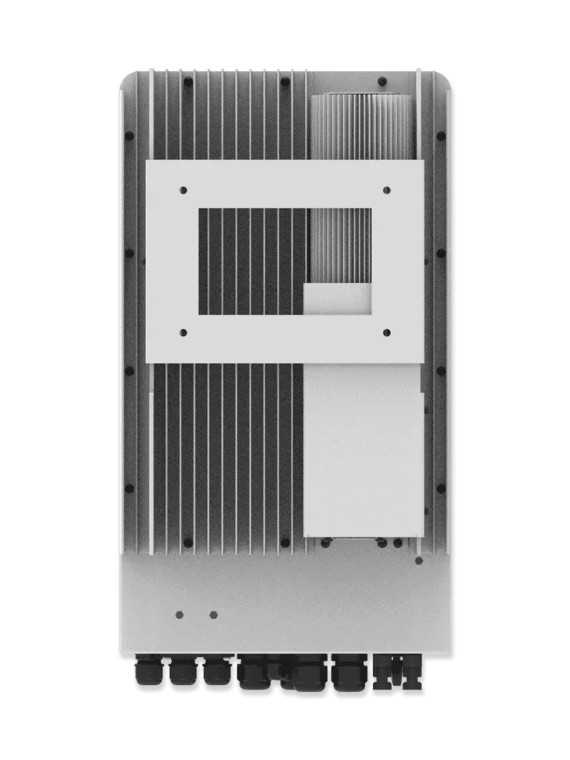

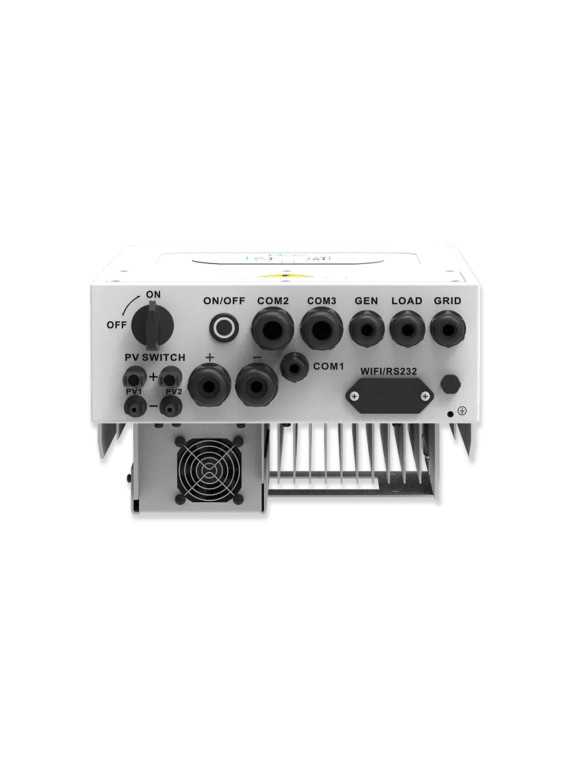

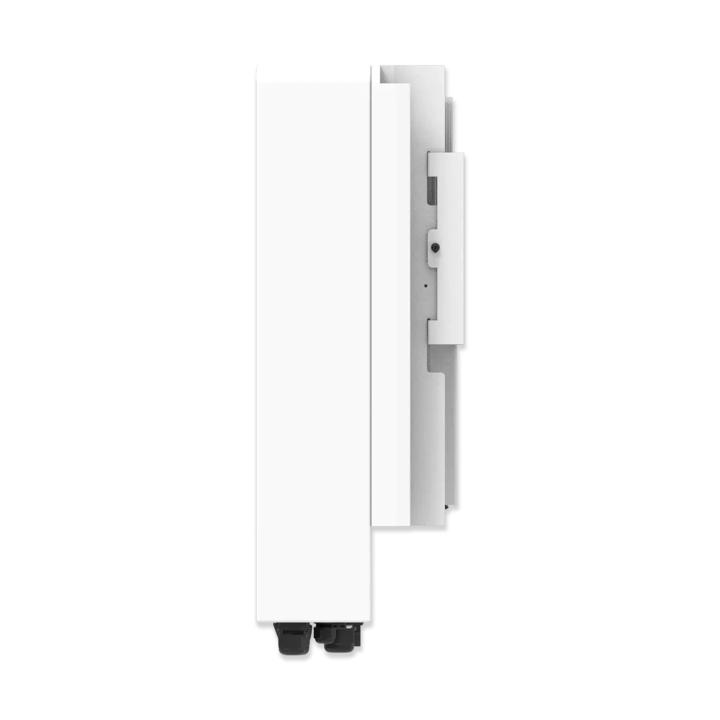

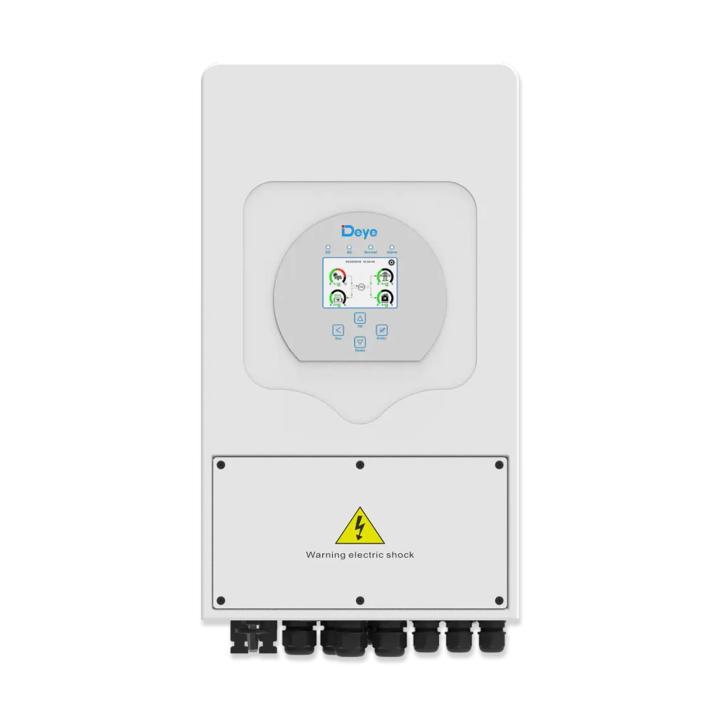

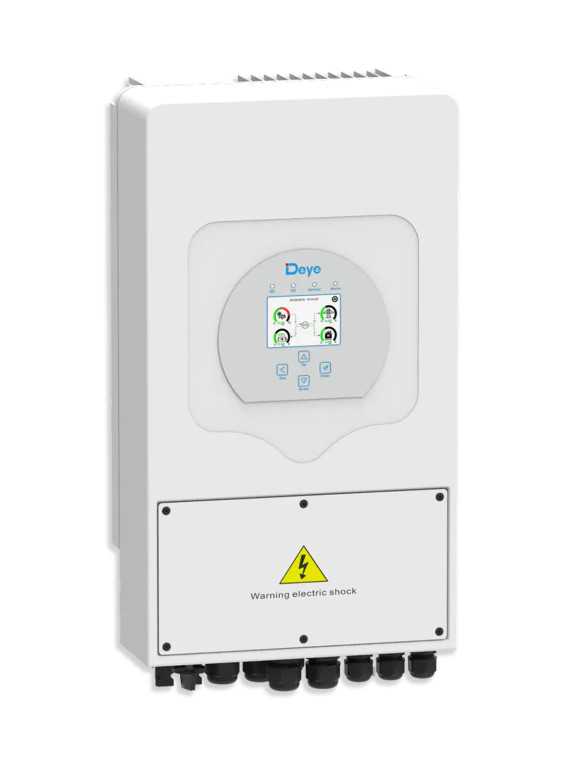

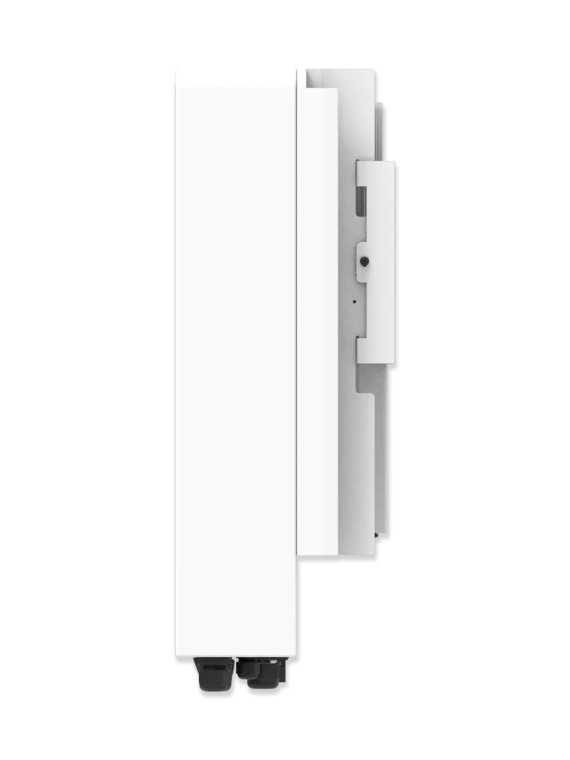

Deye SUN-5K-SG03LP1-EU Hybrid Inverter

Description

Boost your energy independence with the SUN 5K-SG hybrid inverter, specially designed for homes and small businesses. This system optimizes the self-consumption of your solar energy, reducing your bills while increasing your independence. During the day, it collects solar energy to power your equipment, and stores the surplus in the battery for later use. In the event of a power cut, you can rest easy! Thanks to its compatibility with a generator, you benefit from uninterrupted power. What's more, its RS485/CAN port ensures intelligent energy management. Choose a clean, reliable and economical energy solution!

Key features

1. Flexible power

The SUN 3.6/6K-SG is available in several power ratings - 5 kW and 6 kW. This flexibility makes it possible to meet a wide range of energy requirements, from single-family homes to light commercial activities. Choose the wattage that best matches your energy consumption.

2. Optimizing self-consumption

This inverter is designed to maximize the use of the solar energy produced. During the day, it powers your appliances directly and stores excess energy in the battery, reducing your dependence on the grid and lowering your electricity bills.

3. Intelligent energy management

The system incorporates advanced energy management technology that prioritizes the supply of power to appliances in real time. When solar energy is in surplus, it is used to charge the battery, ensuring that electricity is available even when solar production is low.

4. Reliable backup power

In the event of a power cut, the SUN 3.6/5K-SG connects easily to a generator, guaranteeing continuous power supply. This gives you the peace of mind you need to cope with the unexpected without compromising comfort or productivity.

5. RS485/CAN communication port

Equipped with an RS485/CAN port, this UPS facilitates communication with energy management systems and batteries. This enables real-time performance monitoring and remote software updates, ensuring optimal system operation.

6. Simplified installation

The SUN 3.6/6K-SG has been designed for fast, hassle-free installation. Its intuitive design allows installers to commission it quickly, reducing installation time and costs.

6. Advanced monitoring functionality

Thanks to a user-friendly interface, you have access to real-time data on energy production, consumption and battery status. This enables you to monitor your energy performance and optimize your savings...

Conclusion

The SUN 3.6/6K-SG, with its flexible power options and advanced features, represents an ideal solution for those looking to maximize their energy efficiency. Whether you're an individual or a professional, this inverter will help you reduce your energy costs while contributing to a sustainable future. Choose the SUN 3.6/6K-SG and transform your energy consumption!

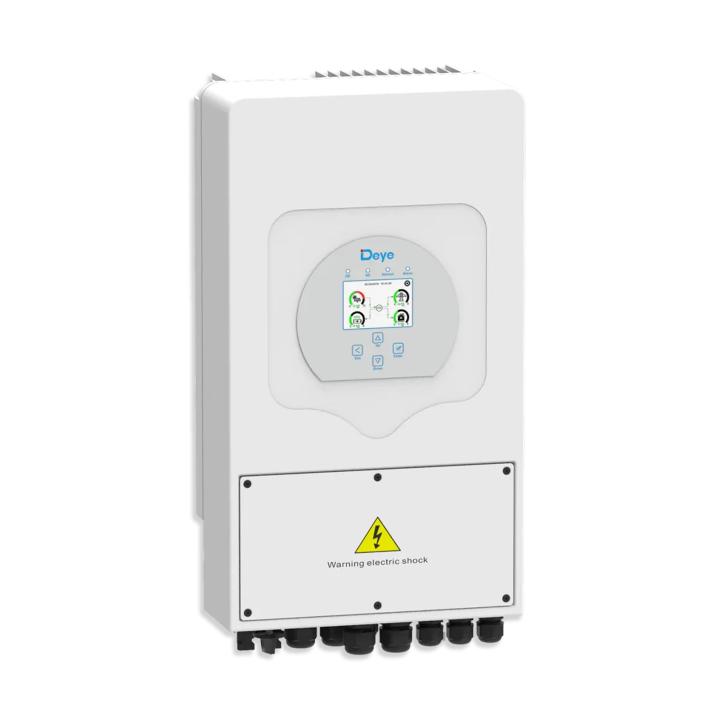

Main Display

The LCD screen is touch-sensitive and displays general inverter information.

1 - The icon in the center of the home screen indicates that the system is operating normally. If it displays "comm./F01~F64", this means that the inverter has communication or other errors. The error message will be displayed below this icon (errors F01-F64, error details can be viewed in the System Alarms menu).

2 - At the top of the display is the time.

3 - System configuration icon. Press this button to access the system configuration screen, which includes basic configuration, battery configuration, network configuration, system operating mode, generator port usage, advanced functions and Li-Ion battery information.

4 - The main screen displays solar, network, load and battery information. It also indicates the direction of power flow by arrows. As power approaches a high level, the color of the panels changes from green to red, providing a clear view of system information on the main display.

- PV power and charging power always remain positive.

- Negative grid power means selling to the grid, positive means receiving from the grid.

- Negative battery power means charging, positive means discharging.

Remote shutdown function

Intelligent monitoring platform

Thanks to the intelligent monitoring platform, inverter products in the Deye complete series support remote shutdown immediately in the event of an accident. Parameter settings and firmware updates can be performed remotely, facilitating the operation and maintenance of photovoltaic systems.

Technical data

Compatibility and Battery Input

Compatible with lead-acid and lithium-ion batteries, automatically adapting to battery management systems (BMS). 48V battery voltage range.

High efficiency

Maximum efficiency of 97.6%, European efficiency of 96.5% and MPPT efficiency in excess of 99%, guaranteeing maximum energy conversion and minimum losses.

Nominal power

Models available from 3.6kW to 6kW (SUN-3.6K, SUN-5K, and SUN-6K), with peak power capacities up to twice the rated power for durations of 10 seconds.

Advanced protection mechanisms

Includes comprehensive protection features: DC reverse polarity protection, AC output overcurrents, AC output overvoltages, thermal protection and ground fault protection.

Standards compliance

Meets numerous international safety and performance standards, including IEEE 1547.1, EN 62109-1/2 and UL 1741.

Operating range

Works well over a wide temperature range (-40°C to +60°C) and can operate at altitudes of up to 2000 meters, maintaining noise levels below 30dB.

Monitoring and communication

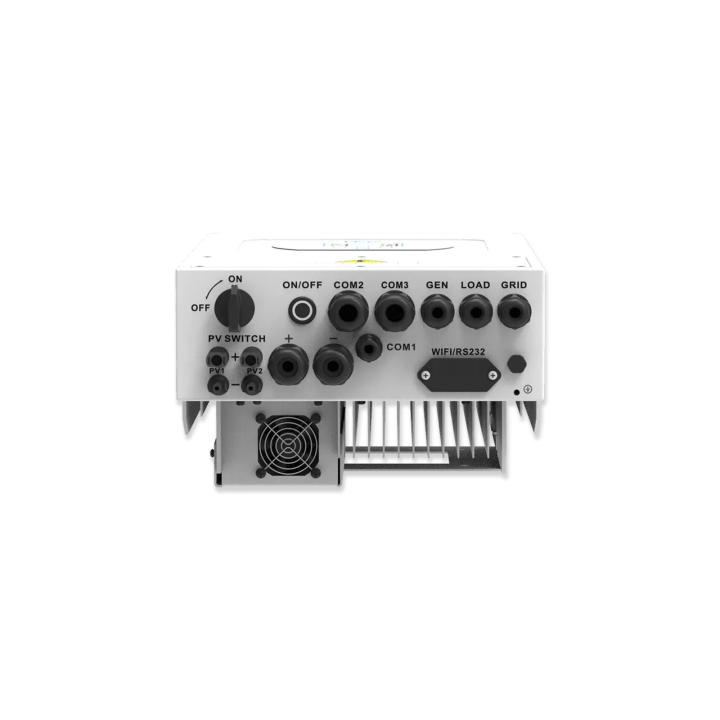

Supports various monitoring and communication interfaces, including GPRS, WIFI, Bluetooth, 4G and LAN. RS485, RS232 and CAN communication interfaces for robust connectivity and flexible integration.

Physical specifications

Dimensions

Measures 330mm × 580mm × 232mm, compact and easy to install.

Weight

Weighs 25kg, for easy handling and installation.

Cooling

Intelligent air cooling for efficient thermal management.

Protection class

IP65 protection, suitable for various indoor and outdoor installations.

UPS operation with Pylontech batteries

UPS installation

Discover the advanced features of Deye hybrid inverters

Optimize your solar installation and manage your energy consumption more efficiently with videos dedicated to Deye hybrid inverters. Discover the best features and applications of this innovative technology. Simply click on the title to access the corresponding video.

1. Deye hybrid inverter peak shavingfunction

Learn how to use the Peak Shaving function to reduce your energy consumption during peak demand and optimize your energy costs.

2. Priority re-injection mode for the Deye hybrid inverter

Discover the first sales mode of the Deye hybrid inverter, a must-see video for understanding how to present and sell this product.

3. Configuration withPylontech lithium-ion battery

Follow our guide to connecting and configuring a Deye UPS with a Pylontech lithium-ion battery to maximize the efficiency of your installation.

4. Deye hybrid UPS time-of-usefunction

Optimize your energy consumption according to the time of day with the Time of Use function, to better manage your energy costs.

5. Deye hybrid inverter intelligent load function

Maximize the efficiency of your system with the intelligent load function, for optimum energy management.

6. Using battery-free mode with the Deye hybrid inverter

Learn how to operate your Deye hybrid inverter without a battery for a simpler, more cost-effective configuration.

7. Parallelfunction of the Deye hybrid inverter

Discover how to connect several Deye inverters in parallel to increase the capacity of your installation according to your energy needs.

8. Charging the battery with a diesel generator

An ideal solution for areas without constant access to the power grid. Learn how to use a diesel generator to charge your batteries with the Deye hybrid inverter.

Optimize your energy consumption today!

Choose the video that interests you and discover how to take advantage of the advanced features of Deye hybrid inverters for optimal energy management and sustainable savings.

Warranty & Support

Warranty

5-year warranty, offering peace of mind and assurance of reliability.

The Deye SUN 3.6/6K-SG hybrid inverter is a powerful and flexible solution for optimized energy management. With high efficiency, comprehensive protection and advanced control features, it's perfect for your energy storage and solar application needs. Its intelligent design and robust features make it an excellent choice for modern energy needs.
