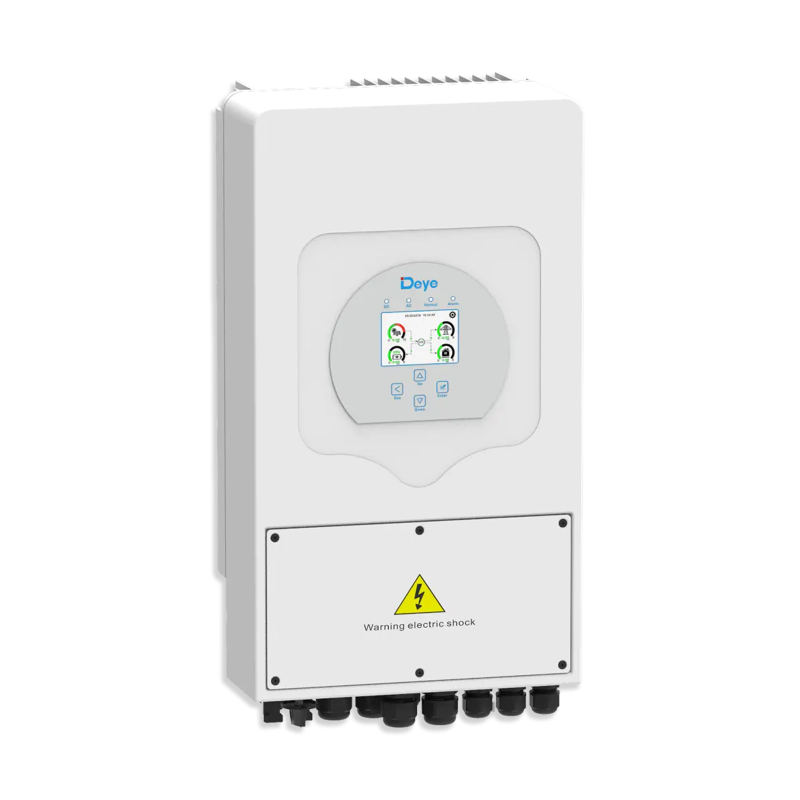

Hybrid Inverter Deye Single-Phase 8 kW – SUN-8K-SG05-LP1-EU

Deye SUN-8K-SG05LP1-EU single-phase hybrid inverter

The Deye SUN-8K-SG05LP1-EU: 8 kW for large residential installations

The Deye SUN-8K-SG05LP1-EU is the 8,000 W / 48V single-phase hybrid inverter from the SG05LP1 range, the most powerful in Deye’s single-phase series. It is designed for homes of 150 to 300 m², properties with a swimming pool or heat pump, and small businesses wishing to maximise their solar self-consumption with storage. With 16 kWp of connectable panels, a battery charging current of 190A and an off-grid peak power of 16 kW for 10 seconds, it is the most comprehensive inverter in the range for an ambitious installation.

What this inverter actually does

• It converts the energy from your solar panels into 230V AC electricity with a maximum efficiency of 97.6% and a European efficiency rating of 96.5%
• It stores surplus energy in a 48V lithium or lead-acid battery for use in the evening, at night or during a grid outage
• It automatically switches to the battery in the event of a grid outage, with a peak power of 16 kW for 10 seconds to start up all your appliances without delay
• It feeds surplus energy back into the grid if your contract allows

With 20 to 30 solar panels (10 to 16 kWp) and a 10 to 30 kWh battery, a large house can achieve 70 to 85% self-consumption, representing an estimated saving of between €1,200 and €2,000 per year depending on your consumption profile.

16 kWp of connectable PV: up to 30 panels across 2 MPPT

The SUN-8K-SG05LP1-EU features 2 independent MPPT trackers with 4 physical inputs (strings) — 2 strings per MPPT — allowing for the management of up to 4 different roof orientations:

• MPPT voltage range: 150 to 425 V, max. voltage 500 V
• Up to 16,000 Wp of connectable panels
• Typical configuration: 4 strings of 4 to 8 x 400–500 Wp panels
• Ideal for large L-shaped roofs, multiple roofs or installations combining south/east/west orientations

190A charging current: the battery charges as quickly as possible

With a maximum charge and discharge current of 190A, the SUN-8K-SG05LP1-EU is capable of charging a 48V 9.6 kWh battery in under an hour when solar production is high. This is one of the highest charge currents in its class, ensuring:

• A fully charged battery before nightfall, even in summer when there are few hours of optimal sunshine
• Fast charging from the grid during off-peak hours if you have a dual-rate tariff
• Rapid discharge to cover consumption peaks (heat pump, water heater, EV charger)

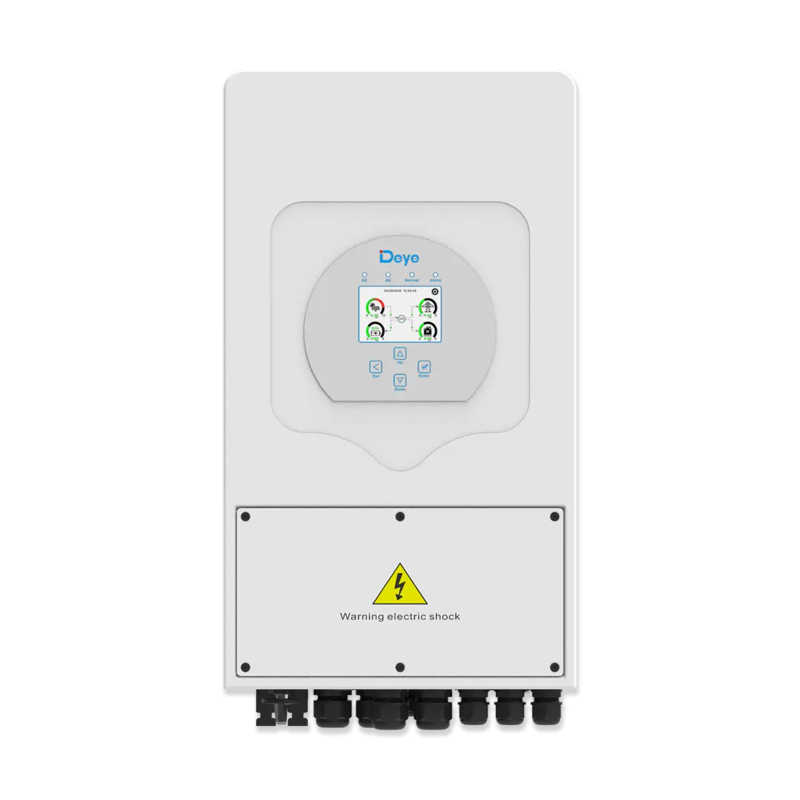

Main screen

The touchscreen LCD display provides all essential information about the inverter in real time.

1 • Central icon indicating normal operation or any errors.

2 • Display of the time and system status.

3 • Access to settings: system configuration, battery, grid and generator.

4 • Information on solar power, the grid, the battery and energy flows, with a clear display of power levels.

Remote shutdown function

The smart monitoring platform enables immediate remote shutdown, firmware updates and simplified maintenance for your solar installation.

Compatible battery: all 48V lithium or lead-acid batteries

The SUN-8K-SG05LP1-EU is one of the most open hybrid inverters on the market in terms of battery compatibility:

The lithium charging strategy is self-adaptive to the BMS: the inverter automatically reads the battery parameters and adjusts the charge without manual configuration.

Demonstration videos

Operation with Pylontech batteries

Find out how to connect and manage your Deye inverter with Pylontech lithium-ion batteries for maximum runtime and optimal energy management.

Inverter installation

Follow the comprehensive guide to correctly install your Deye SUN-8K-SG inverter and optimise your solar power generation.

Advanced features

• Peak shaving function: Reduce your consumption during peak demand periods and optimise your energy costs.
• Priority feed-in mode: Learn the best way to sell solar energy to maximise your revenue.
• Configuration with Pylontech battery: Guide to connecting and configuring your inverter with a lithium-ion battery.
• Time-of-use function: Optimise your consumption according to time of day to reduce your costs.
• Smart charging: Maximise the efficiency of your solar installation.
• Battery-free mode: Discover how to use the inverter without a battery for a simple installation.
• Parallel function: Connect multiple Deye inverters to increase total capacity.
• Charging with a diesel generator: Solution for areas without a constant mains supply.

Technical data

Battery compatibility

Lead-acid and lithium-ion batteries, with integrated BMS support and 48V battery voltage.

Energy efficiency

Maximum efficiency 97.6%, European efficiency 96.5%, and MPPT >99%, for optimal energy savings.

Rated power

8 kW nominal with double-power peak capacity for 10 seconds.

Advanced protection

Protection against DC reverse polarity, AC overcurrent and overvoltage, overheating and earth fault.

Operating range

Temperature -40°C to +60°C, altitude up to 2000 m, noise level <30 dB.

Monitoring and communication

Interfaces: GPRS, Wi-Fi, Bluetooth, 4G, LAN, RS485, RS232, CAN for accurate monitoring and flexible integration.

How much can you save?

With a typical installation of 6 to 8 solar panels (6 kWp) and a 10 kWh battery, the Deye SUN-8K enables 60 to 80% self-consumption depending on your consumption profile. In Belgium and France, this represents an estimated saving of between €800 and €1,400 per year on your electricity bill, depending on local tariffs and your usage habits.

Use our simulator to get a personalised estimate in 2 minutes.

Advanced features to optimise your installation

• Peak shaving: reduces your consumption peaks to avoid additional tariff charges
• Time of Use: schedules charging/discharging according to off-peak and peak hours
• Battery-free mode: operates as a pure grid-tied inverter if you do not yet have a battery
• Parallel function: connect multiple Deye SUN-8K units to increase total power
• Generator connection: ensures continuity in areas without a stable grid

Physical specifications

Dimensions

330 mm × 580 mm × 232 mm, compact and easy to install.

Weight

25 kg, easy to handle.

Cooling

Intelligent air cooling for efficient thermal management.

Protection rating

IP65, suitable for a variety of indoor and outdoor installations.

Warranty and support

Warranty

5 years to ensure reliability and peace of mind.
