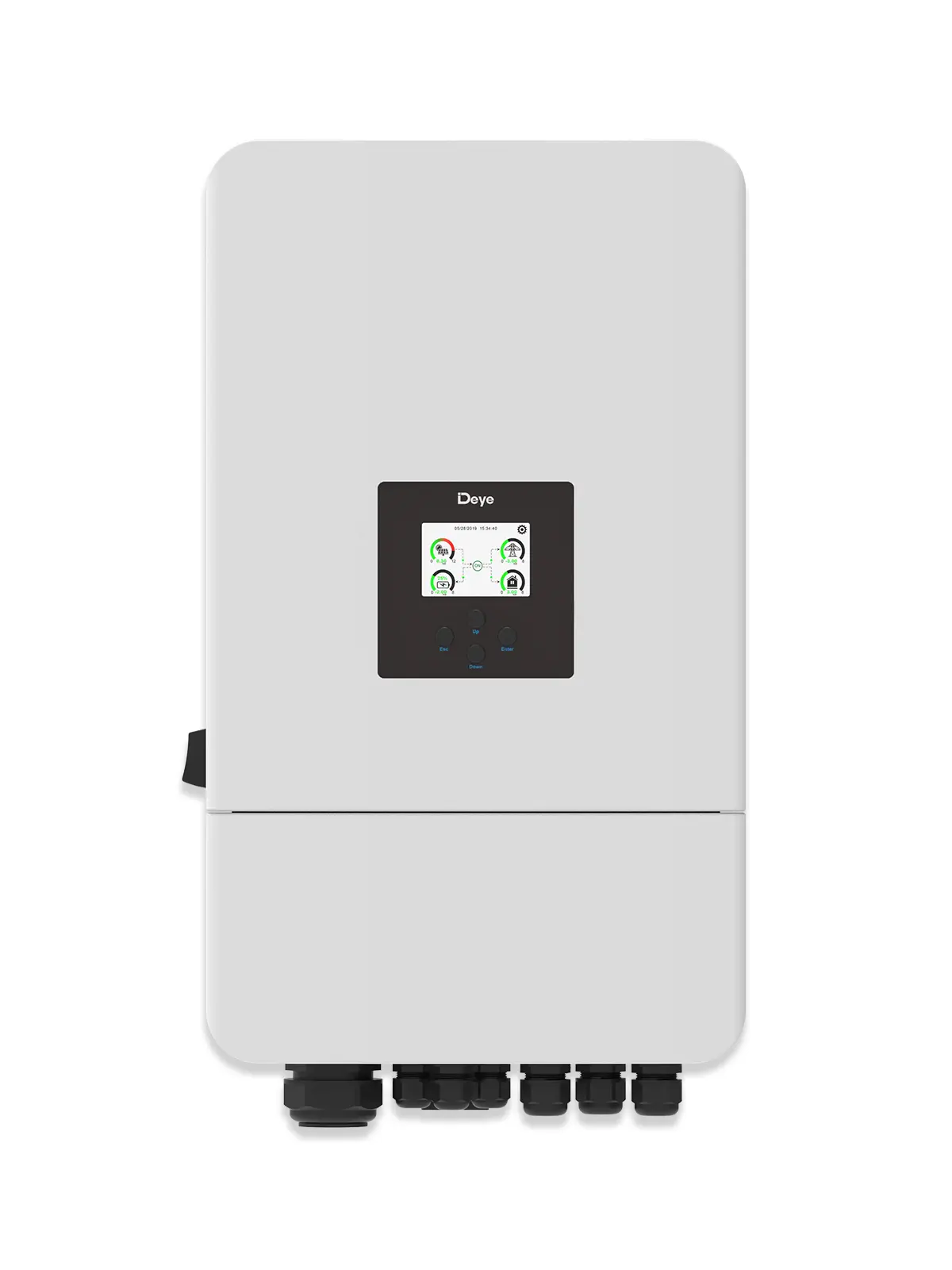

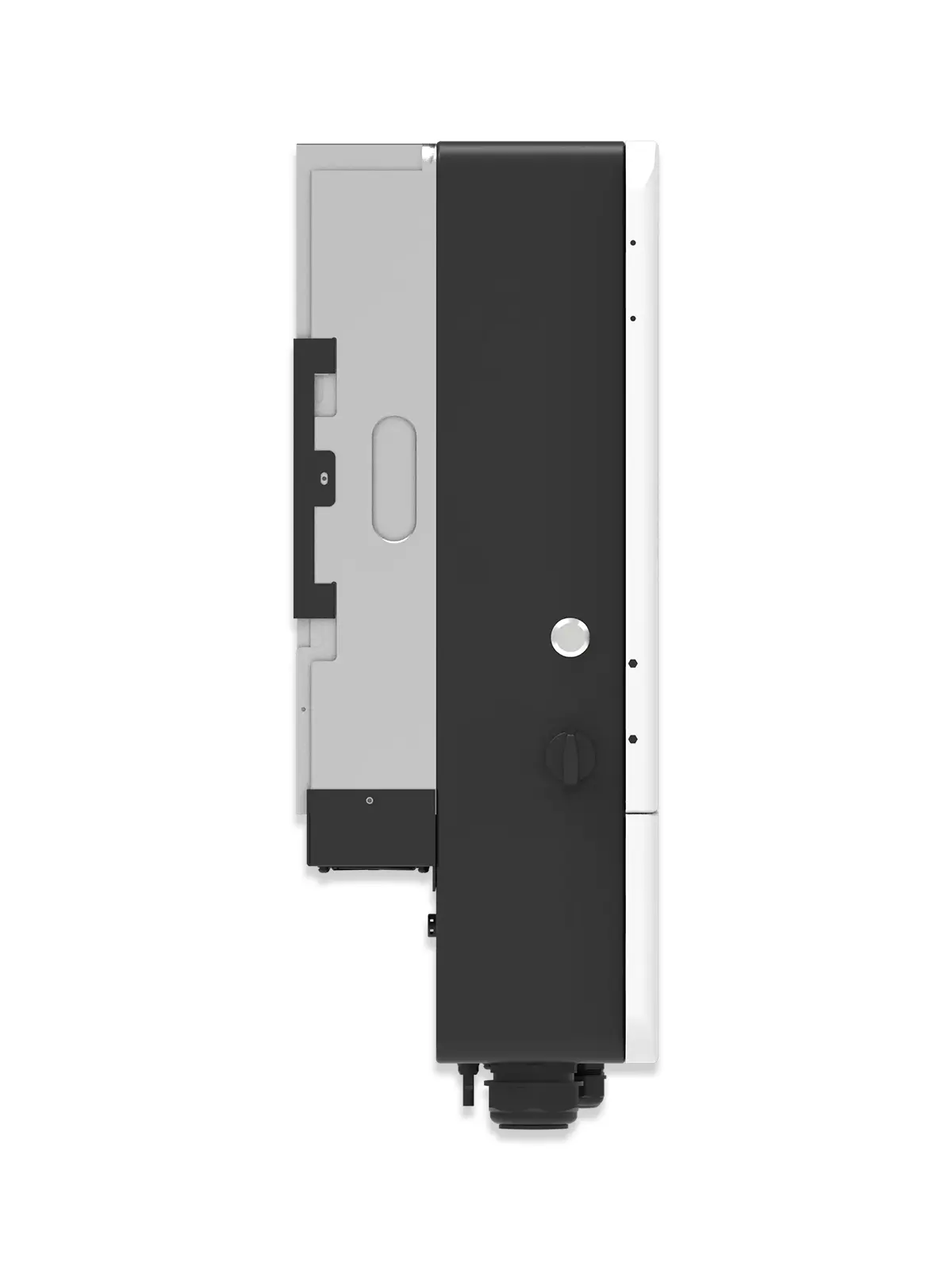

Deye SUN-8K-SG05LP3-EU-SM2 Hybrid Inverter

Do you dream of an energy-independent home? This solar inverter is the ideal solution for optimising your solar energy production and reducing your reliance on the mains grid. Thanks to its exceptional performance and versatility, it adapts to all your needs.

Cutting-edge technology at the service of your energy

This solar inverter, the true heart of your photovoltaic system, is designed to convert the energy produced by your solar panels into electricity for use in your home. Thanks to its advanced technical features, it guarantees optimal efficiency and rock-solid reliability.

• Energy versatility: Compatible with lead-acid and low-voltage lithium-ion batteries (40–60V).
• Maximum power: With a maximum PV input power of 12,000W and a three-phase AC output power of 8,000W, it meets the demands of high-performance installations.
• Optimal efficiency: Maximum efficiency of 97.6% and MPPT efficiency exceeding 99%.
• Installation flexibility: Suitable for indoor or outdoor installation thanks to its IP65 rating.
• Unfailing reliability: Designed to operate in extreme conditions, it offers a long service life.

The benefits for you

• Energy self-sufficiency: Generate your own electricity and use it independently.
• Energy savings: Significantly reduce your electricity bill and invest in your future.
• Environmentally friendly: Reduce your carbon footprint and contribute to a more sustainable future.
• Comfort and peace of mind: Enjoy a stable and reliable power supply, even during power cuts.

Key technical specifications

• Battery: Lead-acid or lithium-ion (40–60V)
• Charge/discharge current: 240A
• PV input power: Up to 12,000W
• PV input voltage: 800V maximum
• AC output power: 8000W three-phase

Main Screen

The LCD screen is touch-sensitive and displays general information about the inverter.

1 • The icon in the centre of the home screen indicates that the system is operating normally. If it displays "comm./F01~F64", this means that the inverter has communication errors or other faults. The error message will appear below this icon (errors F01-F64; details of the errors can be viewed in the System Alarms menu).

2 • The time is displayed at the top of the screen.

3 • System configuration icon. Press this button to access the system configuration screen, which includes basic configuration, battery configuration, grid configuration, system operating mode, generator port usage, advanced functions and Li-Ion battery information.

4 • The main screen displays information regarding solar, grid, load and battery. It also indicates the direction of energy flow using arrows. When power approaches a high level, the colour of the panels changes from green to red, allowing system information to be clearly viewed on the main screen.

- PV power and charging power always remain positive.

- A negative grid power reading indicates power being sold to the grid; a positive reading indicates power being drawn from the grid.

- A negative battery power reading indicates charging; a positive reading indicates discharging.

Remote shutdown function

Smart monitoring platform

Thanks to the smart monitoring platform, the entire Deye series of inverters supports immediate remote shutdown in the event of a fault. Remote parameter adjustment and firmware updates facilitate the operation and maintenance of photovoltaic installations.

Technical Data

• Battery Compatibility and Input

Compatible with lead-acid and lithium-ion batteries, adaptable to battery management systems (BMS). Low-voltage range (40–60V) for SG05-compatible batteries.

• High Efficiency

Maximum efficiency of 97.6%, European efficiency of 97% and MPPT efficiency exceeding 99%, ensuring maximum energy conversion and minimal losses.

• Rated Power

8kW three-phase model (SUN-8K-SG05LP3-EU-SM2), PV power up to 12kW and peaks reaching double that for 10 seconds.

• Advanced Protection Mechanisms

Includes comprehensive protection: DC reverse polarity, AC overcurrent, AC overvoltage, overheating, earth fault, etc.

• Compliance with Standards

Certified to IEEE 1547.1, EN 62109-1/2 and UL 1741.

• Operating Range

Operates from -40°C to +60°C, altitude up to 3000m, noise level < 30dB.

• Monitoring and Communication

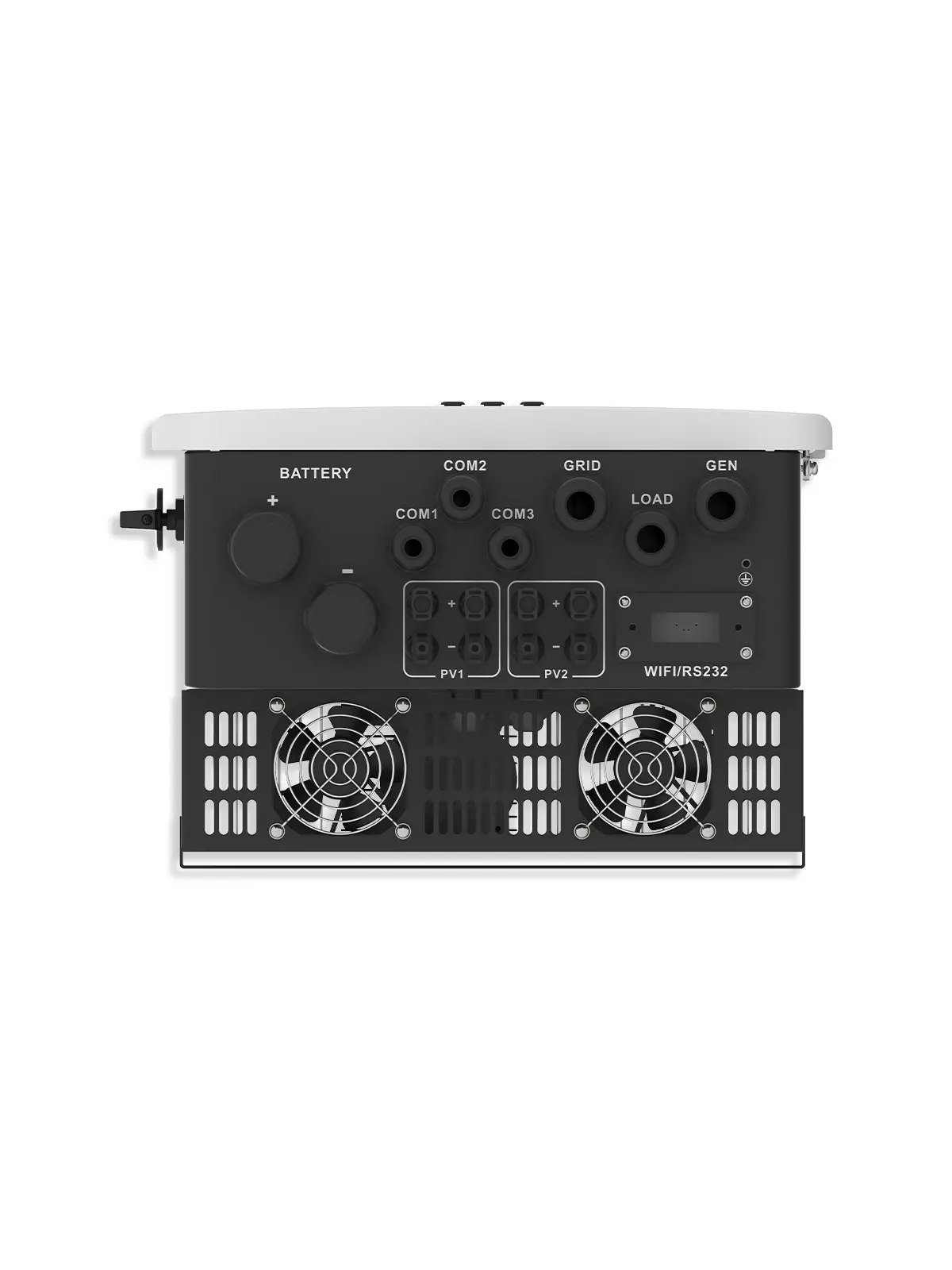

Supports GPRS, Wi-Fi, Bluetooth, 4G and LAN. RS485, RS232 and CAN interfaces.

Physical Specifications

• Dimensions

Measures 386 mm × 660 mm × 250 mm.

• Weight

Weighs 35.2 kg.

• Cooling

Intelligent air cooling.

• Protection rating

IP65, suitable for indoor and outdoor installations.

Operation of the inverter with Pylontech batteries

Discover the advanced features of Deye hybrid inverters

Optimise your solar installation and manage your energy consumption more efficiently with videos dedicated to Deye hybrid inverters. Discover the best features and applications of this innovative technology. Simply click on the title to access the corresponding video.

1. Peak shavingfunction of the Deye hybrid inverter

Learn how to use the Peak Shaving function to reduce your energy consumption during peak demand periods and thus optimise your energy costs.

2.Priority Feed-in Mode for the Deye hybrid inverter( )

Discover the Deye hybrid inverter’s first sales mode – a must-watch video to understand how to present and sell this product.

3. Configuration withPylontech lithium-ion battery

Follow our guide to connect and configure a Deye inverter with a Pylontech lithium-ion battery to maximise the efficiency of your installation.

4. Time of Usefunction on the Deye hybrid inverter

Optimise your energy consumption according to the time of day with the Time of Use function, to better manage your energy costs.

5. Using the Deye hybrid inverter’s smart charging

Maximise the efficiency of your system with the smart charging function, which enables optimal energy management.

6. Using battery-free mode with the Deye hybrid inverter

Learn how to operate your Deye hybrid inverter in battery-free mode for a simpler and more economical setup.

7. Parallelfunction of the Deye hybrid inverter

Find out how to connect multiple Deye inverters in parallel to increase your system’s capacity according to your energy needs.

8. Charging the battery with a diesel generator

An ideal solution for areas without constant access to the mains grid. Learn how to use a diesel generator to charge your batteries with the Deye hybrid inverter.

Optimise your energy consumption today!

Choose the video that interests you and discover how to make the most of the advanced features of Deye hybrid inverters for optimal energy management and long-term savings.

Warranty and Support

Warranty

5-year warranty, offering peace of mind and assurance of reliability.

The Deye SUN-8K-SG05LP3-EU-SM2 hybrid inverter is a powerful and flexible solution for optimised energy management. With high efficiency, comprehensive protection and advanced control features, it is perfect for your energy storage needs and solar applications. Its intelligent design and robust features make it an excellent choice for modern energy requirements.
