Solar Kit Off-Grid 18.0 kWp – Mono 20 kW – Battery 4.80 kWh – Victron
Kit-Victron-40P-US5000
0768563822544
High-performance solar kit with storage - for optimum energy autonomy

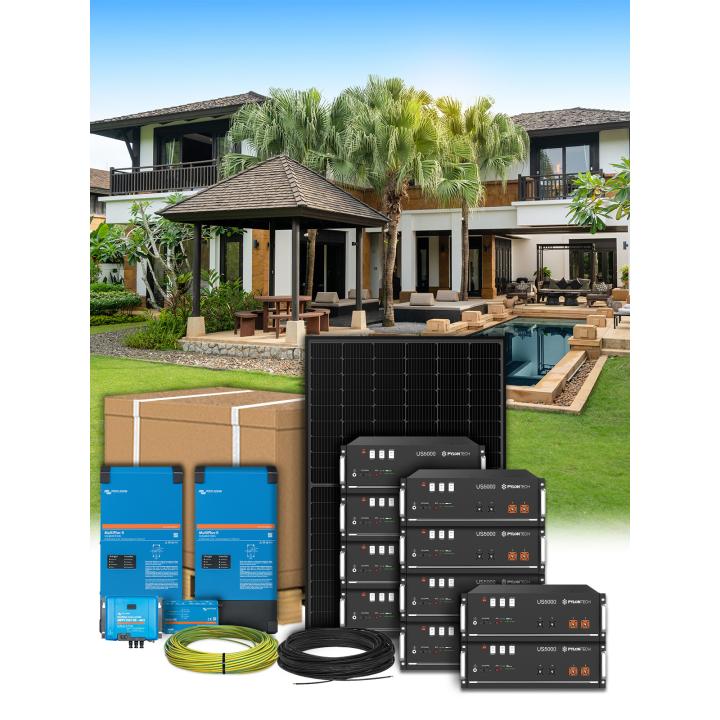

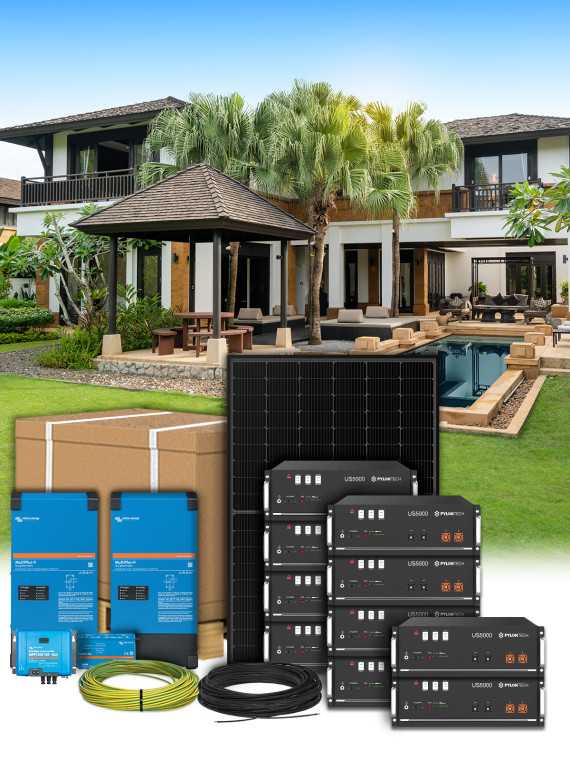

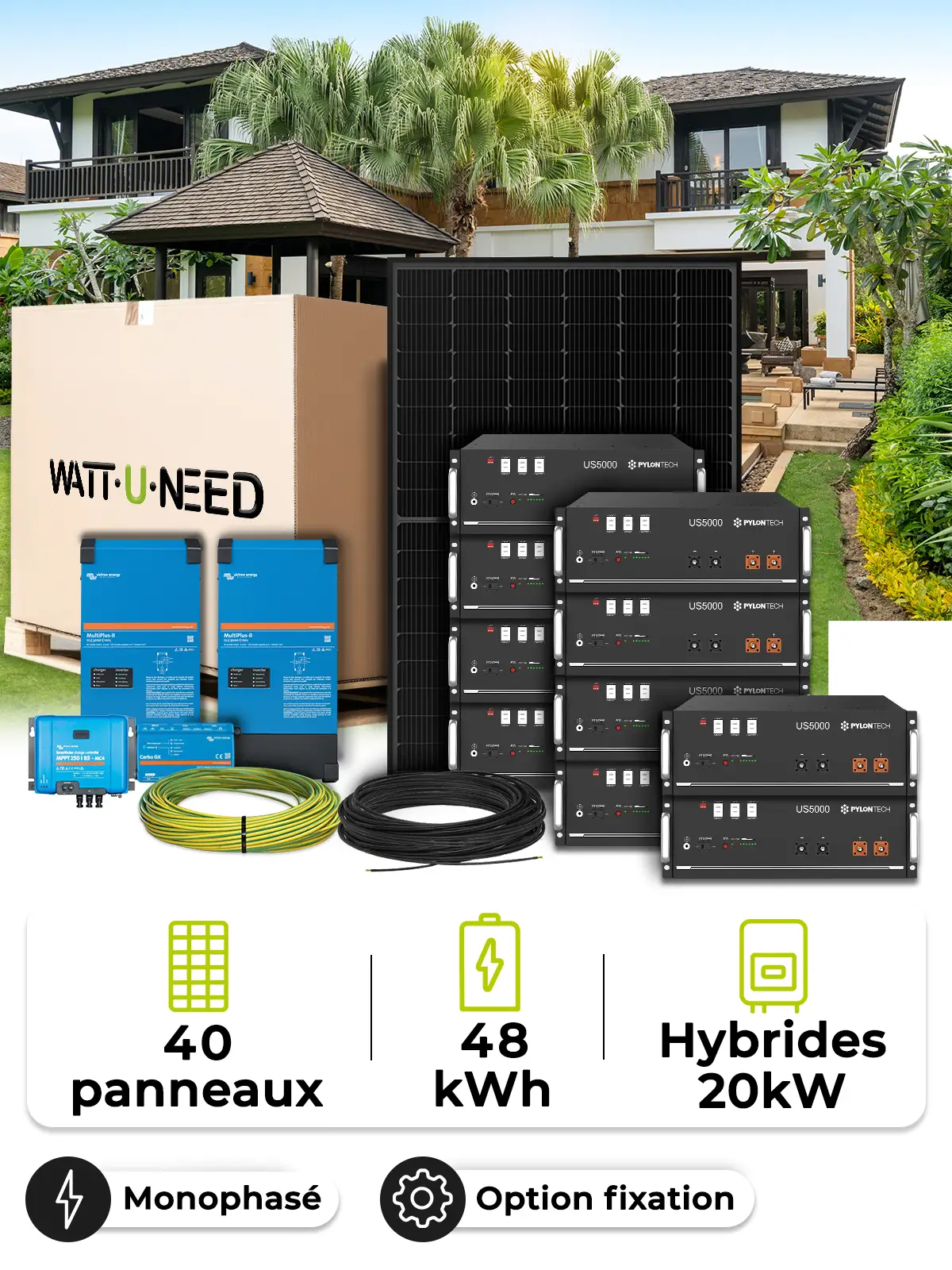

This self-consumption photovoltaic kit includes 40 panels, two Victron MultiPlus-II 48V inverters, 10 Pylontech US5000 lithium batteries (i.e. 48 kWh) and 4 SmartSolar MPPT charge controllers. Thanks to its storage system and top-of-the-range Victron components, it allows you to consume your solar energy during the day, store the surplus and use it at night or when demand is high.
Victron MultiPlus-II inverters do not allow grid feeding, which avoids the Consuel procedure and simplifies installation. This kit is therefore ideal for users who want a complete and autonomous self-consumption solution, with no injection into the public grid.
Key benefits :
- Estimated annual production: 19,800 kWh (calculated for central France)
- Potential savings: €5,940 per year (based on €0.30/kWh)
- Complete system with touch-sensitive monitoring (Victron GX Touch) and centralised management via Cerbo GX
- High-performance, scalable lithium storage (10 Pylontech US5000 batteries)
- Can be customised to suit your needs (addition of panels, batteries, etc.)
Opt for energy independence! This turnkey kit is ideal for those who want to produce, store and consume their own electricity. Contact our experts for a personalised study tailored to your home.
This kit includes
- 40XLeapton N-Type 450Wp TOPCon bifacial solar panel
- 2XVictron MultiPlus-II 48V 8000-15000 VA
- 4XMPPT charge controller Victron SmartSolar 250/60 to 250/100 with screws or MC4 type
- 1XVictron Cerbo GX - Communication and monitoring centre
- 1XCable VE.Can to Bus-CAN from BMS / 5 m
- 2XUTP RJ45 cable - Victron
- 1XWall mounting system for Victron Energy GX Touch 50 and 70 monitoring screens
- 1XVictron Energy GX Touch 50 and 70 high-resolution touchscreen control panel for Cerbo GX
- 8XSolar cable 2X6mm² with type MC4 (sold by the meter)
- 2X6mm² earth cable (sold by the meter)
- 40XRayvolt grounding clip
- 4XDisjoncteur Schneider Resi9 XE - 2P - 50A - Courbe C - 3kA - 230/400V - Réf. R9EFC250
- 1XLegrand waterproof enclosure, 12 modules, IP65 - IK09, DIN rail, transparent door – LEG601961
- 1XHAGER 3P+N 100A 300mA residual current device
- 4XZJBENY DC double lightning arrester 2 inputs and 1 output 1000V 32A + 2m 10² cable
- 4XVE.Direct Victron cable
- 10XBatterie lithium LiFePO4 4,8 kWh - Pylontech US5000 48 V 100 Ah – communication CAN/RS485
- 4XPylontech battery connection cable
- 1XBusbar 600A distribution box with fuses
- 2X19'' 32U rack cabinet for pylontech black door and tempered glass
- 2XBattery cable 2x50mm² - 2m
- 4XBattery cable 2x25mm2 - 2m
🔋
Cette batterie est-elle faite pour vous ?
Vérifiez que
4.8 kWh
correspond à vos besoins
Étude personnalisée
Faites valider la composition de ce kit
Nos conseillers reprennent les panneaux, l'onduleur, la batterie et les accessoires sélectionnés pour préparer un devis adapté à votre projet.
Select products from the sections below
MPPT charge controller Victron SmartSolar 250/60 to 250/100 with screws or MC4 type
Price per unit
€791.34 (Tax incl.)
€791.34 (Tax incl.)
Charge controller Victron SmartSolar Models
Wall mounting system for Victron Energy GX Touch 50 and 70 monitoring screens
Price per unit
€38.72 (Tax incl.)
€38.72 (Tax incl.)
Monitoring model
Victron Energy GX Touch 50 and 70 high-resolution touchscreen control panel for Cerbo GX
Price per unit
€418.66 (Tax incl.)
€418.66 (Tax incl.)
Monitoring model
Solar cable 2X6mm² with type MC4 (sold by the meter)
Price per unit
€157.30 (Tax incl.)
€157.30 (Tax incl.)
Cable length
Disjoncteur Schneider Resi9 XE - 2P - 50A - Courbe C - 3kA - 230/400V - Réf. R9EFC250
Price per unit
€50.60 (Tax incl.)
€50.60 (Tax incl.)
Legrand waterproof enclosure, 12 modules, IP65 - IK09, DIN rail, transparent door – LEG601961
Price per unit
€136.00 (Tax incl.)
€136.00 (Tax incl.)
ZJBENY DC double lightning arrester 2 inputs and 1 output 1000V 32A + 2m 10² cable
Price per unit
€249.35 (Tax incl.)
€249.35 (Tax incl.)
Batterie lithium LiFePO4 4,8 kWh - Pylontech US5000 48 V 100 Ah – communication CAN/RS485
Price per unit
€1,110.80 (Tax incl.)
€1,110.80 (Tax incl.)
19'' 32U rack cabinet for pylontech black door and tempered glass
Price per unit
€1,028.50 (Tax incl.)
€1,028.50 (Tax incl.)
Your needs, our selection
Store your surplus solar power for later use; become grid-independent.
This kit can power an off-grid location or a small house connected to the grid.
It is capable of operating in alternation with the public grid.
This semi-autonomous configuration allows you to gradually become independent of the public grid.
The basic kit comprises 40 solar panels, 1 Victron MultiPlus-II 48/10000/140-100, 1 Victron SmartSolar 250/100 MPPT charge controller, 10 Pylontech US5000 batteries, a Cerbo-GX, solar cables to connect the panels to the inverter, and the panel mounting system is available as an option. (The mounting system, as well as the cabling and protective components, can be modified to suit your requirements).
All our kits are customisable. In the options, you can click on the product to choose a different model or change the quantities to tailor the kit to your needs.
You can also view the details of the selected products directly below the price.
 |
Important notice for our customers in Belgium:An environmental levy of €114.73 excluding VAT must be applied to the purchase of each Pylontech US5000 lithium battery. Please add the corresponding product when purchasing this lithium battery. More information at the bottom of the page. More information at the bottom of the page. |
Solar panels
Selected from the latest technologies, this panel offers unrivalled efficiency.
See its product sheet in our panels section to find out more.
And don’t forget, we offer you the flexibility to choose the panel model that suits your preferences.
We invite you to useour solar production simulatorto determine exactly what your solar output will be.
Different types of cells
|
|
N-Type |
HJT |
|
|
Efficiency |
Approximately 19–22% | Approximately 20–23% | Approximately 21–24% |
|
Cost |
Moderate | High | Very high |
|
Temperature coefficient |
Approximately -0.3 to 0.4% per °C | Approximately -0.3% per °C | Approximately -0.2% per °C |
|
Annual degradation |
Approx. 0.5–0.7% | Approximately 0.4–0.5% | Less than 0.5% |
|
Durability |
Good | Very good | Excellent |

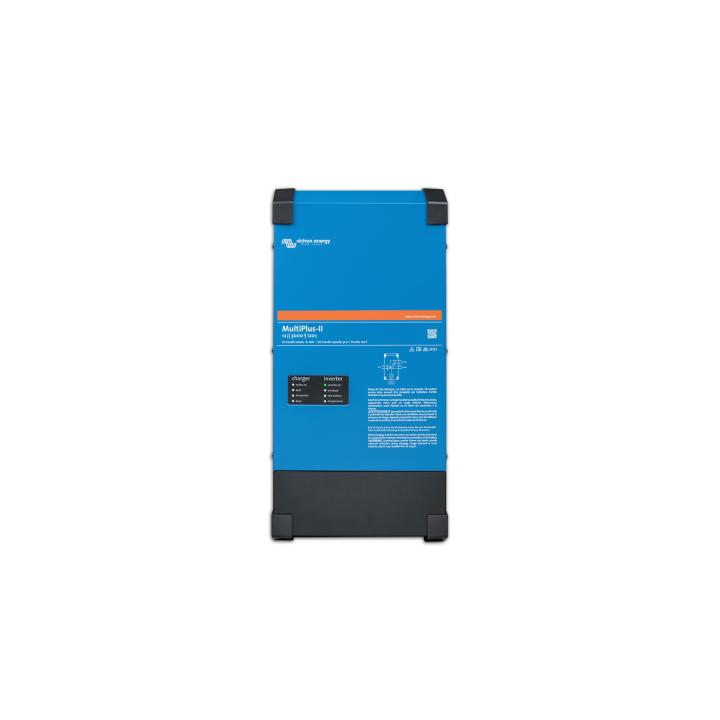

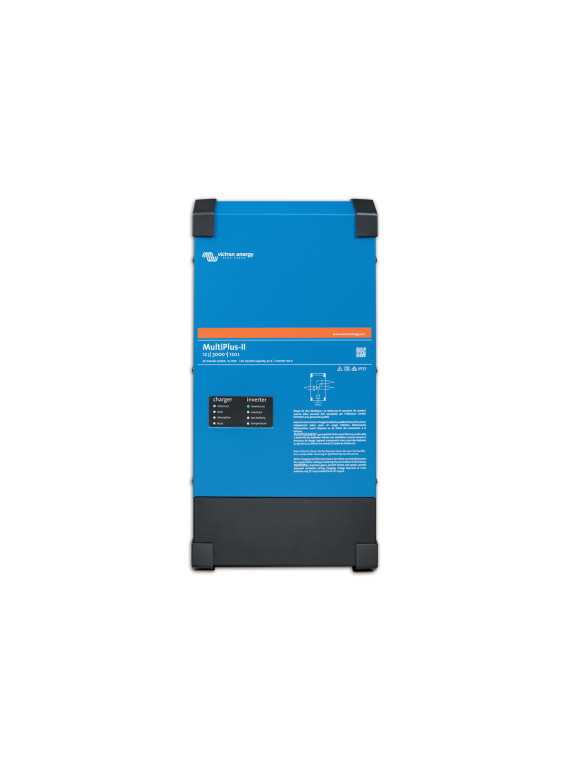

Victron MultiPlus-II 48V 5000 Inverter/ChargerThe Victron MultiPlus-II is a new-generation inverter/charger, designed to meet the needs of marine installations, vehicles and off-grid systems. It incorporates advanced PowerControl & PowerAssist technology, ensuring optimal energy management and preventing any overloading of the grid or generator. A powerful and intelligent inverter
Integrated energy storage system (ESS)
Advanced connectivity & monitoring
|
|
Why Choose Victron Energy

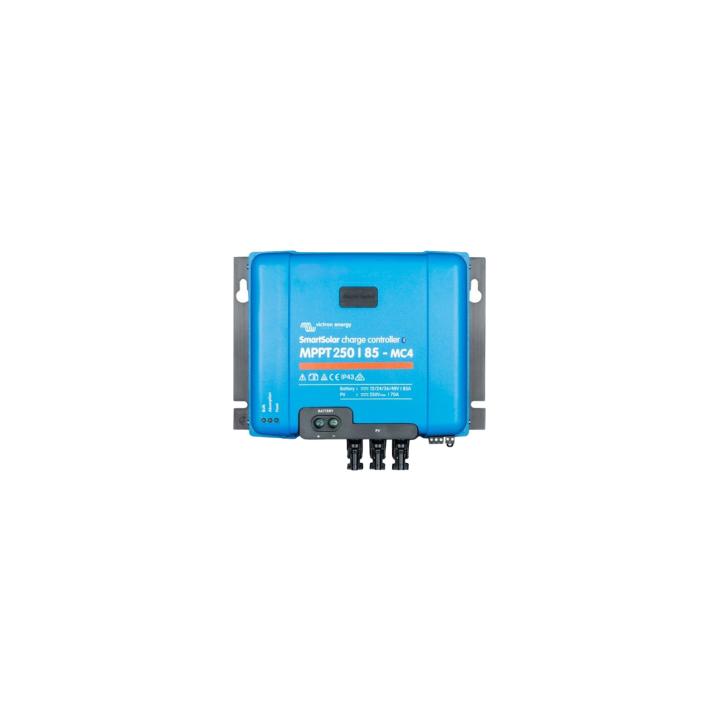

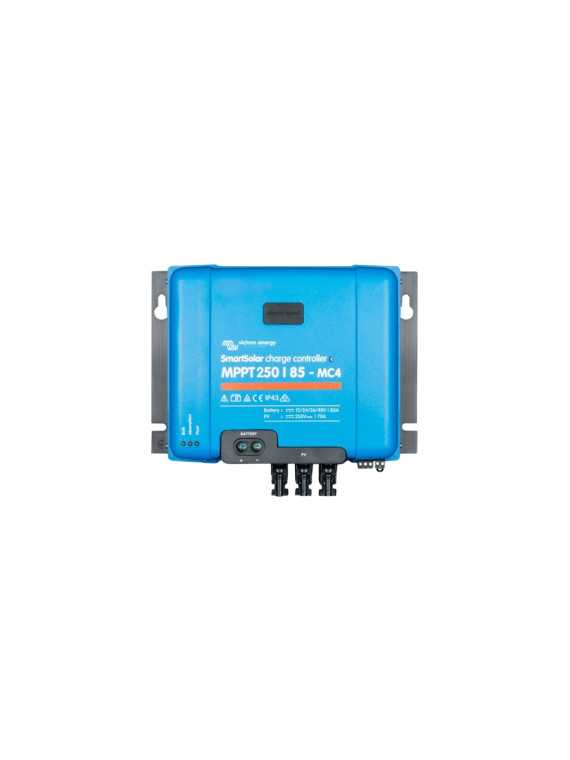

Victron SmartSolar MPPT 12/24/48 - 250/100 with Tr
The Victron SmartSolar 250/100 MPPT charge controller is a high-performance solar regulator that intelligently optimises the charging of your batteries. Thanks to its ultra-fast Maximum Power Point Tracking (MPPT), it improves energy recovery, particularly in variable conditions such as cloudy or partially shaded days. Robust, efficient and fully programmable, it also features built-in Bluetooth for easy management via a smartphone or tablet.
- Ultra-fast MPPT technology: 30% higher performance compared to a PWM controller, 10% higher than a conventional MPPT controller.
- High efficiency: Efficiency greater than 98%, fanless.
- Adaptive algorithm: Optimises charging even in partial shade.
- Built-in Bluetooth Smart: Configuration and monitoring without an external key.
- Comprehensive protection: Against overheating, reverse polarity, short circuits and overcurrent.
- Programmable charging algorithms: 8 built-in profiles + customisation options.
- VE.Direct connectivity: For connection to an LCD screen, Color Control or PC.
- Programmable relay and remote on/off function.
- Plug-in LCD display option available.

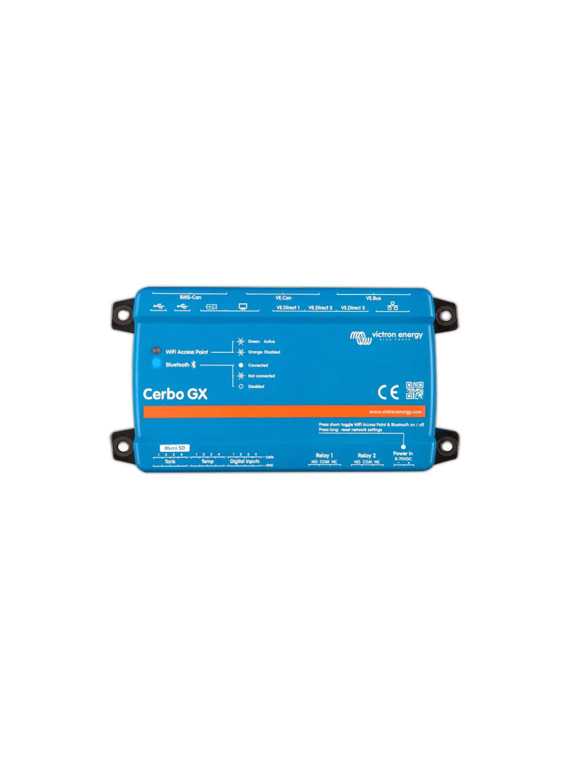

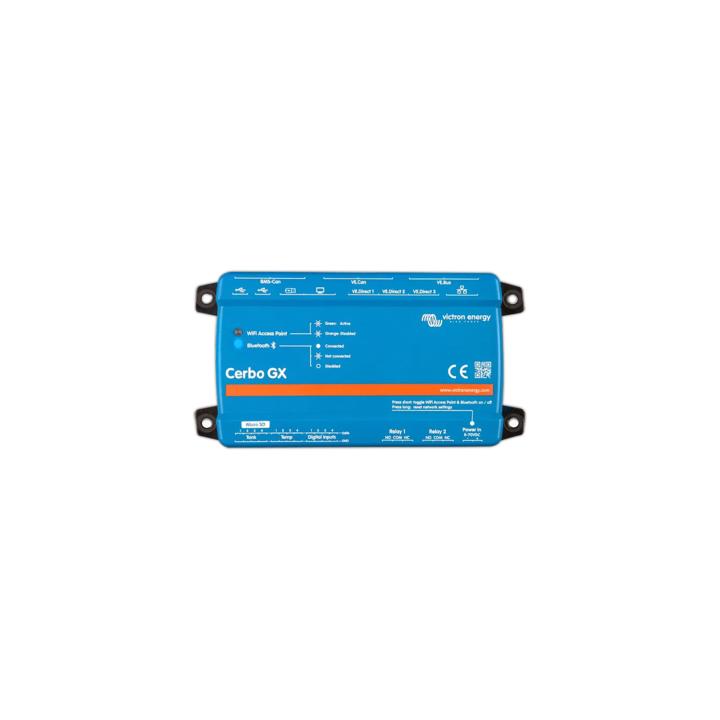

Cerbo GX Intelligent Control System
- Victron Cerbo GX for centralised monitoring
- Colour touchscreen and intuitive user interface
- VRM connectivity for remote monitoring
- Optimised energy flow management
Lithium batteries
Choose the battery that suits your needs:

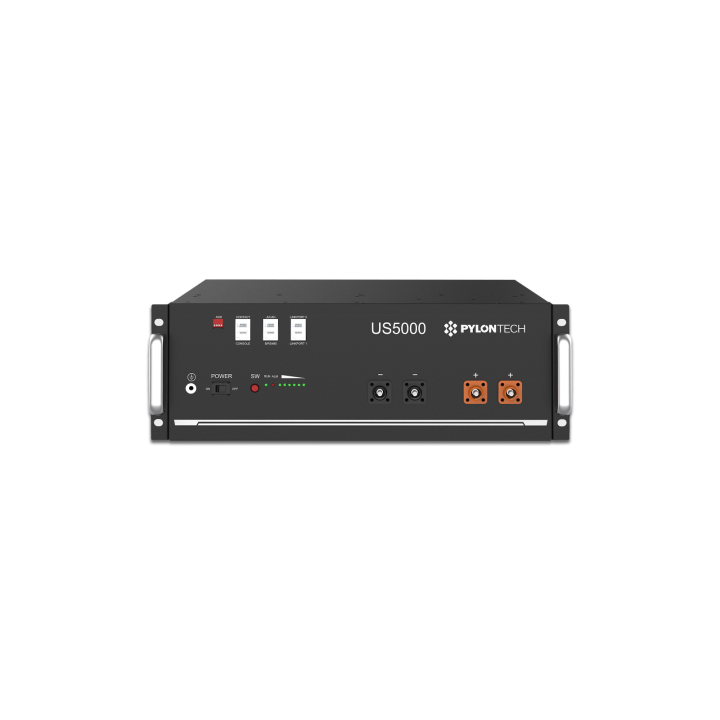

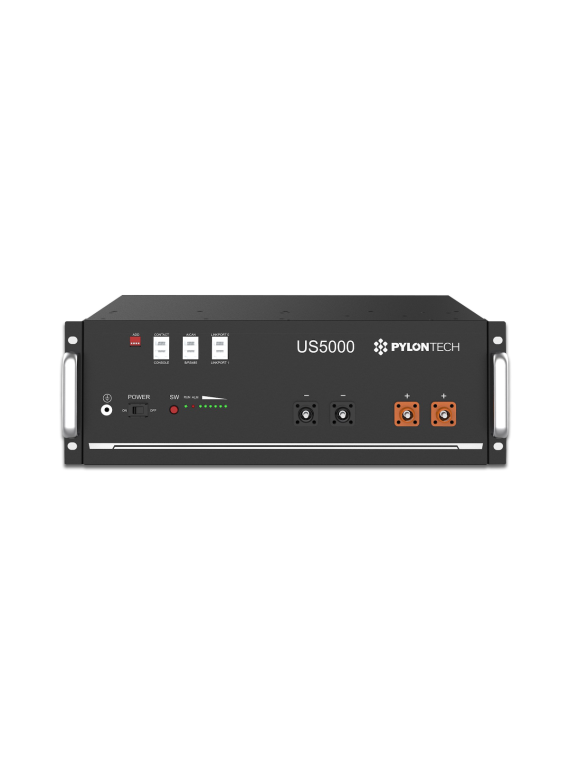

•Pylontech US5000:the “market standard / ESS ecosystem” choice The US5000 is a widely used standard in residential applications (rack/ESS format), with a claimed modularity of up to 16 units and CAN/RS485 communications for inverter integration. The page particularly highlights its reliability, modularity and lifespan of up to 6,000 cycles at 80% DOD. •Leapton EL‑A05:the “harsh conditions / outdoor” choice Its key differentiator is its IP65 rating and heating function, which allows it to remain operational (discharging) down to -20 °C, which is very useful if the battery is installed in an unheated room, garage, utility shed or outdoors. It also highlights a 1C current rating (100 A) ≈ 5.12 kW, which is useful for power surges. |
Comparison table
Specific Information for Belgian Customers - Bebat Tax
As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental levy.
An amount of€114.73 excluding VATmust be added for each battery purchased, as a direct contribution to Bebat, the organisation responsible for the management of batteries and accumulators in Belgium. This measure is in accordance with current Belgian environmental legislation.
Important:When purchasing a lithium battery, please add the corresponding product "Bebat Pylontech US5000 Environmental Levy" according to the number of batteries you are ordering. Otherwise, we will recalculate and invoice the amount after the purchase.
This tax applies only to Belgian customers.
Kit-Victron-40P-US5000
Data sheet
- Solar kit type
- Kit 230V AC avec batterie
- Kit output voltage
- 230V
- Type of need
- Off-grid
- Battery storage
- With storage
- Wind turbine
- Without
- Number of panels
- 40 panels
- Voltage
- 230V
- Battery
- Kit with battery
- Panel type
- Rigids
Specific References
- UPC
- 768563822544
- EAN13
- 0768563822544
Solar Kit Off-Grid 18.0 kWp – Mono 20 kW – Battery 4.80 kWh – Victron — Solar kit
Solar Kit Off-Grid 18.0 kWp – Mono 20 kW – Battery 4.80 kWh – Victron by Victron Energy is available in our Solar kit catalog.
Technical specifications:
- solar kit type: Kit 230V AC avec batterie
- kit output voltage: 230V
- type of need: Off-grid
- battery storage: With storage
- wind turbine: Without
- number of panels: 40 panels
- voltage: 230V
- battery: Kit with battery
- panel type: Rigids
Reference: Kit-Victron-40P-US5000.
