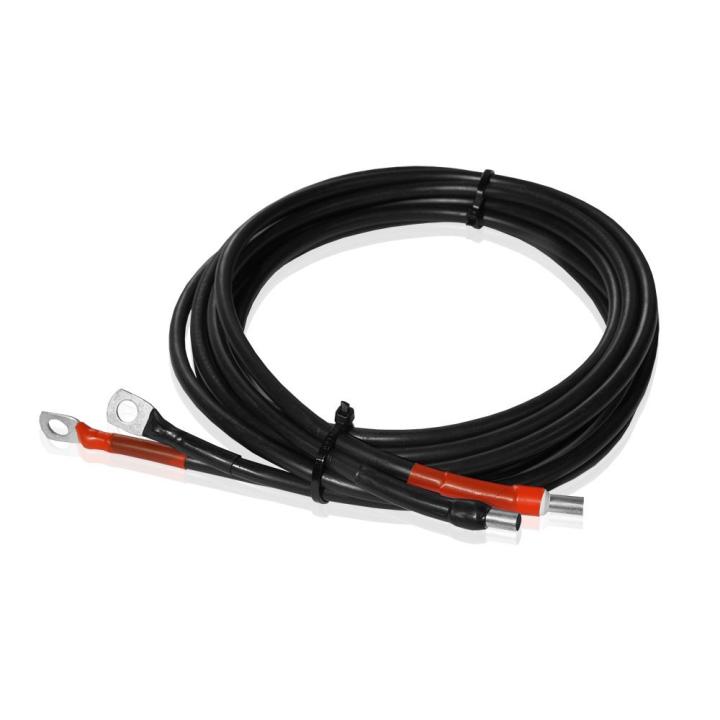

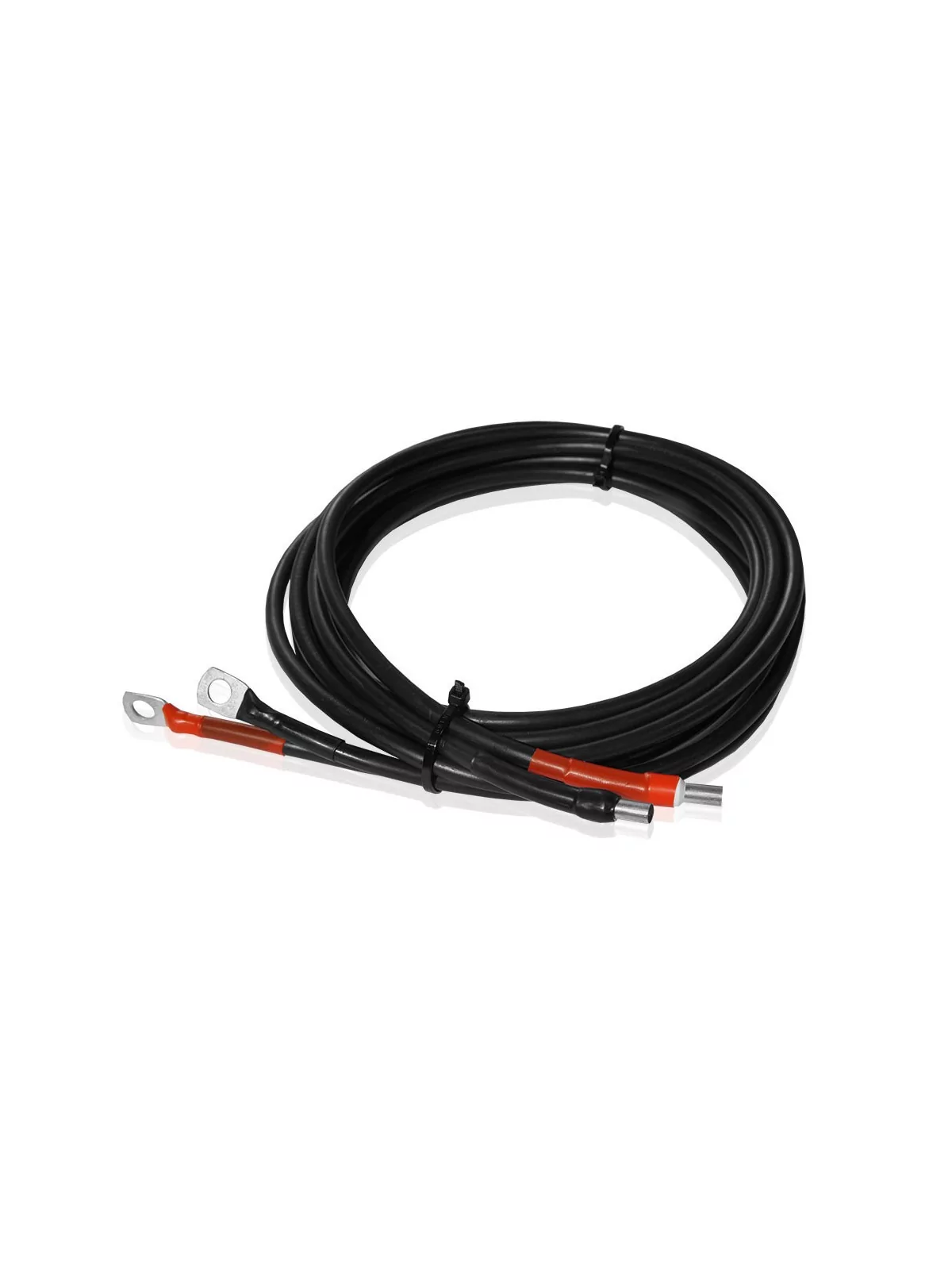

Battery cable 2x25mm2 - 2m
€66.31
Tax included
0146
0712971127708
The 2x25mm² dual battery cable, 2 metres in length, is designed to provide a reliable electrical connection between your battery and inverter or charge controller in a solar energy system.
Supplied as a dual cable, it combines both positive and negative conductors into a single, easy-to-install assembly.
📦 Disponible en kit complet
Solar Kit Self-Consumption 32.4 kWp – Mono 30 kW – OPzS... — €41,085.65
Dual Battery Cable 2x25mm² – 2 Metres
In any off-grid or self-consumption solar installation, the quality of the wiring between the battery bank and the system components plays a critical role in both safety and overall performance. This dual battery cable with a 2x25mm² cross-section and a length of 2 metres provides a practical and dependable solution for this purpose.
Cross-section suited for high current applications
A 25mm² cross-section per conductor is capable of handling the high currents typically encountered in solar storage systems. Using an undersized cable would result in resistive losses and potentially dangerous overheating. The 25mm² cross-section provides an appropriate safety margin for standard power installations.
Dual cable format: efficiency and organisation
The dual cable format combines both conductors — positive and negative — into a single assembly. This simplifies installation, reduces the risk of wiring errors, and promotes a cleaner cable routing within the enclosure or technical cabinet. Whether you are a professional installer or a DIY enthusiast, this format saves time and improves the overall quality of the installation.
2-metre length
The 2-metre length provides sufficient flexibility to position the battery at a reasonable distance from the inverter or charge controller, while keeping resistive losses to a minimum. This length is well suited to the most common configurations found in residential and light commercial solar installations.
Recommended applications
This cable is suitable for connections between:
- Battery and inverter-charger
- Battery and MPPT or PWM charge controller
- Battery and DC distribution board
It is compatible with 12V, 24V, and 48V systems depending on the associated equipment. Always refer to the manufacturer's specifications for the minimum required cable cross-section.
A component that matters
Battery cabling is often overlooked during system design. However, an undersized or poor-quality connection can cause voltage drops, overheating, and in the worst case, fire hazards. Selecting a cable with an adequate cross-section, such as this 2x25mm², directly contributes to the reliability and longevity of your solar installation.
| Specification | Value |
|---|---|
| Product type | Dual battery cable |
| Cross-section | 2x25mm² |
| Length | 2 metres |
| Brand | Wattuneed |
| Reference | 0146 |
0146
Data sheet
- Cables and connectors
- Double câble batterie
- Cable material
- Copper
- Cross-section (mm2)
- 25 mm2
Specific References
- UPC
- 712971127708
- EAN13
- 0712971127708
New
Battery cable 2x25mm2 - 2m — Cable and connectors
Battery cable 2x25mm2 - 2m by Wattuneed is available in our Cable and connectors catalog.
Technical specifications:
- cables and connectors: Double câble batterie
- cable material: Copper
- cross-section (mm2): 25 mm2
Product weight: 1.1 kg. Reference: 0146.
