    Self-consumption kit 72 solar panels 30kva
    Solar Panel JNLSOLAR
    Self-consumption kit 72 solar panels 30kva
    Self-consumption kit 72 solar panels 30kva
    Solar Panel JNLSOLAR
    Self-consumption kit 72 solar panels 30kva
    Self-consumption kit 72 solar panels 30kva

    Self-consumption kit 72 solar panels 30kva

    €19,814.16
    Tax included
    config-ac-72pan
    0712971137622
    100% secure payments

    This kit includes

    • 72XSunpro Power M10 430Wp Solar Panel SPDG430-N108M10
    • 2XWKS EVO Circle 16.8kVA 48V hybrid inverters + 3 communication kits
    • 2XSolar cable 1X4mm2 - 100m
    • 1X20X type MC4 connector male + female
    • 1XGround cable 6mm² - 100m
    • 20XRayvolt grounding clip
    • 40XFlexible installation cable black 450/750V -VOBS H07V-K ECA 25 mm²
    • 18XCable Shoe / Cable Lug Tinned Copper 25mm² X M8
    • 1XDC amperometric clamp
    • 1XCrimping pliers for type MC4 connectors
    • 12XSchneider mono 40A circuit breaker
    • 1XTetra 63A Schneider circuit breaker
    • 1XDifferential switch type A 2P 63A 300ma
    • 9XZJBENY DC double lightning arrester 2 inputs and 1 output 1000V 32A + 2m 10² cable
    • 2XWaterproof case legrand 24 modules
    • 6XBattery cable 2x95mm² - 2m
    • 1XPark of 120 kWh battery OPzS 48V
    • 6XFuse box for battery - Coffret avec fusible pour batterie -100A

    Select products from the sections below
    Panneaux
    info

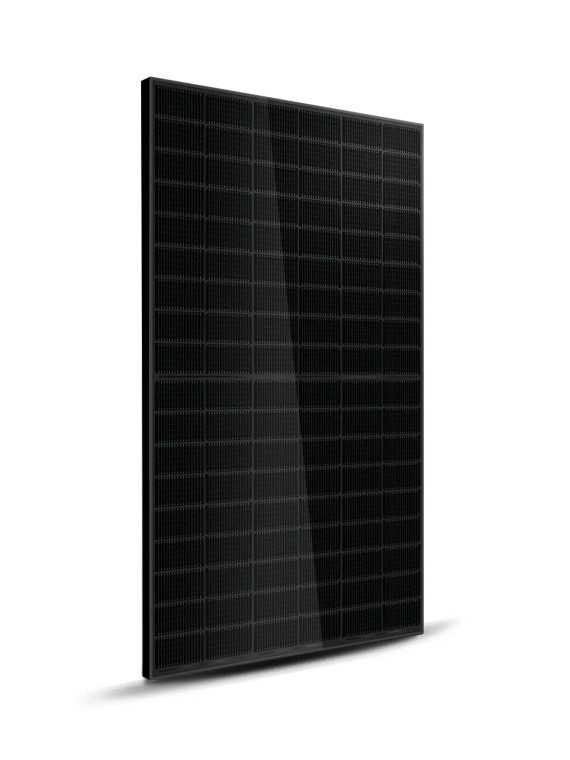

    JNL Solar Climax Solar Panel 400 Wp JLS108MFB

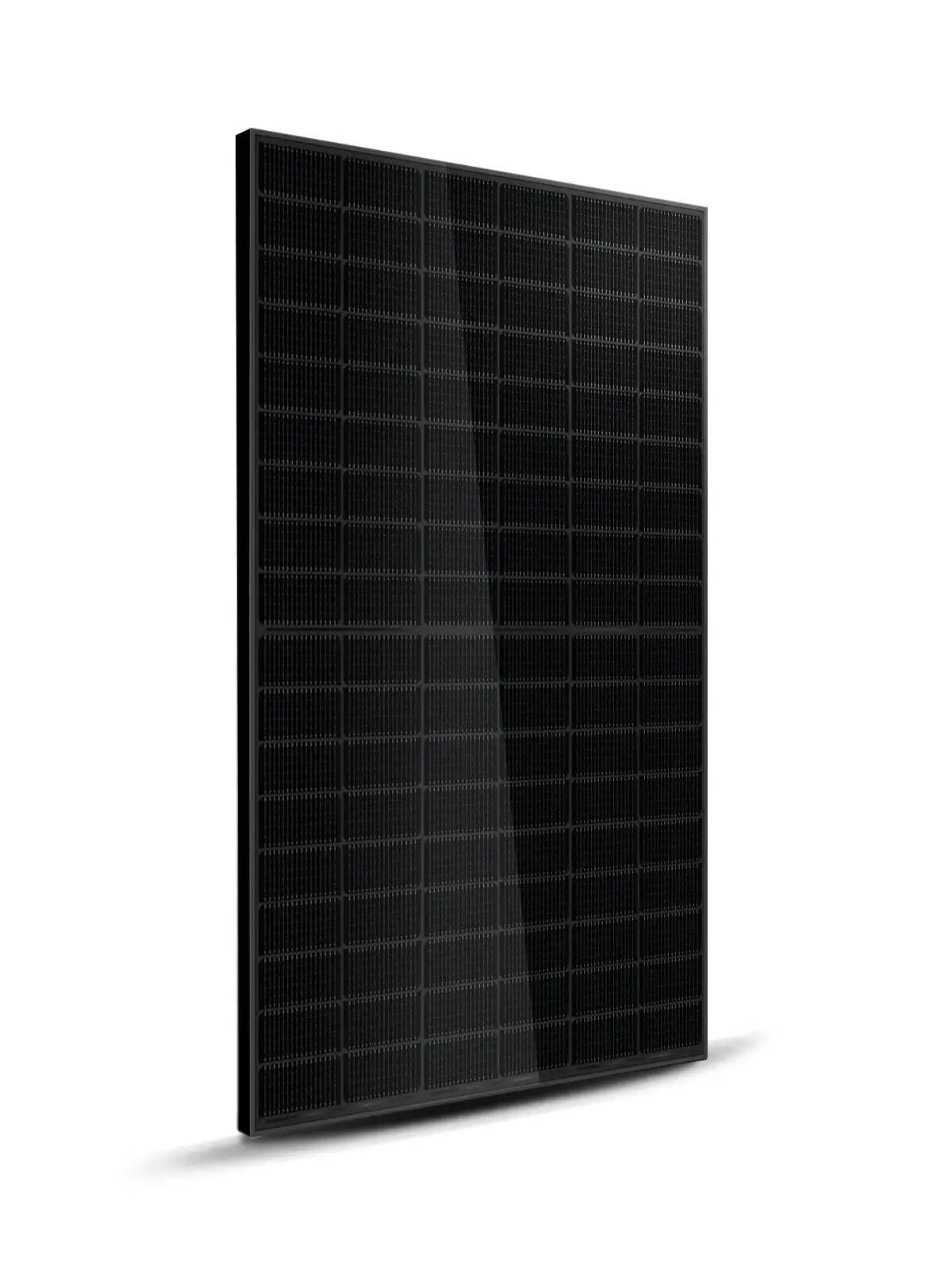

    Sunpro Power M10 430Wp Solar Panel SPDG430-N108M10
    Price per unit
    €113.40  (Tax incl.)
    Choix de l'onduleur
    info
    Choix du système de montage
    info
    No products selected
    Price per unit
    €0.00  (Tax incl.)
    Câblage et connectique
    info
    Solar cable 1X4mm2 - 100m
    Solar cable 1X4mm2 - 100m
    Price per unit
    €177.36  (Tax incl.)
    Câblage et connectique
    info

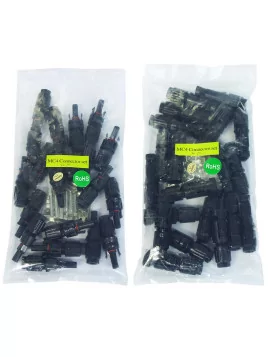

    20X type MC4 solar kit male + female connectors
    20X type MC4 connector male + female
    Price per unit
    €82.40  (Tax incl.)
    Câblage et connectique
    info
    Earth cable 1x6 mm2 10m
    Ground cable 6mm² - 100m
    Price per unit
    €215.10  (Tax incl.)
    Câblage et connectique
    info
    Engage Enphase Cable Disconnect Tool
    Rayvolt grounding clip
    Price per unit
    €1.63  (Tax incl.)
    Câblage et connectique
    info
    Câblage et connectique
    info
    Cable Shoe / Cable Lug Tinned Copper 25mm² X M8
    Price per unit
    €1.02  (Tax incl.)
    Câblage et connectique
    info
    DC amperometric clamp
    DC amperometric clamp
    Price per unit
    €74.16  (Tax incl.)
    Câblage et connectique
    info
    Crimping pliers for MC4 type connectors
    Crimping pliers for type MC4 connectors
    Price per unit
    €61.80  (Tax incl.)
    Protections et accessoires AC
    info
    Schneider Breaker mono 40A
    Schneider mono 40A circuit breaker
    Price per unit
    €18.80  (Tax incl.)
    Protections et accessoires AC
    info
    Schneider tetra 40A circuit breaker
    Tetra 63A Schneider circuit breaker
    Price per unit
    €143.60  (Tax incl.)
    Protections et accessoires AC
    info
    Differential switch type A 4P 63A 300ma
    Differential switch type A 2P 63A 300ma
    Price per unit
    €126.04  (Tax incl.)
    Protections et accessoires DC
    info
    Coffret
    info
    Waterproof case legrand 24 modules
    Waterproof case legrand 24 modules
    Price per unit
    €210.90  (Tax incl.)
    Accessoires batteries
    info
    Double battery cable 50mm² 2m
    Battery cable 2x95mm² - 2m
    Price per unit
    €113.74  (Tax incl.)
    Choix des batteries
    info

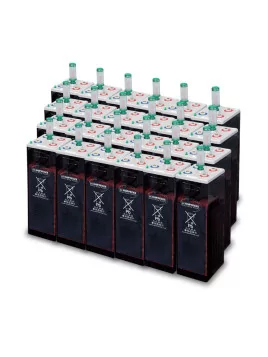

    120 kWh batterie OPzS 48V battery park
    Park of 120 kWh battery OPzS 48V
    Price per unit
    €26,127.60  (Tax incl.)
    Accessoires batteries
    info
    Choix de l'éolienne
    info
    No products selected
    Price per unit
    €0.00  (Tax incl.)
    Choix du groupe électrogène
    info
    No products selected
    Price per unit
    €0.00  (Tax incl.)

    Self-consumption kit 72...

    €19,814.16

    All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs. You can also see the details of the chosen products.

    This kit is sized to be setup on-grid.

    The basic composition of the kit contains 72 solar panels, 6 Single-phase Inverters WKS Circle 5.6 kVA, cables solar energy to connect(bind) panels(signs) with the inverter and of the inverter in your electrical panel, the system of assembly of panels is available optional. (The system of assembly as well as the cabling and the protections are modifiable to correspond to your needs).



    SOLAR PANELS :

    In its basic version, this Photovoltaic system will bring you on average 86,4kW a day. The productions will depend on seasons (summer/winter) of the geographical position and the slope of panels.
    We invite you to consult our simulator of solar production to determine exactly what will be your solar production.

    Warranty of 25 years in 80 % of the rated output.



    INVERTER :

    WKS hybrid inverters 5.6kVA are the ideal solution for supplying a home with self-consumption or making an isolated site autonomous. This inverter provides power to consumers up to 5600W. The built-in MPPT 120A load controller allows up to 6000Wc of panels. Possibility to connect it in the input to the public grid or a generator to recharge the batteries. Fully configurable via the LCD screen of the inverter. After Sales Service insured internlly, spare parts available.

    Warranty of 2 years



    BATTERIES:

    What can I expect from lead batteries ?
    GEL lead batteries should only be discharged at 50% of their capacity on a daily basis. If your fleet has a capacity of (eg) 4.8kWh, you should be careful not to consume more than (eg) 2.4kWh on it.
    In order to comply with the manufacturer's recommendations, the majority of GEL lead-acid batteries can withstand faster discharges than in 10 hours. On a park of 4 batteries of 100Ah in 48v having 4.8kWh of capacity, you should only consume 480W per hour maximum to which it is necessary to add the instant production of the panels. A slight margin is expected, however, a lead battery supports faster discharges for a short time.

    What can I expect from my Lithium batteries?
    In general, lithium batteries can be discharged much faster than stationary lead batteries. They also make it possible to use a greater part of their capacity. It is common to be able to discharge them in one hour and to be able to use up to 90% of their capacity.

    How to know the capacity of your battery?
    This one is expressed in amperes hours, it is the product of the multiplication of the capacity (Ah) of the battery by the tension (V) of this one: Example: 4 batteries, 100Ah of 12V mounted in series will give a voltage of 48V, will have a total capacity of 4.8kWh
    48V * 100Ah = 4800 Watts / hour = 4.8 kW / h

    How to calculate my battery requirement?
    To make your life easier, we have developed a tool to size your self-contained solar kit and the size of your battery park.

    Click here !



    CABLE AND CONNECTORS :


    All the cables and the connecting are pre-cabled in our studios(workshops). Our kits are very easily mountable by 'beginner' in electricity. For those who would have some reluctances as for the technical side, our technical team assists you and helps you every day from 8 am till 5 pm.



    MOUNTING SYSTEM :

    The installation of this kit is very simple. Our notes are clear and allow an easy assembly(editing) without particular knowledge. We answer all your questions before, hanging and after the installation of your system.



    WARRANTIES :

    All these products have an individual guarantee.

    Panels(Signs) warranty of 25 years in 80 % of the rated output.

    Inverter WKS warranty of 2 years.




    Panneau solaire Cortex Omnis 405





    Solar panel



    The basic selected panel in this kit has been chosen according to our supplies.
    You will find the characteristics of the latter by going to see its product sheet in the panel category.

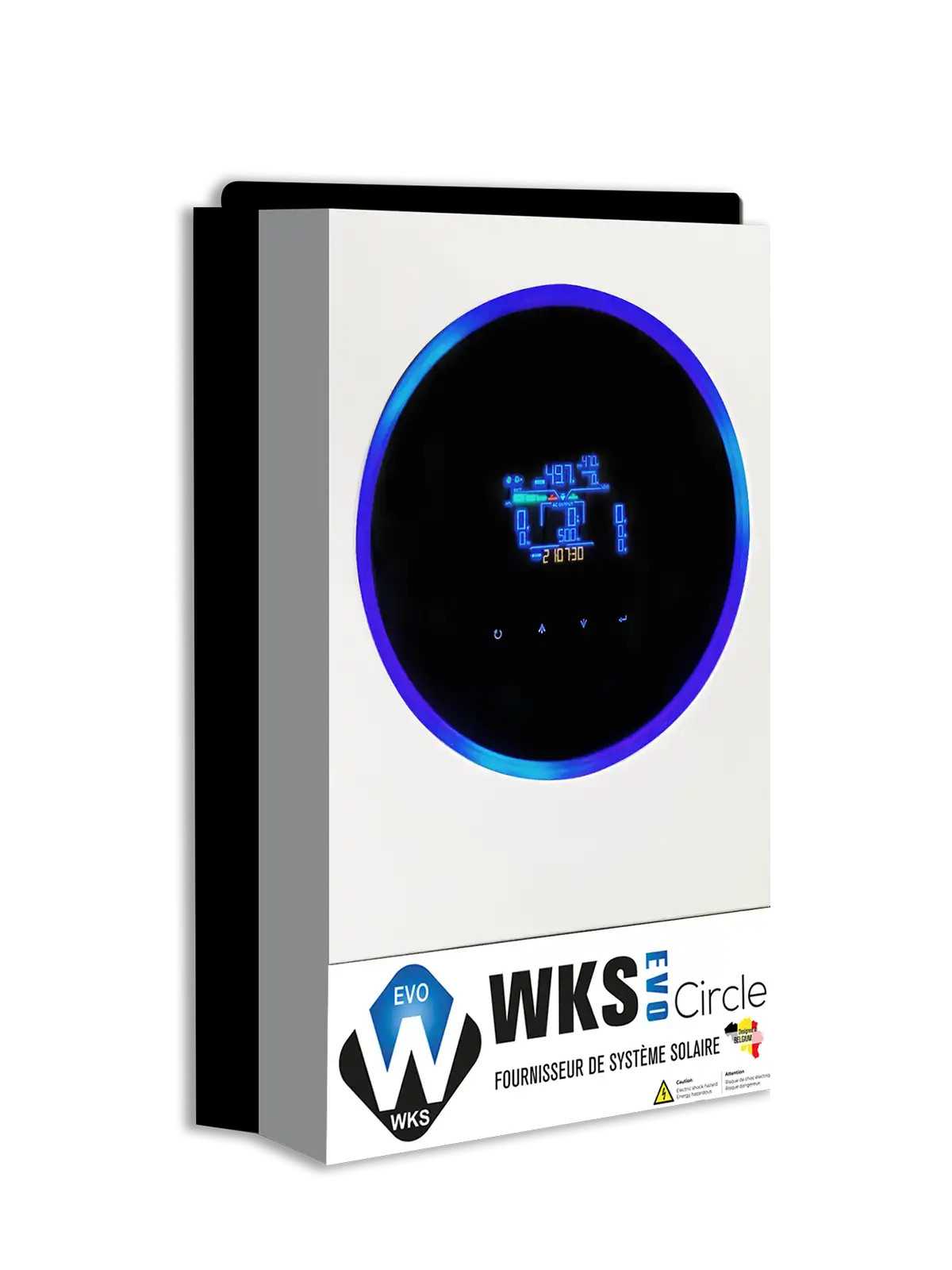

    Onduleur hybride WKS Evo Circle 5,6 kVA 48V





    Hybrid inverter WKS Evo Circle 5.6 kVA 48V



    The WKS EVO Circle is equipped with an MPPT solar charge controller that maximizes and regulates the DC power of the solar panel to charge your battery park.
    Transformerless design enables reliable power conversion in a compact form factor. The new generation of WKS has a built-in Wi-Fi function, mobile monitoring can be done through mobile apps. The data can be viewed and saved in the inverter, which is convenient for tracking the operating status of the inverter. It also supports USB On-The Go feature for easy rewriting of internal settings, data downloads, and software updates.







    Characteristics



    Model
    Rated power5600VA/5600W
    Entrance
    AC input voltage
    170-280 VAC (for personal computers)
    Selectable voltage range
    90-280 VAC (for household appliances)
    Frequency range
    55Hz/60Hz (automatic detection)
    Exit
    AC voltage regulation (Batt. mode)230 VAC +/- 5
    Overload capacity
    5s@>/=150% charge;10s@110%~150% charge; 100ms @ >/=200% charge
    Yield (peak)93%
    Transfer time
    10 ms (for personal computers); 20 ms (for household appliances)
    Waveform
    Pure sine wave
    Battery
    Battery voltage48 VDC
    Floating charging voltage54 VDC
    Overload protection66 VDC
    Solar charger and AC charger
    Type of solar chargerMPPT
    Maximum power of the PV generator6000W
    MPPT range at operating voltage120~430VDC
    Maximum voltage of the open circuit of the PV450VDC
    Maximum solar charging current120A
    Maximum AC charging current120A
    Physics
    Dimension, D x W x H (mm)140x295x468
    Net weight (kgs)11.0 12.0
    Communication interface
    USB/RS232/RS485/Wifi/Dry Contact
    Usage environment
    Humidity
    5% to 95%a Relative humidity (non-condensing)
    Operating temperature
    From -10°C to 50°C
    Storage temperature
    From -15°C to 60°C

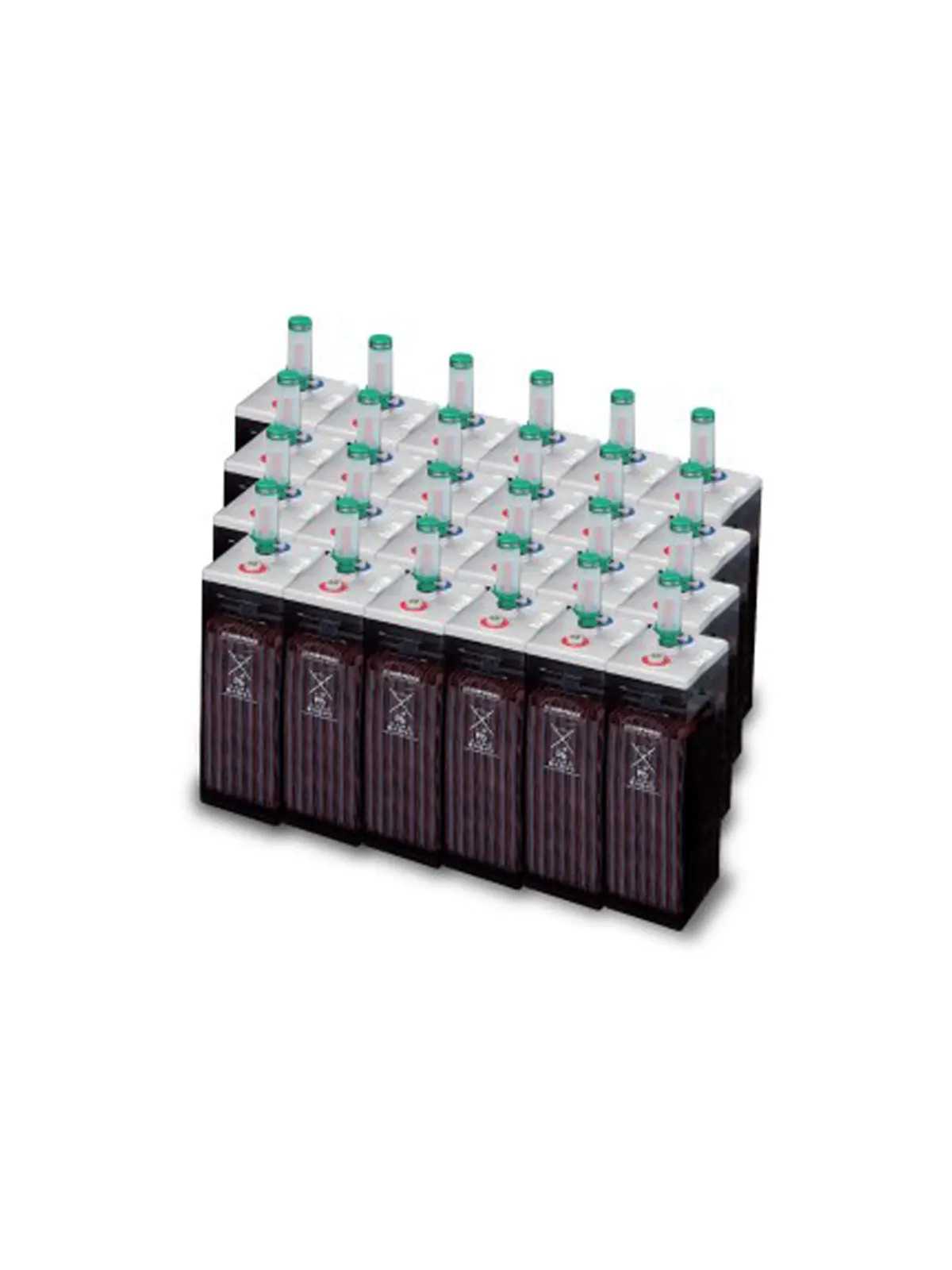

    Park of 120 kWH Battery OPZS 48V

    Park of 120 kWH Battery OPZS 48V



    24 solar batteries Hoppecke OPzS 2540 Park.
    The batteries are supplied loaded and filled.
    Junctions needed to connect to your battery Park are provided.

     > Park of 24 batteries Hoppecke 14 opzs 2540
    > Batteries are delivered loaded and filled.
    > Joints for the connection of your battery Park are provided.
    > The Aquagen for recombination of the gas are not supplied with batteries

    config-ac-72pan
    500 Items

    Data sheet

    Inverter power
    30000VA
    Kit output voltage
    230V
    Type of need
    Off-grid
    Self-consumption
    Battery storage
    With storage
    Wind turbine
    Without
    Number of panels
    72 panels
    Voltage
    230V
    Battery
    Kit with battery
    Panel type
    Rigids
    Mains re-injection
    off-grid

    Specific References

    UPC
    712971137622
    EAN13
    0712971137622
    New

    Download

    FicheT WKS EVO Circle 5/48V-FR

    Download (375.05KB)

    Manual WKS EVO Circle-EN

    Download (8.34MB)

    Parametrage Ond Circle - FR

    Download (2.64MB)
