Rayvolt grounding clip

€1.35
Rayvolt
0768563817687

Free yourself from screws!


Grounding clips allow the fast and simple equipotential connection of metal support frames, modules and structures to ground.







100% secure payments

Rayvolt grounding clip

€1.35

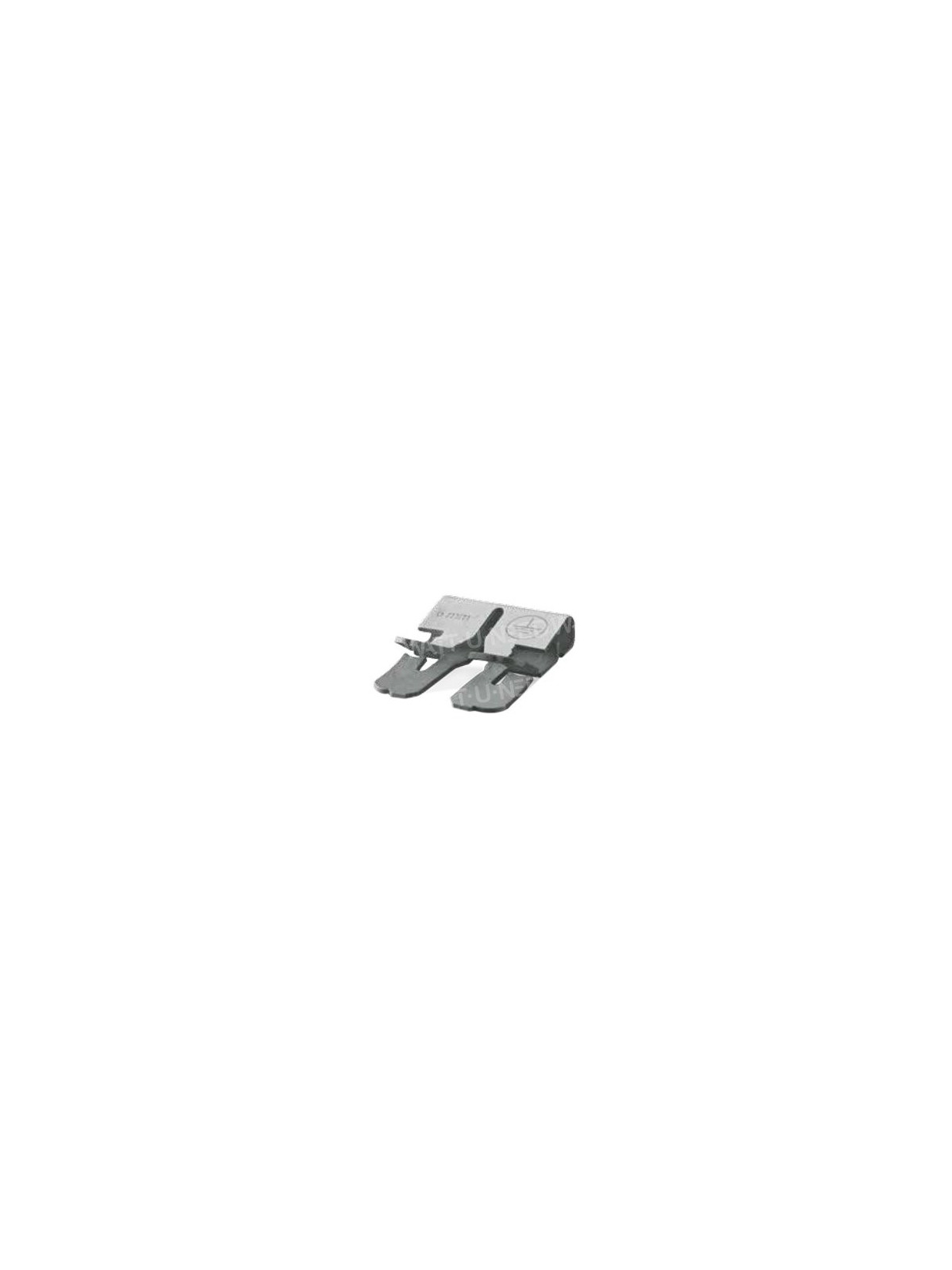

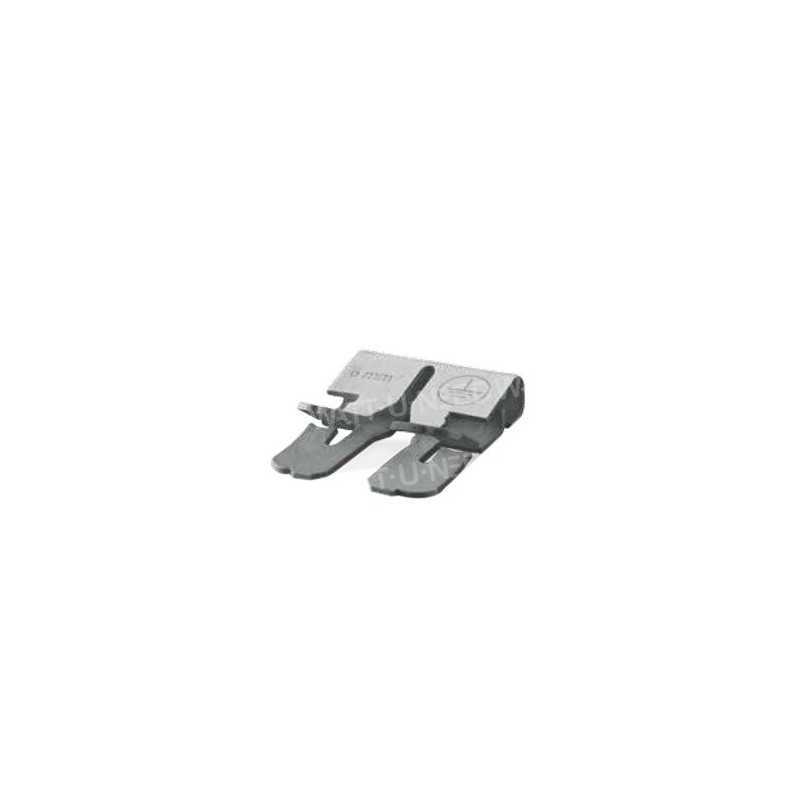

Rayvolt grounding clip


Rayvolt clips is an easy-to-install grounding clip that ensures conductivity between aluminum or steel frames and shielded electrical cables.


QUICK & EASY TO IMPLEMENT


• A single operation to strip, electrically connect and attach to the frame, without perforating it.
• Positioning on the entire module and independent of distances between modules.


EFFICIENT


• Mechanically and electrically: complies with IEC 61730-2: 2007 and IEC 60947-1: 2007, BS EN 60068-2-11: 1999 (test report from Bureau Veritas on request).
• The grounding symbol appears on the top of the clip.


A WIDE FIELD OF USE


For all panels with aluminum frame from 1.5 to 2.5mm thick and flexible multi-strand wire (H07V-K) or rigid copper cable (H07V-R) of section 6 mm².


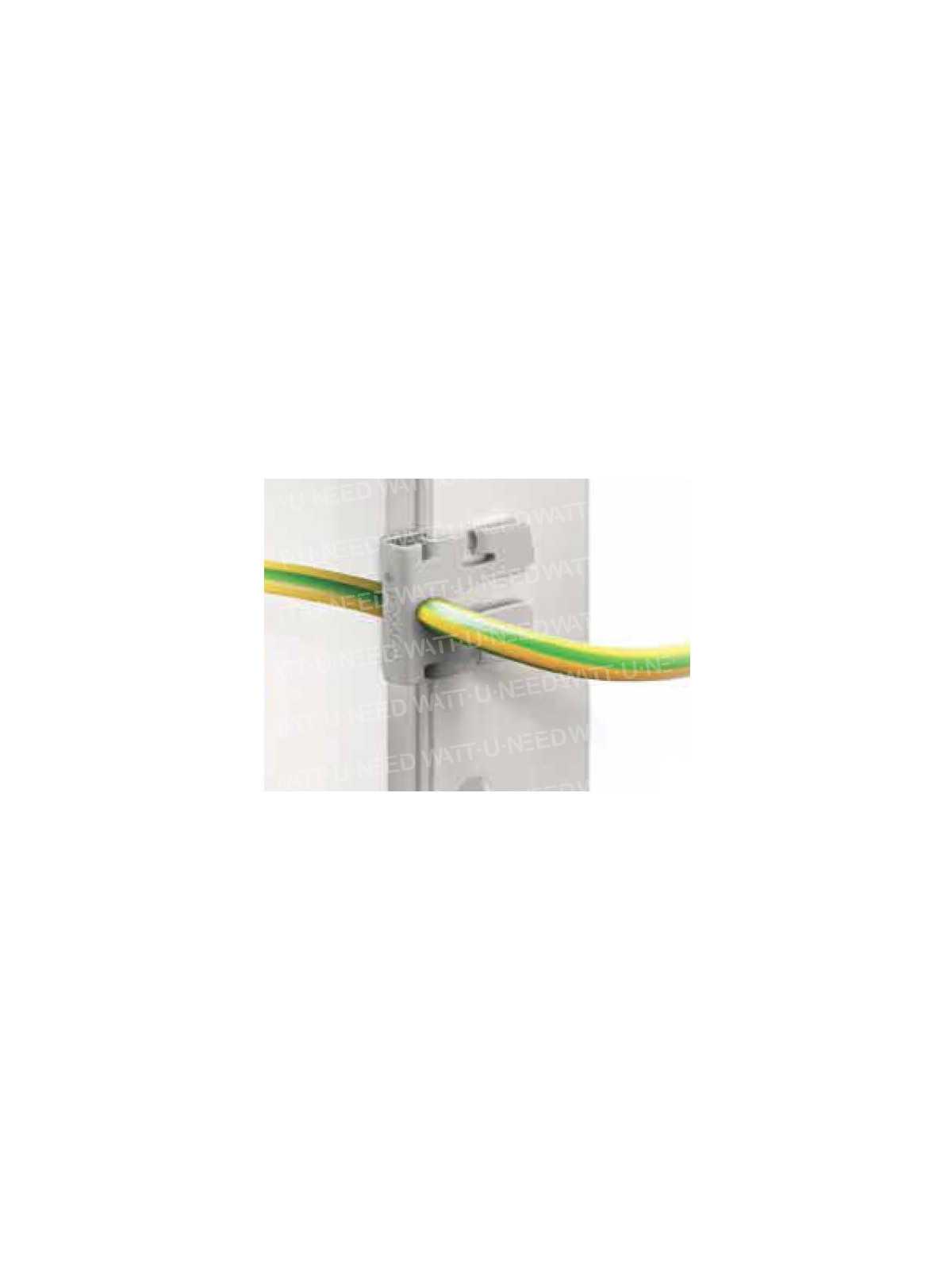

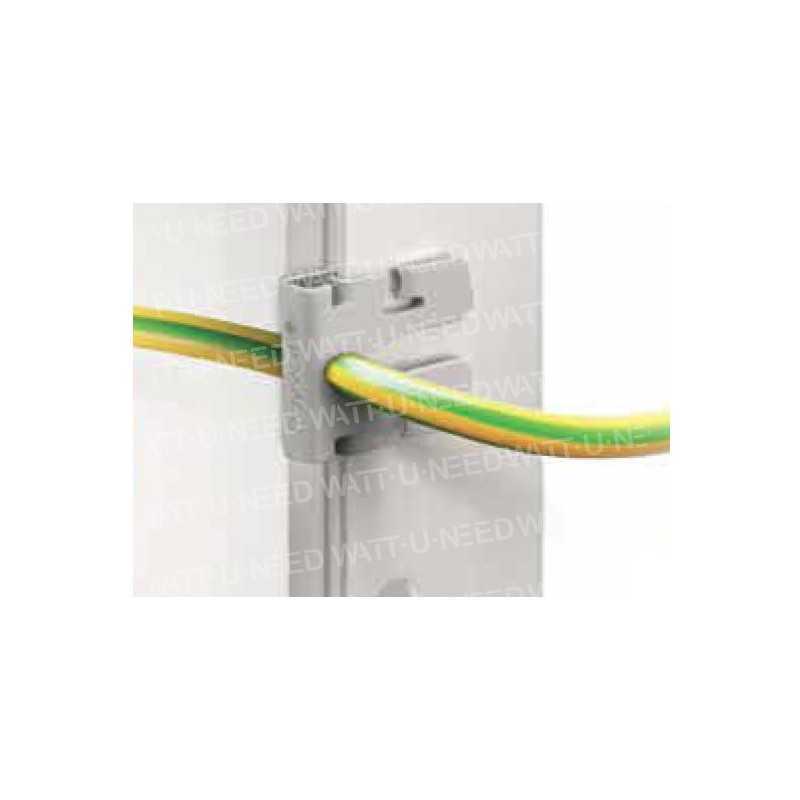

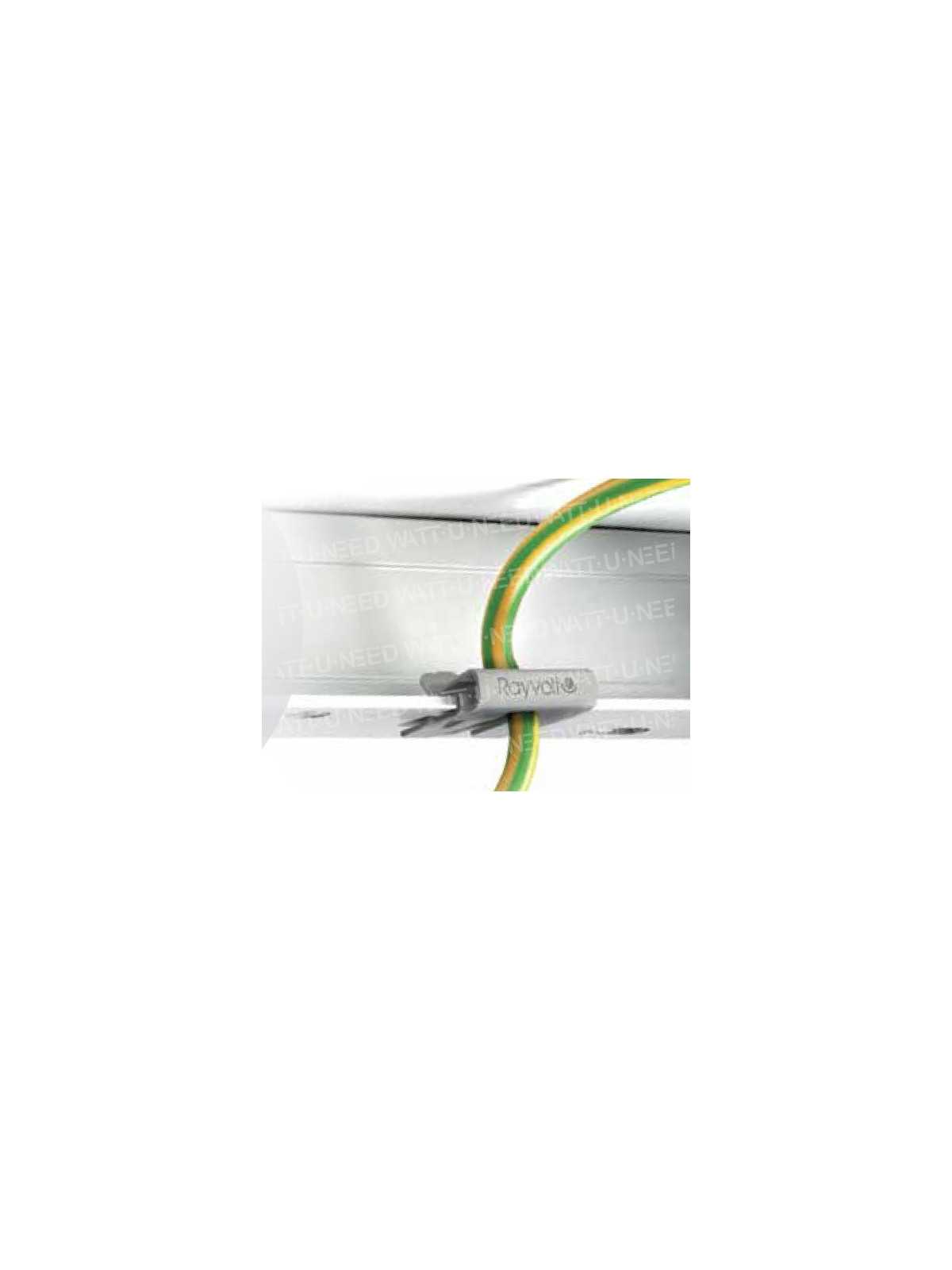

INSTALLATION

Rayvolt


Characteristics



MATERIAL C67S steel
SURFACE TREATMENT Combines an inorganic zinc-enriched base coat with an aluminum-enriched finish
CHARACTERISTICS OF THE ELECTRIC CABLE section 6 mm²: flexible multi-strand wire V/J H07V-K or rigid copper cable H07V-R
CORROSION RESISTANCE Red rust free after 1000 hours of salt spray according to BS EN 60068-2-11:1999
CHARACTERISTICS OF THE MODULE FRAMEWORK Thickness 1.5 to 2.5mm - 12mm mini inner rim

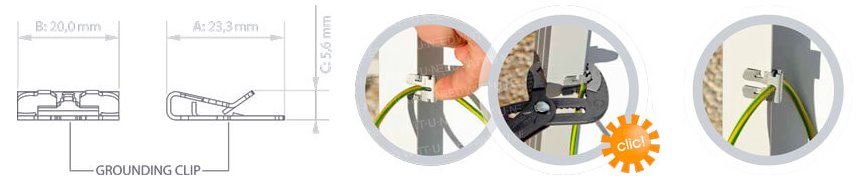

DIMENSIONS* (A x B x C in mm) 23.3 x 20.0 x 5.6



Rayvolt
999468 Items

Data sheet

Video Youtube - ID
M9_TmFbeQLQ

Specific References

UPC
76856381768
EAN13
0768563817687
New

Download

Fiche tech Clip mise terre-FR

Download (400.75KB)

Rayvolt installation-FR

Download (448.9KB)

Rayvolt Certification-FR

Download (369.69KB)
