MX FLEX Protect- boat kit from 100Wc - 12V

Wattuneed

345,01 € tax incl.

Add to cart

This solar kit will easily adapt to all types of boat

  • Flexible solar panel: MX FLEX PROTECT 100Wc
  • Solar cable 2X4mm2 5m
  • MC4 set on cable
  • Regulator PWM LS1024B 10A

The whole thing is completely pre-wired.



Check the availability of the MXFlex Protect 100Wc 12V panel
Check the availability of the SRNE HP 24V 10A regulator

More details

Équipements
Descriptions équipements
Customize

Choice of panel

See product

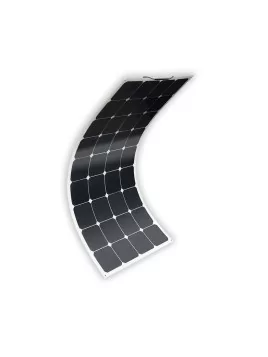

Solar panel 12V MX FLEX PROTECT 100Wc

config

253,45 €

QTT

See product
MX FLEX Protect Solar Panel Back Contact 30Wp

config

110,96 €

QTT

See product
MX FLEX Protect Solar Panel Back Contact 50Wp

config

134,64 €

QTT

See product
12V MX FLEX Protect 60Wc Back Contact Solar Panel

config

155,25 €

QTT

See product
Solar panel 12V MX FLEX Protect Full Black 100Wc Back Contact

config

301,19 €

QTT

See product
Monocrystalline solar panel 12V 100pw

config

96,73 €

QTT

Choix du régulateur

See product
MPPT 10A SRNE Solar Controller

config

60,60 €

QTT

See product
Epsolar Duo Battery PWM 12V / 24V 10A

config

43,26 €

QTT

See product

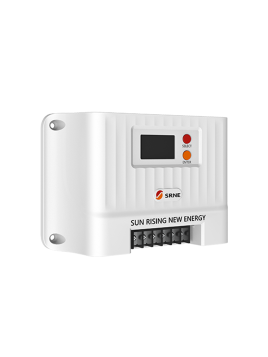

Solar Regulator SRNE MPPT 12/24V 20A

config

79,54 €

QTT

Choice of mounting system

50.57
Sélectionné

Slate roof attachment kit

69.24
Sélectionné

Tile roof attachment kit

130.81
Sélectionné

Fixing kit on ground structure

44.13
Sélectionné

Mounting system for tray roofing

98.03
Sélectionné

FlatFix flat roof system for panels from 98 to 104 cm wide

See product
Slate roof attachment kit

config

50,57 €

QTT

See product
Tile roof attachment kit

config

69,24 €

QTT

See product
Fixing kit on ground structure

config

130,81 €

QTT

See product
Mounting system for tray roofing

config

44,13 €

QTT

See product
FlatFix flat roof system for panels from 98 to 104 cm wide

config

98,03 €

QTT

Câblage et connectique

See product
2X4mm2 solar cable with MC4 type (sold per metre)

config

6,82 €

QTT

See product
Battery cable 2x4mm2 - 2m

config

5,20 €

QTT

See product
2x4mm² Solar cable extension with 2xMC4-like (by the meter)

config

9,75 €

QTT

See product
Battery cable 2x25mm2 - 2m

config

31,21 €

QTT

See product
Male and female MC4-like connectors

config

5,15 €

QTT

See product
Double type MC4-like connector male & female

config

16,48 €

QTT

Choice of accessories

See product
Electrical raceway 40x25mm - Length 2,1m

config

13,91 €

QTT

See product
White chute 30x15mm - length 2m

config

9,93 €

QTT

See product
Digital display for Epsolar LS and BN controllers

config

33,27 €

QTT

See product
AGM battery Ultracell 12V 7Ah

config

15,08 €

QTT

See product
AGM battery Ultracell 12V 12Ah

config

27,42 €

QTT

See product
GEL battery Ultracell 12V 35Ah

config

89,30 €

QTT

See product
Ultracell 12V 55Ah GEL battery

config

143,99 €

QTT

See product
Ultracel GEL battery 12V 100Ah

config

223,85 €

QTT

See product
16mm² battery cable with pods

config

5,97 €

QTT

See product
25mm² battery cable with pods

config

9,27 €

QTT

See product
50mm² battery cable with pods

config

12,36 €

QTT

More info

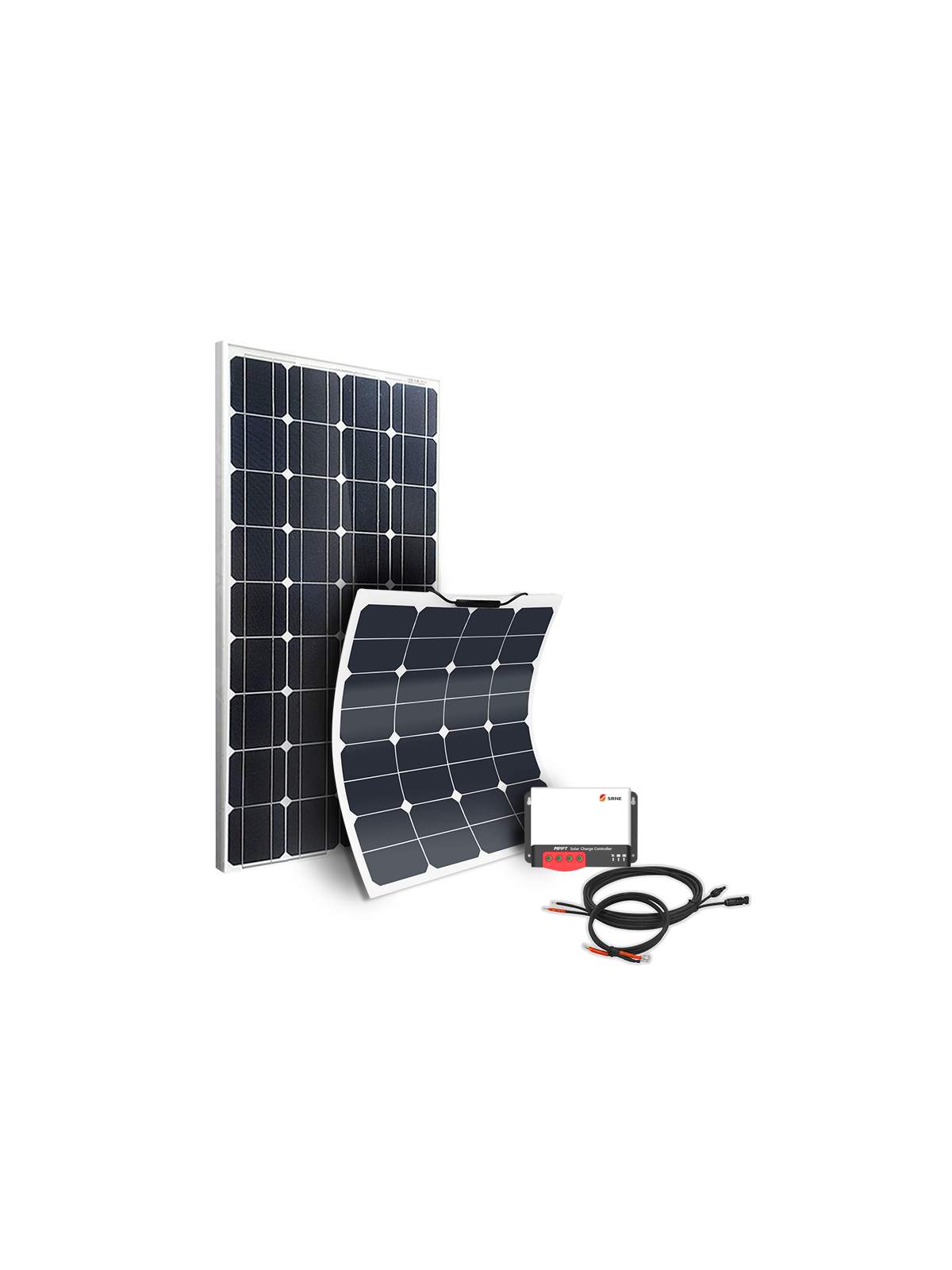

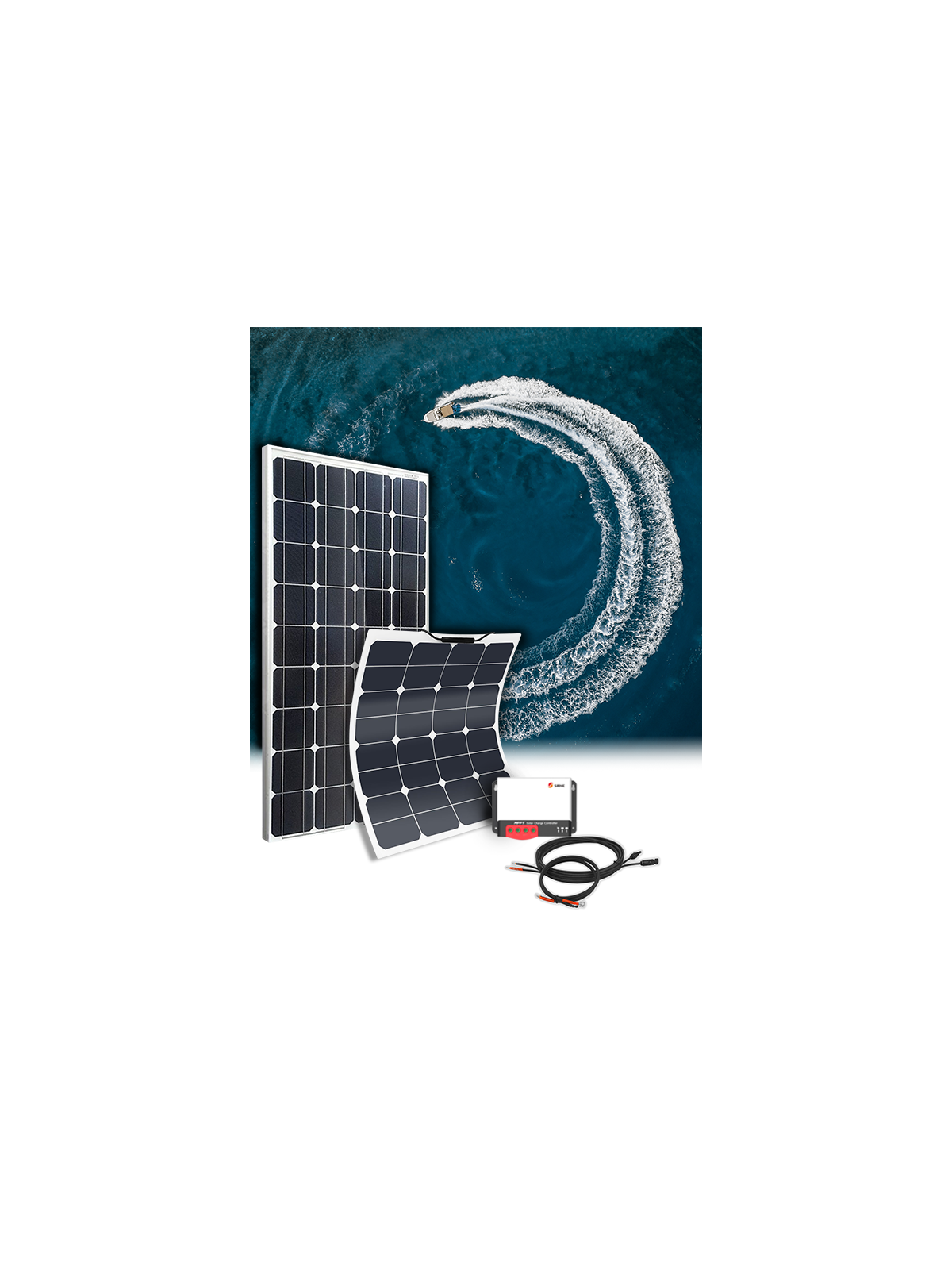

100 and 130wc premium boat kit



This kit has been designed to easily adapt to all types of boat.
The products described are subject to change depending on the availability of the products. (See composition of the kit)


Composition

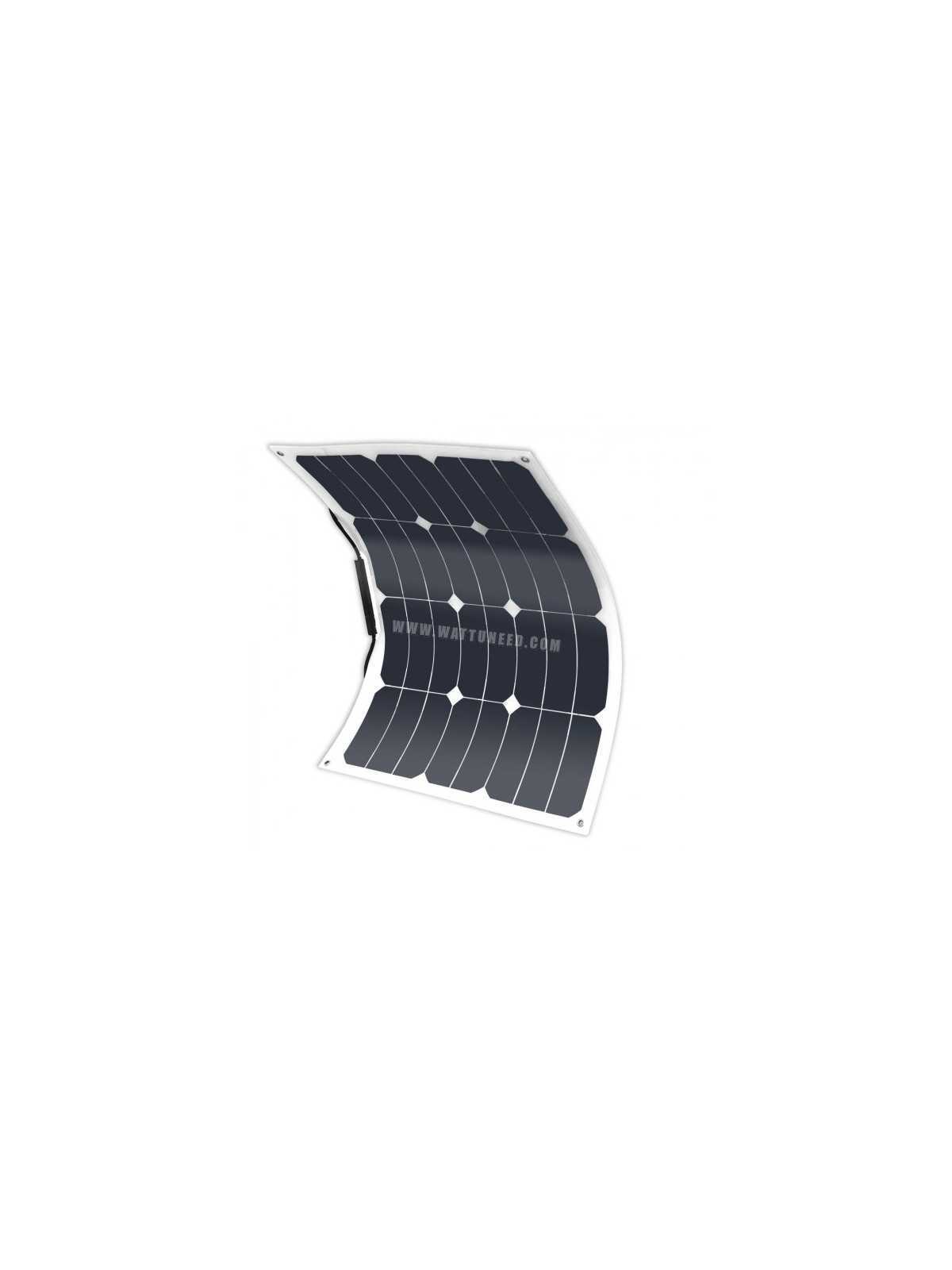

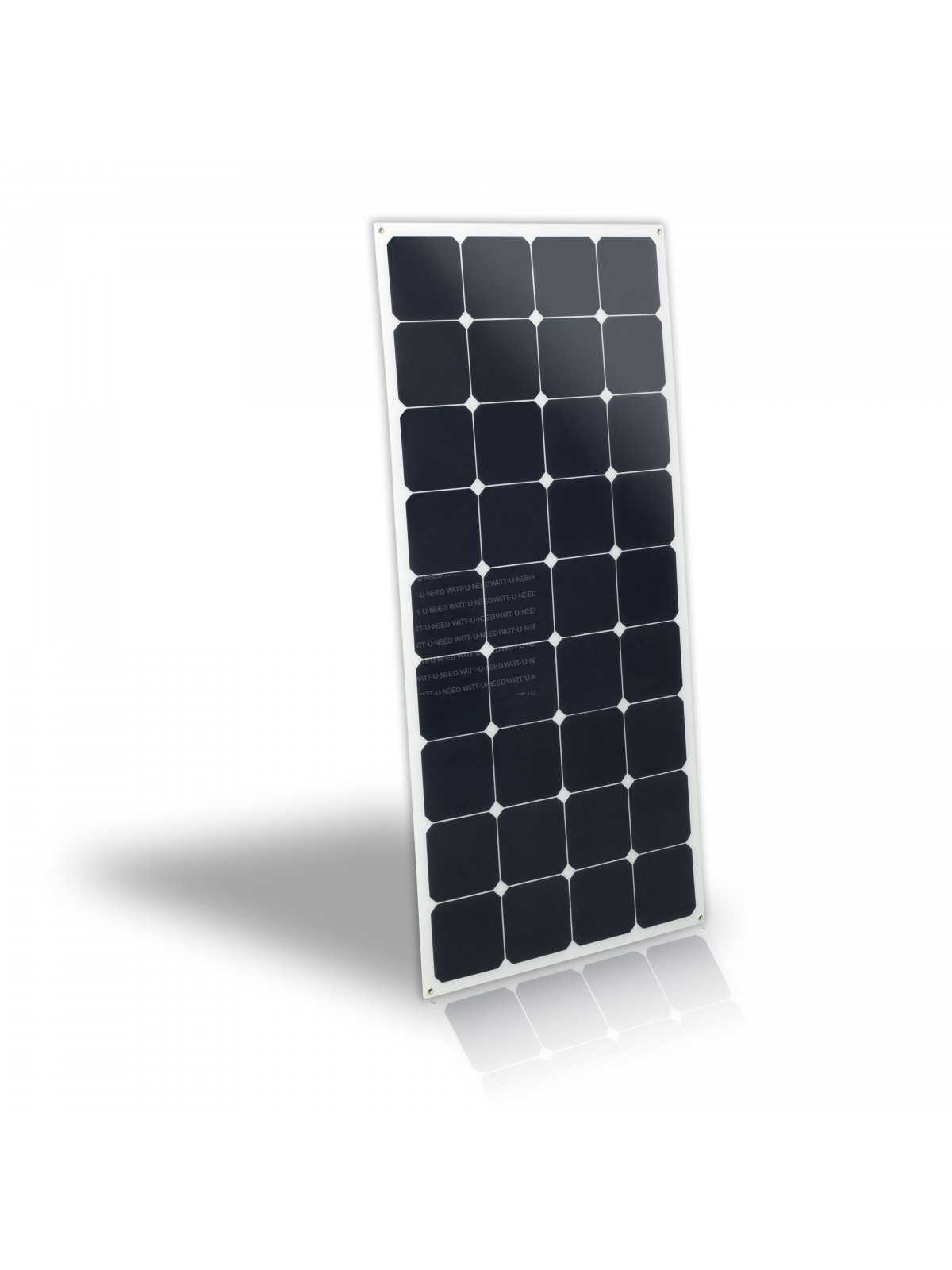

MX FLEX POTECT 100 Wc flexible solar panelMX FLEX POTECT 100 Wc flexible solar panel



The MX FLEX 100Wc flexible solar panels are suitable for marine use, they are perfect for recharging your boat's batteries. Thanks to its flexibility and extremely light weight (1.7 kg), you can easily attach it to the roof of a boat

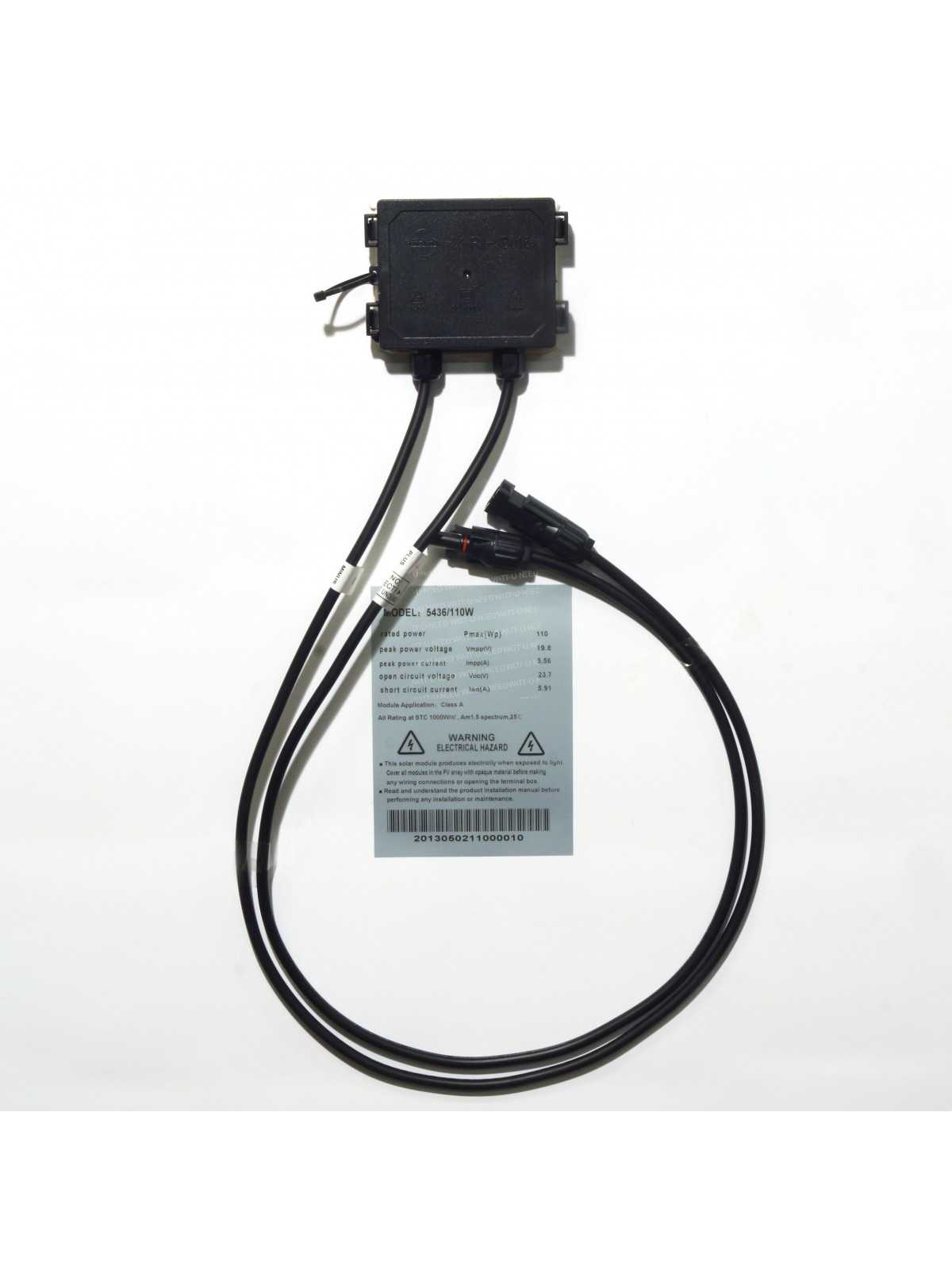

The waterproof junction box attached to the front of the panel and its mc4 connections will allow you to connect it easily and easily.

Ultra flexible and really light, they are very resistant to saline, wet environments, bad weather and even trampling!



  • Power: 100W
  • Maximum power voltage: 19.8V
  • Open-circuit voltage: 23.4V
  • Maximum power intensity: 5.05A
  • Dimensions: 1185 x 540 x 3 mm
  • Weight: 1.7 kg



With its high-efficiency Back Contact monocrystalline cells (22%), MX FLEX panels have the best photovoltaic technology! These optimize the performance of the panel when it is in low light conditions, which optimizes the performance of the panel regardless of weather conditions. The fastening carnations located on the 4 corners will allow you to fix it very simply or you want it.



EPEVER LS1024 LANDSTAR PWM 12V / 24V - 10AEPEVER LS1024 LANDSTAR PWM 12V / 24V - 10A



10A charge regulator
Adopts an aluminum heat sink that allows high reliability in high temperature environments.

PWM solar regulators protect your batteries from discharge and overload, ensuring that their lifespan is optimized.

The model 10A (LS1024B) can accommodate up to 250 watts of solar panels *


Capacity: 10, 20 or 30 amps.
Tension: 12v or 24V
Temperature compensation
2-year warranty.
Technology: 'linkpopup id'pwm'.
Fully programmable if used with its display

All load voltages can be changed between 9 and 17V (X2 for 24V), disconnection voltage also.
Programming the consumer output in a day/night or hourly mode.


In a 24V system

Characteristics





ModelLS1024B
Nominal system tension12/24VDC12/24VDC
Rated battery current10A
Maximum PV input voltage40w
Self-sommation8.4mA (12V)?7.8mA (24V)
Temperature compensation-3mV/?/2V?25? Ref?
Equalizing load voltageSealed: 14.6V, open: 14.8V, User: 9-17V
Increased load voltageGel: 14.2V, Sealed: 14.6V, open: 14.8V, User: 9-17V
Floating charge voltageFreeze /Sealed /open: 13.8V, User: 9-17V
Reconnection tensionFreeze /Sealed /open: 12.6V, User: 9-17V
disconnection tensionFreeze /Sealed /open: 11.1V, User: 9-17V
Size138.6x69.3x37mm
Mounting holes126mm
Terminal4mm2
Weight0.13kg
Running temperature-35?
Storage temperature-35?
Humidity?95% (NC)
StandardIP30

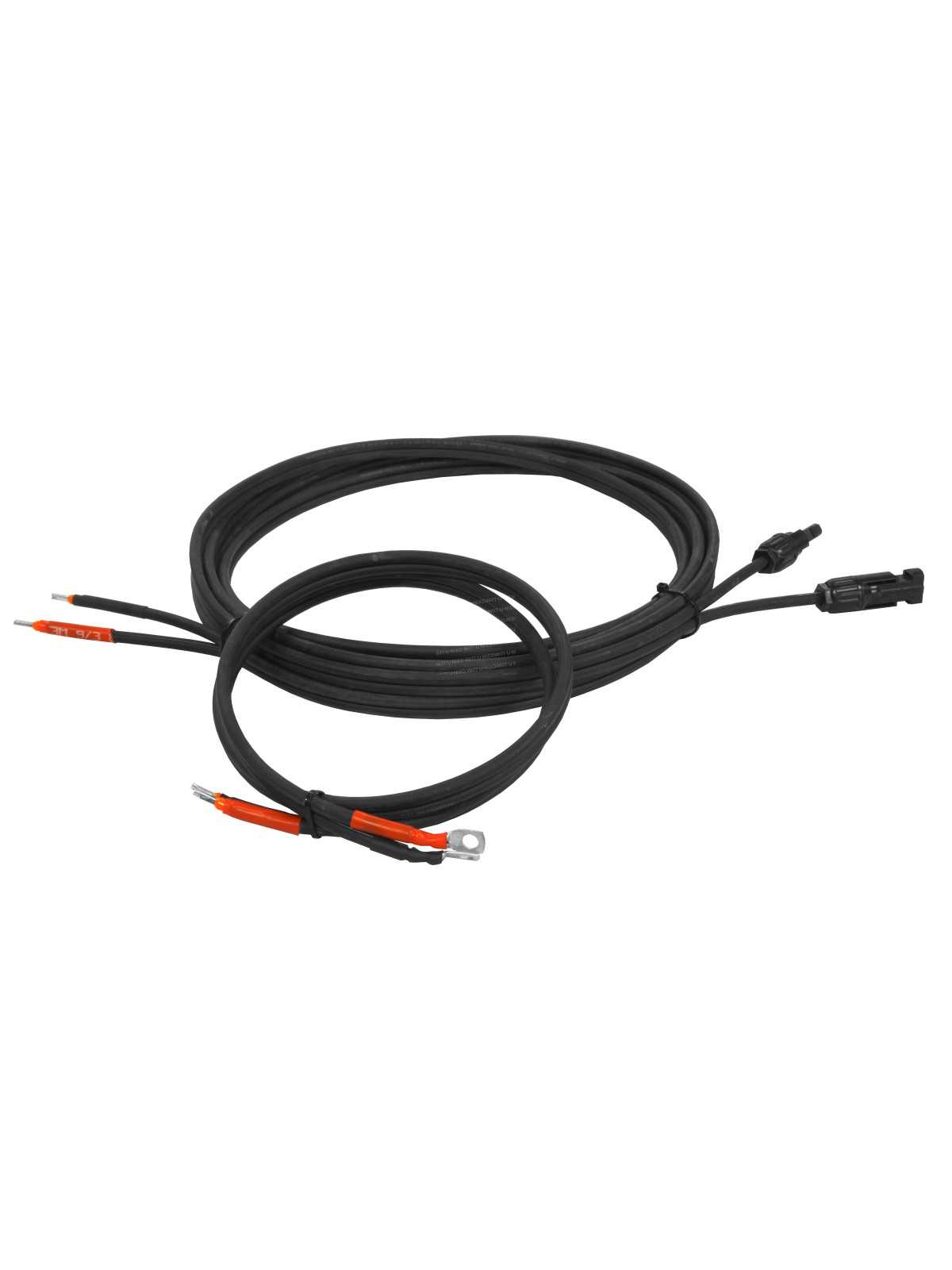

Cable solar5m solar cable 2X4mm2 and 2m battery cable



MC4 set on cable

High lifespanE

Thanks to the double sheath, these cables are

 extremely resistant to UV, heat, cold and weather




 Examples of use



 Examples of use  Examples of use

The kit comes complete and fully pre-wired.

Specifications

Battery storageWithout storage
Type of needCamping-car / Boat
Wind TurbinWithout
Number of panels1 panel
Batterykit without battery
Inverter power- de 1000VA
Grid reinjectionoff-grid
