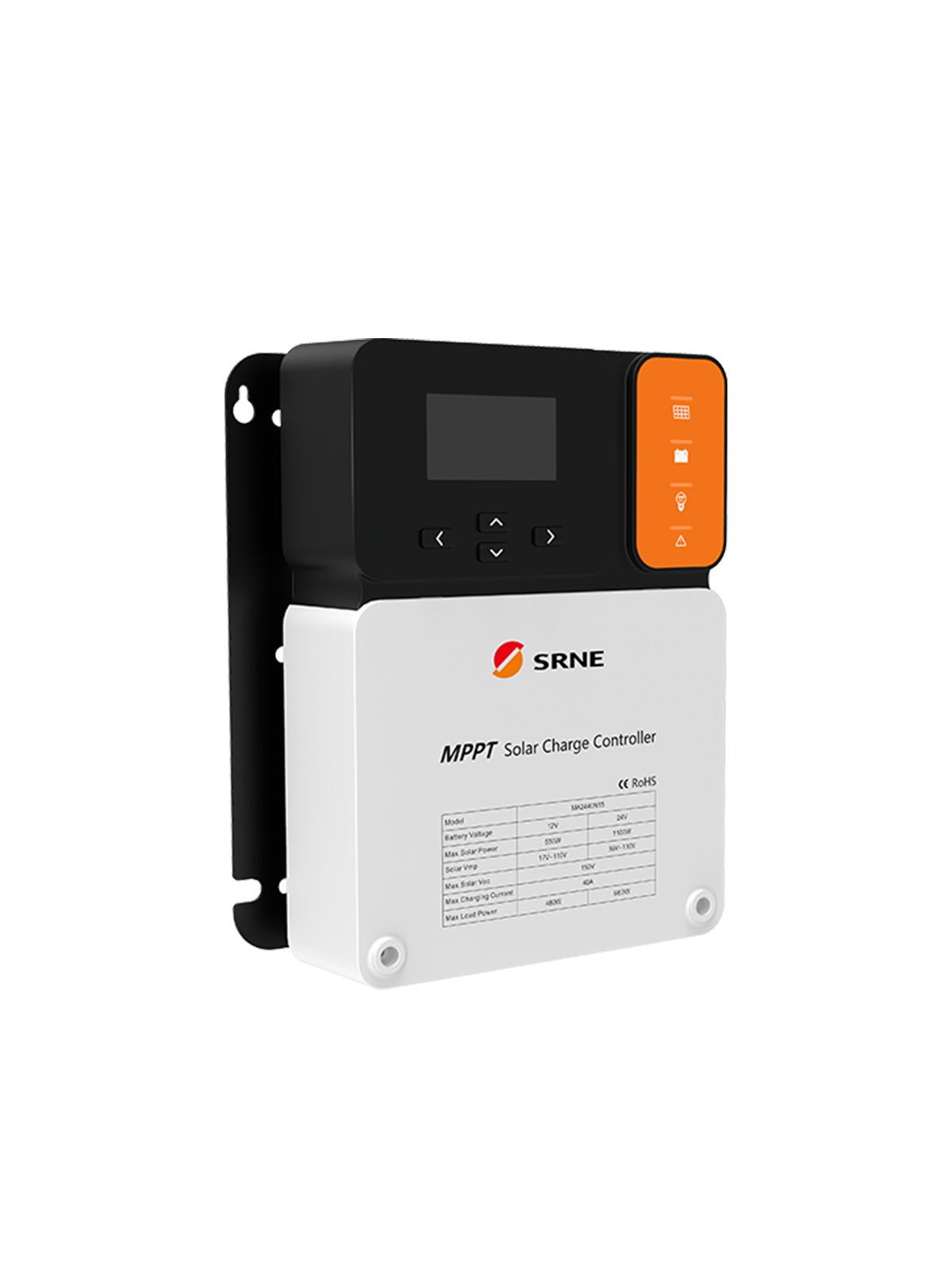

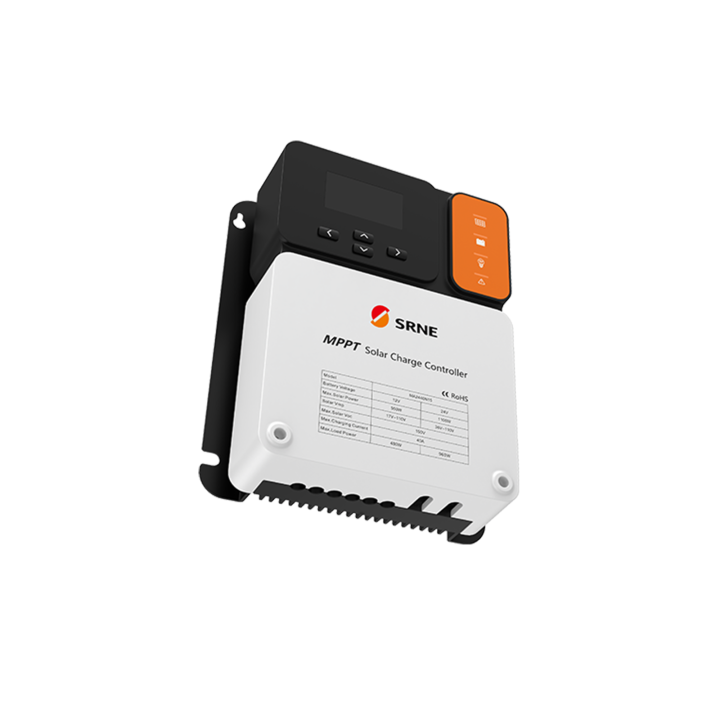

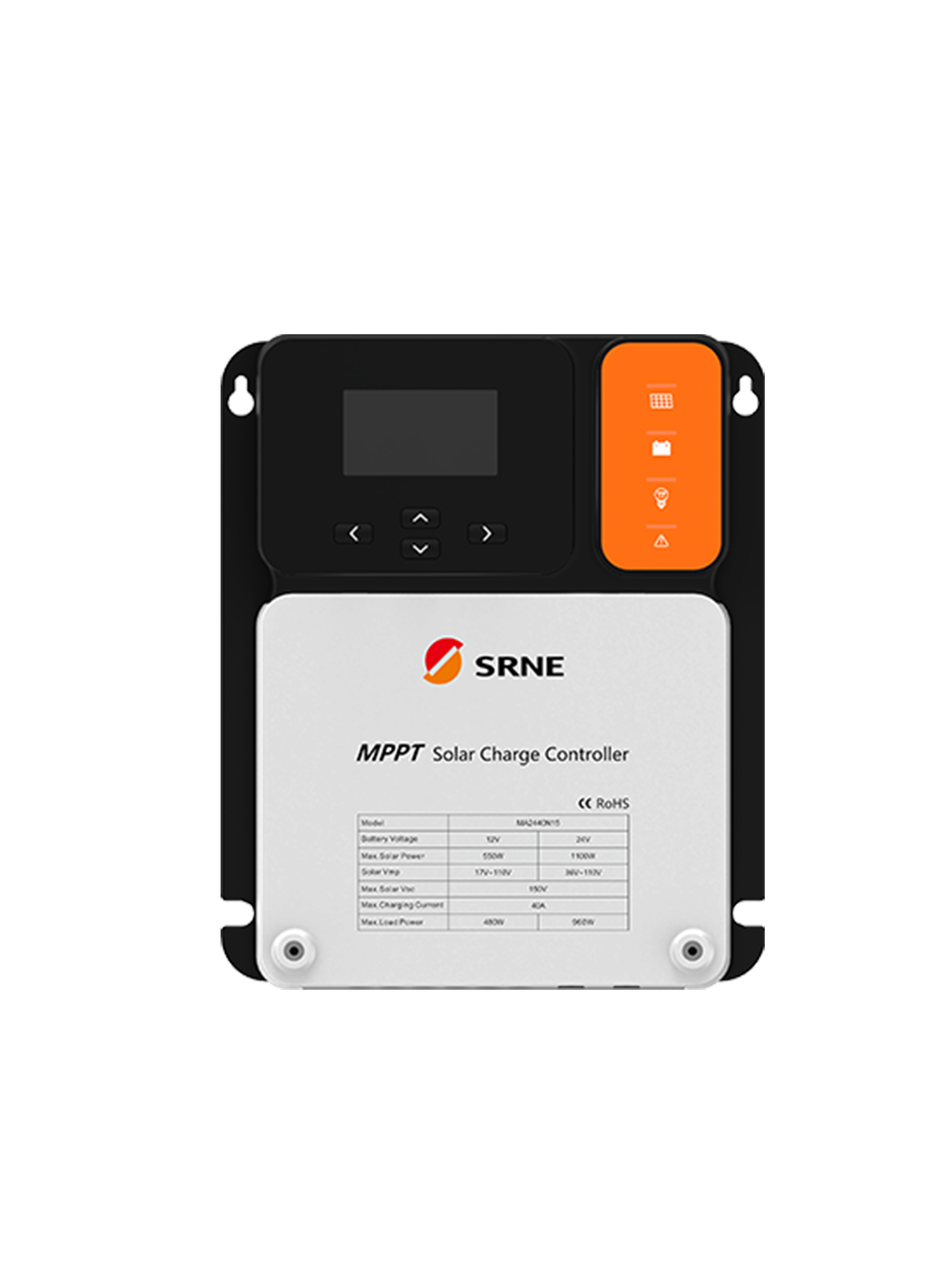

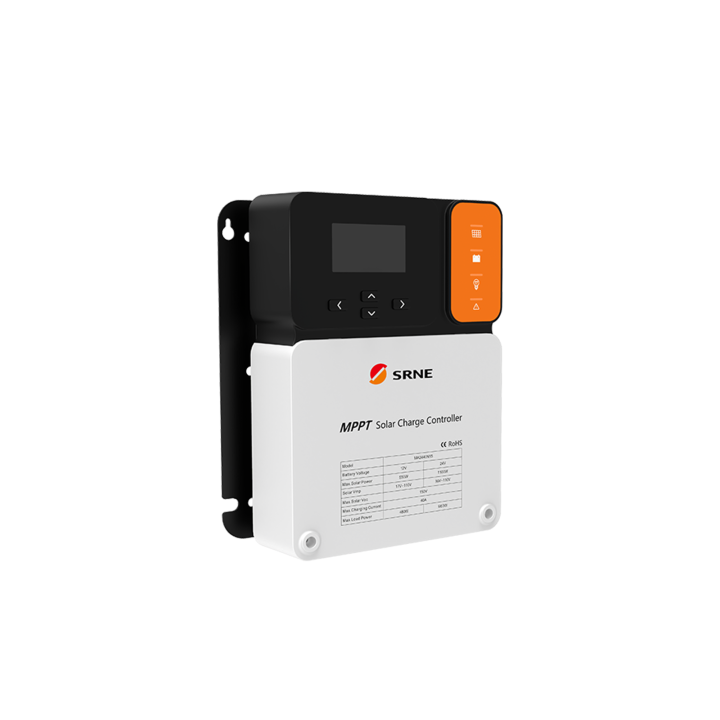

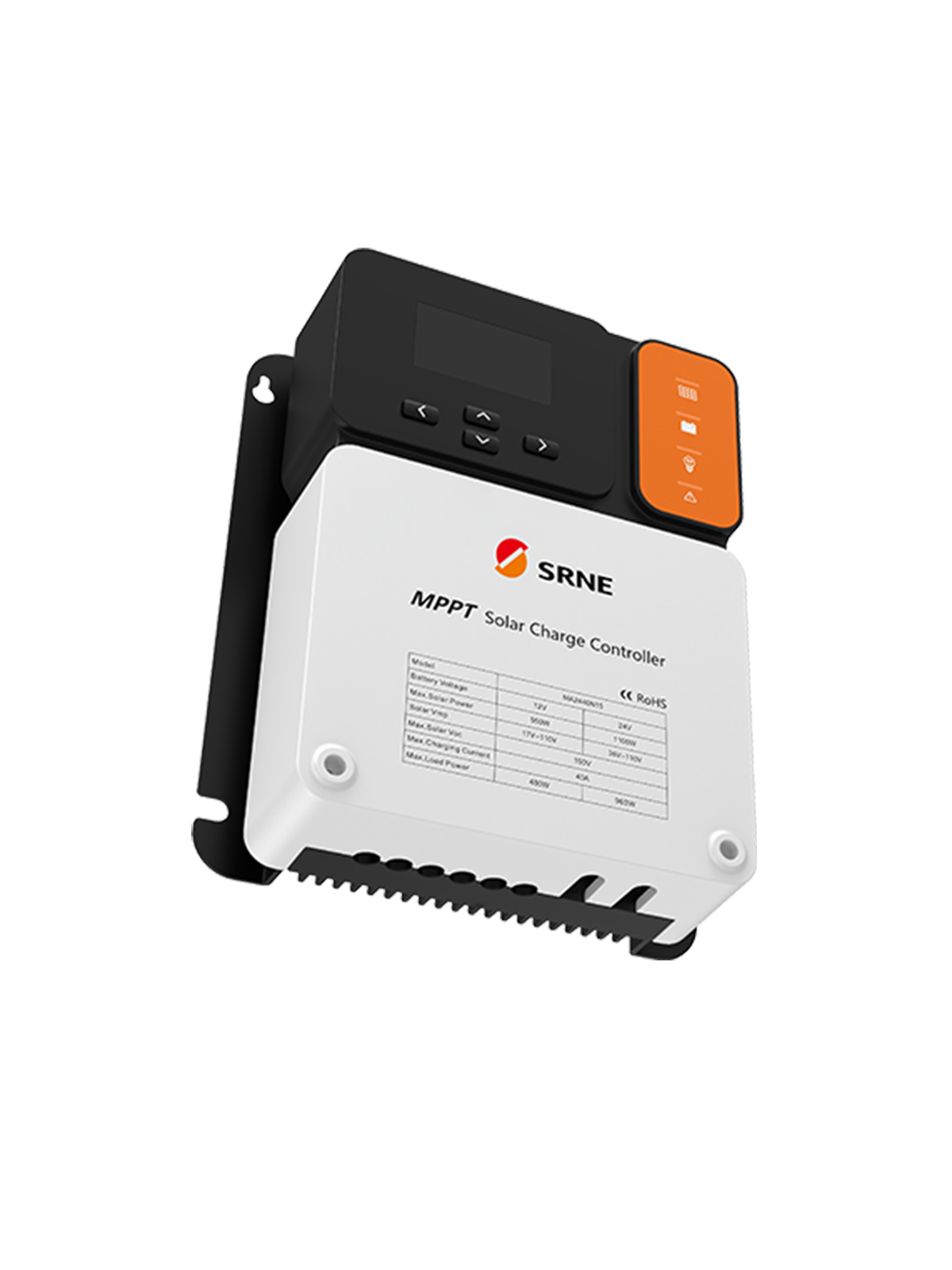

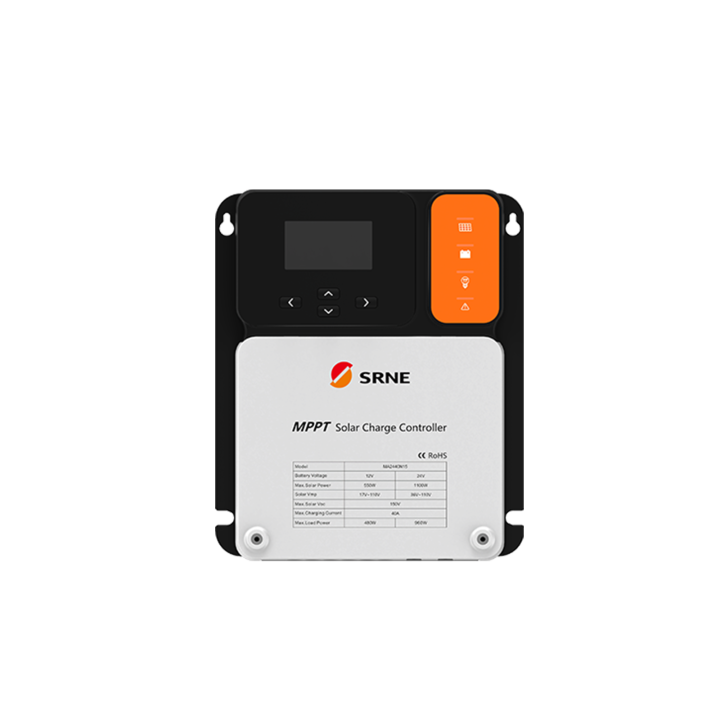

Solar controller MPPT 30A SRNE - MA4830N15
Solar controller MPPT 30A SRNE - MA4830N15
Solar controller MPPT 30A SRNE - MA4830N15
Solar controller MPPT 30A SRNE - MA4830N15
Solar controller MPPT 30A SRNE - MA4830N15

Solar controller MPPT 30A SRNE - MA4830N15

€180.69
Tax included
MA4830N15
0768563820465

- SRNE MA4830N15 controller
- 30Ah 48V
- Nominal battery voltage: 12v/24v/36v/48v
- IP 32

4 item(s) left in Stock!

Comments (0)

No customer reviews for the moment.

SRNE MA4830N15: Intelligent and robust 30A solar charge controller



1application-hors-reseau-icone-srne.pngFor off-grid applications

Can be connected to solar panels, battery and load at the same time. Several load operating modes to meet diverse needs.



1efficacite-icone-srne.pngEfficient

Maximum power point tracking (MPPT) with up to 99.9% efficiency. Supports up to 2 solar panels in series/more in parallel.



Tout-en-un-icone-srne1.pngAll-in-one

Supports multiple battery types. Highly integrated, helping you save space and wiring.



1safety-srne.pngSafety

Complete charge and discharge protection mechanism. High-quality components for stable operation.



img-1Convivial-srne.pngUser-friendly

Easy to install and simple to use. Natural cooling, totally silent.



1-intelligent-icone-srne.pngIntelligent

Supports TTL RS485 and CAN (RV-C protocol). Supports Bluetooth with mobile application.

MA4830N15

Data sheet

Max.Voltage of Open Circuit
150Vdc
Max.PV Input Power
1200W/36V
1600W/48V
400W/12V
800W/24V
Charging power
30A
MPPT/PWM
MPPT
Width
216 mm
Height
260 mm
Thickness
98.5 mm
IP protection
IP32
Battery Type
USE/FLD/GEL/LI/SLD/ User Defined
Rated Battery Voltage
12/24/36/48Vdc
Battery Voltage Range
8~64Vdc
MPPT Charging Mode
Buck
Load Type
Resistive, Capacitive, Inductive load
Rated load voltage
Equal to battery voltage 12V/24V/36V/48V
Rated load current
30A
MPPT Tracking Efficiency
greater than 99
Max. Load conversion efficiency
85%~98%(Correspond load power10%~100%)
Operating temperature range
(-31℉~149℉)
Weight
3,6kg
MPPT voltage range
(Battery voltage+2V)~110Vdc
Load operating mode
Light control only, combined light and timer control, manual mode (default), test mode, normally open mode.

Specific References

UPC
768563820465
EAN13
0768563820465
New
