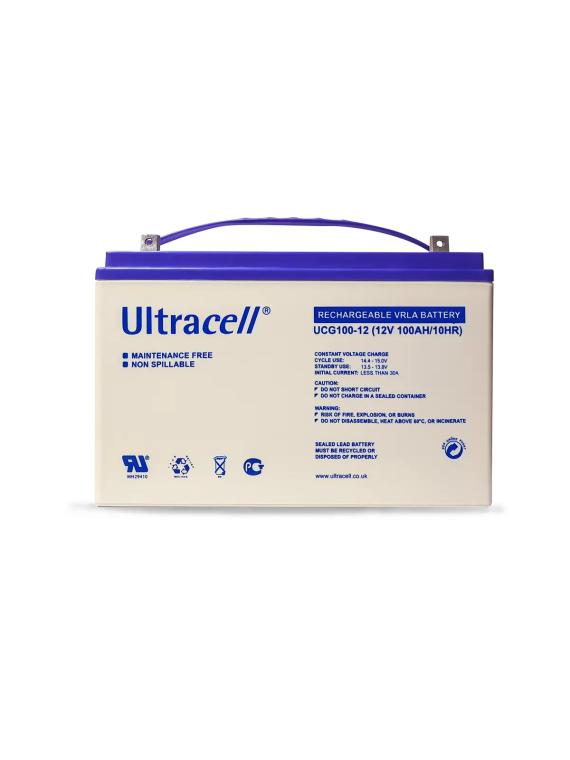

GEL Ultracell 12V 100Ah battery
GEL Ultracell 12V 100Ah battery

Ultracell UCG100-12 GEL batteries - 100Ah 12V Gel

€177.00
€197.63
Tax included
UCG100-12
0712971127623

The Ultracell UCG100-12 GEL battery is a 12 V, 100 Ah battery designed for energy storage for backup and moderate cycling applications, particularly for stand-alone solar installations. Its VRLA (gel electrolyte) lead-gel technology is described as sealed, and the battery is used in floating mode or cyclic use according to the recommended voltages. It measures 328 × 173 × 232 mm and weighs 31 kg.

  • Specifications: 12 V, 100 Ah (C10), 328 × 173 × 232 mm, 31 kg, maximum charging current 30 A.
  • Cells: VRLA (Valve Regulated Lead Acid) lead-gel technology with gelled electrolyte.
  • BMS + communication: Not applicable, as this is a gel battery (no BMS or communication indicated).
  • Compatibility + scalability: Cyclic use (14.4–14.8 V) or maintenance/float (13.5–13.8 V) at 25 °C, with an indicative cycle life of approximately 1,200 cycles at 50% depth of discharge and a maximum discharge current of 1,000 A (5 s).
39 items in stock!

Battery GEL Ultracell 12V 100Ah - 1200 cycles | Self-sufficient solar system | Maintenance-free

VRLA 100Ah gelled electrolyte (GEL) battery, proven, robust technology for backup applications and moderate cycling. It is sealed and maintenance-free.

Main applications

This technology is particularly suited to specific applications where reliability and maintenance are key criteria:



  • Backup power and UPS: Ideal for use in "floating" mode (permanent load-holding).
  • Alarm and security systems.
  • Power for isolated sites with occasional use: Perfect for a weekend cottage, occasional lighting or small applications.
  • Marine or camper van applications: Its waterproof design and vibration resistance are assets for nomadic use with moderate requirements.

Technical specifications



  • Rated voltage: 12 V
  • Rated capacity (C10): 100 Ah
  • Technology: Lead-GEL VRLA (Valve Regulated Lead Acid)
  • Cycling life (manufacturer's guide) :
    • Approx. 2400 cycles at 30% depth of discharge (DoD)
    • Approx. 1200 cycles at 50% depth of discharge (DoD)

    • Approx. 600 cycles at 80% depth of discharge (DoD)
  • Maximum charging current: 30 A
  • Recommended charging
    • voltages
  • (@ 25°C):
    • Cycling duty ("Bulk/Absorption" charging): 14.4 V - 14.8 V
    • Float charging: 13.5 V - 13.8 V
  • Dimensions (L x W x H): 328 x 173 x 232 mm
  • Weight: Approx. 31 kg
  • Type of terminal: M8 threaded insert

Points to consider for optimum use



  • Charger configuration: To achieve its maximum service life, this battery requires precise setting of charging voltages.
  • To avoid irreversible damage, the recommended values must be observed.
  • Charging and discharging currents: We advise you not to exceed the currents recommended by the manufacturer.
  • Excessively high currents can lead to premature wear and tear.
  • Technology comparison: For equivalent weight and size, lithium technology offers superior storage capacity. The energy efficiency of a GEL battery (charge/discharge) is around 85-90%.

Life cycle versus depth of discharge

Cycle vie batterie Ultracell 100Ah

Comparative table of price per useful kWh over battery life at a glance!

Comparatif des batteries

There are many different storage technologies: Gel or AGM batteries, lithium batteries, OPzS and OPsV. It's not easy to choose the right technology for your needs. Each technology has its own characteristics (size, power, cost, number of cycles and service life, etc.). With this table, you can quickly compare the price per useful kWh over the lifetime of the batteries.

C10 = 10-hour charge/discharge test.
C24 = examination of a charge or discharge in 24 hours.

Click here to see our comparison table.

UCG100-12

Data sheet

Coup de coeur WUN
1
Voltage
12V
Technology
Gel
Battery capacity
100Ah
Rated capacity
100.0 Ah/10.0A - (10hr,1.80V/cell, 25°C/77°F)
104.0 Ah/5.20A - (20hr,1.80V/cell, 25°C/77°F)
63.8 Ah/63.8A - (1hr, 1.60V/cell, 25°C/77°F)
76.2 Ah/25.4A - (3hr, 1.75V/cell, 25°C/77°F)
88.0 Ah/17.6A - (5hr,1.75V/cell, 25°C/77°F)
Maximum discharge current
1000 A (5s)
Internal resistance
Approx 5.9mΩ
Standby use
No limit to initial charge current Voltage 13.5V~13.8V at 25°C (77°F) Temperature coefficient -20mV/°C Coefficient -20mV/°C
Operating temperature range
Charge : 0~40°C (32~104°C)
Discharge: -20~55°C (-4~131°F)
Stockage : -20~50°C (-4~122°F)
Weight
31 kg
Nominal operating temperature range
25 ± 3°C (77 ± 5°F)
Cycle Use
14.4V ~ 15.0V Temperature coefficient -mV/°C Coefficient -mV/°C
Capacity affected by temperature
0°C (32°F) 86%
25°C (77°F) 100%
40°C (104°F) 103%

Specific References

UPC
712971127623
EAN13
0712971127623
