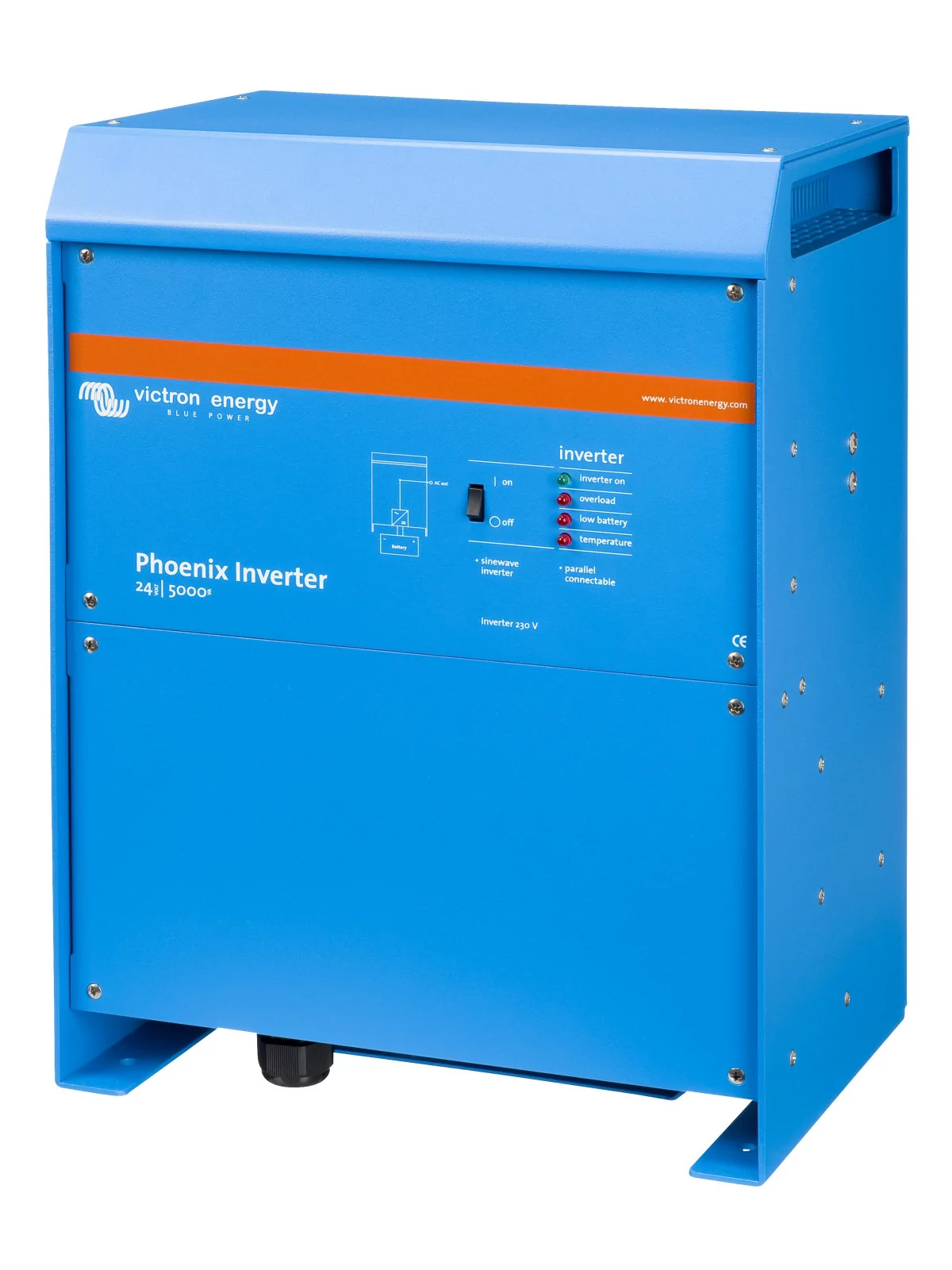

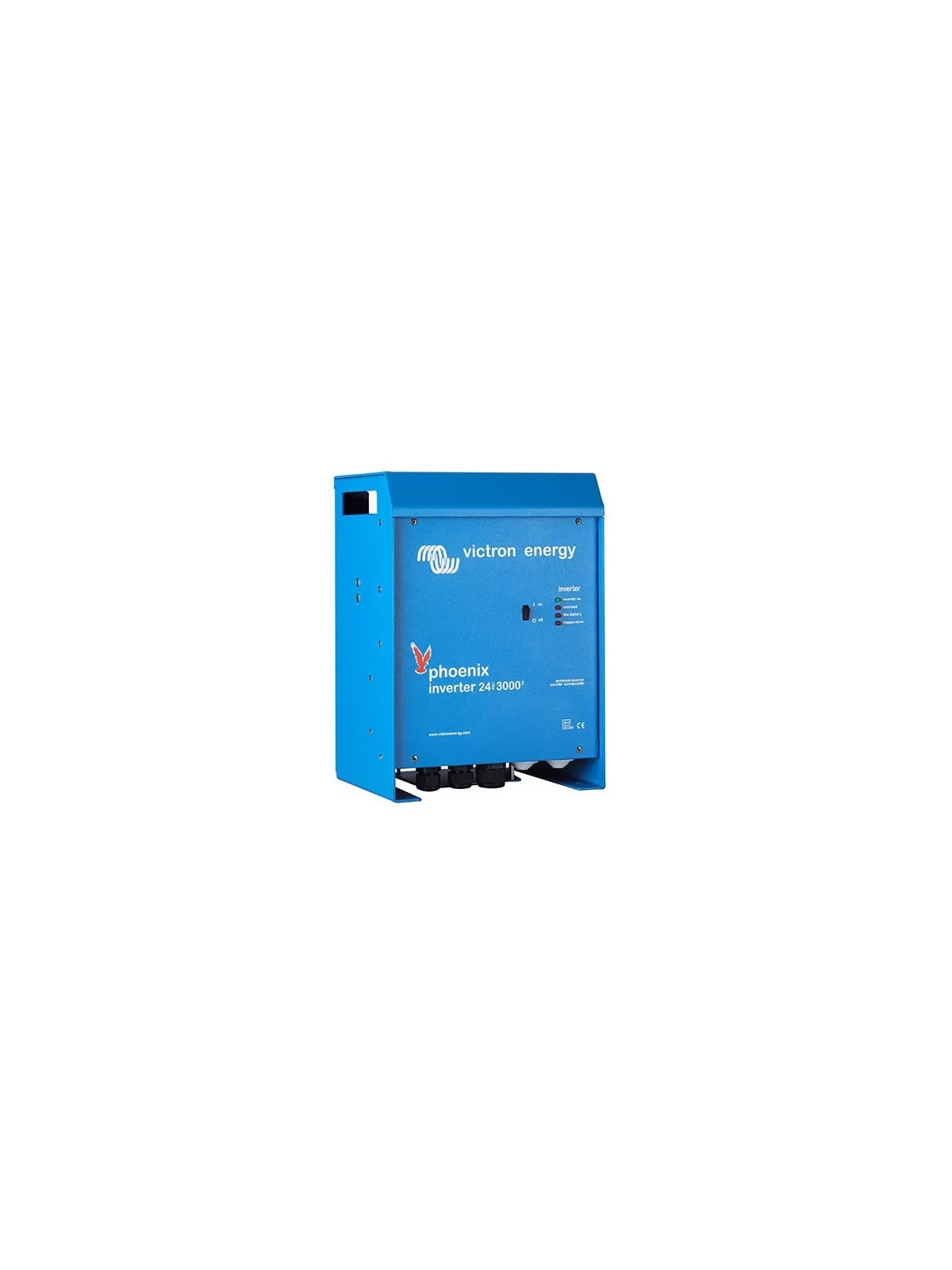

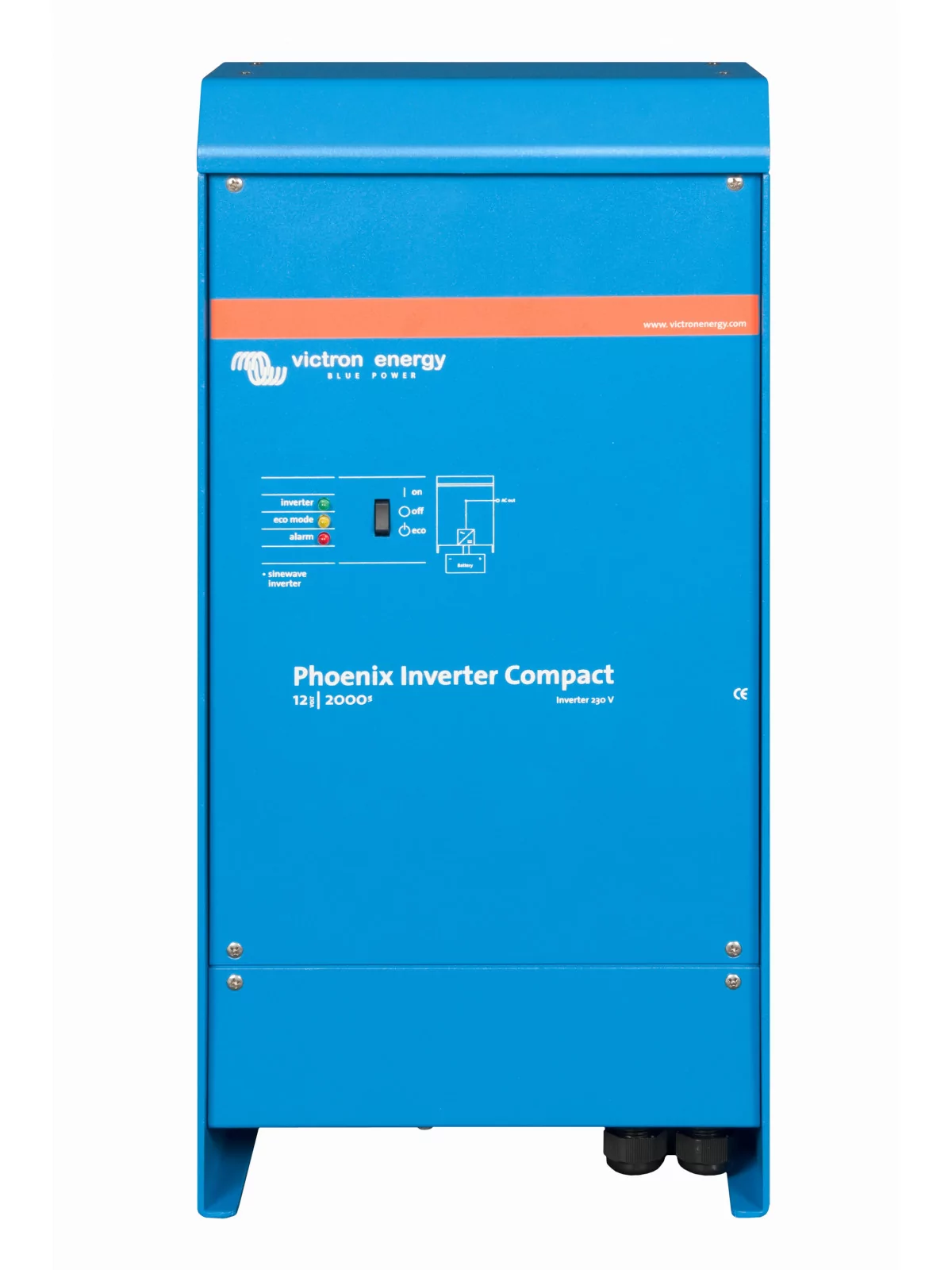

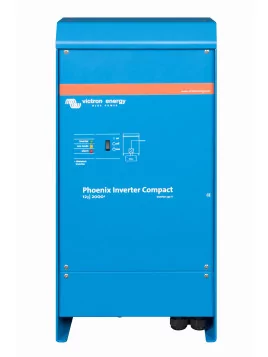

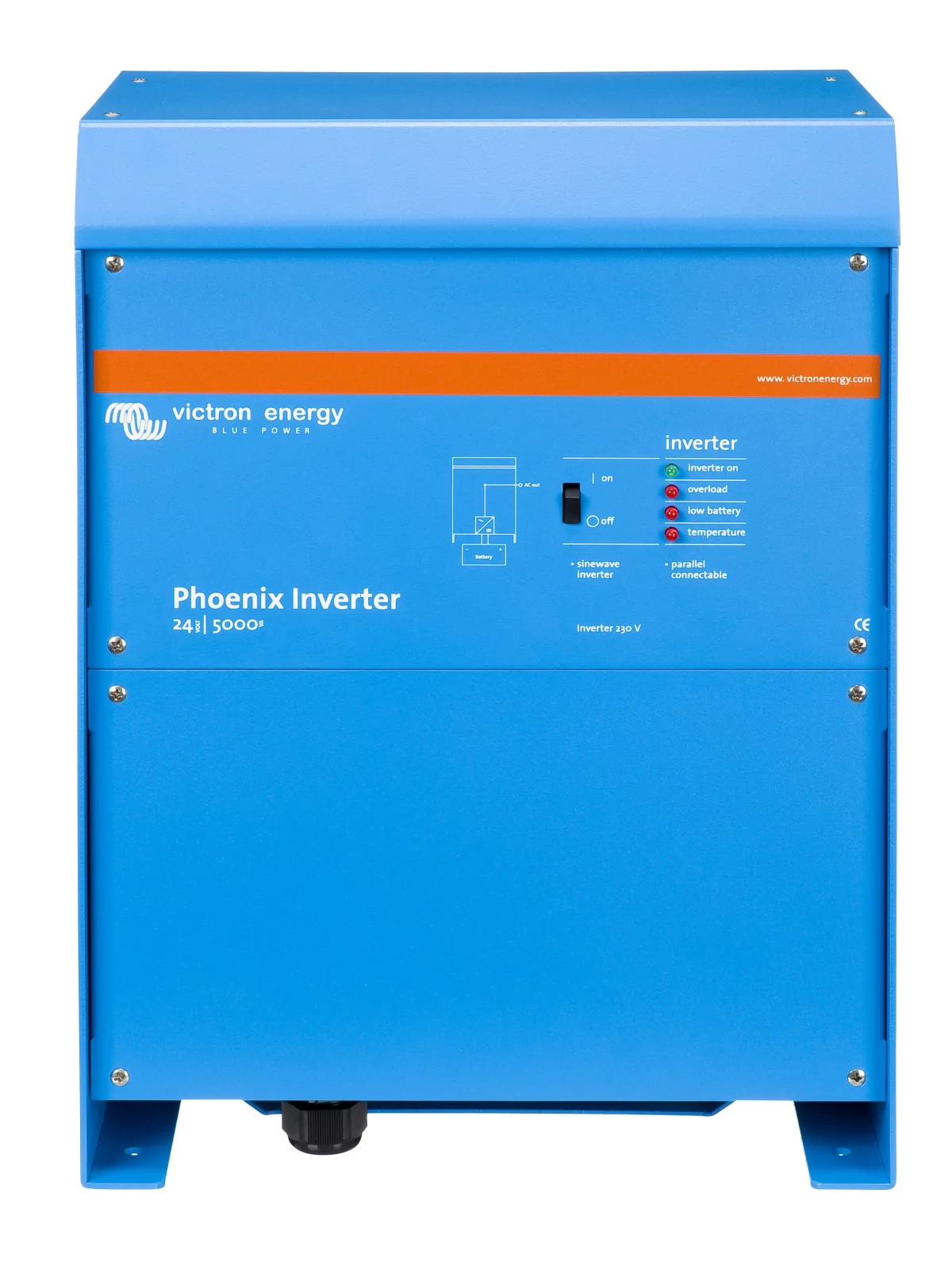

    Converter Victron Phoenix C 12/24V - 1200 to 5000VA

    $456.5
    CIN121220000
    0712971128262

    Victron Phoenix C 12/24/1200VA, C 12/24/1600VA, C 12/24/2000VA, 12/24/48/3000VA and 24/48/5000VA converters.

    Please choose your model.

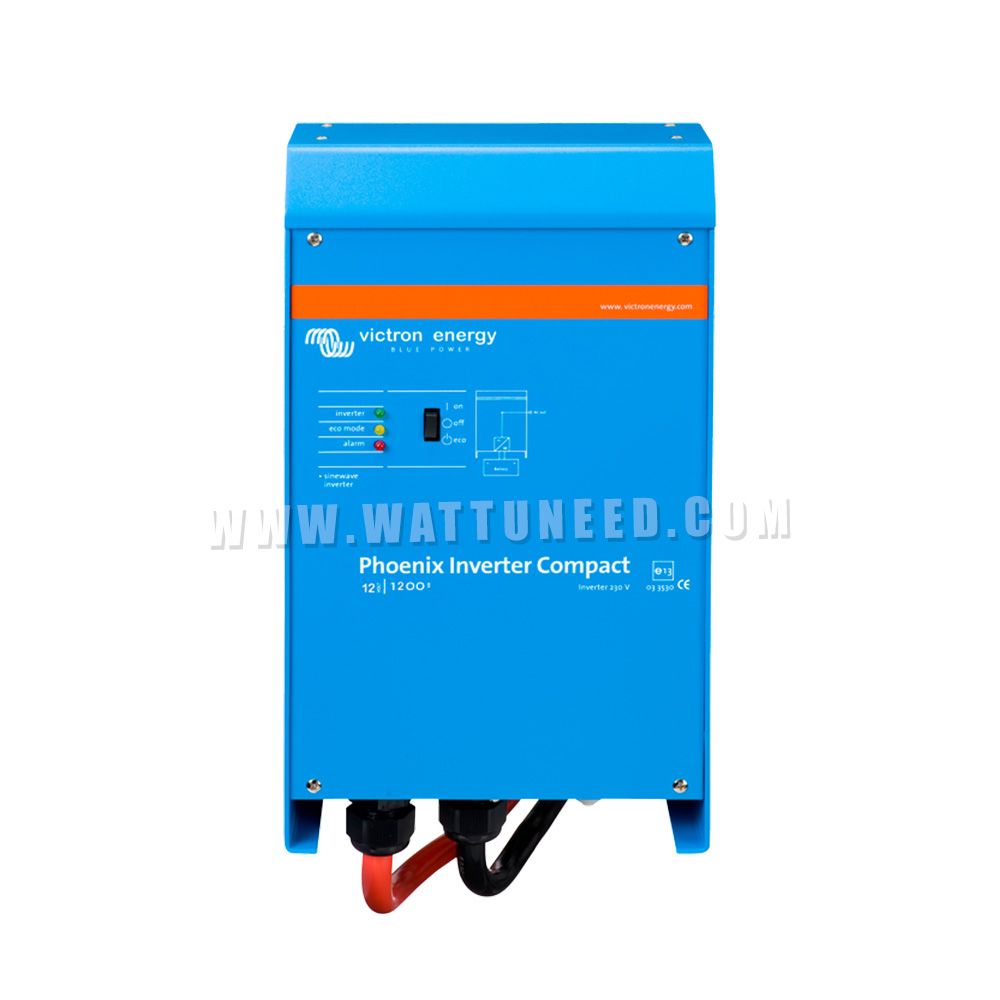

    Converter: Phoenix Inverter C 12V/1200VA

    Converter Victron Phoenix C...

    $456.5

    "Victron Phoenix converters: perfect for a wide range of applications".

    Image convertisseur Phoenix c 12/1200VA


    SinusMax - Advanced technology

    Developed for professional use, the Phoenix range of converters is perfectly suited to a wide variety of applications. These high-efficiency, pure-sinusoid converters are designed without compromising on performance. Hybrid HF technology provides exceptional features for compact dimensions and reduced weight, and ensures total compatibility whatever the equipment powered.


    Pure Sine

    The signal produced by Pur Sinus devices is as good as the signal supplied by a conventional electrical distributor (e.g. EDF). These converters are compatible with all electrical appliances.


    High instantaneous power


    SinusMax technology enables very high instantaneous power levels, impossible to achieve with conventional high-frequency technology. This makes Phoenix converters ideal for powering devices requiring high inrush currents on start-up, such as refrigeration compressors, electric motors and similar equipment.


    Load transfer to another AC source: the automatic changeover switch


    If automatic transfer switching is required, we recommend using a MultiPlus inverter charger instead. These devices incorporate the switch, and the charging function of the Multiplus can be deactivated. The operation of computers and other electronic equipment will not be disrupted, as the MultiPlus benefits from a very fast transfer time (less than 20 milliseconds).


    Computer interface


    All models feature an RS-485 port. All you need for connection to your PC is our MK2 interface (see accessories below). This interface provides galvanic isolation between the converter and the PC, as well as 'rs485' to 'rs232' conversion. An RS-232/USB conversion cable is also available. Thanks to our VEConfigure software, available for free download from our website www.victronenergy.com, all converter parameters can be customized. You can configure output voltage and frequency, overvoltage and undervoltage thresholds, and program the relay. For example, the relay can be used to signal various alarm conditions, or to start a generator. The converters can also be connected to VENet, Victron Energy's new energy control network, or to other computerized control and management systems.

    Caractéristiques

    CIN121220000

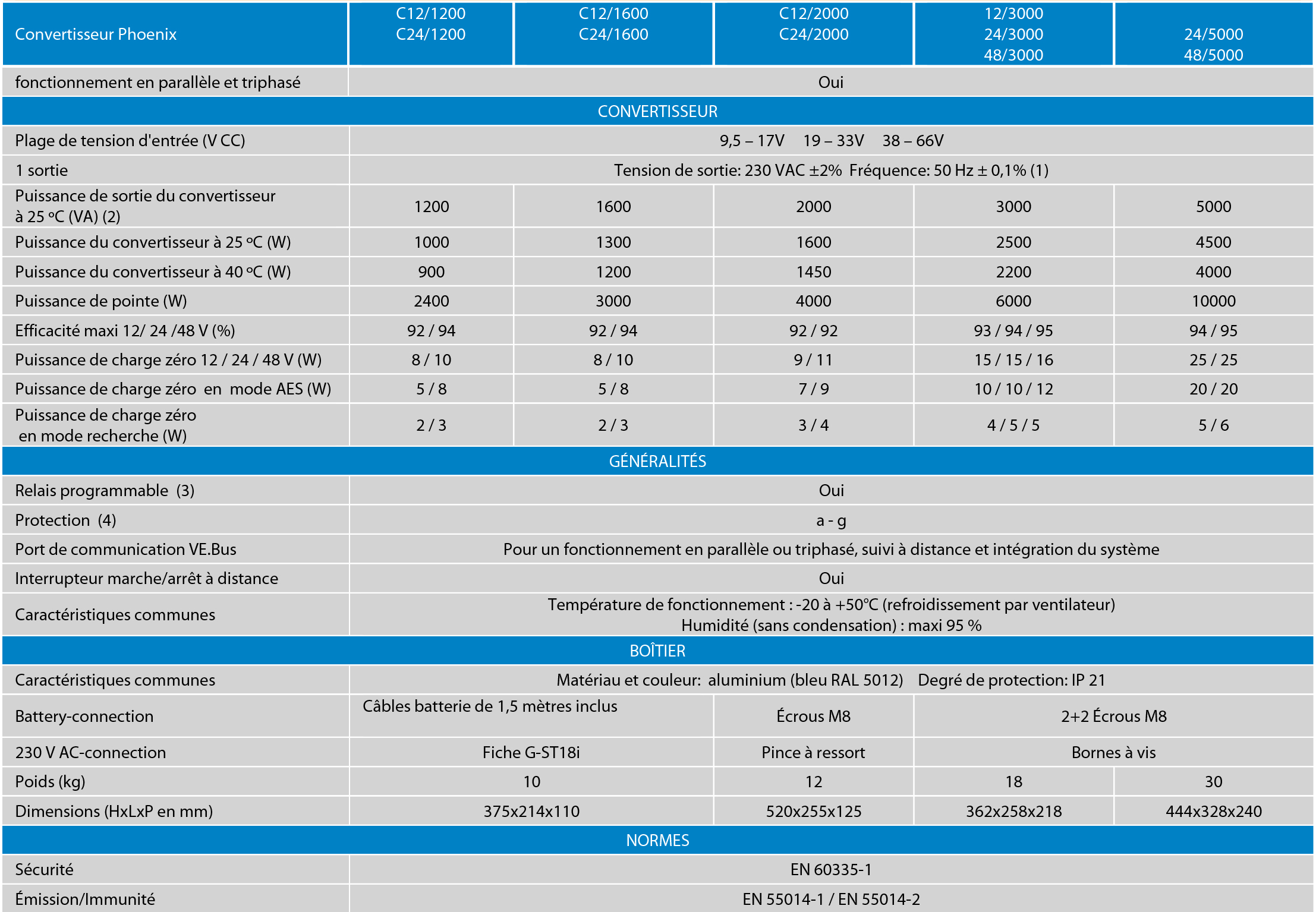

    Data sheet

    Inverter power
    5000VA
    Voltage
    12V
    Power
    1200-5000 VA
    Phase
    Monophasé

    Specific References

    New

    Download

    Phoenix Inverter - FR

    Download (321.11KB)

    Phoenix Inverters - EN

    Download (318.98KB)
