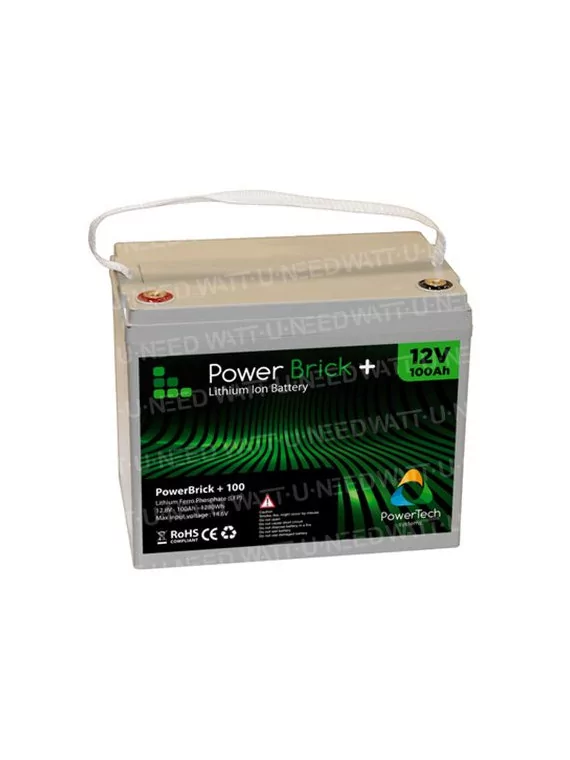

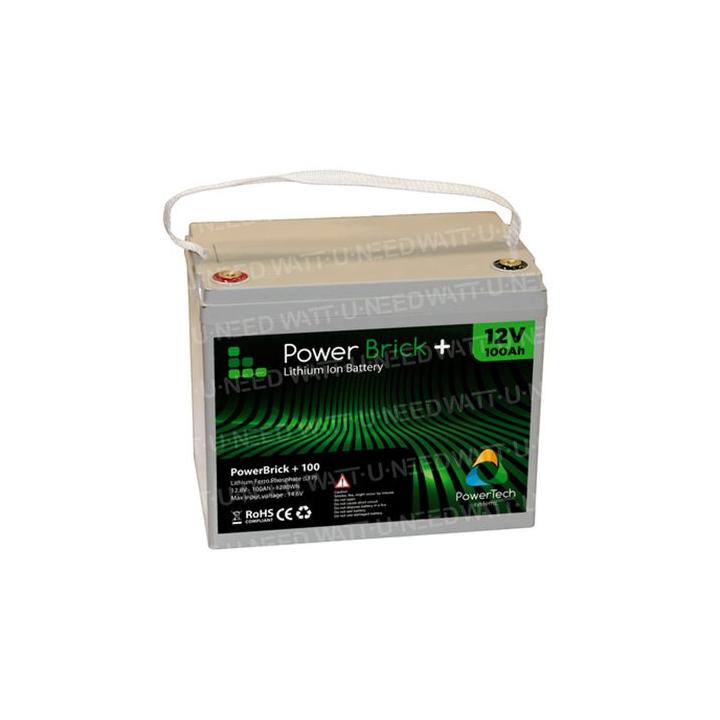

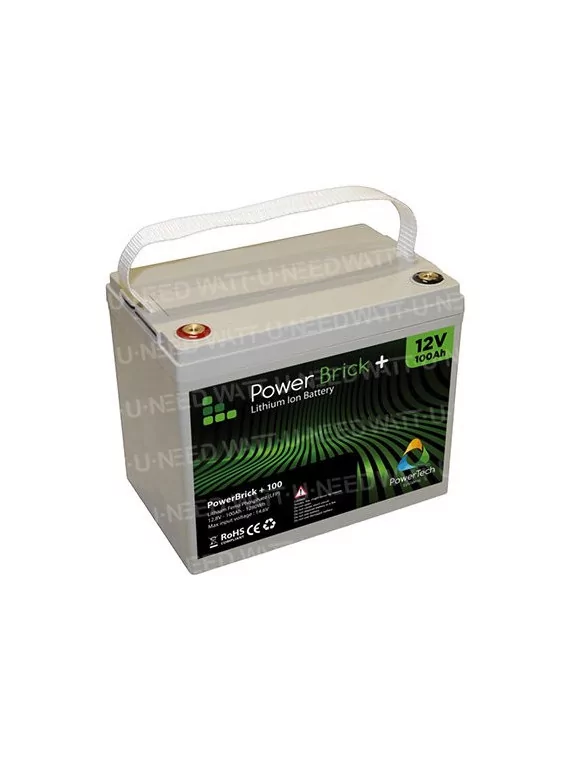

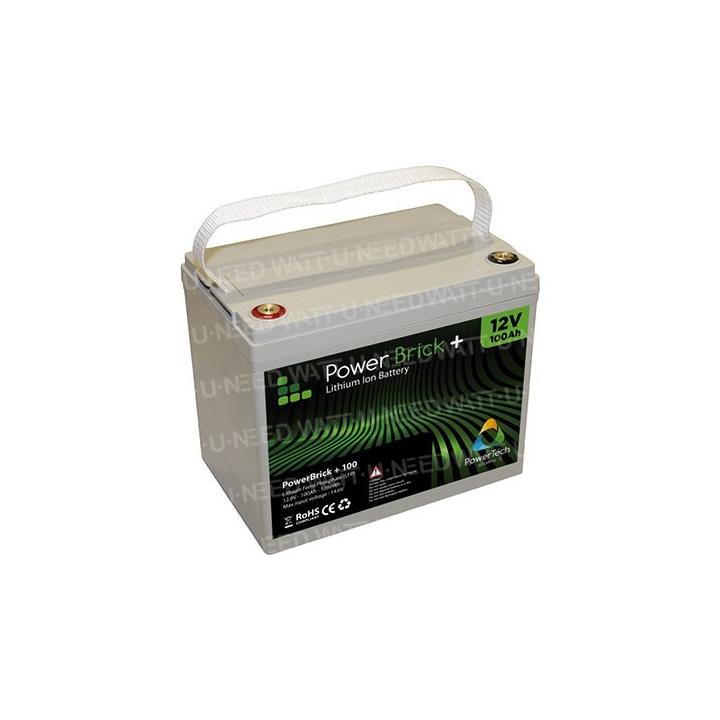

1.28 kWh LiFePO4 lithium battery - PowerBrick+ PB+12/100 12.8 V 100 Ah – IP65
€491.40
Tax included
PB+12/100
0712971137783
PowerBrick+ lithium battery designed to power 12 V equipment and provide energy storage on a solar battery in isolated locations, in servitude or on the move. It is based on LiFePO4 chemistry with cylindrical cells and an integrated BMS, which monitors charging/discharging, temperature and balancing to ensure safe use. It is suitable when you are looking for an IP65 waterproof battery capable of delivering high continuous current.
- Specifications: 1.28 kWh (12.8 V, 100 Ah). Energy efficiency > 98%. 3,000 cycles at 100% DoD @ 1C and 4,500 cycles at 80% DoD @ 1C.
- Cells: cylindrical LiFePO4 cells, designed to provide a steady 12 V power supply over repeated energy storage cycles.
- BMS + communication: integrated BMS with current, cell voltage and temperature monitoring, and balancing management; BMS cut-off during charging at 14.8 V and BMS cut-off during discharging at 10 V.
- Compatibility + scalability: It allows you to build a modular system with up to 4 batteries in series (up to 48 V) and up to 16 batteries in parallel, in order to increase capacity and autonomy.
🔋
Cette batterie est-elle faite pour vous ?
Vérifiez que
1.28 kWh
correspond à vos besoins
PowerBrick+ 12V 100Ah Lithium battery: powerful, long-lasting energy storage
The PowerBrick+ 12V-100Ah Lithium-Ion battery offers maximum safety thanks to the use of cylindrical cells in Lithium Ferro Phosphate (LiFePO4 or LFP) technology.
The PowerBrick 12V-100Ah incorporates an innovative control system (BMS) in its casing, ensuring a very high level of safety during use. The BMS constantly monitors and balances the battery cells, to protect the battery and extend its life. The BMS also protects the battery from mishandling: deep discharge, overcharging, etc.
The PowerBrick+ range has been designed to replace lead-acid batteries, offering quadruple the energy density for the same weight and size.
Thanks to its technology, the PowerBrick+ 12V-100Ah lithium battery can be installed in any position (upright, on its side or upside down).
The electrical parameters of the PowerBrick+ 12V-100Ah lithium battery are fully compatible with those of a 12V AGM lead-acid battery. In the vast majority of cases, the charging system can be retained unchanged, and no additional accessories are required for replacement.
Since a PowerBrick+ battery can be discharged to 100% of its capacity, a lead-acid AGM battery can be replaced by a PowerBrick+ with a capacity 2x lower than that of the lead-acid battery (e.g.: a PowerBrick+ 50Ah replaces a 100Ah AGM battery).
The PowerBrick+ 12V-100Ah lithium battery has a nominal voltage of 12.8V. It can be easily assembled in series (up to 4 batteries in series) and in parallel (up to 15 batteries).
The voltage of the final assembly can be 12V and up to 48V (for 4 packs assembled in series), which meets the needs of virtually all electrical applications for traction, solar or wind storage, servicing, robotics, carts, etc.
The battery is protected by a splash-proof, dust-proof ABS case (IP65).
PowerBrick+ products are lightweight, compact, high-performance and can be used for all types of applications. PowerBrick+ directly replaces old-generation 12V batteries (VRLA, AGM or OPZ lead-acid batteries), which are inefficient and harmful to the environment (use of heavy metals and complex recycling).
The PowerBrick+ range comes with a 2-year commercial warranty, extendable to 5 years.
LiFePo 100Ah Lithium batteries
- Extremely long service life: from 3,000 cycles to several tens of thousands
- Deep discharges possible (up to 100%)
- Completely safe Lithium Iron Phosphate technology (no risk of explosion or auto-ignition) BMS
- (Battery Management System) integrated into the case:
- maximizes battery life AND safety
- Very low environmental toxicity
- Calendar life > 10 years
- Excellent temperature resistance (-20°C to +60°C)
- Flexible system :
- up to 16 packs in parallel and 4 in series
- Constant power throughout discharge (low internal resistance)
- Very low Peukert losses (energy efficiency >98%)
- Very low self-discharge (<3% per month)
- No lead, no rare earths, no acid, no outgassing
- Weight savings >50% and 40% smaller footprint than lead-acid batteries
- Certification: CE, RoHS, UN 38.3
Key points
- 12V-100Ah battery pack in Lithium Iron Phosphate (LiFePO4 - LFP) technology
- Nominal voltage: 12.8V
- Stored energy: 1.28 KWh
- New high-performance watertight cylindrical cell
- 3000 cycles at 100% DoD @ 1C (see technical graphs)
- 4500 cycles at 80% DoD @ 1C (see technical graphs)
- 98% energy efficiency
- Weight: 11.5Kg
- Dimensions: 260mm x 168mm x 212mm
- Instantaneous peak discharge current: 300A ±30A (max 100mS)
- Continuous discharge current: 125A (1.6kW)
- Maximum discharge current (< 30s): 200A (2.56kW)
- Maximum charging current: 100A
- Total safety ensured by a BMS (Battery Management System) integrated in the case
- Monitoring of cell current and voltage, temperature, cell balancing, etc.
- Intelligent balancing algorithm
- 100% maintenance-free
- Series assembly from 12V to 48V (1 to 4 units in series)
- Parallel assembly up to 16 units (12V-1600Ah / 20.5kWh)
- Robust design in an insulated, watertight casing (protection class: IP65)
- Operating temperature in charge: 0°C to +60°C
- Operating temperature in discharge: -20°C to +60°C
- Watertight ABS casing (IP65)
- CE, RoHS and UN38.3 certification
- 2-year commercial warranty as standard, extendable to 5 years
Dimensions
Features
| ELECTRICAL | |
| Rated voltage | 12,8 V |
| Rated capacity | 100 Ah |
| Energy | 1280 Wh |
| Internal resistance | ≤ 50mΩ |
| Number of cycles | >3000 cycles |
| Self-discharge | < 3% per month |
| Energy efficiency | > 98% |
| STANDARD CHARGE | |
| Charging voltage | 14,4 V +- 0,2 V |
| charging mode | CC/CV : Constant Current / Constant Voltage |
| Standard charging current (Max continuous current) | 50 A (Maxi continu : 100 A) |
| BMS cut-off voltage | 14,8 V +- 0,1 V |
| STANDARD DISCHARGE | |
| Instantaneous peak discharge current | 300 A +- 30 A (max 100mS) |
| Continuous discharge current | 125 A (1.6 kW) |
| Maximum discharge current (< 30s) | 200 A (2.56 kW) |
| BMS cut-off voltage | 10 V |
| ENVIRONMENT | |
| Charging temperature | 0°Cto +60°C |
| Discharge temperature | -20°C to +60°C |
| Storage temperature | 0°C to +50°C @60±25% relative humidity |
| IP protection | IP 65 |
| MECHANICAL | |
| Cell type Cylindrical | Cylindrical |
| ABS enclosure | ABS |
| Dimensions (L x P x H) | 260 x 168 x 212 |
| Weight | 11,5 kg |

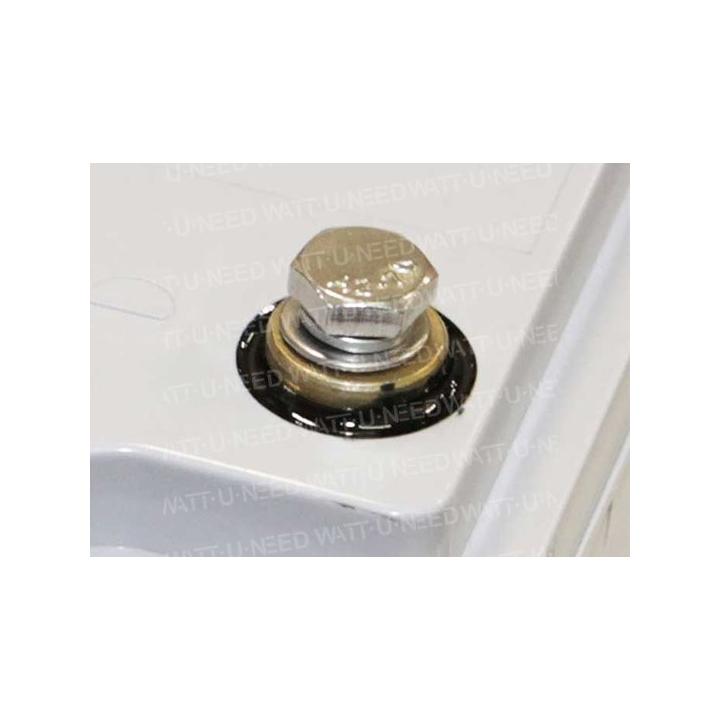

| Terminal | bolt M8 |
PB+12/100
Data sheet
- Storage temperature
- 0°C to +50°C @60±25% relative humidity
- Voltage
- 12V
- Technology
- Lithium
- Width
- 260 mm
- Height
- 212 mm
- Thickness
- 168 mm
- IP protection
- IP65
- Rated capacity
- 100 Ah
- Weight
- 13,5 kg
- Video Youtube 1 - ID
- TSkV5tpVDq8
- Discharge temperature
- -20°C to +60°C
- Load temperature
- 0°C to +60°C
- Usable energy
- 1280 Wh
- Charging voltage
- 14.4 V ± 0.2V
- BMS cut-off voltage
- Décharge standard 10 V
- Instantaneous peak discharge current
- 300 A ± 30 A (max 100mS)
- DC discharge current
- 125 A (1.6 kW)
- Max. discharge current
- 200 A (2.56 kW)
- Courant de charge standard
- 50 A (Max continuous: 100A)
Specific References
- UPC
- 712971137783
- EAN13
- 0712971137783
New
