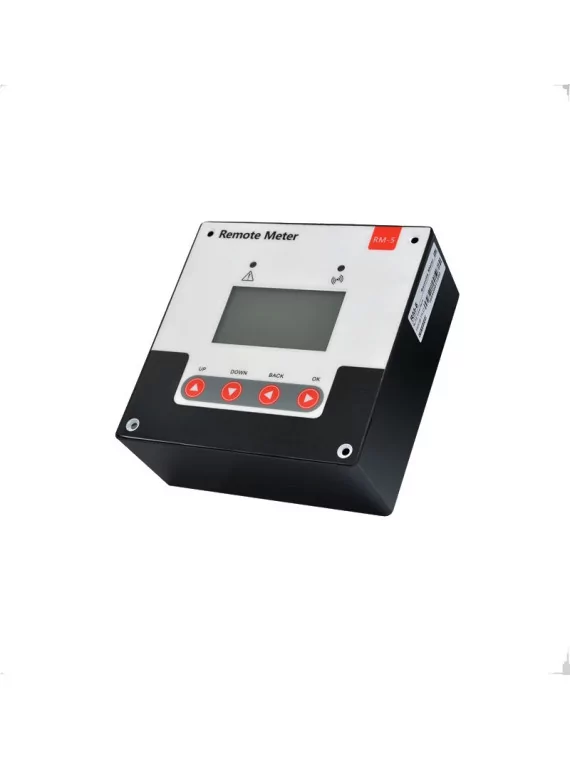

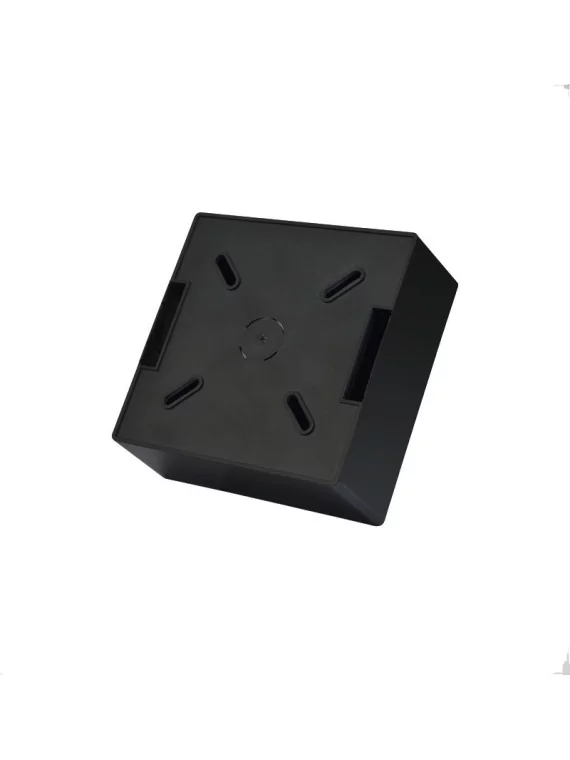

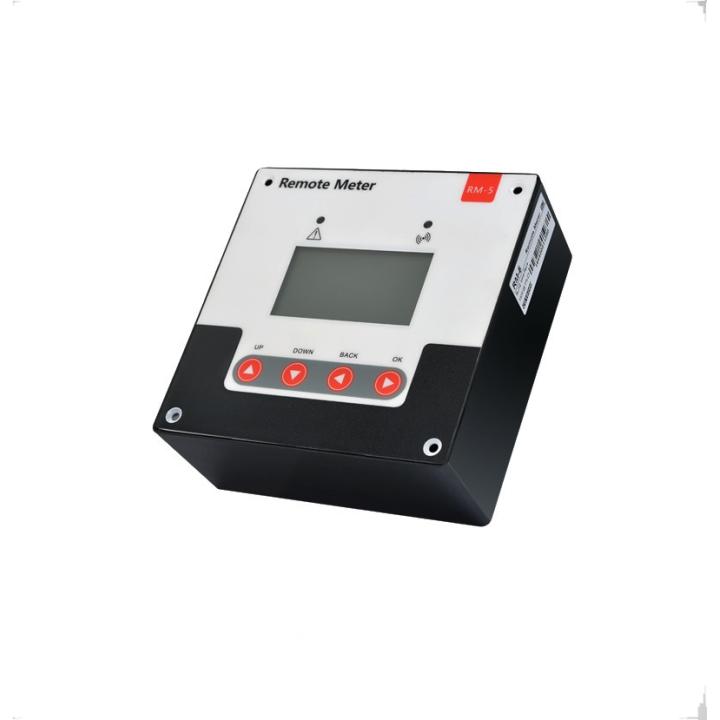

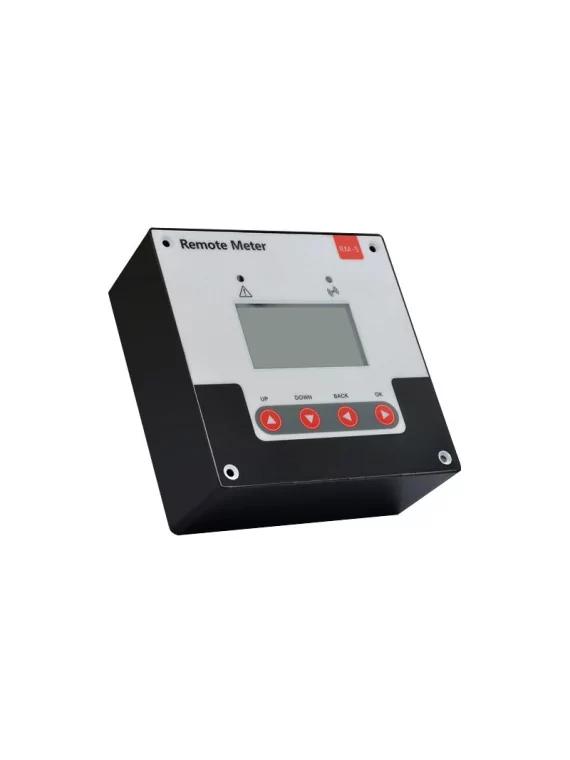

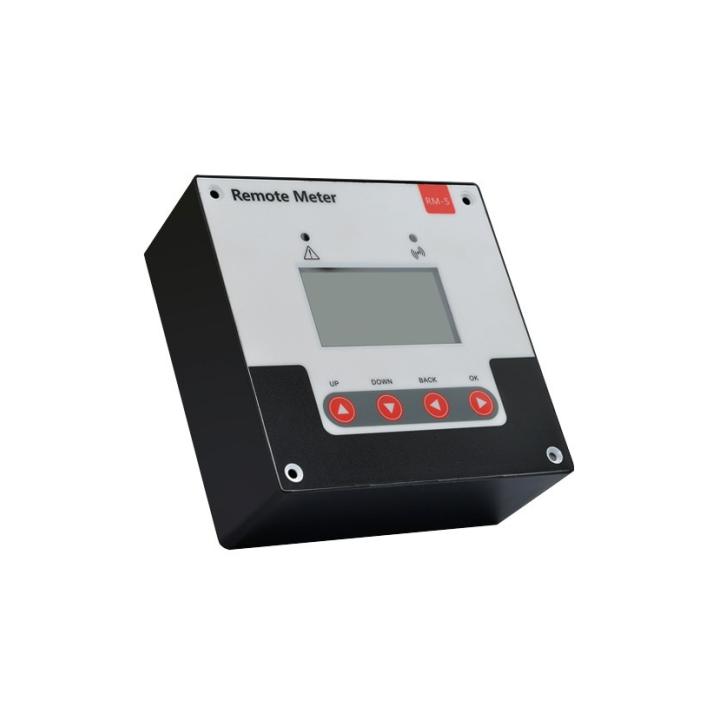

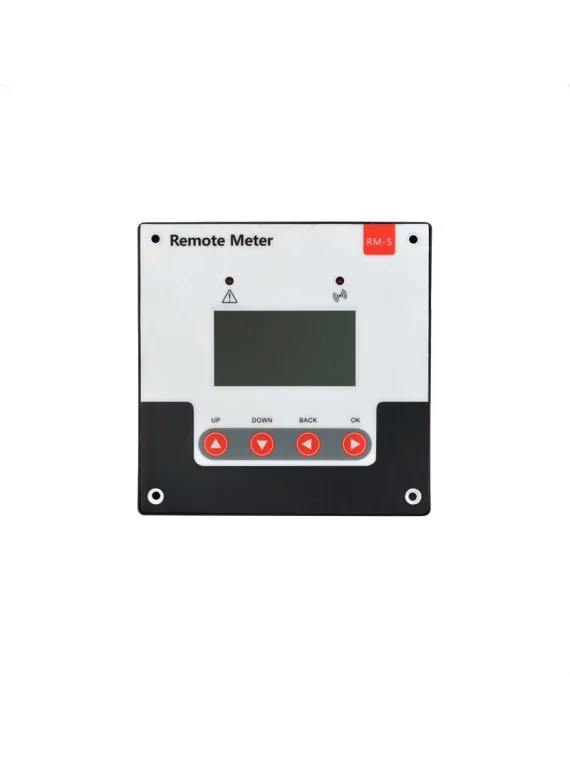

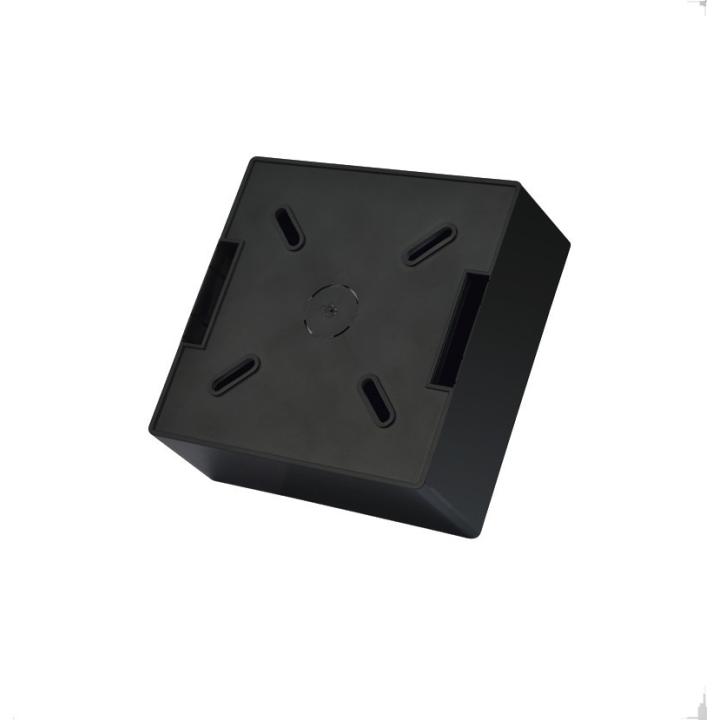

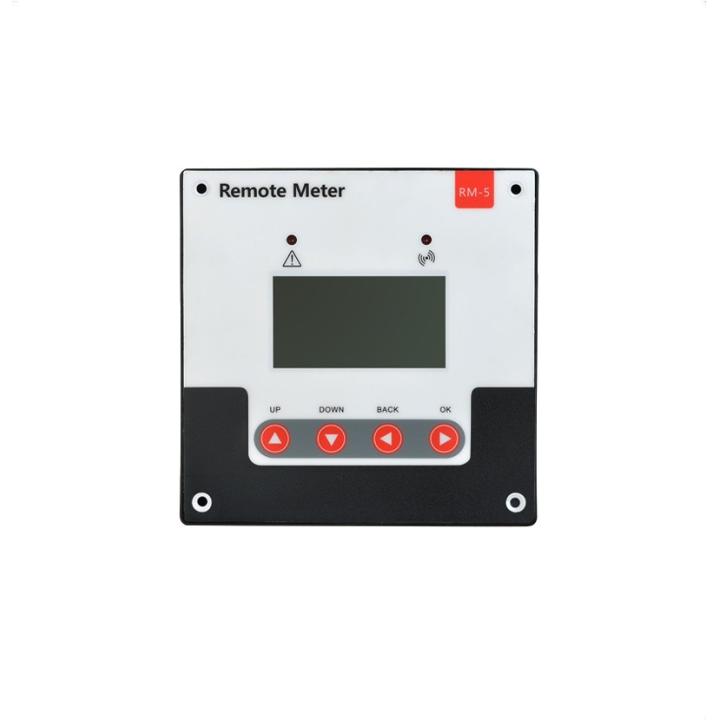

SRNE RM-5 remote LCD control screen for ML and MC solar regulators

Dhs564.00
Tax included
ML 2420-30-40
0712971139145

The SRNE RM-5 remote display is an LCD control interface designed to remotely monitor and configure your solar charge controllers. This screen allows you to view the performance data of your photovoltaic installation in real time without having to directly access the controller, offering optimal ease of use for installations in remote locations.

A true data centre for your energy ecosystem, this display provides accurate readings of battery voltage, charging current and panel output. Thanks to its intuitive menu, users can configure battery types (lithium, gel, AGM) and check for any error codes. This device improves system management by ensuring rigorous monitoring of MPPT charging and consumption.

The advantages of this monitoring accessory include:

  • Full compatibility with SRNE ML and MC series regulators.
  • Clear display of energy flows and storage status.
  • Easy installation via direct connection to the communication port.

With its compact design and simple installation, the RM-5 is an essential tool for securing and maximising the efficiency of your solar installation.

EAN: 0712971139145

4 items in stock!

SRNE RM5 display for controller



Features

  • Adopts a 128 * 64 LCD display, with menus designed with numerical and graphic forms.
  • With a graphic design, the main menu is both artistic and informative: it can display up to 10 parameters and states.
  • Able to read historical data of a certain day.
  • A low-energy BLE4.0 function enables more powerful functions when pairing with a mobile application (optional).
  • Uses two LEDs to indicate controller anomalies and communication errors respectively.
  • Features a controller anomaly voice alarm function that can be switched on/off.
  • A backlight time setting function is available.
  • Capable of monitoring live data and controller operating states.
  • On/off switching, deletion of historical data and restoration to factory settings can all be performed with this device.
  • Adoption of standard Modbus communication protocol.
  • Standard RJ12 features as communication interface.
  • With no need for an external power source, connection to a controller via a data cable will be sufficient to allow the unit to be powered.
  • Featuring an industrial-grade design and excellent anti-interference capability, the product can operate well in a variety of harsh conditions.

Standby power consumption LCD with backlight <35mA/12V
LCD without backlight <

2

5mA/12V
Communication interface RJ12 (6-PIN)
Baud rate 9600BPS
Communication port RS232
Operating temperature
/ +65°C
Weight
.5kg
Dimensions 115.82 * 115.82 (mm)
