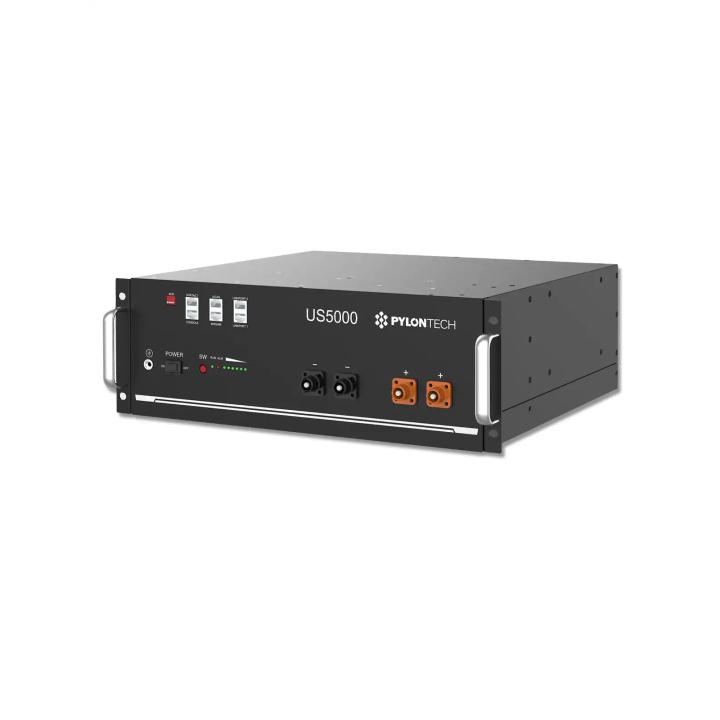

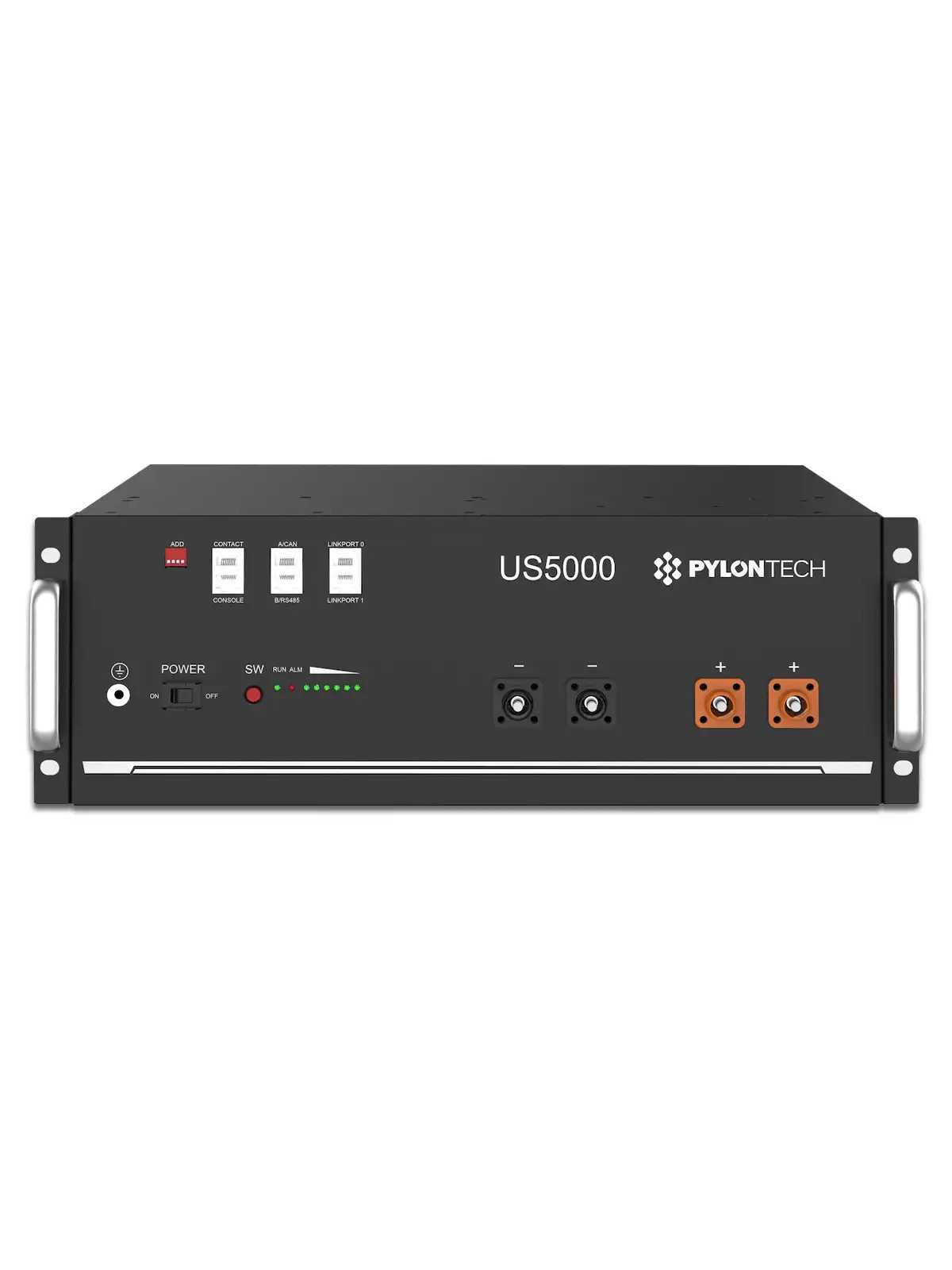

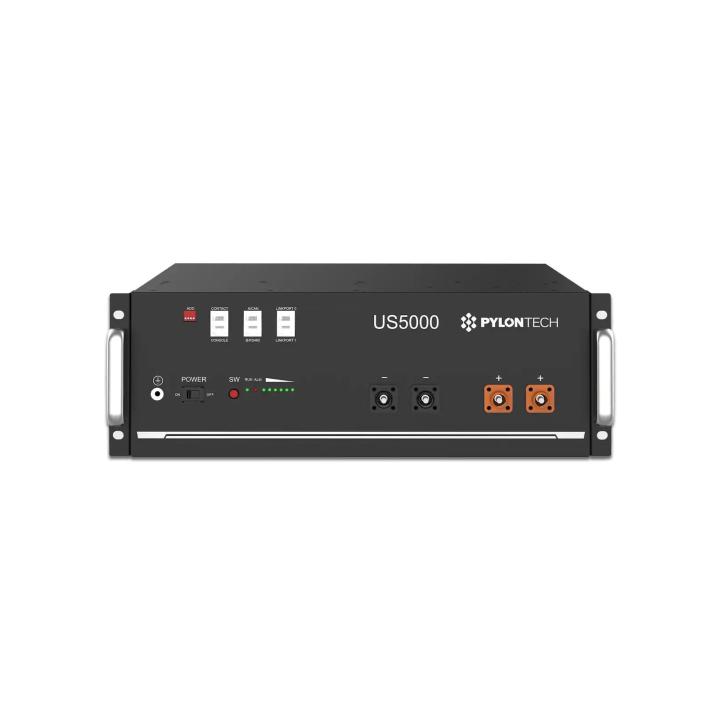

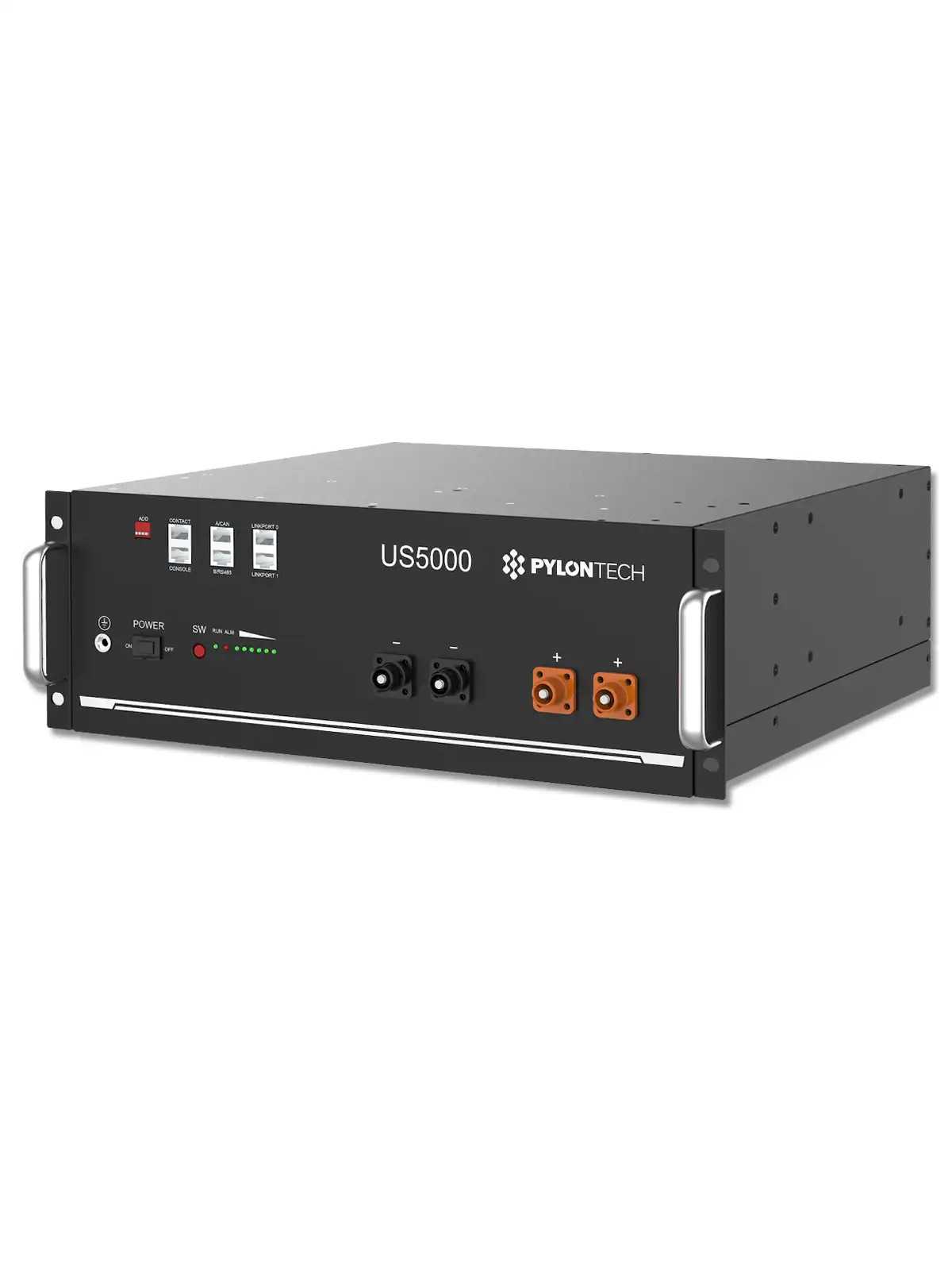

Pylontech US5000 Lithium Battery - 4.8kWh | High Performance and Safety

$1,261.7
US5000+100 - 4.8kWh
0768563815683

- A compact, trendy design that blends in perfectly with your home environment.
- Supplies up to 4.8KW
- Modular design for easy capacity expansion.
- Compatible with most hybrid inverters.
- Safety Cert.TüV CE UL UN38.3
Registering on the Pylontech website extends the warranty to 10 years.
* Battery to inverter connection cables sold separately.



Important notice for our customers in Belgium:


As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental contribution. An amount of €94.41 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here

Here's the reference list and the corresponding membership fee!


When purchasing lithium batteries, please add the following product Pylontech US5000 Environmental Fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.

158 item(s) left in Stock!

Pylontech US5000 Lithium...

$1,261.7

Présentation batterie Pylontech US5000







Pylontech US5000 Lithium Battery

The best solution







Main characteristics

ICONE2

Compact size for minimal space requirementsiconeOver 10 years' technical experience
icone 1

Safety using cells, modules and BMS developed in-house

iconeExtendable according to demand
iconeHigh endurance to current shocksICONELow and high failure rates
iconeRemote upgrade function10-year guarantee




Benefits

Batterie Lithium Pylontech US5000 +100 - 4.8kWh

Super Controllability

• Vertical production chain

• Reliable supply

• Reliable safety and quality

• Extraordinary performance

Solution ESS

R&D on cathodes



Automated cell production



BMS/module



System integration

Realisez votre independance du réseau

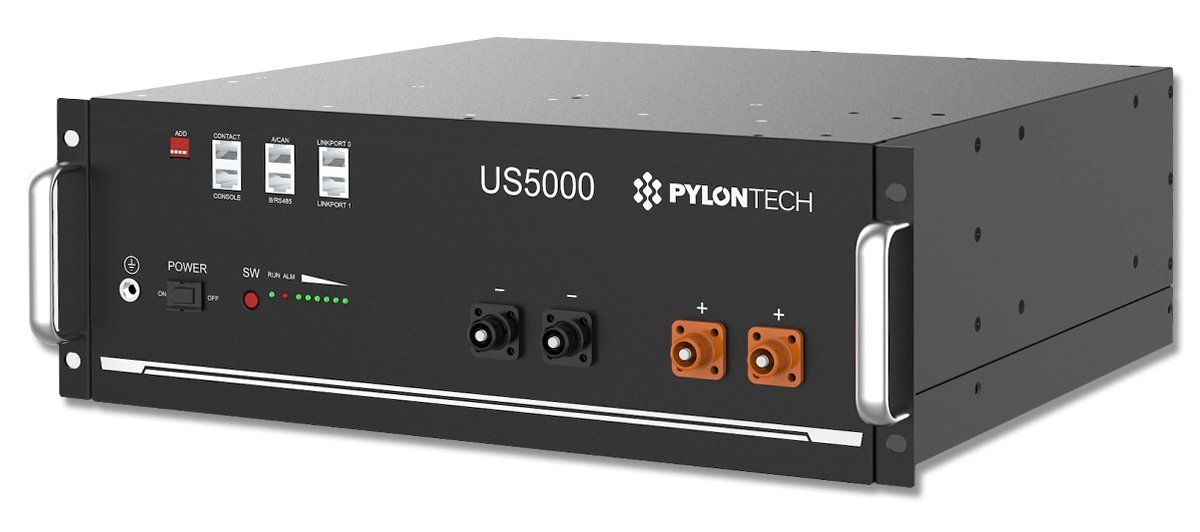

The US5000 lithium iron phosphate battery is Pylontech's latest energy storage product. It provides reliable power for a variety of equipment and systems.



Integrated soft start: Reduces current peaks when the UPS starts from the battery.

Double protection: Offers enhanced safety thanks to built-in double protection.

- Automatic setting: When connecting several battery groups, the address is set automatically.

Easy wake-up: Can be woken by a 5~12V signal via the RJ45 port.

- Remote update: Allows the battery to be updated remotely via CAN or RS485 communications.

Deep discharge: Allows discharge up to 95%, compatible with inverters that follow the Pylontech protocol.

Environmentally friendly: Non-toxic, non-polluting and environmentally friendly.

Safe and long-lasting: Manufactured in LiFePO4, offering high safety and long life.

Comprehensive protection: Protects against overdischarge, overcharging, overcurrent and extreme temperatures.

Intelligent management: Automatically manages cell state of charge and balance.

Flexible configuration: several modules can be connected in parallel to increase capacity and power.

Silent cooling: uses a self-contained cooling mode, reducing noise.

Low self-discharge: Can go up to 6 months without recharging, with no memory effect, and works well even with partial charge/discharge.

- Compact and lightweight: Small size and light weight, easy to install and maintain with a standard 19" format.

Extended compatibility: Compatible with other Pylontech 48V batteries. When using different types of modules together, always use the most recent as the main battery.



In short, the US5000 is a reliable, safe and easy-to-use battery, ideal for a variety of energy storage needs.

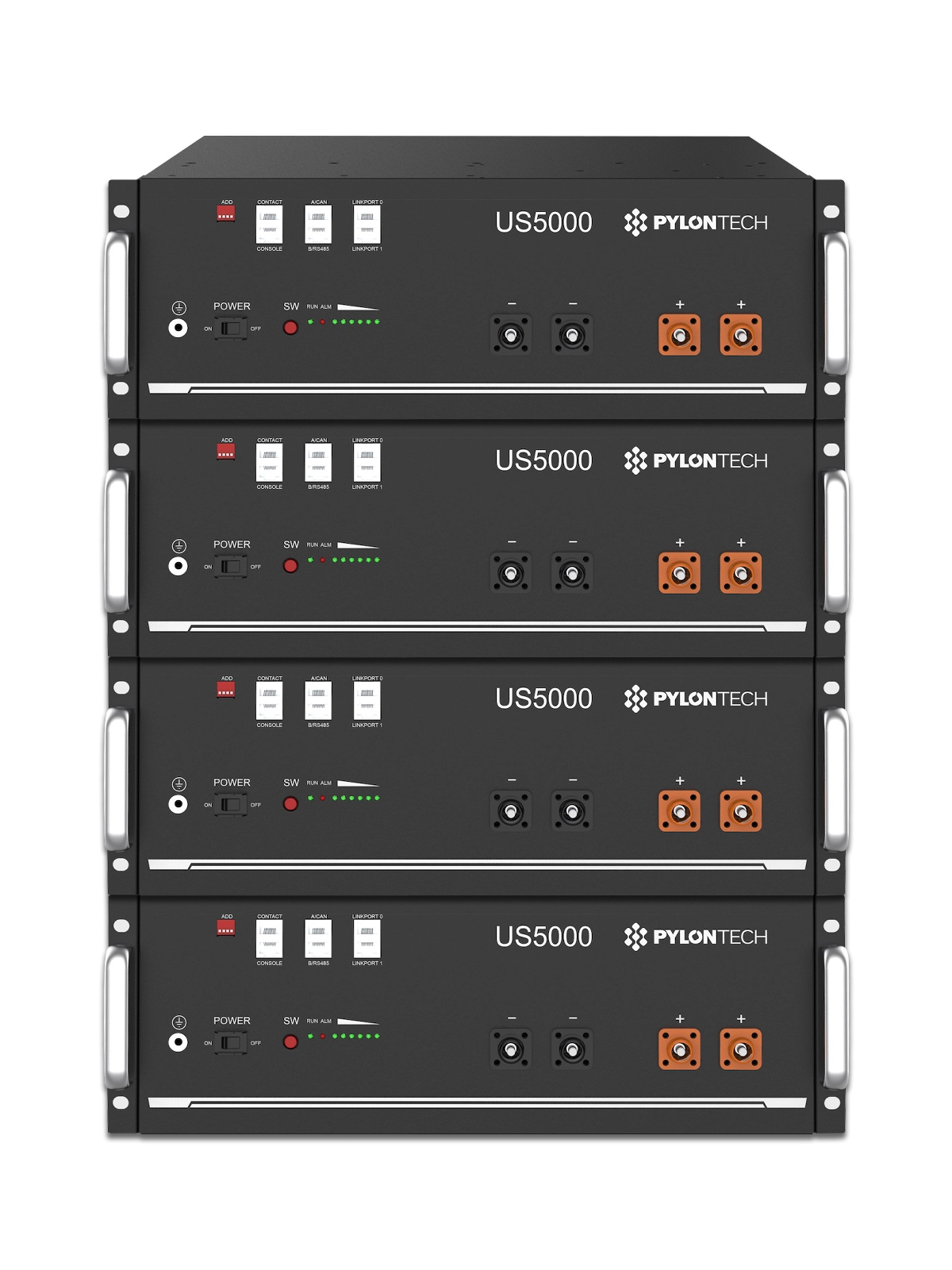

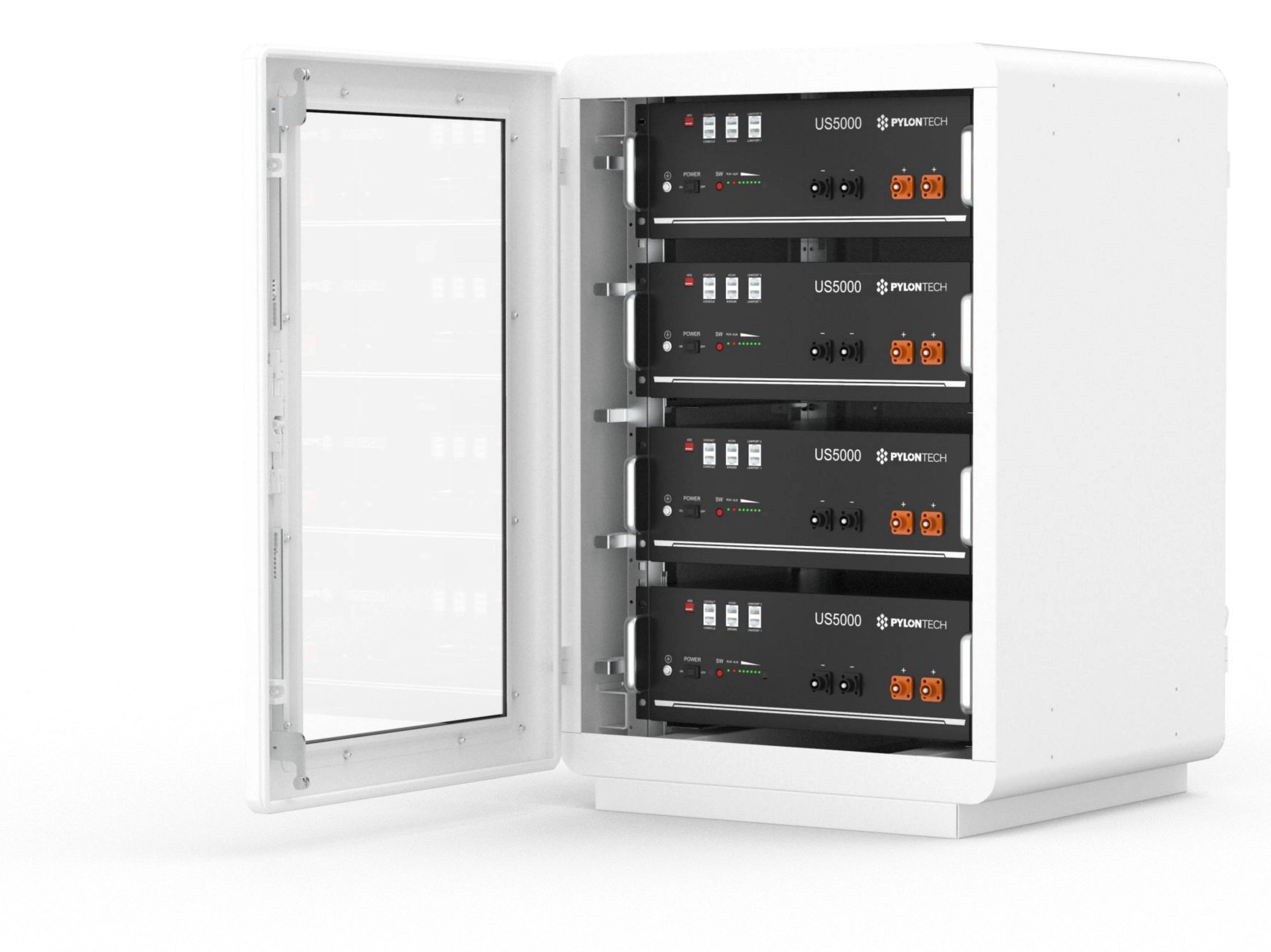

Modular capacity


Expandable up to 16 elements in series



quatre batteries pylontech mises en série

Quantity12345678
Capacity4,8 kWh9,6 kWh14,4 kWh19,2 kWh24 kWh28,8 kWh33,6 kWh38,4 kWh
Quantity910111213141516
Capacity43,2 kWh48 kWh52,8 kWh57,6 kWh62,4 kWh67,2 kWh72 kWh76,8 kWh

Batterie Lithium Pylontech US5000 +100 - 4.8kWh

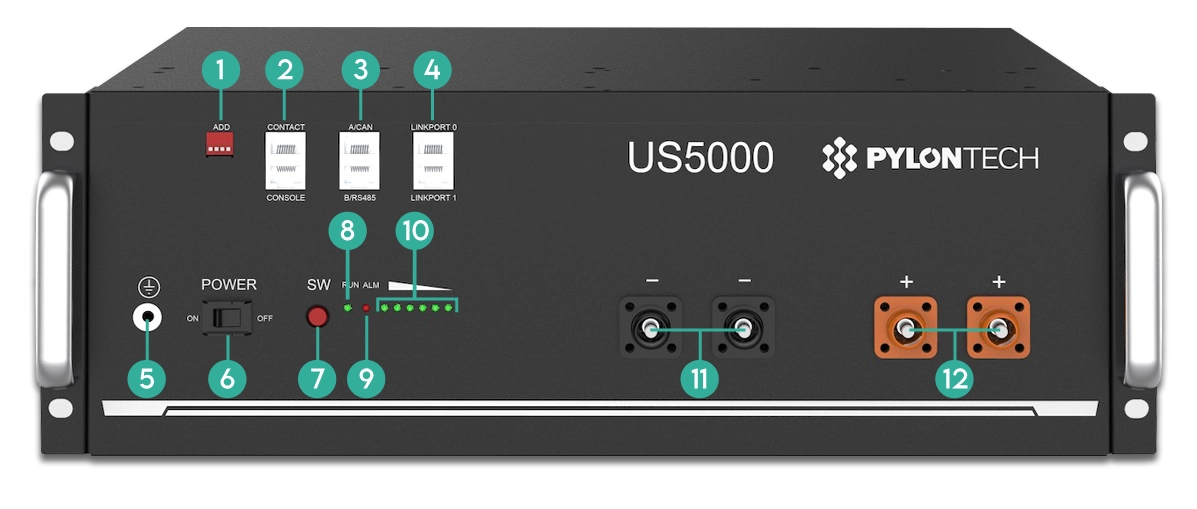

1 - ADD DipSwitch: defines master and slave battery.
2 - Contact /Console
3 - A/CAN
B/RS485: connection for communication with the inverter.
4 - Link Port 0/1: enables communication between several parallel batteries.
5 - Grounding point
6 - POWER: power switch ON - OFF
7 - Start: start - switch off
8 - Run: green LED flashes or lights up to indicate battery operating status.
9 - Alarm: flashes to indicate that the battery is in alarm; lights up to indicate that the battery is under protection.
10 - SOC: indicator lights show current battery capacity.
11 - Power terminals, two negative and two positive: one connects to the equipment, the other parallels another battery module to increase capacity.


Utilisation du systeme de stockage



Why a battery storage system?

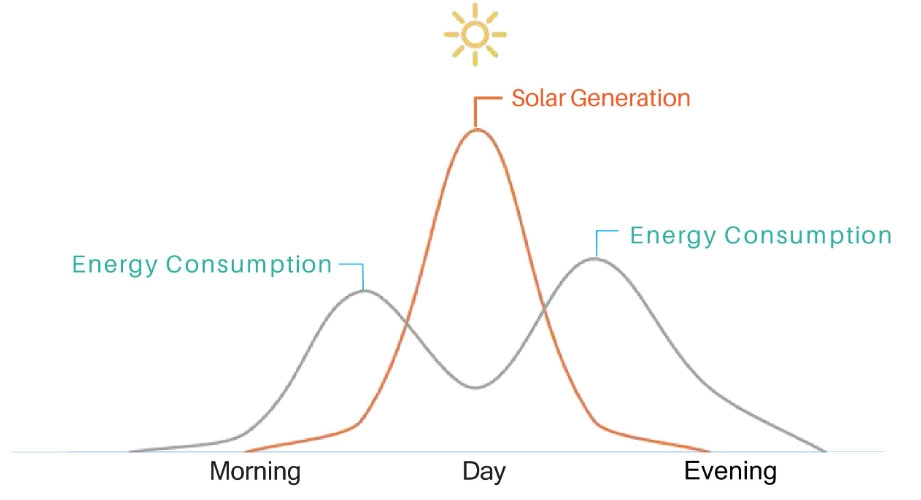

Energy demand is high in the morning and evening, but solar production is more adequate in the middle of the day.
The battery storage system balances supply and demand.

High efficiency for your electricity distribution
Reduce and save on your electricity bills








Comparative table of price per useful kWh over battery life at a glance!

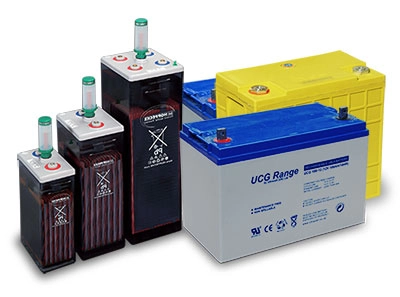

Comparatif des batteries

There are many different storage technologies: Gel or AGM batteries, lithium batteries, OPzS and OPsV. It's not easy to choose the right technology for your needs. Each technology has its own characteristics (size, power, cost, number of cycles and service life, etc.). With this table, you can quickly compare the price per useful kWh over the lifetime of the batteries.

C10 = 10-hour charge/discharge test.
C24 = examination of a charge or discharge in 24 hours.

Click here to see our comparison table.

US5000+100 - 4.8kWh

Data sheet

Cycles
6000
Storage temperature
-20~60°C
Operating temperature
0~50°C
Voltage
48V
Technology
Lithium
Battery capacity
100Ah
Width
442 mm
Height
161 mm
Nominal capacity
4800 Wh
Type of cooling
Natural
Humidity
5% to 95%a Relative humidity (non-condensing)
Weight
39.7 kG
DOD
95%
Depth
Communication port
RS485, CAN
Charge/discharge
80 Ah (Recommended) - 120@ 15min (Max.)
Max. quantity in a series
16 pieces
Authentication level
UL1973/UL9540AIEC62619/IEC63056/ICE61000-6-2/3/UN38.3

Specific References

UPC
768563815683
EAN13
0768563815683
New

Download

DataSh US3000C-EN

Download (1.05MB)

Manual US3000C-EN

Download (2.18MB)

FicheT US3000C-FR

Download (1.11MB)

Man US3000C-FR

Download (2.52MB)
View the trust certificate
  • For further information on the nature of the review controls, as well as the possibility of contacting the author of the review please consult our Transparency Charter.
  • No inducements have been provided for these reviews
  • Reviews are published and kept for a period of five years
  • Reviews can not be modified: If a customer wishes to modify their review then they can do so by contacting Verified Reviews directly to remove the existing review and publish an amended one
  • The reasons for deletion of reviews are available here.

4.3 /5

Based on 6 customer reviews

  • 1
    0
  • 2
    0
  • 3
    0
  • 4
    0
  • 5
    2
Sort reviews by :

Olivier D. published the 16/05/2024 following an order made on 24/04/2024

5/5

nickel

Did you find this helpful? Yes 0 No 0

Anonymous customer published the 05/12/2022 following an order made on 04/11/2022

5/5

Batterie reçue en bon état, emballage correct et transport sur palette. Aucun accessoire manquant. Mon onduleur étant trop ancien, la batterie fonctionne sans communication. Elle simule simplement une batterie au plomb et signale à l'onduleur la fin de la charge en laissant monter la tension. Elle était livrée chargée à 50%. Raccordement et mise en marche en suivant le manuel livré. Démarrage sans soucis ( j'ai juste dû arrêter et remettre en route une fois pour effacer l'état d'alarme ) L'enregistrement sur le site de Pylontech pour obtenir la garantie étendue s'est passé sans problème. En ce qui concerne la longévité, je compléterai cet avis dans 10 ans :-)

Did you find this helpful? Yes 2 No 0
