copy of Retrofit kit 3.6KVA 5.12 Kwh

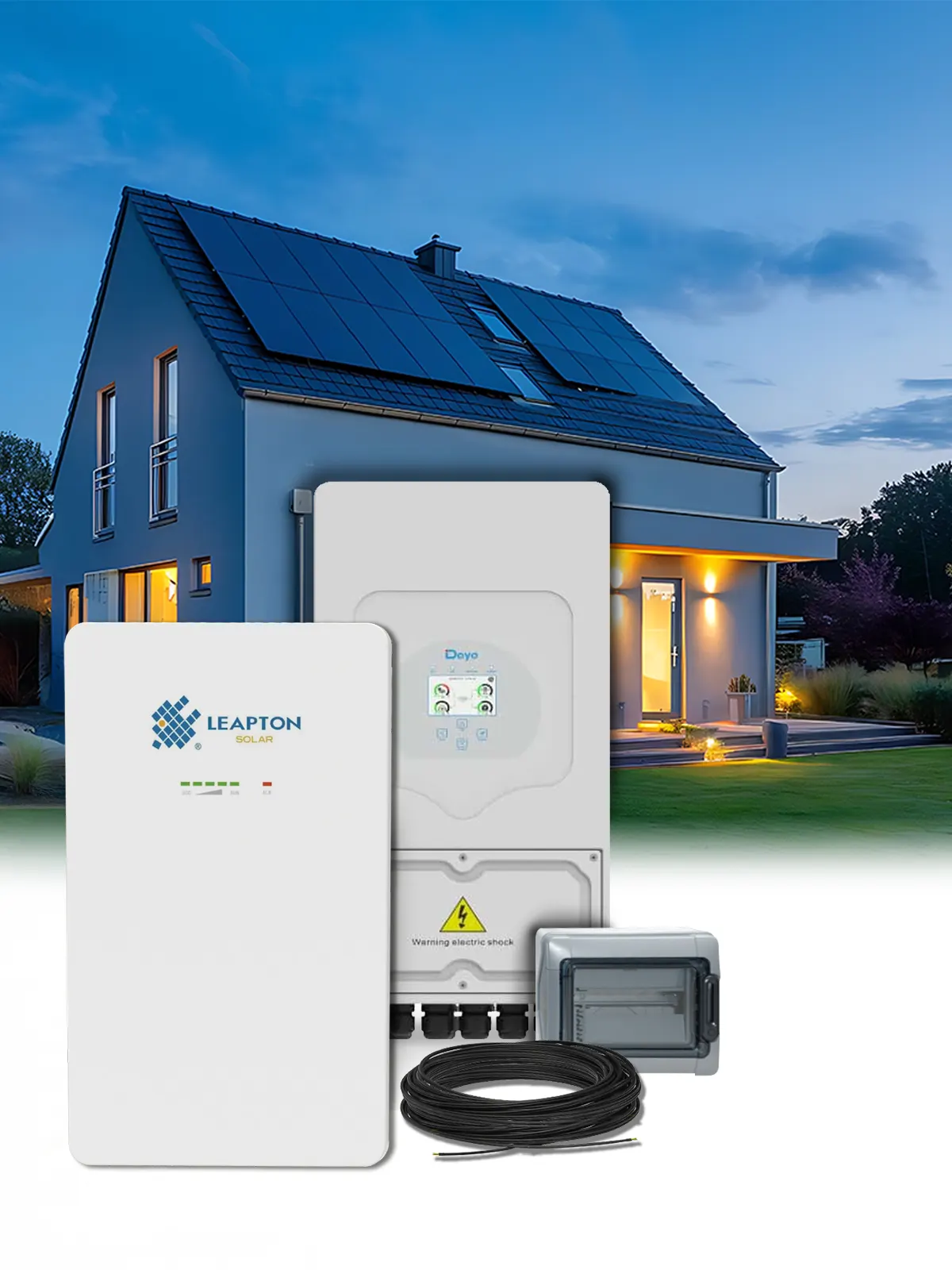

5 kVA / 5.12 kWh retrofit solar kit - complete hybrid solution

Adopt a turnkey solution to modernise your photovoltaic installation: this 5 kVA / 5.12 kWh retrofit kit combines a hybrid inverter, lithium battery and cabling to provide improved self-consumption capacity, an energy reserve and a transition towards greater independence from the electricity grid.

All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs.
You can also see details of the products you have chosen directly below the price.

Important notice for our customers in Belgium: An environmental contribution of €144.50 excluding VAT will be applied to the purchase of each Delong Energy 5.12 kWh lithium battery. More information at the bottom of the page.

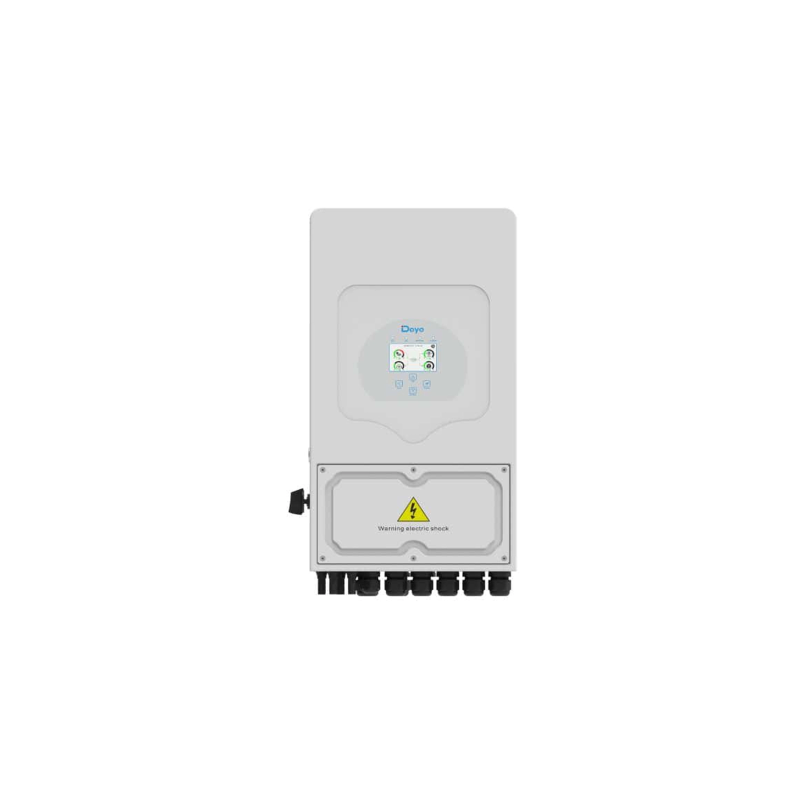

Deye 5 kVA - SUN-5K-SG03LP1-EU

The Deye SUN-5K-SG01-03-LP1 EU hybrid inverter offers a high-performance, versatile solution for your photovoltaic installation. It combines solar production, battery management and grid coordination in a single reliable device.

• Max. DC input power:6500 W
• Rated power: 5000 VA (single-phase)
• Dual MPPT to optimise PV energy capture
• Supports lead-acid or lithium batteries (voltage 40-60 V)
• High efficiency up to 97.6
• Colour touch screen + connectivity (RS485, CAN) for easy monitoring
• IP65 protection rating, suitable for outdoor installations

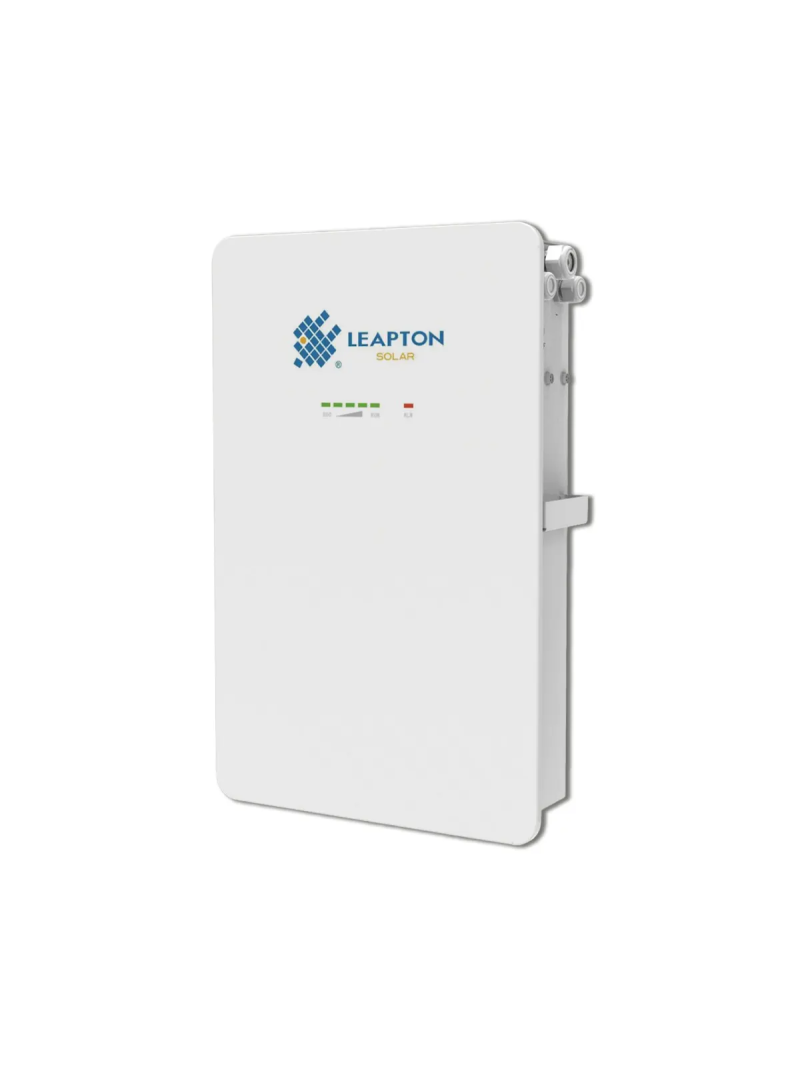

Delong Top Energy 51.2 V 100 Ah lithium battery (5.12 kWh)

The Delong Top Energy 51.2 V 100 Ah (5.12 kWh) battery is a top-of-the-range energy storage solution designed for residential, commercial and off-grid solar installations. Featuring LiFePO₄ (lithium iron phosphate) technology, it offers long life (≥ 6,500 cycles at 80% discharge) as well as enhanced safety. It incorporates an intelligent BMS providing protection against overvoltage, overheating, short circuits and deep discharges.

Its modular, stackable design makes it easy to adapt to your needs - several modules can be connected in parallel to increase capacity. It is compatible with most hybrid inverters (Victron, WKS, Deye, etc.). It comes with a 10-year guarantee.

Key features at a glance :

• Capacity: 5.12 kWh
• Rated voltage: 51.2 V
• Maximum discharge current: 100 A
• Maximum charging current: 70 A
• Dimensions: 483 × 490 × 220 mm
• Weight: 50 kg
• Operating temperatures: charging: 0 → 45 °C, discharging: -5 → 55 °C

Store your energy and regain control

With our solar kit, you can modernise your installation in anticipation of the arrival of dynamic electricity tariffs. You store energy when it's most advantageous and use it when prices rise, thereby considerably reducing your costs.

As well as saving you money, this system gives you valuable autonomy: in the event of a power cut or network failure, your home remains powered, giving you peace of mind.

Modular and adaptable, this kit can be easily integrated into any type of installation and upgraded to suit your needs. So you benefit from a durable, reliable solution that's designed to make you more independent in the face of energy market fluctuations.

In a nutshell:

• Lower bills thanks to intelligent storage
• Autonomy in the event of power cuts or loss of the grid
• A solution that can be adapted to any type of installation
• Greater independence and peace of mind on a daily basis

Single-phase 230V 32A changeover box with socket - Secure mains/genset switching

230 V 32 A single-phase changeover box with socket

This 230 V 32 A single-phase changeover box is designed to switch safely between two power sources, such as the mains and a generator. Ready to use, it includes all the components needed for a reliable, compliant installation.

Equipped with two 32 A circuit breakers, a type A 63 A / 300 mA differential switch and a 4-pole modular changeover switch, this box provides effective protection for people and equipment. The integrated socket with protection flap makes it easy and safe to connect single-phase appliances.

Robust, compact and easy to install, this inverter box is ideal for domestic, emergency or solar installations requiring reliable power supply management.

Specific information for Belgian customers - Bebat tax

As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Delong Top 5.12 kWh battery is subject to a compulsory environmental contribution.

An amount of €144.50 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation.

Please note When purchasing a lithium battery, please add the corresponding product "Environmental contribution Bebat Delong Energy - 5.12kWh" according to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.

This tax only applies to Belgian customers.
