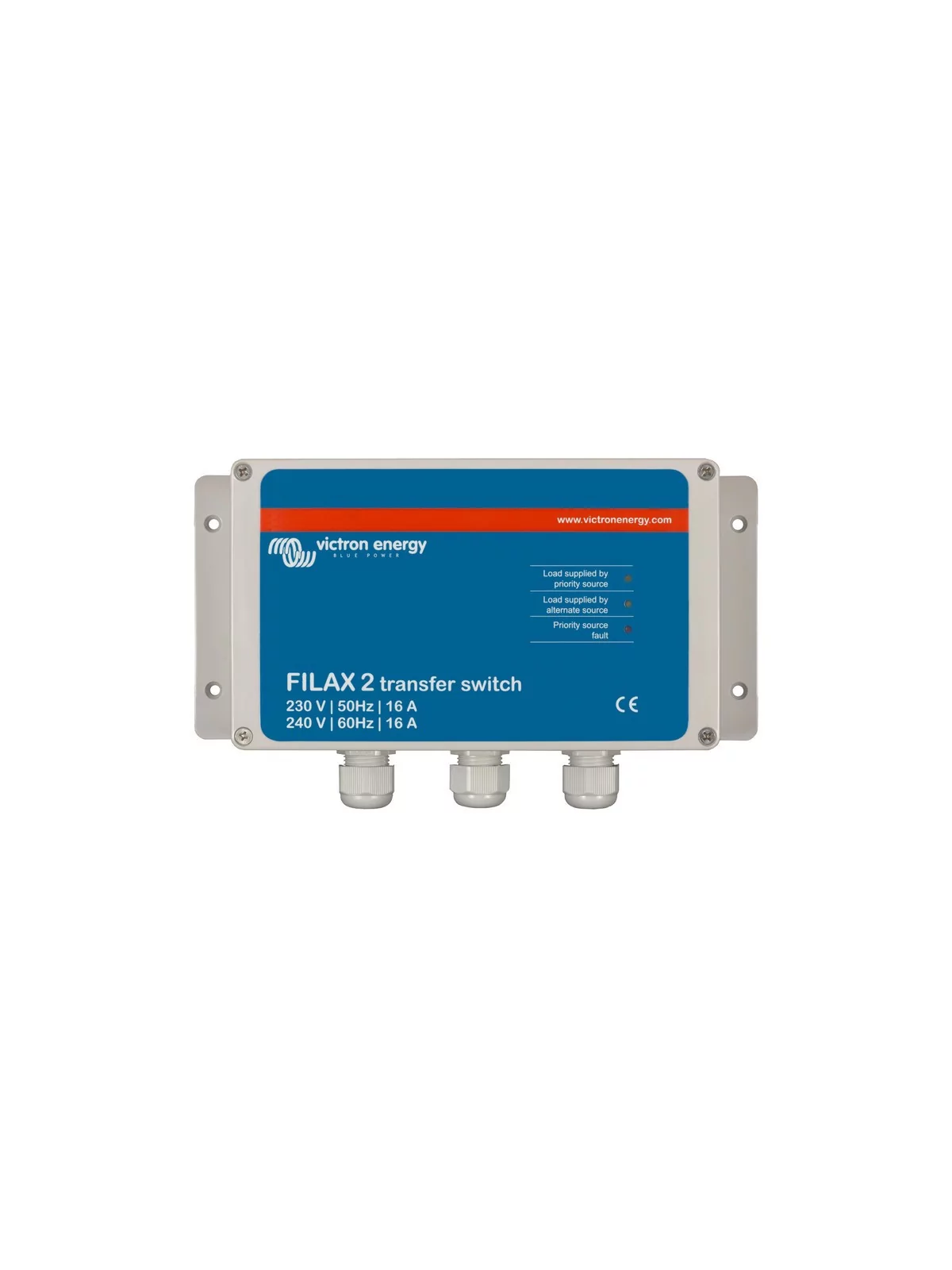

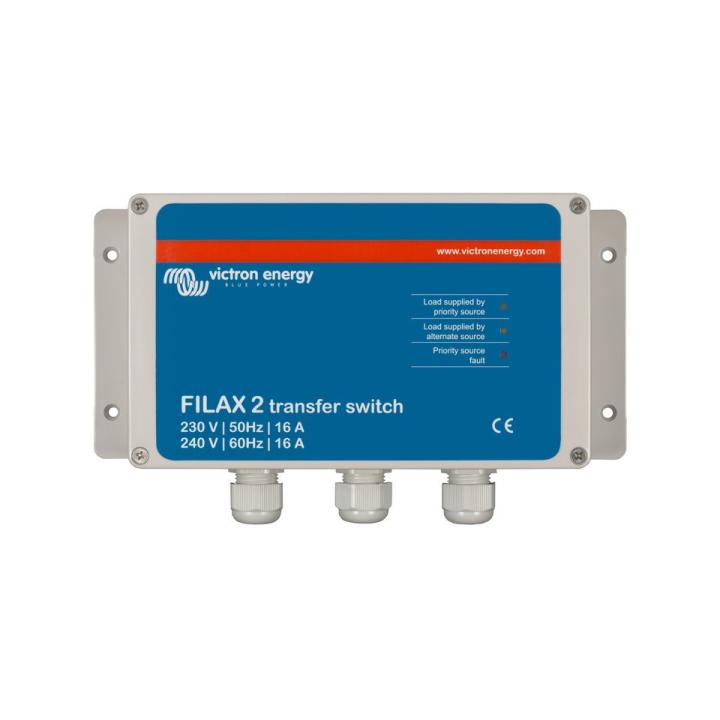

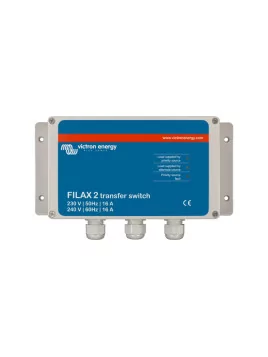

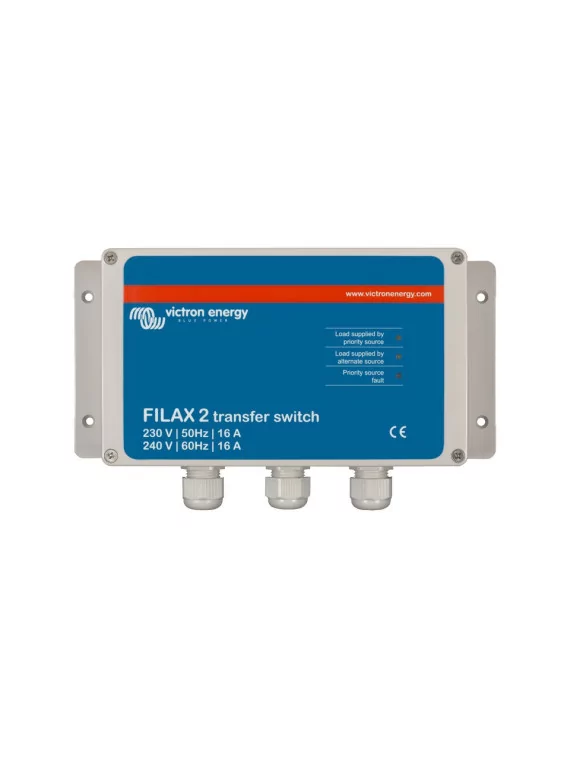

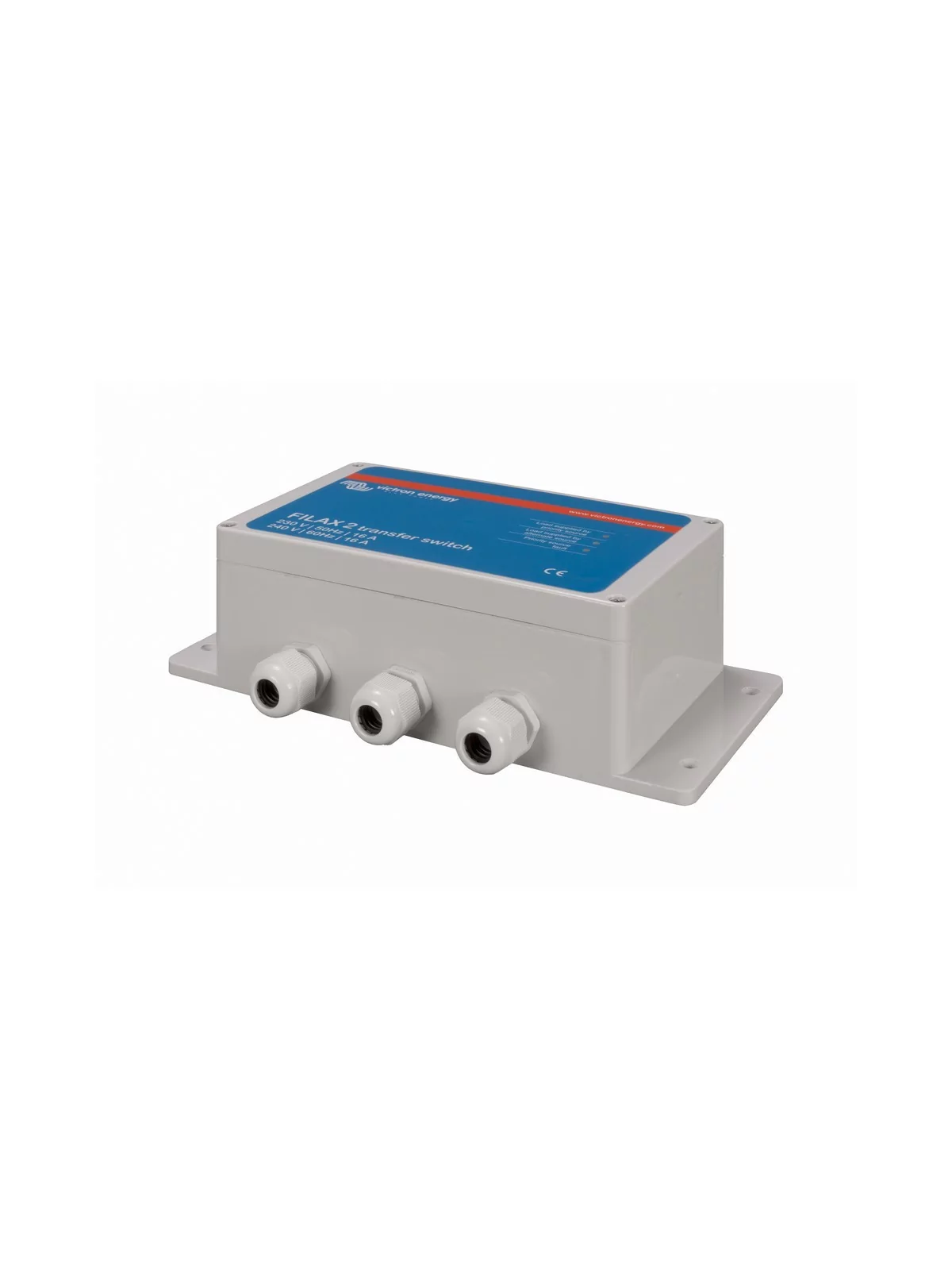

    Victron Filax 2 transfer switch
    Victron Filax 2 Coté
    Victron Filax 2 Coté

    Transfer switch Victron Filax 2 - 230V / 50Hz

    $334.2
    SDFI0000000
    0712971130647

    The Filax ultra-fast transfer switch has been designed to switch sensitive loads such as computers or modern leisure equipment from one AC source to another.

    Transfer switch Victron...

    $334.2

    Filax-2: the ultra-fast transfer switch

    Filax has been designed to switch sensitive or critical loads, such as computers, industrial control or modern leisure equipment, from one AC source to another.The priority source is usually the mains, a generator or shore power. The alternative source is usually a converter. With a switching time of less than 20 milliseconds, sensitive loads will continue to operate without interruption. The Filax is not designed to power high-power appliances such as washing machines or electric motors.

    Open transition transfer

    The Filax is an open transition transfer switch (BBM transfer) with a maximum load transfer time of 16 ms.The load is generally supplied by the priority source, and is transferred to the alternative source if :

    -The voltage of the priority source drops below the threshold value.

    -The frequency of the priority source drops below the threshold value for low frequency, or rises above the threshold value for high frequency.

    Reverse transfer from the AC source to the priority source begins when the priority source has been operating within the reverse switching limits of voltage and frequency for 30s.

    Installation

    - Install the Filax in a well-ventilated area.

    - The input cables from the generator/mains, the converter and the output cables to the devices must be connected in accordance with the wiring diagram.

    - If a load of less than 850 Watts is connected, then the jumpers must be removed.

    - Frequency (50 Hz or 60 Hz) is set with a jumper. 50 Hz without jumper installed. 60 Hz with jumper installed (see photo) If the jumper is not configured for frequency, the voltage switching thresholds will be incorrect.

    - Both inputs must be protected against current levels in excess of 16 A.

    - The front of the housing is secured with the four screws supplied.

    - The Filax is now ready for use.
