Deye 10 kVA three-phase inverter pack and Leapton 10.24 kWh lithium batteries

Discover our complete photovoltaic kit, designed to maximize your energy independence and reduce your carbon footprint. This kit includes a reliable and high-performance 10 kVA Deye three-phase hybrid inverter, as well as two Leapton EL-A05 lithium batteries, offering optimal storage capacity for excess energy generated by your solar panels. With this innovative solution, you can not only produce your own solar energy, but also consume it in real time and store it for future use, ensuring sustainable and economical energy autonomy

All our packages are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs.
You can also see details of the products you have chosen directly below the price.

Important notice for our customers in Belgium: An environmental contribution of €130.05 excl. VAT will be applied to the purchase of each Leapton EL-A05 lithium battery. More information at the bottom of the page.

Hybrid inverter

A grid-interactive hybrid inverter is an essential device in solar energy systems for converting electricity generated from renewable sources into grid-compatible alternating current (AC).

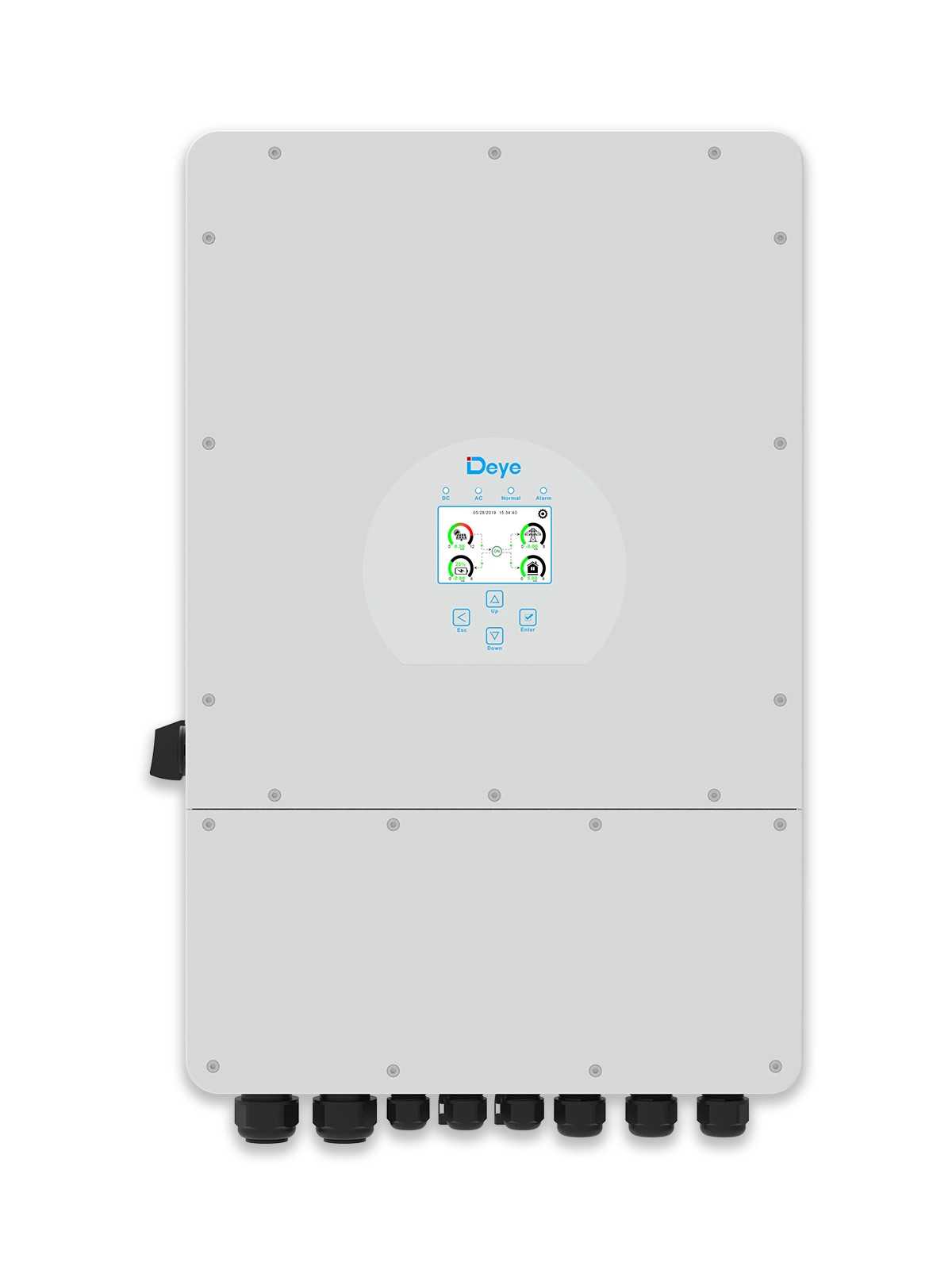

Deye SUN-10K-SG04LP3-EU Hybrid Inverter

Do you dream of an energy self-sufficient home? This solar inverter is the ideal solution for optimizing your solar energy production and reducing your dependence on the power grid. Thanks to its exceptional performance and versatility, it can be adapted to all your needs.

Concentrated technology for your energy needs

This solar inverter, the heart of your photovoltaic system, is designed to convert the energy produced by your solar panels into electricity that can be used in your home. Thanks to its advanced technical features, it guarantees optimum efficiency and rock-solid reliability.

• Energy versatility: Compatible with lead-acid and lithium-ion batteries, it adapts to your specific needs and budget.
• Maximum power: With a maximum PV input power of 13000W and an AC output power of 10000W, it meets the requirements of the most demanding installations.
• Optimum efficiency: Its high conversion rate guarantees maximum use of the solar energy produced.
• Installation flexibility: Adapts to all types of configuration, from the simplest to the most complex.
• Reliability: Designed to operate in extreme conditions, it offers a long service life.

The benefits for you

• Energy autonomy: Generate your own electricity and consume it independently.
• Energy savings: Reduce your electricity bill considerably and invest in your future.
• Respect for the environment: Reduce your carbon footprint and contribute to a more sustainable future.
• Comfort and peace of mind: Benefit from a stable, reliable power supply, even in the event of a power cut.

Key technical features

• Battery: Lead-acid or lithium-ion (40-60V)
• Charge/discharge current: 240A
• PV input power: Up to 15600W
• PV input voltage: 800V maximum
• AC output power: 10000W

Main Display

The LCD screen is touch-sensitive and displays general inverter information.

1 - The icon in the center of the home screen indicates that the system is operating normally. If it displays "comm./F01~F64", this means that the inverter is experiencing communication or other errors. The error message will be displayed below this icon (errors F01-F64, error details can be viewed in the System Alarms menu).

2 - At the top of the display is the time.

3 - System configuration icon. Press this button to access the system configuration screen, which includes basic configuration, battery configuration, network configuration, system operating mode, generator port usage, advanced functions and Li-Ion battery information.

4 - The main screen displays solar, network, load and battery information. It also indicates the direction of power flow by arrows. As power approaches a high level, the color of the panels changes from green to red, providing a clear view of system information on the main display.

- PV power and charging power always remain positive.

- Negative grid power means selling to the grid, positive means receiving from the grid.

- Negative battery power means charging, positive means discharging.

Remote shutdown function

Intelligent monitoring platform

Thanks to the intelligent monitoring platform, inverter products in the Deye complete series support remote shutdown immediately in the event of an accident. Parameter settings and firmware updates can be performed remotely, facilitating the operation and maintenance of photovoltaic systems.

Warranty and support

Warranty

5-year or 10-year warranty, offering peace of mind and assurance of reliability. Warranty period may vary according to installation site and applicable terms.

The Deye SUN-10K-SG04LP3-EU hybrid inverter is a powerful and flexible solution for optimized energy management. With high efficiency, comprehensive protection and advanced control features, it's perfect for your energy storage and solar application needs. Its intelligent design and robust features make it an excellent choice for modern energy needs.

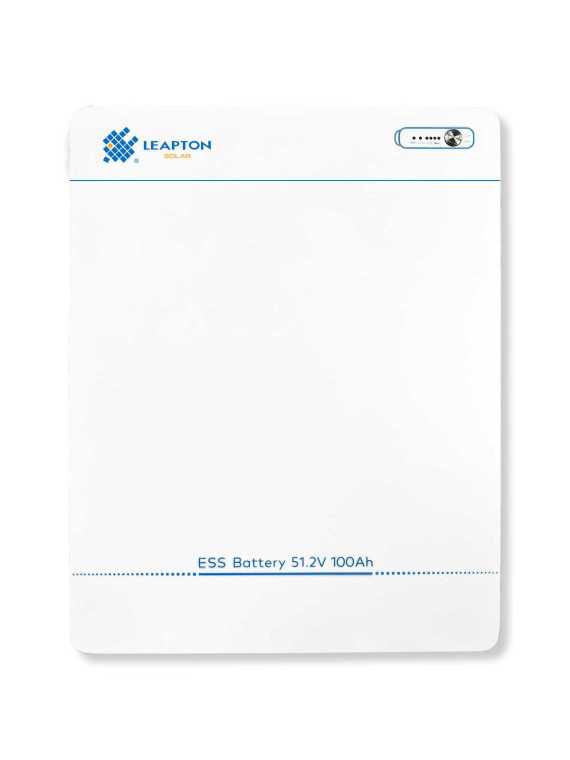

Leapton EL-A05 5.12 kWh lithium battery

The EL-A05 5.12 kWh Lithium Leapton battery is the ideal solution for your energy storage needs, whether for residential or commercial use. Designed with state-of-the-art Lithium Iron Phosphate (LiFePO4) technology, this battery guarantees optimum energy efficiency, enhanced safety and exceptional longevity, with over 6,000 life cycles.

*Offer reserved for individuals, guests and visitors.

Main features:

• 5.12 kWh (5120 Wh)capacity, with 4.6 kWh usable capacity for continuous, reliable power supply.
• 51.2 V nominal voltage and 16S1P cell configuration for stable performance.
• 100 Ah nominal current, enabling powerful discharges and fast recharging.

Outstanding performance:

• Recommended charge/discharge power of 2.56 kW and maximum power of 5.12 kW, for fast, efficient energy management.
• Recommendeddepth of discharge (DOD ) of 90%, offering high storage capacity without compromising battery life.
• Life cycles in excess of 6000 cycles at an ambient temperature of 25°C, guaranteeing long-term reliability all backed by a 10-year warranty for total peace of mind!

Technical specifications :

• Operating voltage range: from 40 V to 57.6 V for flexibility of use.
• Temperature range: from 0°C to +50°C on load, and from -20°C to +50°C on discharge, with optimum temperature between 15°C and 30°C.
• IP65 protection rating: withstands harsh conditions with protection against water and dust.

Practical design and installation:

• Dimensions: 454 mm x 585 mm x 135 mm and weight of 45 kg for simple, robust installation.
• Stand-mounted for stable, secure installation.

Advanced connectivity:

• RS485, RS232, CAN interfaces for easy integration with energy management systems and hybrid inverters.
• Extended compatibility with single-phase, three-phase inverters and retrofit systems.

Additional features:

• Modular design: Connect up to 8 modules to increase storage capacity up to 40 kWh, offering a scalable solution.
• Maximum charge/discharge rate of 1C at 25°C, guaranteeing fast charging and efficient discharging.

Certifications :

The Leapton EL-A05 is CE, IEC62619, and UN38.3 certified, ensuring compliance with international safety standards.

The Leapton EL-A05 5.12 kWh Lithium battery is the essential tool for optimizing your energy storage, whether for domestic, commercial or industrial applications. Benefit from high performance, exceptional reliability and impressive longevity, while reducing your energy costs and environmental impact.

Adopt the energy solution of tomorrow with the Leapton EL-A05!

Important Notice for Our Customers in Belgium: As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we inform our customers that the purchase of a Leapton EL-A05 5.12 kWh battery is subject to a mandatory environmental fee. An amount of €130.05 excl. VAT must be added for each battery purchased, as a direct contribution to Bebat, the organization responsible for battery and accumulator management in Belgium. This measure aligns with the current Belgian environmental legislation. More information here Here is the reference list and corresponding fee rate! When purchasing lithium batteries, please add the following product Leapton EL-A05 Environmental Fee corresponding to the number of batteries you order. Otherwise, we will recalculate and charge the amount after purchase.
