Class 1 stand-alone photovoltaic kit
€3,266.91
Tax included
config-ac-10pan-5kva
0768563821271
Self-consumption solar kit: Produce your own energy!
Discover our complete solar kit to become energy independent. Comprising 10 high-performance solar panels, a WKS Evo Circle 5.6 kVA 48V hybrid inverter and a Pylontech US5000 lithium battery, this kit allows you to produce and store your own electricity.
Key advantages:
- Energy independence: Reduce your electricity bill.
- Savings: Benefit from substantial savings over the long term.
- Storage: Consume your energy when you need it, even without sun.
- Simple installation: Easy to install, without major work.
- Customizable: Adapt the kit to your specific needs.
Estimated production:
With this kit, you can produce approximately 4,895 kWh per year, representing a potential saving of around €1,468.50 . These estimates are indicative only.
Why choose this kit?
- WKS hybrid inverter: Simplifies administrative procedures.
- High-quality components: Ensure a long service life.
- Turnkey solution: Everything needed for a successful installation.
Ready to take the leap towards self-consumption? Contact us for a personalized study.

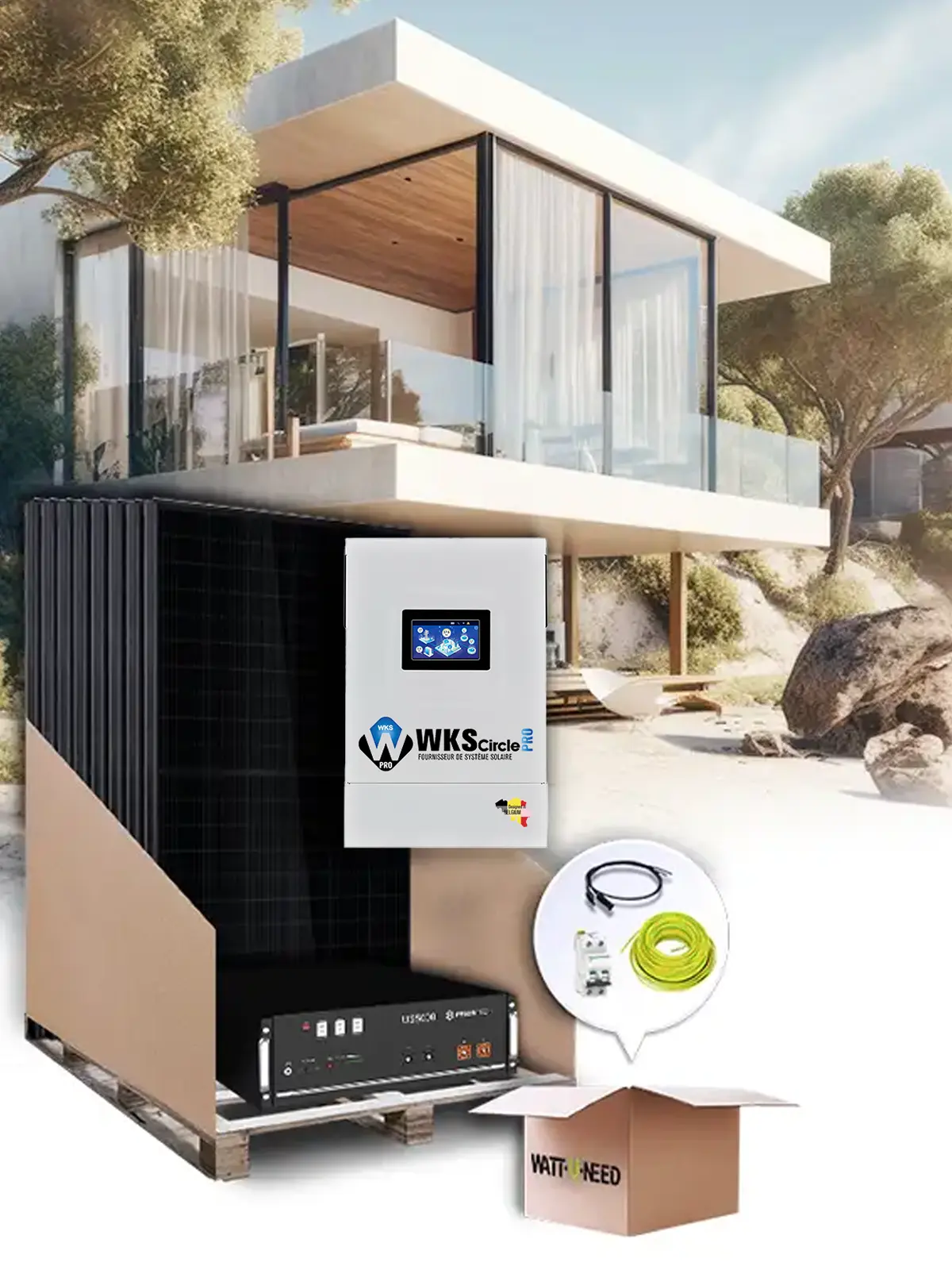

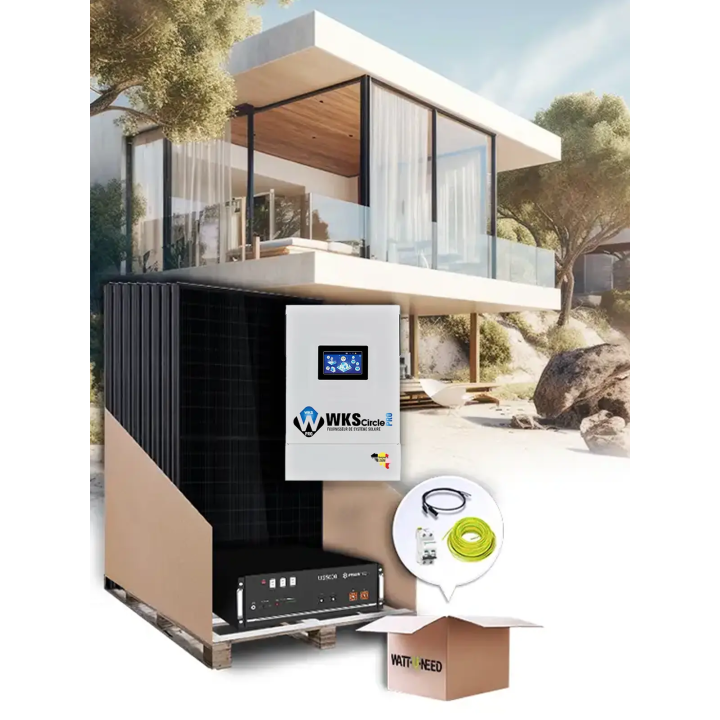

This kit includes

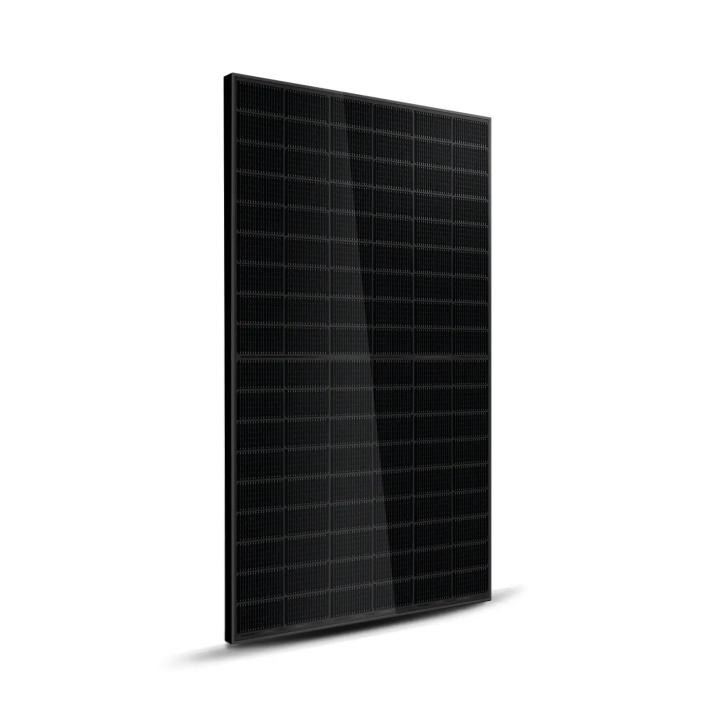

- 10XHT-SAAE Jupiter 450W Bifacial N-Type TOPCon | Full Black Premium High-Performance Solar Panel

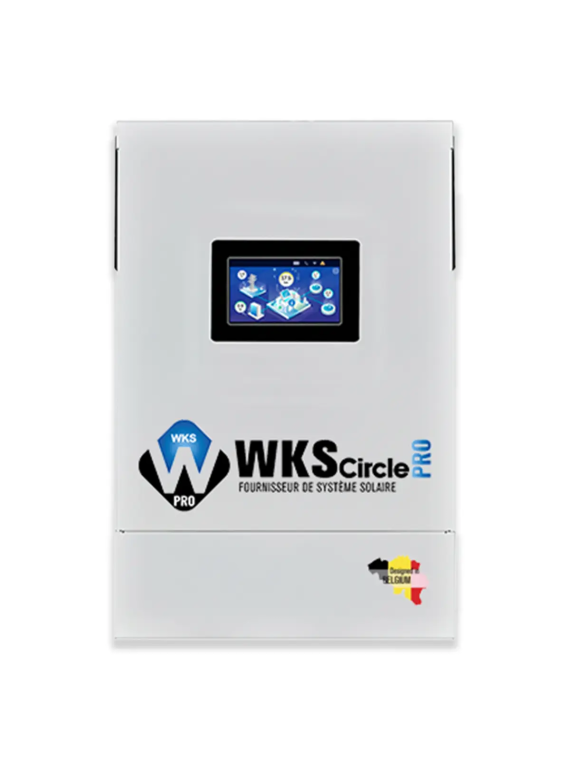

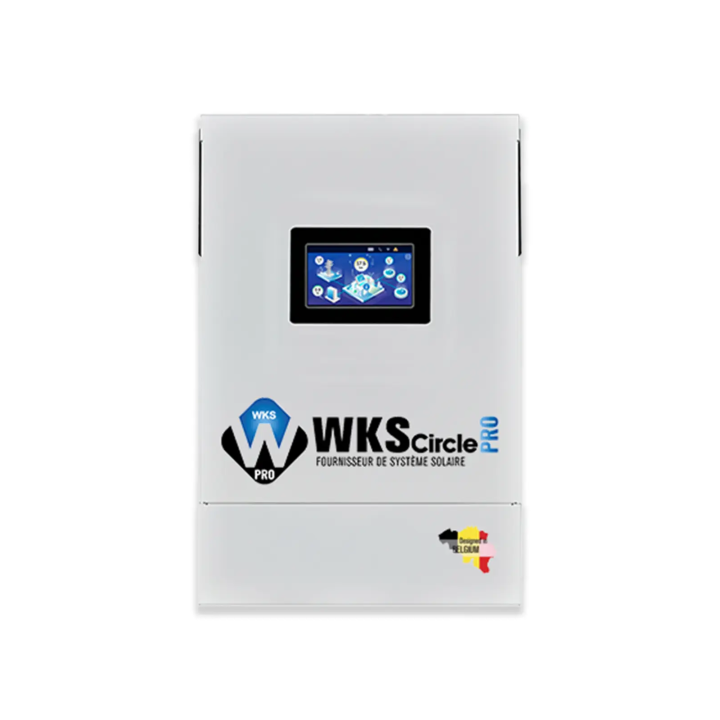

- 1XWKS Evo Circle PRO 6.5 kVA 48V Hybrid Inverter | Innovation and Performance
- 1X2X4mm2 solar cable with MC4 type (sold per metre)
- 1X6mm² earth cable (sold by the meter)
- 2XSchneider single-phase 25A circuit breaker
- 1XDifferential switch type A 2P 63A 300ma
- 1XWaterproof legrand 8 modules box
- 1XZJBENY DC single 1 input and 1 output 1000V 32A surge protection cabinet
- 1XPylontech battery connection cable
- 1XWKS / Pylontech Communication Cable

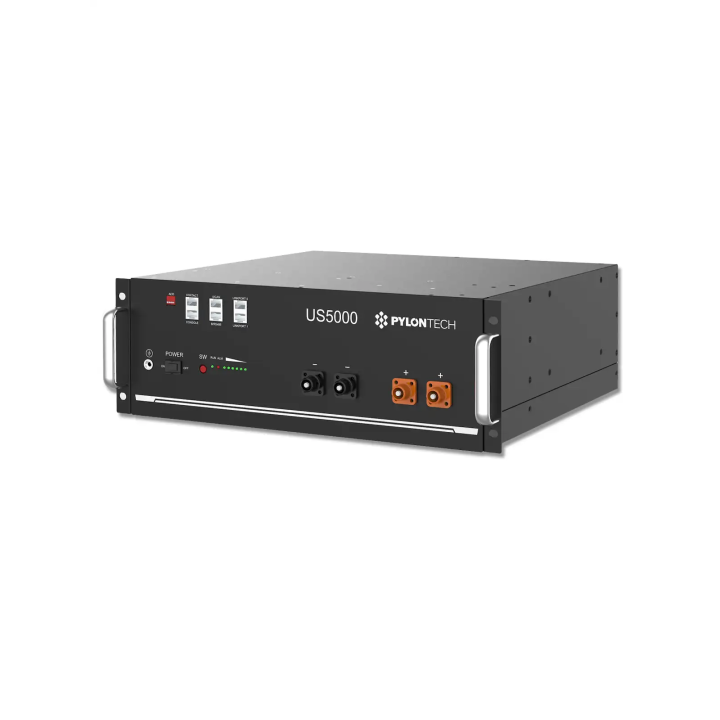

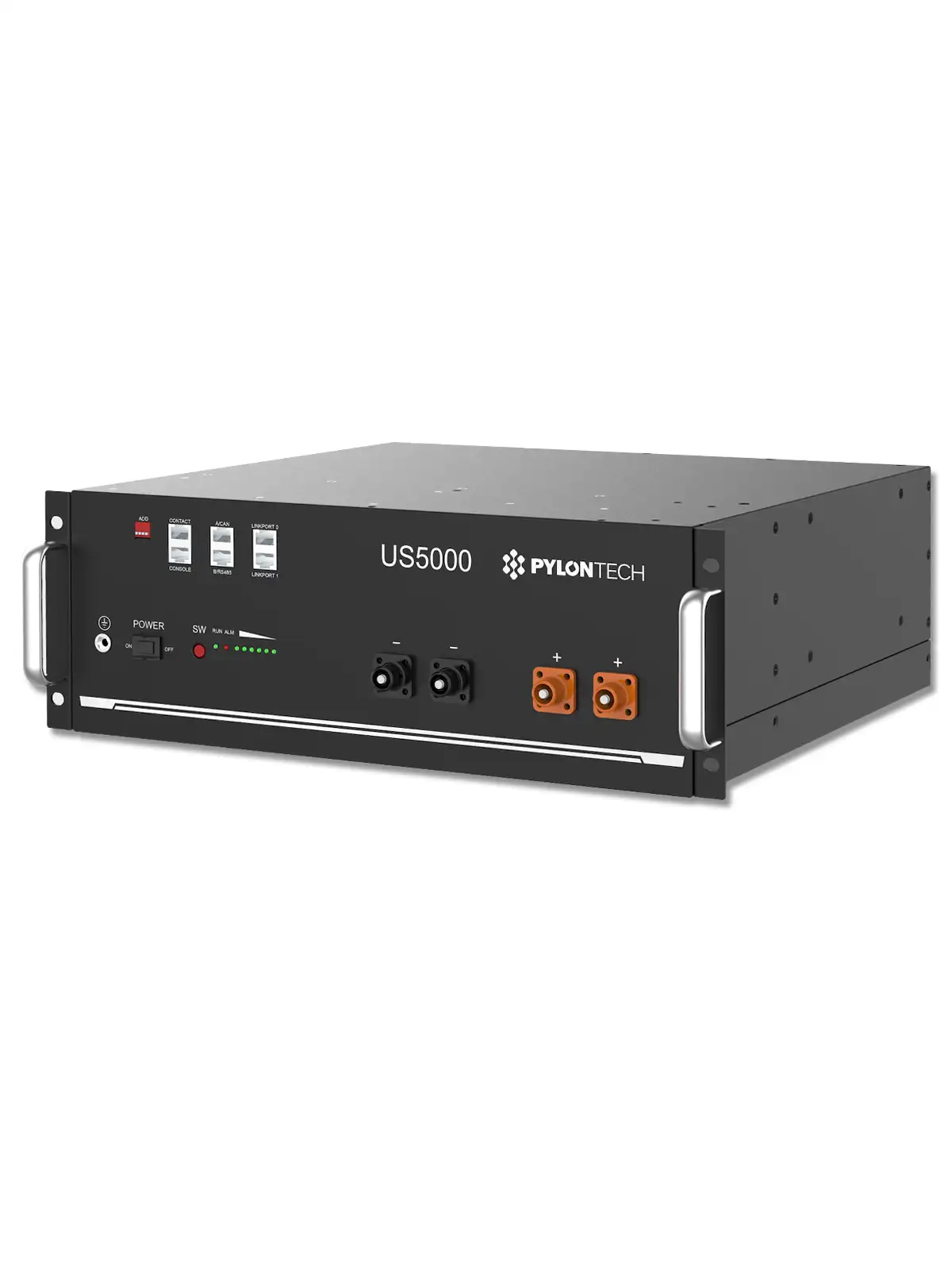

- 1XPylontech US5000 Lithium Battery - 4.8kWh | High Performance
Select products from the sections below
HT-SAAE Jupiter 450W Bifacial N-Type TOPCon | Full Black Premium High-Performance Solar Panel
Price per unit
€84.95 (Tax incl.)
€84.95 (Tax incl.)
WKS Evo Circle PRO 6.5 kVA 48V Hybrid Inverter | Innovation and Performance
Price per unit
€872.60 (Tax incl.)
€872.60 (Tax incl.)
ZJBENY DC single 1 input and 1 output 1000V 32A surge protection cabinet
Price per unit
€147.29 (Tax incl.)
€147.29 (Tax incl.)
Your needs, our selection
Store your surplus solar production for later use, get off the grid.
The basic kit includes 10 solar panels, a WKS EVO Circle 5.6 kVA single-phase inverter, solar cables to connect the panels to the inverter, and an optional panel mounting system. (The mounting system, wiring, and protection devices can be modified to suit your specific needs).
All our kits are configurable. In the options, you can click on the product to choose a different model or change the quantities to adapt the kit to your needs.
You can also see the details of the selected products directly below the price.
Benefits
Energy independence
It allows you to produce (approximately 4,895 kWh/year calculated in the south of France) and store your own solar energy, sustainably reducing your electricity bill and increasing your energy independence.
Optimized production and storage
The kit includes 10 solar panels, a WKS Evo Circle 5.6 kVA (48 V) hybrid inverter, and a Pylontech US5000 lithium battery (4.8 kWh usable).
Storage allows you to power your home even without sunlight, making it ideal for remote locations or areas with no grid connection. Store your surplus energy production during the day and use it when needed.
Simple, turnkey installation
Supplied with cables, protective devices (circuit breakers, residual current device, surge protector), waterproof enclosure… simple to install without major work
Modular according to needs (e.g., optional mounting system)
 |
Important notice for our customers in Belgium : An environmental levy of €114.73 excluding VAT will be applied to the purchase of each Pylontech US5000 lithium battery. |
Solar panels
Chosen from the latest technologies, this panel offers unparalleled efficiency.
Consult its product sheet in our panels section to learn more.
And don't forget, we offer you the flexibility to choose the panel model according to your preference.
We invite you to consult our solar production simulator to determine precisely what your solar production will be.
Different types of cells
|
Perc |
N-Type |
HJT |
|
|
Efficiency |
Approximately 19-22% | Approximately 20-23% | Approximately 21-24% |
|
Cost |
Moderate | Pupil | Very high |
|
Temperature coefficient |
Approximately -0.3 to 0.4% per °C | Approximately -0.3% per °C | Approximately -0.2% Per °C |
|
Annual degradation |
Approximately 0.5 - 0.7% | Approximately 0.4 - 0.5% | Less than 0.5% |
|
Sustainability |
Good | Very good | Excellent |
Hybrid inverters: WKS Evo Circle vs WKS Evo MAX II
Choose the inverter that meets your needs:
 |
 |
|
| The WKS Evo Circle 5.6 kVA 48 V This is a compact, high-performance, and connected hybrid inverter that combines intelligent solar energy management, high reliability, ease of use, and scalability. It represents a practical and modern solution for home installations seeking energy independence. |
The WKS Evo MAX II 10 kVA 48 V is a high-performance, modular hybrid solar inverter designed for high-demand residential or semi-collective installations. It stands out for its high power output, operational flexibility, and intelligent interfaces. |
Comparative table
A collection of videos to help you understand everything
Decoding inverter information to make the right choiceLithium Batteries
Choose the battery that meets your needs:
• The Pylontech US5000 is a reliable choice: highly compatible with most inverters, and known for its stability and lifespan. It is particularly suitable for scalable installations where modules are added gradually. • The Delong Top Energy 5.12 kWh is a good option if you want slightly more capacity per module and a compact installation thanks to its stackable design. It allows for the quick assembly of larger storage packs, while maintaining a good lifespan. |
Comparative table
Typical use and adaptation
- Small isolated house or semi-autonomous connected dwelling
Ideal for continuous use thanks to storage and hybrid inverter. - Isolated location (chalet, cabin, etc.)
Works even without a network or generator, in standalone or backup mode. - Scalable installation
Possibility of adding batteries or inverter units to increase capacity.
This semi-autonomous configuration allows for a gradual liberation from the public network.
Specific Information for Belgian Customers - Bebat Tax
As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we wish to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental contribution.
A mandatory fee of €114.73 (excluding VAT) must be added for each battery purchased, as a direct contribution to Bebat, the organization responsible for managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation.
Important: When purchasing lithium batteries, please add the corresponding product " Bebat Pylontech US5000 Environmental Contribution " according to the number of batteries you order. Otherwise, we will recalculate and invoice you after the purchase.
This tax only applies to Belgian customers.
Connection to the WKS EVO Circle inverter
config-ac-10pan-5kva
Data sheet
- Solar kit type
- Kit 230V AC avec batterie
- Inverter power
- 6500 VA
- Kit output voltage
- 230V
- Type of need
- Off-grid
- Battery storage
- With storage
- Wind turbine
- Without
- Number of panels
- 10 panels
- Voltage
- 230V
- Battery
- Kit with battery
- Panel type
- Rigids
Specific References
- UPC
- 768563821271
- EAN13
- 0768563821271
New
MCU Update Procedure for Inverters
Professional Version - Technical Document
Introduction
This document details the complete procedure for performing a Microcontroller (MCU) update on inverters. This operation is essential to maintain optimal equipment performance and integrate the latest software improvements.
A correctly performed update ensures proper inverter operation and extends its lifespan. It is crucial to follow this procedure step by step to avoid any malfunction.
Safety Warnings
CRITICAL ATTENTION
An interrupted update can render the inverter unusable.
Do not disconnect power from the computer or inverter during the procedure.
Avoid putting the computer to sleep during the update.
Ensure your computer battery is sufficiently charged or the computer is plugged into mains power.
Back up all important data before starting the procedure.
Prerequisites
Required Hardware
A computer with an available USB port
USB to RS232 cable provided by us
RS232 to RJ45 cable provided with the inverter
The inverter to be updated
Update files (MCU and DSP) previously extracted
Required Software
"Remote Panel Reflashtool" software installed
Update files decompressed and ready to use
Initial Configuration
Preliminary Checks
Ensure that the update files have been extracted from their compressed archive
Disable automatic sleep mode on your computer to avoid any interruption
Detailed Procedure
1 Inverter Preparation
Stop certain inverter functions:
Completely disable the inverter output
Stop photovoltaic panel (PV) power supply
Keep battery and grid power active to allow communication
Check inverter status:
Ensure the inverter screen is on and functional
Verify that no critical alarms are active
2 Computer to Inverter Connection
Connect the USB cable to the computer:
Use an available and functional USB port
Wait for the operating system to detect the new device
Identify the assigned COM port:
Open Windows Device Manager
Expand the "Ports (COM & LPT)" section
Note the COM port number assigned to the newly connected device
This number will be needed for the update software configuration
Connect the other end of the cable (RJ45) to the inverter COM port:
Ensure the connection is firm and secure
Verify that the inverter recognizes the connection (usually indicated by a light or screen message)
3 MCU Update
Launch the update software:
Run the "Remote Panel Reflashtool" application
Wait for the main interface to display completely
Software configuration:
Select the previously identified COM port in the software settings
Verify that the communication speed is correctly configured (usually automatic)
Update initiation:
Click the "Update MCU" button in the software interface
Select the previously extracted MCU update file
Confirm your selection to start the process
Update monitoring:
Observe the update progress on the computer screen
Do not touch any equipment during this phase
Ensure the computer does not go to sleep
Typical update duration is 5 to 15 minutes depending on the inverter model
MCU update completion:
Wait for the confirmation message indicating the update is complete
Click "EXIT" in the software to properly close the update session
4 DSP Update (if necessary)
Preparation for DSP update:
Keep the inverter and computer connected
Ensure the inverter is still properly powered
DSP update procedure:
Restart the "Remote Panel Reflashtool" application if it was closed
Follow a similar procedure to the MCU, but select the DSP update file
Follow the on-screen instructions to complete this second update
Post-Update Verification
Version Control
Check in the inverter menu that the new firmware version is properly installed
Confirm that the update date matches the operation you just performed
Functional Test
Progressively reactivate all inverter functions
Verify that the inverter output works correctly
Reactivate photovoltaic panel power supply
Observe operation for several minutes to ensure stability
Common Troubleshooting
Inverter does not detect the connection
Check that the cable is properly connected on both sides
Try another USB port on the computer
Restart the inverter and computer
Update failure
Note the displayed error code
Verify that you are using the correct update files for your inverter model
Contact technical support providing the error code
Computer does not recognize the device
Install or reinstall the necessary drivers
Try another USB cable if available
Check in device manager if the device appears with an exclamation mark
Glossary
MCU
Microcontroller, the main "brain" of the inverter
DSP
Digital Signal Processor, processor specialized for signal processing
COM Port
Serial communication port used for connection between computer and inverter
RS232
Serial communication standard for data transmission
Technical Support Contact
In case of persistent difficulty or technical questions, our support team is at your disposal:
Website:
support.wattuneed.com
Please have your exact inverter model and any error codes available when contacting us.
