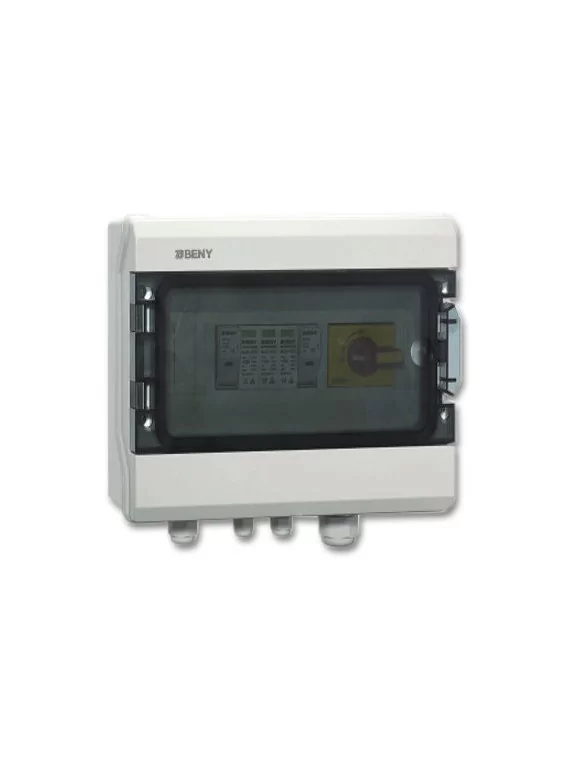

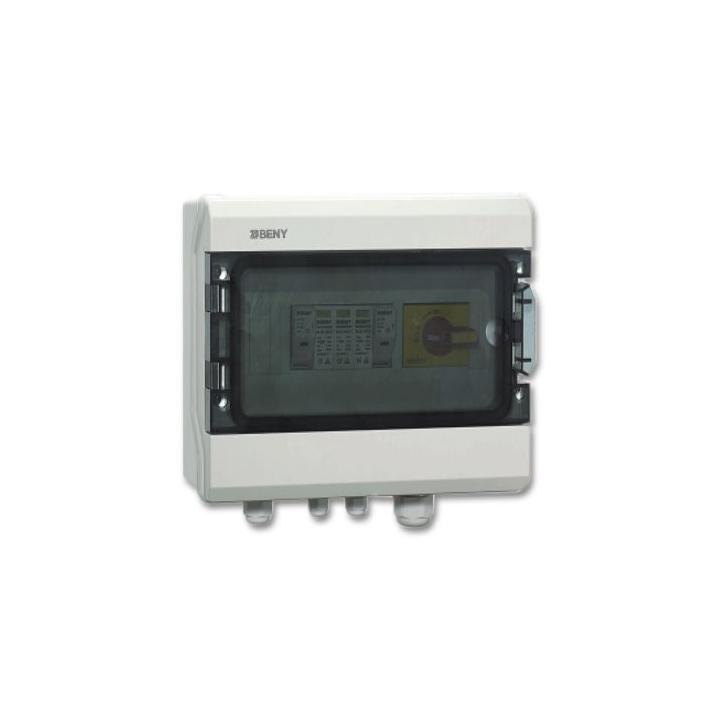

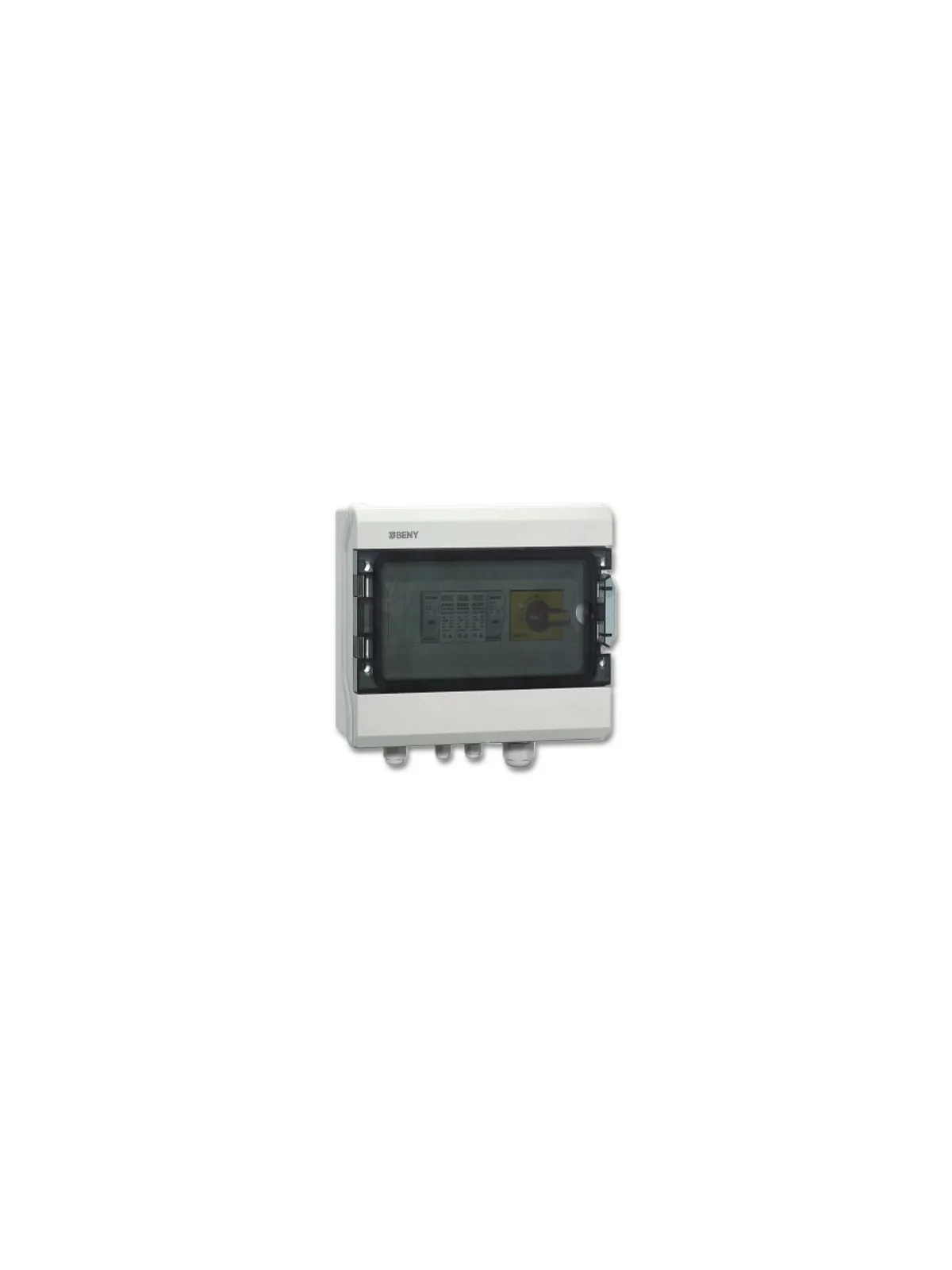

ZJBENY DC single 1 input and 1 output 1000V 32A surge protection cabinet
€147.29
Tax included
BHS-1/1
0768563816635
The ZJBENY DC surge protector is the ideal solution for protecting your photovoltaic system against surges and voltage peaks caused by lightning. Designed for solar systems up to 1000V DC, it offers reliable, long-lasting protection for your panels and inverters.
With one input and one output, this simple 32A model is perfectly suited to residential or small commercial installations. Its IP65 waterproof enclosure ensures optimum resistance to outdoor conditions, guaranteeing maximum safety and increased longevity for your equipment.
Key features:
- Rated voltage: 1000V DC
- Maximum current: 32A
- 1 input / 1 output
- High-performance type 2 DC surge protector
- Robust, waterproof enclosure (IP65)
- Brand: ZJBENY
Advantages :
- Effective protection for inverters and solar panels
- Quick installation and easy maintenance
- Compatible with all current photovoltaic installations
The ZJBENY DC 1000V 32A lightning arrester box guarantees optimum protection for your solar system while ensuring long-term performance and reliability.
Currently being restocked, the cabinets are scheduled to arrive on 7 November 2025 due to a delay beyond our control.
Sorry, there are no more items in stock.
ZJBENY DC single 1 input and 1 output 1000V 32A lightning arrester cabinet
The ZJBENY DC single input surge protector is an essential protection solution for single string photovoltaic installations. Designed for systems up to 1000V DC, it effectively protects your solar panels, cables and inverters against surges, atmospheric discharges and transient voltage peaks.
Reliable and secure design
This model has an input from the solar panels and an output to the MPPT inverter, providing complete protection for the photovoltaic chain.
The contact-protected fuse holder prevents any electrical risk to the installer. It is fitted with 15A fuses for the positive and negative poles, guaranteeing maximum safety.
The built-in type 2 SPD surge protector (model BUD-40/3) protects against overvoltages up to 40 kA in compliance with EN 50539. An LED indicator provides a visual check on the status of the device.
Switch-disconnector and certified components
The enclosure incorporates a DC 1000V 32A switch-disconnector (model BYT.2-32/BYS), compliant with IEC 60947-3, guaranteeing total isolation between panels and inverter.
Each ZJBENY enclosure is individually tested before delivery, to TUV, CE, UL, KEMA and SAA standards, ensuring reliability and durability.
Robust, watertight enclosure
The enclosure is housed in a BX-13 enclosure made of high-resistance polycarbonate/ABS. It offers IP65 protection against dust and humidity, as well as IK10 mechanical resistance.
Compact and lightweight (292 x 220 x 120 mm), it is easy to install as a wall-mounted unit, with suitable cable glands for cables from 2.5 to 16 mm².
Practical use
The ZJBENY DC 1000V 32A surge protector is ideal for protecting a 3 to 6 kWp residential solar installation with a single string of panels connected to an MPPT inverter.
For example, in a home with 10 solar panels of 400 W (i.e. 4 kWp), the box secures the link between the panels and the inverter against surges due to lightning or mains variations.
Its compact design and simple installation make it ideal for self-consumption systems and grid-connected installations.
Technical data
| Features | |
|---|---|
| Model | BHS-1/1/1 |
| Inputs / Outputs | 1 string / 1 string |
| Maximum voltage | 1000V DC |
| Short-circuit current (Isc) | 15A (modifiable) |
| Maximum output current | 32A |
| Housing | BX-13 - Polycarbonate / ABS |
| Protection | IP65 / IK10 |
| Switch-disconnector | BYT.2-32/BYS - 1000V 32A DC |
| Surge arrester | Type 2 SPD - 40 kA max (BUD-40/3) |
| Dimensions | 292 x 220 x 120 mm |
| Operating temperature | -20°C to +60°C |
| Certifications | TUV, CE, UL, KEMA, SAA |
Dimensions
Principle diagram
FAQ - ZJBENY DC 1000V 32A lightning arrester box
1. What is the purpose of a DC surge protector in a solar installation?
It protects the photovoltaic equipment (panels, inverter, cabling) against surges caused by lightning or electrical disturbances.
2. What is the difference between a type 1 and type 2 surge protector?
Type 1 protects against direct lightning strikes, while type 2 (as shown here) protects against induced or indirect surges.
3. Can this box be used with any inverter?
Yes, the ZJBENY is compatible with all DC 1000V MPPT inverters, regardless of brand.
4. Where should the surge protector be installed?
It is placed between the solar panels and the inverter, preferably close to the inverter for better protection.
5. Does the lightning arrester need to be maintained?
No complex maintenance is required.
