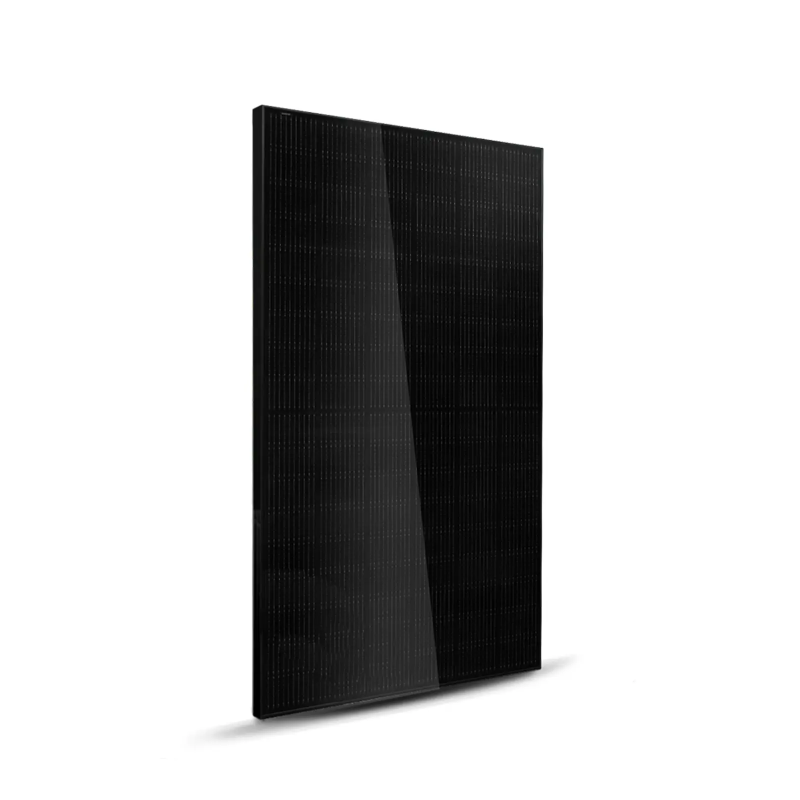

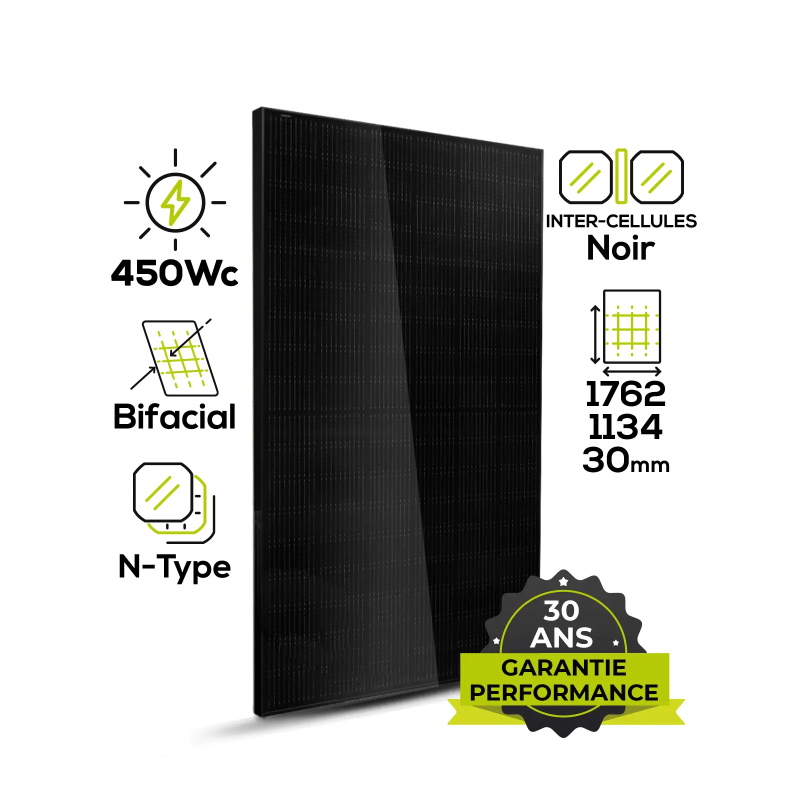

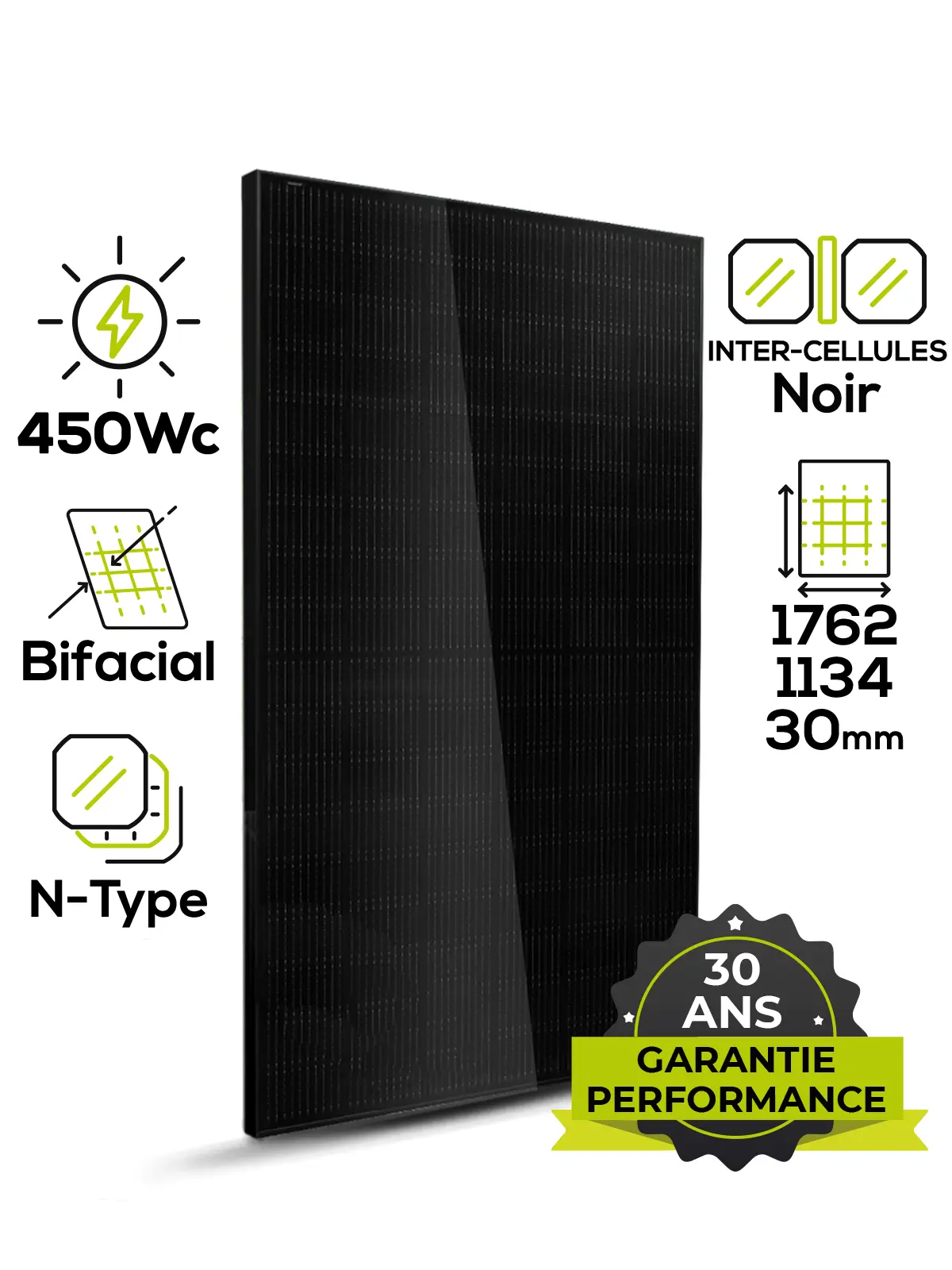

Q-SUN Qrystal N8 450Wp Bifacial N-Type Solar Panel | Wattuneed
Q-SUN Qrystal N8 450Wp Bifacial N-Type Solar Panel | Wattuneed
Q-SUN Qrystal N8 450Wp Bifacial N-Type Solar Panel | Wattuneed
Q-SUN Qrystal N8 450Wp Bifacial N-Type Solar Panel | Wattuneed

Q-Sun Qrystal N8 N-Type 450Wp Bifacial | High Efficiency Solar Panel

€89.99
Tax included
QN-450HT-5
0768563823909

The Q-SUN Qrystal N8 450Wp solar panel is a premium photovoltaic solution using N-Type technology. Thanks to its double-glass bifacial design, it maximises energy production on both sides, offering exceptional efficiency of 22.5%, even in low light conditions. Its Full Black design ensures perfect aesthetic integration.

Features:

  • Power: 450Wp | Efficiency: 22.5%
  • Technology: N-Type 16BB Bifacial Cells, Double Glass (1.6mm)
  • Dimensions: 1762 x 1134 x 30 mm
  • Performance: Voc 39.98 V / Vmp 33.23 V
  • Warranties: 30-year performance warranty

Advantages:

  • Bifacial gain: Up to +25% production via ground reflection.
  • N-Type innovation: High PID resistance and increased thermal performance.
  • Durability: Double protective glass against micro-cracks.
  • Aesthetics: Elegant full black finish.

Why choose the Q-SUN Qrystal N8? Its 182x188mm rectangular cells optimise the capture surface for an unrivalled power/longevity ratio. With degradation limited to 0.4%/year, it is the ideal investment for sustainable profitability and added value for your assets.

Ready to invest in solar energy?

Contact our experts for a personalised study and a free quote.

500 items in stock!

✨ New Generation N-Type Double Glass

Q-SUN Solar Panel
Qrystal N8 450Wp N-Type Bifacial Full Black

High-efficiency N-Type cells • Double glass technology • Attractive full black design • Bifacial performance

⚡
450Wp
Maximum Power
🔬
N-Type Double Glass
Cell technology
📊
22.5%
Maximum efficiency
🏆
Performance
30-year warranty
87.4% after 30 years
🏆 GUARANTEES

Your investment protected in the long term

25

Product warranty

Material and manufacturing defects

25 years of peace of mind
30

Performance

Ultra-low annual degradation (0.4%)

30 years of linear power
📜

Certifications

Global quality standards

TÜV • CE • CEC • SGS

✨ Cutting-edge technology: Your solar installation powered by Q-SUN SOLAR

🌱 Qrystal N-Type 8 innovation

The Q-SUN Qrystal N8 450Wp uses high-efficiency N-Type cells with a double glass structure, offering superior resistance to PID and hot spots. Its bifacial design captures albedo for increased energy production.

🔬 Technical advantages:

✓ Mono 16BB cells (182x188mm)
✓ Temp. coefficient Pmax -0.29%/°C
✓ Dual glass 1.6mm + 1.6mm

📐 Key specifications

450W
Pmax power (STC)
1762 mm
Length
1134 mm
Width
25.0 kg
Weight
🏭

Innovative manufacturer

Q-SUN SOLAR

Expertise N-type Double Glass
Qrystal N8 Technology

💡 TECHNICAL EXCELLENCE

Why choose the Q-SUN 450Wp?

1. 182x188mm rectangular cells

The use of rectangular cells optimises the capture surface, enabling a module efficiency of 22.5% to be achieved, surpassing residential market standards.

2. Environmental adaptability

Designed for harsh environments, this panel withstands extreme temperatures from -45°C to +85°C and benefits from IP68 protection for its junction box.

3. Half-cut technology

The half-cell configuration (108 pcs) reduces internal resistance losses and minimises the impact of partial shading on overall production.

4. 30-year performance warranty

Benefit from a 30-year linear power warranty ensuring 87.4% of the initial power, with degradation limited to only 0.4% per year.

✅ Reliability and Robustness

The Q-SUN Qrystal N8 panel is certified to withstand the harshest conditions.

🌍

Validated Standards

  • TÜV Rheinland
  • CE marking
  • INMETRO certification
🌱

Safety

  • Safety class II
  • System voltage 1500V DC
  • IP68 enclosure (3 diodes)
🛡️

Mechanical resistance

  • Hail (25mm at 23m/s)
  • Snow load (5400 Pa)
  • Wind load (2400 Pa)

⭐ Advantages of the Qrystal N8 range

Bifacial technology optimised for residential use

🛡️

N-Type N8 technology

High-performance 16BB cells
Increased PID resistance and reduced LID

Nominal operating temperature (NOCT)
42 ± 2°C
⚡

Conversion efficiency

Superior bifacial efficiency
Optimised production per m²

Bifacial gain
+5% to +25%
🎨

Full Black aesthetics

High-end aesthetics
Black cell with black anodised aluminium frame for discreet integration

Design
Bifacial Black Grid
🌡️

Performance in all conditions

Maximum efficiency even in low light and variable exposure.
Less heat loss

Temperature range
-45°C to +85°C

Recommended applications

Recommended configurations to maximise performance

🏘️ Residential

Detached houses and pavilions

Advantage: Perfect Full Black aesthetics
Installation:Integration or overlay

🏢 Commercial & Tertiary

Offices, warehouses, shopping centres

Performance: Double glazing for increased longevity
Usage: Industrial self-consumption

🌾 Ground-mounted solar

Agricultural installations, solar power stations and ground-mounted structures

Bifaciality: Significant gain via the rear side
Installation:Fixed structures or solar trackers

🌿 Agri-voltaic

Systems combining agriculture and solar power generation

Advantage:Optimal bifacial capture
Function:Crop cultivation + energy production

🔧 Installation characteristics

🔌 Connectivity

  • Cables: 300mm / 1200mm (customisable)
  • Junction box: IP68
  • Maximum voltage: 1500V DC

📐 Mechanical design

  • Dimensions: 1762 x 1134 x 30 mm
  • Cells: 108 [2x(6x9)] pcs
  • Frame: Black anodised aluminium alloy
  • Glass: 1.6mm (front) / 1.6mm (rear)

⚙️ Electrical parameters

  • Voc: 39.98 V
  • Isc: 14.25 A
  • Vmp: 33.23 V
  • Imp: 13.54 A

🌍Compatible inverters

  • All residential inverters
  • Power optimisers
  • Micro inverters

💡 Expert advice:To optimise your installation, consult our photovoltaic installation guide and our mounting systems.

Sizing and optimisation

Need help sizing your installation? Use our free sizing tools or consult our technical blog for expert advice.

Invest in sustainable performance with Q-SUN Qrystal N8. Contact our Wattuneed experts for a personalised study of your project.

🚀 Your solar project with Q-SUN

✨ Personalised technical study • Expert advice • Compatible mounting solutions

💎 Get my free study
• Personalised analysis with no obligation



FAQ - Q-SUN Qrystal N8 450Wp Solar Panel

1. What is special about the N-Type technology in the Q-SUN Qrystal N8? +
N-Type TOPCon technology offers 22.5% higher efficiency and better resistance to light-induced degradation (LID). This guarantees optimal energy yield for your self-consumption project over the long term.
2. How does the bifacial design benefit my solar production? +
Thanks to its double-glass structure, this panel captures direct light at the front and light reflection (albedo) at the rear. This increases overall energy production by up to 30% depending on the installation surface.
3. Is this Full Black panel suitable for extreme weather conditions? +
Yes, it is IP68 certified and designed to withstand temperatures ranging from -40°C to +85°C. Its robust frame ensures excellent waterproofing and high mechanical resistance to wind and snow.
4. What guarantees does Q-SUN SOLAR offer? +
The manufacturer offers a 25-year product warranty and a 30-year linear performance warranty. After 30 years, the panel still maintains more than 87.4% of its initial nominal power.
5. How does Half-Cut technology improve efficiency? +
The half-cell configuration reduces internal resistance and minimises the impact of shaded areas. If part of the panel is in the shade, the other half continues to produce efficiently.
6. What is the purpose of 1.6mm double glass (Bi-glass)? +
Double-sided glass better protects the cells from chemical attack and moisture. This increases the module's longevity and improves its thermal stability, thus avoiding hotspots.
7. What are the dimensions and weight of this 450Wp module? +
The panel measures 1762 mm long by 1134 mm wide and weighs 25.0 kg. Its compact size makes it easy to install on all types of residential or commercial roofs.
8. Is this panel resistant to PID (Potential Induced Degradation)? +
Absolutely. Thanks to the use of N-Type cells and high-quality encapsulation materials, the Qrystal N8 is inherently more resistant to PID, ensuring exceptional power stability.
QN-450HT-5

Data sheet

Max. power - Wp
450 Wc
Open circuit voltage (Voc)
39,68 V
39,98 V
Short-circuit current (Isc)
14,25 A
Max. power voltage (Vmp)
33,23 V
Max. power current (Imp)
13,54 A
Panel yield
22,50 %
Operating temperature
-45~+85°C
Color
Full Black
Panel type
Rigids
Cells
N-Type N8
Width
1134 mm
Height
1762 mm
Temperature coefficient Isc
+0.04%/℃
Temperature coefficient Voc
-0.24%/°C
Temperature coefficient Pmax
-0.29 %/℃
Protection Degree
IP68
Weight
25 kg
Maximum system voltage
1500V DC (IEC)
Output tolerance
0~+5W
Fuse current
25A
Protection class
II

Specific References

UPC
768563823909
EAN13
0768563823909
MPN
QN-450HT-5
