    Avasco Solar SolarSpeed south landscape configuration 3.0
    Avasco Solar SolarSpeed south landscape configuration 3.0
    Avasco Solar SolarSpeed south landscape configuration 3.0

    Avasco Solar SolarSpeed configuration EAST/WEST landscape 3.0

    €147.68
    Tax included
    Avasco Solar SolarSpeed3.0-E/O
    0768563819803

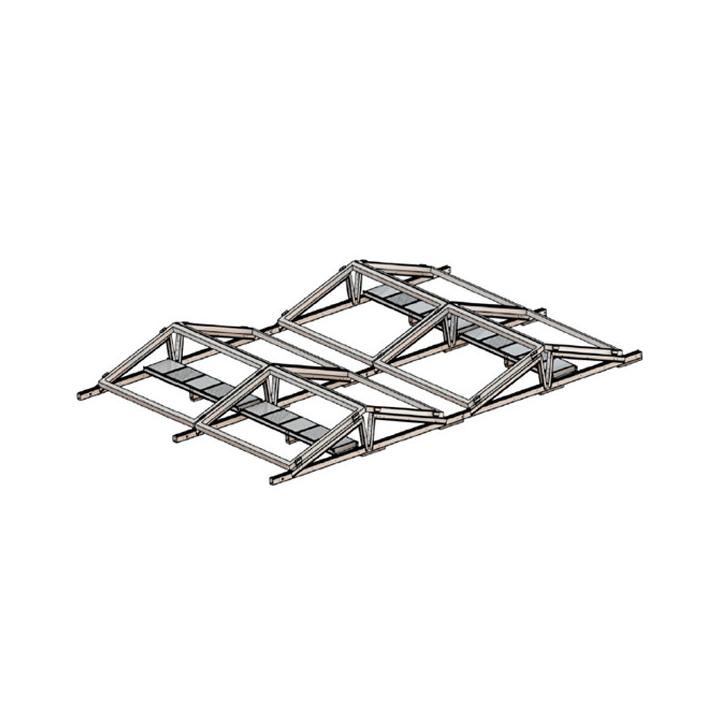

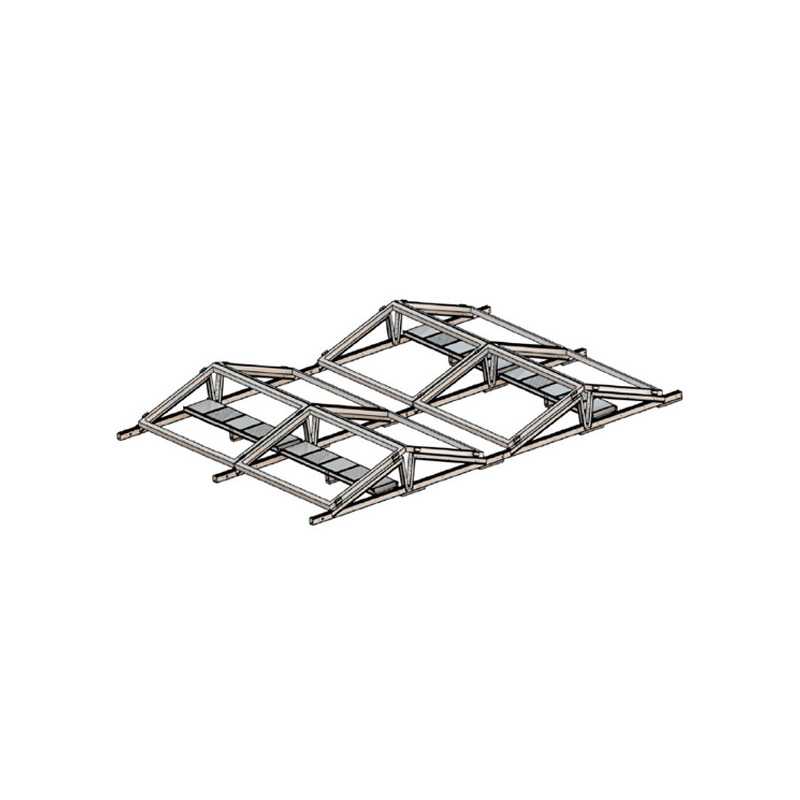

    Avasco Solar SolarSpeed mounting system west/east landscape 3.0 configuration
    This system is sold WITH fixing clamsn but without ballast and ballast conrières (to be defined according to your project)

    100% secure payments
    Clames: 30 mm
    Number of panels in landscape: 2 panels

    Avasco Solar SolarSpeed...

    €147.68

    Présentation du système de fixation Avasco

    This system is sold WITH fixing clamsn but without ballast and ballast conrières (to be defined according to your project)
    Click here to access the products.


    Système de montage Avasco est/ouestSlopes


    The SolarSpeed east-west system is available with a 12.5° inclination.


    Intervals


    As standard, the SolarSpeed east-west system is recommended with an inclination of 12.5° and intervals of 2,300 mm. Further intervals are available upon request.


    Landscape and portrait


    The east-west system is usually offered in landscape configuration, but it is also possible to install it in portrait configuration.


    Compatibility with all types of solar panels


    Depending on the width of panels used (>1,010 mm, 1,010-1,055 mm, 1,055-1,075 mm), a suitable structure can be proposed. This allows 60- or 72-cell panels to be used in an east-west system.


    Ultra-fast editing


    The fit&click frame is very easy to assemble. This has the advantage of making installation very simple and reducing assembly time.


    Semi-pre-assembled base units


    The use of semi-pre-assembled base units not only reduces assembly time, but also the number of individual elements on the roof!


    Zinc-magnesium steel construction


    Thanks to its self-healing and robust properties, zinc-magnesium* steel is particularly suitable for situations that require significant long-term corrosion resistance.


    Lestage avec profilés en lBallast with l-shaped profiles

    (NOT INCLUDED in the basic system, to be defined according to the project)

    Click here to access the products.


    Outside an east-west installation, it is exclusively possible to place ballast using L-shaped profiles.
    The central support prevents the deformation of the profiles, which are fixed with self-drilling screws.
    The assembly of the base units using these L-profiles makes the installation even more robust.

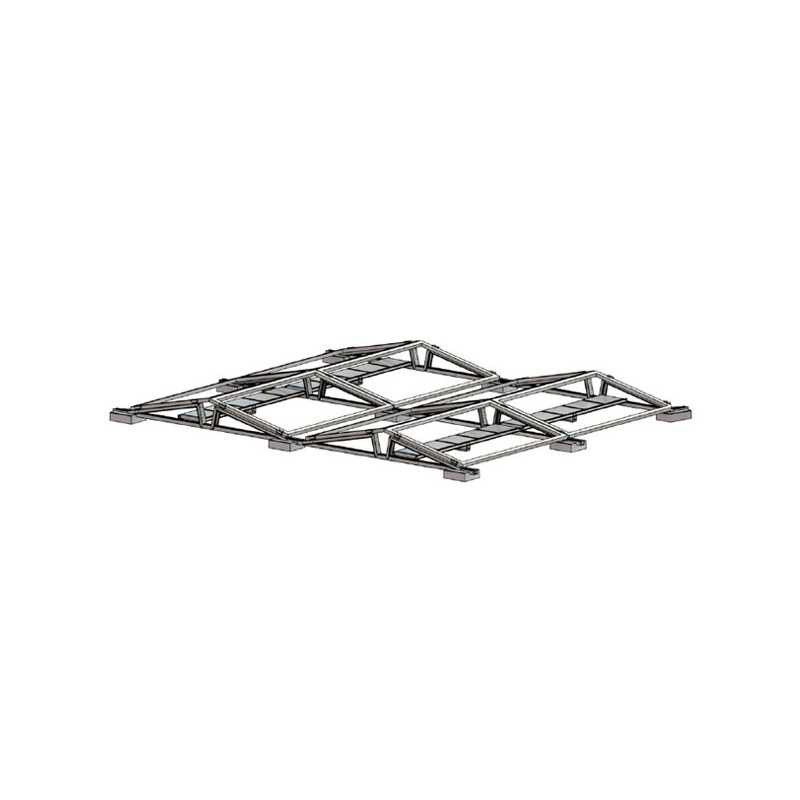

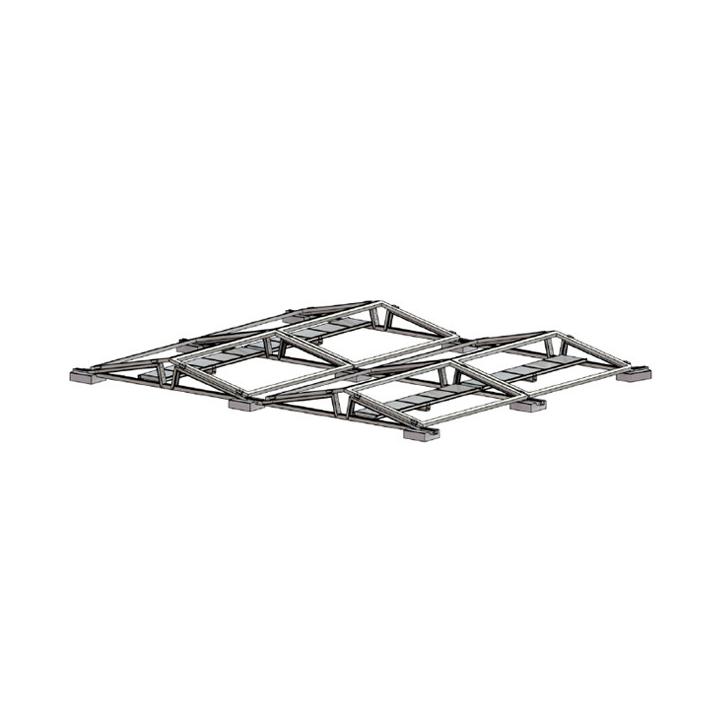

    Lestage avec supports de lestage

    Ballast with ballast supports

    (NOT INCLUDED in the basic system, to be defined according to the project)


    Outside an east-west installation, it is imperative to use L-shaped profiles, but in the middle of the installation it is possible to use ballast supports, because the amount of ballast required is less.


    Contents of the mounting kit



    Qty panelsQty Square
    EAST-WEST
    12.5° / 2350mm
    Corner support
    40mm
    Rubbers
    start of line
    Pegs for
    Rubber fasteners
    2 panels2148
    4 panels32612
    6 panels43816
    8 panels541020
    10 panels651224
    12panels761428
    14 panels871632
    16 panels981836
    18 panels1092040
    20 panels11102244
    Avasco Solar SolarSpeed3.0-E/O
    9989 Items

    Data sheet

    Mounting
    Flat roof - floor structure

    Specific References

    UPC
    768563819803
    EAN13
    0768563819803
