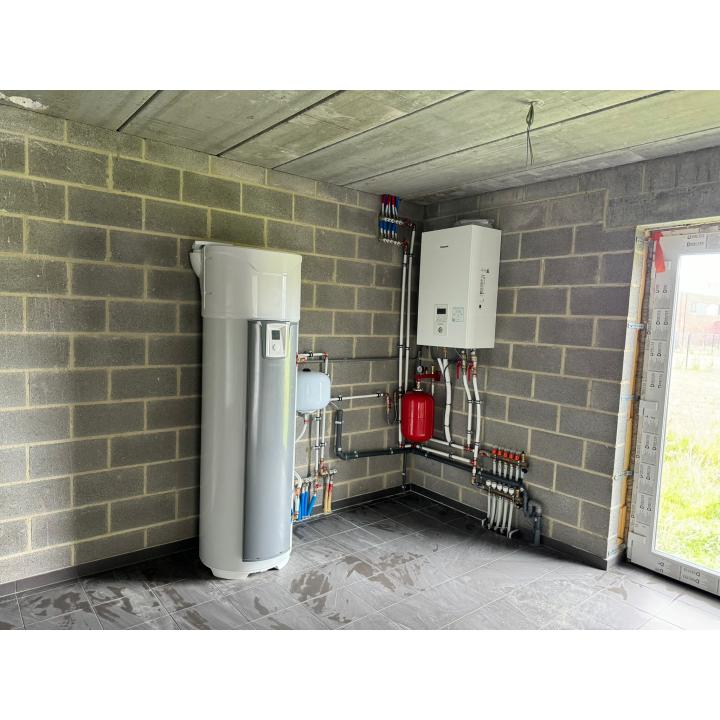

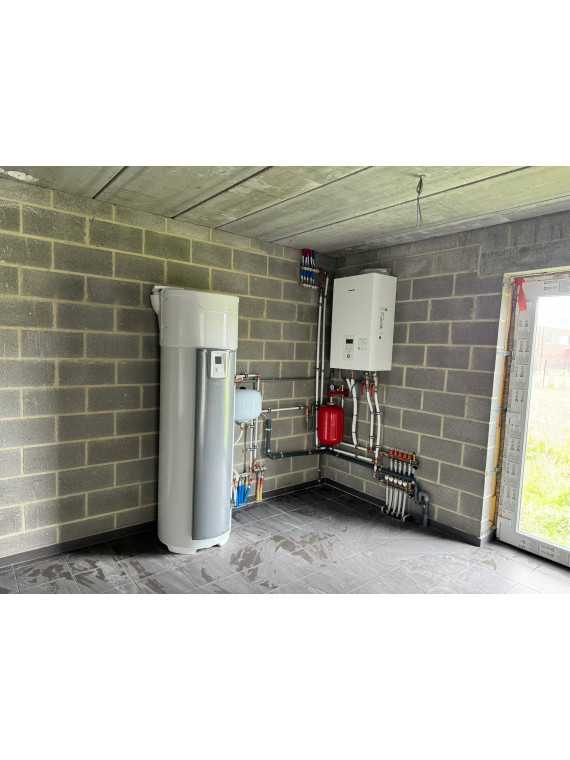

Heat pump and thermodynamic boiler kit with installation in Luxembourg

This heating kit is designed to meet the needs of central heating and domestic hot water production for residential or commercial buildings. Comprising a high-temperature heat pump, control and storage equipment, and accessories, this kit is ideal for installations requiring an environmentally-friendly, high-performance heat source that can be adapted to different heating systems, including existing oil-fired boiler systems.

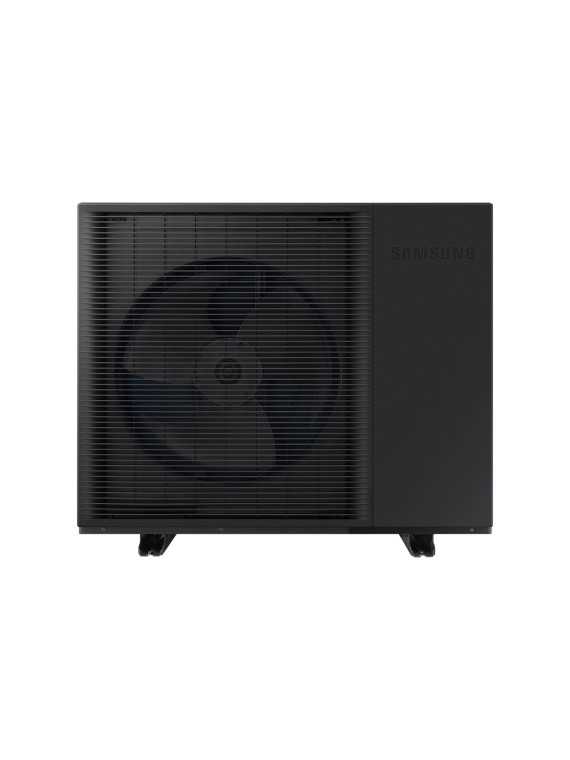

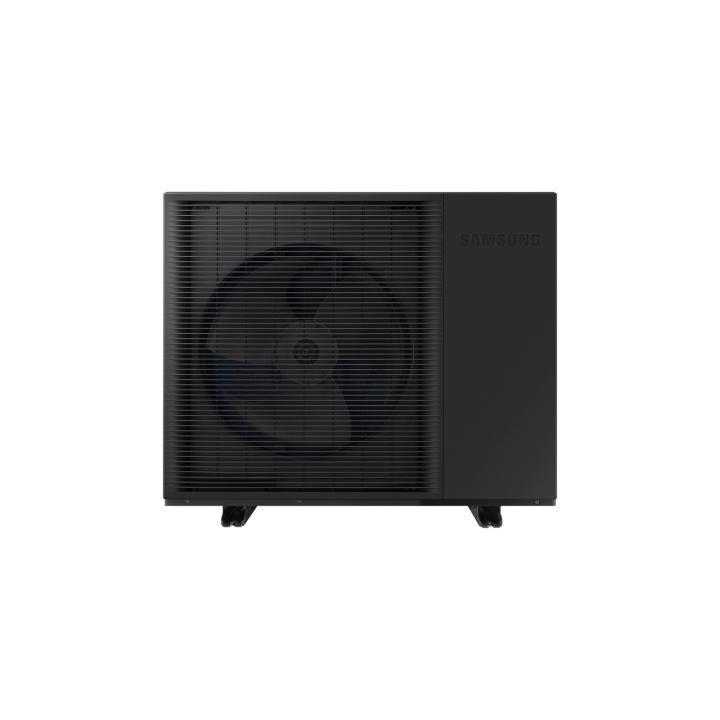

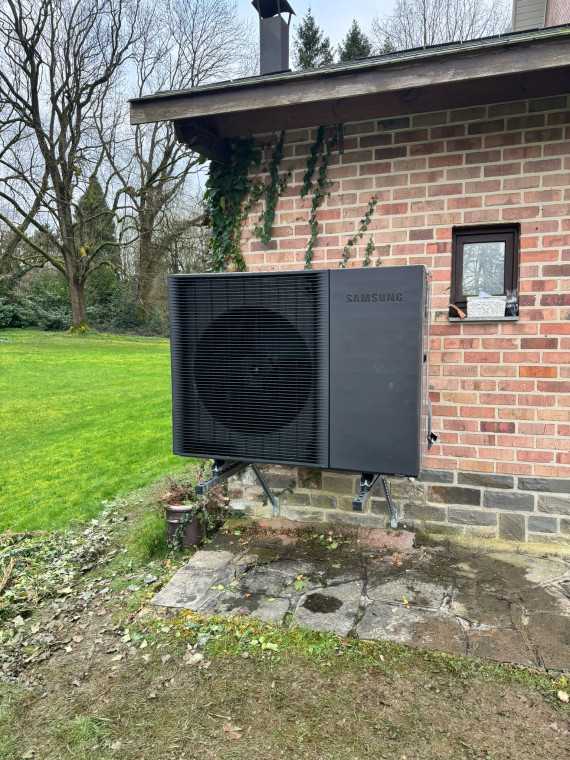

1. Samsung R290 Single High-Temperature Air-to-Water Heat Pump 12 kW - 3F (three-phase)

• Advanced technology: This heat pump uses R290 refrigerant, a gas with low environmental impact and high energy efficiency, to deliver maximum heat output with a high coefficient of performance.
• Heating capacity: With an output of 12 kW, this pump is ideally suited to the heating needs of medium to large homes, as well as commercial premises requiring a high heating temperature.

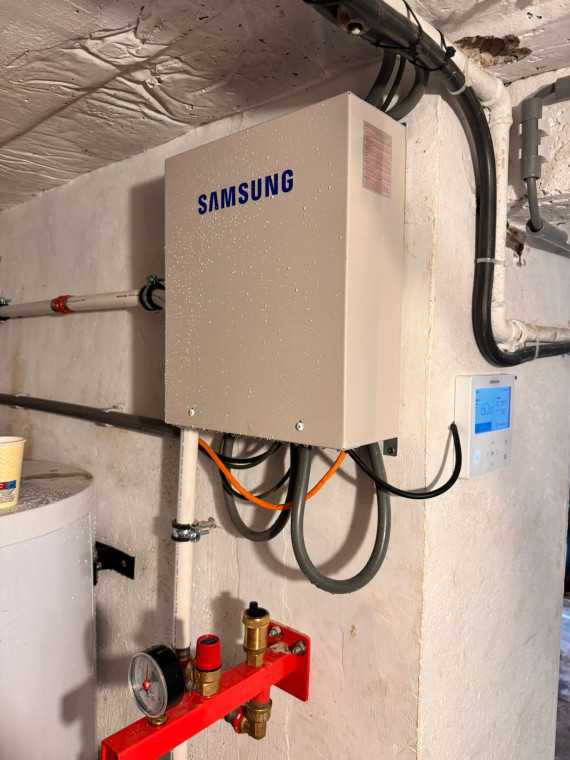

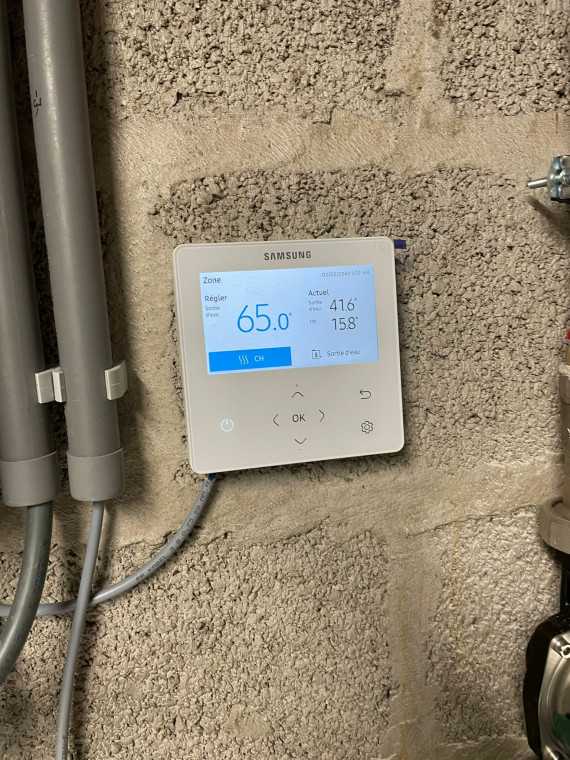

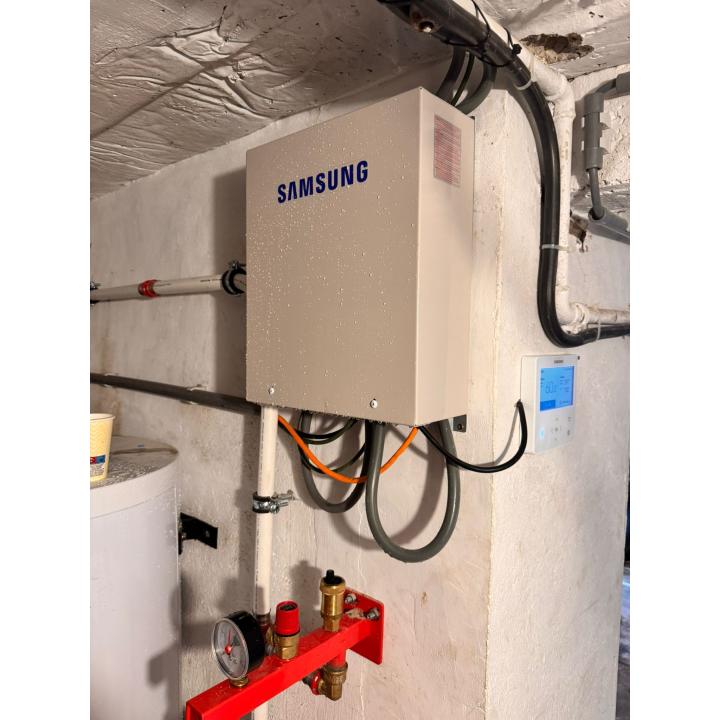

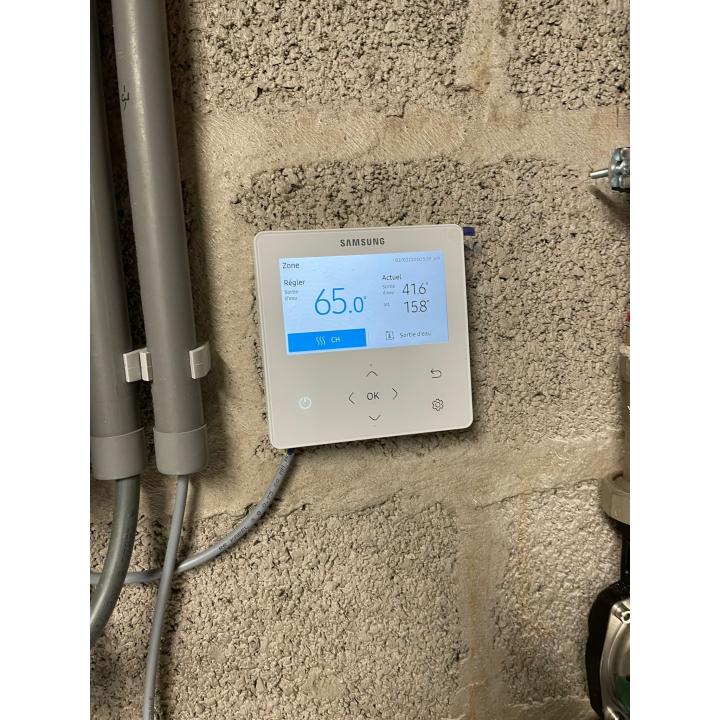

• Integrated control: The included control kit regulates the temperature and optimises energy consumption, ensuring precise thermal comfort.
• Three-phase connection: The three-phase (3F) power supply ensures stable operation for maximum efficiency and durability.

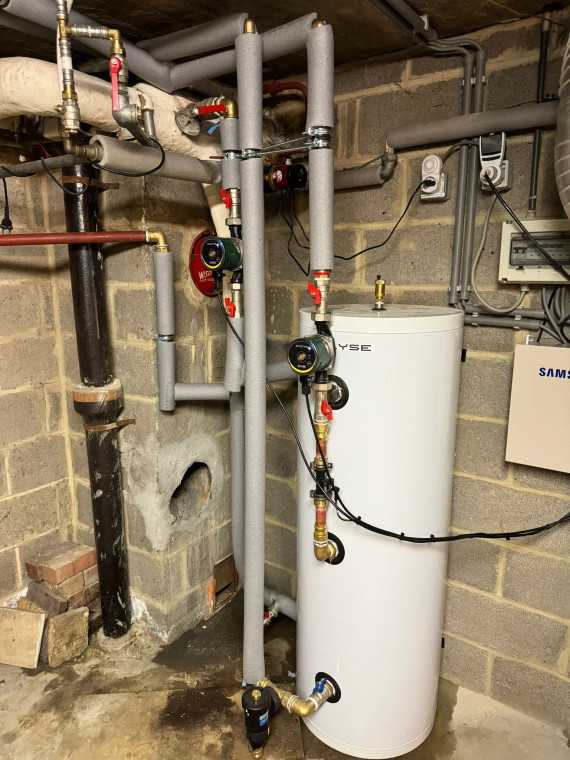

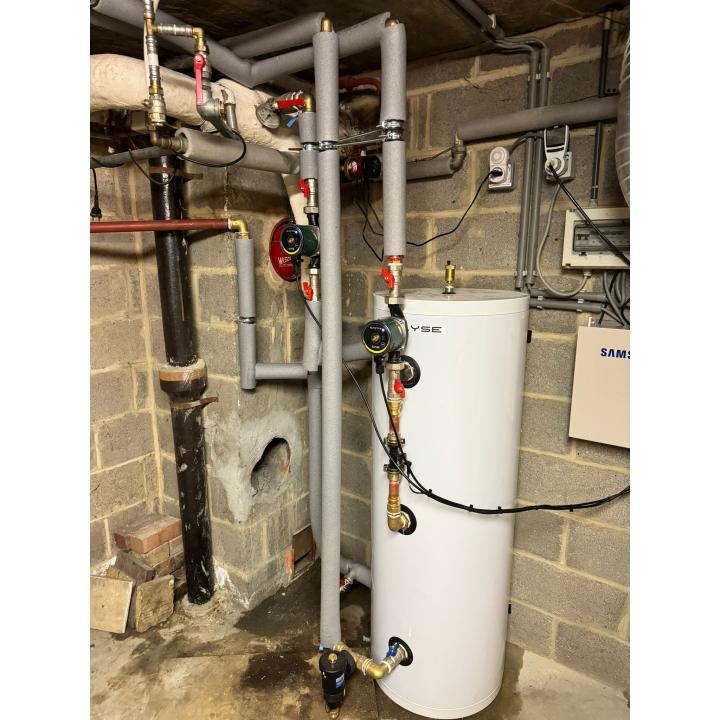

2. 140-litre buffer tank

• Thermal regulation: The buffer tank allows the hot water produced to be stored temporarily, balancing out variations in demand and improving the efficiency of the heat pump.
• Cycle reduction: By minimising the start-up and shut-down cycles of the heat pump, the buffer tank increases its lifespan and reduces power consumption peaks.

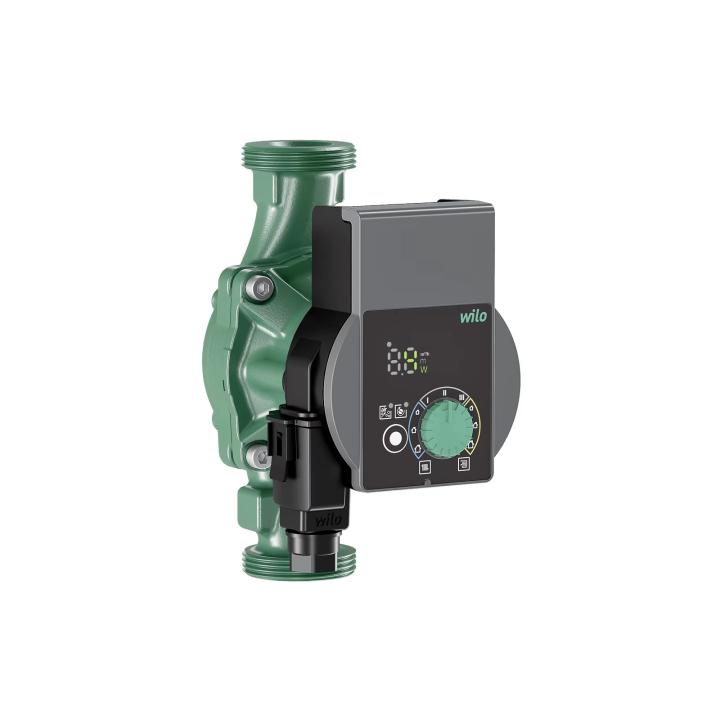

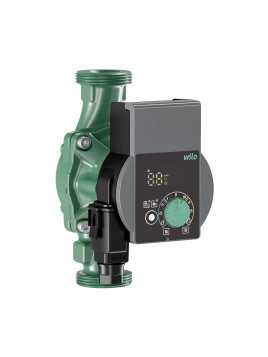

3. Wilo electronic circulator 1/6

• Energy performance: The Wilo electronic circulator is optimised to provide smooth, constant water circulation throughout the heating network. It is designed to reduce energy consumption, adapting its power as required.
• Flow control: Ensures even distribution of hot water, maximising thermal comfort in all rooms served.

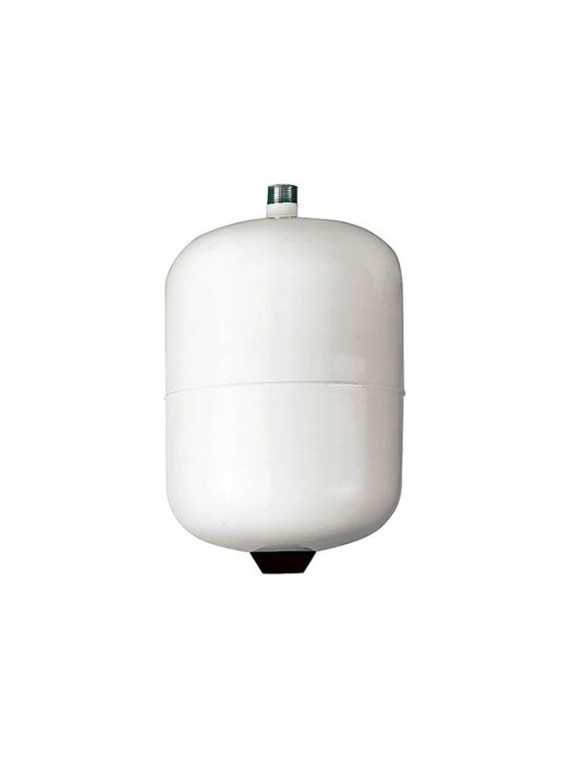

4. 24-litre heating expansion vessel

• Pressure management: The 24-litre expansion vessel absorbs variations in water volume due to temperature changes, protecting the installation from excess pressure and ensuring greater system safety.
• Robust design: Reduces wear and tear on components by maintaining constant pressure in the heating circuit.

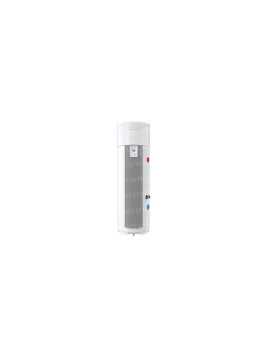

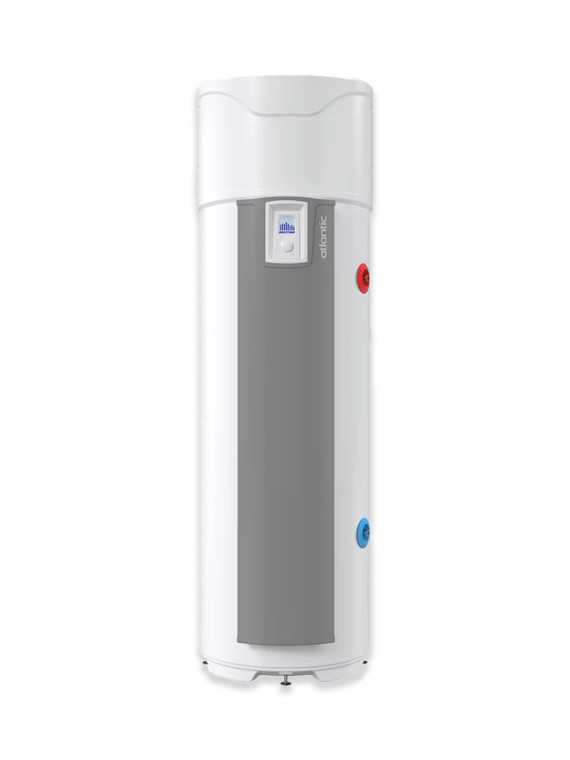

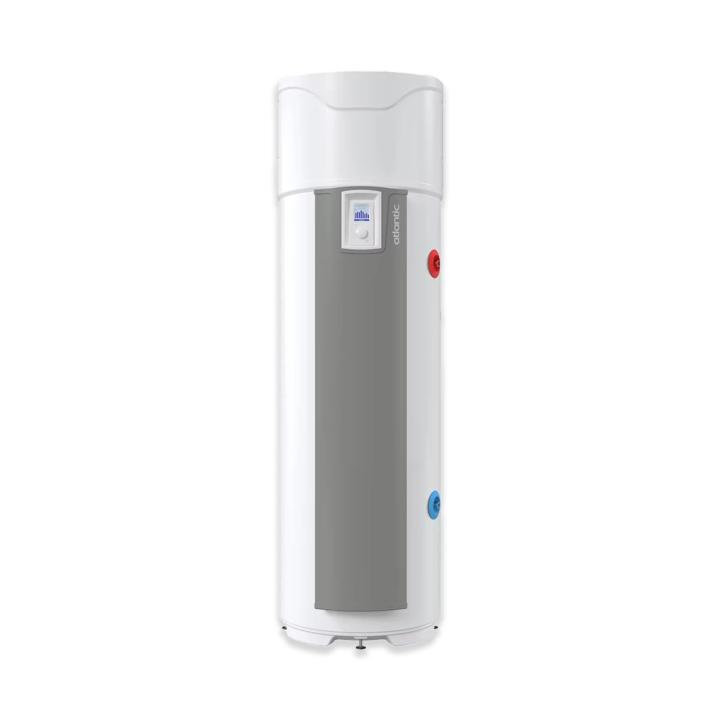

5. Atlantic V4 Explorer thermodynamic boiler - 200 litres

• Production of domestic hot water (DHW): This thermodynamic boiler produces domestic hot water using calories from the ambient air, offering an eco-responsible and highly economical solution for DHW.
• Large storage capacity: With a 200-litre tank, it's perfectly suited to the needs of a family or intensive hot water use.
• High-performance technology: The technology used in the Atlantic V4 range guarantees optimum efficiency and low energy consumption, reducing operating costs.

6. By-pass valve system for switching from heat pump to oil boiler

• Versatility: this bypass valve system makes it easy to switch between the heat pump and an existing oil-fired boiler. This makes it possible to adapt the heat source according to weather conditions or energy prices, or to ensure continuity in the event of maintenance on one of the systems.
• Flexibility and safety: The bypass offers a reliable and flexible solution for hybrid installations, enabling a smooth transition between heating sources.

7. Labour - commissioning by a qualified technician

• Professional installation: This kit includes labour for a complete installation by a qualified technician. This commissioning guarantees optimal operation, installation safety and compliance with current standards.
• Set-up and testing: The technician makes the necessary adjustments and carries out functional tests to ensure the system's performance and safety.

Summary of the kit's benefits

• High energy efficiency thanks to a state-of-the-art heat pump and well-designed complementary equipment.
• Environmentally-friendly: R290 refrigerant and thermodynamic boiler reduce carbon footprint.
• Versatile and scalable: Suitable for mixed or hybrid installations, with the option of using an oil-fired boiler in parallel.
• Professional installation for optimum performance and safety.

This complete kit represents a sustainable, energy-efficient and high-performance heating solution, ideal for environments that demand thermal comfort and energy savings.
