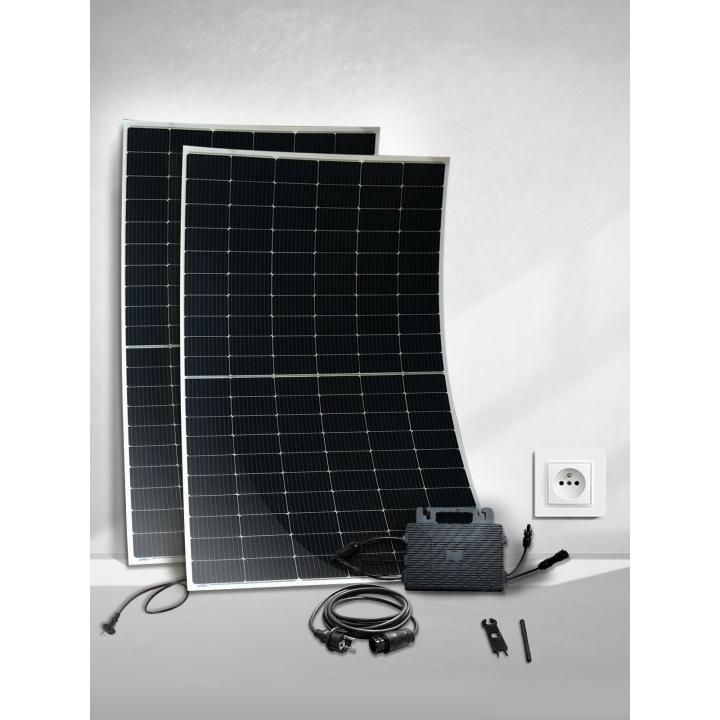

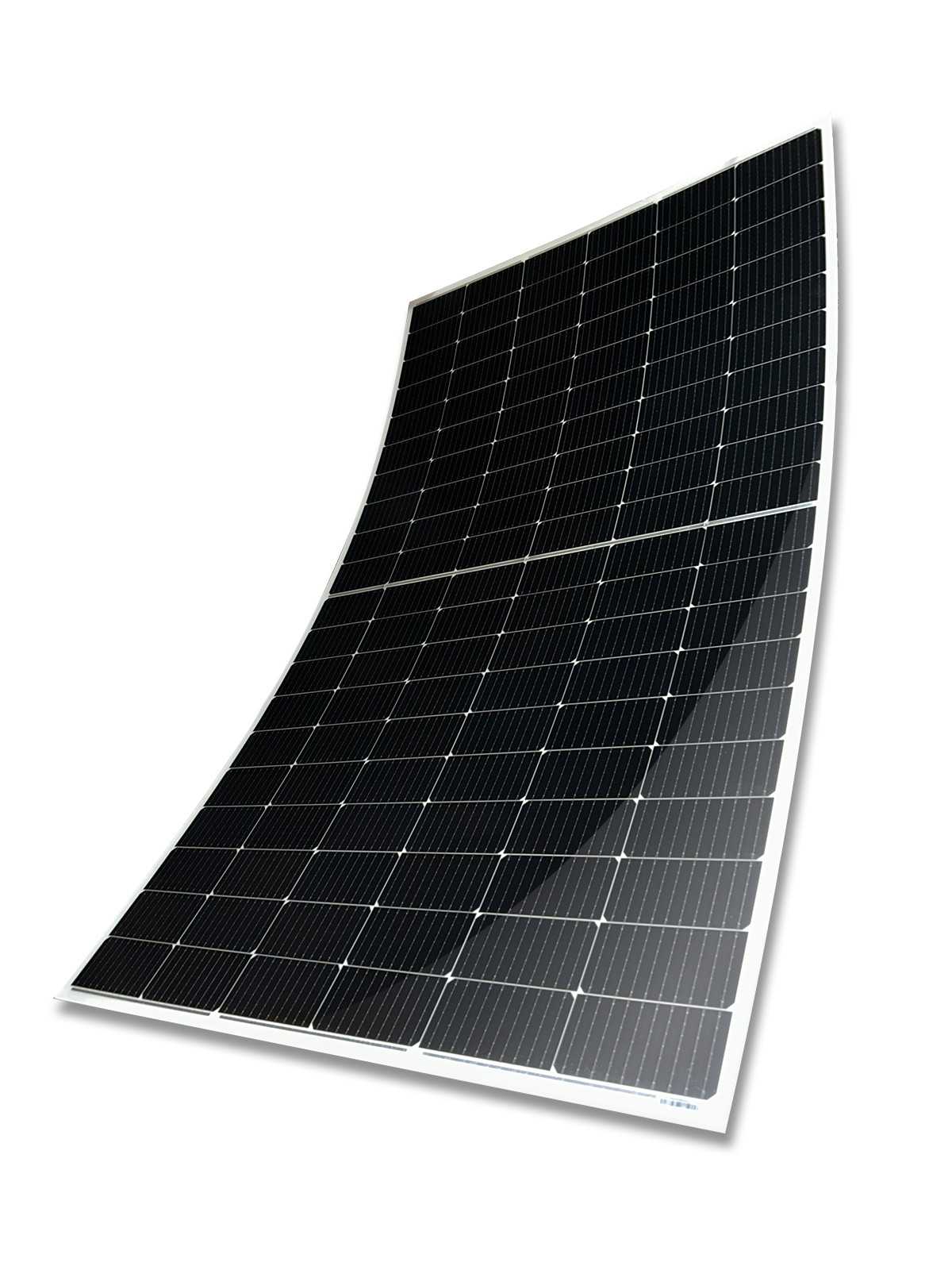

Kit Plug & play 900Wc | Flexibility and Lightness

Microinverter

A solar microinverter is an electronic device used in photovoltaic systems to convert the electrical energy generated by each individual solar panel, instead of the whole system, from direct current (DC) to alternating current (AC) for use in a household or building.

Unlike traditional inverters used in solar installations, micro-inverters are installed directly under each solar panel.
This configuration maximizes energy production, as each panel operates independently and is not affected by the performance of other panels.

In addition, microinverters facilitate system monitoring and maintenance, offering greater visibility over the performance of each panel, which can contribute to greater energy efficiency and extended solar system life.

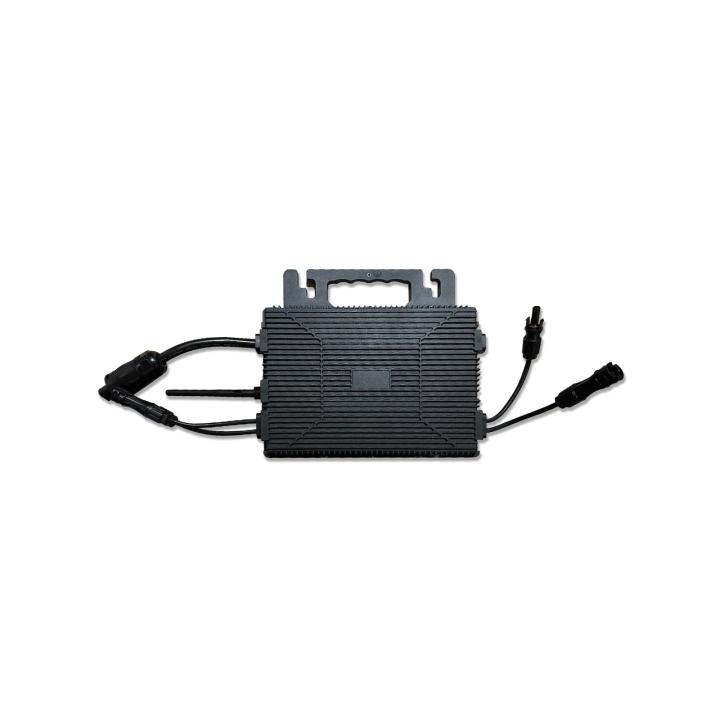

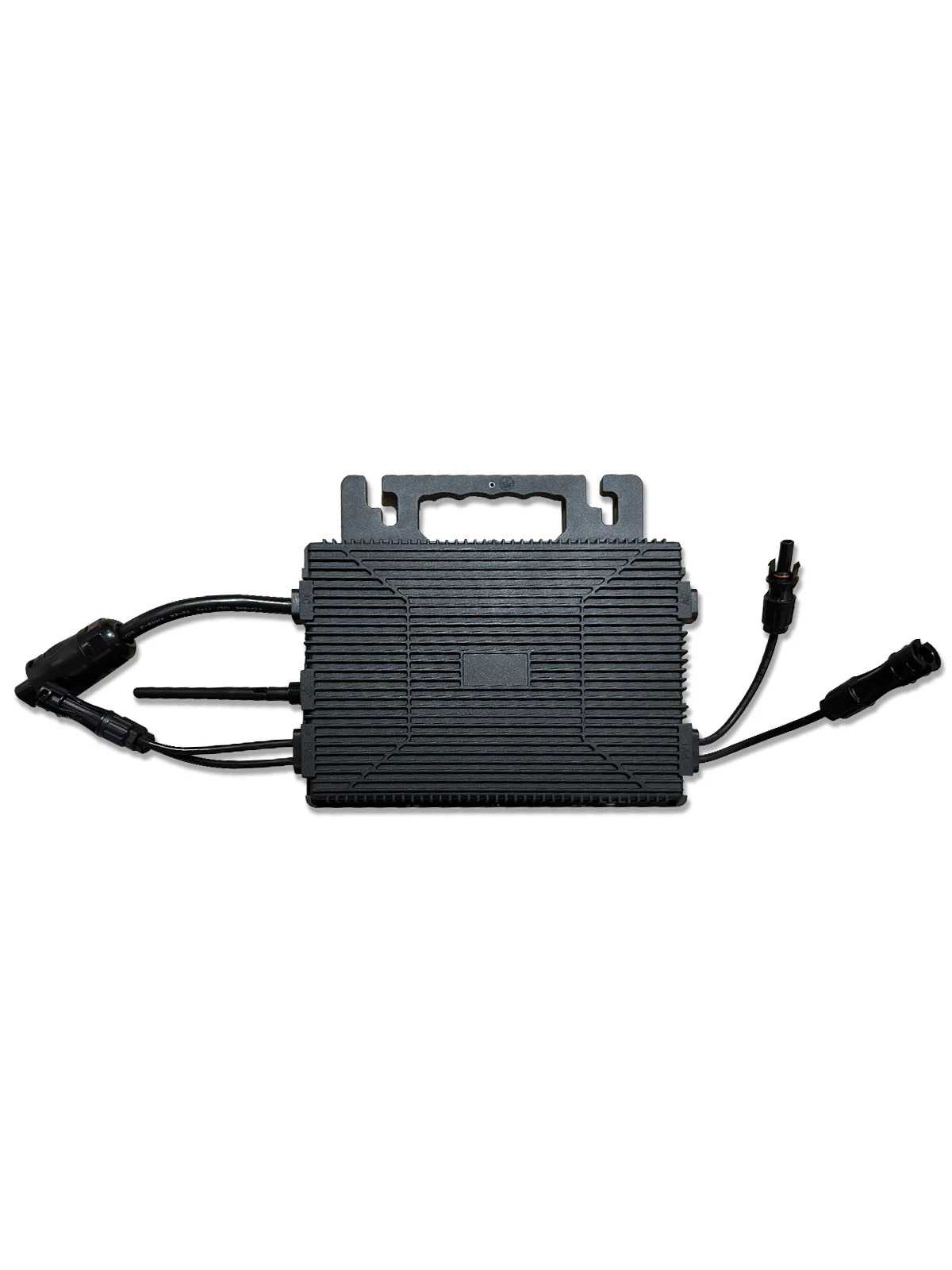

Astro-E TM-L800Mi - 800W

Astro-E solar microinverter: solar power, simplified. Connect to your system at any time via Wi-Fi, maximize energy production with MPPT technology and benefit from fast, easy installation. Robust and durable, it adapts to all types of roof.

• Maximum power: 800W to meet your needs.
• Unrivalled efficiency: 96% yield to optimize your production.
• Simplified installation: Plug-and-play to save time.
• Connected monitoring: Track your production with Solarman.
• Exceptional durability: Weatherproof (IP67) and guaranteed for 10 years.

Why choose Astro-E?

• Connected monitoring: Thanks to Wi-Fi, instantly track your energy production, identify any problems and optimize your system remotely.
• Simplified installation:
• The "plug and play" system and intuitive Wi-Fi configuration make installation easy.
• Optimum efficiency: Benefit from exceptional efficiency of up to 96% thanks to 2 individual MPPTs, maximizing your energy production.
• Reliability and durability: Designed to last 25 years, the Astro-E microinverter is robust and weatherproof.
• Maximum safety: Thanks to its maximum DC voltage of 60V and IP67 protection rating, the system is totally safe.

Here's a summary of the microinverter's LED status, along with a simplified visual display

LED status :

1. Green (always on): Microinverter in normal operation, generating electricity.
2. Red (always on): AC connection interrupted or device fault.
3. Orange (always lit): Only one PV panel connected, or connection to one of the panels is broken.
4. LED off: Low sunlight, device not operational, or possible device fault.
5. Green (lit) with occasional red: Normal MPPT reset due to light changes.
6. Flashing red: High probability of equipment failure.

Simplified visual :

- Green: OK
- 🔴 Red: Connection problem / Fault
- 🟠 Orange: Partial connection
- ⚫ Off: Low light / Fault
- Green & 🔴 Red: Reset (Normal)
- 🔴⚫🔴... Flashing red : Failure

The benefits of integrated Wi-Fi

• Remote access: Consult production data wherever you are, whenever you want.
• Customized notifications: Receive alerts in the event of a problem or important event.
• Production optimization: Adjust the parameters of your installation to maximize your energy yield.
• Data sharing: Share your production data with friends and family or your energy supplier.

Via the SOLARMAN application. It's compatible with smartphones and tablets, so you can view production data continuously, wherever you are.

You can obtain detailed information on energy production, individual solar panel yields, malfunction alerts and historical reports.

Rooftop connection principle

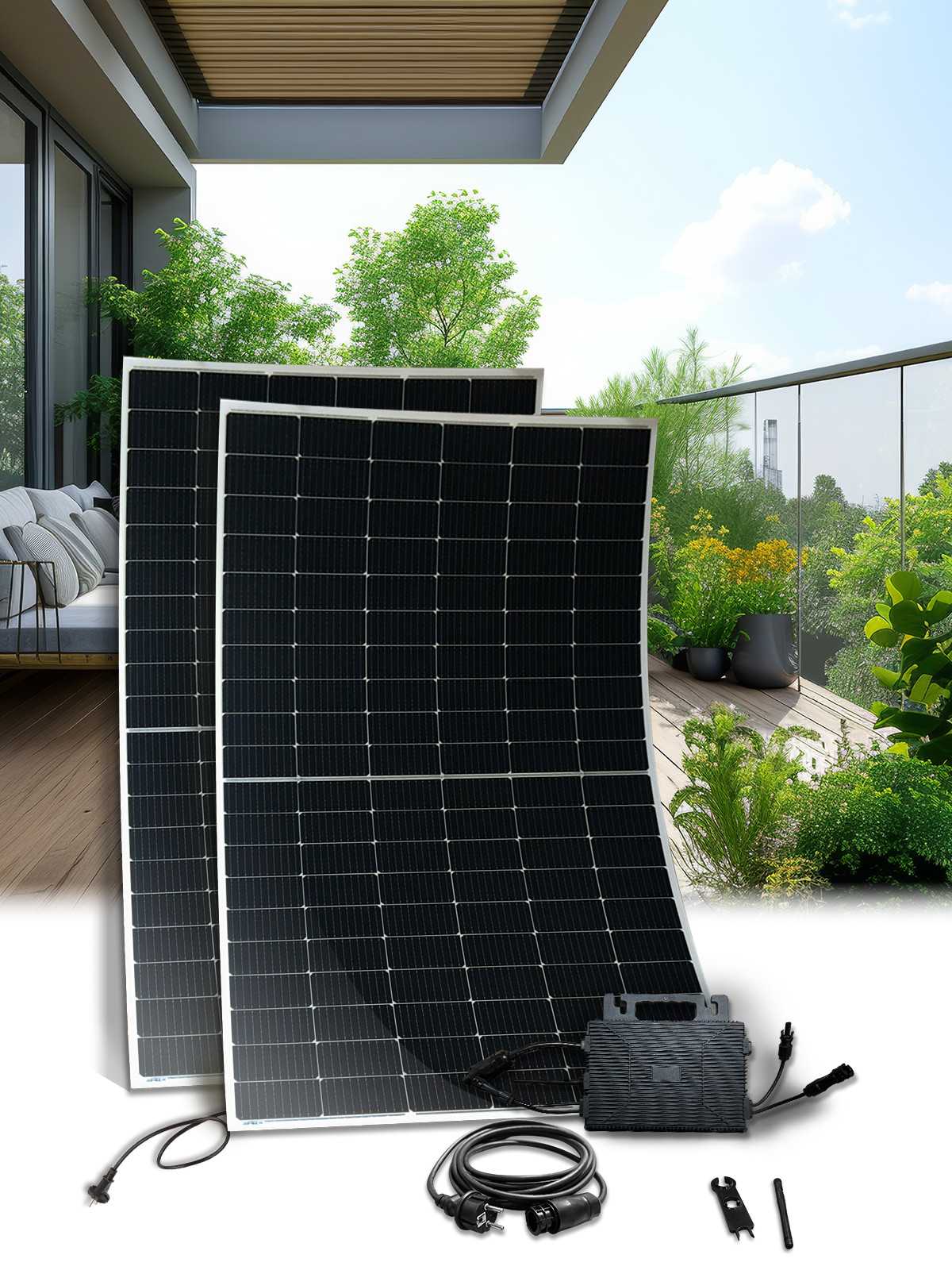

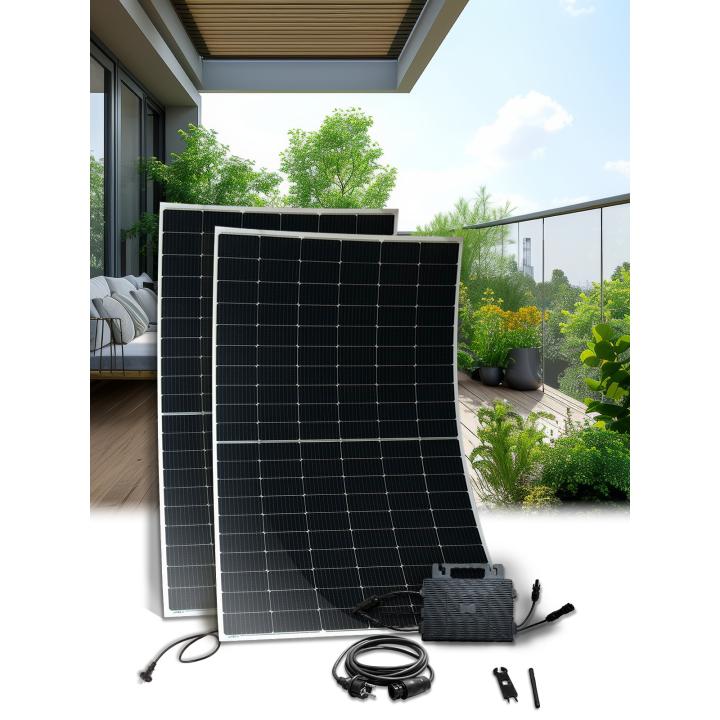

Principle of connection to a balcony kit system

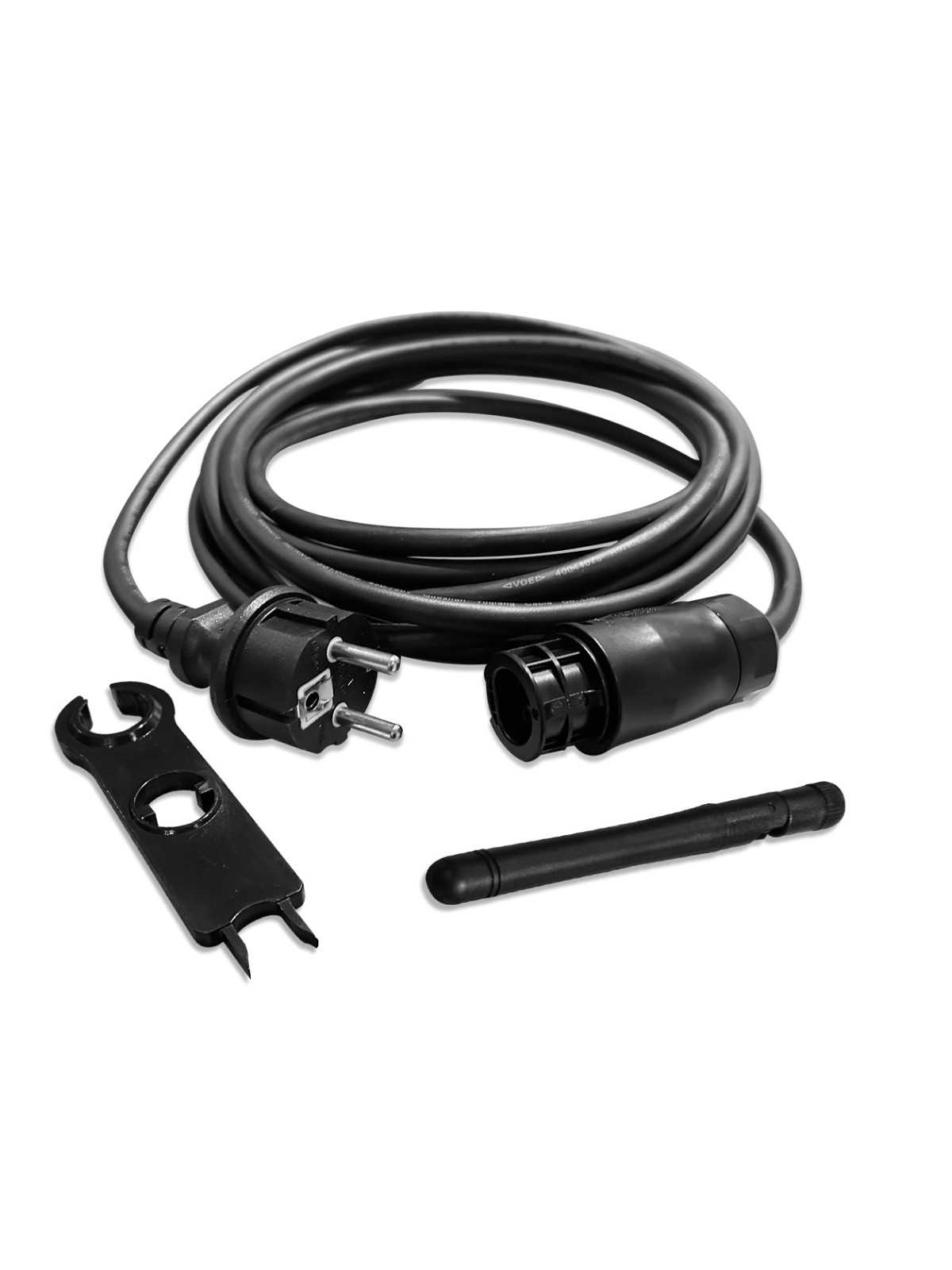

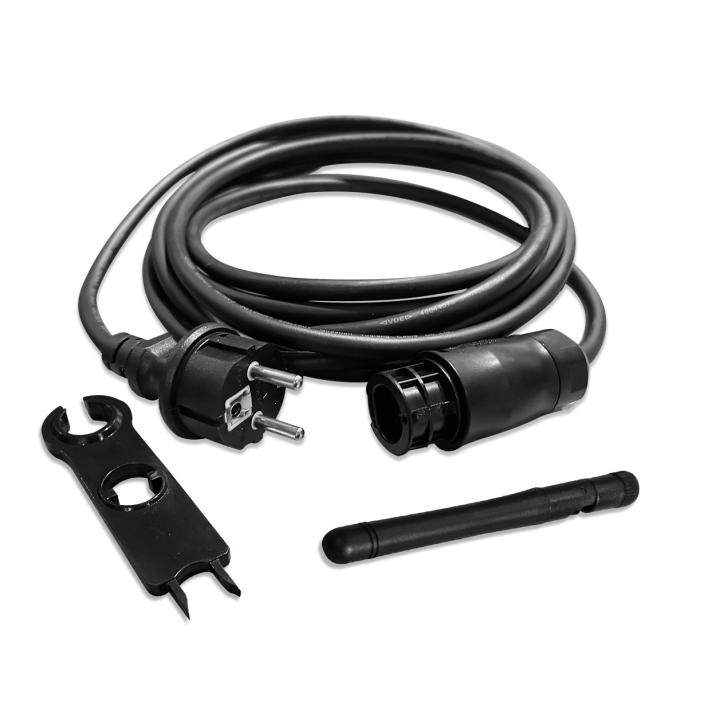

Supplied accessories

- Wi-Fi antenna
- MC4-type connection clamp

Optional accessory

- AC connection cable
