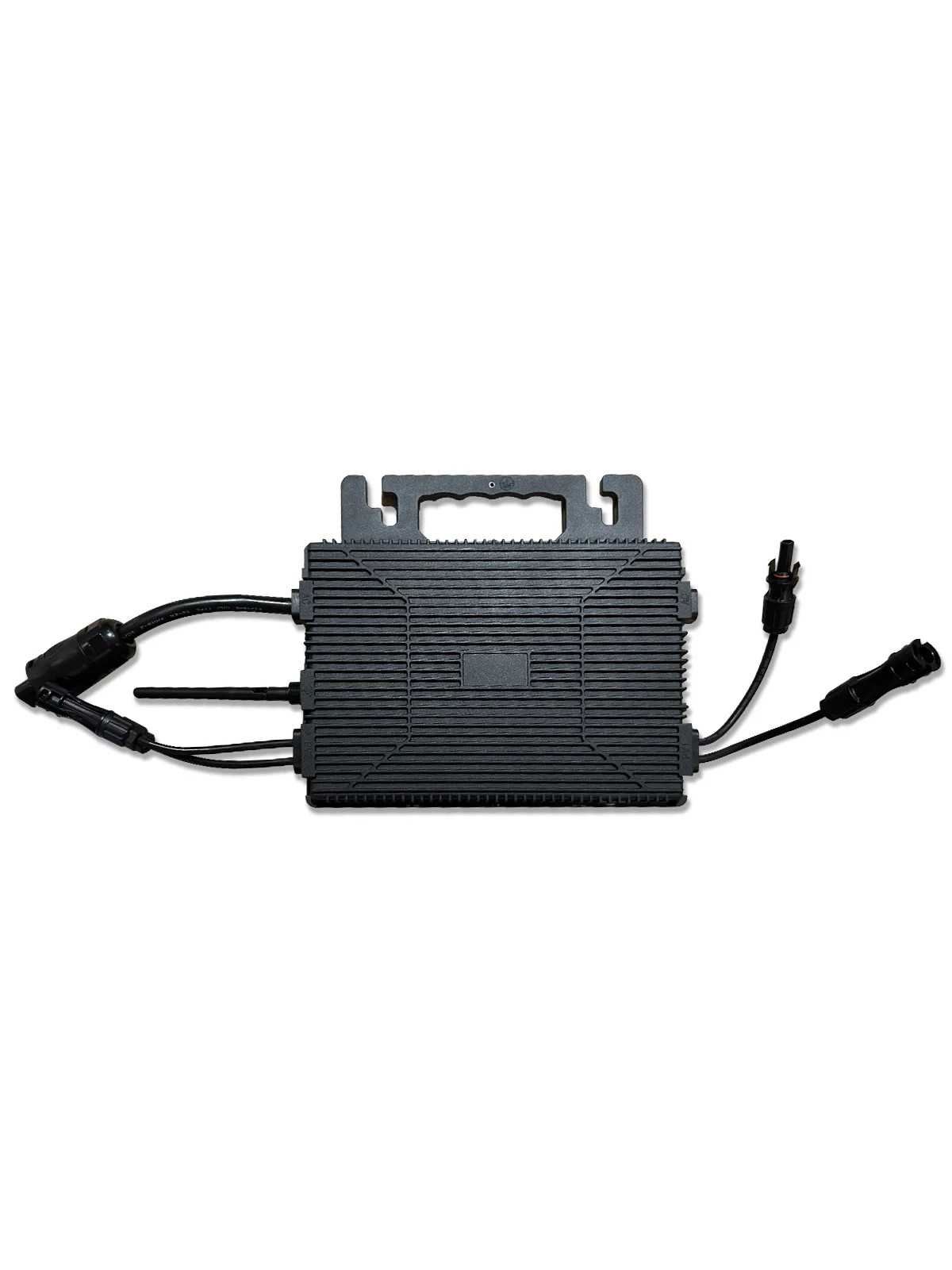

    Microinverter Astro-E TM-L800Mi - 800W

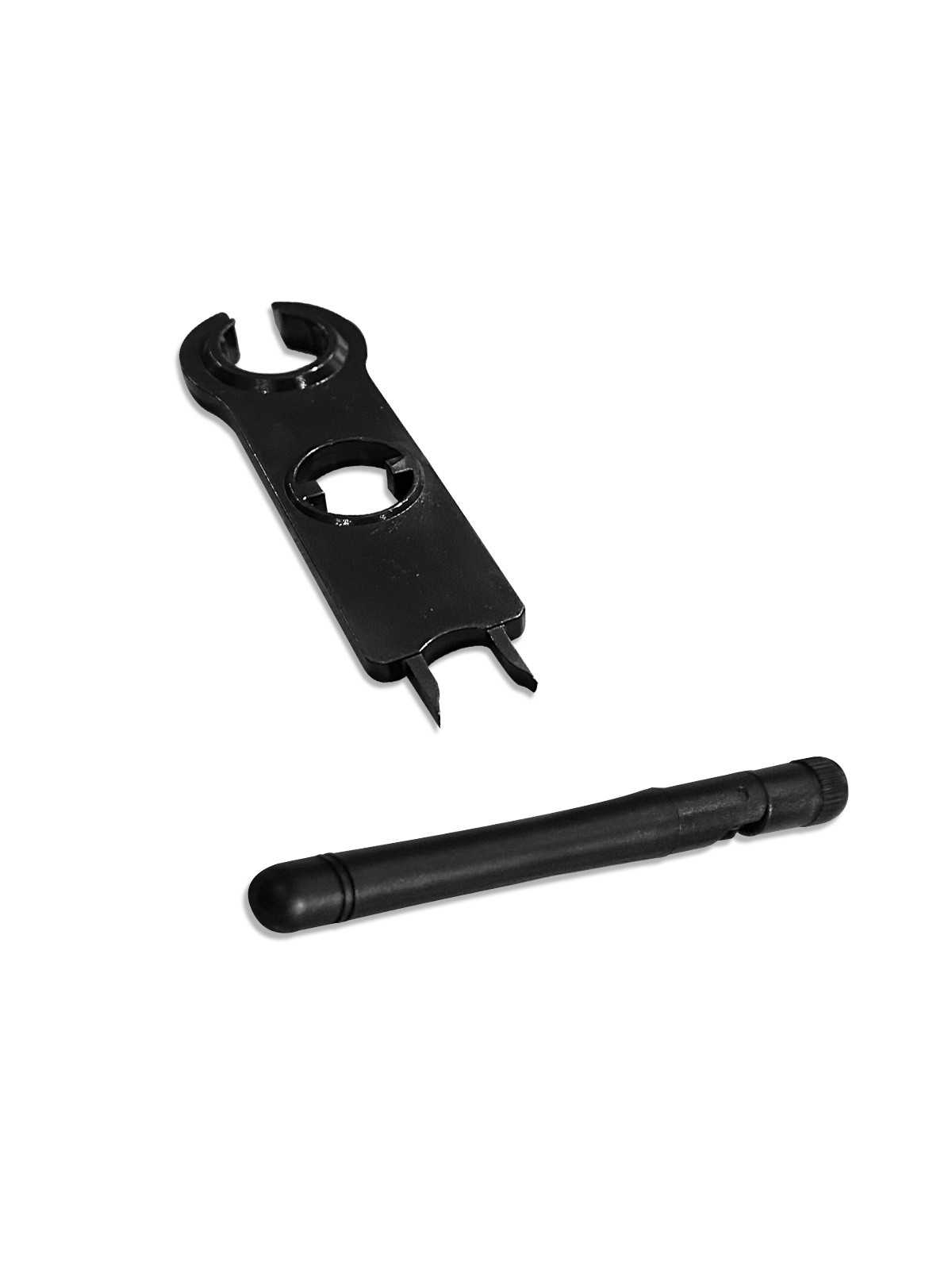

    MC4 disconnection tools
    MC4 disconnection tools

    Microinverter Astro-E TM-L800Mi - 800W | Optimize your production

    $145.6
    Astro-E TM-L800Mi
    0768563821806

    Optimize your solar energy production with the Astro-E microinverter.
    Thanks to its built-in Wi-Fi, you can monitor your installation in real time.

    The Astro-E 800W Mi microinverter is a state-of-the-art solar optimization solution, designed to maximize the yield of every photovoltaic panel in your installation.

    Features:

    • Maximum power: 800W to meet your needs.
    • Unrivalled efficiency: 96% yield to optimize your production.
    • Simplified installation: Plug-and-play to save time.
    • Connected monitoring: Track your production with Solarman.
    • Outstanding durability: Weatherproof (IP67) and guaranteed for 10 years.

    Benefits :

    • Fast return on investment: Maximize your solar energy production and reduce your electricity bill.
    • Reliability and safety: Robust design and built-in protection for worry-free use.
    • Easy installation: Save time and money with simplified installation.
    • Wi-Fi monitoring: Follow your energy production in real time from your smartphone or computer.

    Why choose it?

    By choosing the Astro-E 800W Mi, you're opting for a high-performance, reliable and easy-to-use solar solution.
    Benefit from clean, renewable energy, while reducing your carbon footprint.

    58 item(s) left in Stock!

    Microinverter Astro-E...

    $145.6

    présentation du micro onduleur Astro-E 800Mi

    The Astro-E solar microinverter: your connected power plant



    Control your energy production in real time with integrated Wi-Fi!

    The Astro-E solar power system, equipped with the TM-L400M&TM-L500M microinverter, is the ideal solution for those who want to generate their own electricity simply and efficiently. Thanks to its integrated Wi-Fi connection, you can monitor your system's performance in real time from your smartphone or computer.



    Micro-onduleur Astro TM-L800Mi - 800W


    Connection diagram




    Schéma de fonctionnement du micro-onduleur Astro-E


    installation du micro-onduleur Asrto sur une fixation balcon







    Why choose Astro-E?

    • Connected monitoring: Thanks to Wi-Fi, instantly track your energy production, identify any problems and optimize your system remotely.
    • Simplified installation:
    • The "plug and play" system and intuitive Wi-Fi configuration make installation easy.
    • Optimum efficiency: Benefit from exceptional efficiency of up to 96% thanks to 2 individual MPPTs, maximizing your energy production.
    • Reliability and durability: Designed to last 25 years, the Astro-E microinverter is robust and weatherproof.
    • Maximum safety: Thanks to its maximum DC voltage of 60V and IP67 protection rating, the system is totally safe.








    Here's a summary of the microinverter's LED status, along with a simplified visual display



    LED status :


    1. Green (always on): Microinverter in normal operation, generating electricity.
    2. Red (always on): AC connection interrupted or device fault.
    3. Orange (always lit): Only one PV panel connected, or connection to one of the panels is broken.
    4. LED off: Low sunlight, device not operational, or possible device fault.
    5. Green (lit) with occasional red: Normal MPPT reset due to light changes.
    6. Flashing red: High probability of equipment failure.



    Simplified visual :


    - rond vert Green: OK
    - 🔴 Red: Connection problem / Fault
    - 🟠 Orange: Partial connection
    - ⚫ Off: Low light / Fault
    - ROND VERT ET ROUGE Green & 🔴 Red: Reset (Normal)
    - 🔴⚫🔴... Flashing red : Failure





    The benefits of integrated Wi-Fi

    • Remote access: Consult production data wherever you are, whenever you want.
    • Customized notifications: Receive alerts in the event of a problem or important event.
    • Production optimization: Adjust the parameters of your installation to maximize your energy yield.
    • Data sharing: Share your production data with friends and family or your energy supplier.




    Antenne Wi-Fi et Pince Type MC4 fourni





    Supplied accessories

    - Wi-Fi antenna
    - MC4-type connection clamp








    Accessoires fournis : câblage AC, antenne Wi-Fi et outil de déconnection type MC4





    Accessory available by clicking HERE.

    - AC connection cable










    Connectique type MC4 micro onduleur



    Outstanding energy efficiency

    With a maximum efficiency of 96% and 2 individual MPPTs, each solar panel produces its maximum potential, even in partially shaded conditions.






    Unbeatable durability

    Designed to withstand the harshest conditions (IP67), the Astro-E comes with a 10-year warranty.




    Simplify your transition to solar power with Astro-E!

    Astro-E TM-L800Mi

    Data sheet

    Width
    260 mm
    Height
    225 mm
    IP protection
    IP 67
    Inverter type
    Micro-inverter
    Starting voltage
    20V
    Type of cooling
    Natural convection - No fan
    Standard warranty (years)
    10
    Weight
    2.9 kg
    Rated output power
    800 W
    Communication
    Wi-Fi
    Power factor
    supérieur à 0,99 par défaut
    Maximum input current
    13.5A*2
    Max. PV input voltage
    60V
    Maximum efficiency
    96.00%
    Maximum output current
    4A
    MPPT voltage range
    25-55V
    Recommended PV module power
    280W-550W
    Maximum DC short-circuit current
    16.5A*2
    Extended output voltage range
    184-253V
    Nominal frequency/range
    50Hz/45 - 55
    Total harmonic distortion (THD)
    less than 3% of sales
    Maximum number of units per section
    4
    CEC efficiency
    95.50%
    Static MPPT efficiency
    99.50%
    Energy consumption at night
    less than 50mW
    Ambient temperature range
    -40°C ~ +65°C
    Type of insulation
    High-frequency transformers
    Energy management
    Solarman online platform

    Specific References

    Download

    FicheTech Astro-E800Mi

    Download (2.04MB)

    manuel utilisation Astro-E

    Download (559.53KB)
