    Solar controller SRNE 24v 10A SHINER2410-B
    Solar controller SRNE 24v 10A SHINER2410-B
    Solar controller SRNE 24v 10A SHINER2410-B

    Solar controller SRNE SHINER MPPT 12/24V 10A SHINER2410-B

    $74.7
    SHINER2410-B
    0768563820472

    - Maximum open-circuit voltage: 60Vdc
    - Nominal battery voltage: 12/24Vdc
    - Nominal charging current: 10A
    - MPPT tracking efficiency: >99%

    19 item(s) left in Stock!

    Solar controller SRNE...

    $74.7

    Présentation régulateur SRNE SHINER

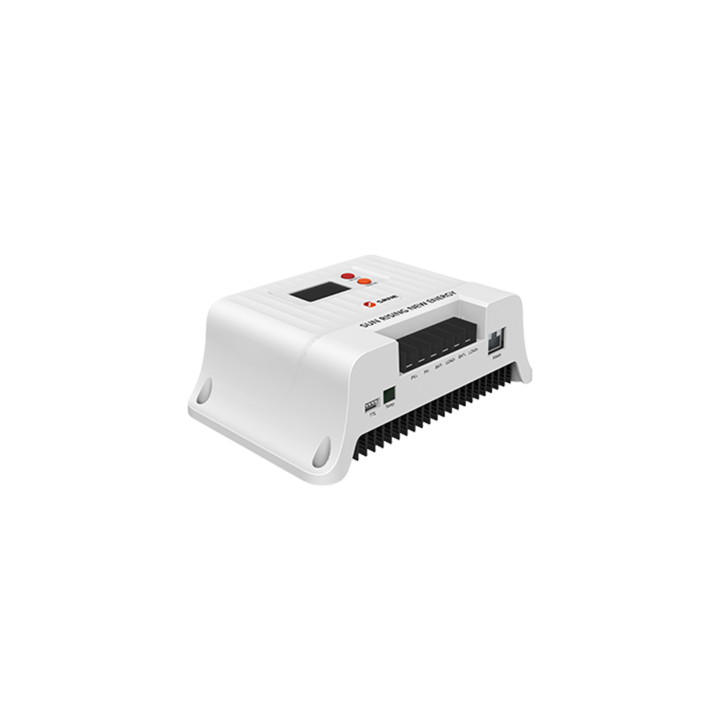

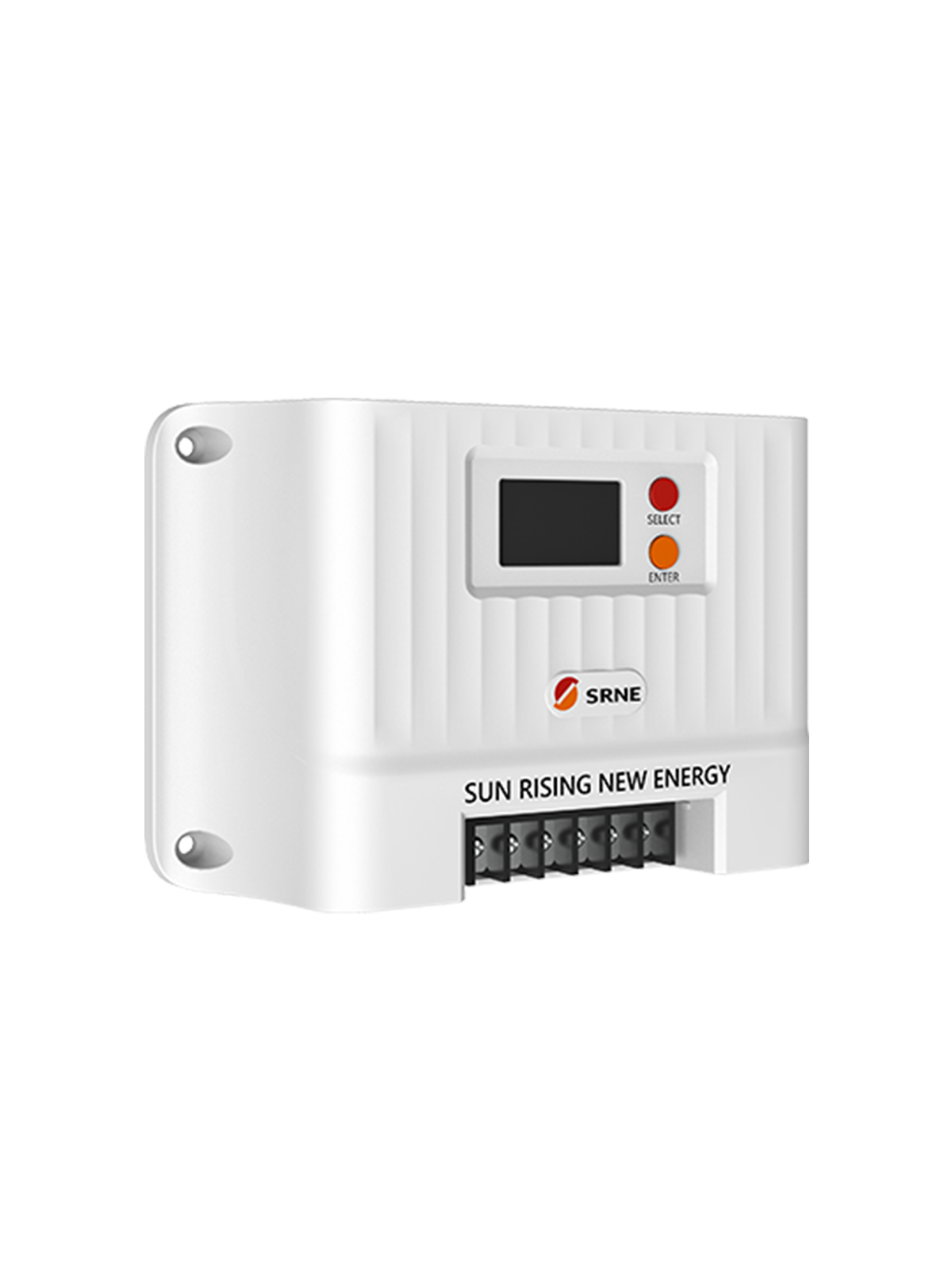

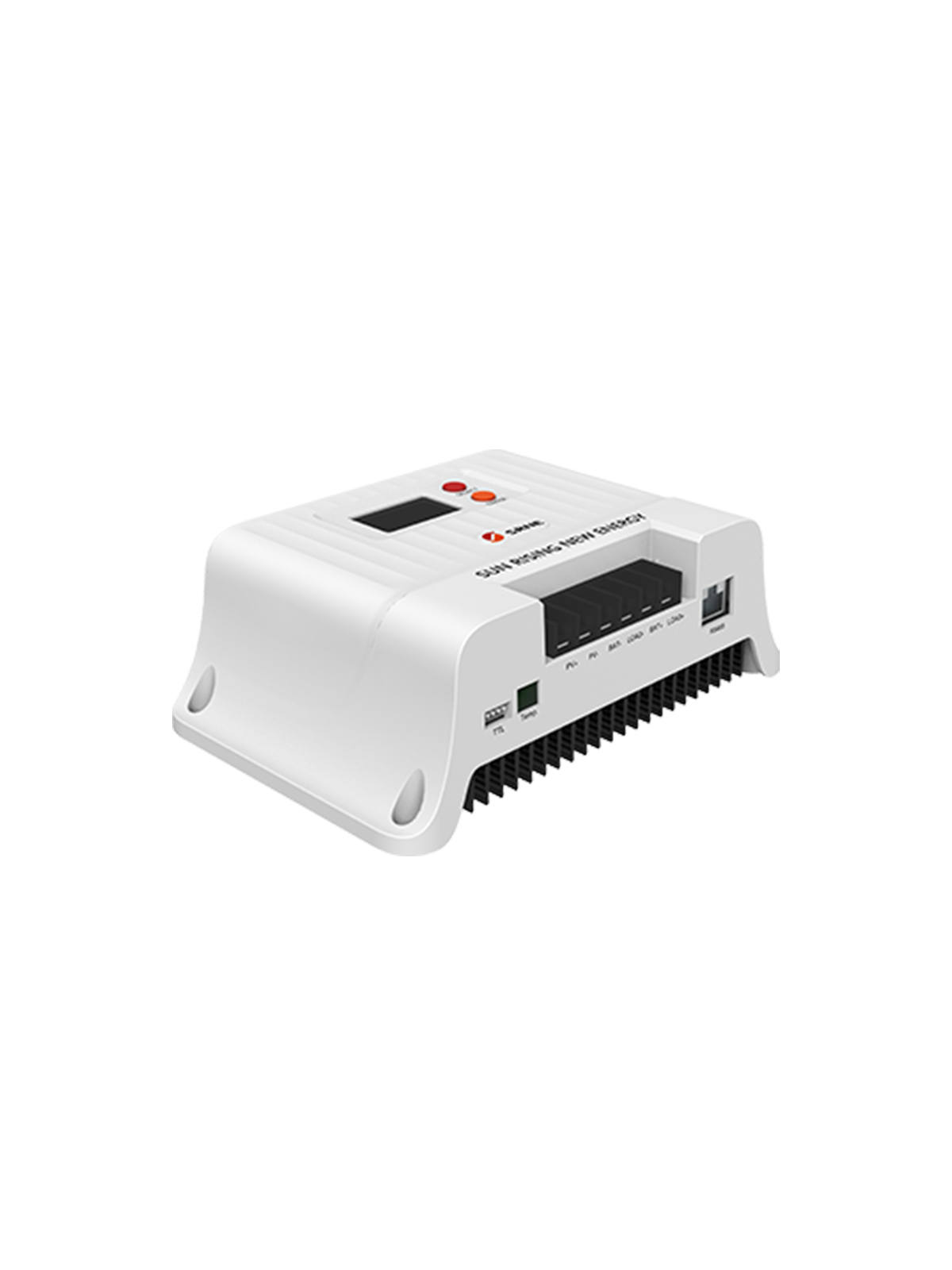

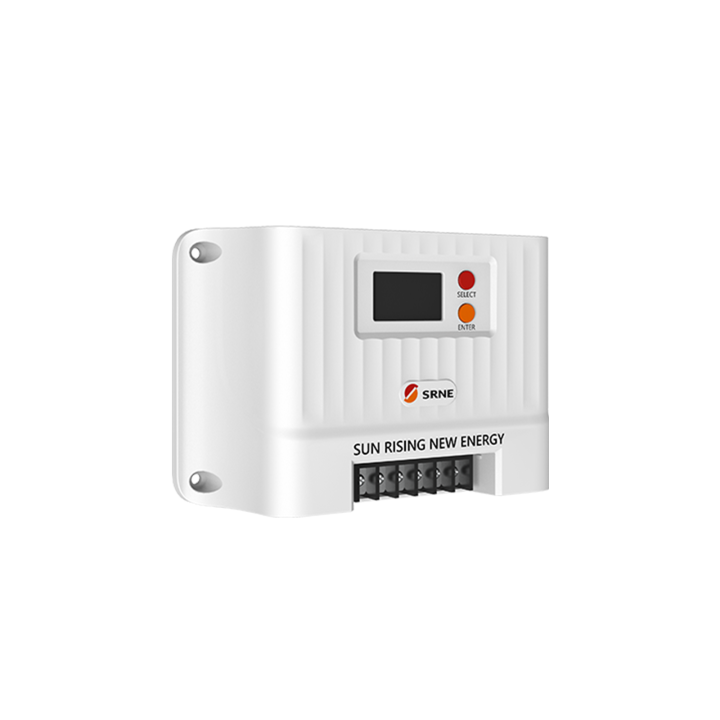

    SRNE SHINER2410-B : Intelligent, high-performance solar controller



    2application-hors-reseau-icone-srne.pngFor off-grid applications

    Can be connected to solar panels, battery and load at the same time. Several load operating modes to meet diverse needs.





    Efficiency

    Maximum power point tracking (MPPT) with up to 99.9% efficiency. Supports up to 2 solar panels in series/more in parallel.





    All-in-one

    Supports multiple battery types. Highly integrated, helps you save space and wiring





    Safety

    Complete charge and discharge protection mechanism. High-quality components for stable operation.





    User-friendly

    Easy to install and simple to use. Natural cooling, totally silent.





    Intelligent

    Supports TTL RS485 and CAN (RV-C protocol). Supports Bluetooth with mobile application.



    SHINER2410-B

    Data sheet

    Max.Voltage of Open Circuit
    60Vdc
    MPPT Voltage Range
    (Battery voltage+2V)~45Vdc
    Max.PV Input Power
    130W/12V - 260W/24V
    Charging power
    10A
    Voltage
    12V / 24V
    MPPT/PWM
    MPPT
    Battery Type
    USE/FLD/GEL/LI/SLD/ User Defined
    Rated Battery Voltage
    12/24/36/48Vdc
    Battery Voltage Range
    8~32Vdc
    MPPT Charging Mode
    Buck
    Protection Degree
    IP32
    Load Type
    Resistive, Capacitive, Inductive load
    Rated load voltage
    Equal to battery voltage 12V/24V/36V/48V
    Rated load current
    10A
    Load Working Mode
    Light control,Light control + Time control, manual control (default), Debugging mode, Normal open
    MPPT Tracking Efficiency
    less than 99%
    Max. Efficacité de conversion de la charge
    85%~98%(Correspond load power10%~100%)
    Operating temperature range
    (-31℉~149℉)
    Weight
    350 gr
    Dimensions (L x W x D)
    (6.1*3.8*1.6in)

    Specific References

    New

    Download

    DataSH Shiner SRNE-en

    Download (840.54KB)
