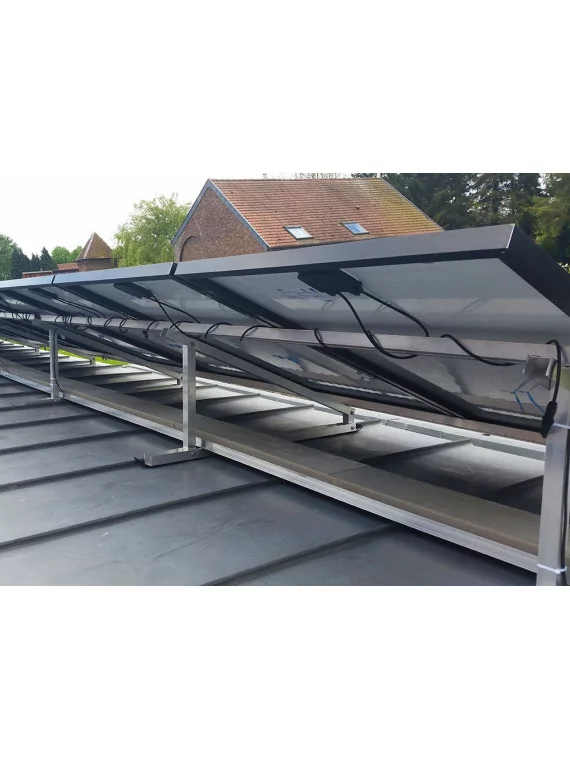

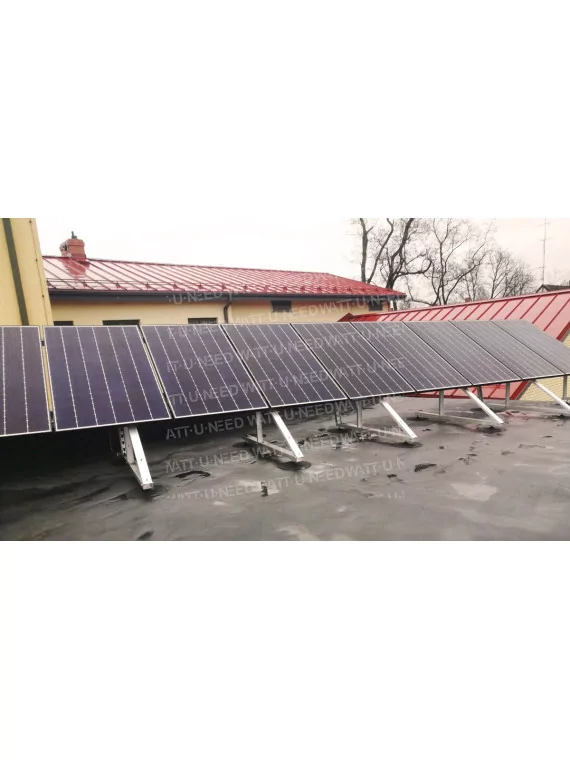

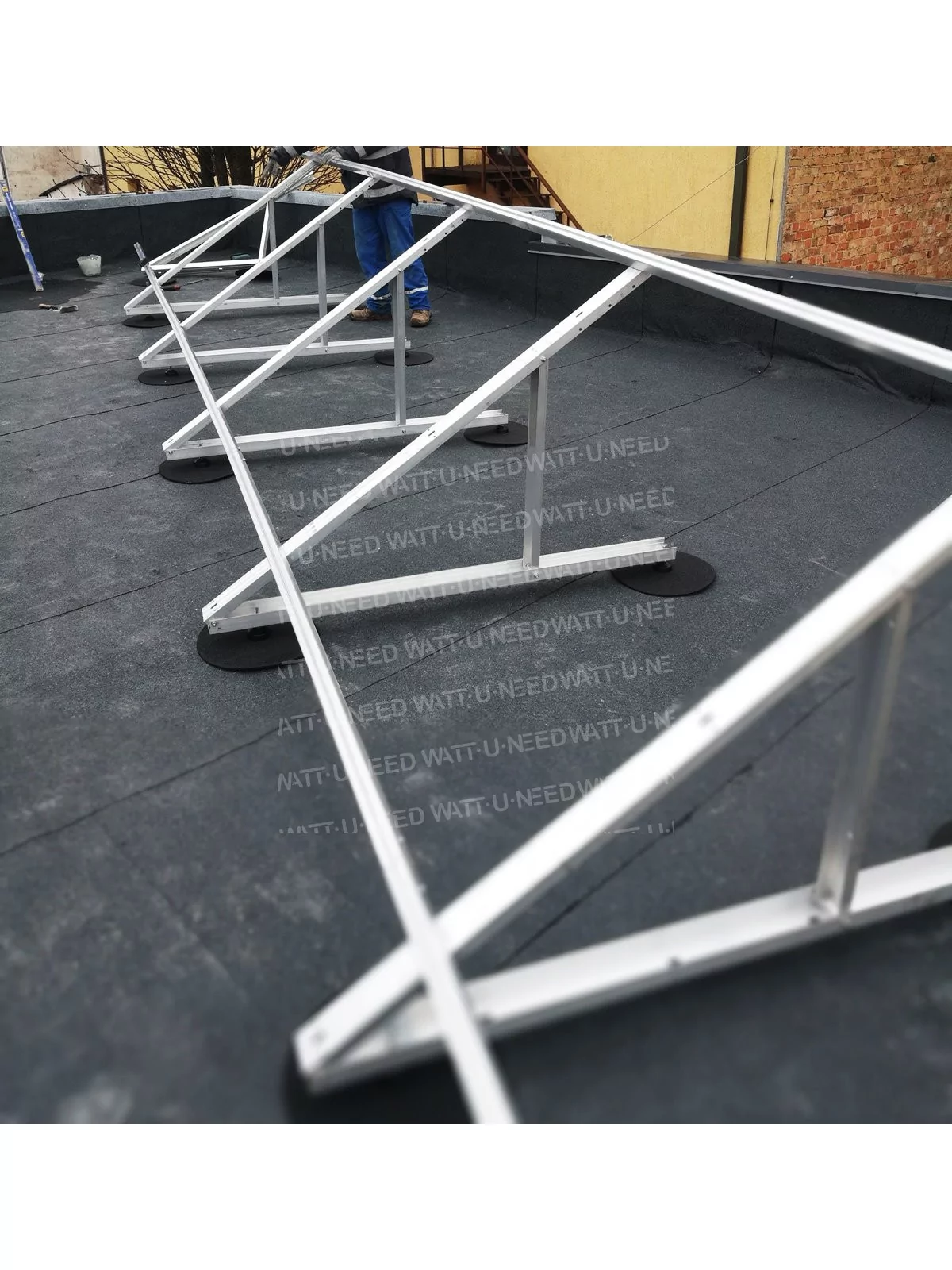

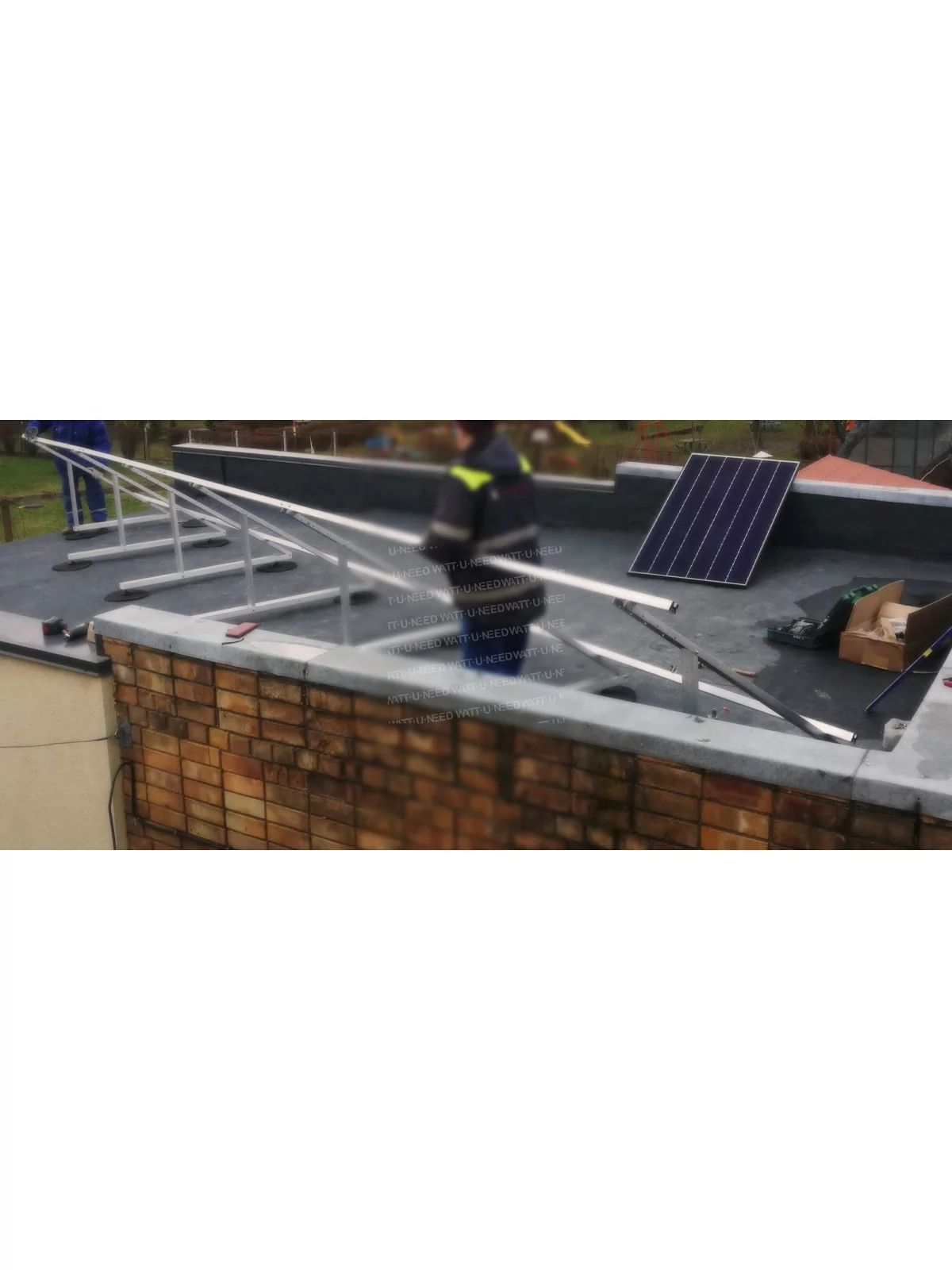

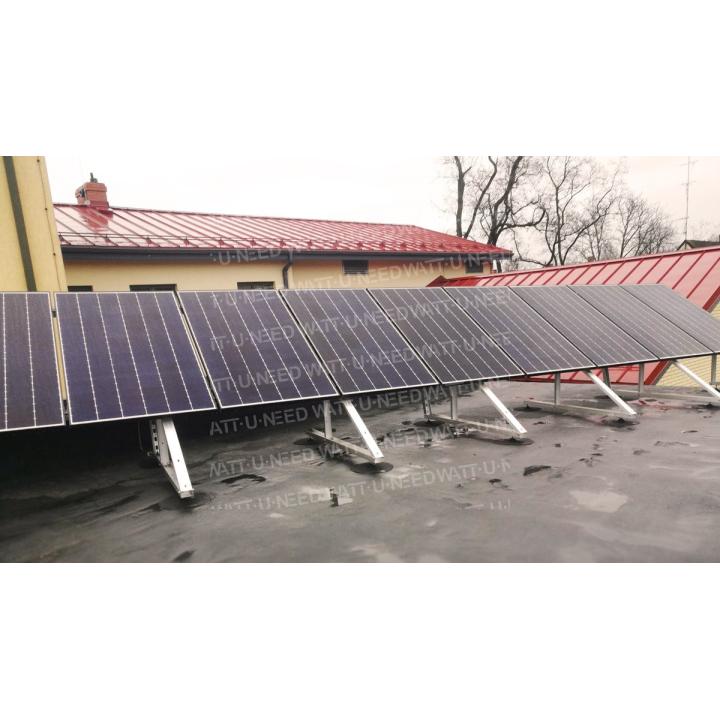

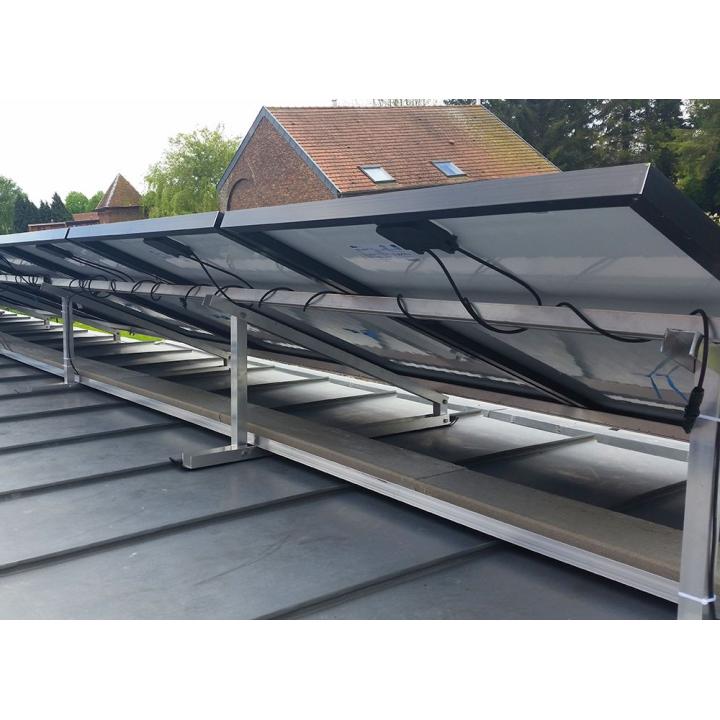

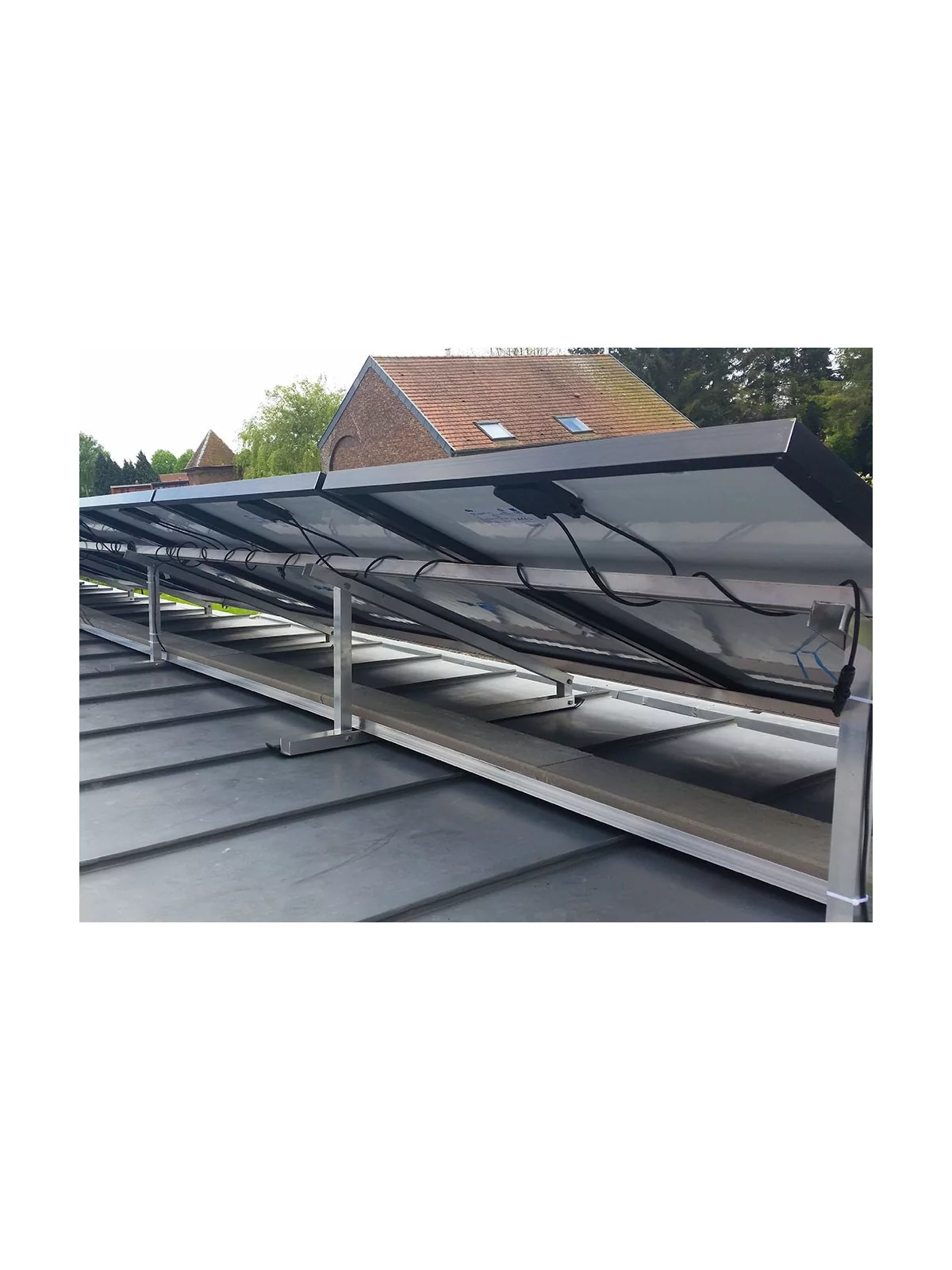

    Aluminum support structure for panel installation:

    • on a flat roof
    • on the ground
    • on a barge
    • on any other flat surface

    Choose the number of panels and the layout (portrait/landscape) in the options.

    Clames: 28 mm
    Number of panels per row: 1 panel portrait

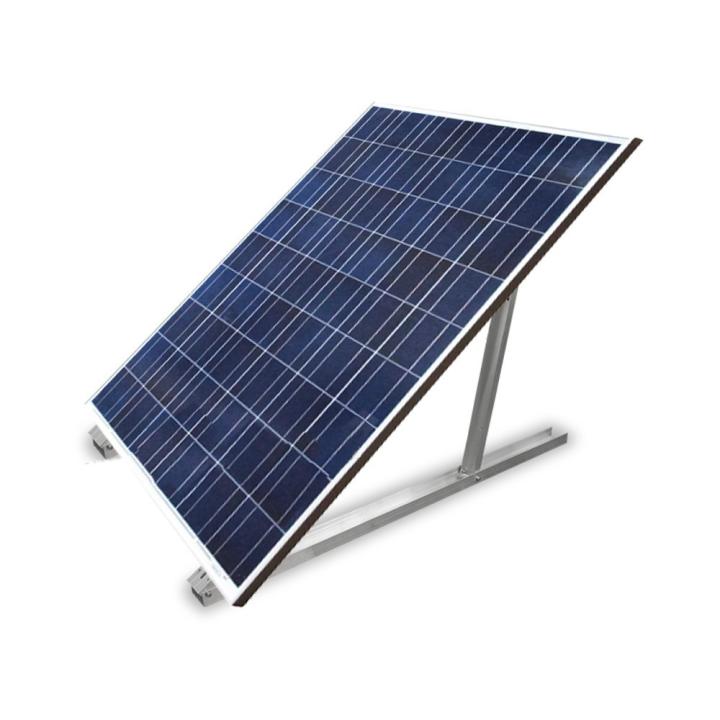

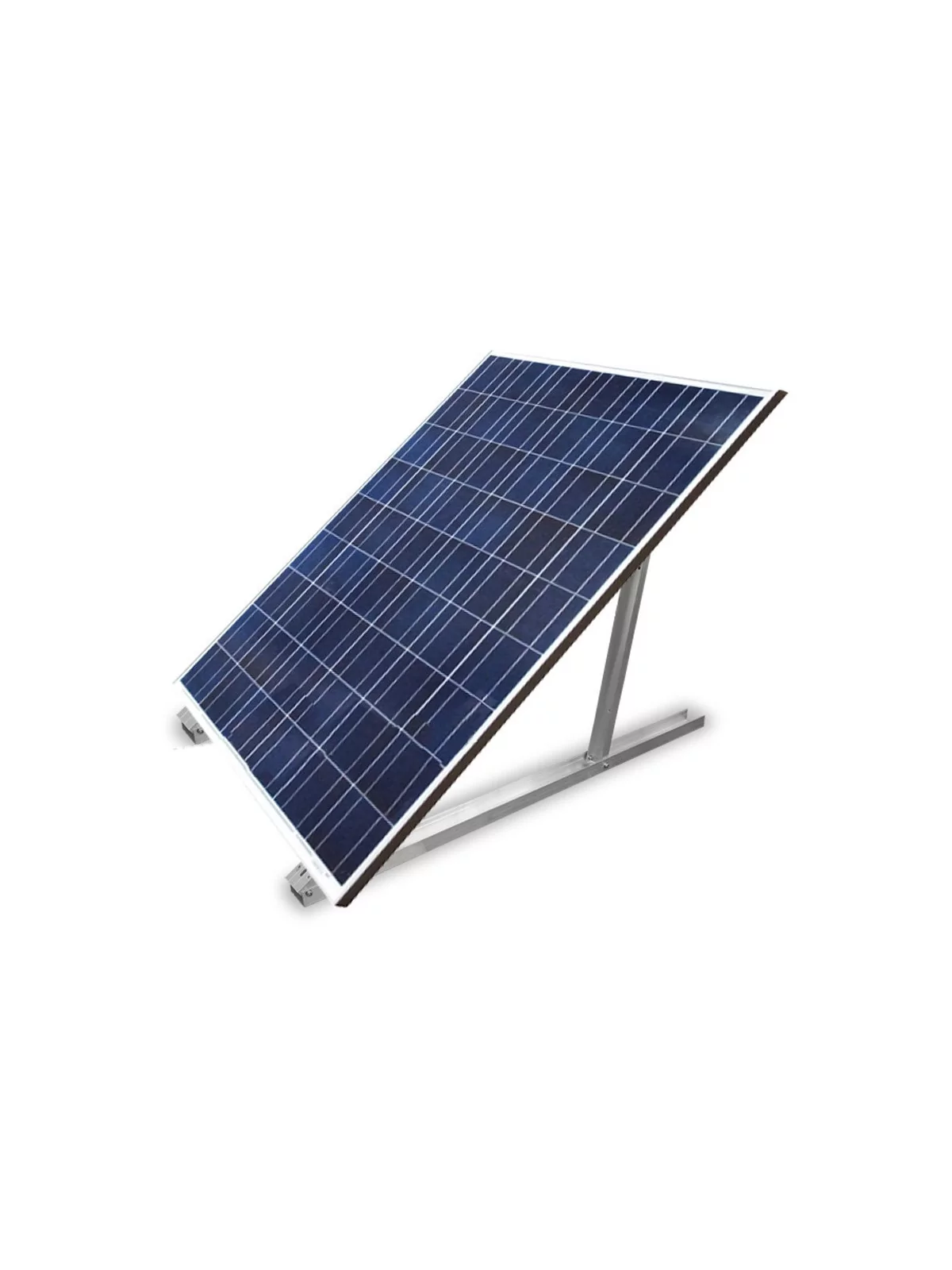

    Floor-standing mounting kit

    $155.3

    Kit de fixation sur structure au sol

    This kit contains all you need to mount your photovoltaic panels on an aluminum rail system laid on a flat surface.


    Simply select the number of panels in portrait or landscape format in the options >> the contents of the fixing kit will be adapted automatically.


    Fixing kit contents

    Rail de fixation pour panneaux solaires

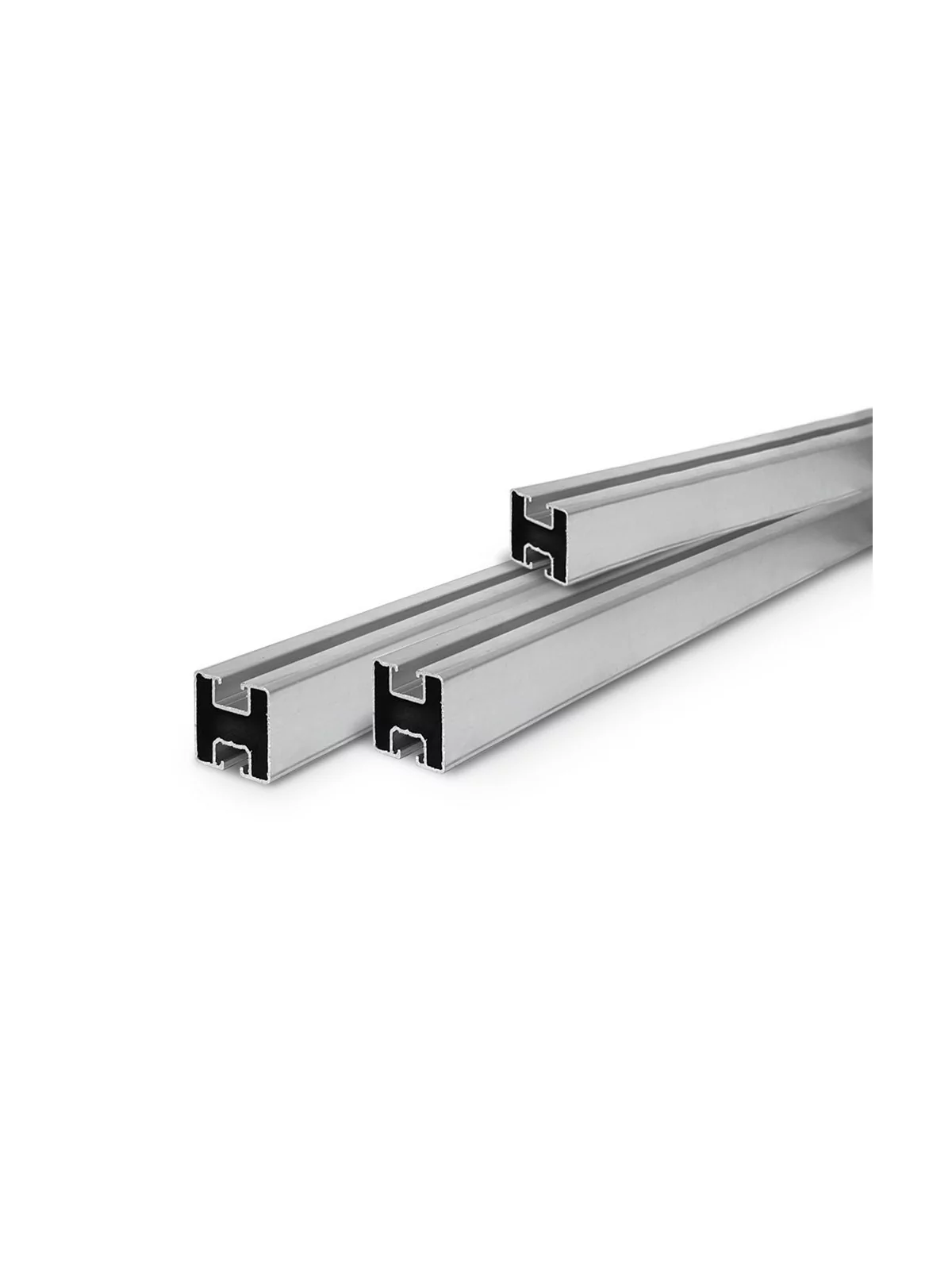

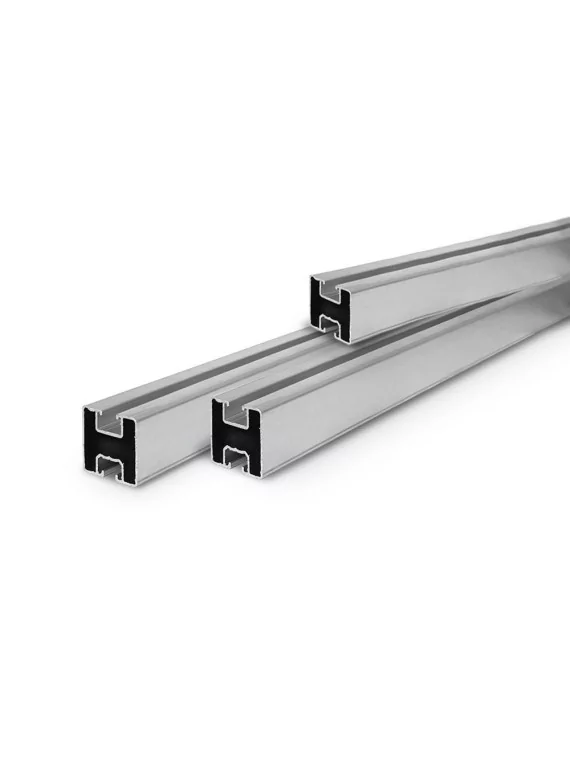

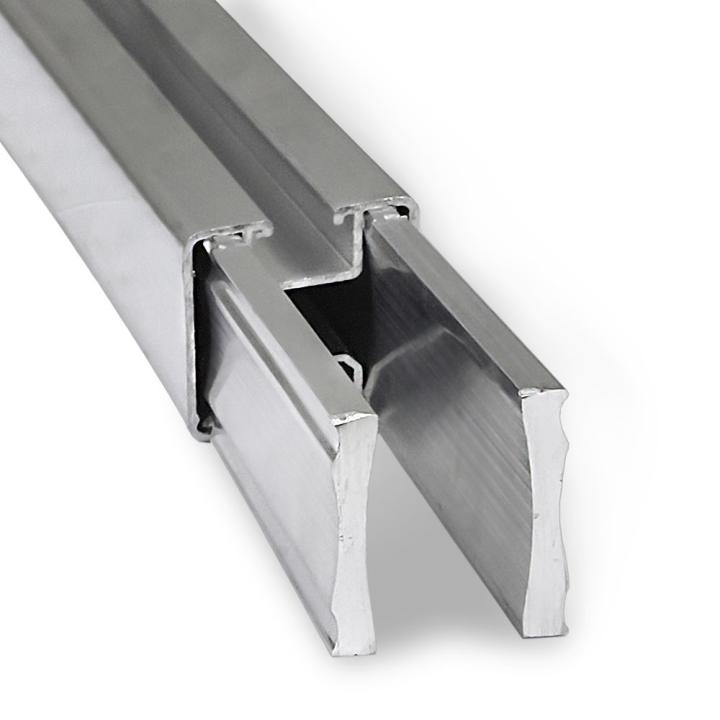

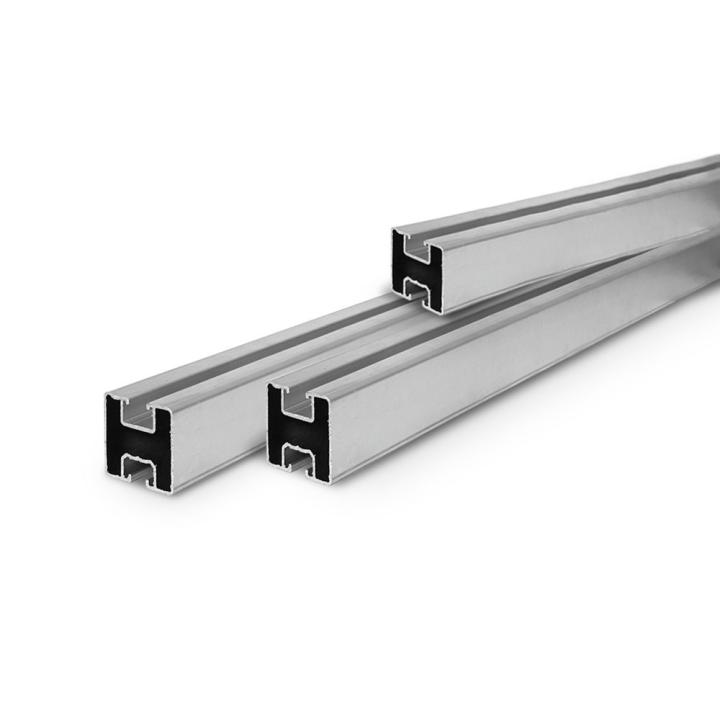

    40x40 mm aluminum rail

    Aluminum rail for mounting the solar panel. Custom rail available on request.

    >> Find out more about the 40x40 rail


    Jonction pour rails

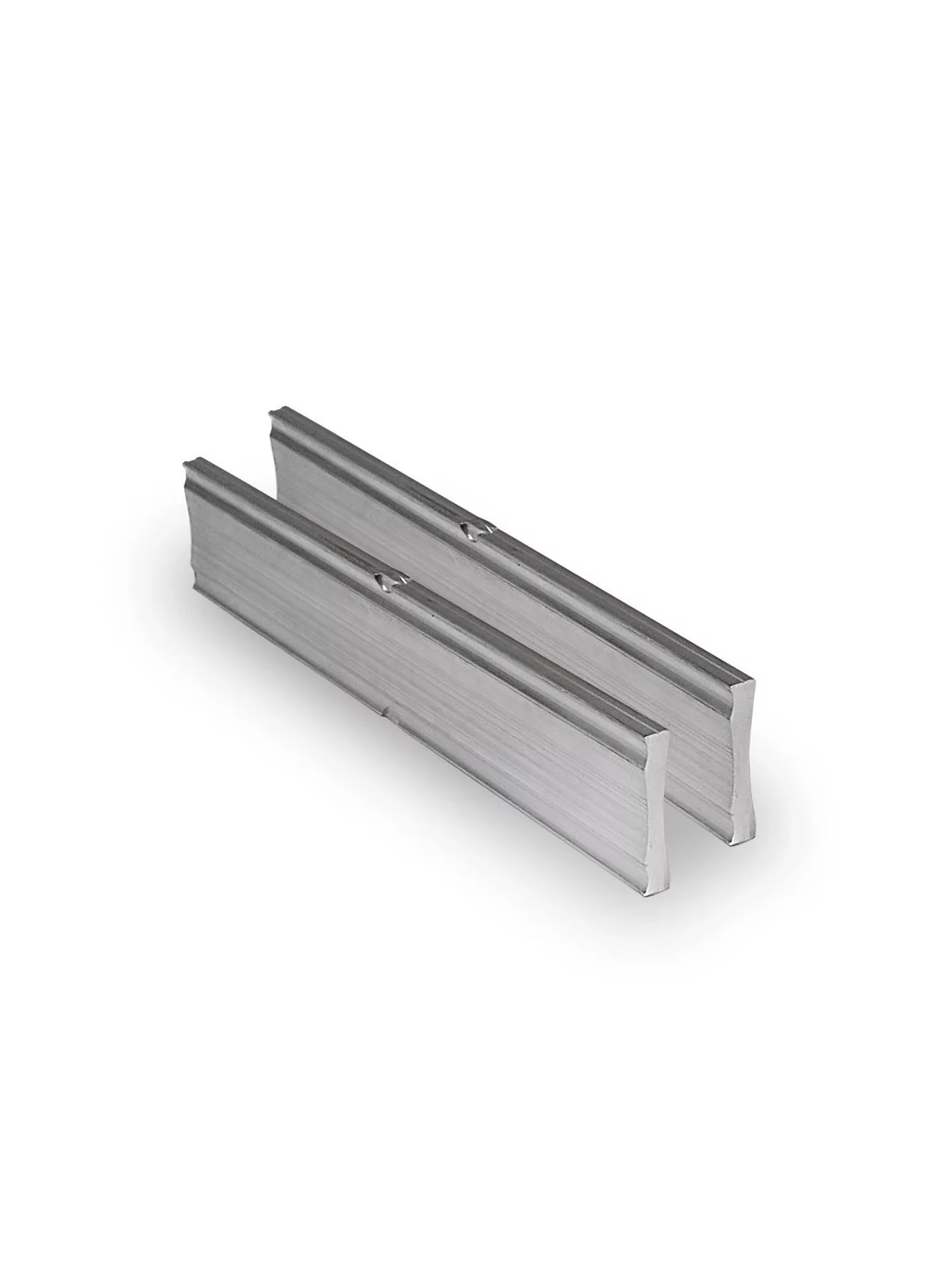

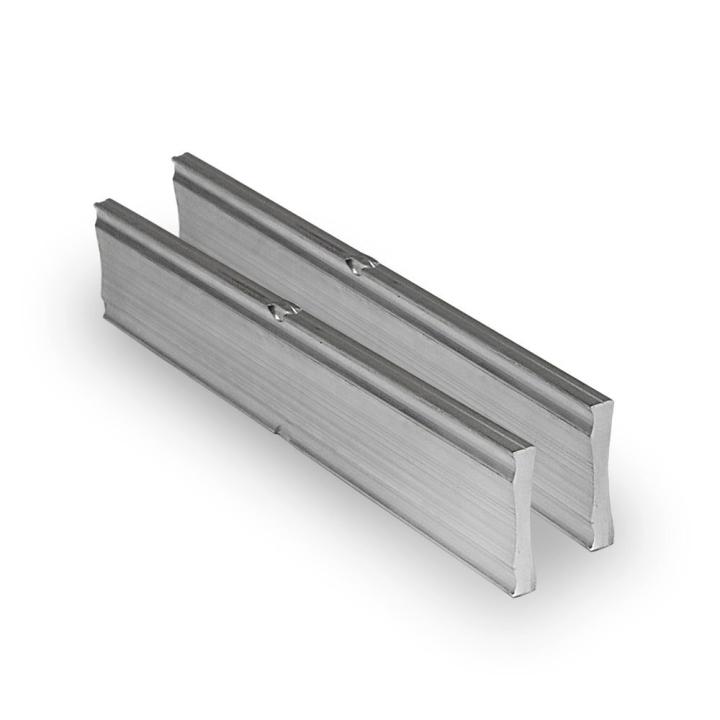

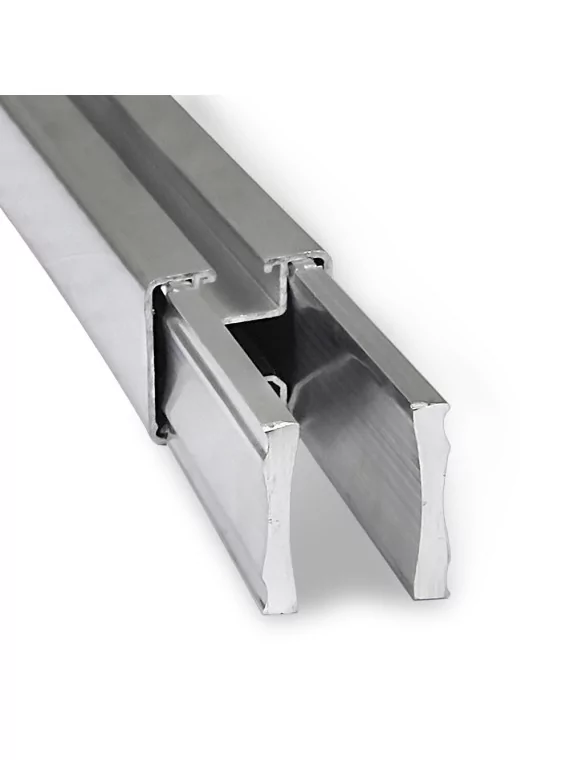

    Rail connector - 2 fastening bars

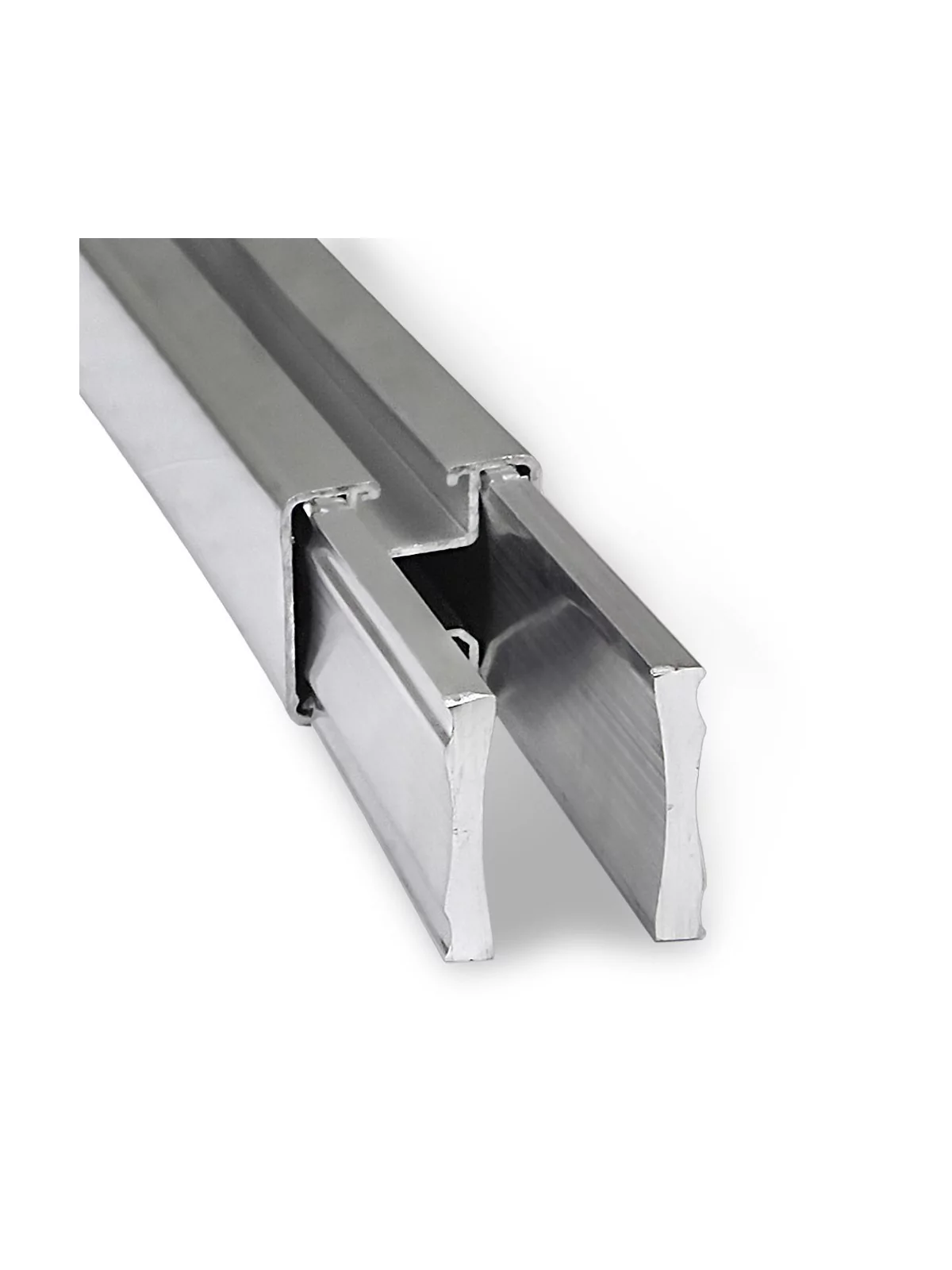

    These 2 bars are used to securely join 2 pieces of rail together without screws or tools! Simply insert the connecting bars into the two pieces of rail to be joined.

    >> Find out more about the rail connector


    Support pour panneaux solaires

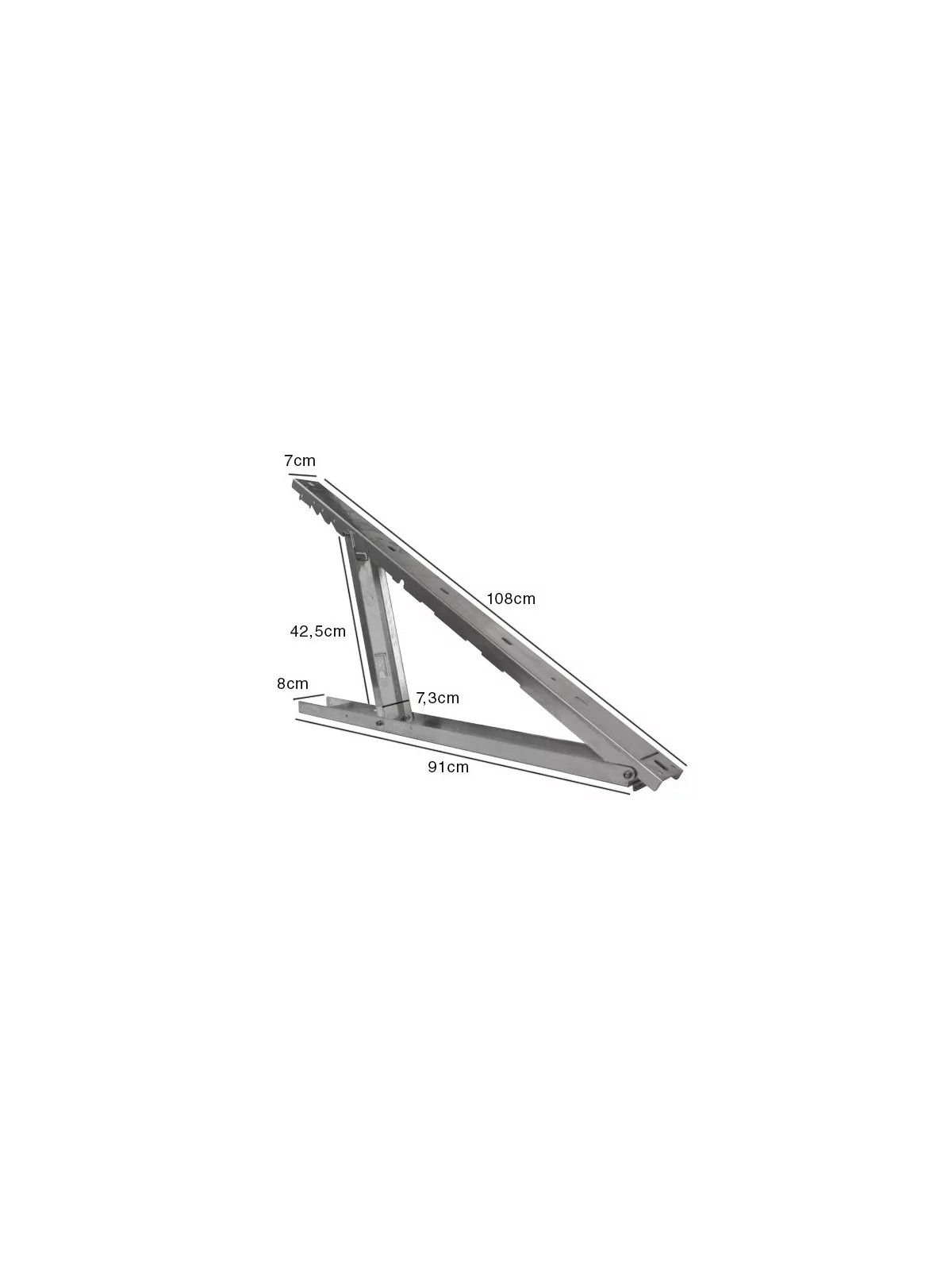

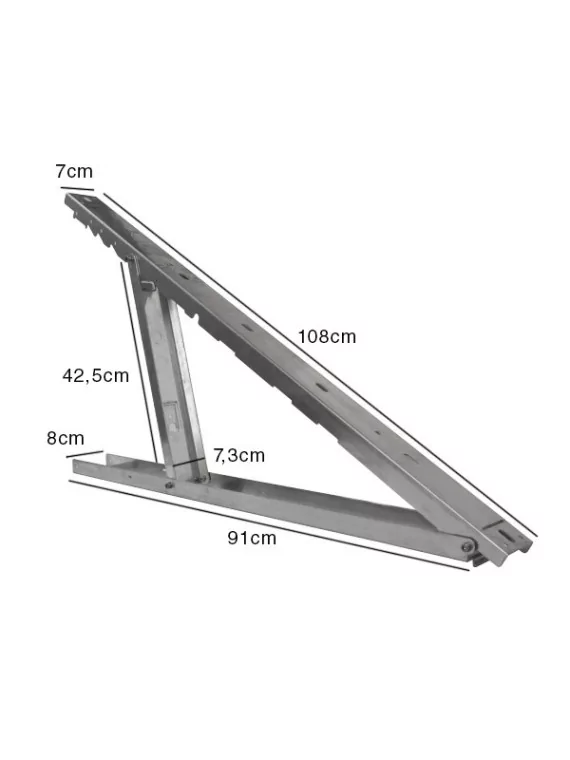

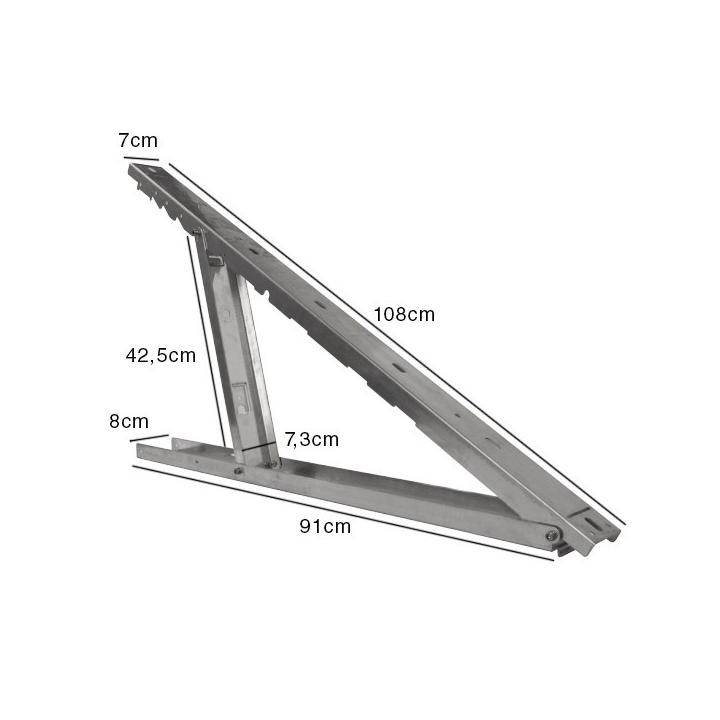

    Large aluminum bracket (for portrait panels)

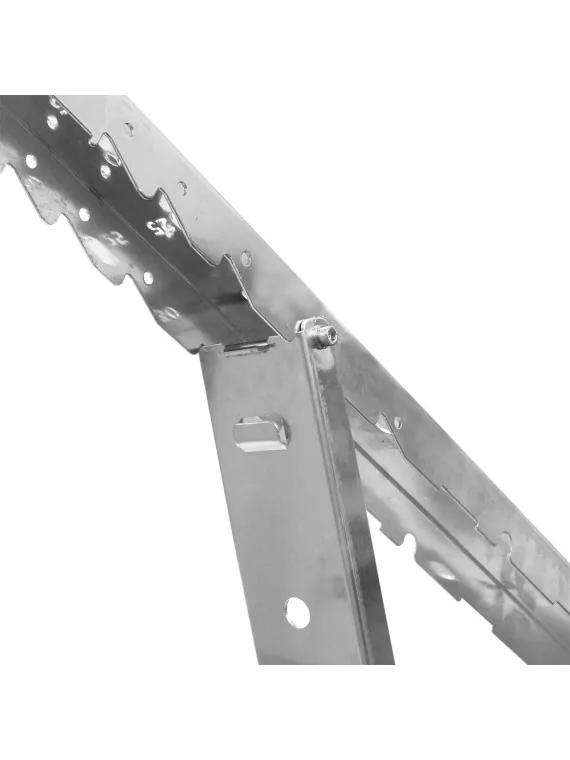

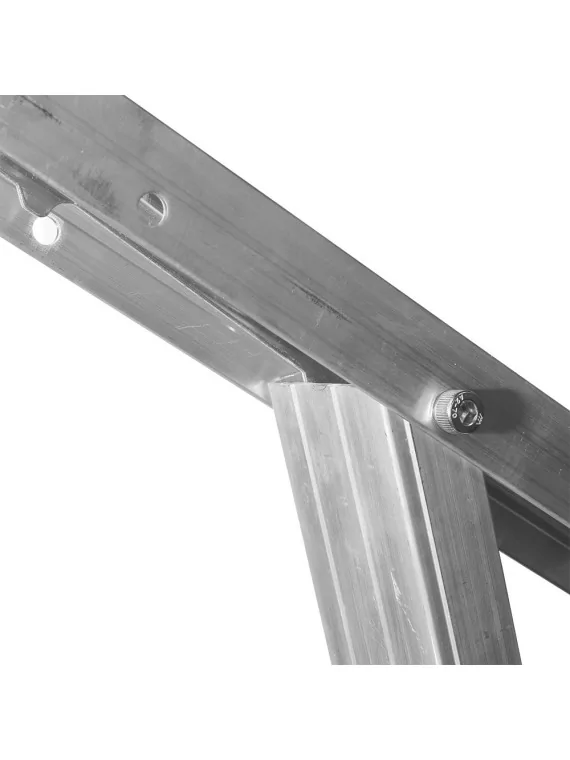

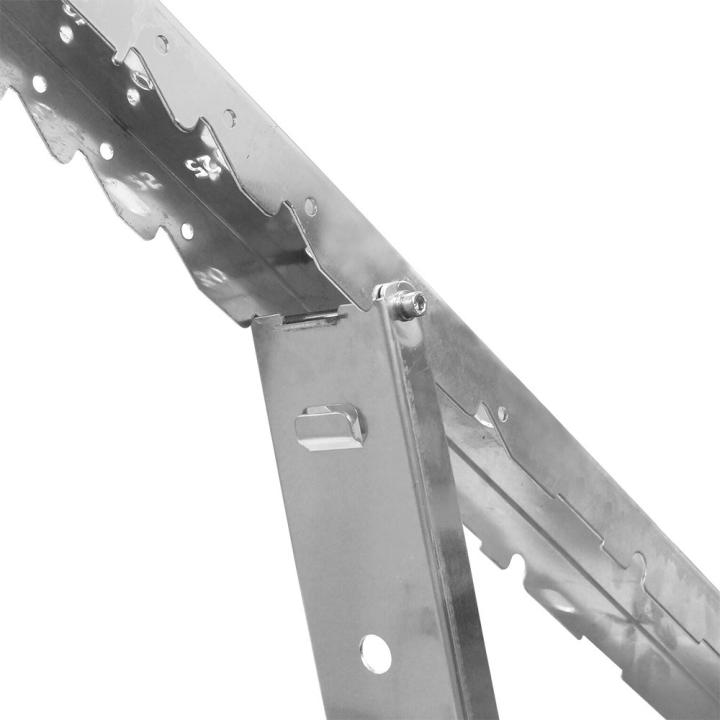

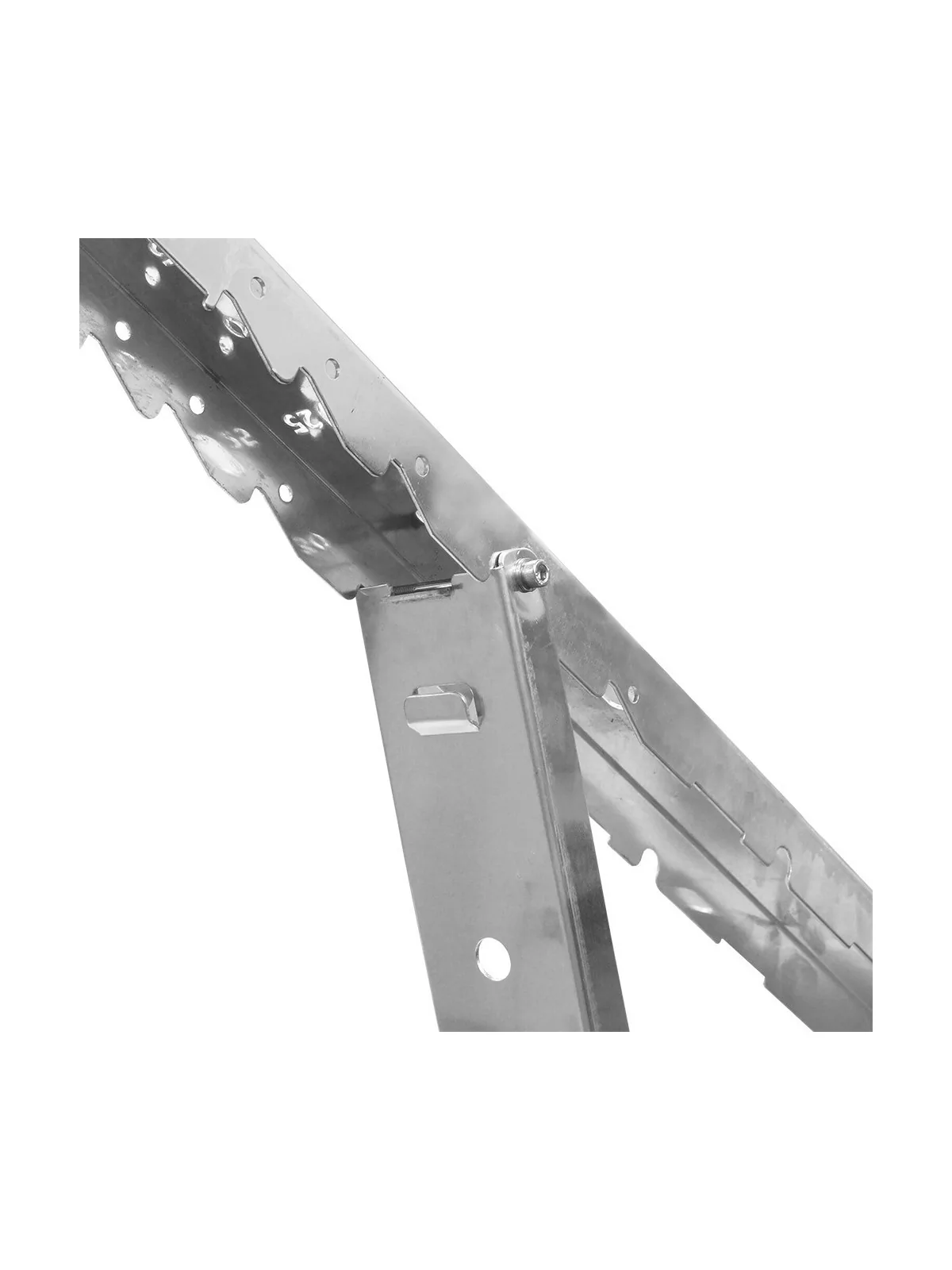

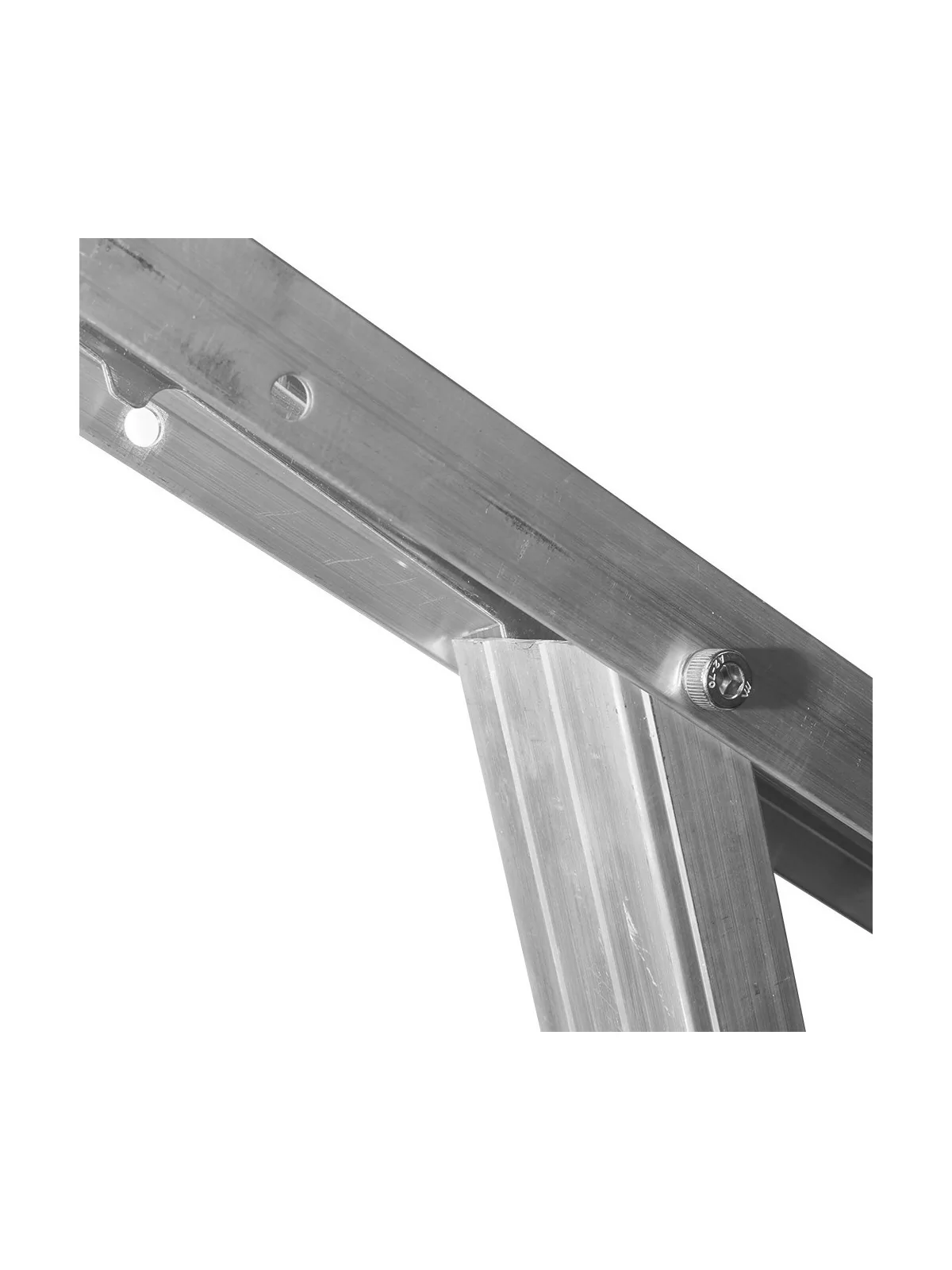

    This triangular bracket secures the aluminum rail that supports the solar panel.

    >> Find out more about the large aluminum bracket


    petit support pour panneaux solaires

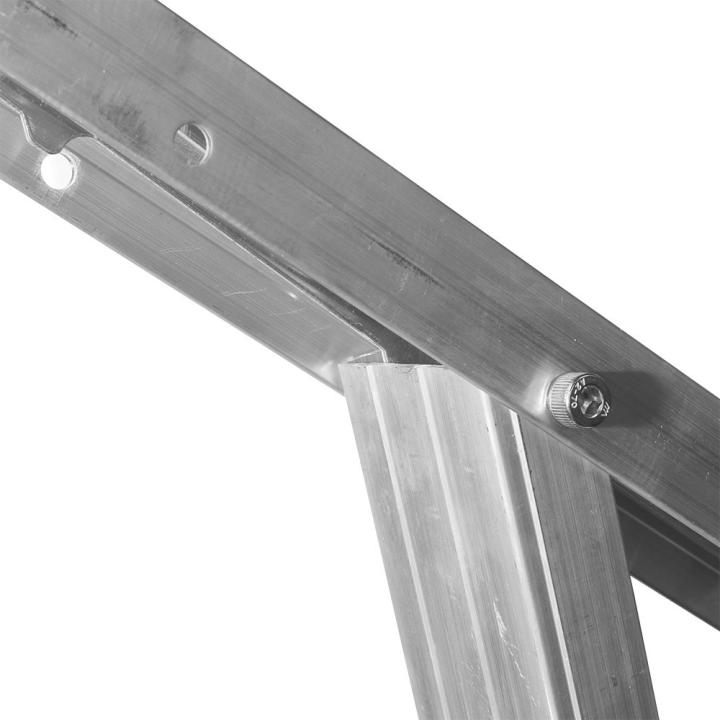

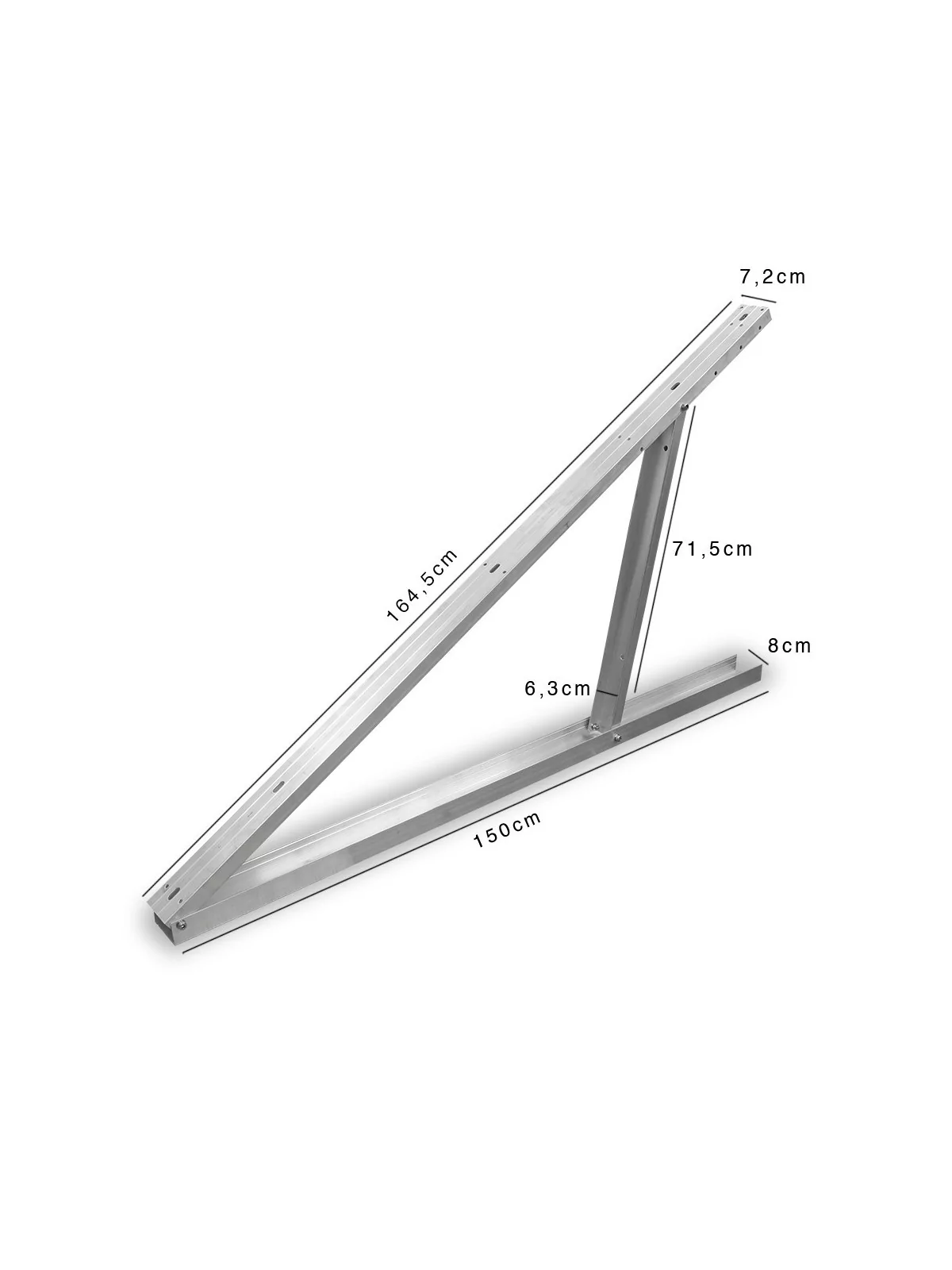

    Small aluminum bracket (for landscape panels)

    This small triangular bracket is used to secure the aluminum rail that supports the landscape solar panel.

    >> Find out more about the small aluminum bracket


    Clame de milieu pour panneaux sur toit en tuile

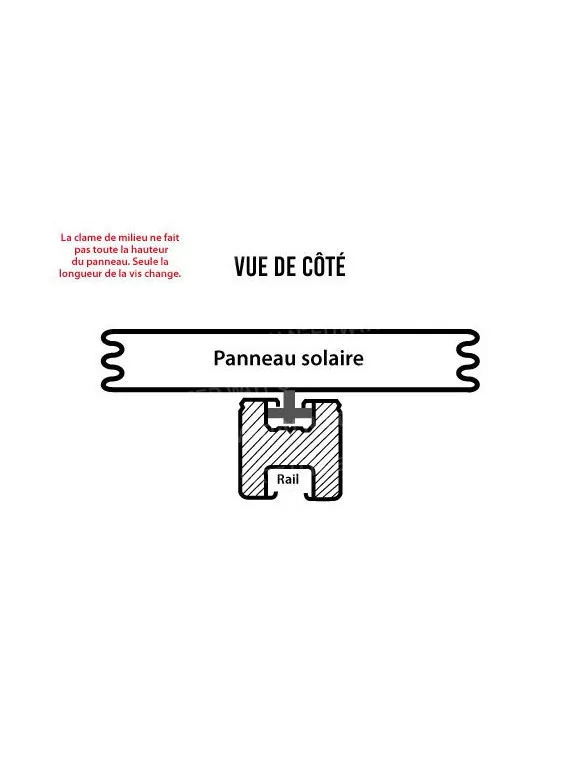

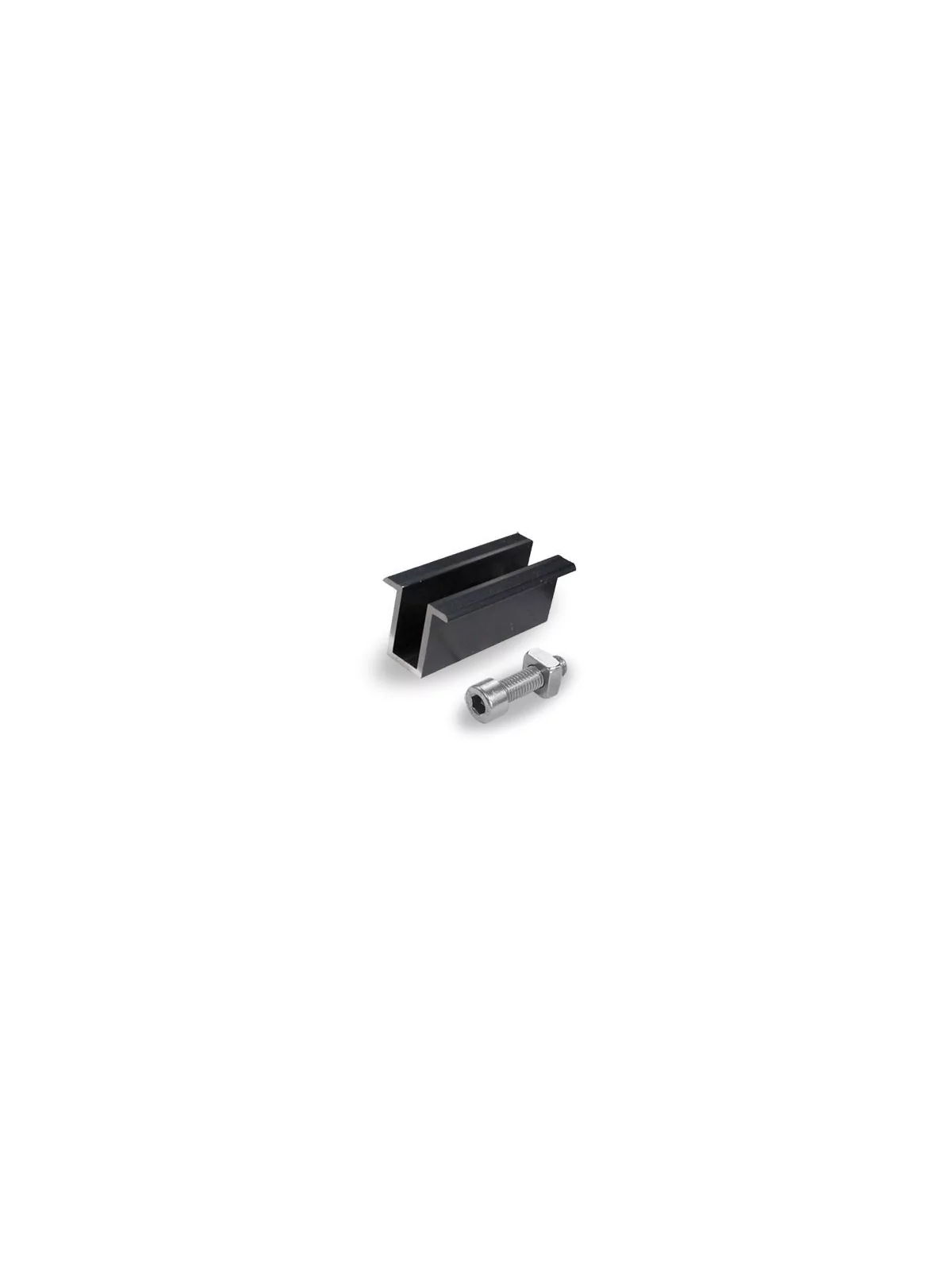

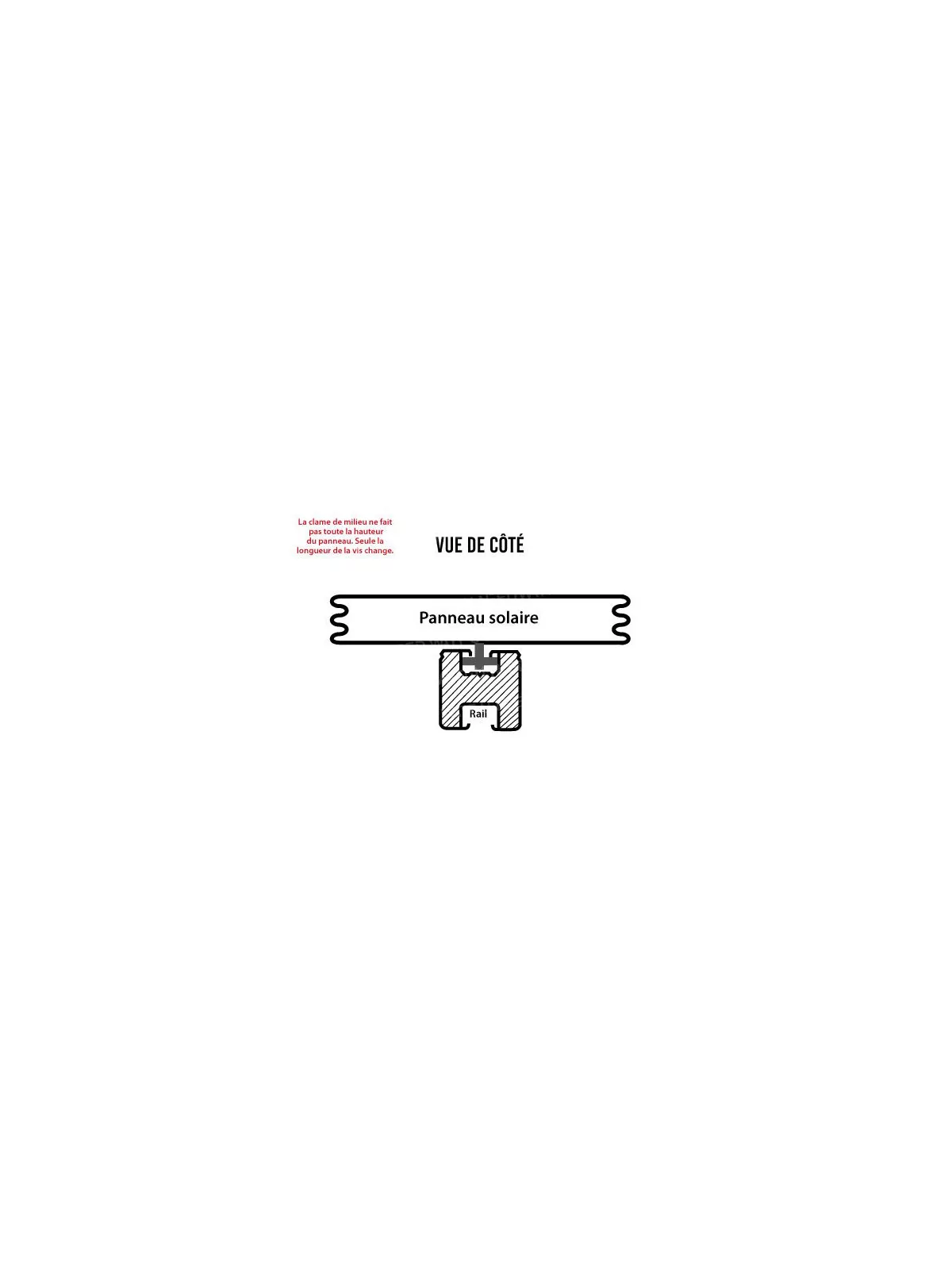

    Clame de milieu - panel mounting

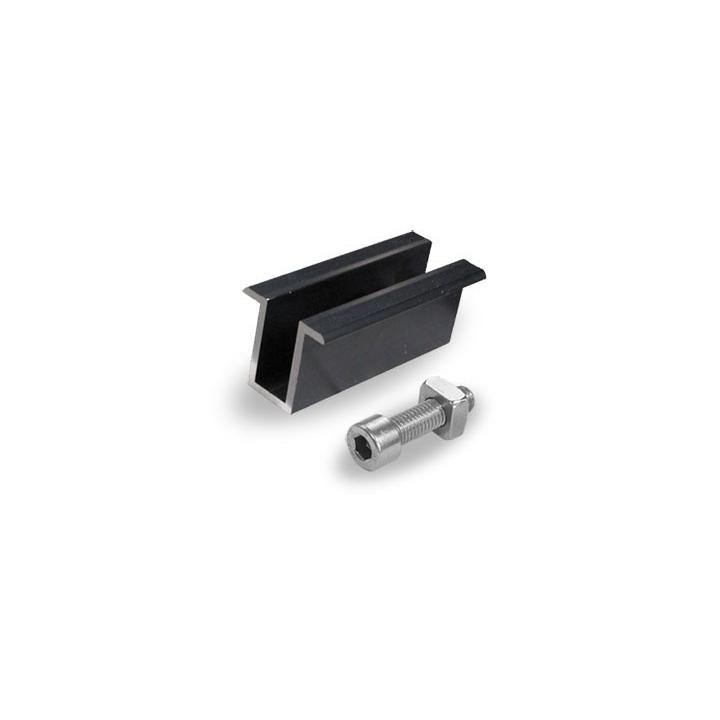

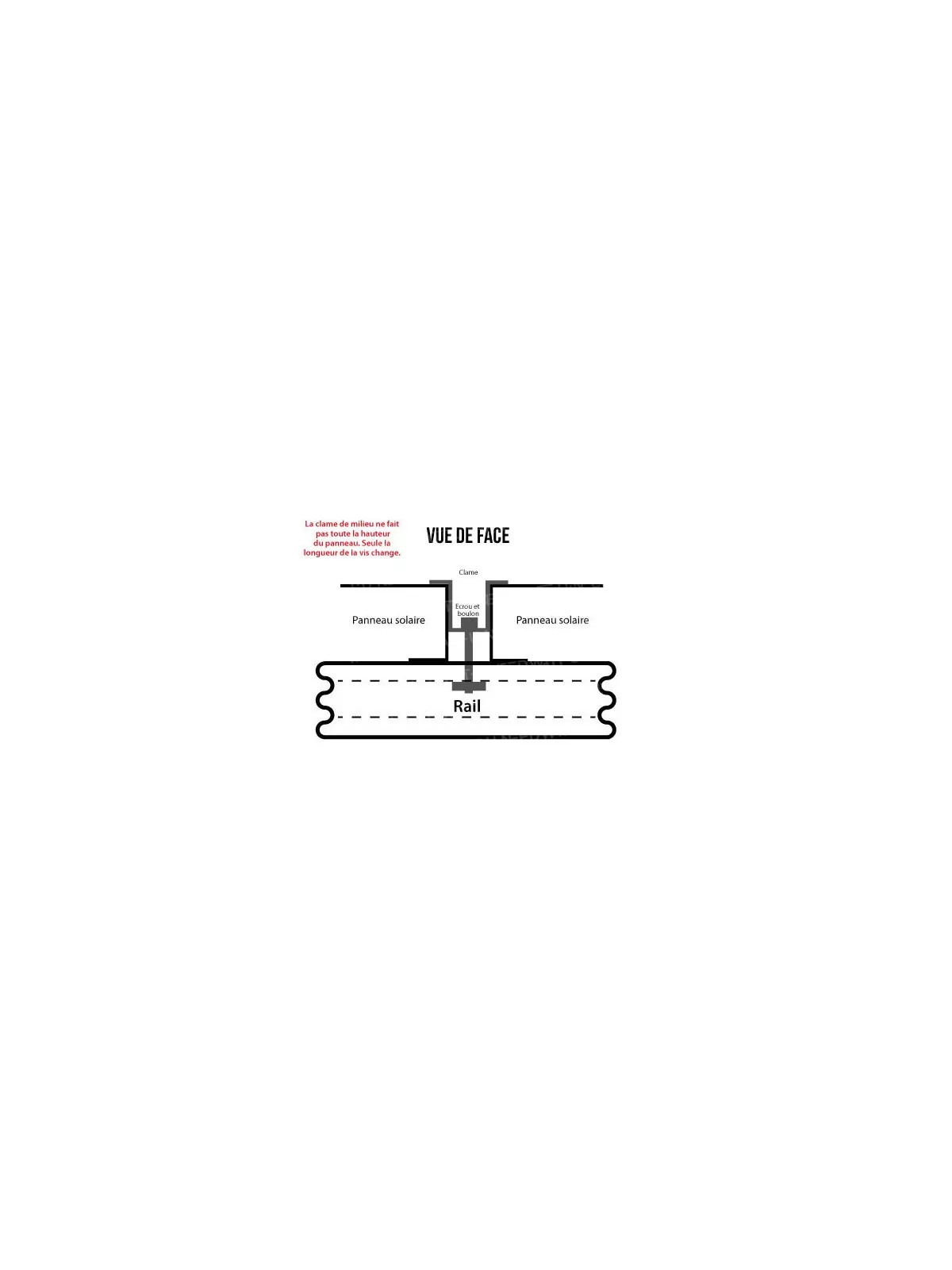

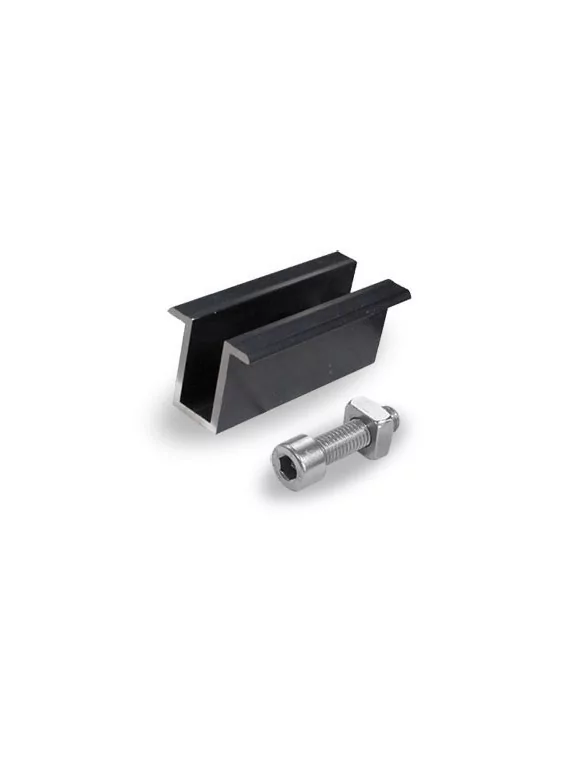

    Clame for internal mounting of photovoltaic panels. Height adjustable to suit solar panel frame height: 35 - 50mm. Fixes to aluminum rail with stainless steel bolt and nut (supplied).

    Option: Height to be chosen according to panel frame height.

    >> Find out more about the middle clamp


    Clame de fin pour panneaux sur toit en tuile

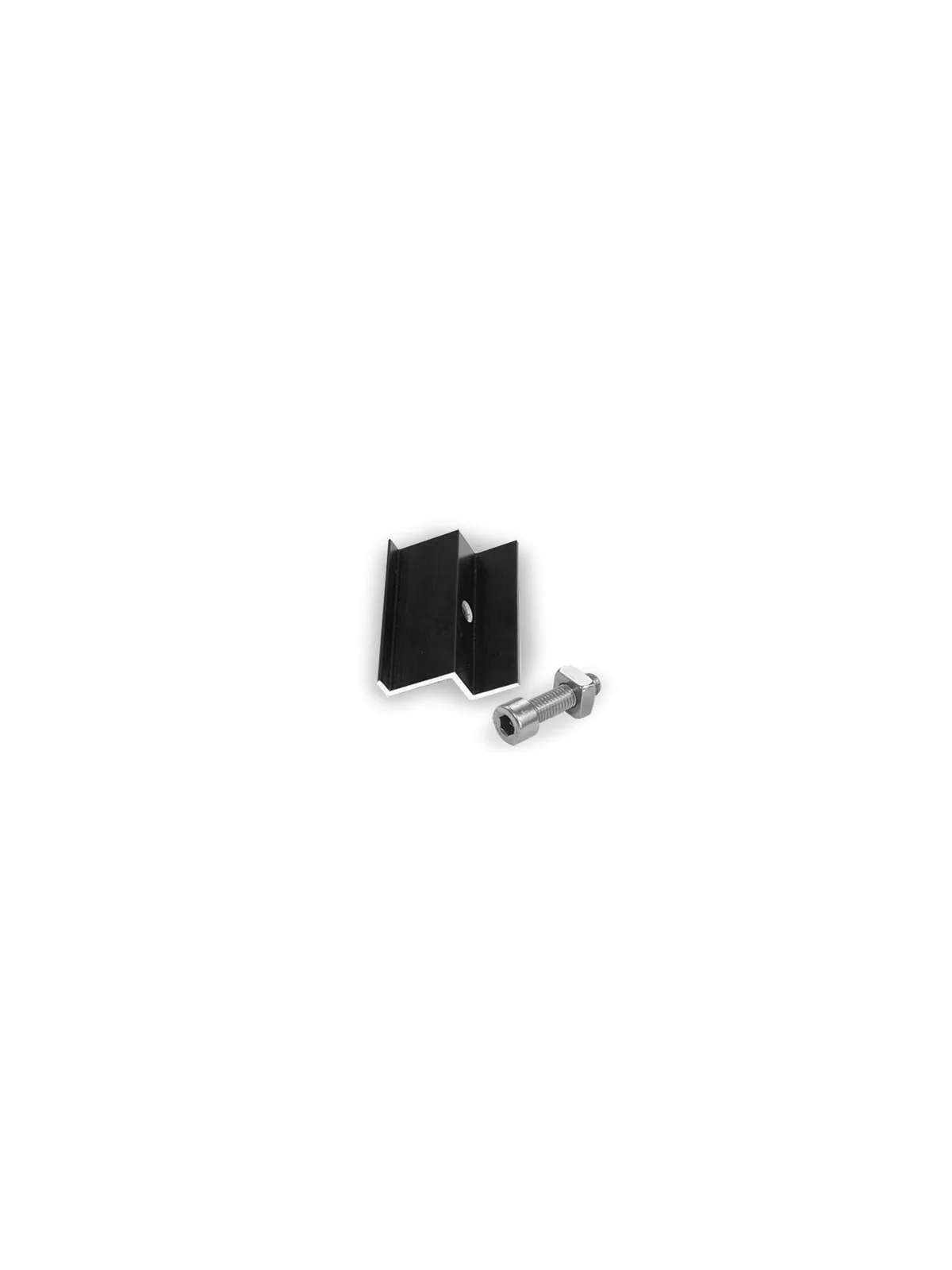

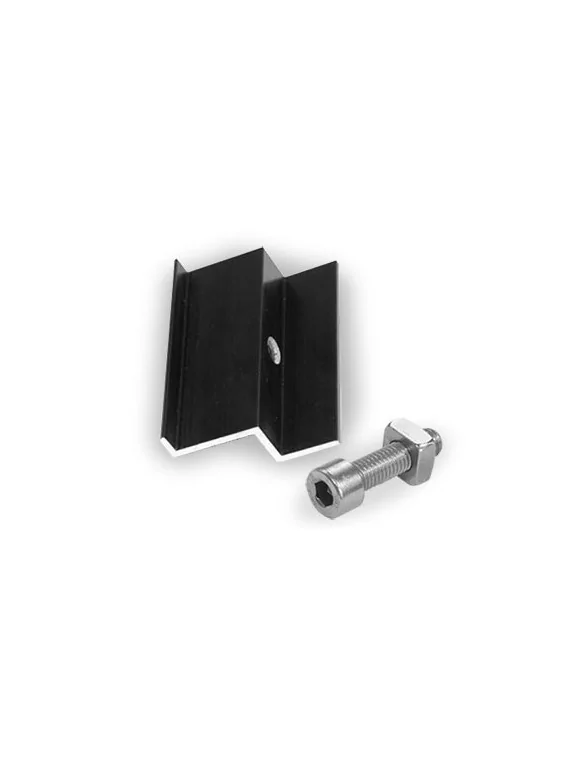

    End clame - panel fastening

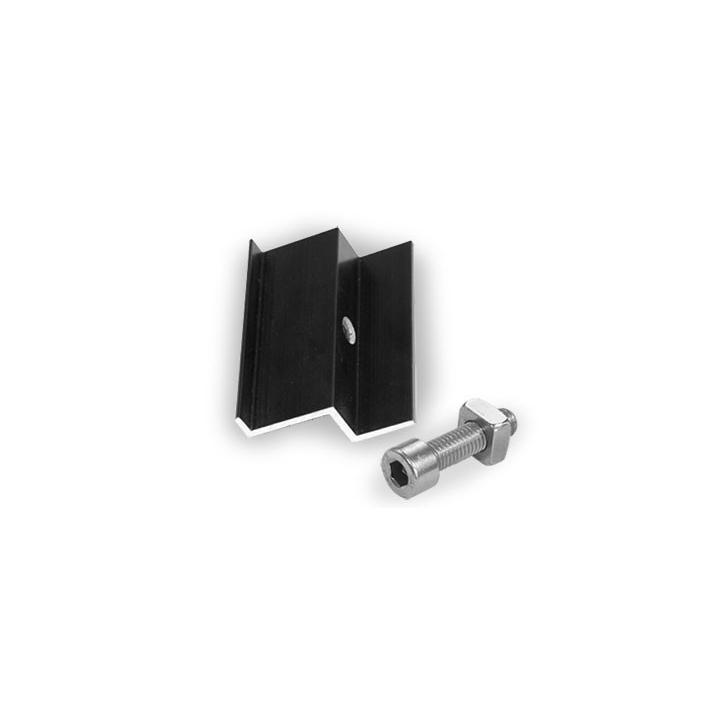

    Clame for external panel fastening. Available heights: 35mm - 40mm - 45mm - 47mm - 50mm. Fixes to aluminum rail with bolt and nut (supplied).

    >> Find out more about the end clam


    schéma montage de panneaux solairesHow do I choose the right kit for my panels?

    The mounting kit is suitable for any installation. Thanks to its options, it can be adapted to the layout of your panels.

    Fasteners are compatible with standard panel sizes.

    1. Select number of panels in portrait or landscape

    Select the number of panels per row in portrait or landscape format.

    For example, the layout shown opposite requires 3x the Fixing Kit product:
    > 1st kit for row 1: 3 portrait panels
    > 2nd kit for row 2: 2 landscape panels
    > 3rd kit for row 3: 2 landscape panels

    2. Select the right clame for your panel

    The clamp is used to secure the panel to the aluminum rail. Its height must correspond to the thickness of your panel's frame, so that it can be securely fastened to the rail.

    Available panel heights: 35 - 40 - 45 - 47 - 50 mm


    Details of materials supplied according to panel quantity

    Panneaux en portrait

    Nombre de panneauxRail (m)Détail des rails*JonctionGrand support en aluClame de milieuClame de fin
      1 panneau2,4(2 x 1,20m)0204
      2 panneaux4,8(2 x 2,40m)0324
      3 panneaux7,2(4 x 1,80m)2344
      4 panneaux9,6(4 x 2,40m)2464
      5 panneaux12,0(4 x 2,40m et 2 x 1,20m)4584
      6 panneaux14,4(6 x 2,40m)45104
      7 panneaux16,8(6 x 2,40m et 2 x 1,20m)66124
    8 panneaux19,2(8 x 2,40m)66144
    9 panneaux21,6(8 x 2,40m et 2 x 1,20m)87164
    10 panneaux24,0(10 x 2,40m)88184
    11 panneaux26,4(10 x 2,40m et 2 x 1,20m)109204
    12 panneaux28,8(12 x 2,40m)1010224
    13 panneaux31,2(12 x 2,40m et 2 x 1,20m)1211244
    14 panneaux33,6(14 x 2,40m)1211264
    15 panneaux36,0(14 x 2,40m et 2 x 1,20m)1412284
    16 panneaux38,4(16 x 2,40m)1413304
    17 panneaux40,8(16 x 2,40m et 2 x 1,20m)1613324
    18 panneaux43,2(18 x 2,40m)1614344
    19 panneaux45,6(18 x 2,40m et 2 x 1,20m)1815364
    20 panneaux48,0(20 x 2,40 m)1815384



    Panneaux en paysage

    Nombre de panneauxRail (m)Détail des rails*JonctionPetit support en aluClame de milieuClame de fin
    1 panneau3,6(2 x 1,80m)0204
    2 panneaux7,2(4 x 1,80m)2324
    3 panneaux10,4(4 x 1,80m et 2 x 1,60m)4444
    4 panneaux14,0(6 x 1,80m et 2 x 1,60m)6564
    5 panneaux17,6(8 x 1,80m et 2 x 1,60m)8684
    6 panneaux21,2(10 x 1,80m et 2 x 1,60m)107104
    7 panneaux24,4(10 x 1,80m et 4 x 1,60m)128124
    8 panneaux28,0(12 x 1,80m et 2 x 1,60m)149144
    9 panneaux31,6(14 x 1,80m et 4 x 1,60m)1610164
    10 panneaux35,2(16 x 1,80m et 4 x 1,60m)1811184
    11 panneaux38,8(18 x 1,80m et 4 x 1,60m)2012204
    12 panneaux42,4(20 x 1,80m et 4 x 1,60 m)2213224
    13 panneaux46,0(22 x 1,80m et 4 x 1,60m)2414244
    14 panneaux49,6(24 x 1,80m et 4 x 1,60m)2615264
    15 panneaux53,2(26 x 1,80m et 4 x 1,60m)2816284
    16 panneaux56,8(28 x 1,80m et 4 x 1,60m)3017304
    17 panneaux60,4(30 x 1,80m et 4 x 1,60m)3218324
    18 panneaux64,0(32 x 1,80m et 4 x 1,60m)3419344
    19 panneaux67,6(34 x 1,80m et 4 x 1,60m)3620364
    20 panneaux71,2(36 x 1,80m et 4 x 1,60m)3821384



    * Rail details are given as an indication only and depend on panel size (which causes rail lengths to vary).
