    Steel roof mounting kit
    Steel roof mounting kit
    Steel roof mounting kit
    Steel roof mounting kit
    Steel roof mounting kit
    Steel roof mounting kit
    Steel roof mounting kit
    Steel roof mounting kit
    Steel roof mounting kit
    Steel roof mounting kit
    Steel roof mounting kit

    Steel roof mounting kit

    €52.51
    Tax included
    0807
    0712971129481
    • Fast, efficient top mounting
    • Electrical conductivity between mounting system and roof covering

    Brand: Novotegra

    Choose the number of panels in the options.

    The mounting system is also compatible with landscape orientation, providing great flexibility of use.

    Clames: 30 mm
    Number of panels per row: 1 panel portrait

    Steel roof mounting kit

    €52.51

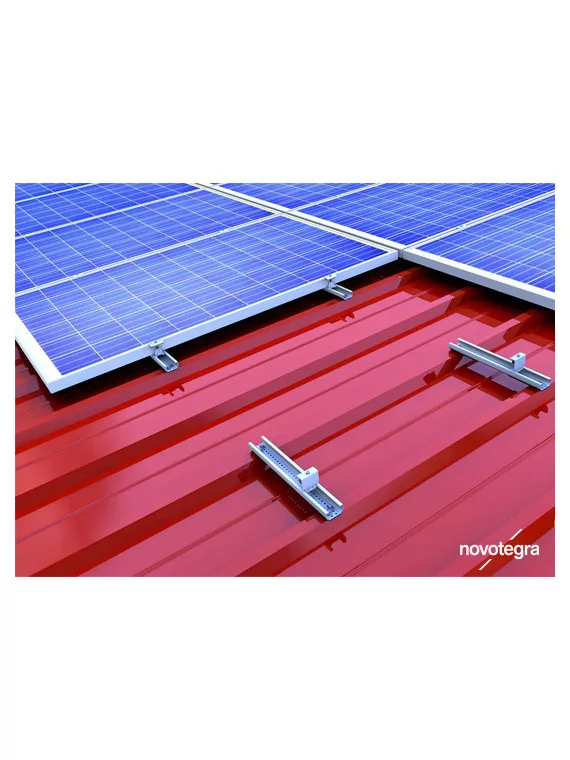

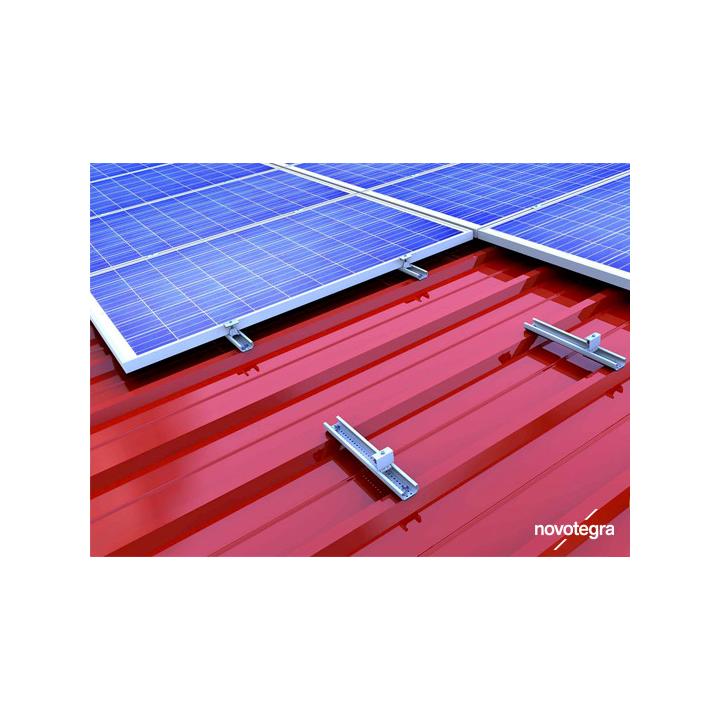

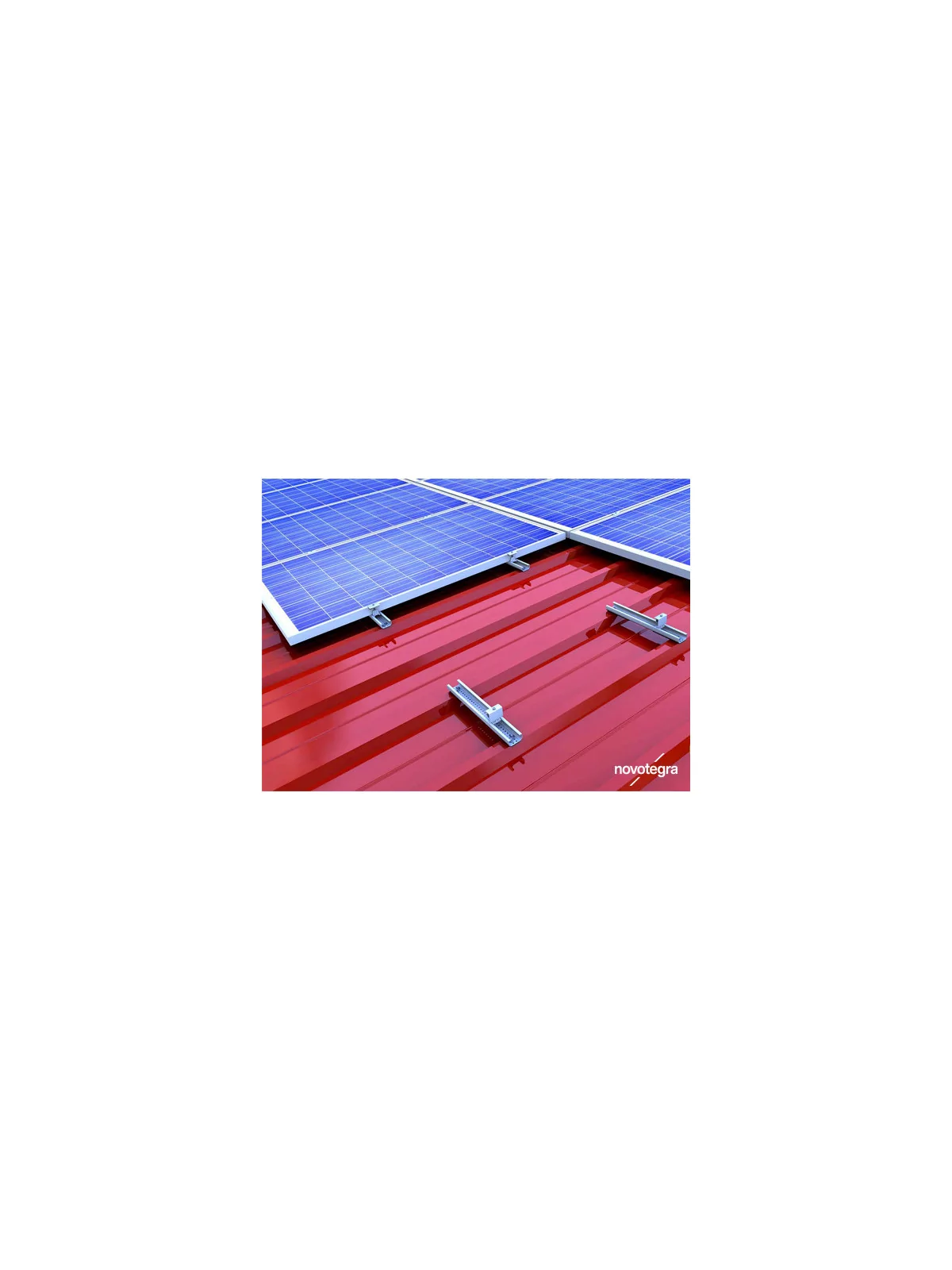

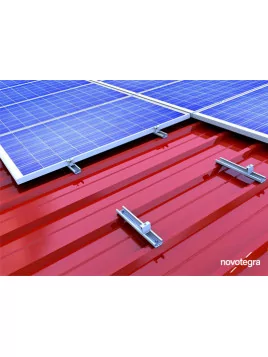

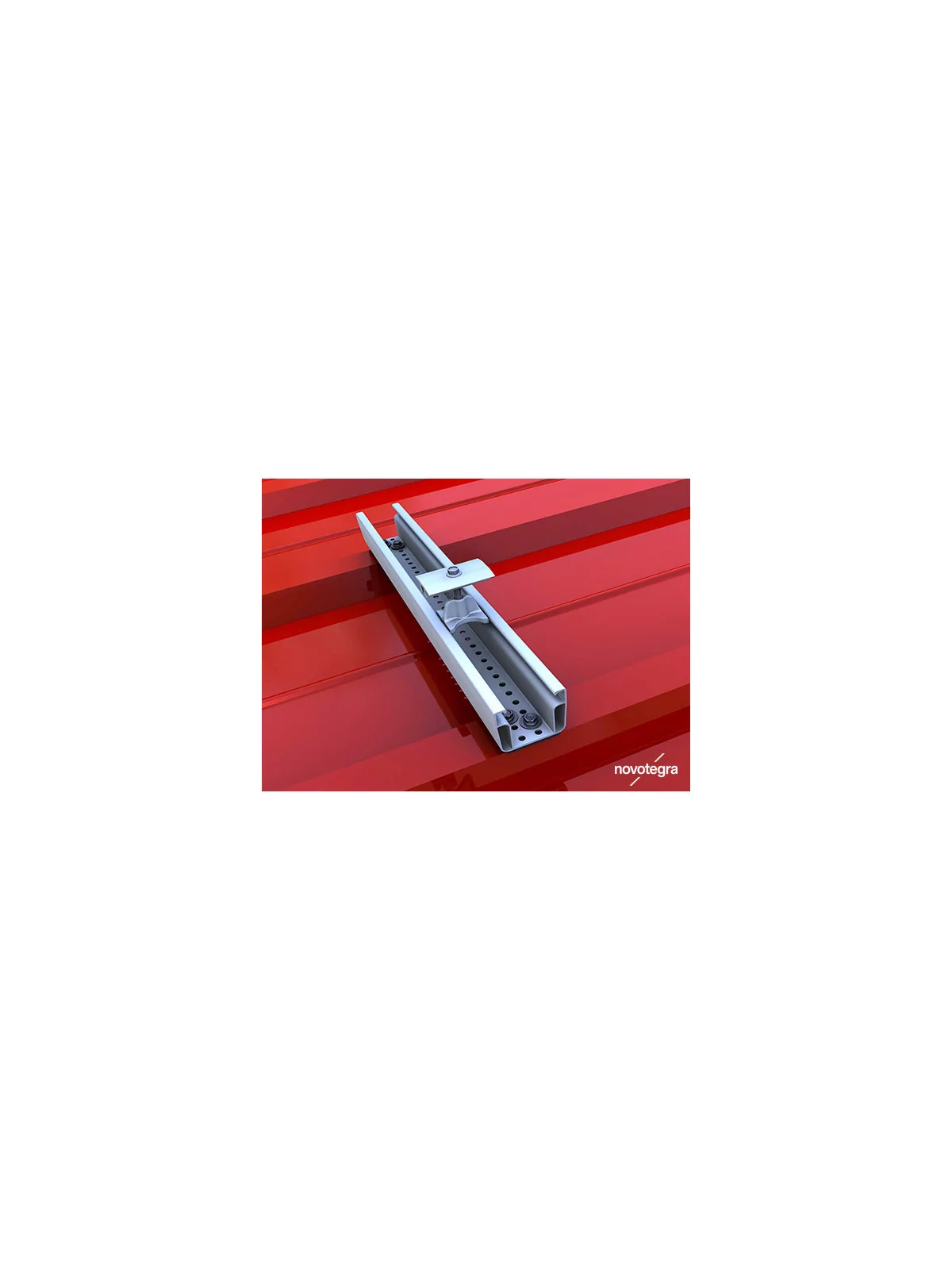

    This kit contains all you need to mount your photovoltaic panels on a trapezoidal corrugated roof.
    Simply select in the options the number of panels arranged in portrait on your roof >> the contents of the fixing kit are automatically adapted. The mounting system is also compatible with landscape orientation, providing great flexibility of use.

    Fastening system advantages :

      • Few components, completely pre-assembled
      • Low material costs and simple handling

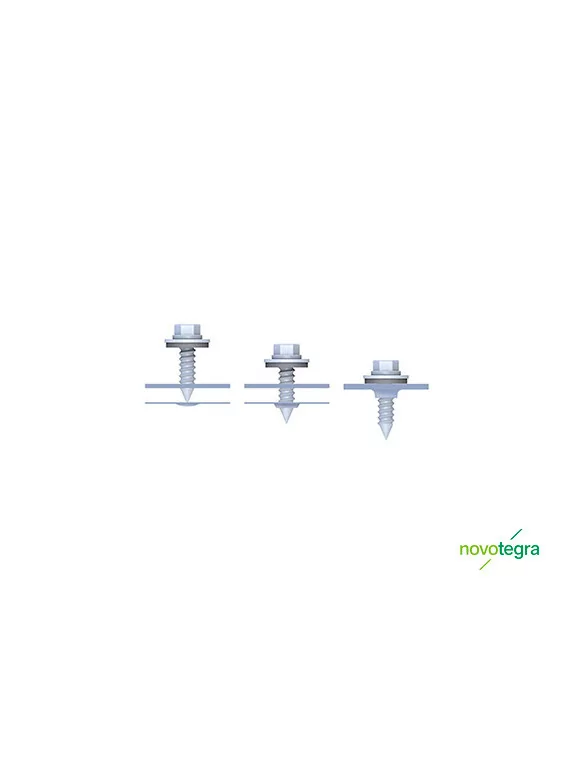

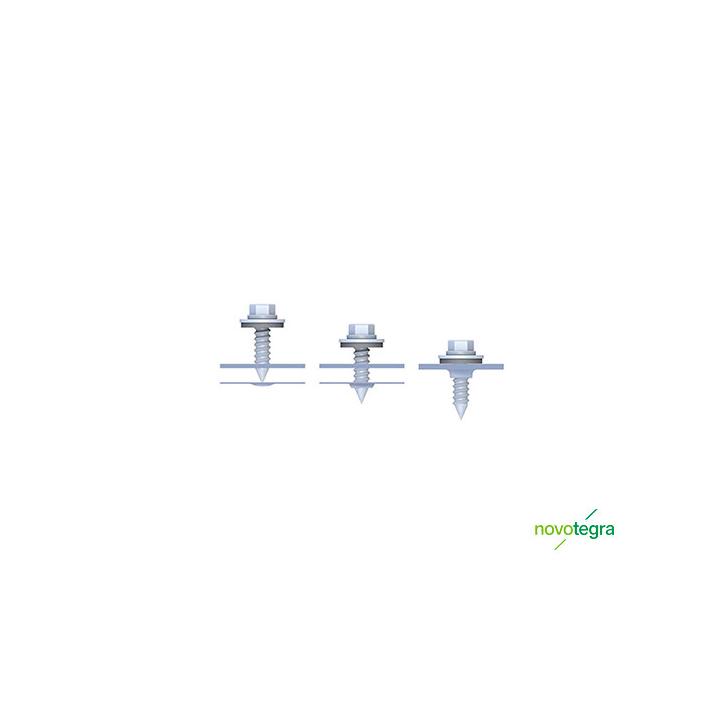

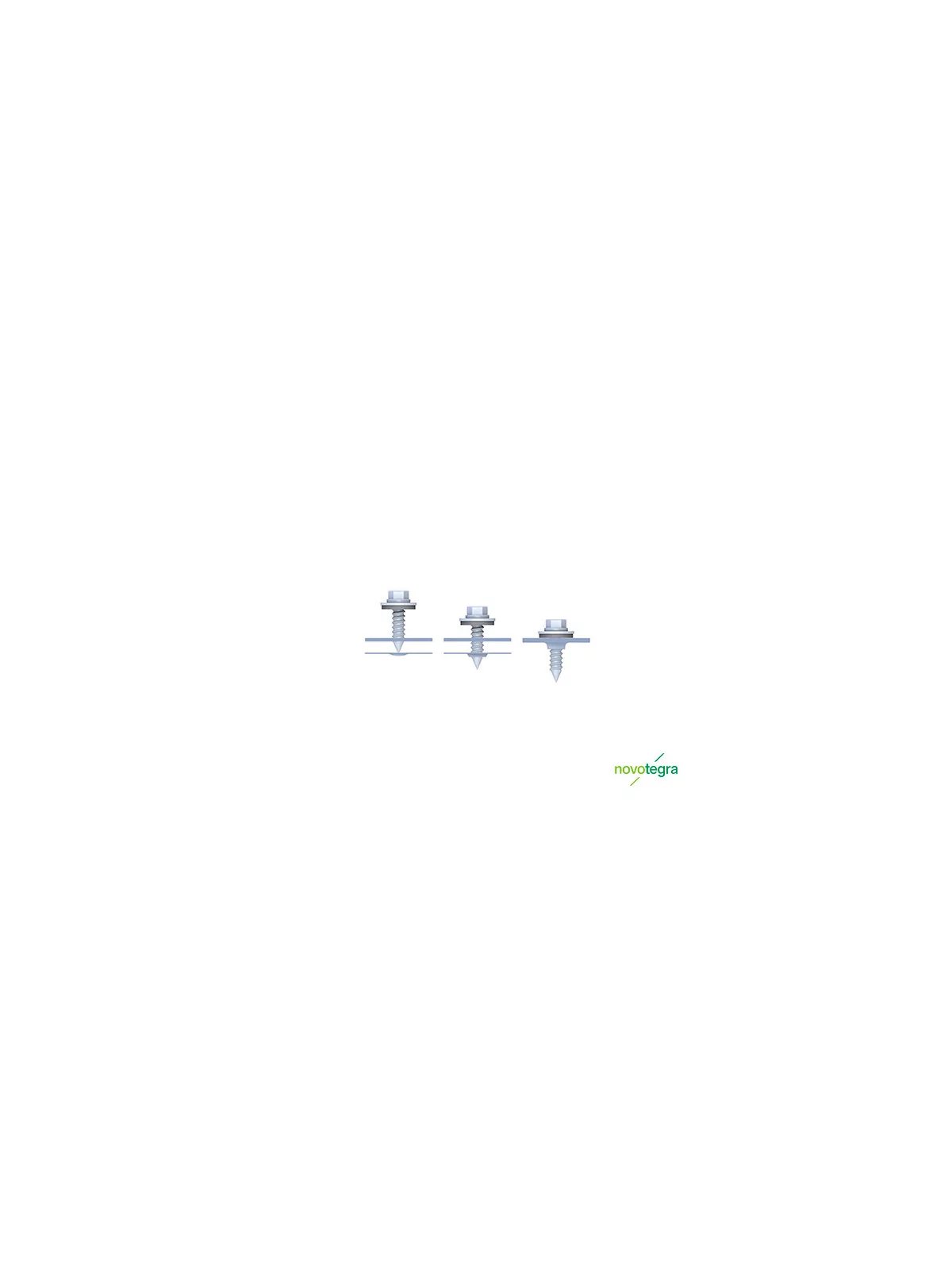

      • High holding forces thanks to direct, non-cutting fastening with approved thin sheet metal screws
      • Few assembly tools required


    Fastening kit contents

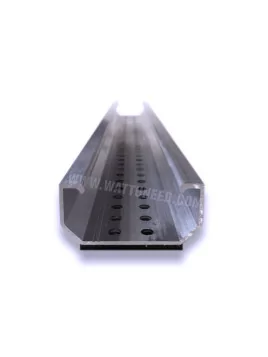

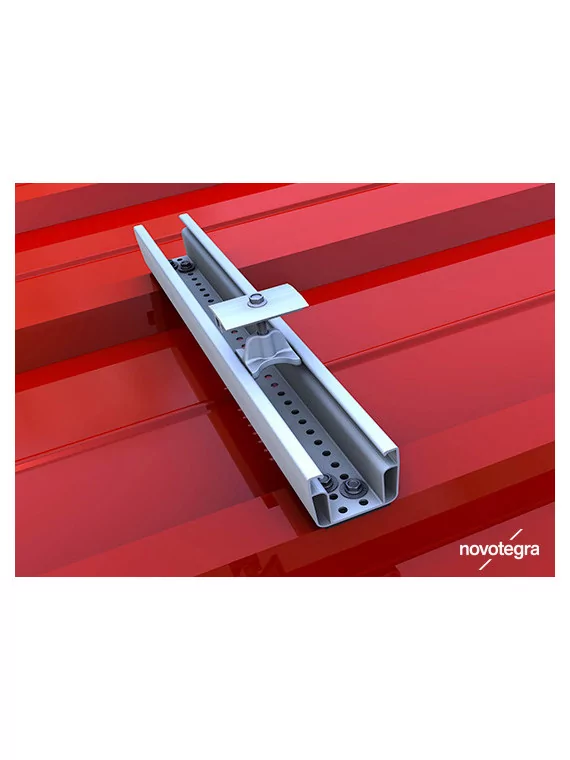

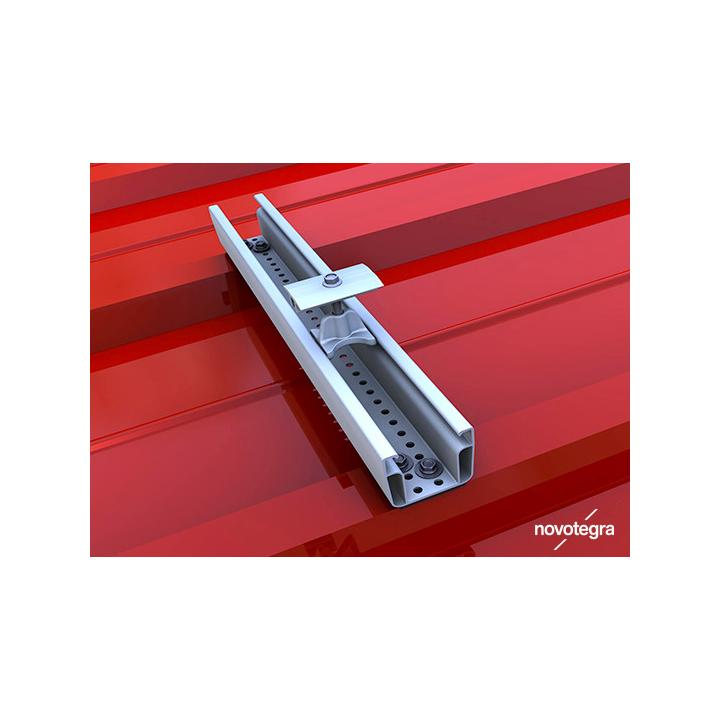

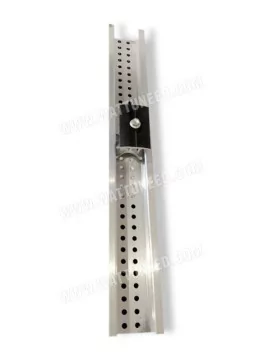

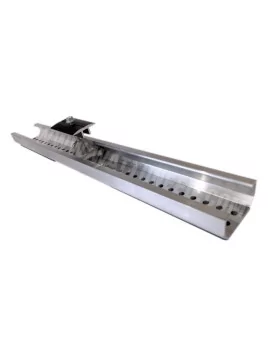

    Fixation pour tôle ondulée trapèze light + clame de milieuFastener for trapezoidal light corrugated sheet metal + middle clamp

    For fastening panels to C-rails

    • simple assembly thanks to locking functions
    • space-saving

    Type of mounting Clamping system / clamp
    Panel assemblyportrait
    Single-layer or cross-rail assembly

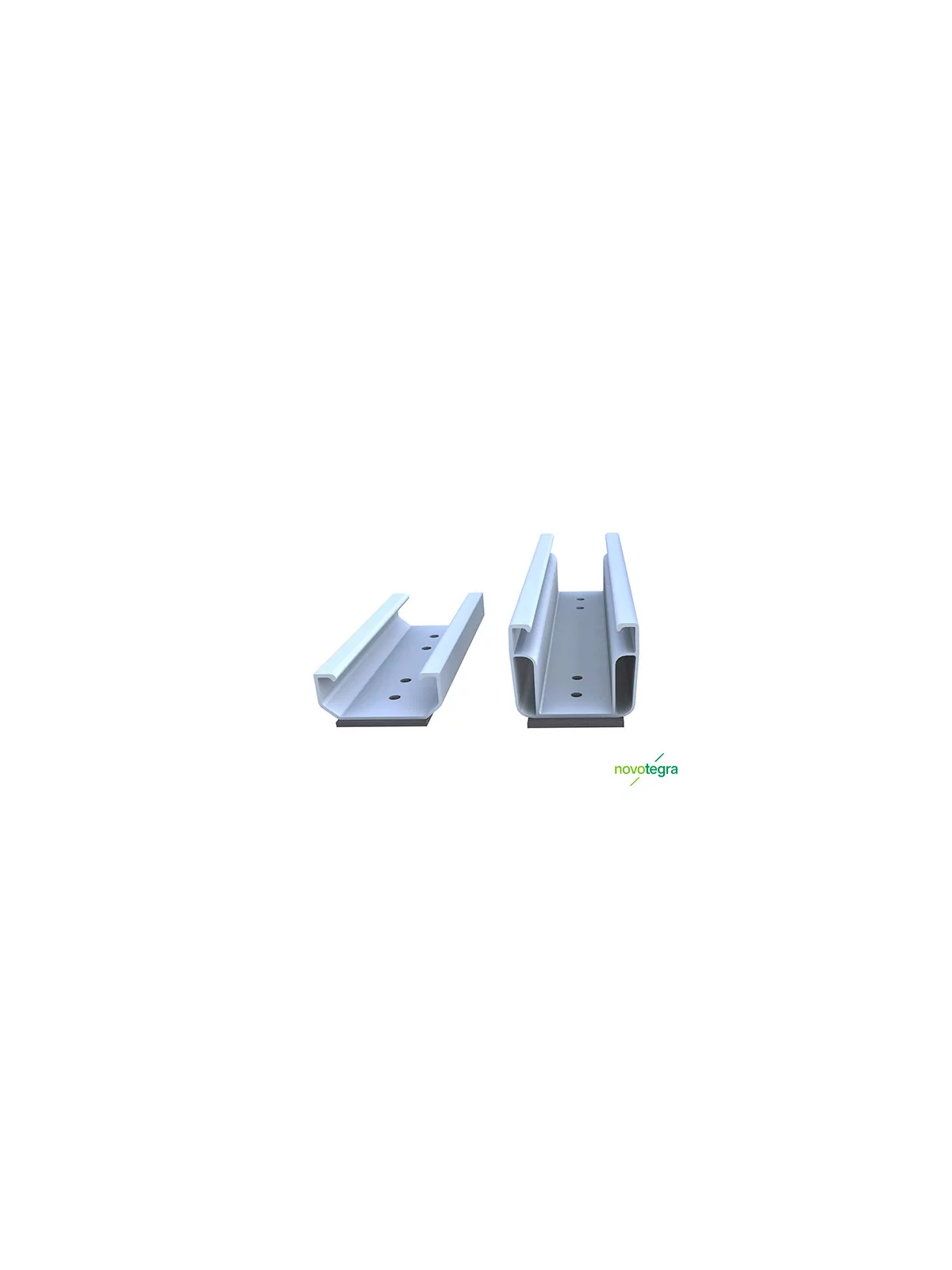

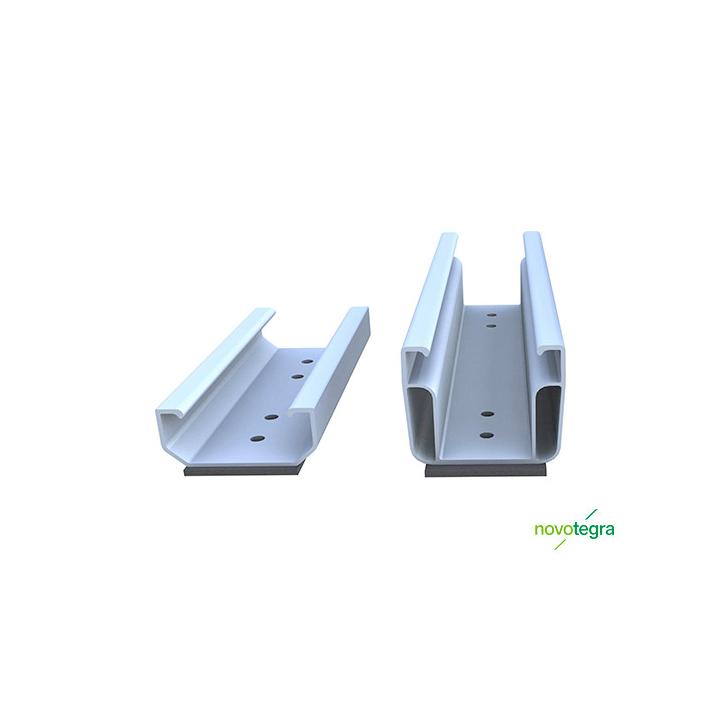

    rails

    Compatible profile
    C-rail / C-N-rail
    Dimensions11,4 mm x 52 mm
    Panel frame height30 - 42 / 43 - 52 mm

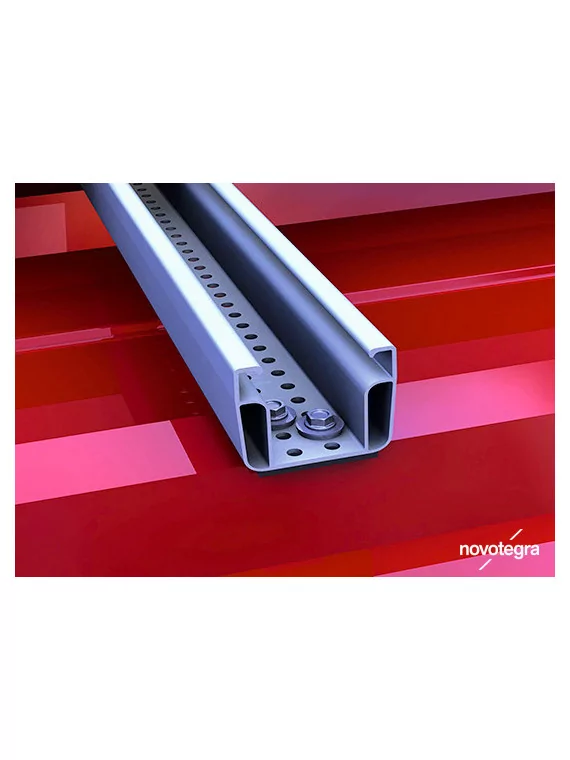

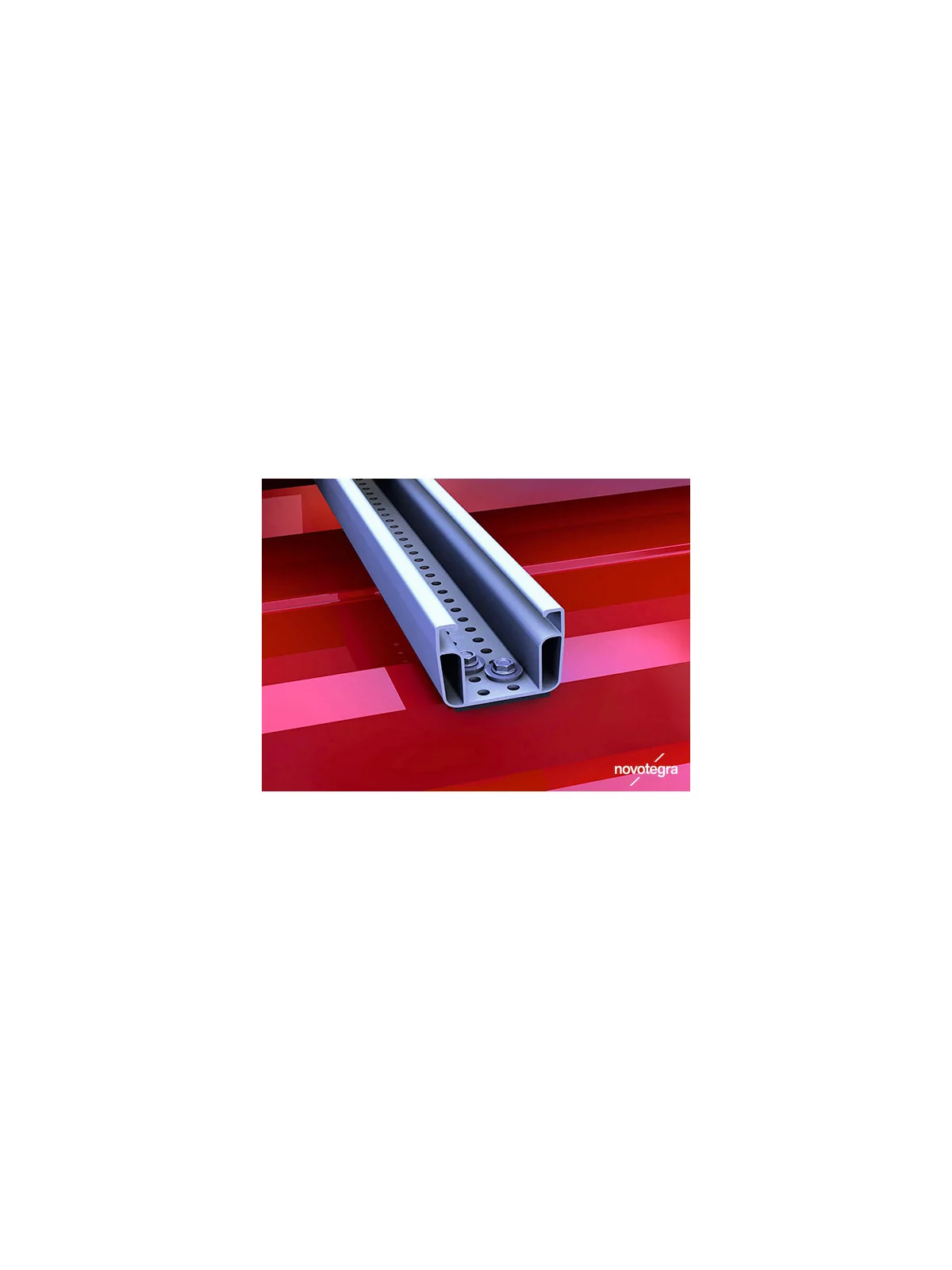

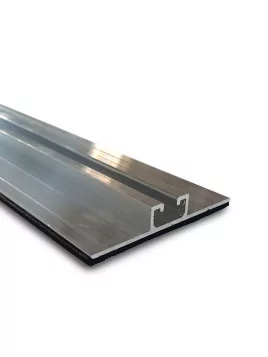

    Find out more about the steel roof fastening rail

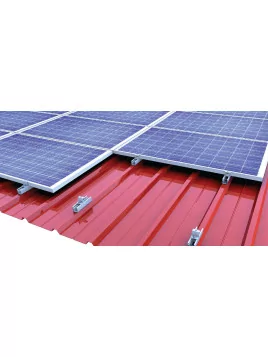

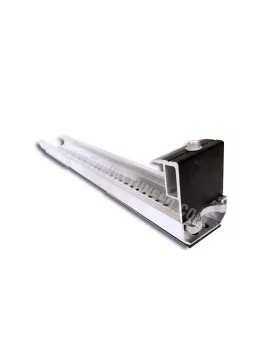

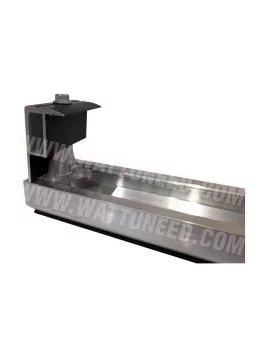

    Fixation pour tôle ondulée trapèze light + clame de fin

    Fastener for trapezoidal light corrugated sheet metal + end clamp

    For fastening panels to C-rails

    • simple assembly thanks to locking functions
    • space-saving
    • flush termination possible

    Type of assembly Clamping system / clame
    Panel assemblyportrait
    Single-layer or cross-rail assembly

    rails

    Compatible profile

    .

    C-rail / C-rail-
    N
    Dimensions14 x 52 mm
    Panel frame height30 - 42 / 43 - 52 mm

    Find out more about the steel roof fastening rail


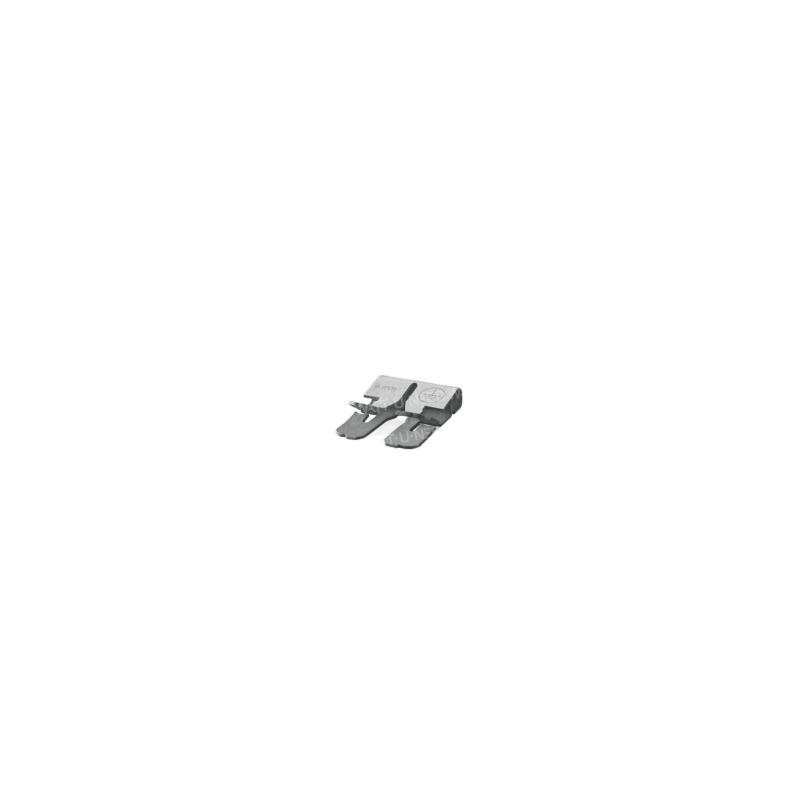

    Protection anti-glissementAnti-slip protection

    For portrait-mounted panels with clamping systems

    • assembly aid for panel placement
    • additional panel securing systems

    Mounting type Clamping system / clame
    Panel assemblyportrait

    rails

    Compatible profile
    C-rail / C-N-rail / N-rail
    Dimensions25 mm

    M8

    Panel frame hole
    , M6, without hole

    schéma montage de panneaux solairesHow do I choose the right kit for my panels?

    The fastening kit is suitable for all steel roofs. Thanks to its options, it can be adapted to the layout of your panels.

    Fasteners are compatible with standard panel sizes.

    1. Select number of panels in portrait

    Select the number of portrait panels per row.

    For example, the layout shown opposite requires 3x the Fixing Kit product:
    > 1st kit for row 1: 3 portrait panels

    2. Select the right clamp for your panel

    The clamp is used to secure the panel to the aluminum rail. Its height must correspond to the thickness of your panel's frame, so that it can be securely fastened to the rail.

    Available clam heights: 30 to 50 mm


    Details of materials supplied according to panel quantity

    Panels in portrait

    Number of panelsRail with middle clampRail with end clamp

    1

    p

    0

    anel

    4

    22

    panels

    4

    34

    panels

    4

    46

    panels

    4

    58

    panels

    4

    64

    panels10

    74

    panels12

    xm4

    panels14

    94

    panels16

    4

    10 panels18

    4

    11 panels20

    4

    12 panels22

    4

    13 panels24

    4

    14
    panels26

    4

    15 panels28

    4

    16 panels30

    4

    17 panels32

    4

    18 panels34
    19 pan
    els
    36
    4
    20 panels384
