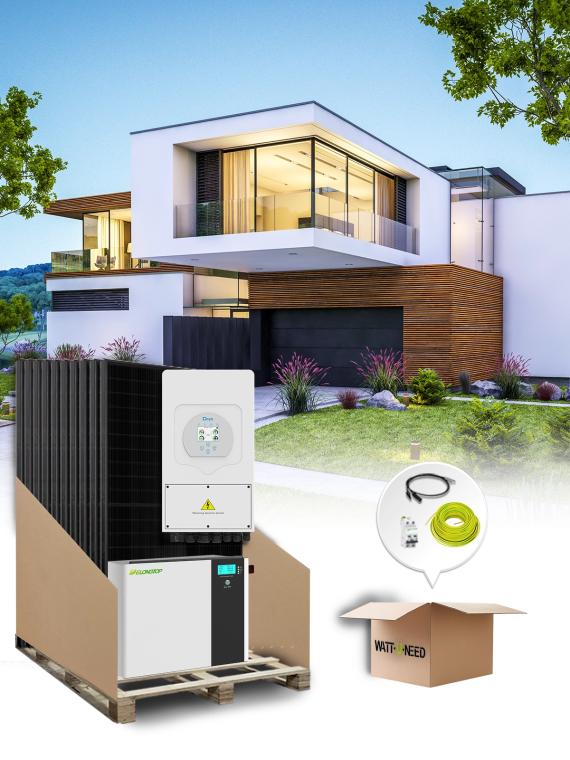

10-panel 3.6kVA self-consumption kit with lithium storage

Transform solar energy into electrical independence with this solar kit perfectly designed for individual self-consumption.
Whether you are looking to power an independent site or gradually reduce your reliance on the grid, this hybrid kit with lithium battery will help you achieve greater autonomy and savings.

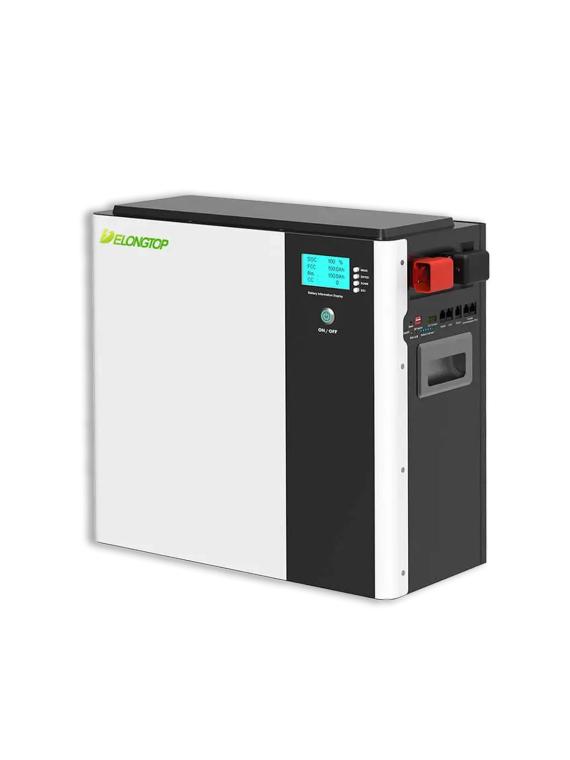

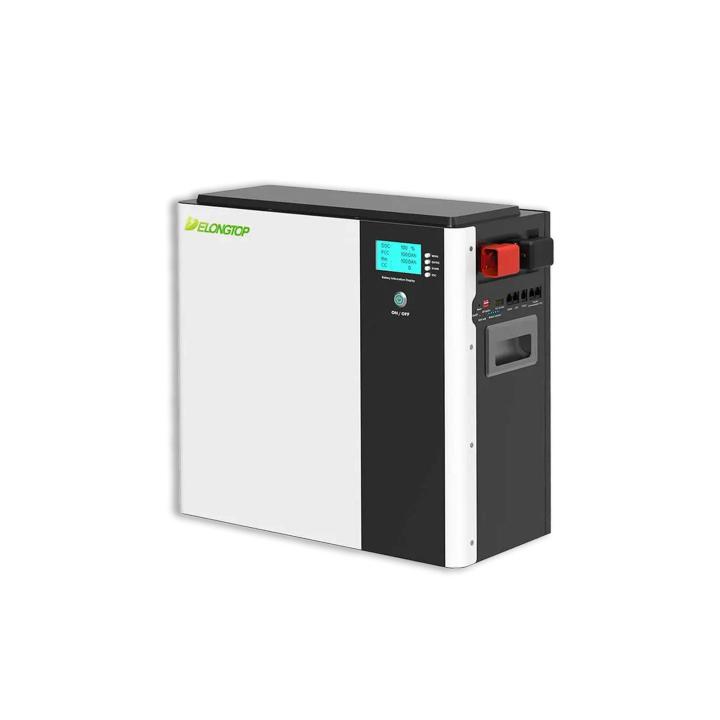

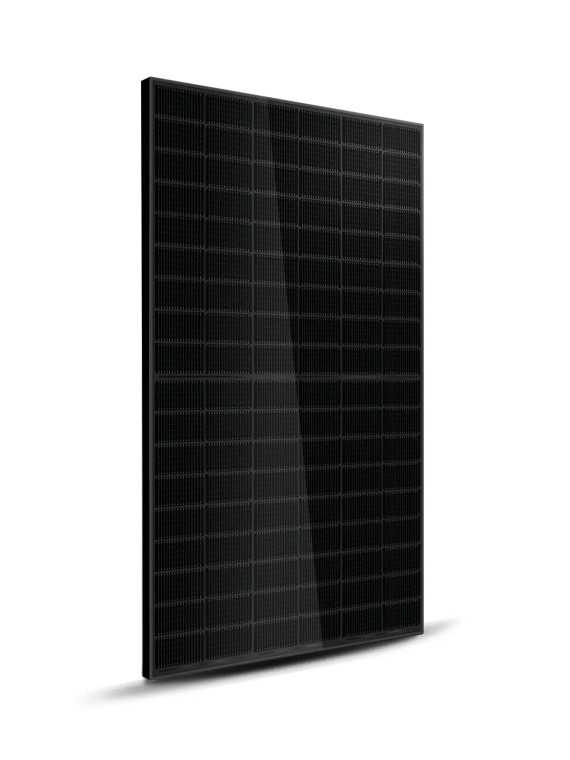

Built around high-end components, including ten 450W bifacial solar panels , a Deye 3.6 kVA single-phase hybrid inverter , and a 5.12 kWh lithium battery , this system operates completely independently or alternately with a generator or the public grid. It is ideal for those seeking a reliable and scalable solution.

All our kits are configurable. In the options, you can click on the product to choose a different model or change the quantities to adapt the kit to your needs.
You can also see the details of the selected products directly below the price.

Important notice for our customers in Belgium : An environmental contribution of €144.50 excluding VAT will be applied to the purchase of each Delong Energy 5.12kWh lithium battery. More information at the bottom of the page.

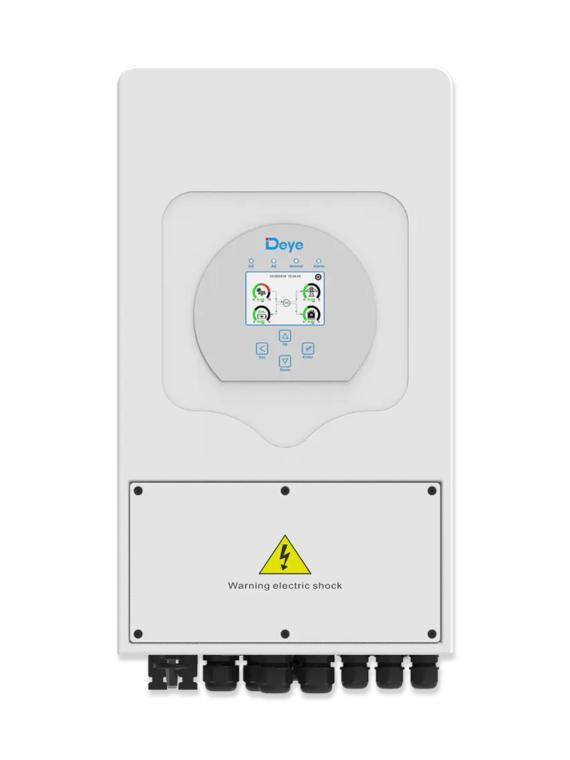

DEYE 3.6 kVA - Control your energy, ensure your independence

The Deye 3.6 kVA hybrid inverter is the ideal solution for those looking to reduce their reliance on the grid and optimize their solar energy consumption , whether for residential or commercial use. Thanks to its advanced technology, it allows you to directly power your appliances from solar energy, store excess energy in batteries, and ensure a continuous power supply even during power outages.

Key advantages

Optimizing self-consumption

• Prioritizes the direct use of solar energy.

• Stores excess energy in a battery for later use.

• Allows you to drastically reduce your electricity bill .

Intelligent energy management

• Dynamic balancing between solar, battery, grid and generator.

• Compatible with the Peak Shaving function to smooth out consumption peaks.

• Advanced modes such as Time of Use to adapt your consumption to off-peak/peak hours.

Uninterrupted power supply

• Integrated UPS function: automatic switchover in case of power outage.

• Compatible with generator sets for greater energy resilience.

Monitoring and connectivity

• Clear and intuitive touchscreen LCD.

• RS485/CAN/RS232 ports, Wi-Fi, Bluetooth, LAN, GPRS and 4G for remote monitoring.

• Access to real-time performance data: production, storage, consumption, battery status.

Installation & Compatibility

• Compatible with lithium-ion (Pylontech, etc.) and 48V lead-acid batteries.

• Intelligent air cooling – without excessive noise (<30 dB).

• Compact design: 330 × 580 × 232 mm for only 25 kg.

• IP65 protection rating for indoor or outdoor installation.

Safety & reliability

• High efficiency : max yield 97.6%, MPPT > 99%.

• Integrated protection systems: overvoltage, overcurrent, overheating, reverse polarity, earth fault.

• Remote firmware update function and emergency shutdown via the monitoring platform.

Standards and guarantee

• Compliant with international standards (EN 62109, UL 1741, IEEE 1547.1, etc.).

• Warranty of 5 to 10 years depending on installation conditions.

For whom?

• Owners of detached houses wishing to gain more autonomy .

• Small businesses or shops wanting to reduce their energy costs .

• Installations in isolated areas or areas with unstable networks, thanks to its resilience with batteries and generator set .

Adopt a clean, scalable and connected energy solution

The Deye 3.6 kVA hybrid inverter is much more than just a converter: it's the true heart of your smart solar system . Invest in durability, performance, and peace of mind.
