Deye Tri 80 kW Hybrid Inverter – SG02HP3-EU-EM6
€10,703.80
Tax included
SUN-80K-SG02HP3 -EU-EM6
0768563822704
The Deye 80kVA three-phase hybrid inverter is designed for large commercial or industrial solar installations. It intelligently manages energy between the photovoltaic panels, the high-voltage batteries (160-800V) and the grid. Thanks to its 6 independent MPPTs, it optimises solar production, even on multi-orientated roofs.
Key benefits:
-
High power: 80 kVA
-
6 independent MPPTs for optimum yield
-
Compatible with high-voltage batteries (160-800V)
-
On-grid and off-grid operation
-
Parallels up to 10 units
-
Integrated EMS for intelligent energy management
-
Remote monitoring: Wi-Fi, RS485, CAN, GPRS
-
High-performance cooling, integrated protection
Why choose the Deye 80kVA?
Because it combines power, flexibility and security. It reduces your dependence on the grid, ensures continuity of supply and makes the most of every kilowatt produced. With Deye, the world leader in hybrid UPS, you're investing in a durable solution that's tailored to professional requirements.
Ready to make the leap to energy autonomy?
Only on order

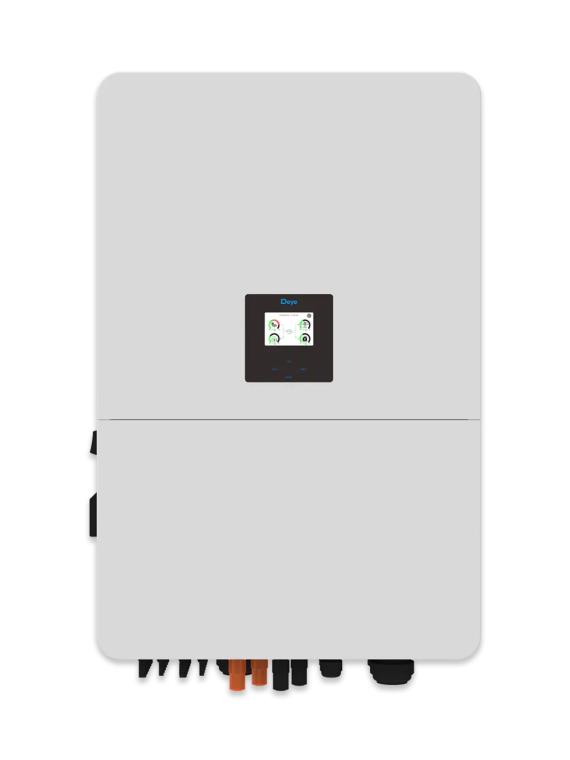

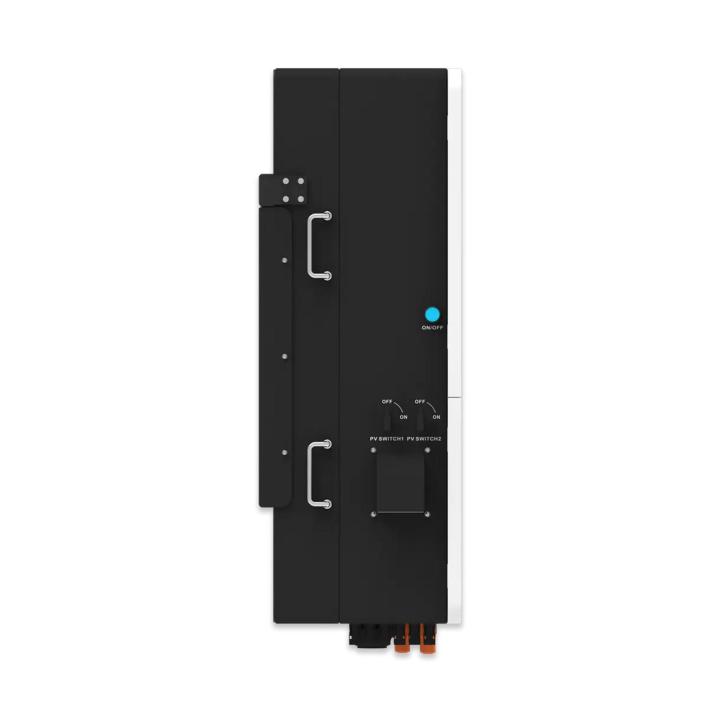

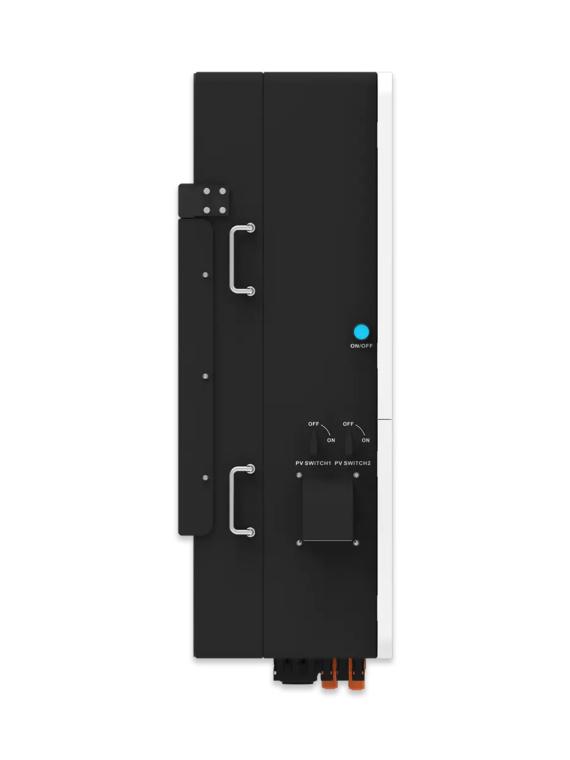

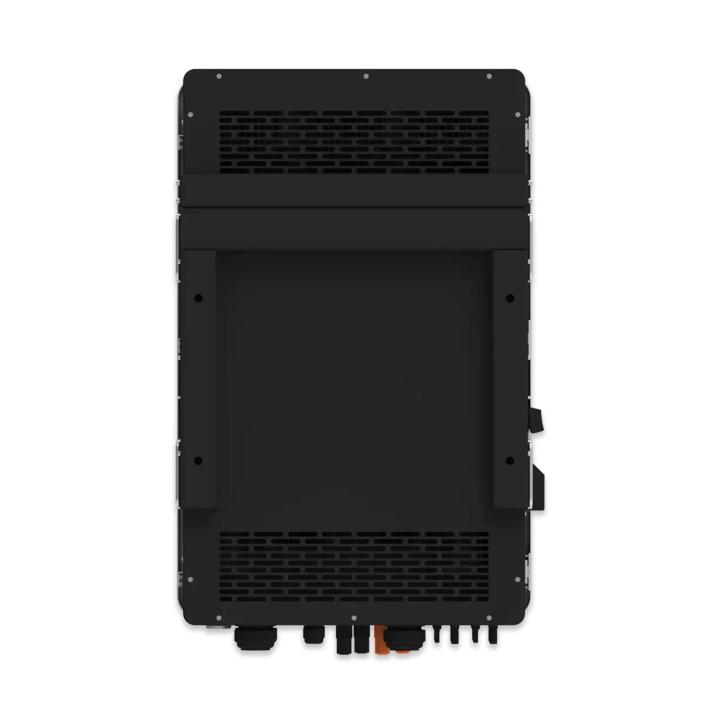

Deye 80kVA three-phase hybrid inverter - SUN-80K-SG02HP3 -EU-EM6
The ideal solution for your large hybrid solar installations
The Deye 80 kVA three-phase inverter is designed for high-power commercial, industrial or community sites. It seamlessly orchestrates photovoltaic production (up to 160 kW of PV fields), high-voltage 160-1000 V batteries (two 80 A + 80 A inputs) and the public grid or a generator. Its 6 independent MPPTs guarantee maximum yield, even on multi-orientated roofs.

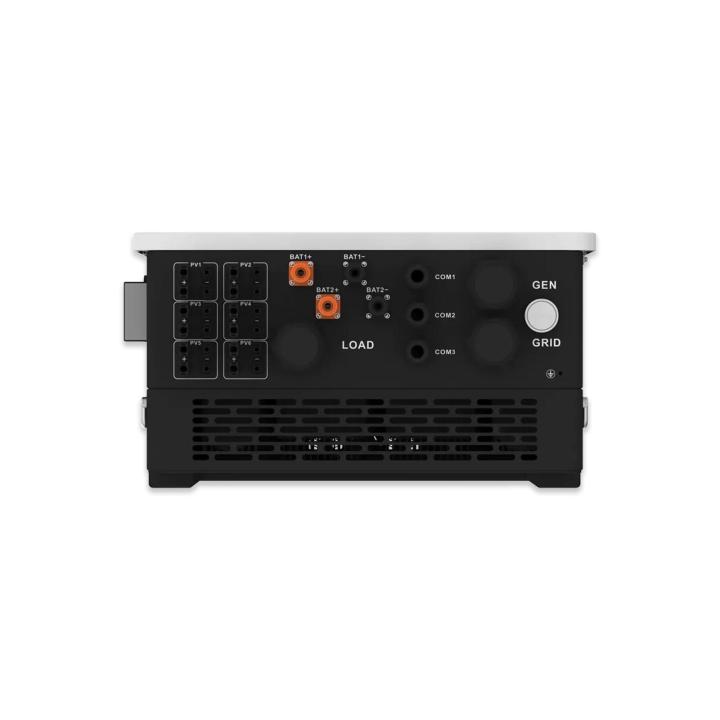

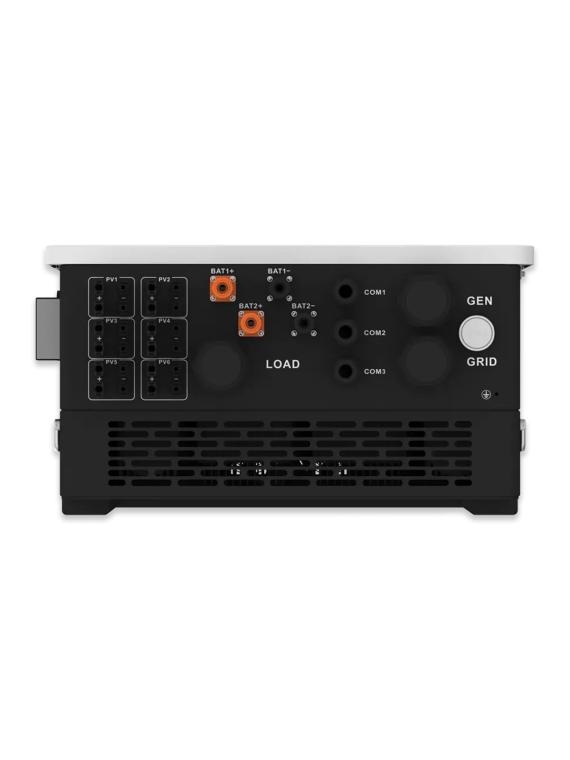

Batteries, grid, generator: it manages everything
- Dual HV battery input (160 A cumulative) for robust storage
- On-grid, off-grid, AC coupling and generator compatibility modes
- Up to 10 inverters in parallel for installations > 800 kVA
- 100% phase imbalance allowed: ideal for irregular three-phase loads
On-board intelligence
- UPS switching < 4 ms to protect sensitive loads
- Programming of 6 battery charge/discharge time slots
- Local & remote monitoring (Wi-Fi, RS-485, CAN, 4G) via Deye portal
- BMS auto-tuning and support for multiple battery brands
- Compatible with all major brands of HV batteries via CAN/RS-485
Safety and compliance
- Full protection: overvoltage, short-circuit, reverse polarity, overload, anti-islanding
- Certifications: EN50549, VDE-AR-N 4105, IEC 62116, G99, AS4777, etc.
- Temperature range -40 °C to +60 °C, IP65 rating for safe outdoor installation
Why choose the Deye SG02HP3 -EU-EM680 kVA UPS ?
Because it combines power, flexibility and resilience: it reduces your dependence on the grid, secures every kilowatt-hour produced and adapts to changes in your energy needs, all with the reliability of the world leader in hybrid UPS.
Recommended applications
Industrial & commercial sites: high consumption spread over 3 phases, optimised self-consumption with HV batteries
Isolated buildings: total PV + battery + genset autonomy, instant back-up
Agricultural installations: powering pumps and motors with high power requirements, night-time storage
Existing PV systems: add AC coupling batteries without modifying the solar array
Key technical characteristics
- AC power: 80,000 W / 80,000 VA
- Max. PV power 160,000 W - 6 MPPT (2 strings/MPPT)
- HV batteries: 160-1000 V - 2 inputs (2 × 80 A)
- Modes: on-grid, off-grid, hybrid, UPS
- Parallel: up to 10 units
- Max. efficiency: 98,4 %
- Com. RS-485, CAN, Wi-Fi, 4G
- IP65 rating, -40 °C to +60 °C
- Certifications: CE, G99, EN50549, VDE, etc.

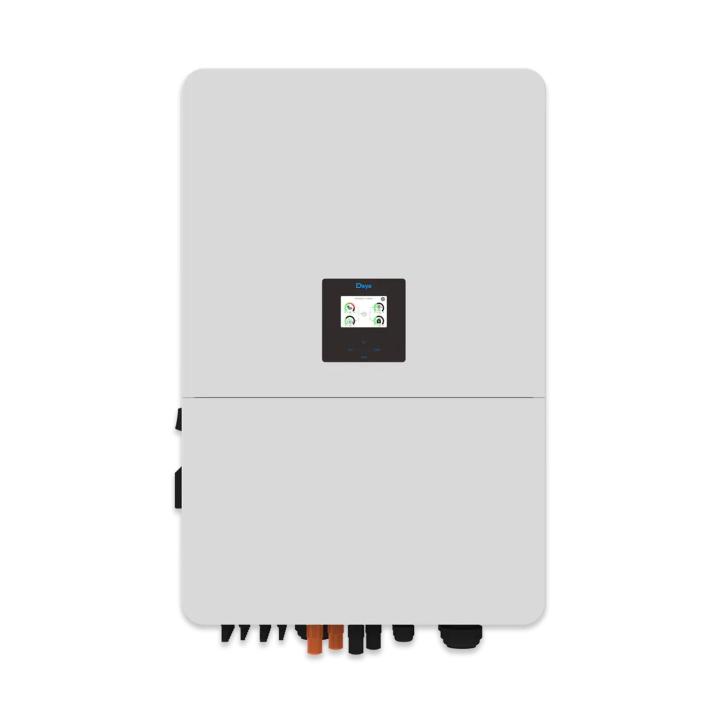

Main display
The LCD screen is touch-sensitive and displays general information about the UPS.
1 - The icon in the centre of the home screen indicates that the system is operating normally. If it displays "comm./F01~F64", it means that the inverter has communication errors or other errors. The error message will be displayed below this icon (errors F01-F64, error details can be viewed in the System Alarms menu).
2 - At the top of the screen is the time.
3 - System configuration icon. Press this button to access the system configuration screen, which includes basic configuration, battery configuration, network configuration, system operating mode, generator port usage, advanced functions and Li-Ion battery information.
4 - The main screen displays solar, grid, load and battery information. It also shows the direction of power flow using arrows. As power approaches a high level, the colour of the panels changes from green to red, providing a clear view of the system information on the main screen.
- PV power and charging power always remain positive.
- Negative grid power means selling to the grid, positive means receiving from the grid.
- Negative battery power means charging, positive means discharging.
Remote shutdown function
Intelligent monitoring platform
Thanks to the intelligent monitoring platform, the inverter products in the Deye complete series support remote shutdown immediately in the event of an accident. Parameters can be set and firmware updated remotely, making it easier to operate and maintain photovoltaic installations.
Physical specifications
- Dimensions
Measures 606 mm × 927 mm × 314 mm.
- Weight
Weighs 105 kg
- Cooling
Intelligent air cooling for efficient thermal management.
- Protection class
IP65 protection, suitable for various indoor and outdoor installations.
Warranty and Support
Warranty
5-year warranty for peace of mind and reliability.
The Deye 80 kVA SG02HP3-EU-EM6 three-phase hybrid inverter is the ideal solution for large-scale, high-performance and scalable solar installations. Its multi-source management, high-voltage battery compatibility and 6 independent MPPTs offer maximum energy optimisation. Robust, intelligent and perfectly suited to demanding environments, it guarantees power, autonomy and reliability, whatever the needs of your site.
Do you have a question? Need advice?
Our solar experts are here to help.
Call us on +32 (0) 87 45 00 34
Contact us: info@wattuneed.com
SUN-80K-SG02HP3 -EU-EM6
Data sheet
- Inverter power in VA
- 88000 VA
- Max.PV Input Power
- 128000 W
- Phase
- Triphasé
- Number of MPPT
- 6 MPPT
- Width
- 606 mm
- Height
- 927 mm
- Thickness
- 314 mm
- Max. load current
- 80 + 80 A
- Inverter type
- Hybrid
- Rated mains frequency
- 50/45-55, 60/55-65 HZ
- EMC
- IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
- Type of cooling
- Intelligent cooling
- Standard warranty (years)
- 5 years
- Humidity
- 0 à 100 %
- Euro. Efficiency
- 97,0 %
- Maximum discharge current
- 80 + 80 A
- Battery Type
- Lithium-ion batteries
- Battery Voltage Range
- 160 - 1000 V
- Operating temperature range
- -40 to 60°C, over 45°C Decommissioning
- Weight
- 105 kg
- Maximum input short-circuit current
- 54+54+54+54+54+54 A
- Communication
- RS485 / RS232 / CAN
- Network connection standards
- IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99,VDE-AR-N 4105
- Noise
- less than or equal to 65 dB
- Max. PV input voltage
- 1000 V
- Number of MPP trackers / strings per MPP tracker
- 6/2+2+2+2+2+2
- MPPT voltage range
- 150-850 V
- PV input current
- 36+36+36+36+36+36 A
- DC injection current
- less than 0.5%
- Charging strategy for Li-Ion batteries
- Self-tuning to BMS
- Rated PV input voltage
- 650 V
- Rated AC input/output active power
- 80000 W
- Rated AC input/output current
- 113.7/108.7 A
- AC input/output current
- 125/119.6 A
- Maximum continuous power (from mains to load)
- 200 A
- Form of network connection
- 3L + N + PE
- Total harmonic current distortion THDi
- less than 3% (of rated power)
- MPPT efficiency
- More than 99
- Monitoring mode
- GPRS/WIFI/Bluetooth/4G/LAN (en option)
- Nominal voltage/input/output range
- 220/380V, 230/400V 0.85Un-1.1Un
- Overvoltage protection level
- TYPE II(DC),TYPE II(AC)
Specific References
- UPC
- 768563822704
- EAN13
- 0768563822704
