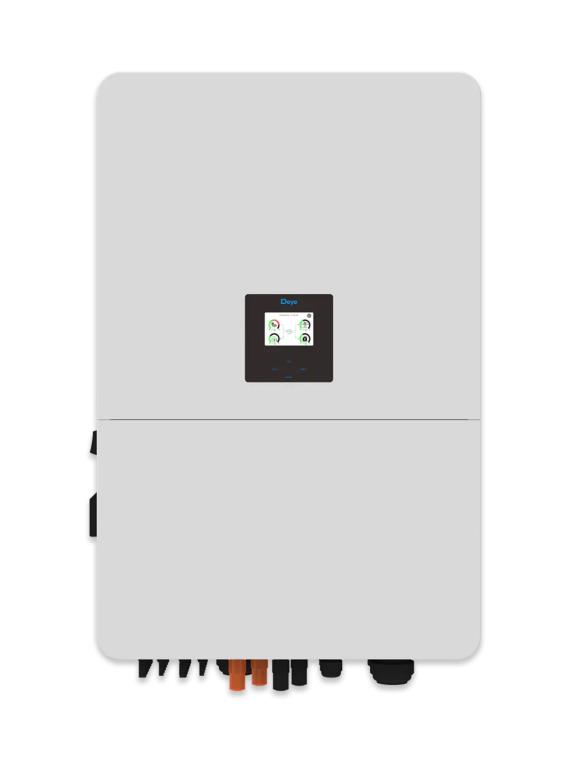

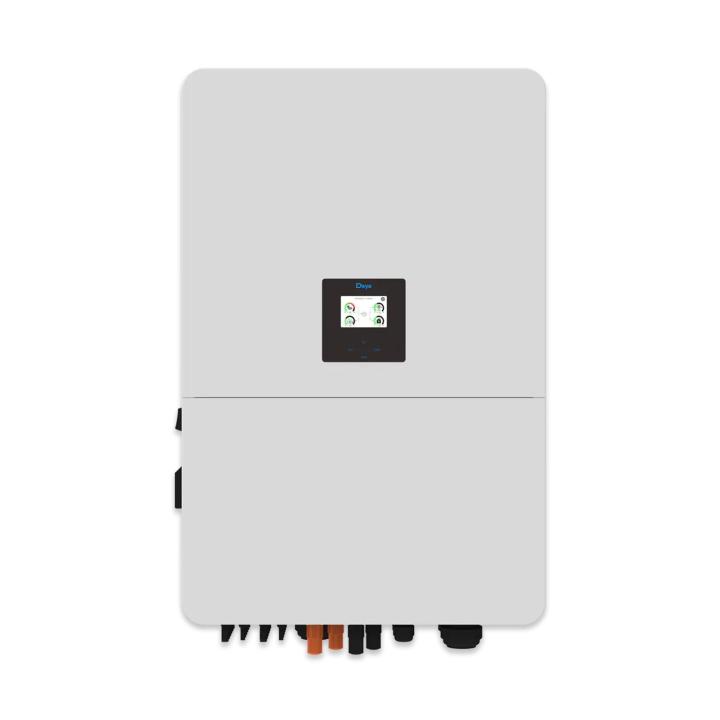

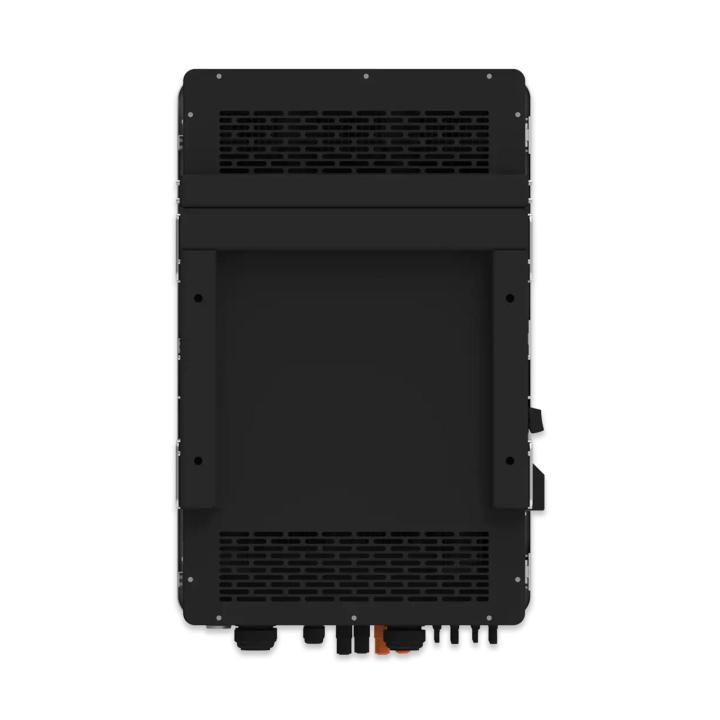

The Deye 80kVA three-phase hybrid inverter is designed for large commercial or industrial solar installations. It intelligently manages energy between the photovoltaic panels, the high-voltage batteries (160-800V) and the grid. Thanks to its 6 independent MPPTs, it optimises solar production, even on multi-orientated roofs.
Key benefits:
High power: 80 kVA
6 independent MPPTs for optimum yield
Compatible with high-voltage batteries (160-800V)
On-grid and off-grid operation
Parallels up to 10 units
Integrated EMS for intelligent energy management
Remote monitoring: Wi-Fi, RS485, CAN, GPRS
High-performance cooling, integrated protection
Why choose the Deye 80kVA?
Because it combines power, flexibility and security. It reduces your dependence on the grid, ensures continuity of supply and makes the most of every kilowatt produced. With Deye, the world leader in hybrid UPS, you're investing in a durable solution that's tailored to professional requirements.
Ready to make the leap to energy autonomy?
Only on order
Your review appreciation cannot be sent
Report comment
Report sent
Your report cannot be sent
Write your review
Deye 80kVA three-phase hybrid inverter - SG02HP3-EU-EM6
Review sent
Your review cannot be sent
You are about to create a quotation for the kit Deye 80kVA three-phase hybrid inverter - SG02HP3-EU-EM6.
This action will open the quotation app in a new tab.

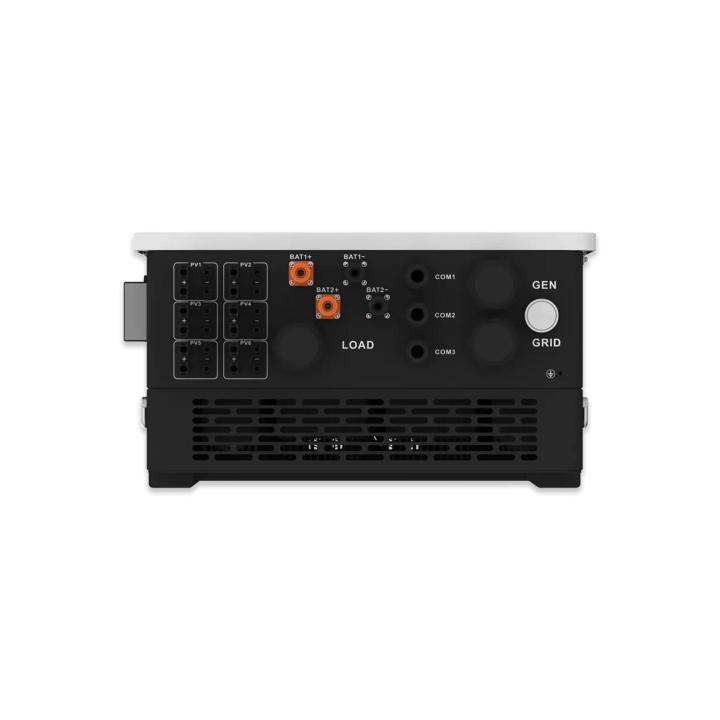

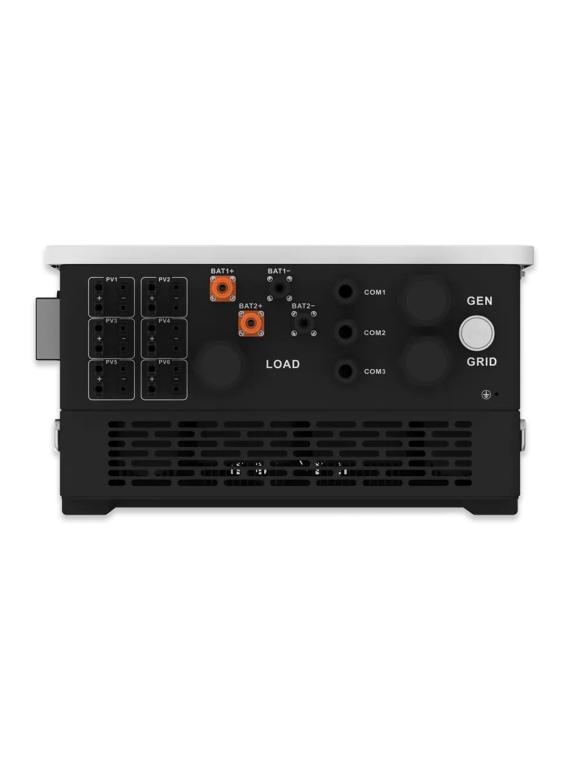

The Deye 80 kVA three-phase inverter is designed for high-power commercial, industrial or community sites. It seamlessly orchestrates photovoltaic production (up to 160 kW of PV fields), high-voltage 160-1000 V batteries (two 80 A + 80 A inputs) and the public grid or a generator. Its 6 independent MPPTs guarantee maximum yield, even on multi-orientated roofs.
Because it combines power, flexibility and resilience: it reduces your dependence on the grid, secures every kilowatt-hour produced and adapts to changes in your energy needs, all with the reliability of the world leader in hybrid UPS.
Industrial & commercial sites: high consumption spread over 3 phases, optimised self-consumption with HV batteriesIsolated buildings: total PV + battery + genset autonomy, instant back-upAgricultural installations: powering pumps and motors with high power requirements, night-time storageExisting PV systems: add AC coupling batteries without modifying the solar array
The LCD screen is touch-sensitive and displays general information about the UPS.
1 - The icon in the centre of the home screen indicates that the system is operating normally. If it displays "comm./F01~F64", it means that the inverter has communication errors or other errors. The error message will be displayed below this icon (errors F01-F64, error details can be viewed in the System Alarms menu).
2 - At the top of the screen is the time.
3 - System configuration icon. Press this button to access the system configuration screen, which includes basic configuration, battery configuration, network configuration, system operating mode, generator port usage, advanced functions and Li-Ion battery information.
4 - The main screen displays solar, grid, load and battery information. It also shows the direction of power flow using arrows. As power approaches a high level, the colour of the panels changes from green to red, providing a clear view of the system information on the main screen.
- PV power and charging power always remain positive.
- Negative grid power means selling to the grid, positive means receiving from the grid.
- Negative battery power means charging, positive means discharging.
Thanks to the intelligent monitoring platform, the inverter products in the Deye complete series support remote shutdown immediately in the event of an accident. Parameters can be set and firmware updated remotely, making it easier to operate and maintain photovoltaic installations.

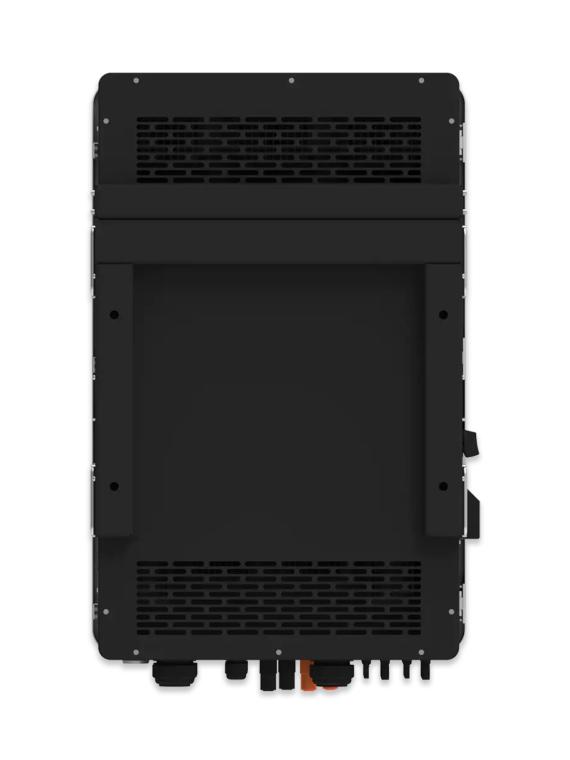

Measures 606 mm × 927 mm × 314 mm.
Weighs 105 kg
Intelligent air cooling for efficient thermal management.
IP65 protection, suitable for various indoor and outdoor installations.
5-year warranty for peace of mind and reliability.
The Deye 80 kVA SG02HP3-EU-EM6 three-phase hybrid inverter is the ideal solution for large-scale, high-performance and scalable solar installations. Its multi-source management, high-voltage battery compatibility and 6 independent MPPTs offer maximum energy optimisation. Robust, intelligent and perfectly suited to demanding environments, it guarantees power, autonomy and reliability, whatever the needs of your site.
