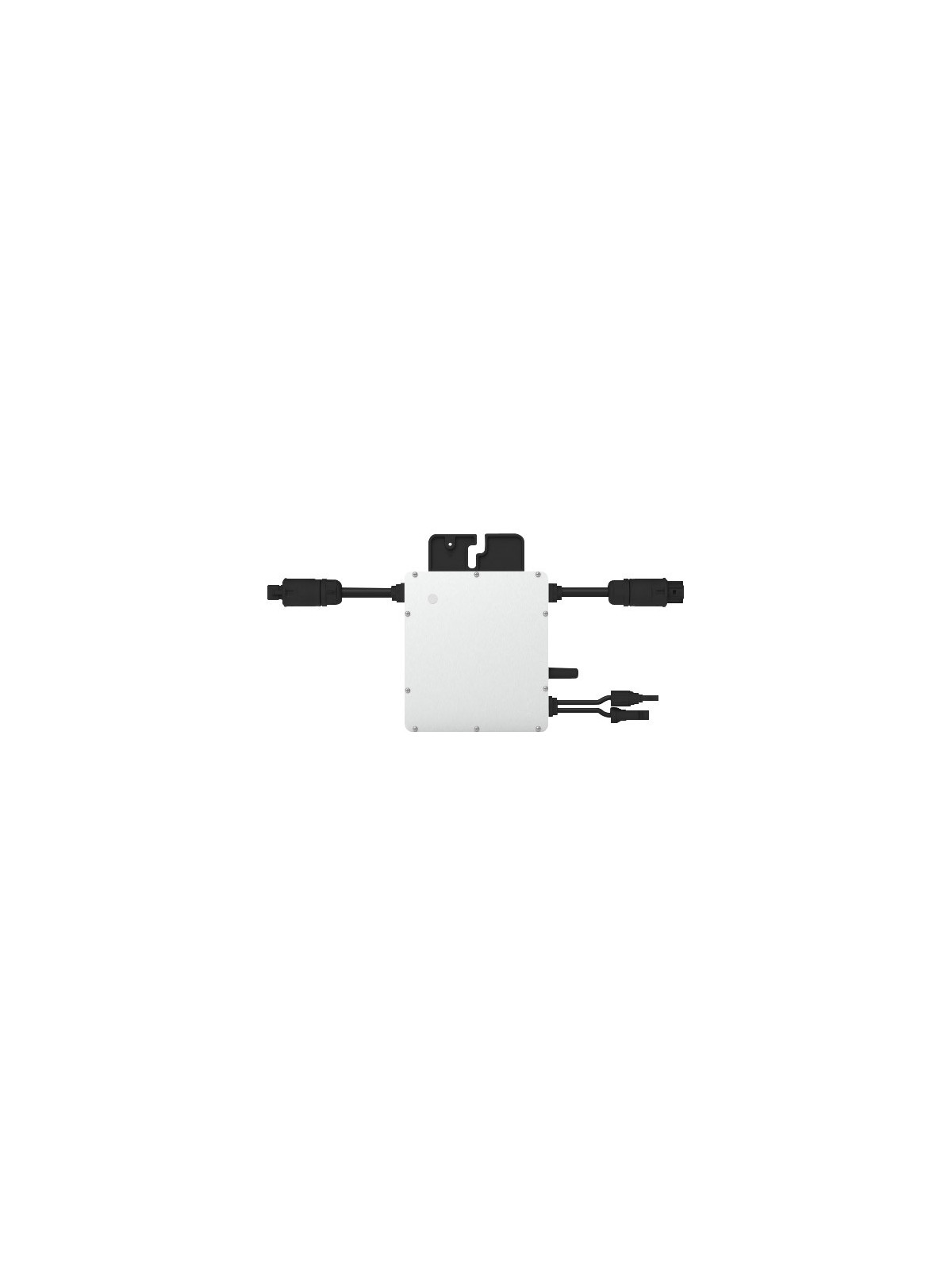

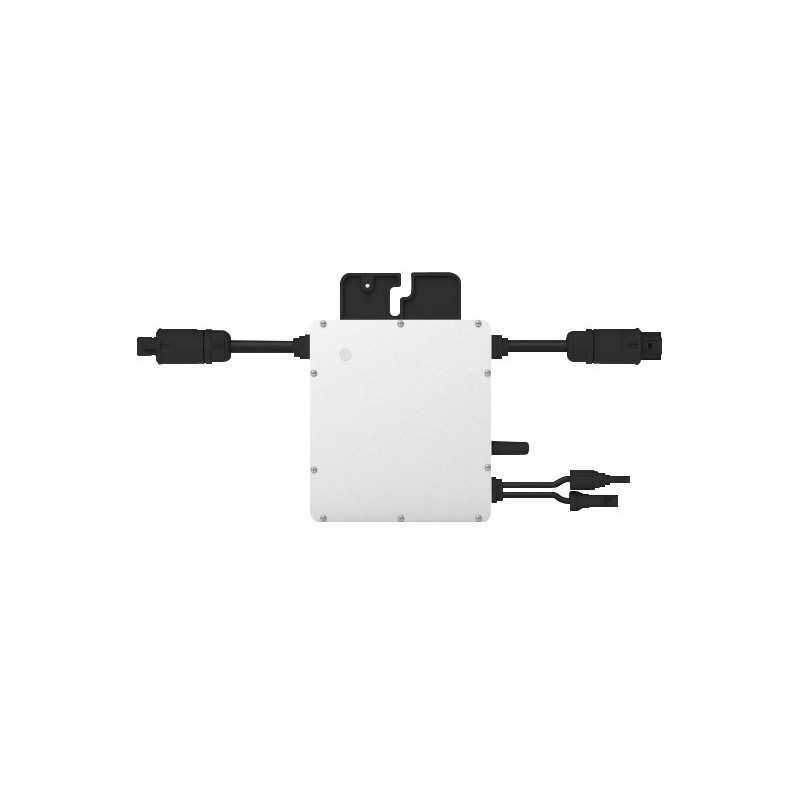

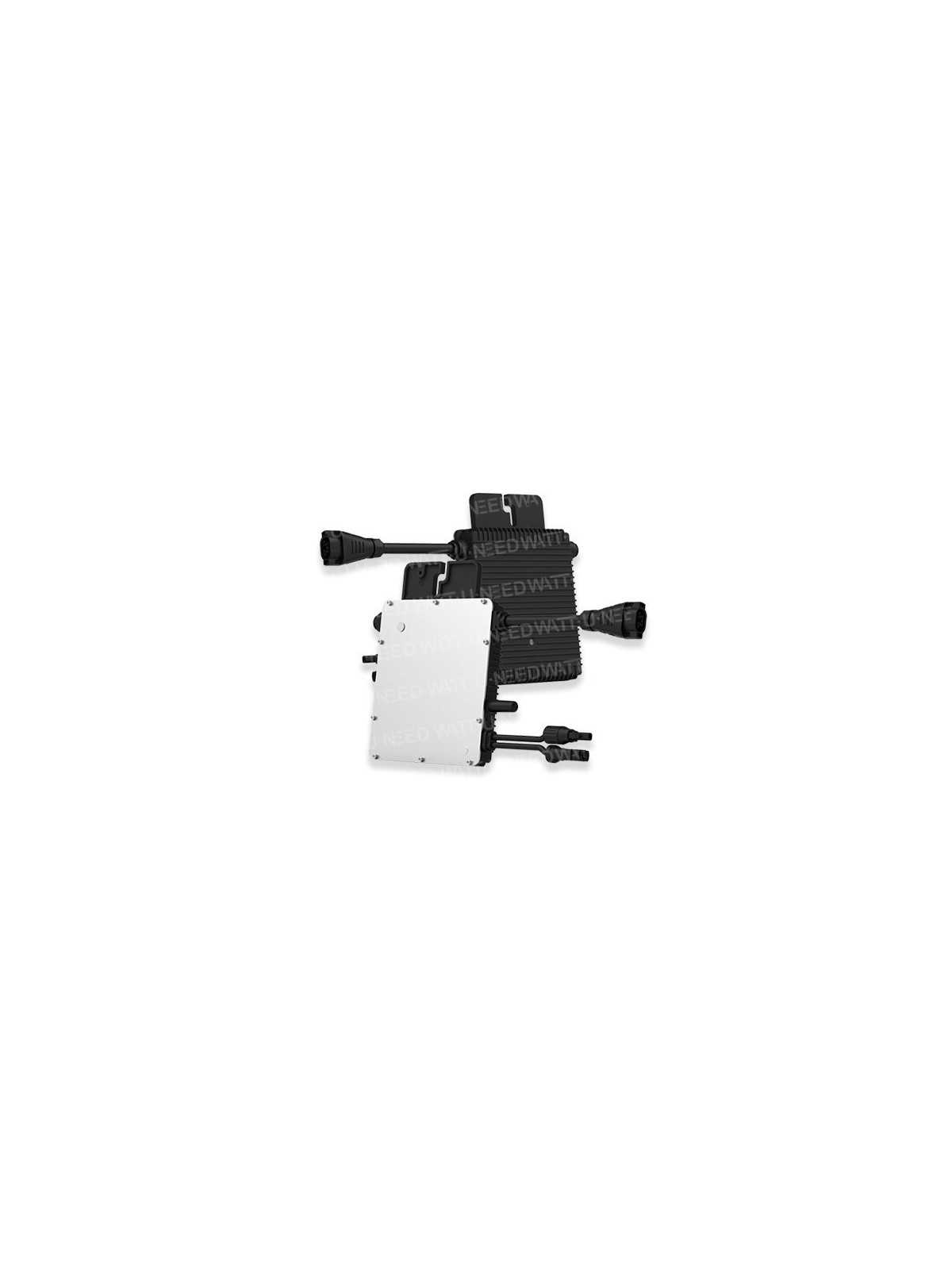

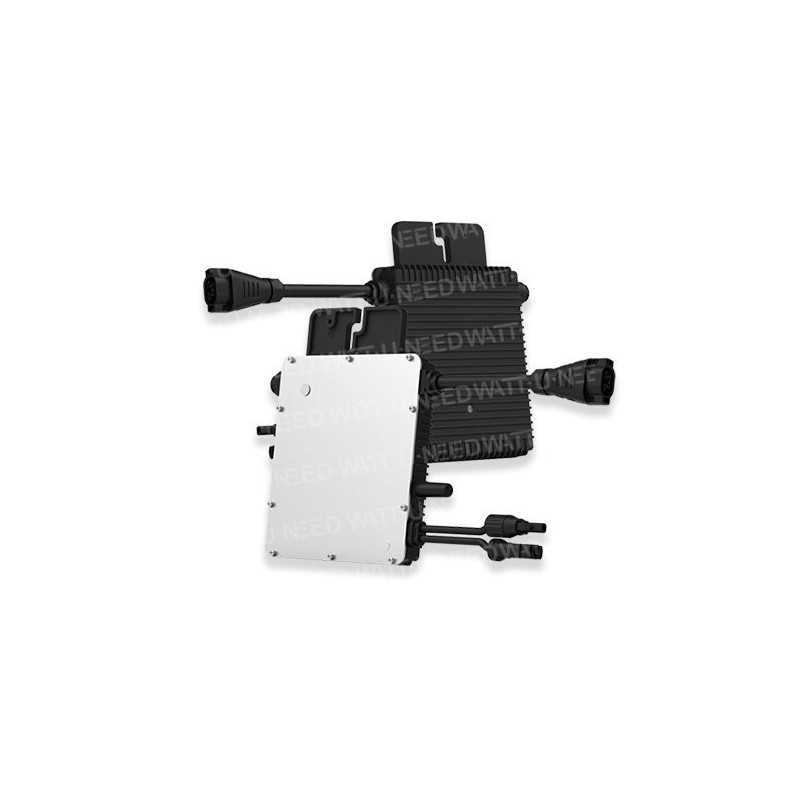

Microinverter 400VA Hoymiles HM-400
Hoymiles microinverters are designed to be ready to use and get your solar ecosystem up and running quickly.
Adjustable energy
Configure your microinverters to suit your installation and the layout of your solar panels.
High reliability
Hoymiles microinverters feature low failure rates and integrated surge protection.
Monitoring support
The microinverters are equipped with an external antenna for improved communication and more stable monitoring.
High efficiency
With an MPPT efficiency rate of 99.8%, most of the output from your photovoltaic panels is converted into usable energy.
Energy conformity
Our microinverters comply with EN50549-1:2019, among other standards.
Features
| Power of commonly used modules |
320~500W |
| Module compatibility |
60- or 72-cell PV modules |
| Peak power |
|
| PPT voltage range |
34~48 V |
| Operating voltage range |
16~60 V |
| Maximum input current |
12.5 A |
| Maximum output power |
400W |
| Rated output current |
| .82 / 1.74 / 1.67 A |
| Rated output voltage |
220 / 230 / 240 V |
| Rated output voltage range |
180 - 275 V* |
| Rated range/frequency |
50/44-55 or 60/55-65* Hz |
| Power factor |
> 0.99 default |
| .8 peak |
| 0.8 delayed |
| Total harmonic distortion |
<3% |
| Maximum number of units per string². |
|
1
| Maximum CEC efficiency |
96.70% |
| CEC-weighted efficiency |
96.50% |
| Nominal MPPT efficiency |
99.80% |
| Ambient temperature range |
< |
5
| Ambient temperature range |
| -+ 65 °C |
| Dimensions (W x H x D) |
182 x 164 x 29.5 mm |
| cooling |
Natural convection - No fan |
| communication |
Proprietary Rf 2.4 Ghz (Nordic) |
| control |
Hoymiles control system |
| compliance |
| 4105 : 2018, EN505549-1 : |
2019, VFR 2019,
IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3 |
| Rated voltage/frequency range may vary according to local power supply requirements |
@
