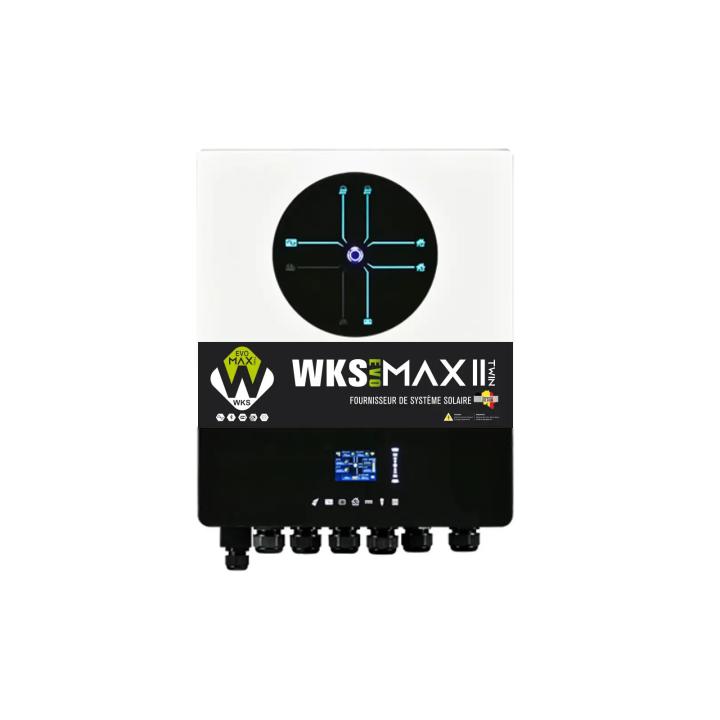

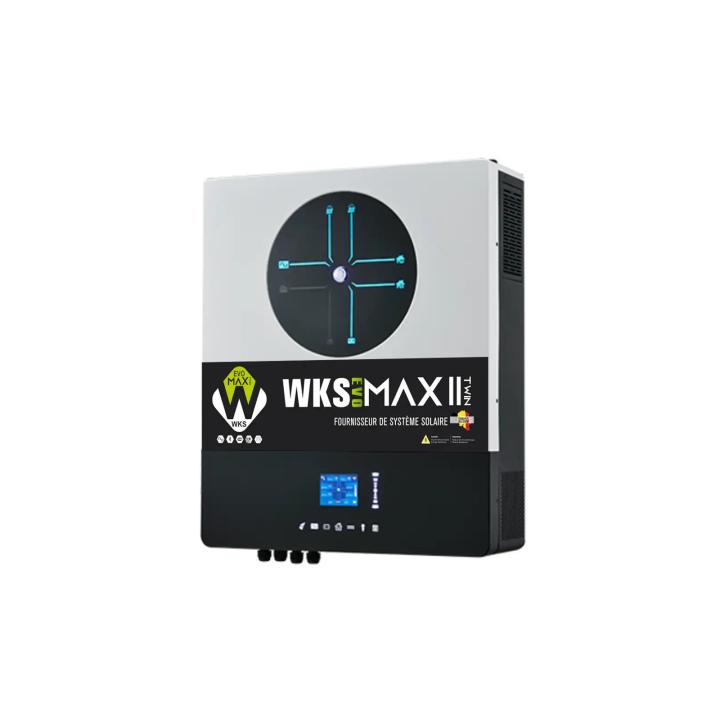

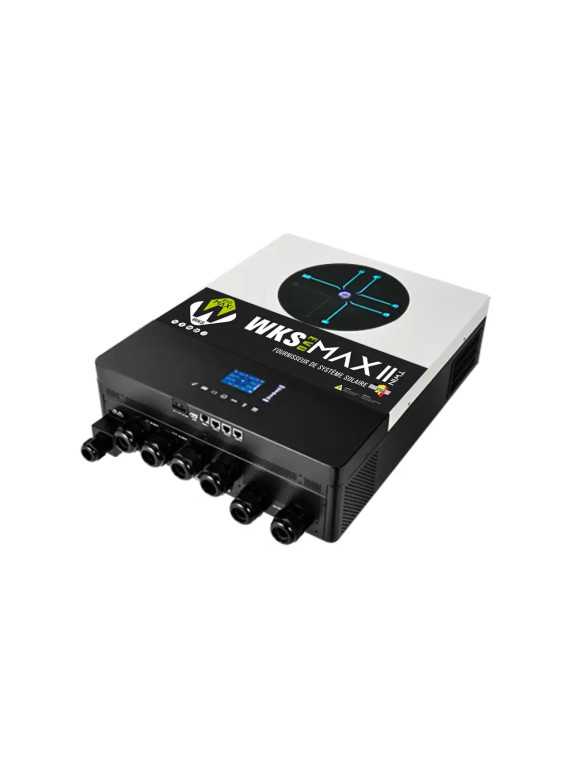

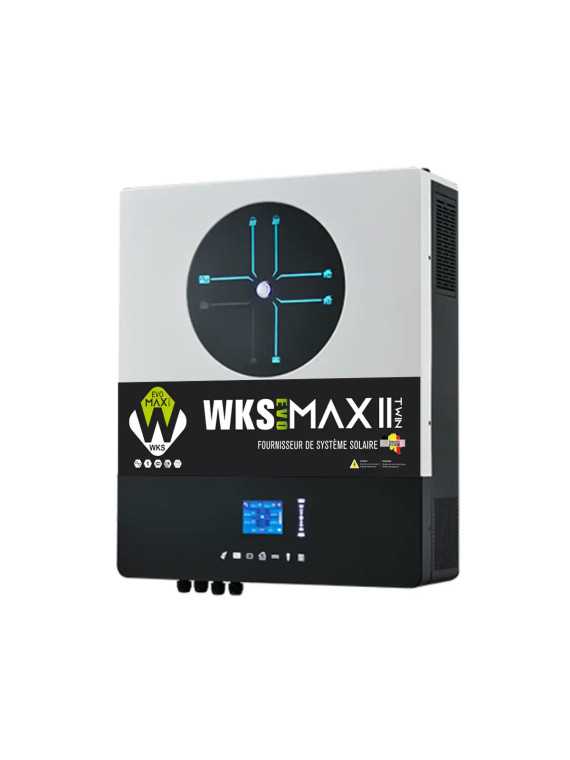

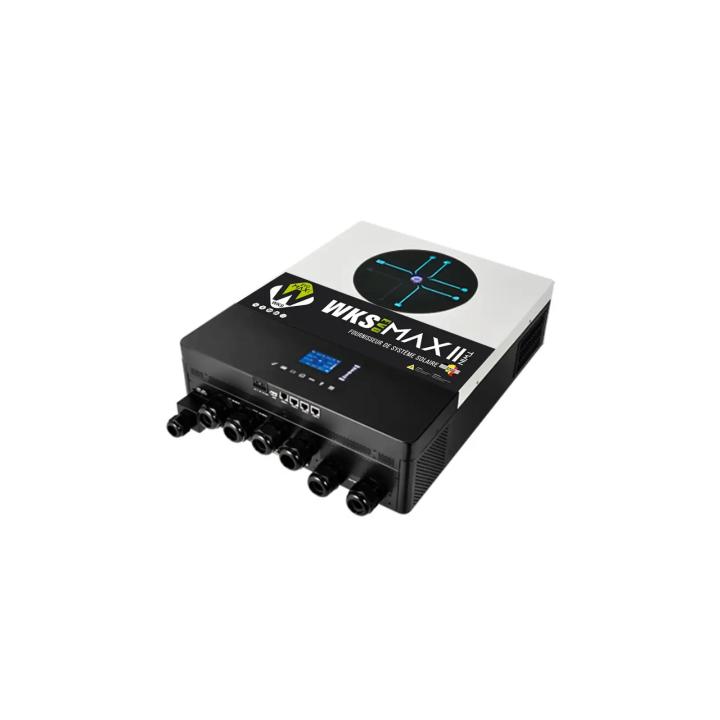

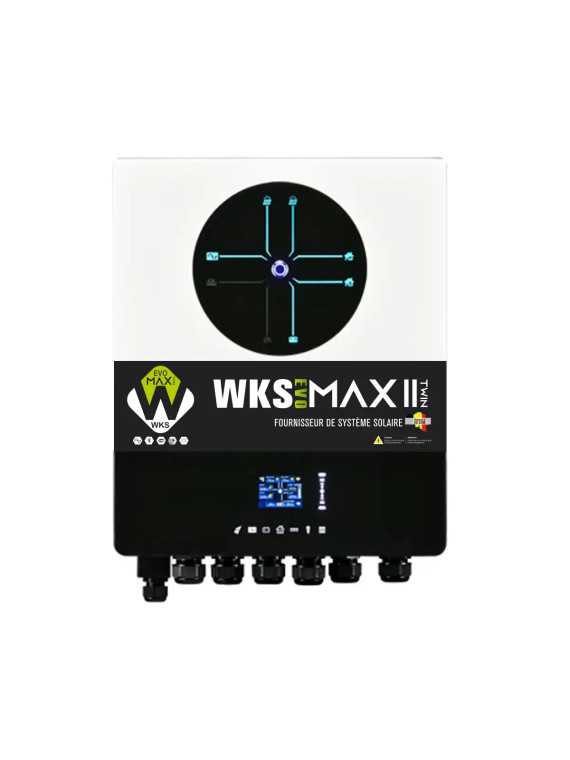

WKS Evo MAX II TWIN 11kVA 48V hybrid inverter

WKS Evo MAX II TWIN hybrid solar inverter: 11kVA for continuous, reliable power supply

- Two outputs for intelligent load management
- Two independent AC power sources connected and switched automatically
- Integrated current transformer sensor for self-consumption applications
- Support for external BTS (battery temperature sensor) detection
- Integrated power status indicator lights
- Integrated 2.8" color LCD with slider control
- Integrated Wi-Fi for mobile monitoring and OTA firmware updates
- Support for USB On-the-Go function
- Dedicated BMS communication port (RS485, CAN-BUS or RS232)
- Support for optional GFCI, Rapid shutdown, AFCI detections
- Parallel operation with 6 units

The powerful WKS Evo MAX II TWIN is equipped with a 150 A MPPT solar charger, a newly upgraded 5" color LCD display and a touch button. It can also access and store data in the inverter for easy monitoring of inverter operating status.

Wifi communication (i-Solar)

Set up your inverter and system, check your production and record data from your smartphone!
The WKS Evo's Wifi application gives you easy access to all your plant information.
An example of the app's available pages is shown in the product images.

The new-generation inverter

Enjoy continuous, reliable power, whether the grid is available or not. The energy produced by WKS inverters is directed and used intelligently for optimum performance. All priorities can be defined by the user: use of batteries, solar or AC source (grid or generator). In self-consumption, the energy produced by your panels fluctuates and does not correspond to consumption. The WKS inverter stores part of the solar output in the batteries for later use during the evening or night. On isolated sites, the WKS inverter can be connected to a generator to charge the batteries if they are empty and solar production is insufficient. This inverter is capable of working with several different energy sources, such as :

• public grid
• photovoltaic panels
• thermal generator
• batteries

Microprocessor-based management directs energy according to production, consumption needs and battery state-of-charge. Real-time monitoring can be carried out locally or remotely. The WKS inverter does not feed power back into the grid.

3 operating modes

1) Solar priority

2) Emergency

3) Solar and grid

Use in back-up mode

The UPS can be used as a back-up without photovoltaic panels. In this mode, the UPS takes on the role of UPS, protecting your appliances from grid outages.

The UPS protects computers and audio-visual equipment, or any other sensitive load, by supplying a stable current. It guarantees uninterrupted power supply to consumers.
The electricity produced by these pure sinusoidal inverters is stable.

You can protect one or more rooms in your home via the distribution box.

Off-grid operation

In this configuration, the inverter uses the panels to power consumers and charge batteries when the sun is shining. The inverter draws power from the batteries to ensure energy distribution at night.
A generator can be added to the inverter's AC input to provide emergency power.

Hybrid operation

The inverter takes power from the grid only if the batteries are empty and solar production was not sufficient to cover consumption.

The inverter never feeds power back into the grid.

As with the "back-up" mode, you can connect only part of your domestic installation to the inverter. Consumers connected to the inverter will still be powered, even in the event of a mains power cut. What's more, they'll be supplied free of charge!

Pure Sine converter

The WKS Evo MAX II TWIN is a pure sinusoidal voltage inverter that reproduces a power quality similar to that of the public grid. It can be used to power all types of appliance.

Maximum load current 150A

The WKS Evo MAX II TWIN integrates two MPPT charge controllers, each delivering a maximum charge current of 150A.

MPPT controller

The WKS Evo MAX II TWIN also features MPPT (Maximum Power Point Tracking) technology, i.e. it constantly searches for the maximum power point, enabling maximum performance from the photovoltaic panels. As well as providing a boost in power to an installation, it optimizes battery charging and extends their lifespan. It scans the panel voltage to find the maximum power output point, and is able to adapt the voltage supplied by the panel to match the voltage the battery can receive.

Display

Description of icon function

Indicates that the unit is connected to the mains

Indicates that the unit is connected to the photovoltaic panel

Indicates that the load is supplied by the mains

Indicates that the mains charger circuit is operating

Indicates that the solar charger circuit is working

Indicates that the DC/AC inverter circuit is working

Indicates that the unit alarm is deactivated

Time display page

Software

Wi-Fi: The application must be connected to i-Solar, not to WatchPower.
