    WKS Evo MAX II 8kVA 48V hybrid inverter

    WKS Evo MAX II 10kVA 48V hybrid inverter

    $1,512.6
    WKS-EVO-MAX-II
    0768563819865

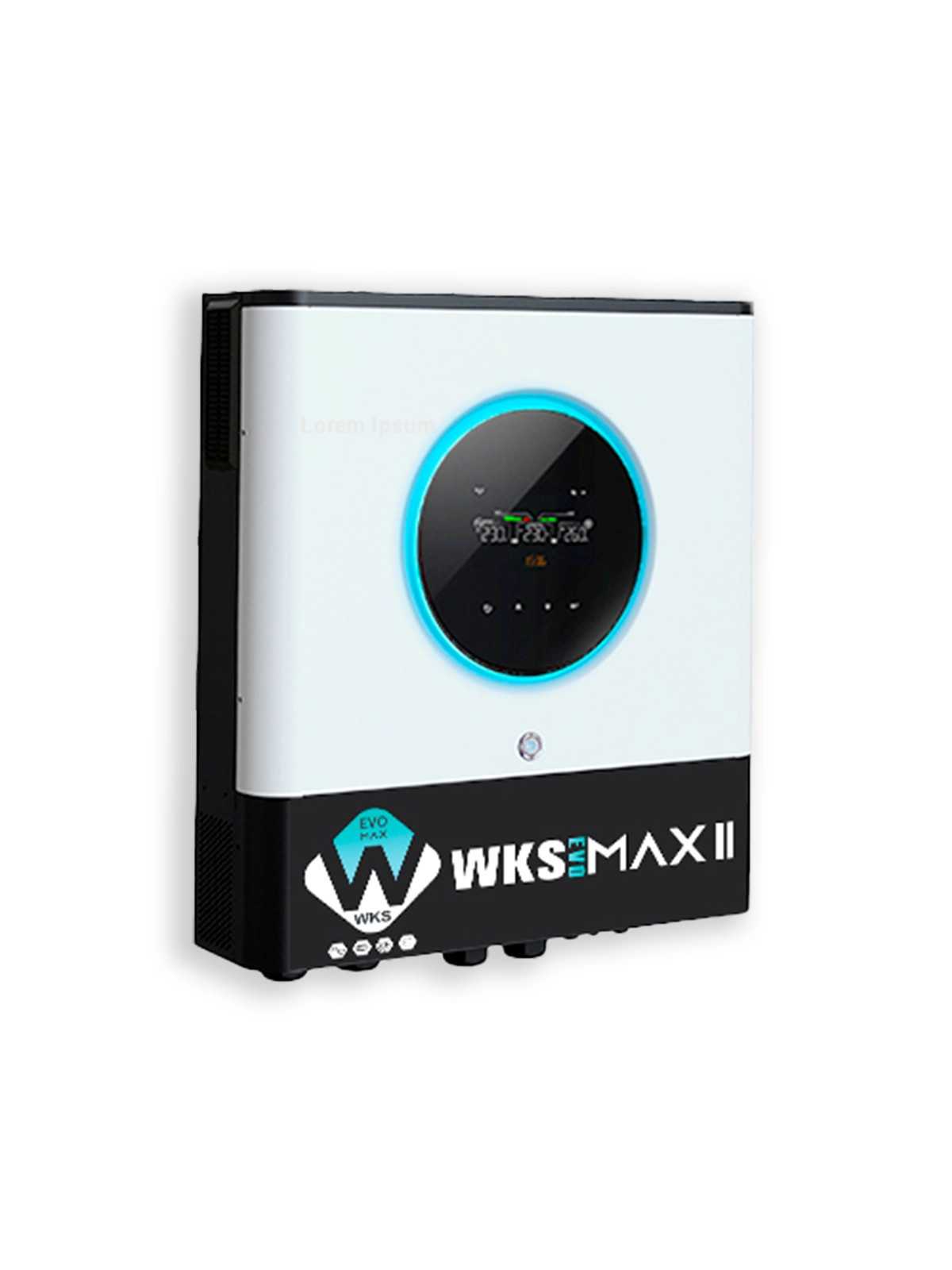

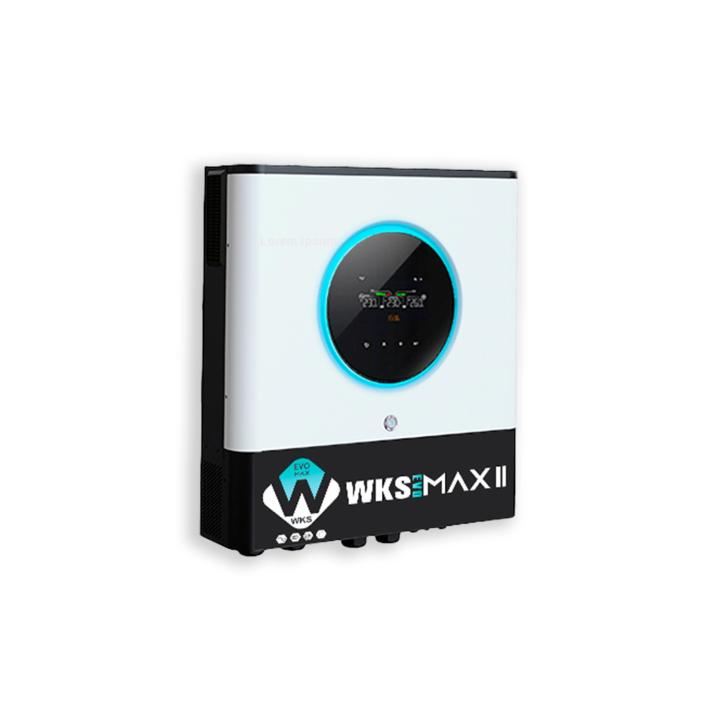

    WKS Evo MAX II 10kVA : Your intelligent power plant

    Discover the WKS Evo MAX II 10kVA hybrid inverter, the ideal solution for producing and storing your own solar energy. Thanks to its exceptional performance and flexibility, it offers you a degree of energy autonomy and enables you to reduce your electricity bill considerably.

    Why choose WKS Evo MAX II?

    • Maximum power: Power all your devices with its 10,000W output.
    • Unmatched flexibility: Tailor your system to your needs.
    • Unwavering reliability: Continuous energy supply, even during outages.
    • Ease of use: Intuitive control via touch screen and app.

    Key benefits:

    • MPPT technology: Maximizes the solar energy produced by your panels.
    • UPS function: Ensures continuous power to essential devices.
    • Intuitive touch screen: Monitor and control your installation in real-time.
    • Connectivity: Integrated Wi-Fi for remote management via an app.

    Ideal for:

    • Single-family homes
    • Vacation residences
    • Rural and remote areas
    • Professionals looking to optimize their energy consumption

    Ready to achieve energy independence?
    Contact us to discuss your project and receive personalized advice.

    Out of stock: next restock scheduled for January 20, 2025

    Sorry, there are no more items in stock.

    WKS Evo MAX II 10kVA 48V...

    $1,512.6

    Onduleur WKS EVO MAX II 10kVA 48V

    WKS Evo MAX II hybrid solar inverter: 10kVA of power for total autonome


    - Status indication with RGB lights
    - Integrated Wi-Fi for mobile monitoring (Android/iOS app available)
    - Supports USB On-the-Go function.
    - Dedicated communication port for BMS (RS485, CAN-BUS or RS232).
    - Replaceable fan for easy maintenance.
    - Battery-independent design
    - Configurable timer and priority of use for AC/PV outputs.
    - Selectable high-power charging current
    - Selectable input voltage range for household appliances and personal computers.
    - Compatible with mains or generator input.
    - Integrated dust kit
    - Integrated DC output for DC fan, LED bulb, router, etc.
    - Parallel operation with up to 6 units
    - Two outputs available as configurable output or generator input.


    The powerful WKS Evo MAX II is equipped with a 150 A MPPT solar charger, a newly upgraded 5" color LCD display and a touch button. It can also access and store data in the inverter for easy monitoring of inverter operating status.


    Three RGB light effects

    - Circular scrolling: Rapid scrolling of the color of your choice in a continuous circular movement.

    - Wheel: Illuminated with twinkling lights in the color of your choice.

    - Chasing: Light up and down the circle in the color of your choice.


    Communication Wifi (WatchPower)Wifi communication (WatchPower)


    Set up your inverter and system, check your output and save your data from your smartphone!
    The WKS Evo's Wifi app gives you easy access to all your system's information.
    An example of the app's available pages is shown in the product images.


    The new-generation inverter

    Enjoy continuous, reliable power, whether the grid is available or not. The energy produced by WKS inverters is directed and used intelligently for optimum performance. All priorities can be defined by the user: use of batteries, solar or AC source (grid or generator). In self-consumption, the energy produced by your panels fluctuates and does not correspond to consumption. The WKS inverter stores part of the solar output in the batteries for later use during the evening or night. On isolated sites, the WKS inverter can be connected to a generator to charge the batteries if they are empty and solar production is insufficient. This inverter is capable of working with several different energy sources, such as :

    • public grid
    • photovoltaic panels
    • thermal generator
    • batteries

    Microprocessor-based management directs energy according to production, consumption needs and battery state-of-charge. Real-time monitoring can be carried out locally or remotely. The WKS inverter does not feed power back into the grid.


    3 operating modes

    1) Solar priority

    2) Emergency

    3) Solar and grid

    • Adjustment of battery charging current
    • Possibility of limiting or prohibiting charging via the grid
    • Input voltage from 90-450V (useful for fluctuating grids)
    • Economy mode (limits self-consumption)
    • Fine-tuning of battery charging characteristics
    • Automatic restart in the event of overload and overtemperature
    • Possibility of limiting battery discharge to preserve battery life
    • Return voltage in battery mode configurable
    • Overload bypass (allows switchover to grid in the event of peak consumption)
    • Low battery safety device

    Use in back-up mode

    Utilisation en mode back-up

    The UPS can be used as a back-up without photovoltaic panels. In this mode, the UPS takes on the role of UPS, protecting your appliances from grid outages.

    The UPS protects computers and audio-visual equipment, or any other sensitive load, by supplying a stable current. It guarantees uninterrupted power supply to consumers.
    The electricity produced by these pure sinusoidal inverters is stable.

    You can protect one or more rooms in your home via the distribution box.


    Utilisation en mode Off-grid (hors réseau)

    Off-grid operation

    In this configuration, the inverter uses the panels to power consumers and charge batteries when the sun is shining. The inverter draws power from the batteries to ensure energy distribution at night.
    A generator can be added to the inverter's AC input to provide emergency power.


    Hybrid operation

    Utilisation en mode hybride

    The inverter takes power from the grid only if the batteries are empty and solar production was not sufficient to cover consumption.

    The inverter never feeds power back into the grid.

    As with the "back-up" mode, you can connect only part of your domestic installation to the inverter. Consumers connected to the inverter will still be powered, even in the event of a mains power cut. What's more, they'll be supplied free of charge!


    Convertisseur Pure Sinus

    Pure Sine converter

    The WKS Evo MAX II is a pure sinusoidal voltage inverter that reproduces a power quality similar to that of the public grid. It can be used to power all types of appliance.


    Maximum load current 150A

    The WKS Evo MAX II integrates two MPPT charge controllers, each delivering a maximum charge current of 150A.


    MPPT controller

    Régulateur MPPT

    The WKS Evo MAX II also features MPPT (Maximum Power Point Tracking) technology, i.e. it constantly searches for the maximum power point, enabling maximum performance from photovoltaic panels. As well as providing a boost in power to an installation, it optimizes battery charging and extends their lifespan. It scans the panel voltage to find the maximum power output point, and is able to adapt the voltage supplied by the panel to match the voltage the battery can receive.


    logiciel

    Software

    WatchPower 1.17SP1



    WatchPower 1.17SP3


    Features

    MODELAxpert MAX II 10000
    Rated inverter power10000VA/10000W
    PARALLEL CAPACITYYES,
    6 units
    INPUT
    Voltage230 VAC
    Selectable voltage range170-280 VAC (for computers)
    Frequency range90-280 VAC (for household appliances)
    AC voltage regulation (Mode Batt.)230 VAC ± 5%.
    S
    urge power20000VA
    Efficiency (peak)93%
    Transfer time
    15 ms (for personal computers),
    20 ms (for household appliances)
    Pure sine wave
    Vacuum power consumption<
    0W
    DC voltage12 VDC ± 5%, 100W
    Dual outputsYes
    BATTERY
    Battery voltage48 VDC
    Floating charge voltage54 VDC
    Overload protection66 VDC
    SOLAR CHARGER &
    AC CHARGER
    Type of solar charger
    Maximum power of photovoltaic panel10000W (5000W x 2)
    MPPT range at operating voltage90 ~ 450 VDC
    Maximum voltage
    open circuit of photovoltaic panel500 VDC
    Maximum solar load current150A
    Maximum AC load current150A
    Maximum load current150A
    PHYSICS
    Dimensions,D X W X H (mm)158.4 x 503.6 x 530.8
    Net weight (kgs)20
    Communication interfaceUSB/RS232/RS485/Wifi/Dry contact
    OPERATING ENVIRONMENT
    Humidity5% to 95% relative humidity (non-condensing)
    Operating temperature
    10℃ to 50℃
    Storage temperature
    to 60℃
    STANDARD
    Conformity SafetyCE
    Product specifications are subject to change without notice
    WKS-EVO-MAX-II

    Data sheet

    Inverter power
    10000 VA
    Charging power
    150A
    Voltage
    48V
    Phase
    Monophasé

    Specific References

    New

    Download

    FicheT Max II 10 - FR

    Download (383.97KB)

    Manuel MAX EVO II 10-FR

    Download (6.7MB)

    Manual MAX EVO II 10-EN

    Download (8.04MB)
