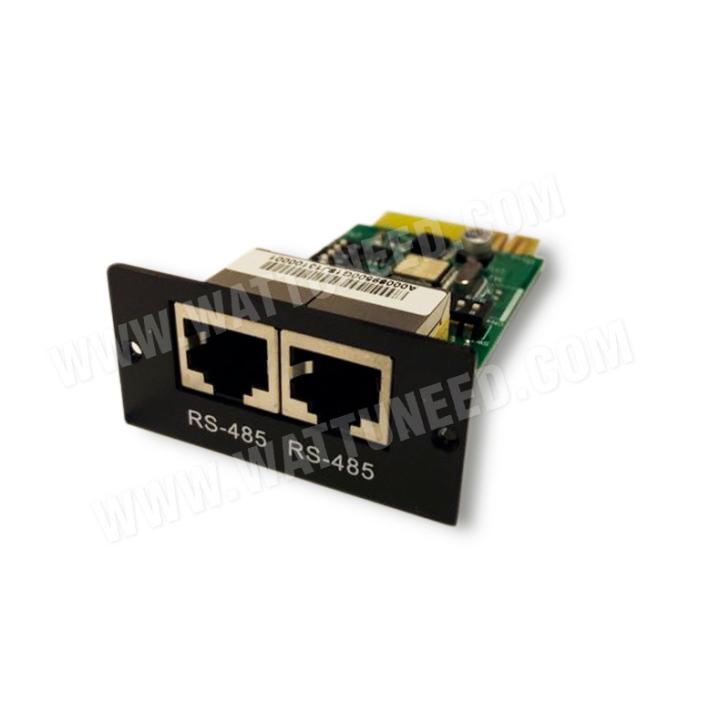

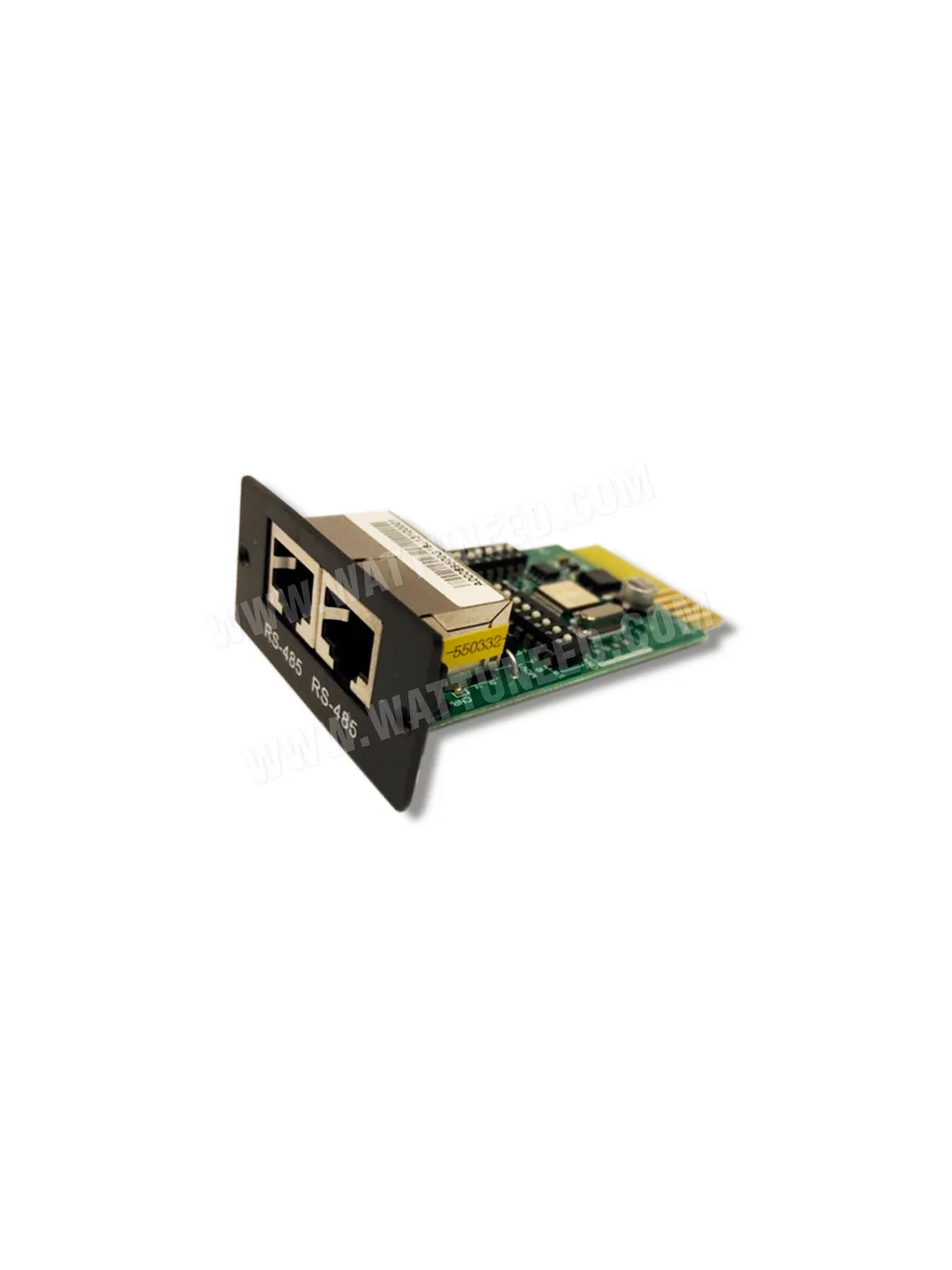

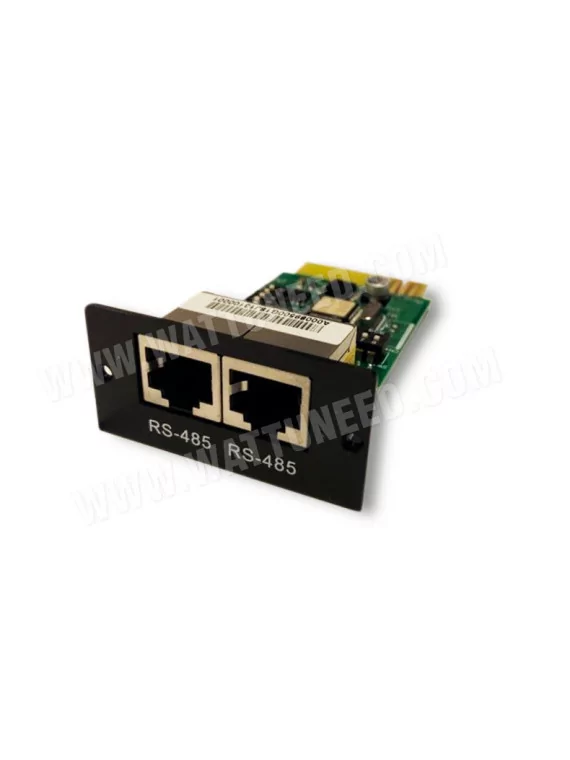

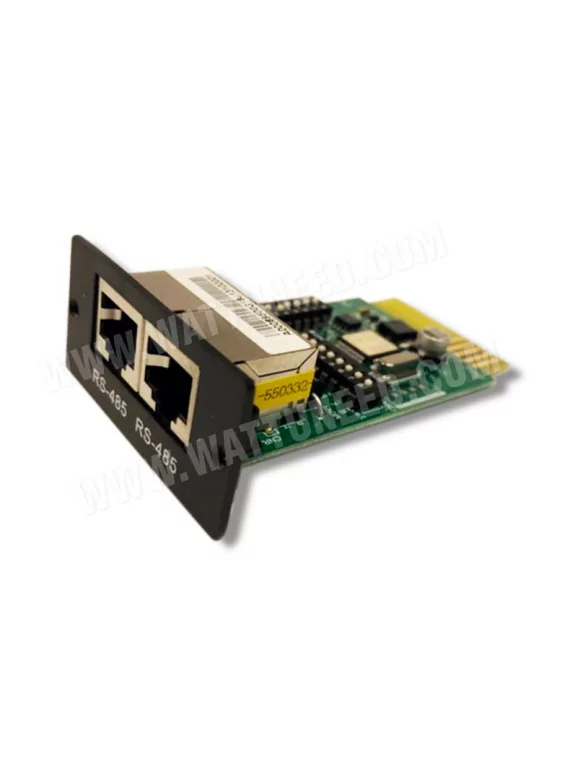

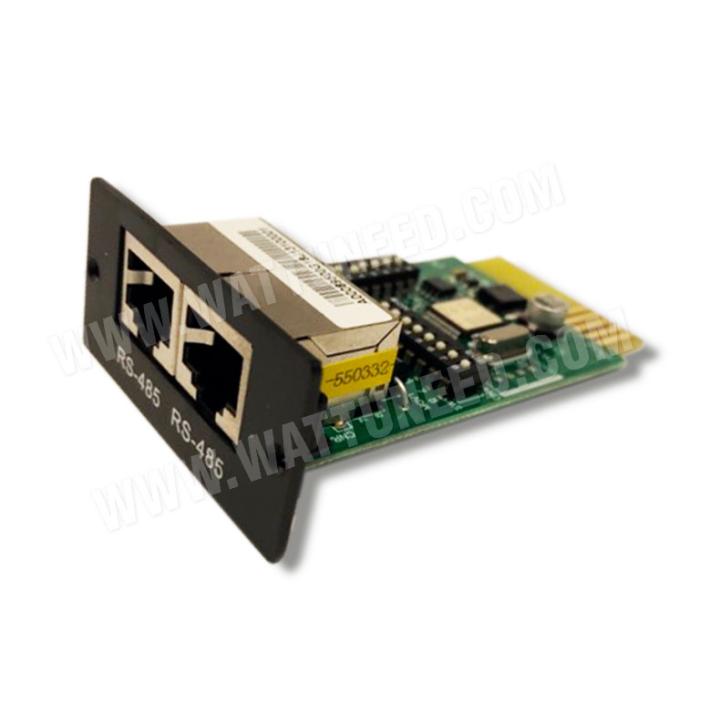

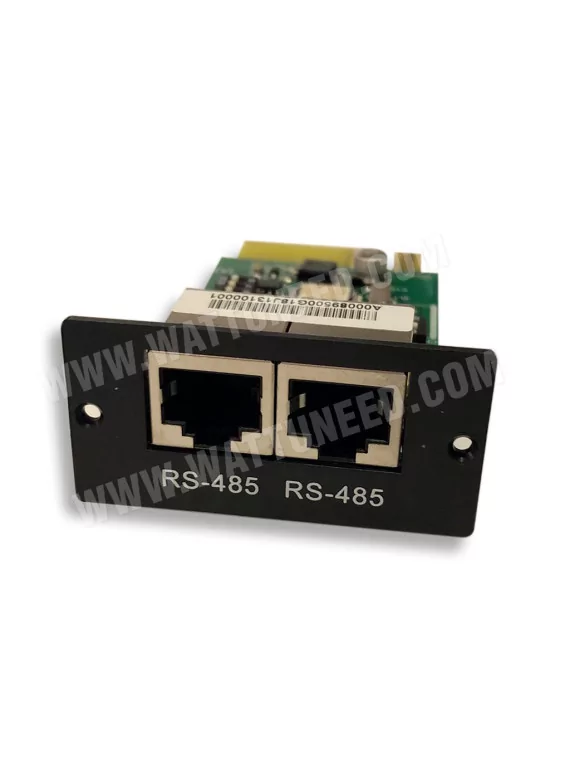

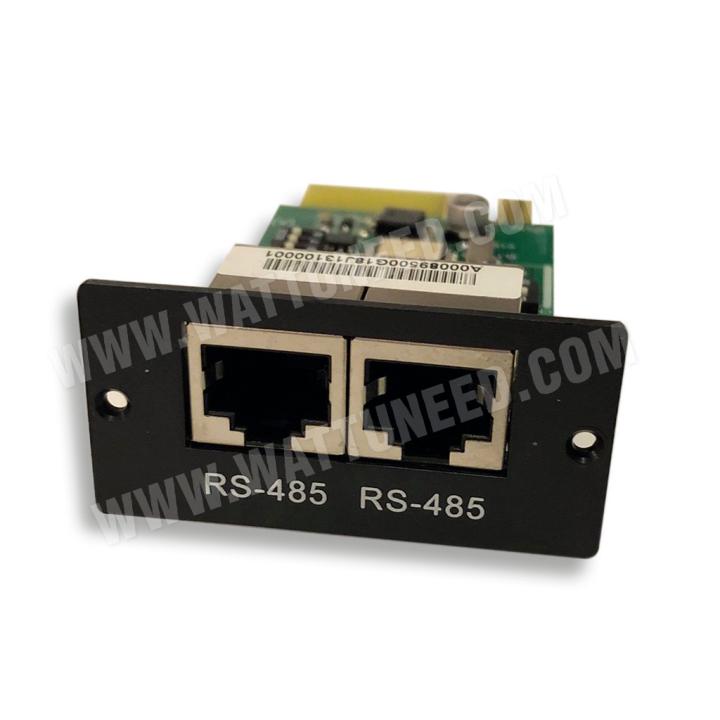

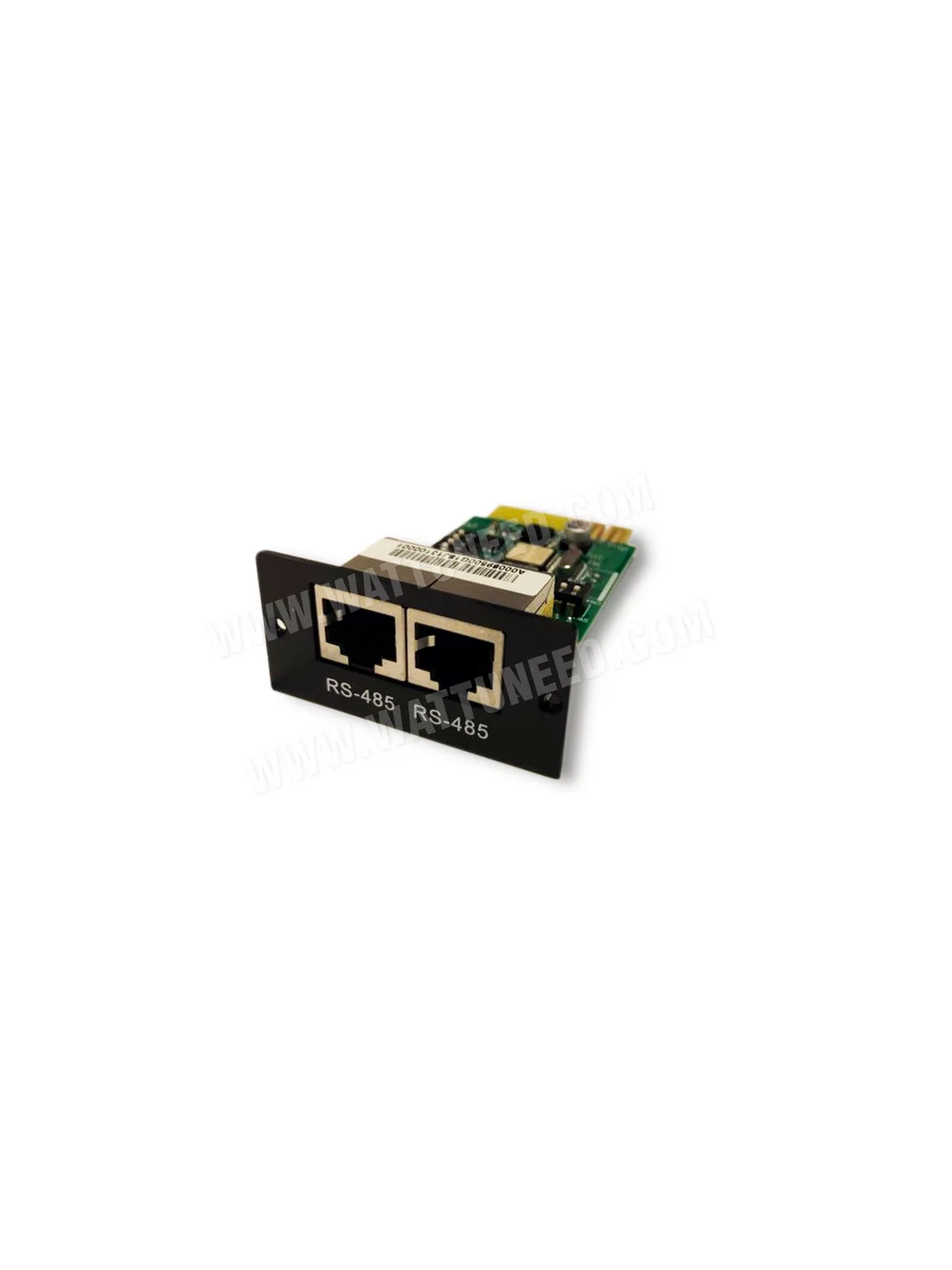

    RS485 card for hybrid inlefonor

    $83.7
    RS845-1
    0712971139916

    The RS485 card allows communication between the inunr and the lithium battery

    Map applicable on hybrid inverters: 3KW, 4KW, 5KW and 5.5KW and 10KW three-phase hybrid inverter

    RS485 card for hybrid...

    $83.7

    Map RS485

    Map RS485






    If the inundor is integrated into a smart connector, it can work with an RS485 card by simply inserting the RS485 card. It provides communication between the inverter and the lithium battery.


    Here are the detailed features

    Here are the detailed features





    • Thanks to the communication between the inundor and the lithium battery, it is possible to reconfigure the charge voltage, the charge current, the voltage of the battery discharge and a maximum voltage discharge current, depending on the parameters of the lithium battery.
    • Ask the device to start or stop charging depending on the condition of the lithium battery.
    • Ask the unit to start or stop the discharge depending on the condition of the lithium battery.

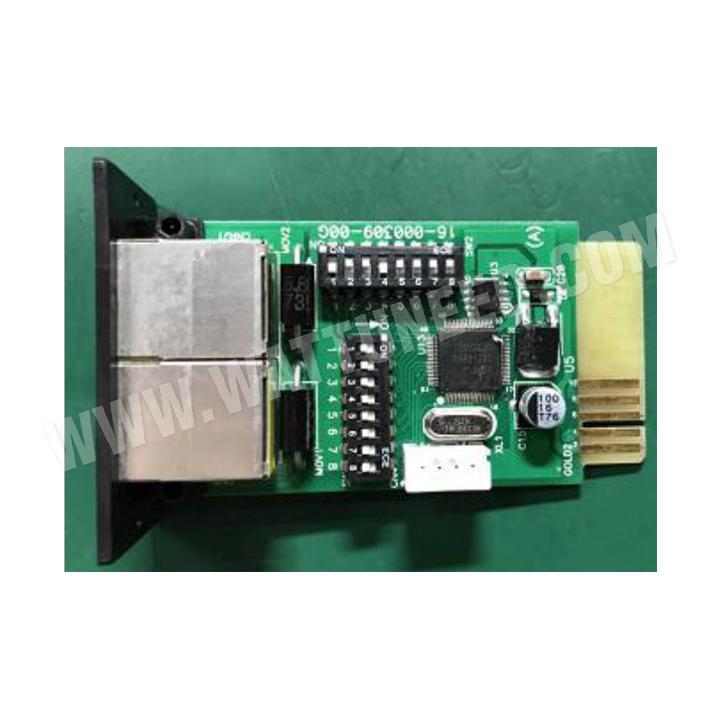

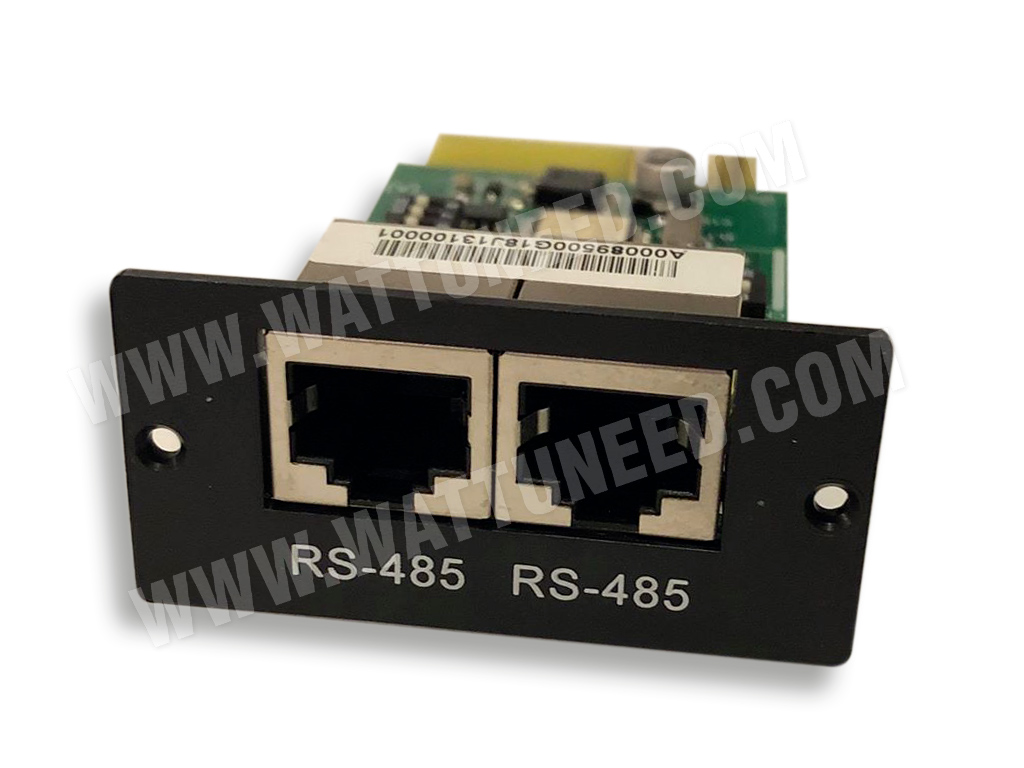

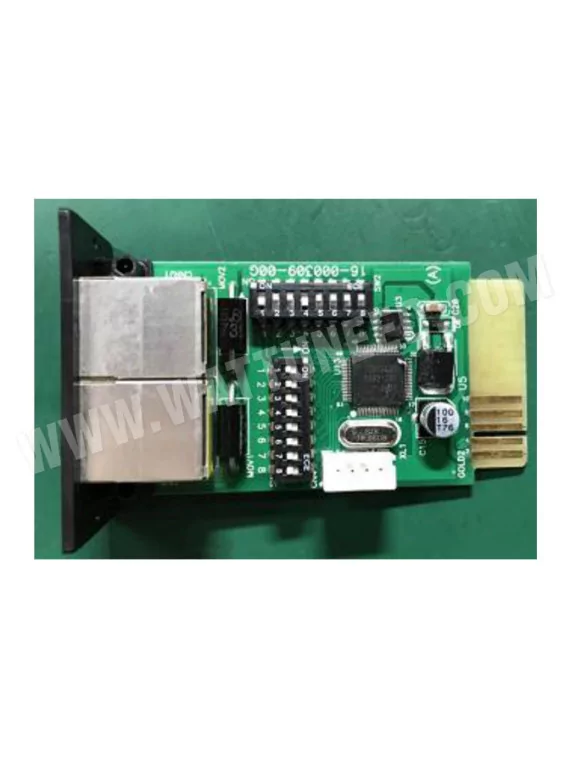

    Map Overview

    Map Overview

    • 1: Port RS-485
    • 2: Golden finger (RS-232 port)
    • 3: Resistance switch
    • 4: Communication switch

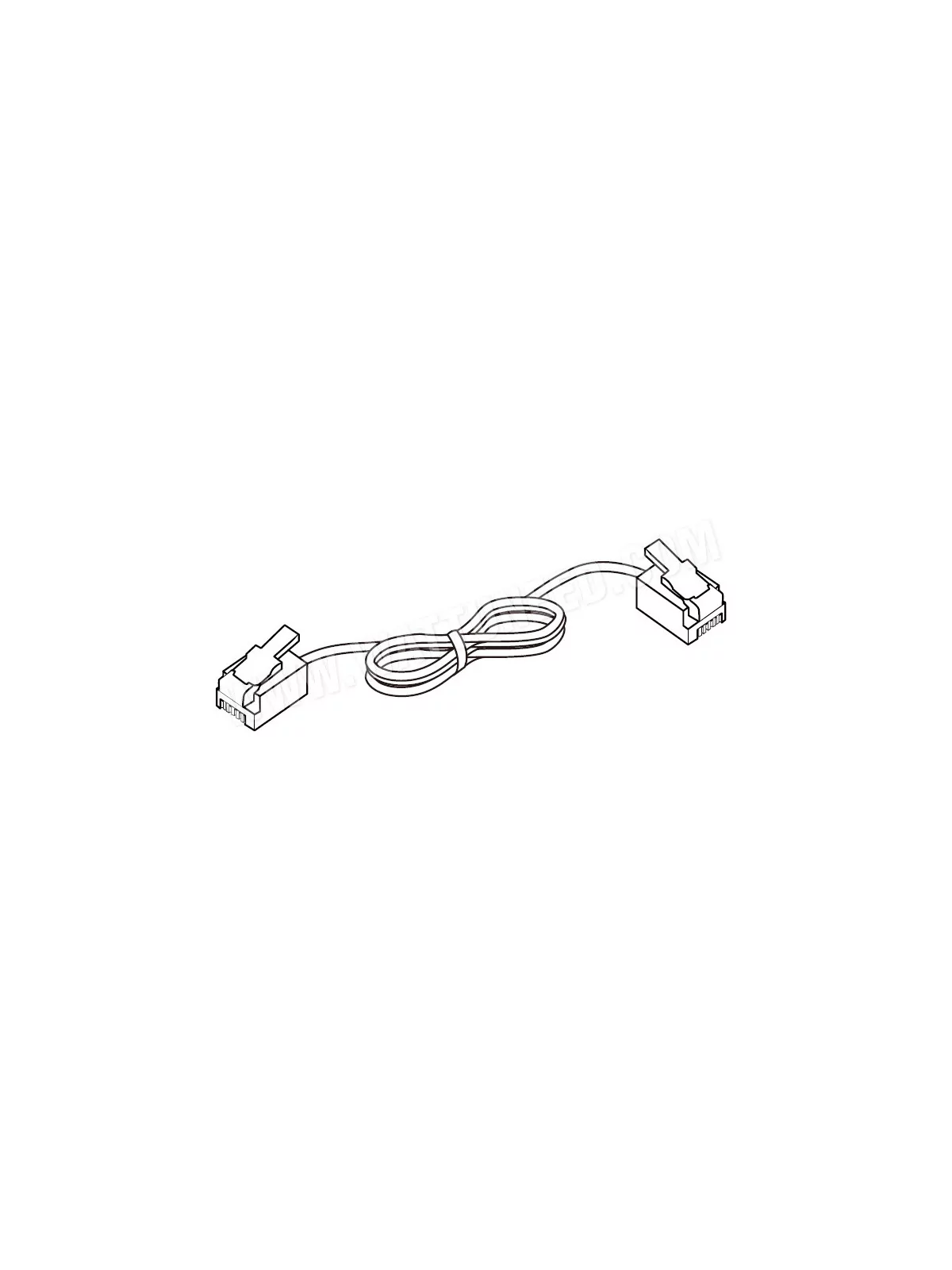

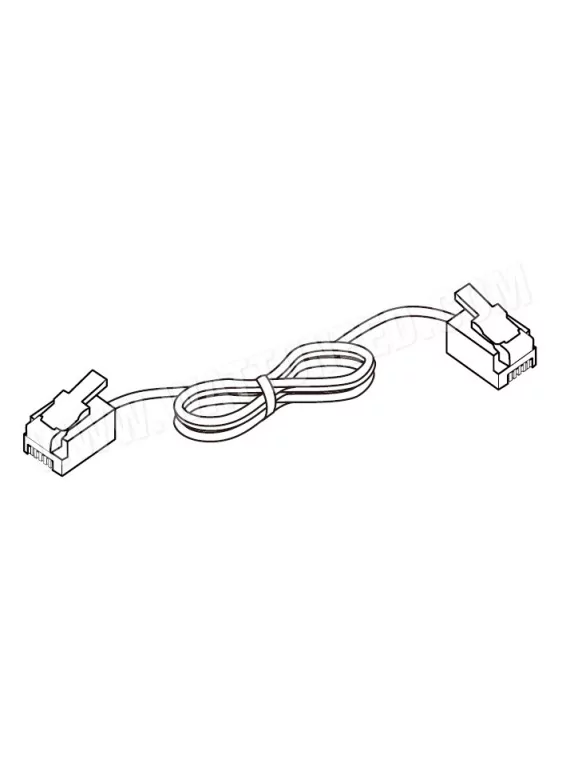

     Cable RJ45


    Cable RJ45



    Item contained for installation, to connect the RS485 card and the lithium battery.

    Connection Cable RJ45

    RS845-1

    Specific References

    New

    Download

    Manel carte RS485

    Download (618.28KB)

    Datasheet card BMS RS485(EN)

    Download (2.05MB)

    Modbus manual - FR

    Download (1.97MB)

    Modbus manual - EN

    Download (626.18KB)
