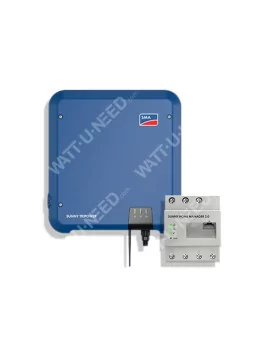

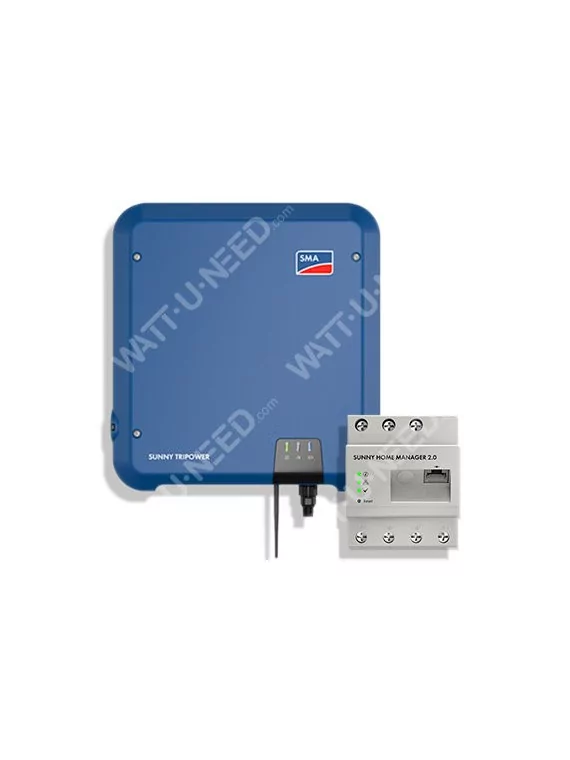

SMA Sunny Tripower STP 8.0 TL INT BLUE - Zero Injection

Three-phase inverter SMA Sunny Tripower 8 kVA TL INT BLUE STP8.0-3AV-40 - Zero Injection

€3,149.73

Reference: SMA-Blue-8.0-TL-INT

EAN13: 0768563816253

SMA Sunny Tripower three-phase inverter - model: 8.0TL

The Sunny Tripower 8.0-10.0 boosts the performance of residential and small commercial photovoltaic systems. This ultra-high-performance inverter also offers users absolute convenience. Thanks to integrated services and shade management solutions, it meets every challenge, whatever the roof. The Sunny Tripower guarantees maximum energy production and low electricity bills.

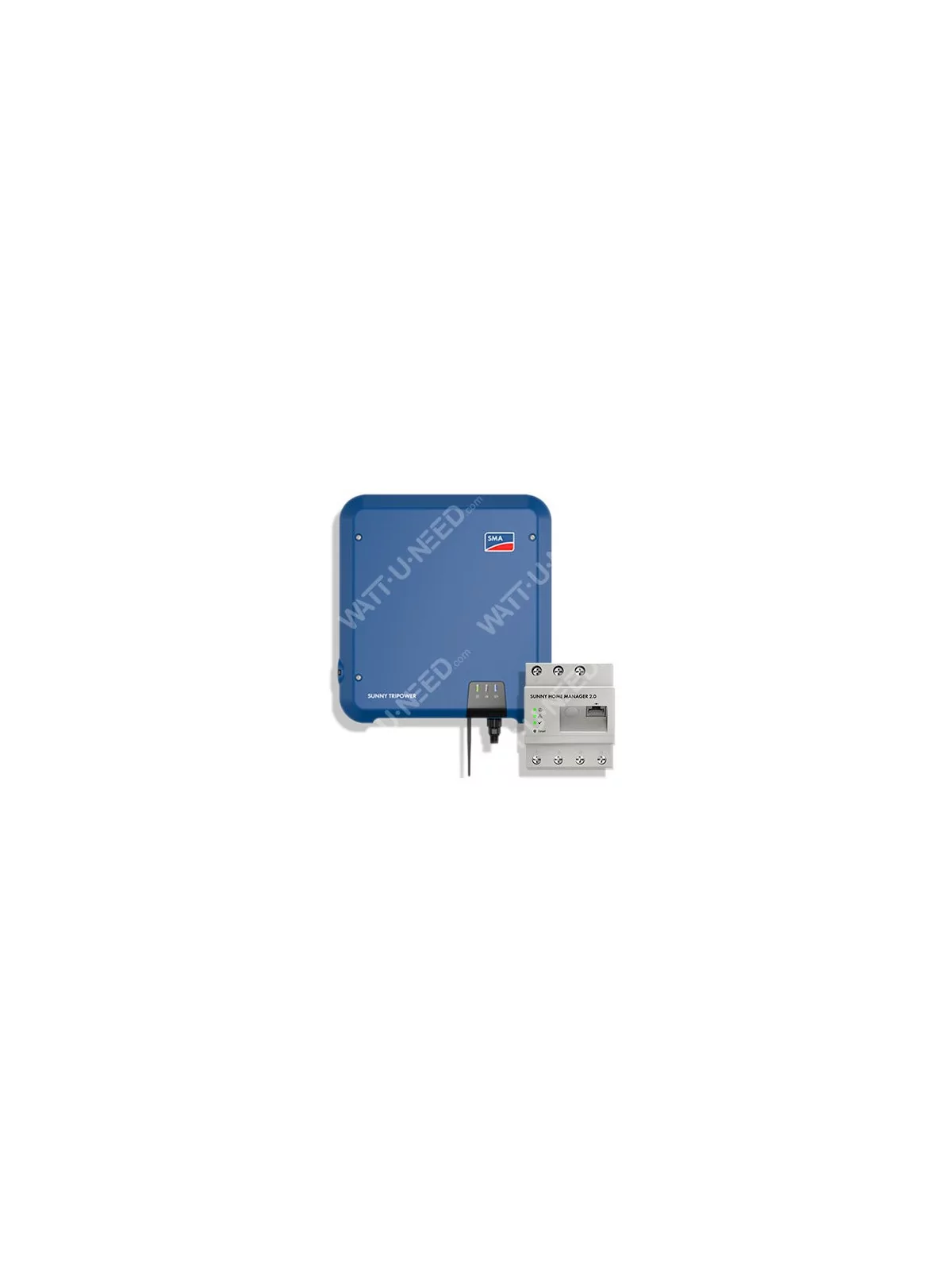

+ SMA Sunny Home Manager 2.0, which blocks the re-injection of surplus production into the public grid.

100% secure payments

Customers who bought this product also bought:

Schneider single-phase 25A circuit breaker

€14.88

Three-phase inverter SMA Sunny Tripower 8 kVA TL INT BLUE STP8.0-3AV-40 - Zero Injection

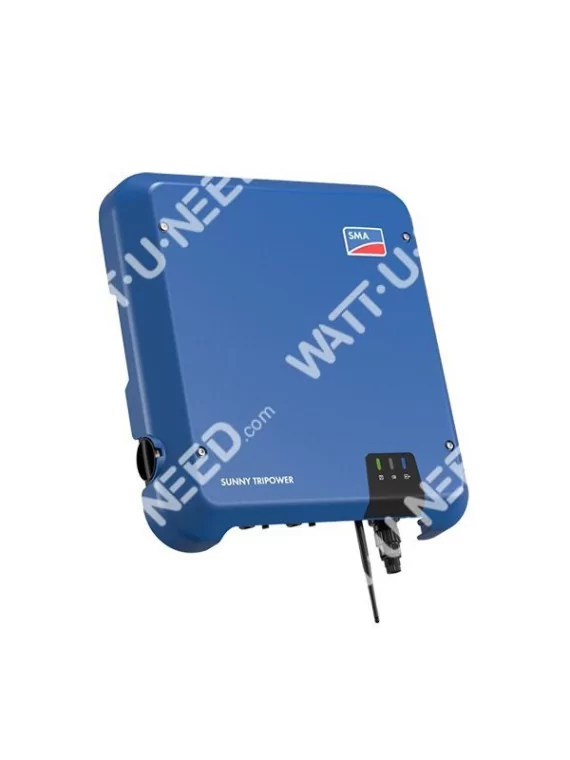

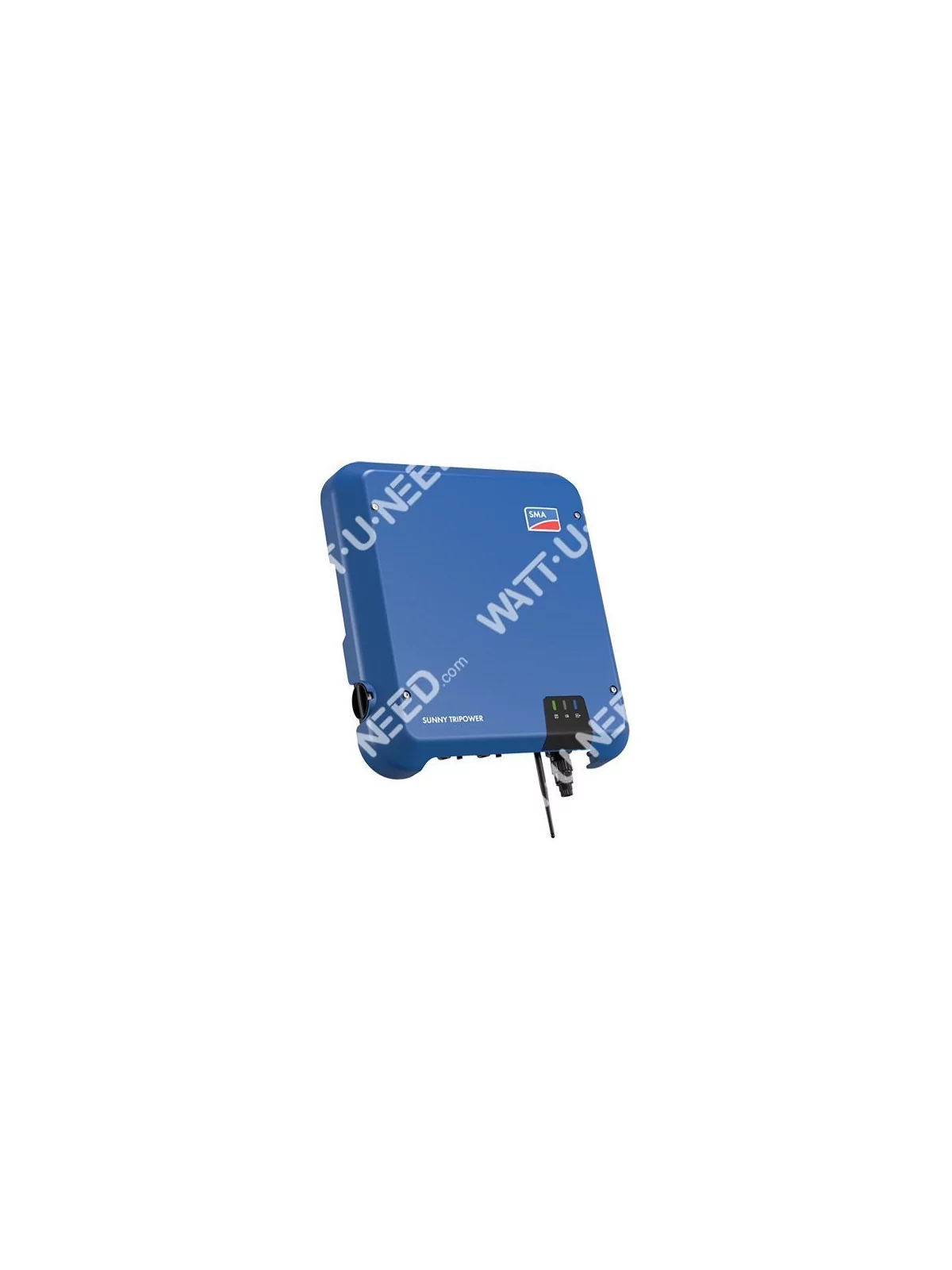

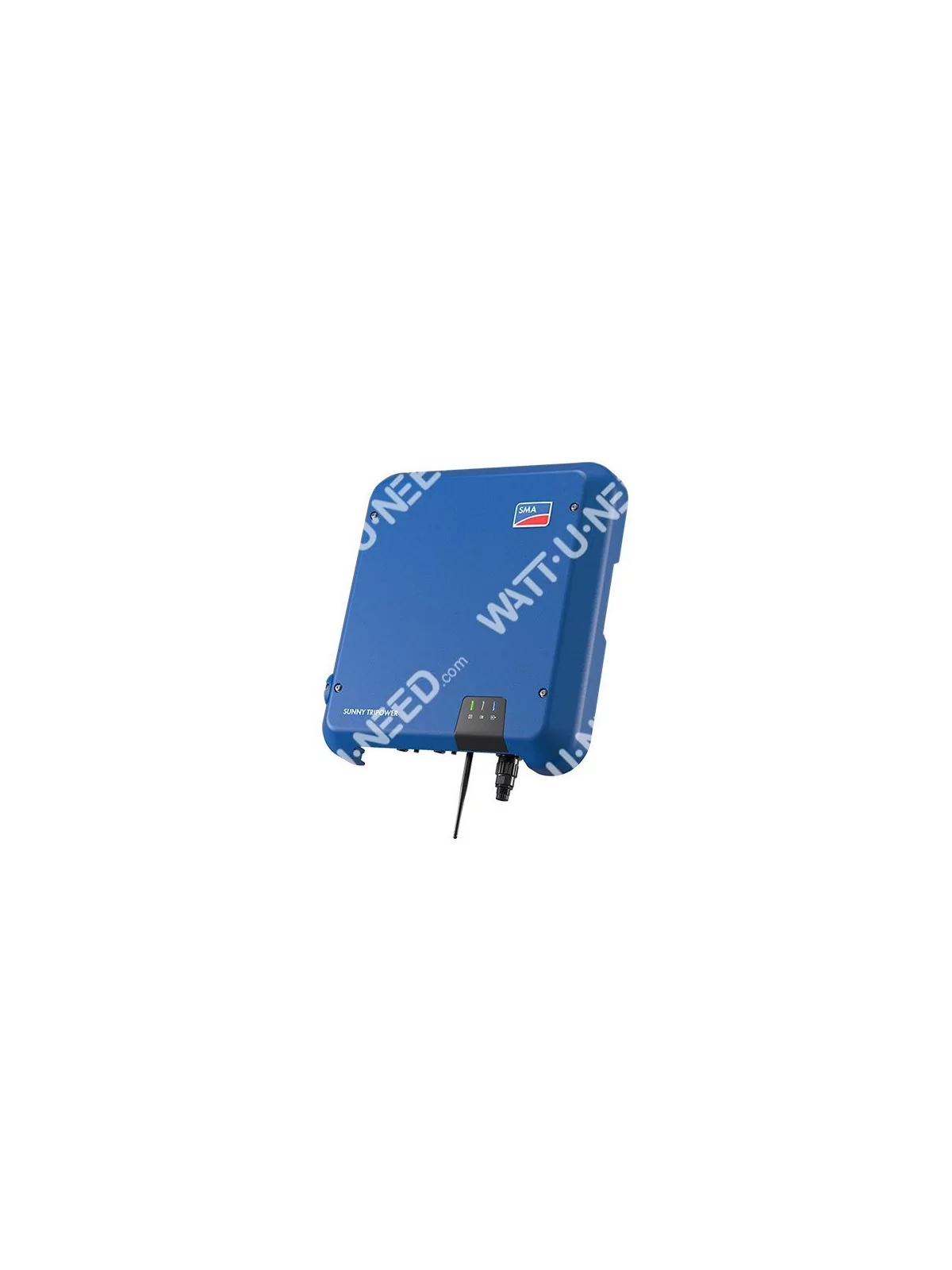

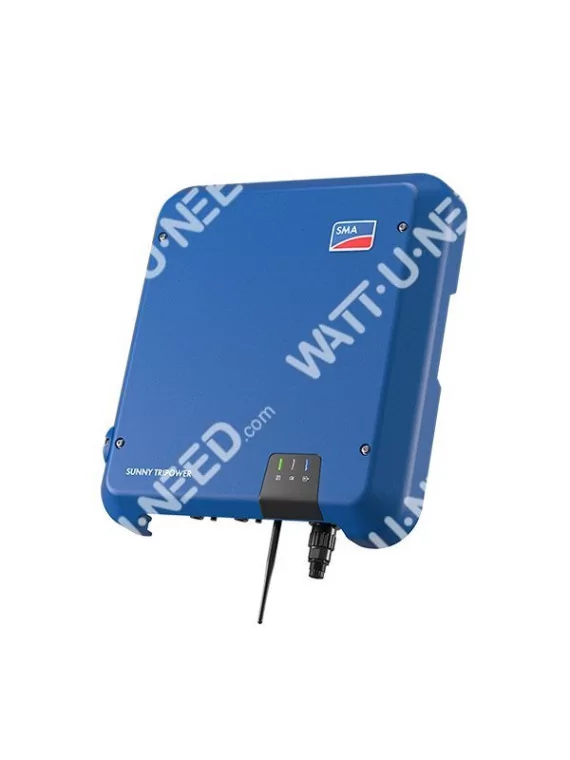

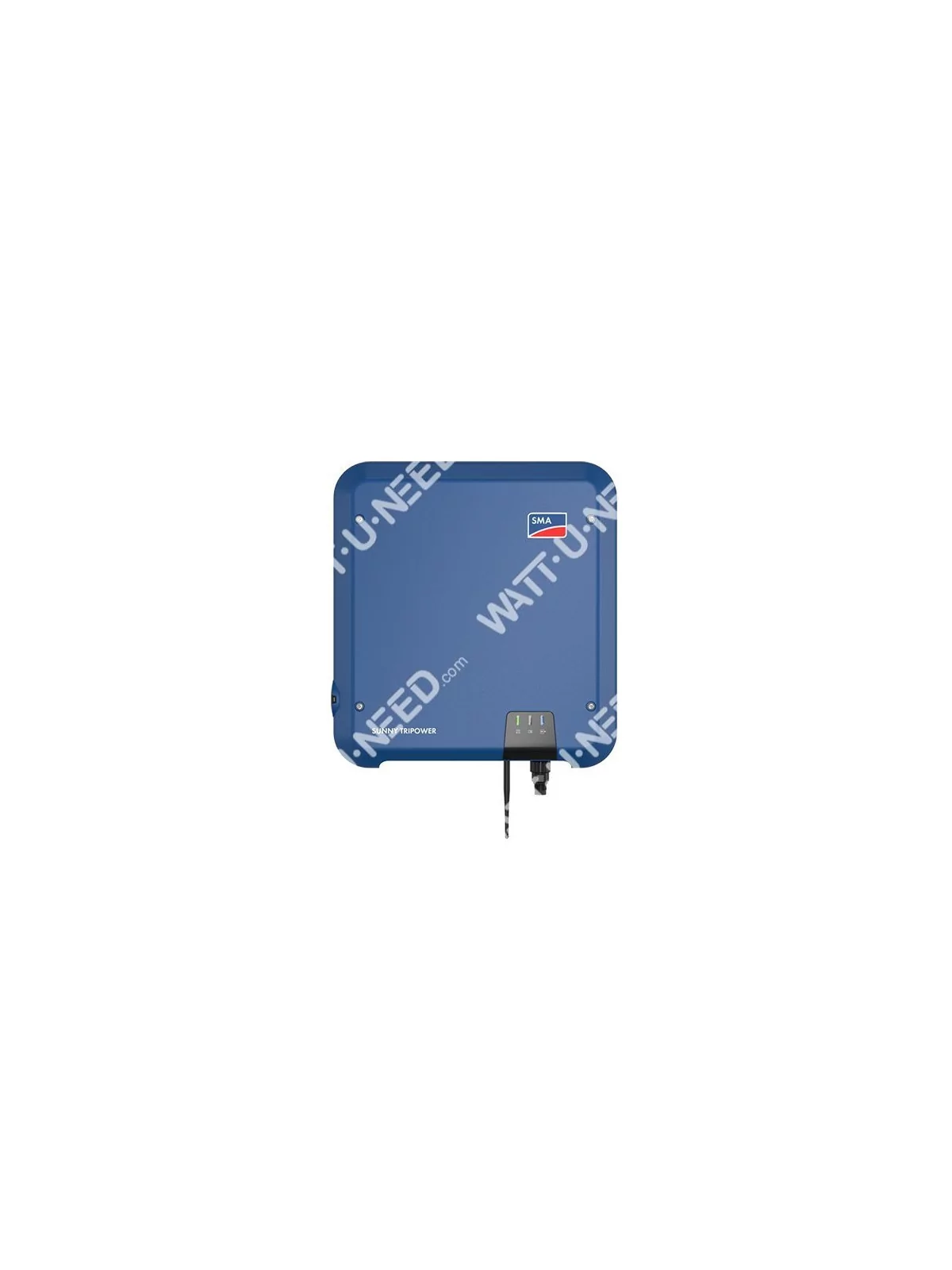

SMA Sunny tripower 8.0

The new Sunny Tripower 8.0-10.0 guarantees maximum energy production for households. Its compact design makes installation quick and easy. And to meet the specific requirements of rooftop installations, TS4-R optimizers can be added easily and at your convenience, for example in the event of shading. Compatible with the latest communication standards, the inverter can be reliably equipped with SMA's intelligent energy management and storage solutions at any time.

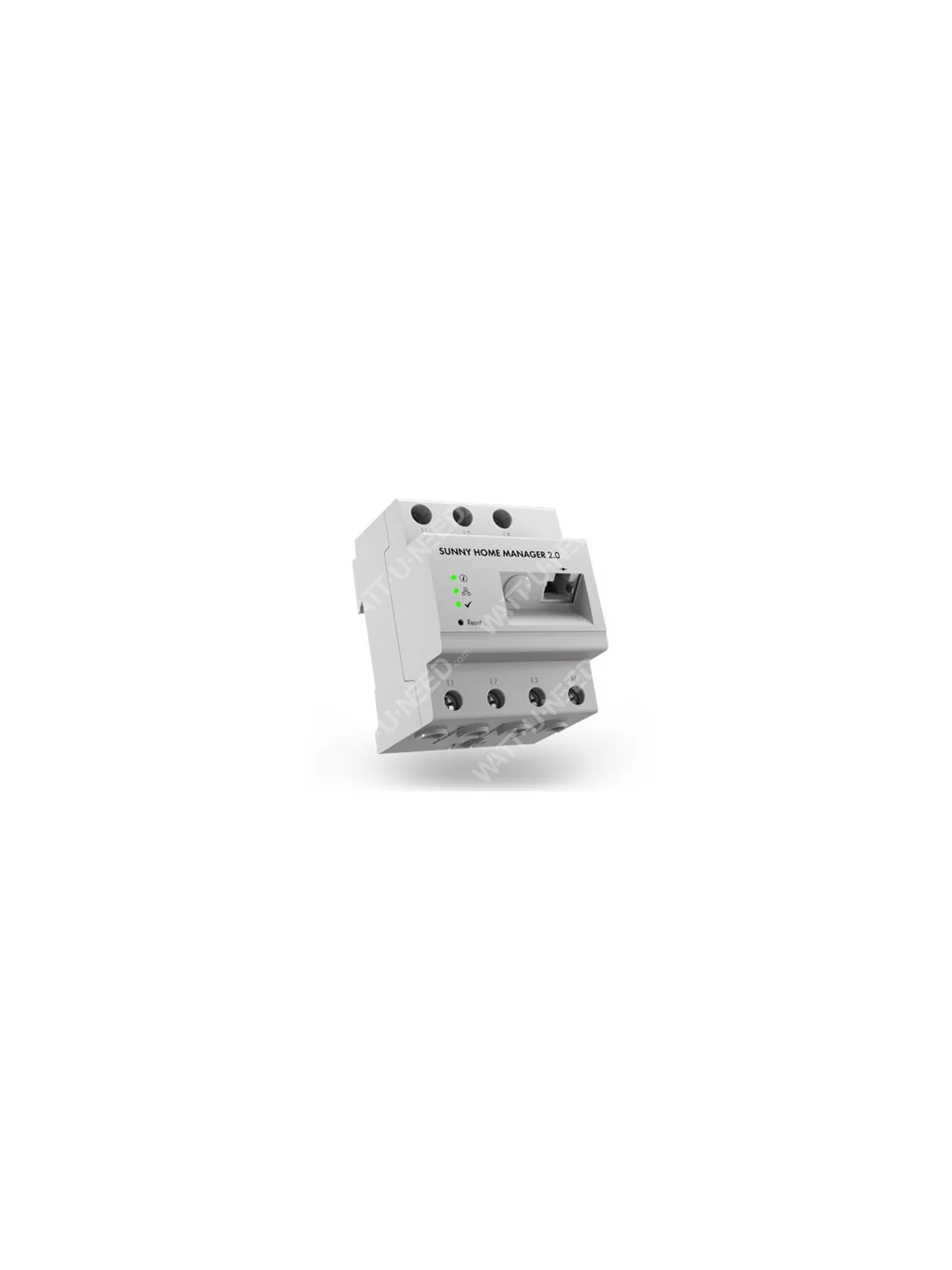

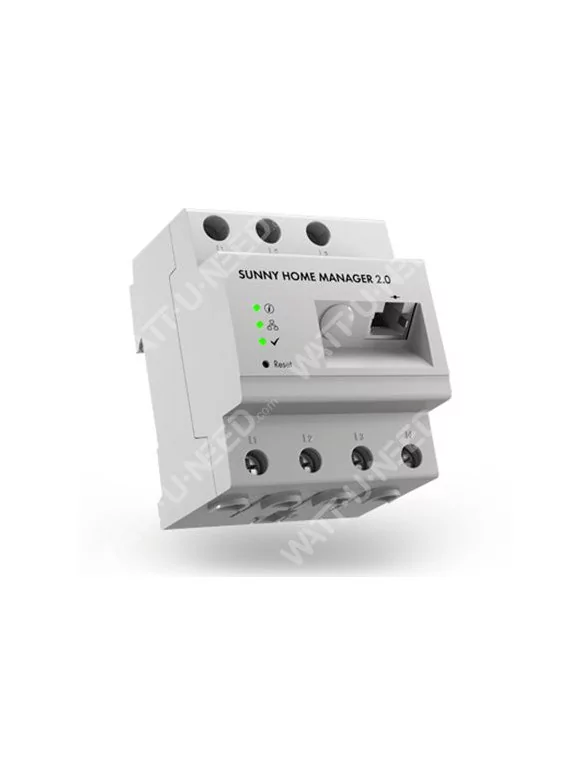

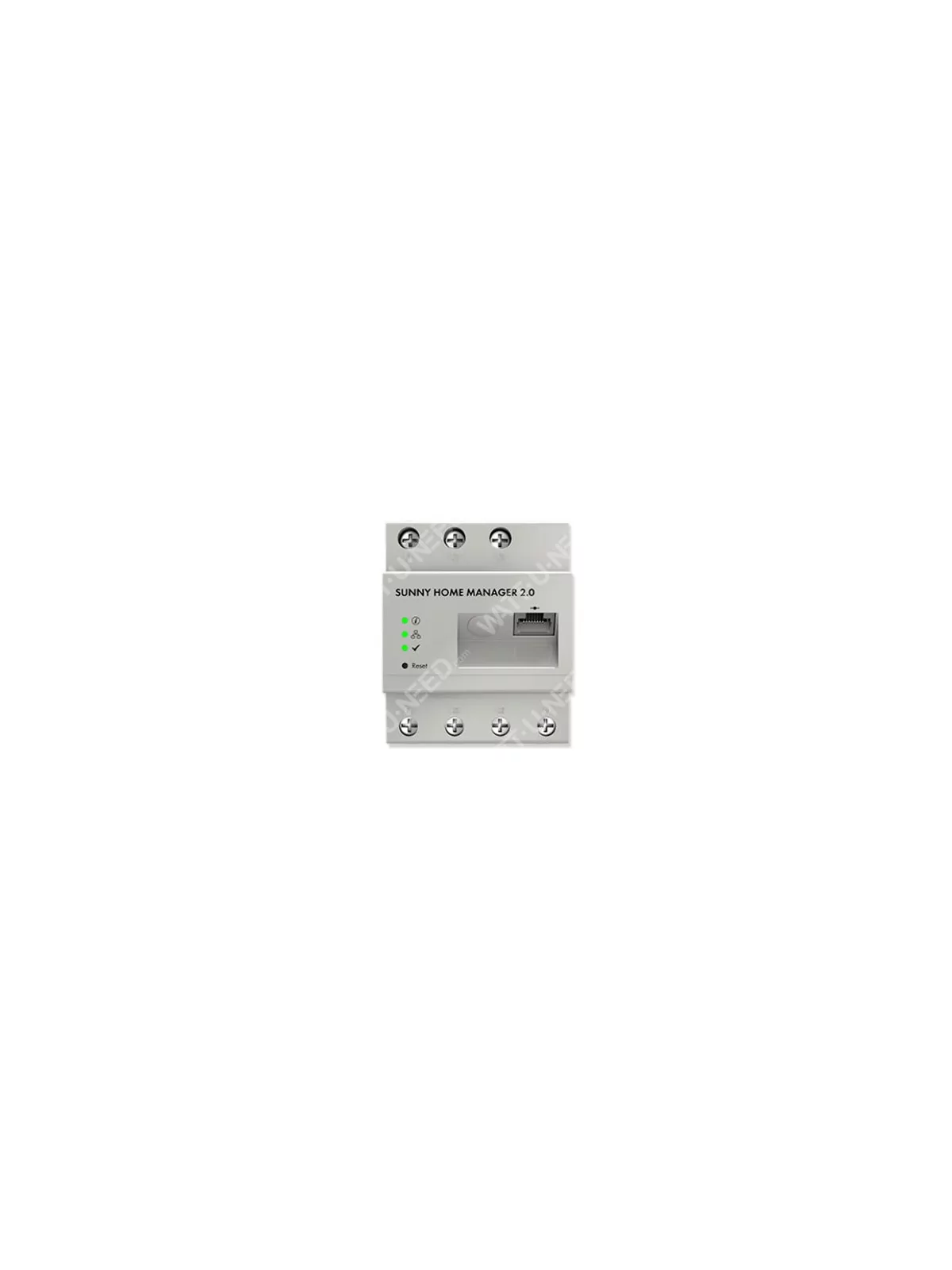

SMA Sunny Home Manager 2.0

Sunny Home Manager 2.0 monitors all energy flows in the home, automatically identifies potential savings and enables efficient use of solar energy. The new Sunny Home Manager 2.0 will combine the functions of the Sunny Home Manager and the SMA Energy Meter in one device, for even simpler and more economical intelligent energy management.

Quick and easy installation

With its low weight, this three-phase inverter is quick and compact to install.

Production intelligente d’électricité solaire

Intelligent solar power generation

The Sunny Tripower is unique: tried-and-tested features such as OptiTrac Global Peak are now accompanied by integrated TS4-R communication for panel optimization. Shadows on the photovoltaic panel are no longer a problem. In the event of light shading, the integrated OptiTrac Global Peak shading management system ensures maximum production. In the case of more severe shading or complex roofs, TS4-R optimizers, which are simple and selective to install, ensure optimum production.

Expandable at any time

With Sunny Tripower, photovoltaic system owners and installers always have a state-of-the-art solution at their disposal. Should the household's use of solar power increase, Sunny Tripower systems can be upgraded at any time with SMA's intelligent energy management and storage solutions.

Features

Model

Sunny Tripower 8.0

Sunny Tripower 10.0

Input (DC)

Max. power of photovoltaic generator

15000 Wp

Max. input voltage	1000
V

MPP voltage range

260 V to 800 V

320 V to 800 V

Rated input voltage
V

Min. input voltage / start-up input voltage Max. input current A / input B

125 V / 150 V

Min. input current./ starting input voltage

20 A /12 A

Max. short-circuit current.
input A / input B	30 A / 18 A

Number of independent MPP inputs / strings per MPP input
A:2 ; B:1

Output (AC)

Rated power (for 230 V, 50 Hz)
W	10000 W

Max. apparent AC power
VA	10000 VA

Rated AC voltage
; 220 V / 380 V 3/N/PE; 230 V / 400 V 3/N/PE;
240 V / 415 V

AC voltage range

180 V to 280 V

AC mains frequency / range

50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz

Rated mains frequency / rated mains voltage

50 Hz / 230 V

Maximum output current

12,1A

14.5 A

Power factor at rated power / adjustable phase shift factor
/ 0.8 inductive to 0.8 capacitive

Injection phases / connection phases

Efficiency

Max. efficiency.
/ European efficiency	98.3 % / 97.7 %	98.3 % / 98.0

Protective devices

Input-side disconnection device

●

Earth fault monitoring / mains monitoring

●/●

DC reverse polarity protection / AC short-circuit resistance / galvanic separation Fault current monitoring unit,
sensitive to all currents	●/●/-

Protection class (to IEC 62103) / overvoltage category (to IEC 60664-1) General data
/ III

General data

Dimensions (W / H / D)

460 mm / 497 mm / 176 mm (18,

inches / 19.6 inches / 6.9 inches)

Weight

20.5 kg (45.2 lb)

Operating temperature range

-25 °C to +60 °C (-13 °F to +140 °F)

Noise emissions, typical

30 dB(A)

Autoconsumption (night)
,0 W

Topology / cooling system

Transformerless / Convection

Protection class (to IEC 60529)

IP65

Climatic class (to IEC 60721-3-4)

Maximum permissible value for relative air humidity (non-condensing)

100,00%

Equipment

DC
/ AC connection	SUNCLIX / AC plug

Shade management :
OptiTrac Global Peak / TS4-R	●/ ○

Warranty: 5 / 10 / 15 years

●/ ○/ ○

Certifications and approvals (others on request)

AS 4777.2, C10/11, CE, CEI 0-21, EN 50438, G59/3-4, G83/2-1,
DIN EN 62109 / IEC 62109, NEN-EN50438, ÖVE/ÖNORM E 8001-4-712 & TOR D4, PPC, PPDS, RD1699, SI4777, TR3.2.1, UTE C15-712, VDE-AR-N 4105, VDE0126-1-1, VFR 2014

Type designation

STP8.0-3AV-40

STP10.0-3AV-40
