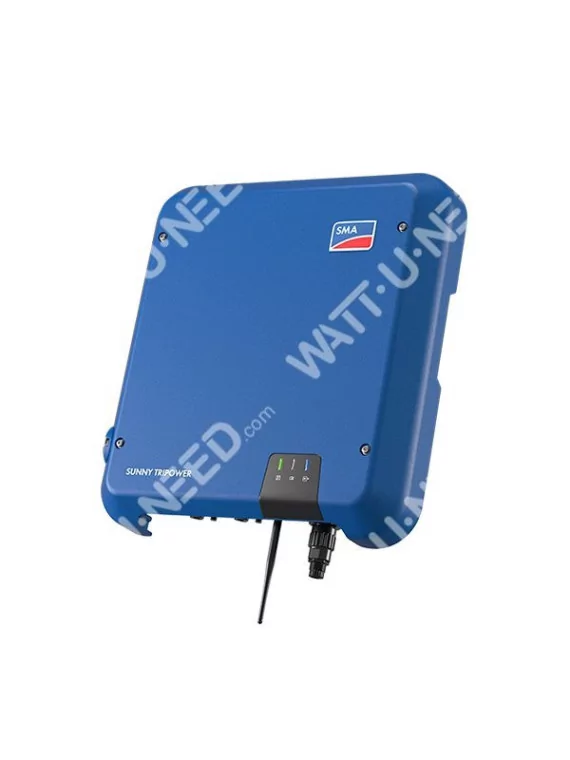

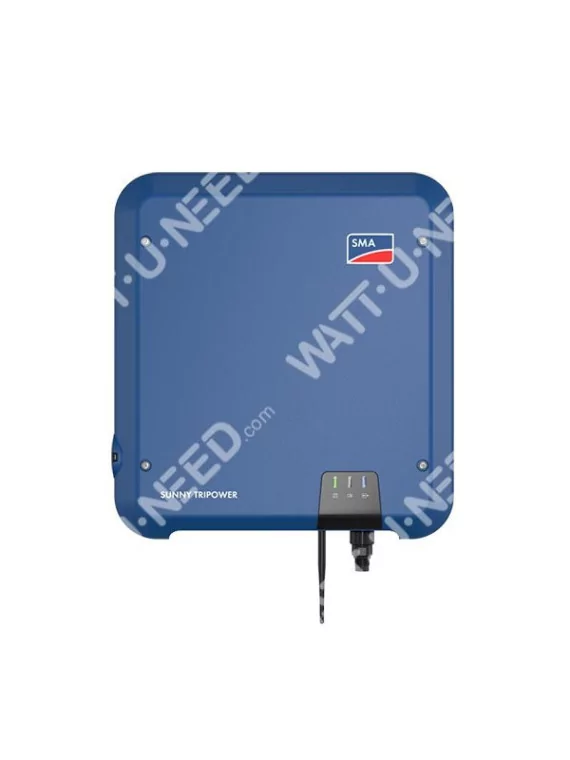

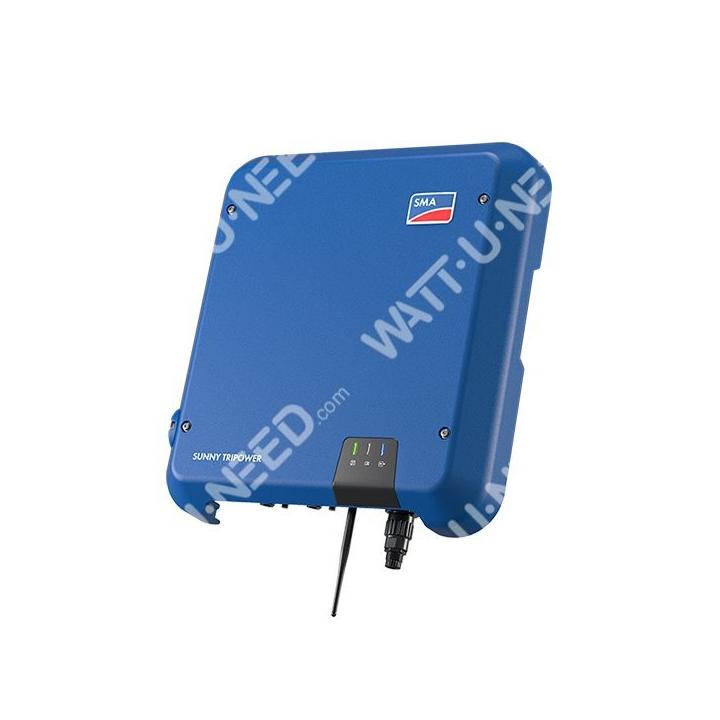

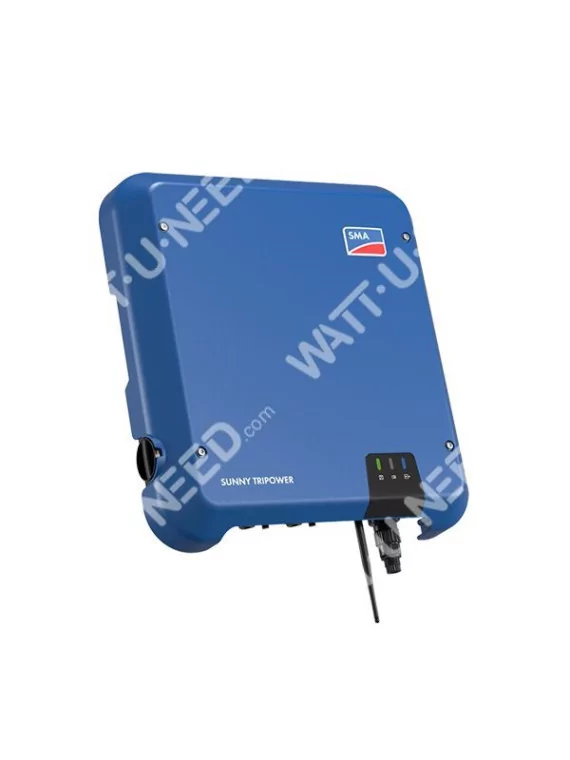

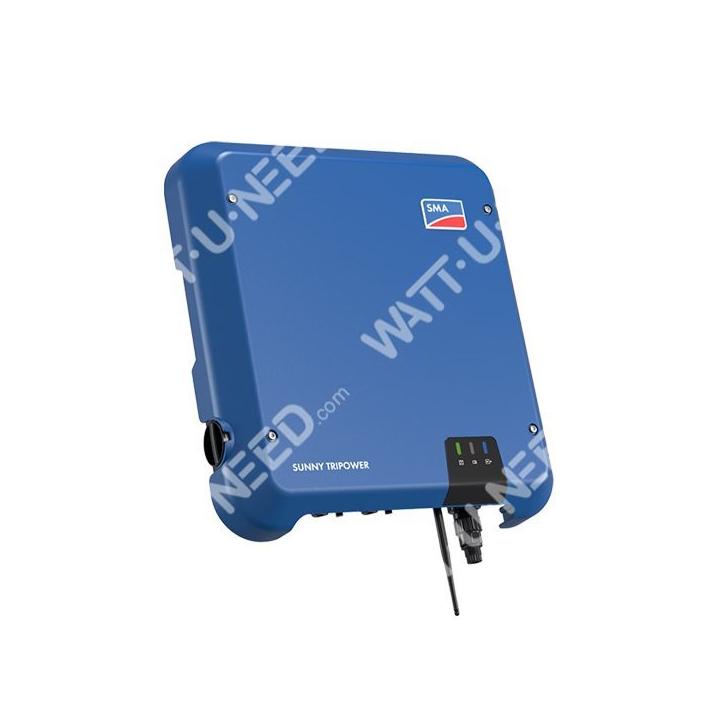

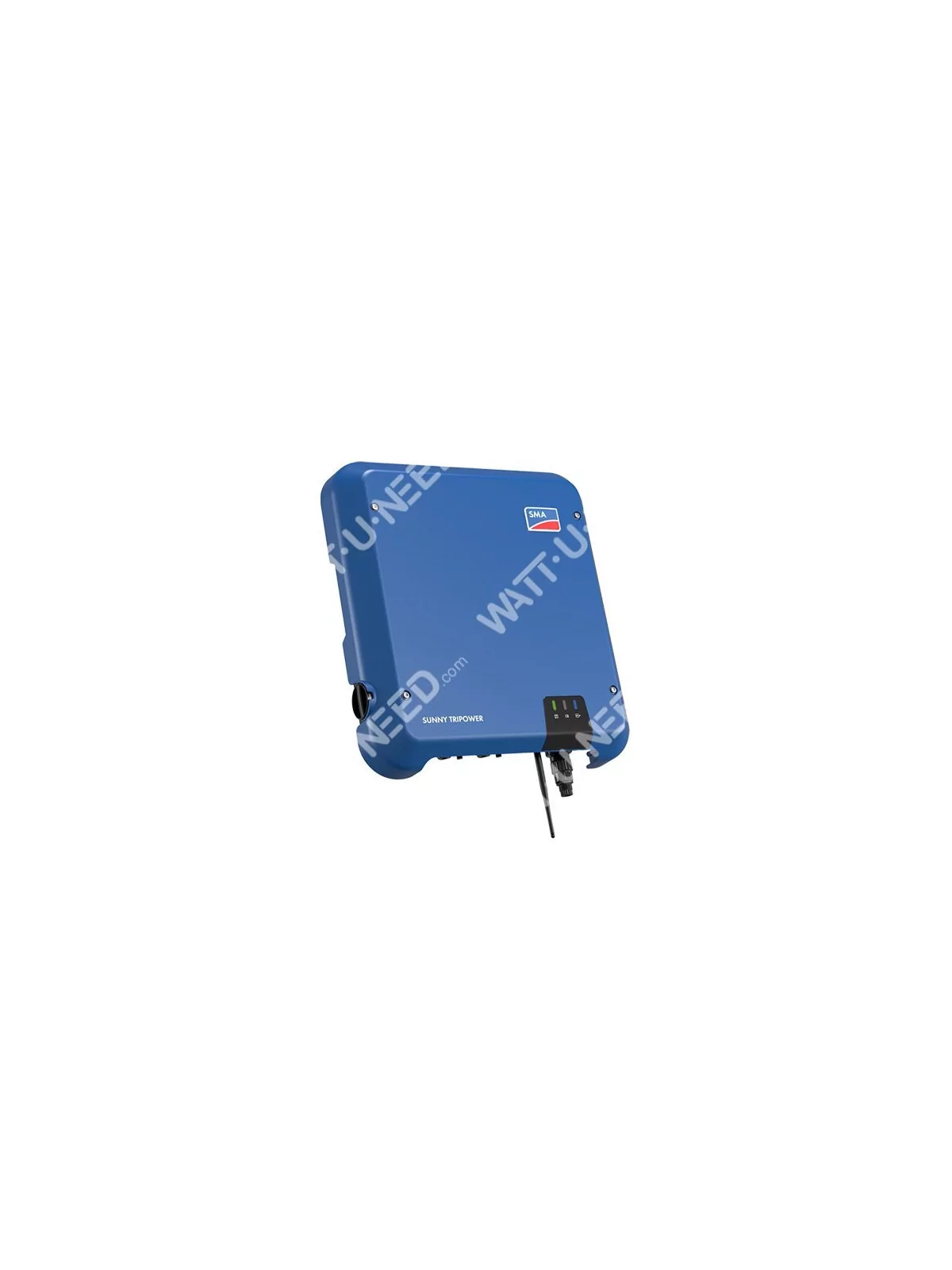

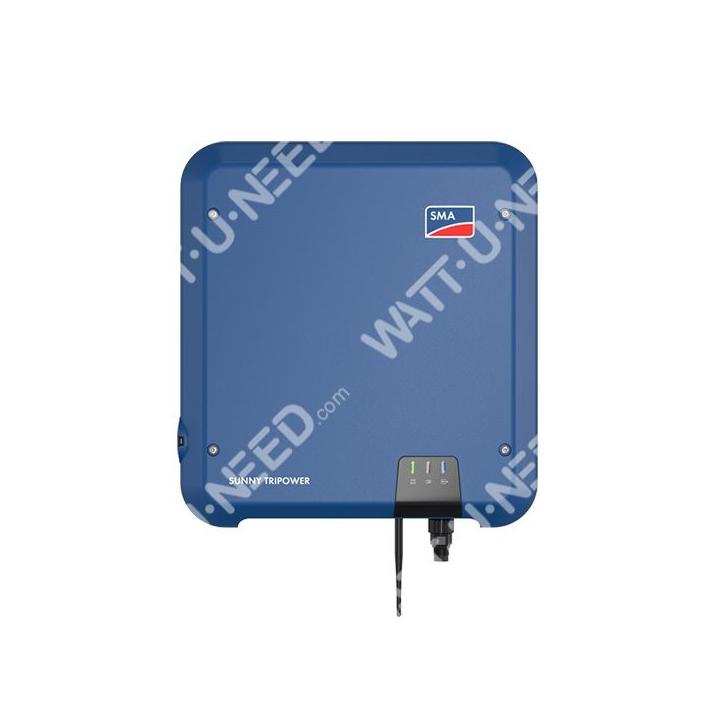

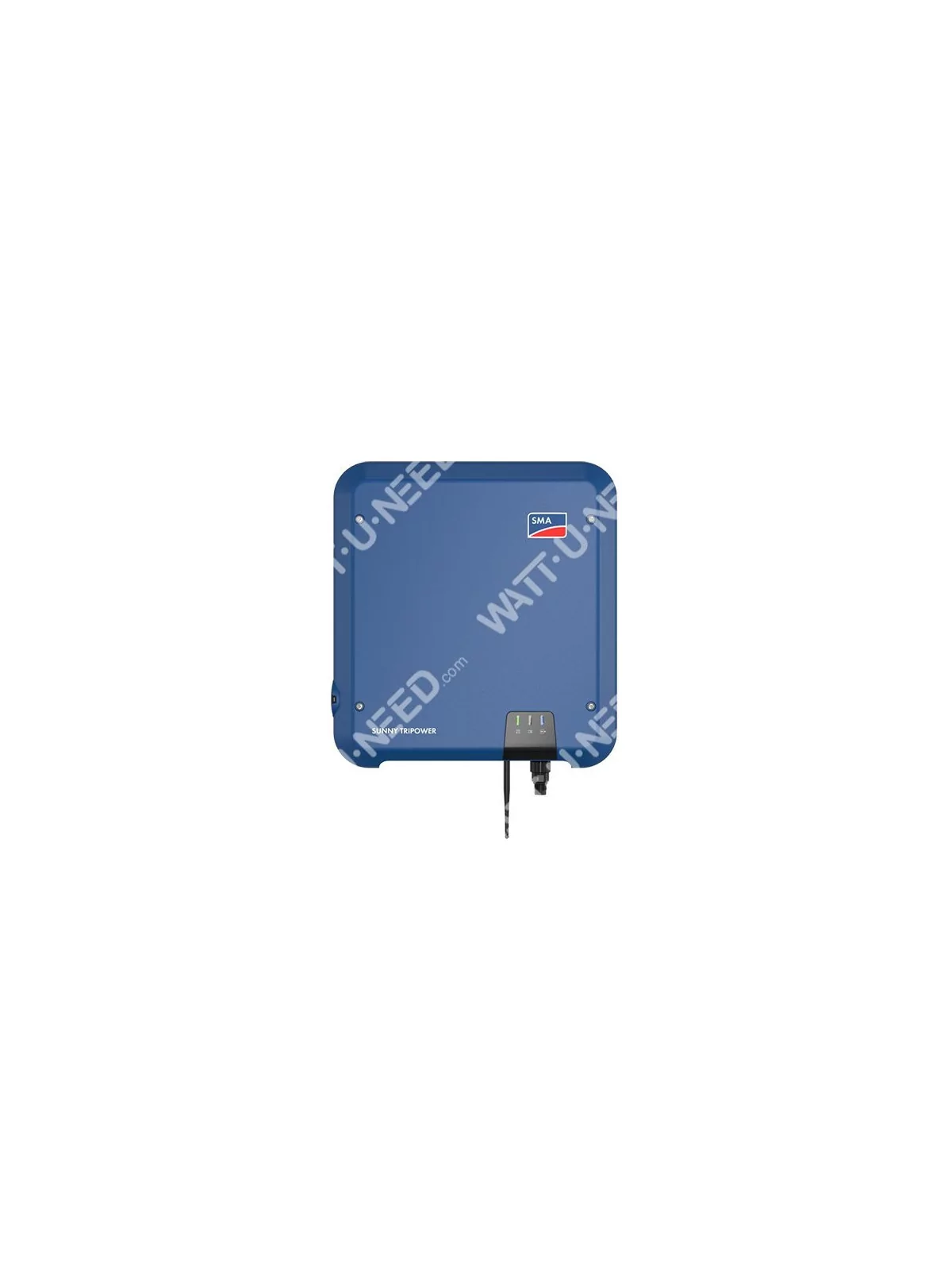

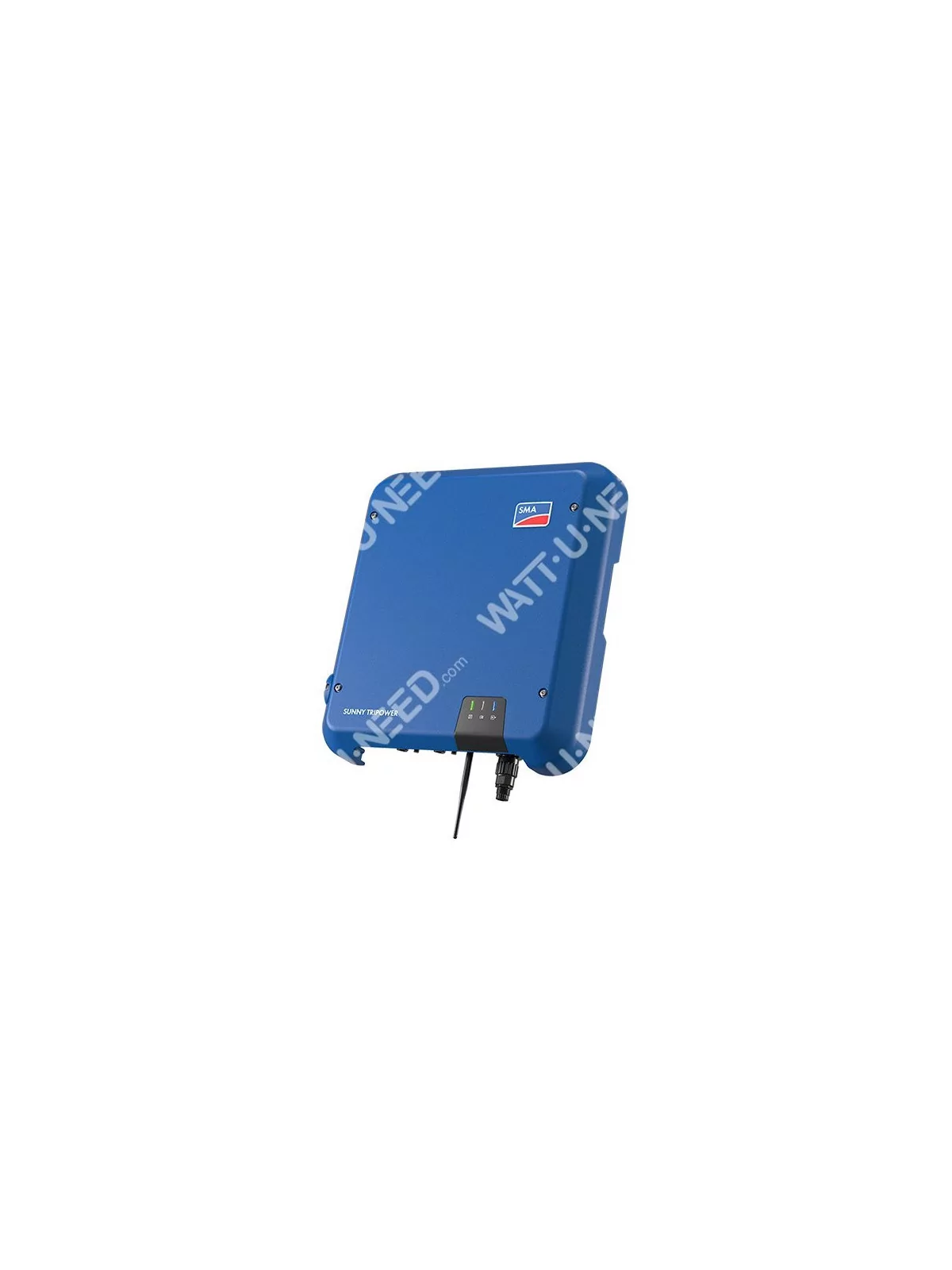

Three-phase inverter SMA Sunny Tripower 8.0 TL INT BLUE STP8.0-3AV-40

€1,458.70
Tax included
STP 8.0-3AV-40
0768563816253

SMA Sunny Tripower 8 kVA Inverter: Unlock the Full Potential of Your Solar Installation

With its 8000 VA of three-phase power, the SMA Sunny Tripower 8 kVA inverter is designed to optimize every ray of sunshine. It ensures maximum electrical energy production, even under variable sunlight conditions, and is perfectly suited for medium-sized residential and commercial installations.

Why choose the SMA Sunny Tripower 8 kVA inverter?

  • Power and Efficiency: With its 8000 VA three-phase power, it maximizes the yield of your photovoltaic system.
  • Optimized Shading Management: OptiTrac Global Peak technology guarantees maximum production even in shaded conditions.
  • Flexibility: Adapts to all configurations with a wide input voltage range and is compatible with TS4-R optimizers.
  • Easy Installation: Compact and lightweight for quick installation.
  • Future-Proof: Ready for integration with storage solutions and intelligent energy management.

Key Benefits:

  • Optimized Self-Consumption: Maximize your solar energy use.
  • Reliability and Durability: Benefit from a high-quality, long-lasting product.
  • Simplified Installation: Quick and easy installation thanks to its compact design.

SMA Sunny Tripower 8 kVA: A Secure Investment for High-Performance Solar Energy.

Available on order

Comments (0)

No customer reviews for the moment.

SMA Sunny Tripower 8 kVA : Solar intelligence for optimised production

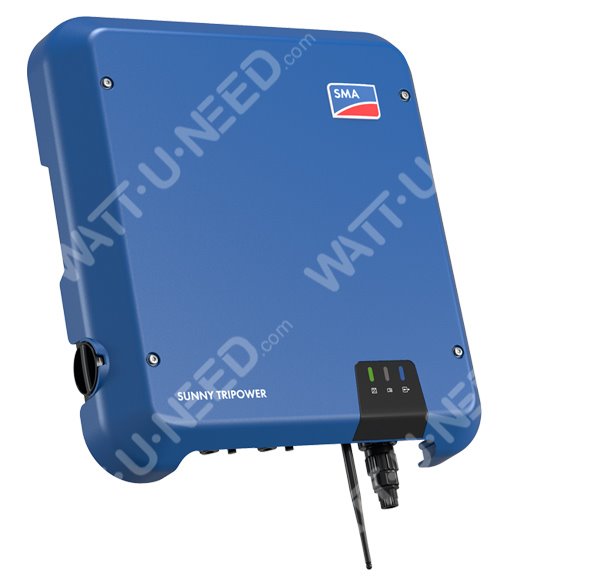

Onduleur triphasé SMA Sunny Tripower STP 8.0 TL INT BLUE

The new Sunny Tripower 8.0-10.0 guarantees maximum energy production for households. Its compact design makes installation quick and easy. And to meet the specific requirements of rooftop installations, TS4-R optimizers can be added easily and at your convenience, for example in the event of shading. Compatible with the latest communication standards, the inverter can be reliably equipped with SMA's intelligent energy management and storage solutions at any time.

Quick and easy installation

With its low weight, this three-phase inverter is quick and compact to install.

Production intelligente d’électricité solaire

Intelligent solar power generation

The Sunny Tripower is unique: proven features such as OptiTrac Global Peak are now accompanied by integrated TS4-R communication for panel optimization. Shadows on the photovoltaic panel are no longer a problem. In the event of light shading, the integrated OptiTrac Global Peak shading management system ensures maximum production. In the case of more severe shading or complex roofs, TS4-R optimizers, which are simple and selective to install, ensure optimum production.

Expandable at any time

With Sunny Tripower, photovoltaic system owners and installers always have a state-of-the-art solution at their disposal. Should the household's use of solar power increase, Sunny Tripower systems can be upgraded at any time with SMA's intelligent energy management and storage solutions.

Features

Model Sunny Tripower 8.0 Sunny Tripower 10.0
Input (DC)
Max. power of photovoltaic generator 15000 Wp
Max. input voltage 1000
V
MPP voltage range 260 V to 800 V 320 V to 800 V
Rated input voltage
V
Min. input voltage / start-up input voltage Max. input current A / input B 125 V / 150 V
Min. input current./ starting input voltage 20 A /12 A
Max. short-circuit current.
input A / input B 30 A / 18 A
Number of independent MPP inputs / strings per MPP input
A:2 ; B:1
Output (AC)
Rated power (for 230 V, 50 Hz)
W 10000 W
Max. apparent AC power
VA 10000 VA
Rated AC voltage
; 220 V / 380 V 3/N/PE; 230 V / 400 V 3/N/PE;
240 V / 415 V
AC voltage range 180 V to 280 V
AC mains frequency / range 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Rated mains frequency / rated mains voltage 50 Hz / 230 V
Maximum output current
12,1A
14.5 A
Power factor at rated power / adjustable phase shift factor
/ 0.8 inductive to 0.8 capacitive
Injection phases / connection phases
Efficiency
Max. efficiency.
/ European efficiency 98.3 % / 97.7 % 98.3 % / 98.0
Protective devices
Input-side disconnection device ●
Earth fault monitoring / mains monitoring ●/●
DC reverse polarity protection / AC short-circuit resistance / galvanic separation Fault current monitoring unit,
sensitive to all currents ●/●/-
Protection class (to IEC 62103) / overvoltage category (to IEC 60664-1) General data
/ III
General data
Dimensions (W / H / D) 460 mm / 497 mm / 176 mm (18,
1
inches / 19.6 inches / 6.9 inches)
Weight 20.5 kg (45.2 lb)
Operating temperature range -25 °C to +60 °C (-13 °F to +140 °F)
Noise emissions, typical 30 dB(A)
Autoconsumption (night)
,0 W
Topology / cooling system Transformerless / Convection
Protection class (to IEC 60529) IP65
Climatic class (to IEC 60721-3-4)
Maximum permissible value for relative air humidity (non-condensing) 100,00%
Equipment
DC
/ AC connection SUNCLIX / AC plug
Shade management :
OptiTrac Global Peak / TS4-R ●/ ○
Warranty: 5 / 10 / 15 years ●/ ○/ ○
Certifications and approvals (others on request) AS 4777.2, C10/11, CE, CEI 0-21, EN 50438, G59/3-4, G83/2-1,
DIN EN 62109 / IEC 62109, NEN-EN50438, ÖVE/ÖNORM E 8001-4-712 & TOR D4, PPC, PPDS, RD1699, SI4777, TR3.2.1, UTE C15-712, VDE-AR-N 4105, VDE0126-1-1, VFR 2014
Type designation STP8.0-3AV-40 STP10.0-3AV-40
STP 8.0-3AV-40

Data sheet

Inverter power
8000 VA
Max. solar input voltage
1000 V
Phase
Triphasé
Width
460 mm

Specific References

UPC
768563816253
EAN13
0768563816253
