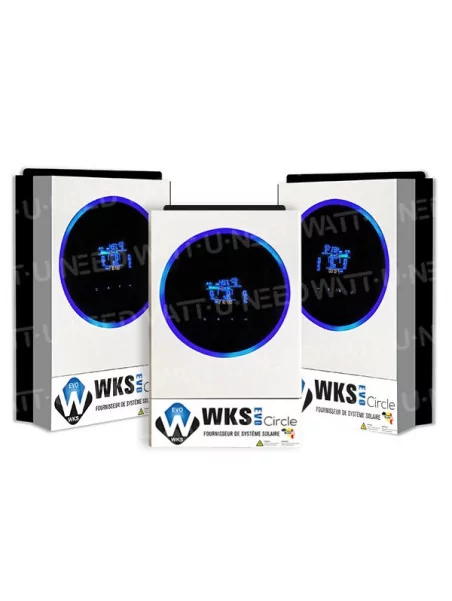

Hybrid inverters WKS EVO Circle 16.8kVA 48V + 3 communication kits

WKS

3 582,65 € tax incl.

WKS EVO Circle hybrid inverters are the ideal solution to supply a home for self-consumption or make an isolated site autonomous.

The communication kits make it possible to connect the WKS in parallel. They also allow three-phase operation.



For the availability of the WKS EVO Circle 5.6 Kva 48V, please refer to the available stock by clicking here.





More details

More info

The pack contains:

  • 3 hybrid inverters WKS EVO 5 kVA - 48V
  • 3 communication kits: parallelization - three-phase

The pack allows you to connect 3 WKS EVO in parallel. It also allows three-phase operation.


Composition



Onduleur Hybride WKS EVO Circle3X WKS Evo Circle 5.6 kVA 48V Hybrid Inverter



The WKS EVO Circle is equipped with an MPPT solar charge controller that maximizes and regulates the DC power of the solar panel to charge your battery park.
Transformerless design enables reliable power conversion in a compact form factor. The new generation of WKS has a built-in Wi-Fi function, mobile monitoring can be done through mobile apps. The data can be viewed and saved in the inverter, which is convenient for tracking the operating status of the inverter. It also supports USB On-The Go feature for easy rewriting of internal settings, data downloads, and software updates.



• Pure Sine Wave MPPT Solar Inverter
• Customizable status LED ring with RGB lights
• Touch button with 4.3" color LCD screen
• Wide DC input range
• Log events of data stored in the UPS
• Built-in Wi-Fi for mobile monitoring (app available)
• Reserved communication port for BMS
• Parallel operation with up to 9 units
• Possibility of choosing the mode of operation via timer
• Output of 27 Amperes



Characteristics





Model
Rated power5600VA/5600W
Entrance
AC input voltage170-280 VAC (for personal computers)
Selectable voltage range90-280 VAC (for household appliances)
Frequency range50Hz/60Hz (automatic detection)
Exit
AC voltage regulation (Batt. mode)230 VAC +/- 5
Overload capacity5s@>/=150% charge;10s@110%~150% charge; 100ms @ >/=200% charge
Yield (peak)93%
Transfer time10 ms (for personal computers); 20 ms (for household appliances)
WaveformPure sine wave
AC output voltage24.3A
Battery
Battery voltage48 VDC
Floating charging voltage54 VDC
Overload protection66 VDC
Solar charger and AC charger
Type of solar chargerMPPT
Maximum power of the PV generator6000W
MPPT range at operating voltage120~430VDC
Maximum voltage of the open circuit of the PV450VDC
Maximum solar charging current120A
Maximum AC charging current120A
Physics
Dimension, D x W x H (mm)140x295x468
Net weight (kgs)11.0 12.0
Communication interfaceUSB/RS232/RS485/Wifi/Dry Contact
Usage environment
Humidity5% to 95%a Relative humidity (non-condensing)
Operating temperatureFrom -10°C to 50°C
Storage temperatureFrom -15°C to 60°C

Microprocessor management directs energy according to production, consumption needs and the state of charge of the batteries.
It is possible to carry out real-time monitoring locally or remotely. The WKS inverter does not re-inject current into the power grid.





 Schéma de branchement des onduleurs WKS EVO




Kit de communication - mise en parallèle / triphasé

3x Communication kit - parallel / three-phase



The WKS 5KVA can be connected in parallel thanks to this communication kit, and this in different ways:

Up to 20 KVA in single phase

Several devices (max4) can be connected in series, allowing to make systems with up to 20 KVA in output power.

12 or 15 KVA in three-phase

By putting one inverter per phase. 3 WKS can be connected to get up to 15KVA three-phase output.

The kit includes the board, a power cable for it and a communication cable.


Option


Optionally, we offer pre-configuration by us at 70 €



Specifications

Voltage48V
Power15000 VA
Monophasé / TriphaséMonophasé
Inverter power15000VA
