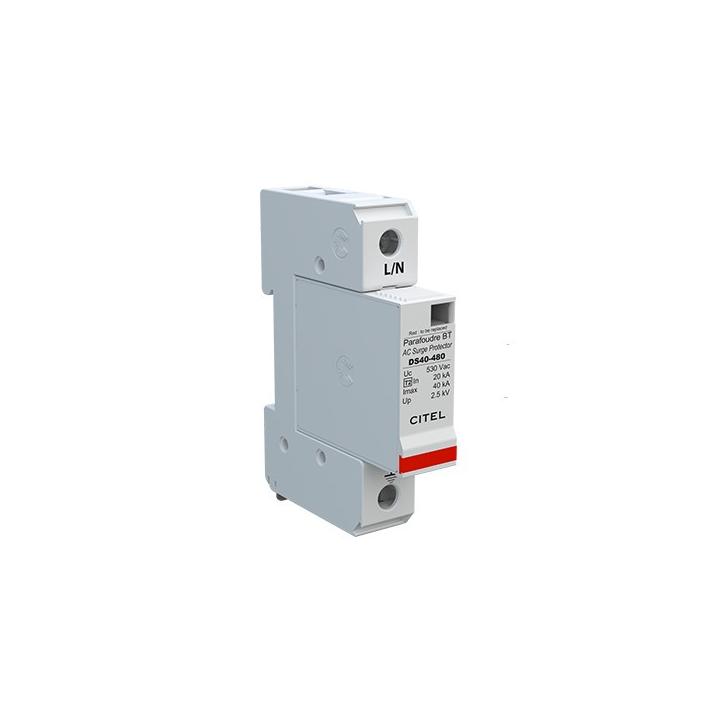

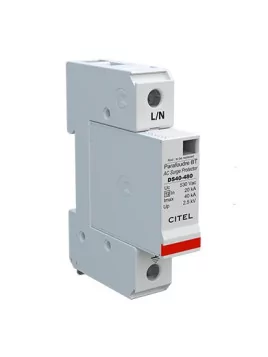

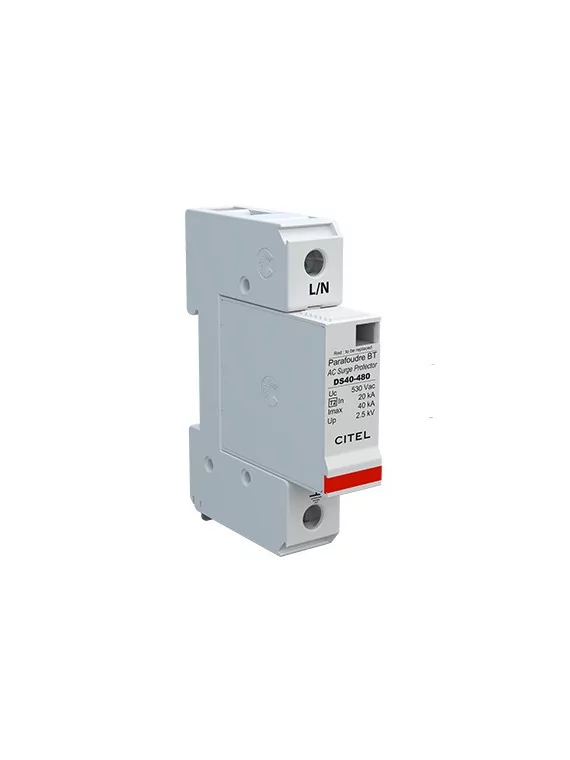

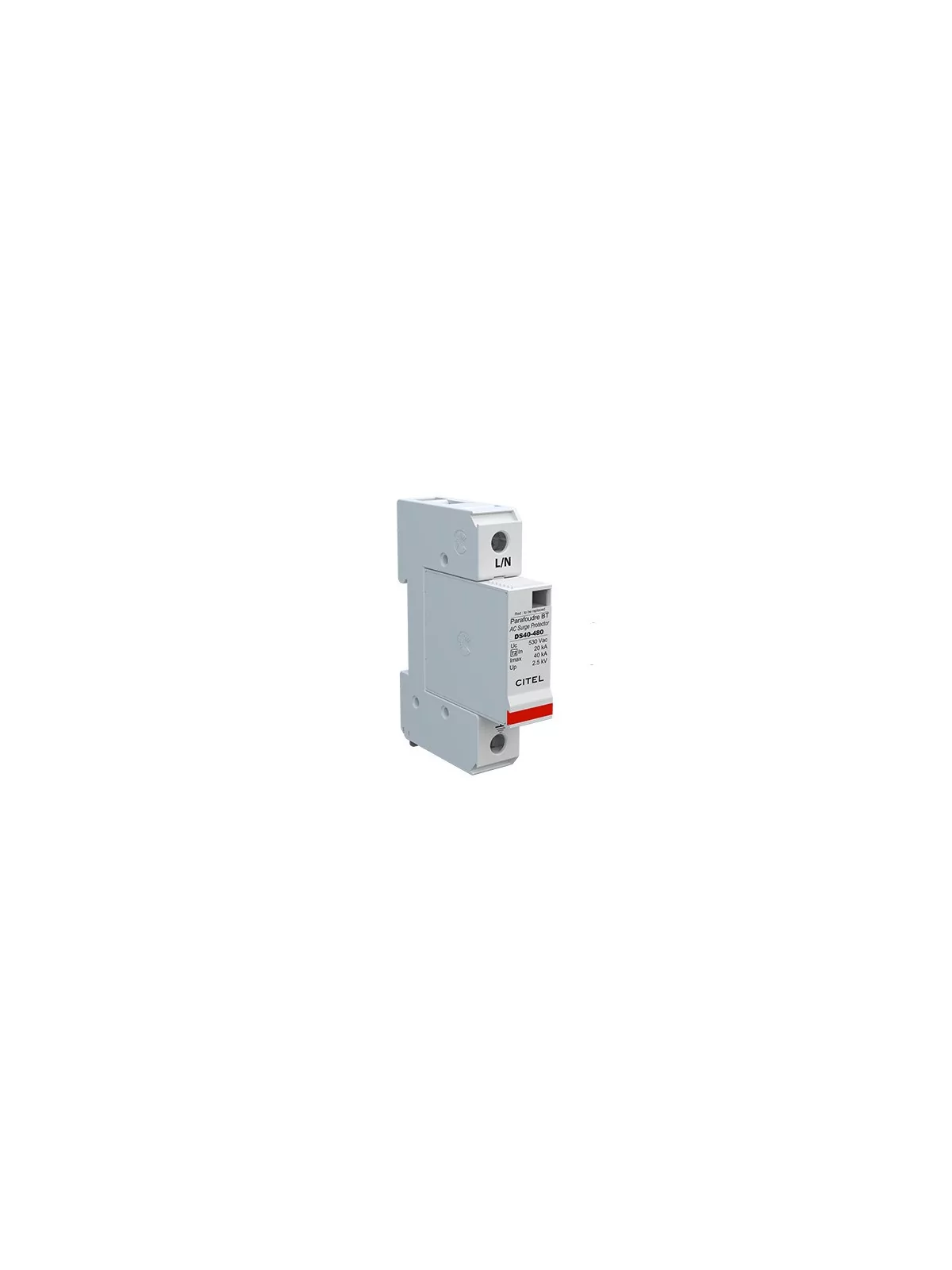

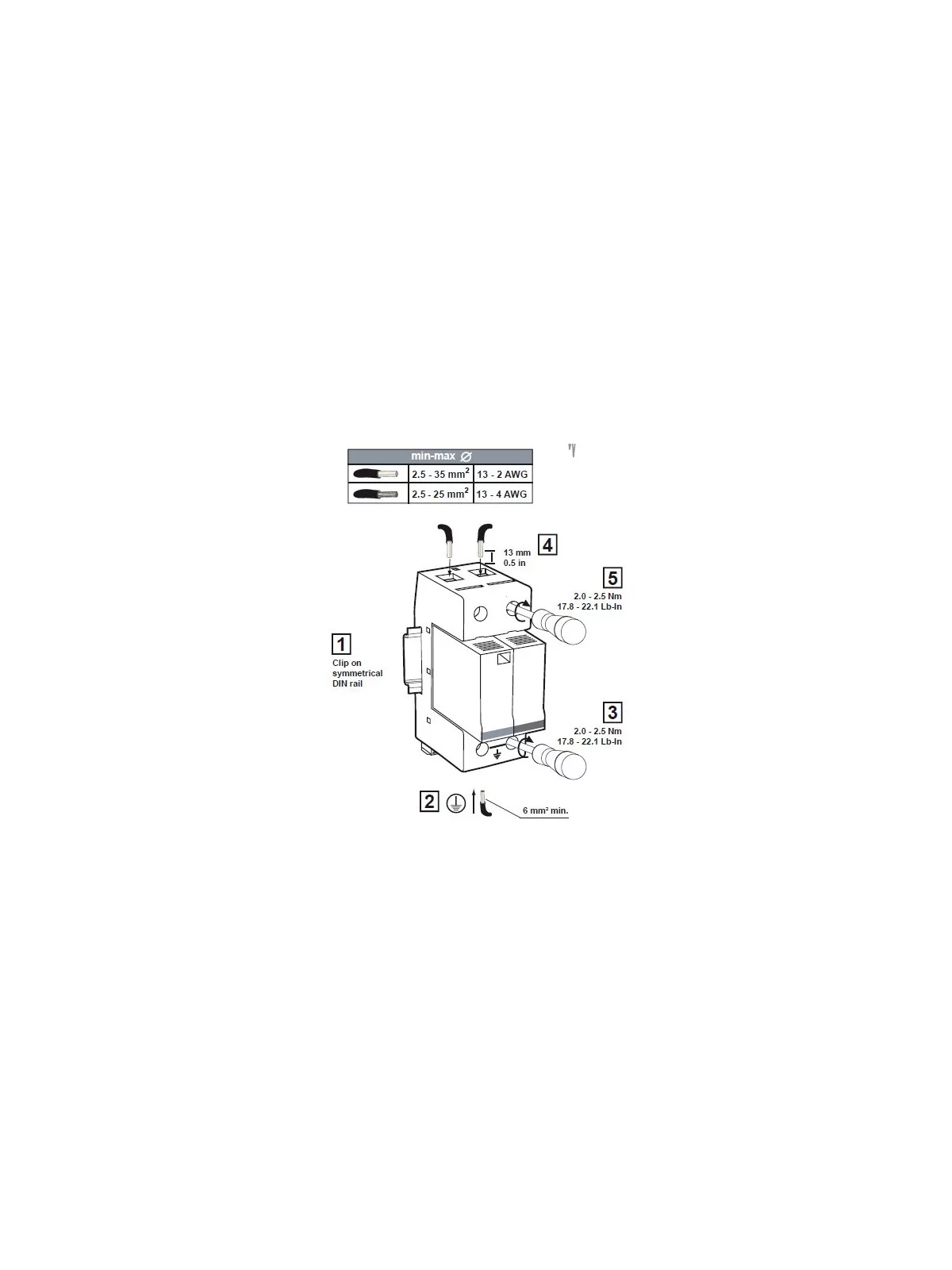

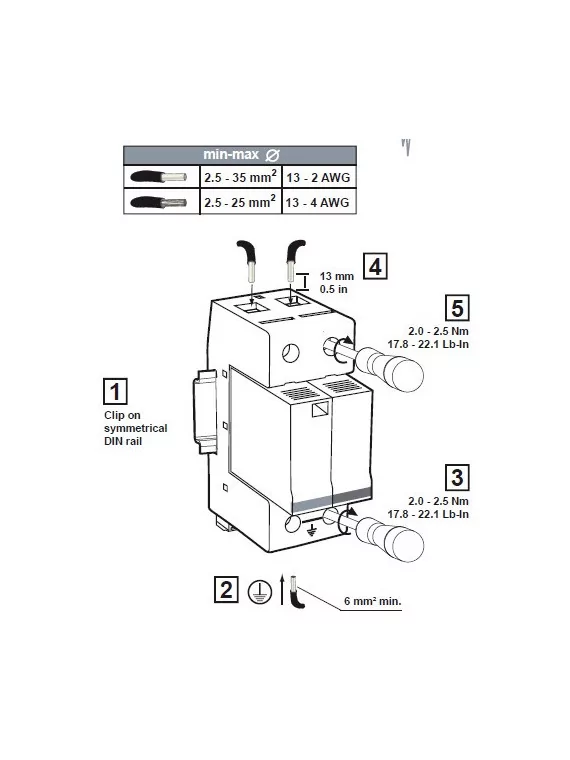

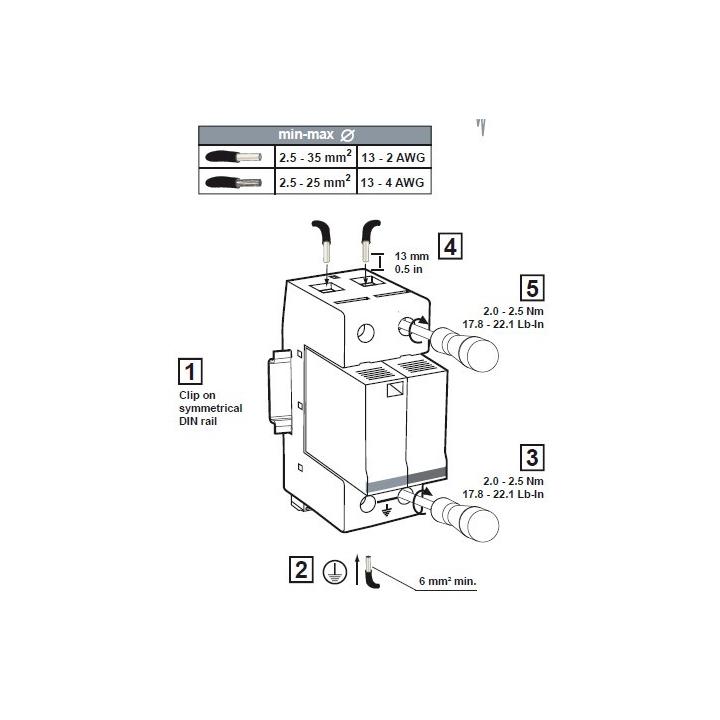

    Single Polar BT Surge Protector - 40Ka DS41-480

    $60.2
    DS41-480
    0712971130333

    Single polar BT surge protector for the protection of your system.

    • Type 2 unipolar surge protector,
    • Voltage: 530 V AC,
    • Nominal discharge current: 20KA,
    • Max discharge current: 40KA,
    • Removable module by phase,
    • Very effective for the protection of a system against lightning,
    • Compliant with NF EN 61643-11, IEC 61643-11,
    • UL1449 ed.5 approved.



    Single Polar BT Surge...

    $60.2

    Removable single-pole BT Type 2 surge protector - DS41-480





    Type 2 DS41 surge arresters are mainly used for the protection of single-phase and three-phase networks at TGBT. The electrical diagram includes a combination of high-power varistors equipped with disconnectors and their associated indicators: this assembly ensures a reinforced flow capacity. DS41 surge arresters are intended to be mounted in multipole to protect mono, tri or three-phase + Neutral networks, sometimes associated with a specific N/PE surge arrester.

    Other models available on request, do not hesitate to contact us.


    Dimensions parafoudre BT Type 2 - DS41-480

    DS41-180




















    Features of BT surge protector



    Type of surge arrester 2
    Network 277/480 V three-phase
    Rated line voltageOne277 Vac
    Max. operating AC voltageCPU530 Vac
    Characteristic temporary overvoltage (TOV) 5 sec..!UT700 Vac held
    Characteristic temporary overvoltage (TOV) 120 mn.!UT920 Vac disconnection
    Residual currentIpe< 0.5 mA
    Functional current. PermanentIc0.5 mA
    Follow-up currentYewNone
    Nominal discharge currentIn20 kA
    Maximum discharge currentImax40 kA
    Connection mode(s) L/PE and N/PE
    Protection mode(s) Common Mode or Differential Mode
    Level of protectionUp2.5 kV
    Level of protection L/PEUp L/PE2.5 kV
    Permissible short-circuit currentIsccr25,000 A
    Technology .MOV
    Lightning Arrester Configuration Unipolar
    Connection to the grid Per screw: 2.5-25 mm² / per bus
    Format Removable modular housing
    Assembly Symmetrical DIN rail 35 mm (EN 60715)
    Case material Thermoplastic UL94 V-0
    Operating temperatureYou-40/+85°C
    Protection factor IP20
    Security decommissioning Disconnecting from the AC network
    End of life indicator 1 mechanical indicator
    Replacement module(s) DSM40-480
    Remote signalling DS41S-480 option: output on inverter contact
