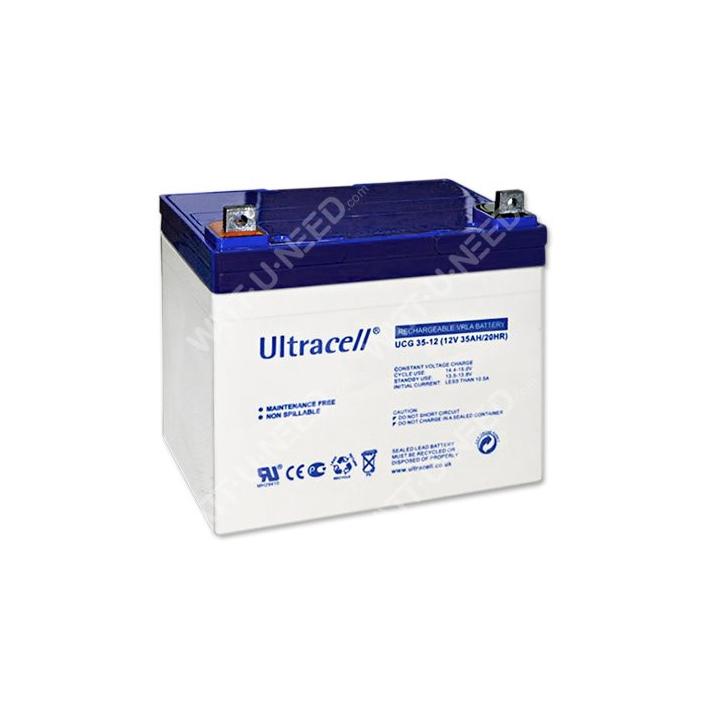

Ultracell 12V 35Ah GEL Batteries
Ultracell 12V 35Ah GEL Batteries

Ultracell 12V 35Ah GEL Batteries

€89.30
Tax included
0848
0712971129788

Ultracell GEL Battery 12V 35Ah: The Heart of Your Small Solar Systems

For reliable energy autonomy.

The Ultracell GEL Battery 12V 35Ah is designed to efficiently store the solar energy produced by your small photovoltaic systems. Thanks to its GEL technology, it offers enhanced safety, a long lifespan, and optimal performance, even in challenging conditions.

Features:

  • Capacity: 35Ah, ideal for small installations
  • GEL technology: Safety, sealing, and long lifespan
  • Deep cycling: Up to 1200 cycles at 50% discharge
  • Compact dimensions: L 195 x W 130 x H 180 mm
  • Lightweight: 11.2 kg

Advantages:

  • Maximize your solar self-consumption: Make the most of your green energy.
  • Enhanced safety: Maintenance-free GEL technology, resistant to deep discharges.
  • Exceptional longevity: Up to 1200 cycles for a durable investment.

Ideal for nomadic applications:

  • RVs, boats, etc.

Why choose a GEL battery? GEL batteries offer increased safety thanks to their gelled electrolyte, making them ideal for indoor or outdoor use. Additionally, they are maintenance-free and require little upkeep.

Ready to achieve energy autonomy? Find out how the Ultracell GEL Battery 12V 35Ah can power your devices independently. Contact our experts for a personalized study and a free quote.

Sorry, there are no more items in stock.

Background batterie AGM Ultracell 35Ah

GEL Ultracell 12V 35Ah battery: Ideal for mobile solar systems

Gel batteries 35 amps

Gel batteries are sealed batteries: no maintenance, no need to add distilled water. Greater safety than open lead-acid batteries.
A Gel battery can withstand 100% discharge and recover its rated capacity if the discharged holding time is short. This series has a longer discharge time than other batteries. Its special plate design increases battery life, particularly in warmer temperatures. A separator within the battery enhances its performance. It also has a longer shelf life.

  • Nominal voltage: 12 V
  • Capacity: 35 Ah
  • Dimensions :
  • L 195 x W 130 x H 180 mm
  • Weight: 11.2 Kg

Life cycle versus depth of discharge

Cycle vie batterie Ultracell 35Ah

Comparative table of price per useful kWh over battery life at a glance!

Comparatif des batteries

There are many different storage technologies: Gel or AGM batteries, lithium batteries, OPzS and OPsV. It's not easy to choose the right technology for your needs. Each technology has its own characteristics (size, power, cost, number of cycles and service life, etc.). With this table, you can quickly compare the price per useful kWh over the lifetime of the batteries.

C10 = 10-hour charge/discharge test.
C24 = examination of a charge or discharge in 24 hours.

Click here to see our comparison table.



0848

Data sheet

Voltage
12V
Technology
Gel
Battery capacity
35Ah
Rated capacity
19.8AH/19.8A - 1 hour, 1.60V/cell, 25°C
28.1 AH/5.61A - 5 hours, 1.75V/cell, 25°C
35.0 AH/3.14A - 10hr, 1.80V/cell, 25°C
36.4 AH/1.65A - 20 hours, 1.80V/cell, 25°C
Internal resistance
Approx 0.01mΩ
Standby use
13.6V ~ 13.8V Temperature coefficient -mV/°C Coefficient -mV/°C
No limit to initial charge current Voltage 13.5V ~ 13.8V at 25°C (77°F) Temperature coefficient Coefficient -20mV/°C
Nominal service life at 20°C
12 ans
Self-discharge
Ultracell batteries can be stored for up to 6 months at 25°C (°77F), after which a new charge is required. For higher temperatures, the time interval will be shorter.
Weight
11.2 kg
Cycle Use
14.4V ~ 15.0V Temperature coefficient -mV/°C Coefficient -mV/°C
Capacity affected by temperature
0°C (32°F) 86%
25°C (77°F) 100%
40°C (104°F) 103%

Specific References

UPC
712971129788
EAN13
0712971129788
New
