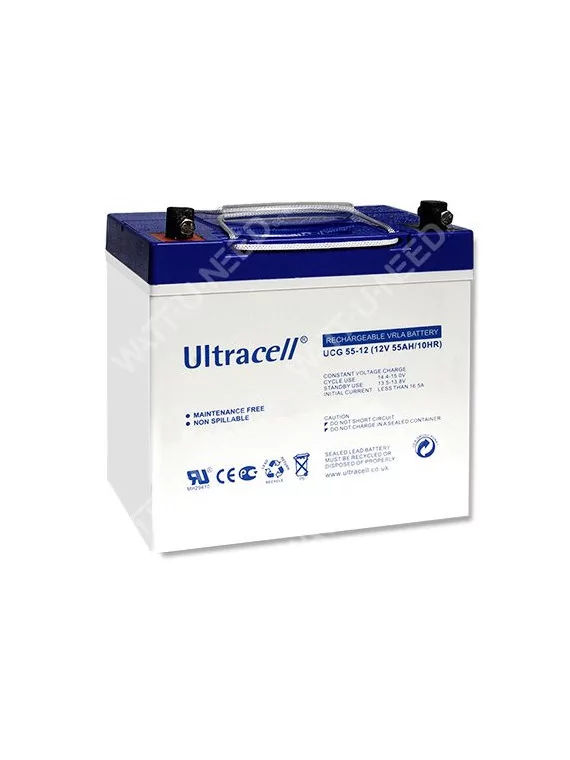

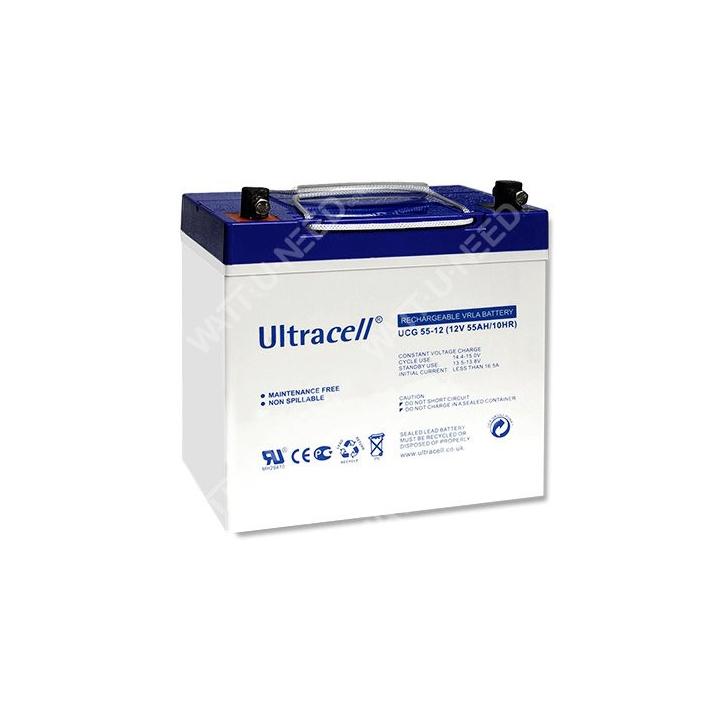

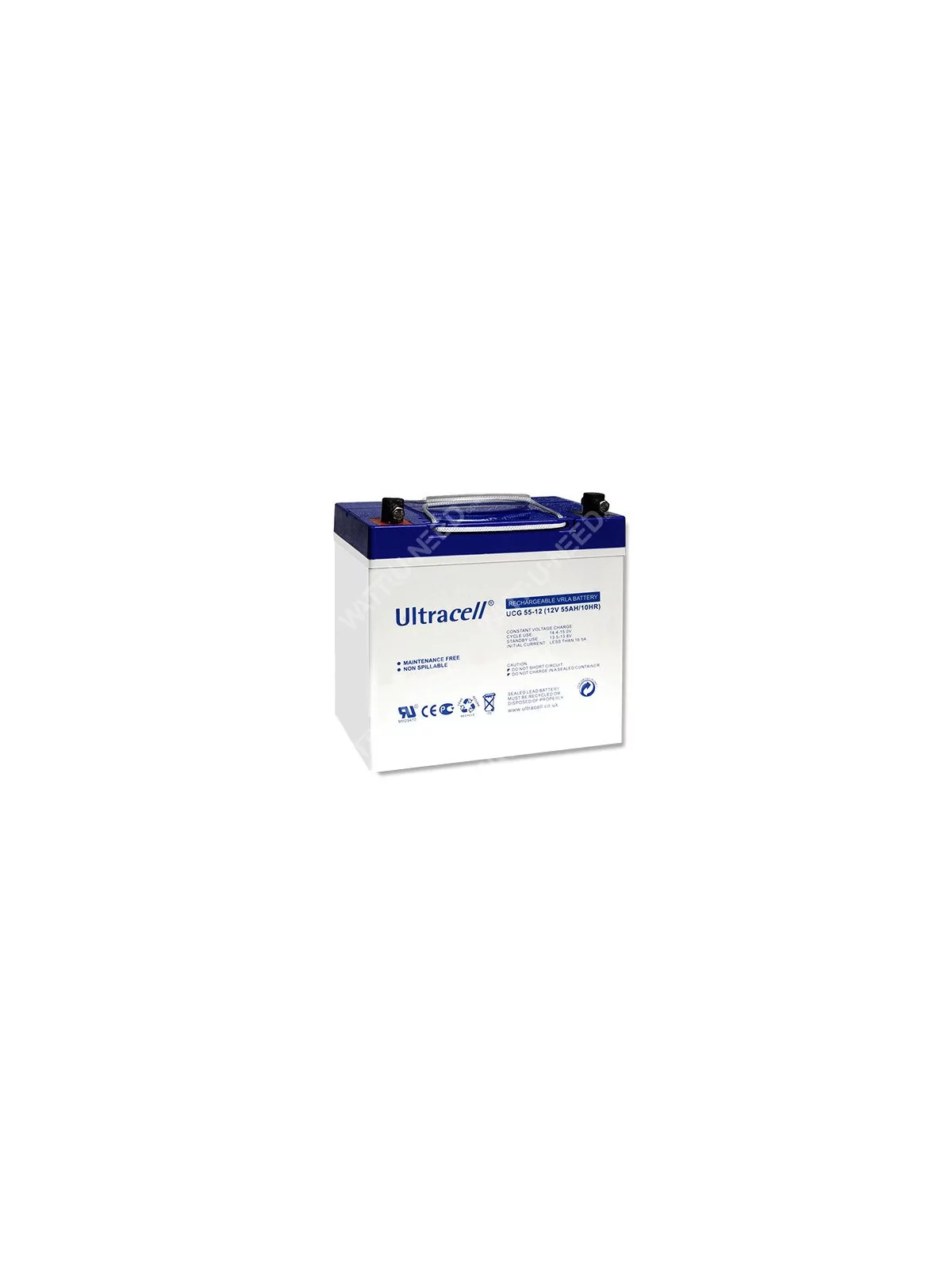

Ultracell UCG55-12 GEL batteries - 55Ah 12V Gel
€116.20
Tax included
0736
0712971128927
The Ultracell UCG55-12 GEL battery is a 12 V, 55 Ah battery designed for energy storage in small solar systems and portable applications. Its gel technology uses a gelled electrolyte in a sealed battery, with a deep cycle rating of up to 1,200 cycles at 50% discharge. It measures 229 × 138 × 209 mm and weighs 17 kg.
- Specifications: 12 V, 55 Ah, 229 × 138 × 209 mm, 17 kg, internal resistance 0.006 mΩ.
- Cells: Gel technology (gelled electrolyte) and sealed battery.
- BMS + communication: Not applicable, as this is a gel battery (no BMS or communication indicated).
- Compatibility + scalability: Suitable for small photovoltaic systems and mobile applications. Deep cycling rated for up to 1,200 cycles at 50% discharge.
9
items in stock!
⚡
Combien allez-vous économiser ?
Simulez vos économies
avec ce kit de 6 kWc
✅
Compatibilités vérifiées
▼
Compatible avec :
Controller Victron SmartSolar 150/35 - 150/45
€238.37
Voir le produit →
Converter SRNE IC Series 12V - 1000W
€313.60
Voir le produit →
Converter SRNE IC Series 12V - 2000W
€454.70
Voir le produit →
Converter SRNE IC Series 24V - 3000W
€505.10
Voir le produit →
Converter Victron Phoenix C 12/24V - 1200 to...
€505.78
Voir le produit →
Converter Victron Phoenix Smart 12V / 24V / 48V...
€694.54
Voir le produit →
Affichage de 6 sur 35 produits compatibles
ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.
GEL 55Ah battery: Portable, durable energy solution
55Ah Gel Batteries
Gel batteries are sealed batteries: no maintenance, no need to add distilled water. Greater safety than open lead batteries.
A Gel battery can withstand 100% discharge and recover its rated capacity if the discharged holding time is short. This series has a longer discharge time than other batteries. Its special plate design increases battery life, particularly in warmer temperatures. A separator within the battery enhances its performance. It also has a longer shelf life.
- Nominal voltage: 12V
- Capacity: 55Ah
- Dimensions :
- L 229 x W 138 x H 209 mm
- Weight: 17 Kg
Life cycle versus depth of discharge
Comparative table of price per useful kWh over battery life at a glance!
There are many different storage technologies: Gel or AGM batteries, lithium batteries, OPzS and OPsV. It's not easy to choose the right technology for your needs. Each technology has its own characteristics (size, power, cost, number of cycles and service life, etc.). With this table, you can quickly compare the price per useful kWh over the lifetime of the batteries.
C10 = 10-hour charge/discharge test.
C24 = examination of a charge or discharge in 24 hours.
Click here to see our comparison table.
0736
Data sheet
- Voltage
- 12V
- Technology
- Gel
- Battery capacity
- 55Ah
- Rated capacity
- 1 hour, 1.60V/cell, 25°C - 33.0 AH/33.0A
10 hours, 1.80V/cell, 25°C - 52.25 AH/5.225A
20 hours, 1.80V/cell, 25°C - 61.0 AH/2.8A
5 hours, 1.75V/cell, 25°C - 46.75 AH/9.35A
61.0AH - Maximum discharge current
- 16.5A
- Internal resistance
- 0.006mΩ
- Standby use
- 13.6V ~ 13.8V Temperature coefficient -mV/°C Coefficient -mV/°C
- Self-discharge
- Ultracell batteries can be stored for up to 6 months at 25°C (°77F), after which a new charge is required. For higher temperatures, the time interval will be shorter.
- Operating temperature range
- Charge : 0 ~ 40°C (5 ~ 104°F)
Discharge: -15 ~ 50°C (5 ~ 122°F)
Stockage : -15 ~ 40°C (5 ~ 104°F) - Weight
- 17 kg
- Nominal operating temperature range
- 25 ± 3°C (77 ± 5°F)
- Cycle Use
- 14.4V ~ 15.0V Temperature coefficient -mV/°C Coefficient -mV/°C
- Capacity affected by temperature
- 0°C (32°F) 86%
25°C (77°F) 100%
40°C (104°F) 103%
Specific References
- UPC
- 712971128927
- EAN13
- 0712971128927
New
