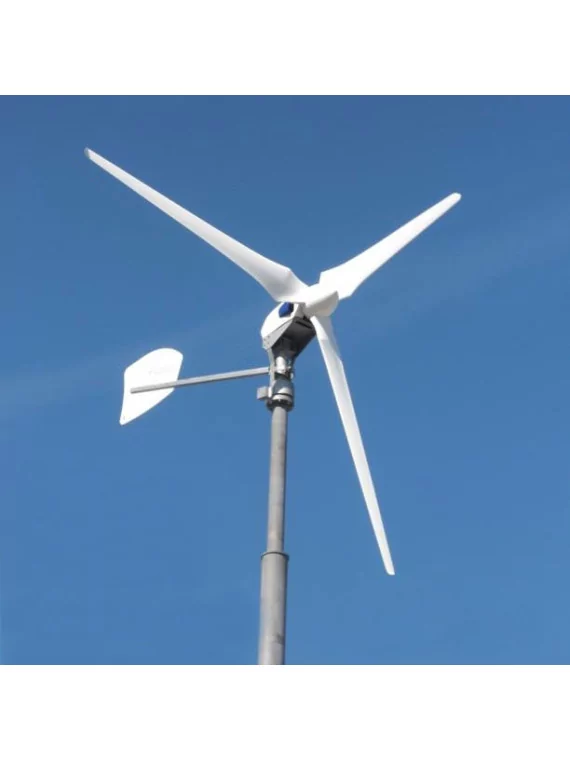

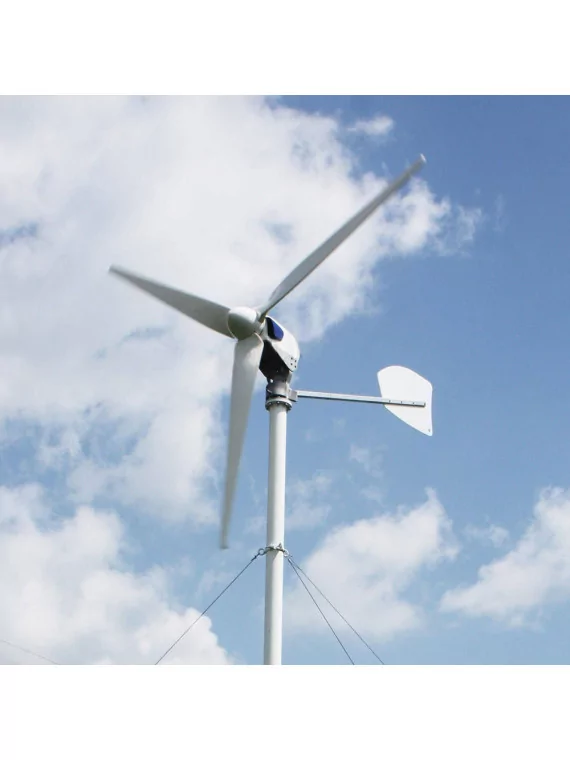

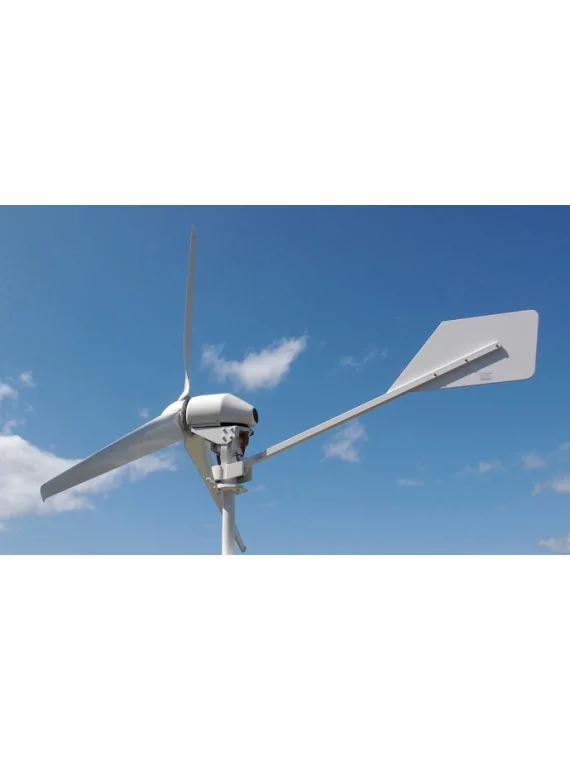

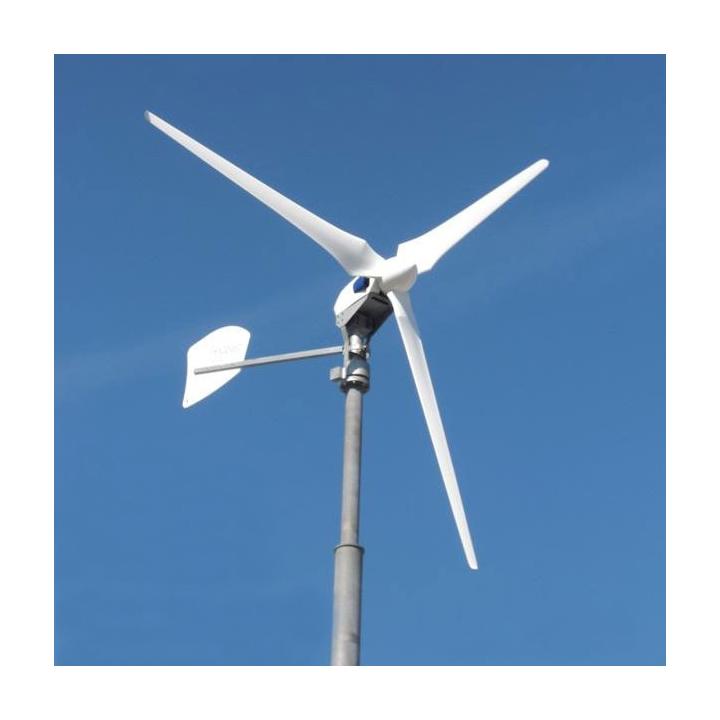

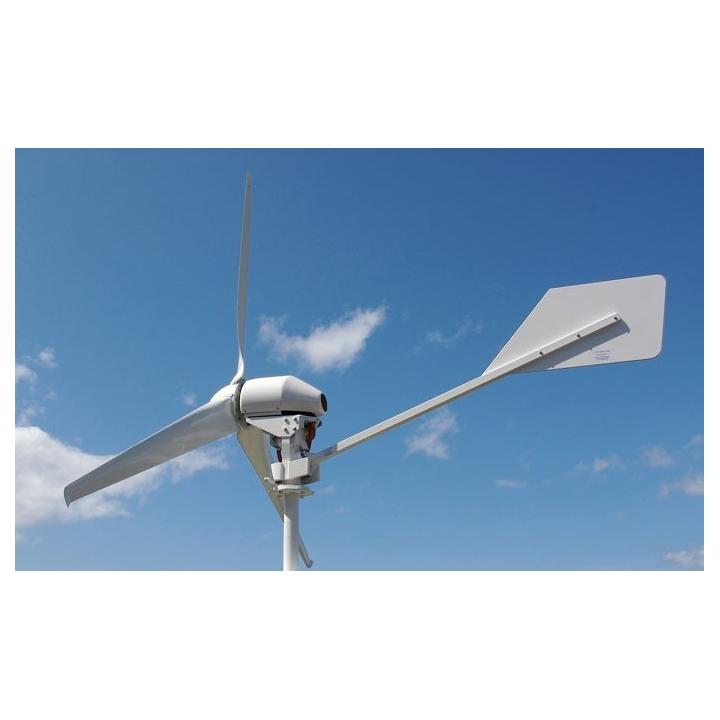

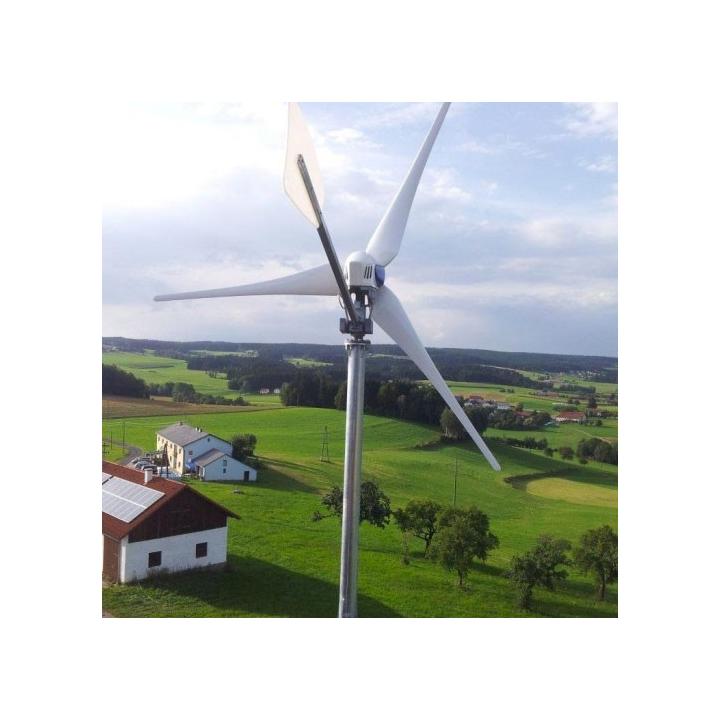

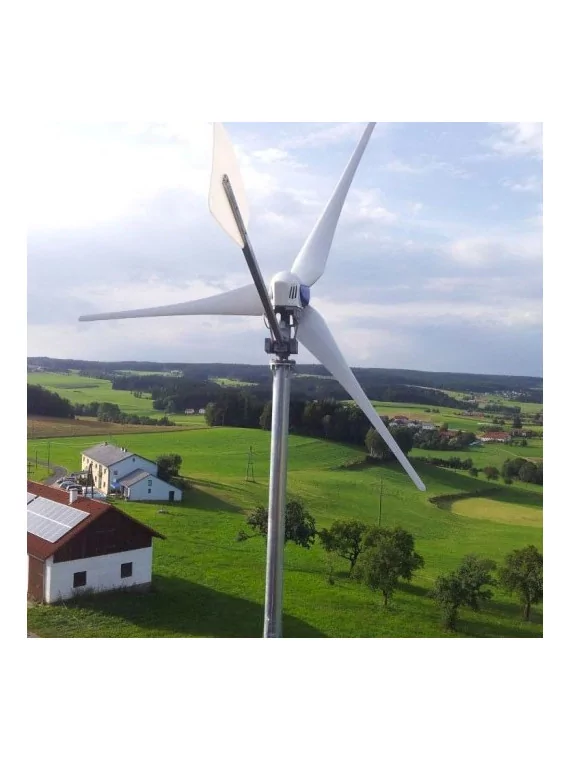

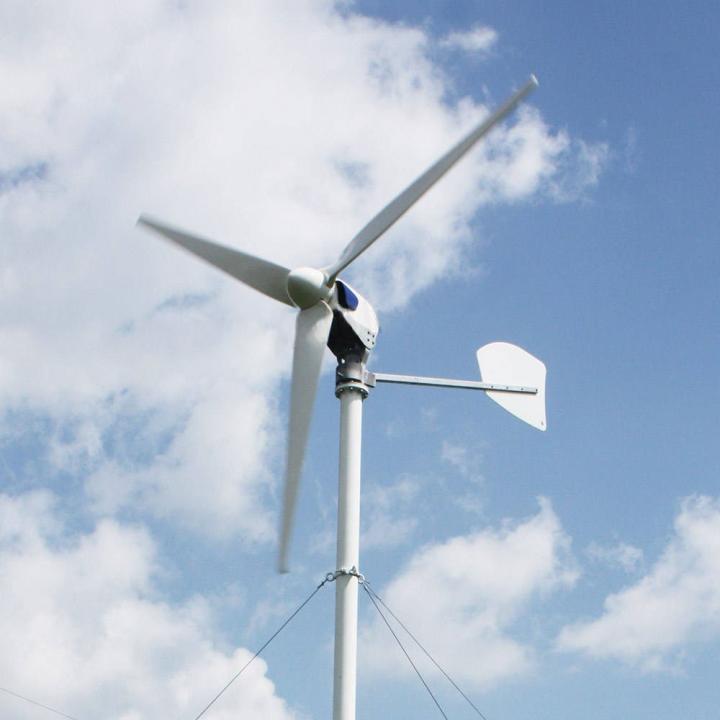

Wind turbine Braun Antaris 7.5 kW : Power, Efficiency, and Robustness

The Antaris wind turbine is especially well suited to inland sites. It can be used to charge 24 VDC or 48 VDC batteries and power heating systems. Thanks to its robust design, the Antaris wind turbine is also well suited to locations exposed to storms.

The rotor blades are hand-laminated and have a computer-designed aerodynamic profile, as well as being statically and dynamically balanced. Each blade carries an identification number and comes with its own documentation. The utmost importance has been attached to ensuring that this wind turbine is quick and easy to install.

Thanks to its robust, sophisticated design, the antaris wind turbine offers excellent performance at a highly attractive price. It starts up very quickly (already at a wind speed of 2.2 m/s) and operates silently (43 dB). This makes it ideal for installation in residential areas.

---

Technical data

Generator

• Brushless, gearless permanent magnet rotor.
• Maintenance-free!
• Powerful NdFeBo permanent magnets for high efficiency, resistant up to 150°C
• Three-phase
• Separate rectifier
• 2-way rotation
• Voltage 0-1000 V
• Starts production at approx.
• 75 rpm
• Power: 7,500 watts at 330 rpm and 400 V
• Linear power curve
• Weight: 87kg
• Aluminum housing, surface and base cooling
• IP56 protection

---

Rotor

• Connection hubs with aluminum flange and pressure relief plate
• Stainless steel connection screws and locknuts
• Rotor
blades
• made of fiberglass and laminated carbon fiber
• Computer-designed aerodynamic profile
• Noise reduction at blade tip
5.
• 3m diameter
• Blade weight: 9.2 kg
• Dynamically balanced
• Counter-clockwise direction of rotation
• Rotational speed up to 300 rpm
• GRP spinner cap
• Rotor color of choice

---

Chassis

• Weather-resistant HDPE weathervane
• Support element: stainless steel square tube
• All threaded connections are stainless steel and fitted with nuts
• Steel generator support, configured for connection to azimuth bearing frame, fully galvanized
• Protected by patented rotor-blade positioning system
• Mast adapter with flange connector (139 mm tube)

---

Storm protection

• Rotor blade tilting to "helicopter" position
• Electronic turbine control

---

Control cabinet

• Control system with voltage monitor
• Electronic turbine control with regulator
• Connector protection against polarity reversal
• Alternator phase control during turbine mode
• Emergency stop switch
• Key switch reset (removable)
• 2 x 3 kW braking resistor

---

Smart Power Electronics 7.5 kW inverter

MODERN - FLEXIBLE - POWERFUL

- Max. wind turbine load 20 kW (SW-10)
- Three-phase grid connection with 10 kW (SW-10)
- Flexible, intelligent management of power supply, useful heating, battery and discharge load consumption via 4 separate DC energy outputs
- Energy meter for power supply and heating
- Reactive power control
- Optional battery buffer interface

COST-EFFECTIVE - SAFE

- Integrated wind turbine control functions Intelligent, fine-tuned characteristic curve control for optimum wind utilization
- Voltage- or speed-dependent characteristic curve freely selectable
- Numerous monitoring functions, e.g. speed or wind speed
- KWEA shutdown switch with additional safety functions

COMPACT

- Direct connection of particle generator without additional equipment
- Wide input voltage range for particle generators
- Compact housing design with separately opening connection area
- Passive convection cooling over a wide performance range
- Integrated mains/system protection (NA protection to VDE AR-N 4105)

COMMUNICATIVE

- Integrated graphic display
- Integrated web server
- Convenient Smart!wind Explorer PC user interface and settings

FIELDS OF APPLICATION

- Small wind turbines
- Small hydroelectric power plants
- Mini-cogeneration

Features

General data

SW-7.5

Dimensions

656 x 472 x 234 mm

Weight

42 kg

Protection class

IP54

Cooling

Passive air / demand-controlled fan

-25°C ...

Operation in temperature range

+40°C - automatic derating

Overall efficiency

No more than 94%.

Oby

wn consumption

< 18 W - stand

< 83 W - active supply

side

Input generator

Generator type

excité en permanence / 3 phases

B6

Generator side rectifier

60...500 VLL

.

310 ..

500 VLL - for full 10 kW power

600 VLL - maximum

Input voltage range (conductor to conductor)

20 A - nominal value

Input current (nominal value)	40 A - max.
5 s

Input power

15 kW - nominal value

Input current (nominal value)

30 kW - max. 5 s

0

Maximum value limited by load resistance

Hz ...150 Hz

Input frequency

Insulation control

Generator monitoring

Temperature control

Speed c

control

ontrol

side

Mains

output

IGBT

Mains side inverter

B6

3

Number of phases

7

Output power (nominal value)

,5 kW

Output voltage

400 VLL - nominal value

318 ...460 VLL - admissible range

0 ...

Output current (nominal value)

11 A

0...

Output frequency

Hz

150 Hz

Separation concept

transformerless - no galvanic isolation

Power factor - cos φ	<
3%

Power factor - cos φ

regulated at 1 - regulation in accordance with VDE AR-N 4105

Short-circuit resistance

Current monitoring

Network / system protection - ENS

integrated in accordance with VDE AR-N 4105

---

48 VDC battery charger monitoring
