1kW Bergey Excel wind turbine 24V or 48V (charging models)

The perfect complement: Excel 1kW wind turbine for stand-alone solar systems

The product includes

• a turbine BWC Excel 1
• a MidNite Solar Classic 250 charge controller
• a MidNite Solar turbine control box

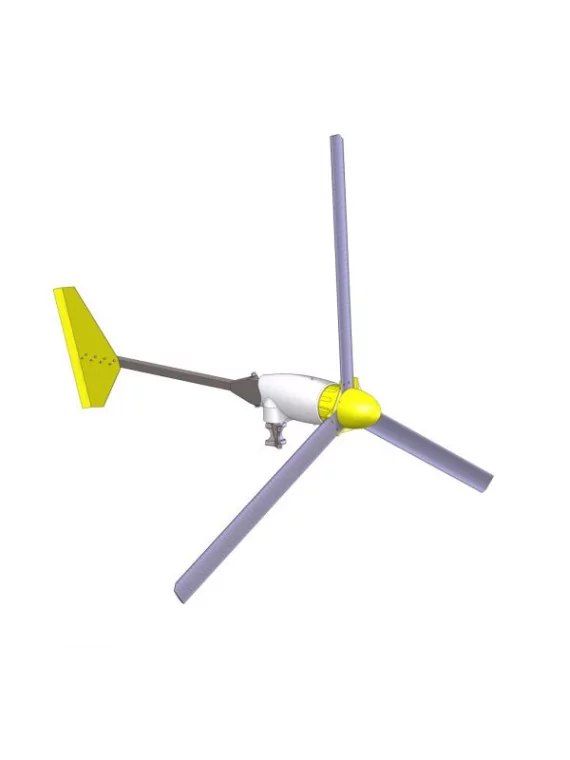

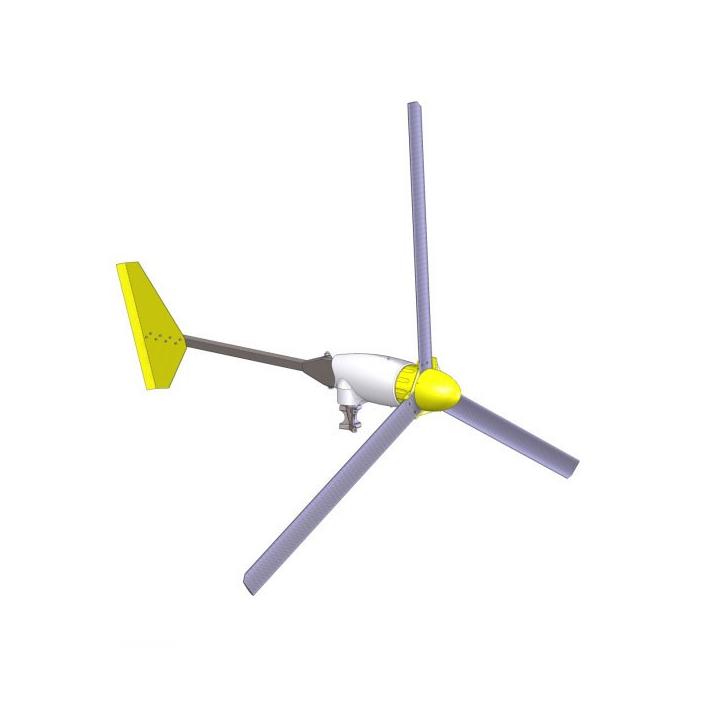

With a rotor diameter of 2.5 meters (8.2 ft) and a peak output spiking over 2,000 watts the Excel 1 is a perfect system upgrade for current owners of solar-only off-grid systems along with light telecom and other high reliability off grid applications.

Following the same simple design as the larger Excel turbines, the Excel 1 has been a favorite tool for experienced renewable energy practitioners for over a decade.
The recently updated version incorporates the acclaimed American made MidNite Solar Classic 250 multi-voltage charge controller. This allows the unit to charge 12V-48V nominal battery banks.
A higher voltage stator reduces the required conductor sizing for wire runs making installation more affordable, and a newly incorporated disconnect box makes inspections as simple as a flick of a switch.
Marine grade corrosion protection has also been added as a standard feature.
Add capacity and reliability to your off-grid system with this powerful yet simple solution.

Description

Uncompromising Quality

• High output, low noise
• Maximum safety
• Saltwater proof materials
• Neodymium magnets
• Easy and quick to install
• Zero Maintenance Design
• Durable trouble free energy
• 5 years limited warranty

Technical data

 MidNite Solar Classic 250 charge controller

• Voltage : 250
• max. Current Output : 63 A
• Battery 12-72V
• Made in USA

MidNite Solar turbine control box

Applications :

The MidNite Turbine control box contains over current protection, 3 Phase stop switch and a quality rectifier.
