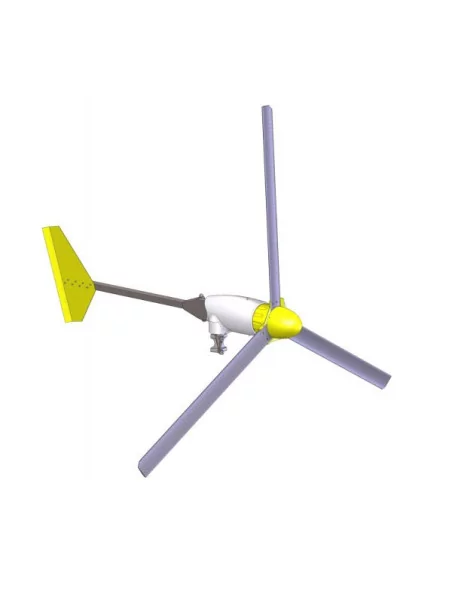

1kW Bergey Excel wind turbine 24V or 48V (charging models)

With a rotor diameter of 2.5 meters (8.2 ft) and a peak output spiking over 2,000 watts the Excel 1 is a perfect system upgrade for current owners of solar-only off-grid systems along with light telecom and other high reliability off grid applications.

2 models available : 24 ou 48 VDC (select in the options)

logo Bergey

Available on order

More info

More details

9 599,00 € tax incl.

Options

Add to cart

By buying this product you can collect up to 959 loyalty points. Your cart will total 959 points that can be converted into a voucher of 287,70 €.


More info

" Bergey Excel wind turbine, designed for high reliability "

The product includes :

  • a turbine BWC Excel 1
  • a MidNite Solar Classic 250 charge controller
  • a MidNite Solar turbine control box


eolienne xl 1With a rotor diameter of 2.5 meters (8.2 ft) and a peak output spiking over 2,000 watts the Excel 1 is a perfect system upgrade for current owners of solar-only off-grid systems along with light telecom and other high reliability off grid applications.

Following the same simple design as the larger Excel turbines, the Excel 1 has been a favorite tool for experienced renewable energy practitioners for over a decade.
The recently updated version incorporates the acclaimed American made MidNite Solar Classic 250 multi-voltage charge controller. This allows the unit to charge 12V-48V nominal battery banks.
A higher voltage stator reduces the required conductor sizing for wire runs making installation more affordable, and a newly incorporated disconnect box makes inspections as simple as a flick of a switch.
Marine grade corrosion protection has also been added as a standard feature.
Add capacity and reliability to your off-grid system with this powerful yet simple solution.





Description

Uncompromising Quality

  • High output, low noise
  • Maximum safety
  • Saltwater proof materials
  • Neodymium magnets
  • Easy and quick to install
  • Zero Maintenance Design
  • Durable trouble free energy
  • 5 years limited warranty







Technical data

Rated power1kW
Rated wind speed24,6 knots (11 m/s)
Starting wind speed6,7 knots (3 m/s)
Rotor diameter1.25 m
Number of blades3
Rotor speed490 RPM
GeneratorPermanent magnets
MagnetsNeodymium
Voltage24 VDC / 48 VDC (to select in the options)
ConnectionCharge regulator
Net weight34 kg



Schema




MidNite Solar Classic 250

 MidNite Solar Classic 250 charge controller

  • Voltage : 250
  • max. Current Output : 63 A
  • Battery 12-72V
  • Made in USA






MidNite Solar box

MidNite Solar turbine control box

Applications :

The MidNite Turbine control box contains over current protection, 3 Phase stop switch and a quality rectifier.



Data sheets and documentation
