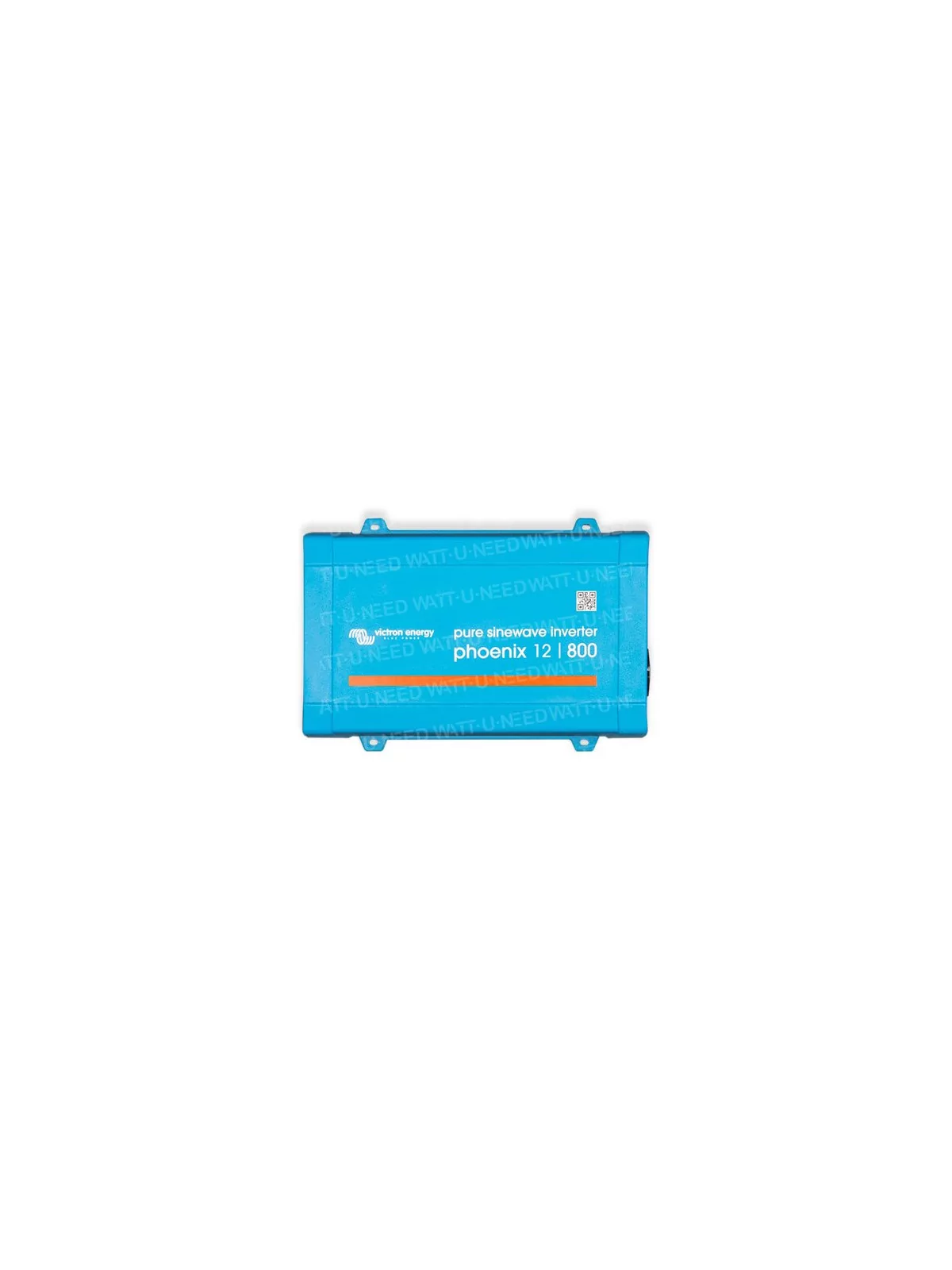

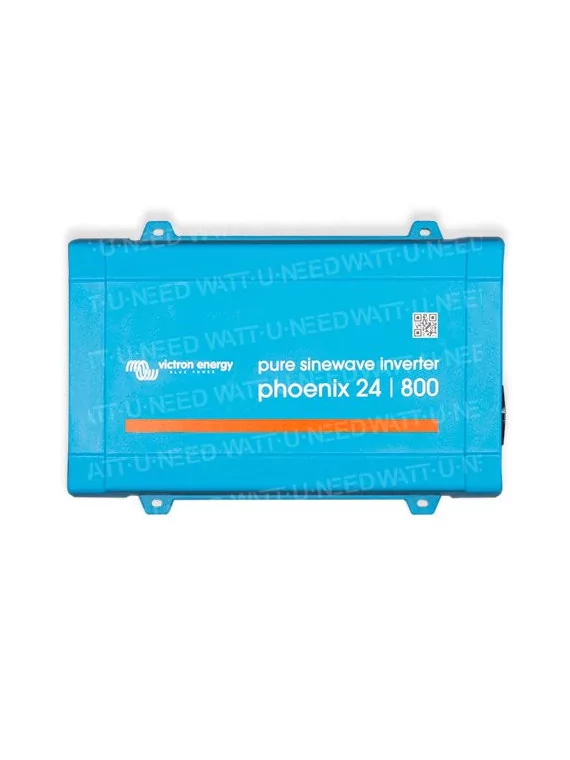

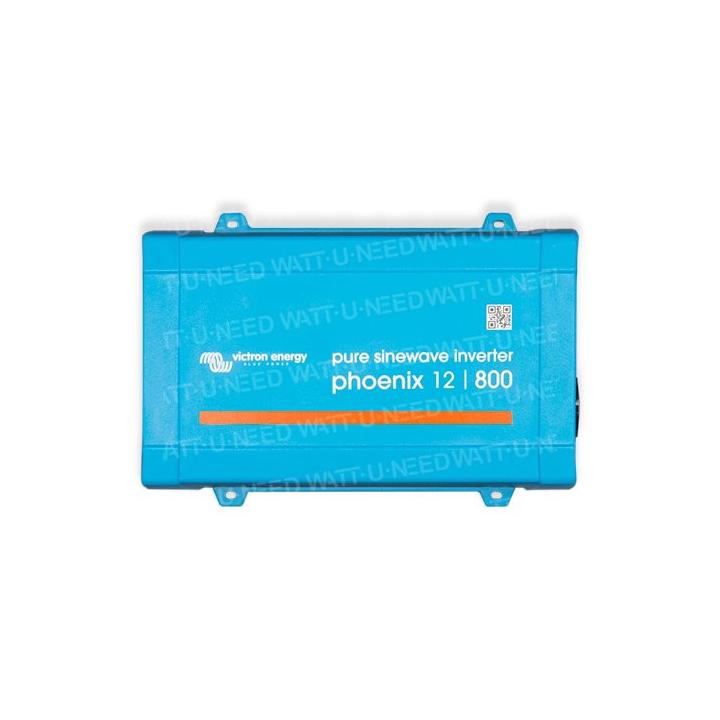

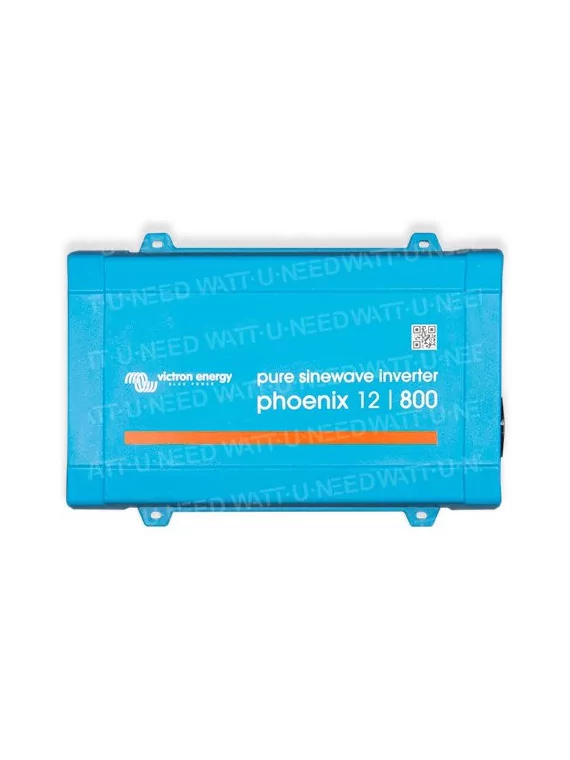

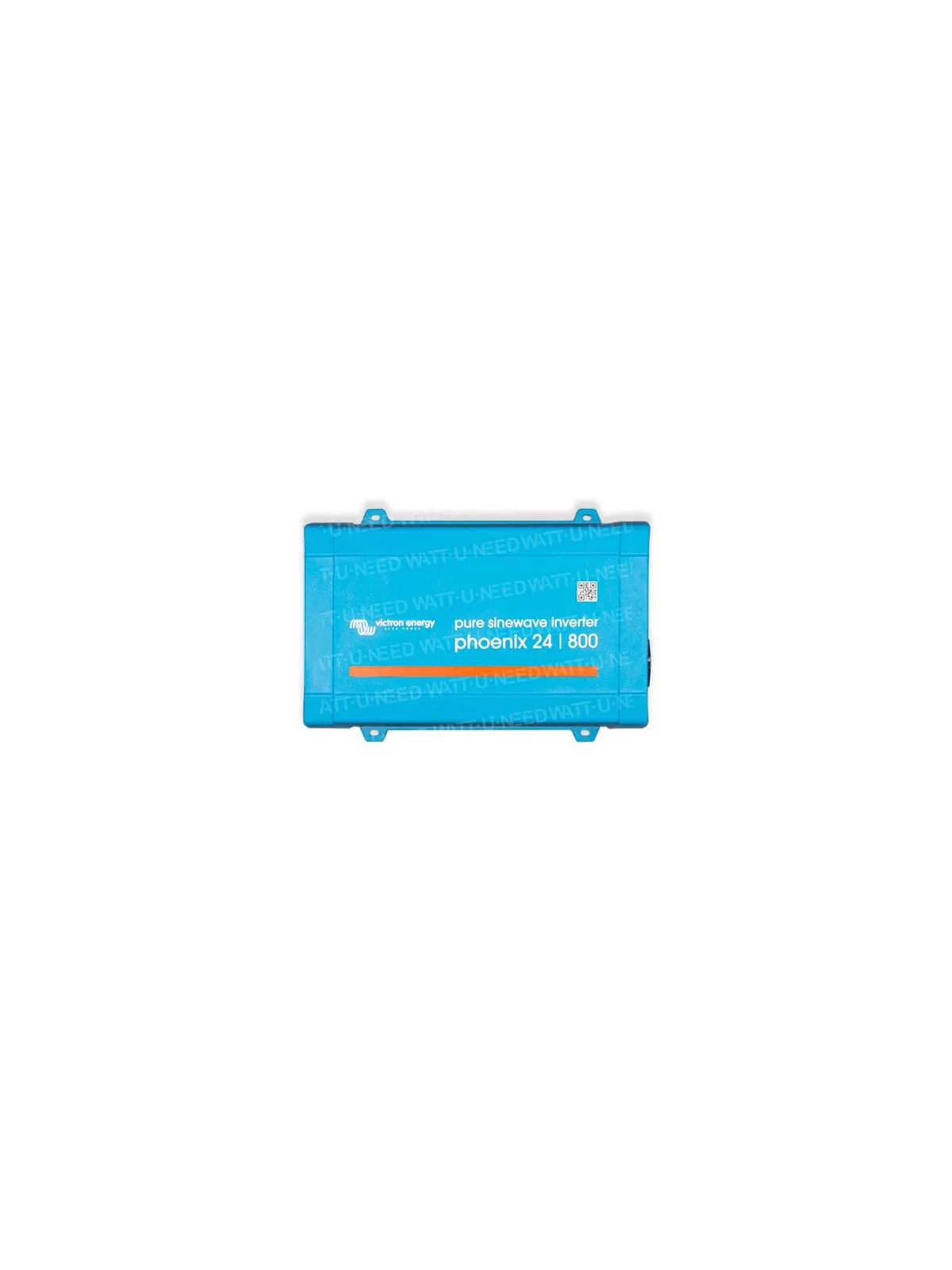

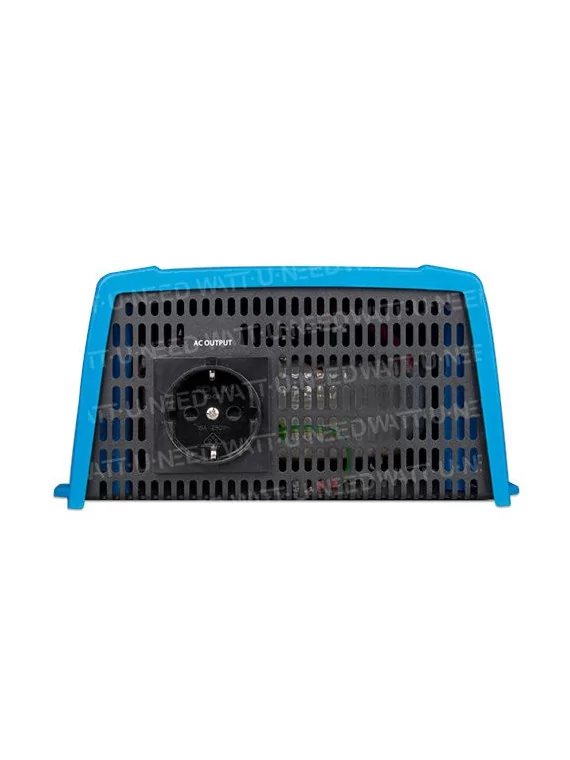

    Converter Victron Phoenix VE.Direct 12/24/48V - 800VA
    Converter Victron Phoenix VE.Direct 12/24/48V - 800VA
    Converter Victron Phoenix VE.Direct 12/24/48V - 800VA
    Converter Victron Phoenix VE.Direct 12/24/48V - 800VA
    Converter Victron Phoenix VE.Direct 12/24/48V - 800VA
    Converter Victron Phoenix VE.Direct 12/24/48V - 800VA
    Converter Victron Phoenix VE.Direct 12/24/48V - 800VA

    Converter Victron Phoenix VE.Direct 12/24/48V - 800VA

    $294.8
    PIN121801100
    0712971136250

    Victron Phoenix VE.Direct 12/24/48/800VA converter.

    Developed for professional use, the Phoenix range of converters is perfectly suited to a wide variety of applications.

    Victron Phoenix: 12V 800VA VE.Direct

    Converter Victron Phoenix...

    $294.8

    Phoenix converter - VE.Direct

    Converters enable you to power household equipment - requiring a 230 V power source - using "leisure" or "automotive" batteries with a voltage of 12 V, 24 V or 48 V.

    VE.Direct communication port

    The VE.Direct port can be connected to:

    • A computer (VE.Direct-USB interface cable required).
    • Apple and Android smartphones, tablets, macbooks and other devices (a Bluetooth Smart dongle communicating with VE.Direct is required).

    Fully configurable:

    • Reset levels and alarm triggering in the event of low battery voltage
    • Restart levels and cut-off in the event of low battery voltage
    • Dynamic cut-off: load-dependent cut-off level
    • Output voltage 210 - 245 V
    • Output frequency 50 Hz or 60 Hz
    • ECO mode detection level and ECO mode on/off.

    Monitoring:

    • Input and output voltage, % load and alarms

    Proven reliability

    The full-bridge topology with toroidal transformer has proven its reliability for years.
    The converters are protected against short-circuits and overheating, whether in the event of overload or high ambient temperature.

    High starting power

    Necessary for starting loads such as power converters for LED or halogen bulbs, or power tools.

    ECO mode

    In ECO mode, the converter will pause if the load drops below a pre-set value (minimum load: 15 W). Once paused, the inverter will switch on for a short period of time (adjustable; default: every 2.5 seconds). If the load exceeds a pre-set level, the inverter will remain on.

    Remote on/off.

    A remote on/off switch can be connected to a two-pole connector or between the positive battery pole and the left contact of the two-pole connector.

    Diagnostic LED

    Please refer to the manual for a description.

    To transfer the load to another AC source: the automatic transfer switch

    For our low-power converters, we recommend the use of our Filax automatic transfer switch. The Filax benefits from a very fast transfer time (less than 20 milliseconds), so that computers and other electronic equipment can continue to operate without interruption.

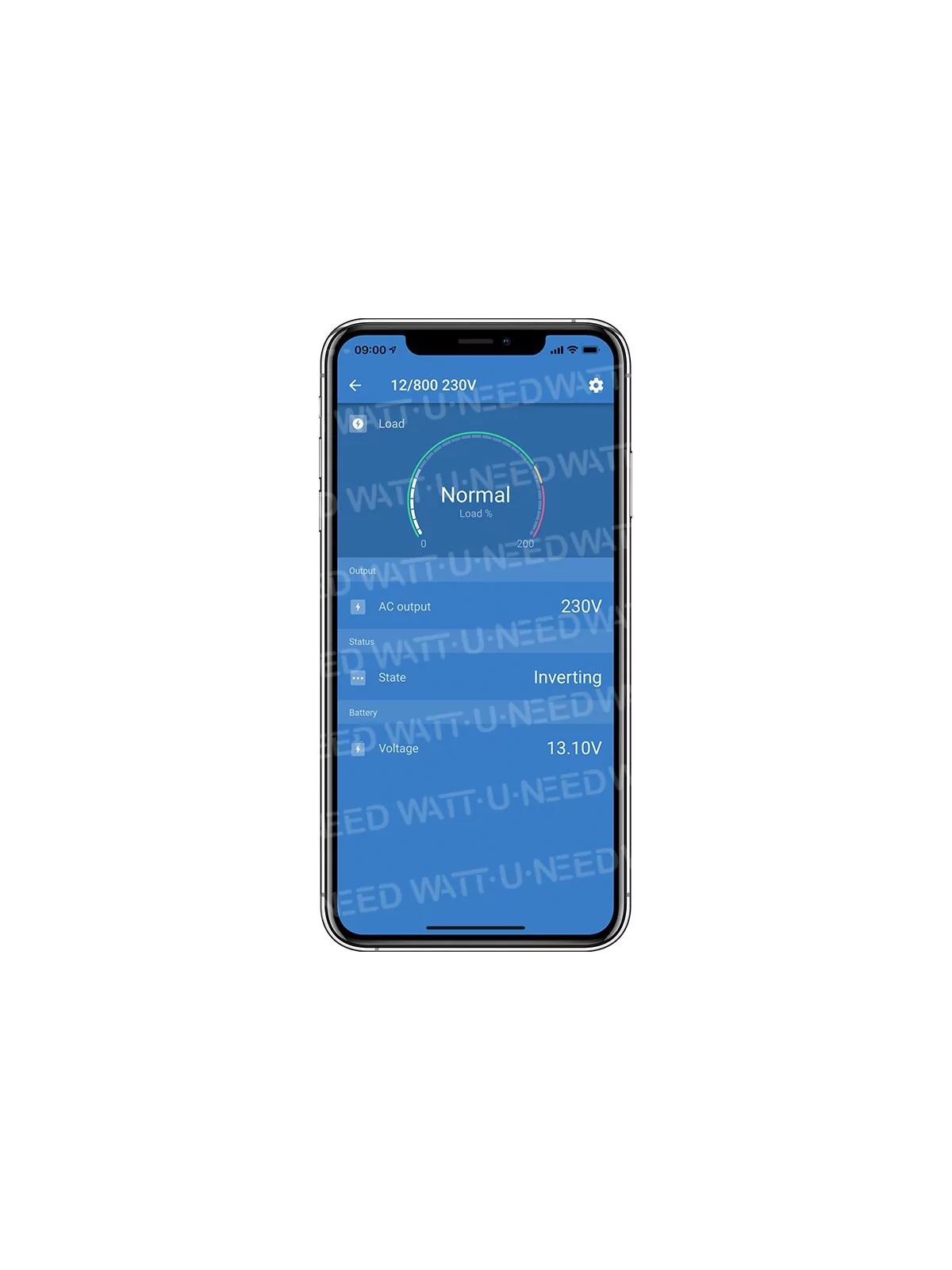

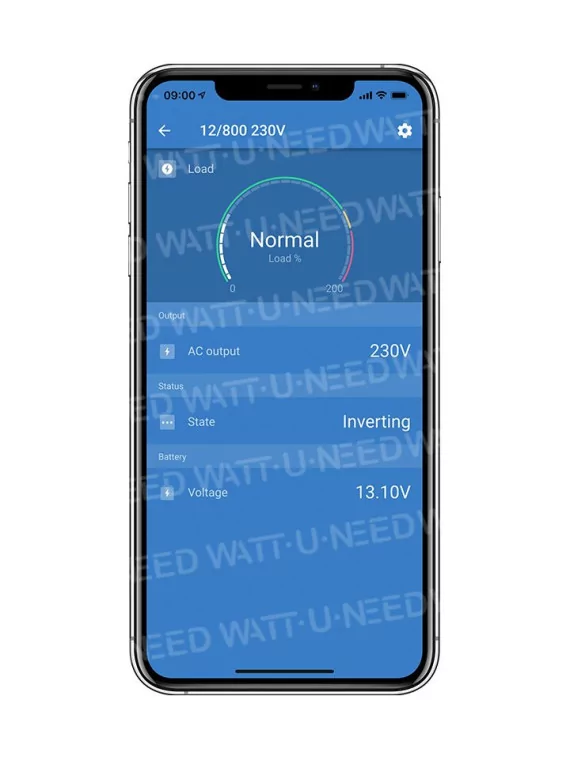

    VictronConnect

    VictronConnect lets you get live status information and configure your Victron products using the built-in Bluetooth device or a Bluetooth Smart dongle connected to VE.Direct.

    App Store

    Playstore


    Features

    Victron Phoenix 12V / 800 VA24V / 800 VA48V / 800 VA
    Continuous power at 25°C800 VA
    Peak power1500 W
    Frequency / AC output voltage (adjustable)230 VAC or 120 VAC +/- 3 % 50 Hz or 60 Hz +/- 0,1%
    Supply voltage range
    .2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 V
    DC low-current shutdown (adjustable)
    .3 / 18.6 / 37.2 V
    Dynamic (load-dependent)
    DC low-current shutdown (fully adjustable)
    Dynamic shutdown, see
    ://www.victronenergy.com/live/ve.direct :
    phoenix-inverters-dynamic-cutoff
    Low DC alarm and restart (adjustable)10.9 / 21.8 / 43.6 V
    Charged battery detection (adjustable)14.0 / 28.0 / 56,0 V
    Maximum efficiency90 / 90 / 91 %
    No-load power consumption
    .0 / 7 / 9.5 W
    Default no-load power consumption in ECO mode
    (default retry interval :
    2.5 s, adjustable)
    .0 / 1.5 / 3.0 W
    Start/stop power parameter in ECO modeAdjustable
    Operating temperature range
    to +65 °C (fan cooled)
    (Reduction 1,25% per °C aboveabove 25 °C)
    Humidity (non-condensing)Max. 95%
    HOUSING
    Material and colorSteel chassis and plastic cover
    (Blue RAL 5012)
    Battery
    Screw terminals
    Maximum cable cross-section25 / 10 / 10 mm² / AWG4 / 8 / 8

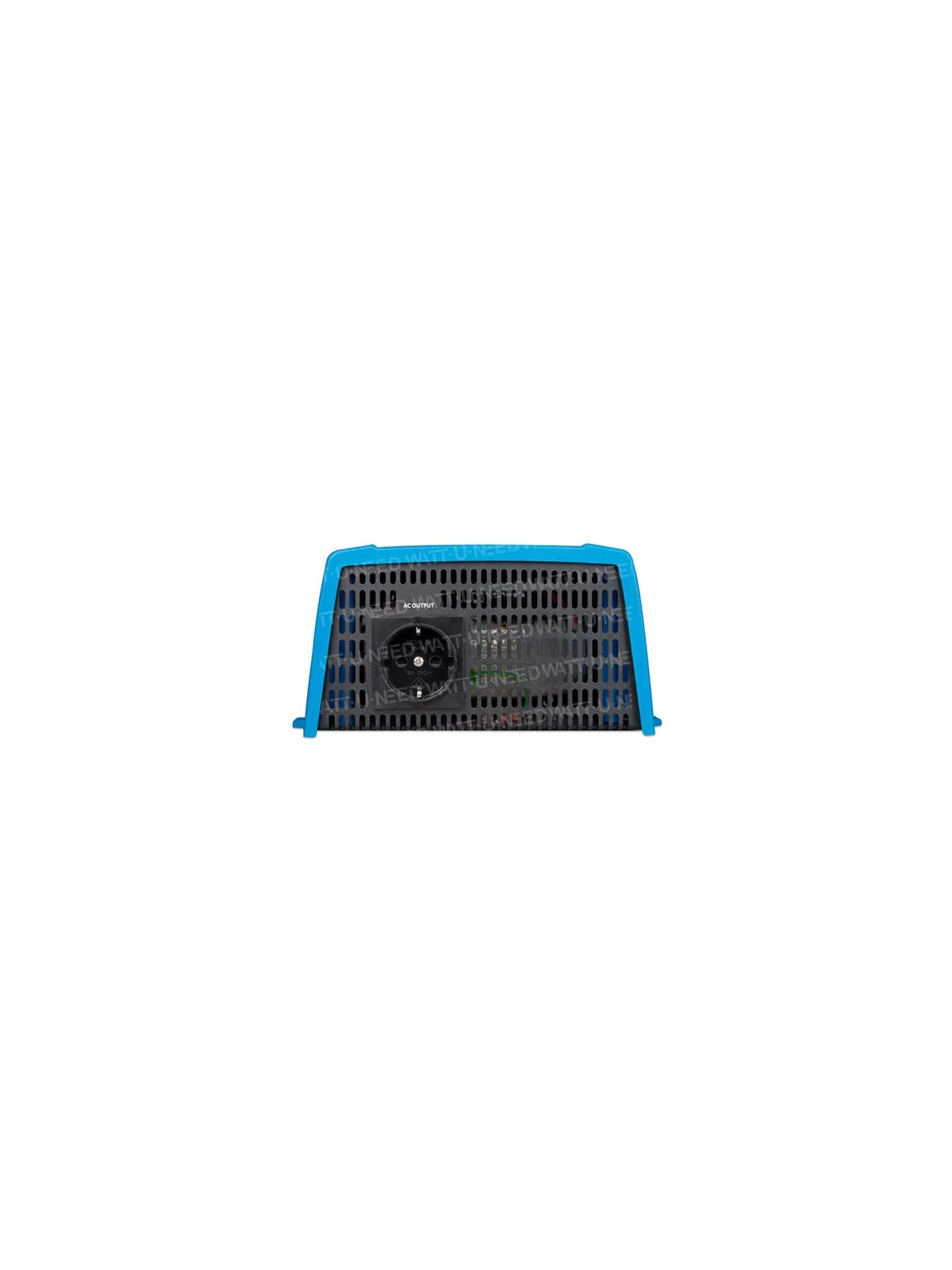

    Standard AC sockets230 V :
    Schuko (CEE 7/4), IEC-320 (plug included)
    Degree of protectionIP21
    Weight
    ,

    5

    kg
    Dimensions (H x W x D)105 x 216 x 305 mm
    ACCESSORIES
    Remote on/off switchYes
    Automatic transfer switchFilax
    NORMES
    SafetyEN-IEC 60335-1 / EN-IEC 62109-1
    EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
    Automotive DirectiveECE R10-4
