10-panel 5.6 kVa self-consumption kit with storage and installation in Belgium

Control your energy?
Our All-in-One Kit with installation in Belgium, for carefree energy autonomy!

Discover our turnkey solution for generating your own electricity from the sun. Our basic kit includes 10 solar panels based on the latest technology, WKS Evo Circle 5.6 kVA 48V hybrid inverter and a Pylontech US5000 lithium battery, a fixing system suitable for tiled roofs and all the components needed for installation. We select the most efficient panels for you to optimize your system's energy production.

Why choose solar energy?

By opting for a solar installation, you're choosing to :

• Reduce your electricity bill
• Reduce your carbon footprint
• Enhance the value of your property
• Become more energy independent

A personalized quote for your project

We offer you a personalized study to determine the ideal configuration for your installation. By sending us a few photos of your roof and indicating your electricity consumption and type of connection (single-phase or three-phase), we can provide you with a precise quote.

Fast, professional installation

Once your project has been approved, our team of qualified installers will set up your solar system as quickly as possible. We guarantee careful installation in compliance with current standards.

The advantages of choosing Wattuneed

• Expertise: Benefit from our know-how to make your project a success.
• Quality: High-performance materials and professional installation.
• Simplicity: A turnkey solution to make your life easier.
• Guarantee: We monitor your installation and offer a ten-year guarantee.

An offer adapted to your needs

Our offer is valid for accessible installations requiring no major lifting equipment. For more complex projects, we can propose a customized solution.

Would you like to find out more?

Please contact us for a free, customized quote:info@wattuneed.com

Take the step towards energy autonomy!

Important notice for our customers in Belgium: An environmental contribution of € 114.73 excluding VAT will be applied to the purchase of each Pylontech US5000 lithium battery. More information at the bottom of the page.

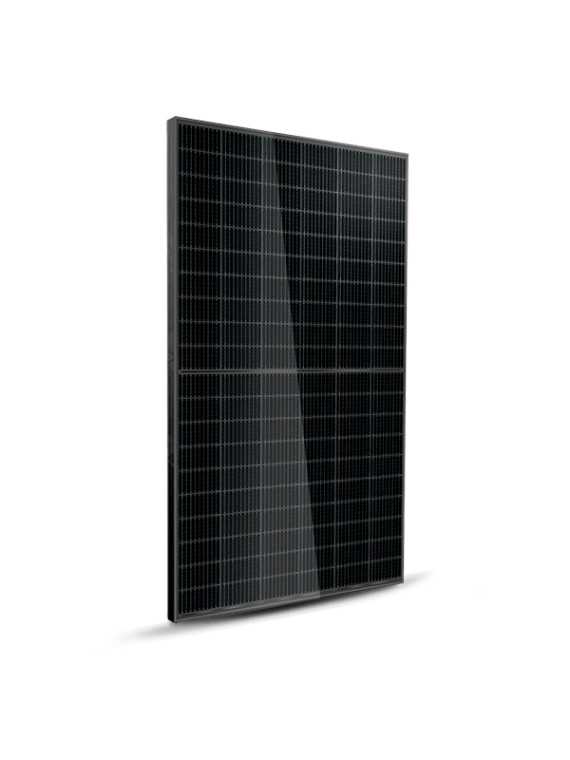

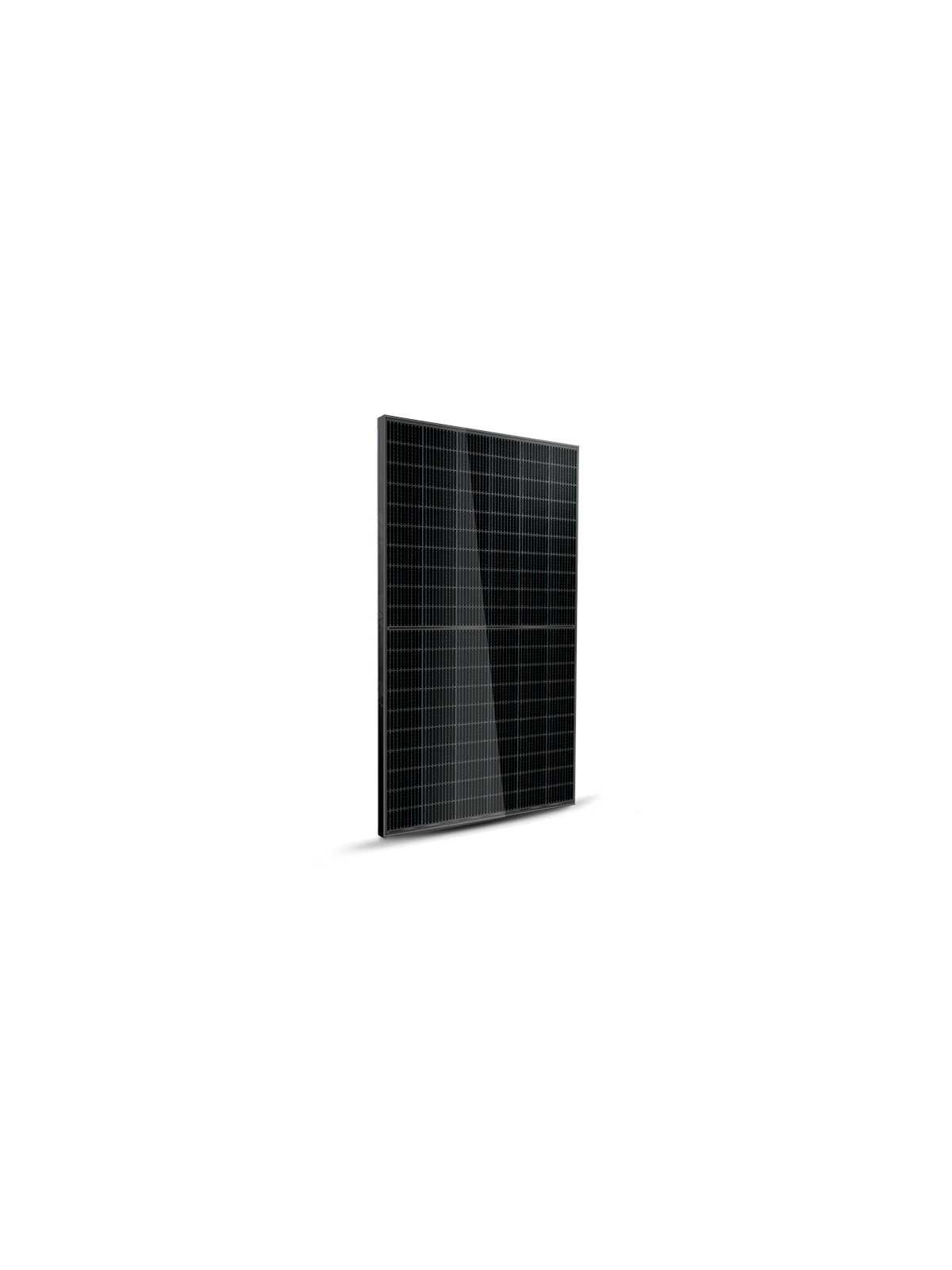

Solar panels

Inverters

Choose the best partner to convert your solar energy.

If you want to maximize the use of your photovoltaic solar energy, the hybrid inverter in combination with domestic storage may be the ideal solution for you.

We've selected the WKS range for their performance and excellent value for money.
It's perfectly possible to install several inverters in the same system to increase the power available.

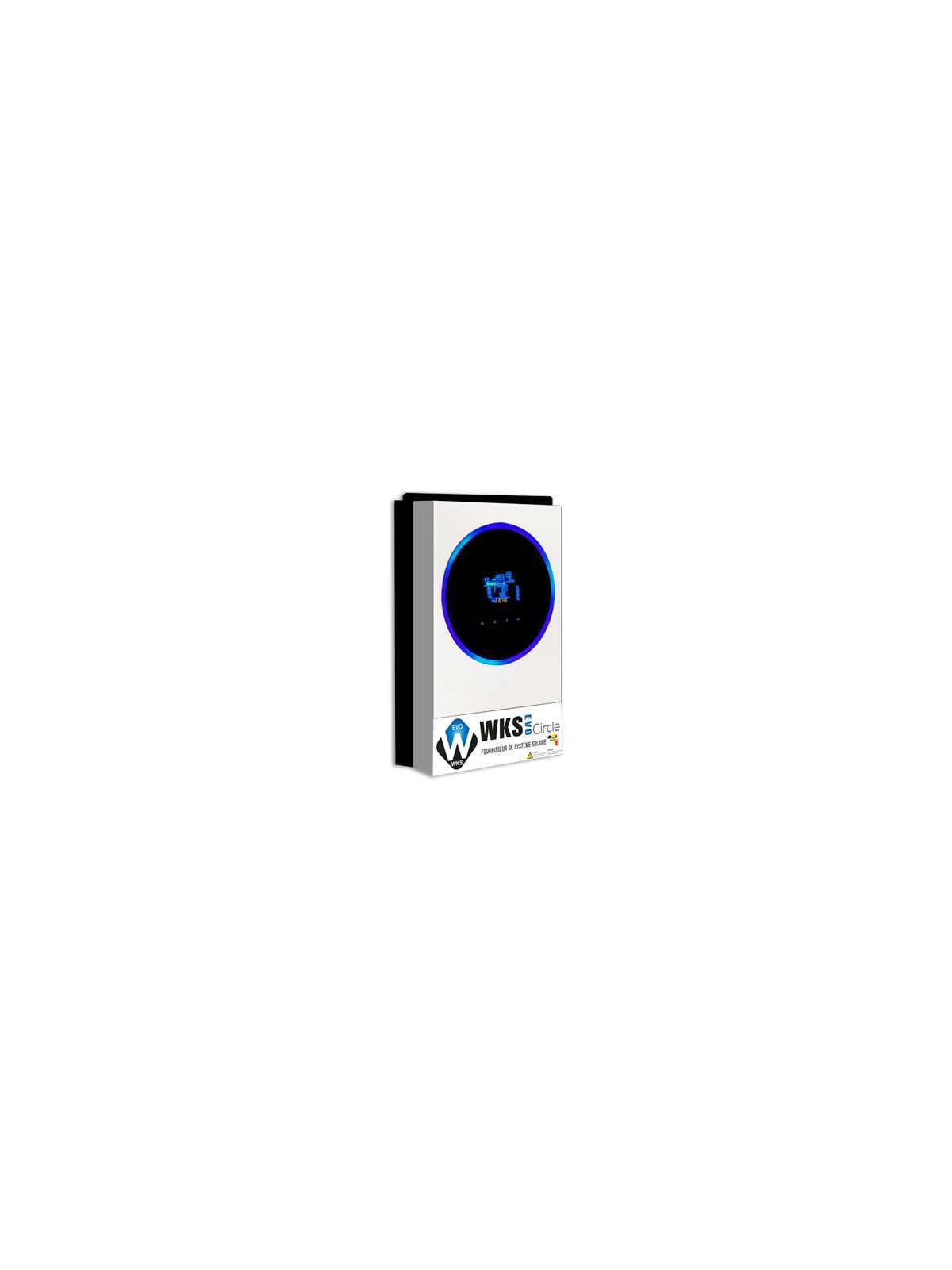

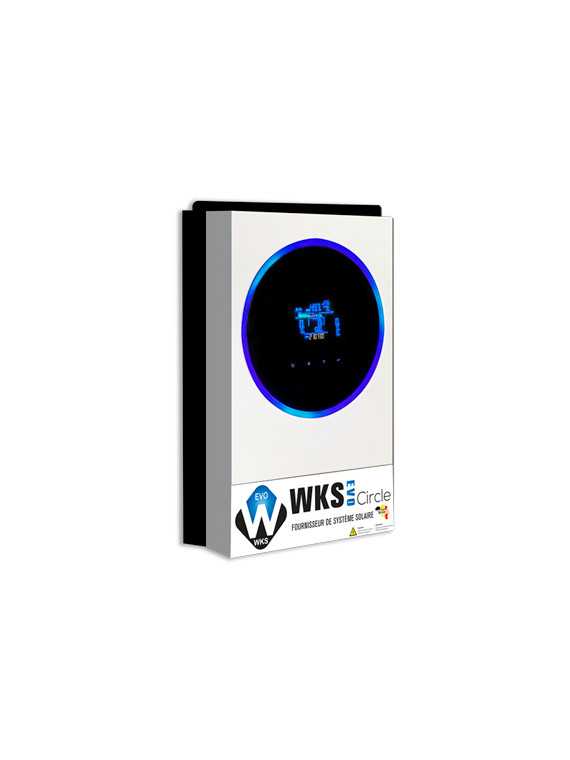

Hybrid inverter WKS EVO Circle

Hybrid inverter WKS EVO MAX II

1 MPPT

-> 9 Inverters

2 MPPT

-> 6 Inverters

Rated power 5600 VA - 5600W

Battery voltage 48 VDC

Rated power 10000 VA - 1000W

Battery voltage 48 VDC

Maximum PV load current 120 A

Maximum AC load current 120 A

Maximum PV load current 150 A

Maximum AC load current 150 A

Key benefits Intuitive design: Customizable LED ring, 4.3-inch color LCD screen, touch button. Flexibility: Option to choose operating mode via timer. Connectivity: Built-in Wi-Fi, USB On-The-Go port, BMS communication port. Performance: High-performance MPPT controller, wide DC input range. Reliability: Transformerless design, parallel operation up to 9 units. Notable technical features Power: 5.6 kVA MPPT Solar Charger: 120A LCD Screen: Color, 4.3 inches Wi-Fi: Built-in Parallel Operation: Up to 9 units LED Ring: Customizable with RGB effects

Key benefits Energy flexibility: maximum self-consumption, storage, grid injection. High performance: Two independent MPPT trackers, high efficiency. Reliability and durability: microprocessor control, robust construction. Ease of use: Intuitive LCD display, communication options. Safety: Overload and short-circuit protection. Environment: Clean energy, reduced carbon footprint. Notable technical features Power: 10kW Two independent MPPT trackers: Optimization of solar production Communication: Several options for home automation integration Environmentally-friendly: Solar energy

Our battery selection

Optimize your installation by choosing a suitable, high-performance storage solution.
Store your surplus solar production for later use to get rid of the grid.

We chose Pylontech lithium batteries for many reasons:
- 7 to 10-year product warranty;
- Fast charge/discharge speed;
- Possibility of upgrading capacity whenever you want;
- No technical capacity limits.

We offer two different capacities. They are compatible with each other.

Battery storage Pylontech US3000C

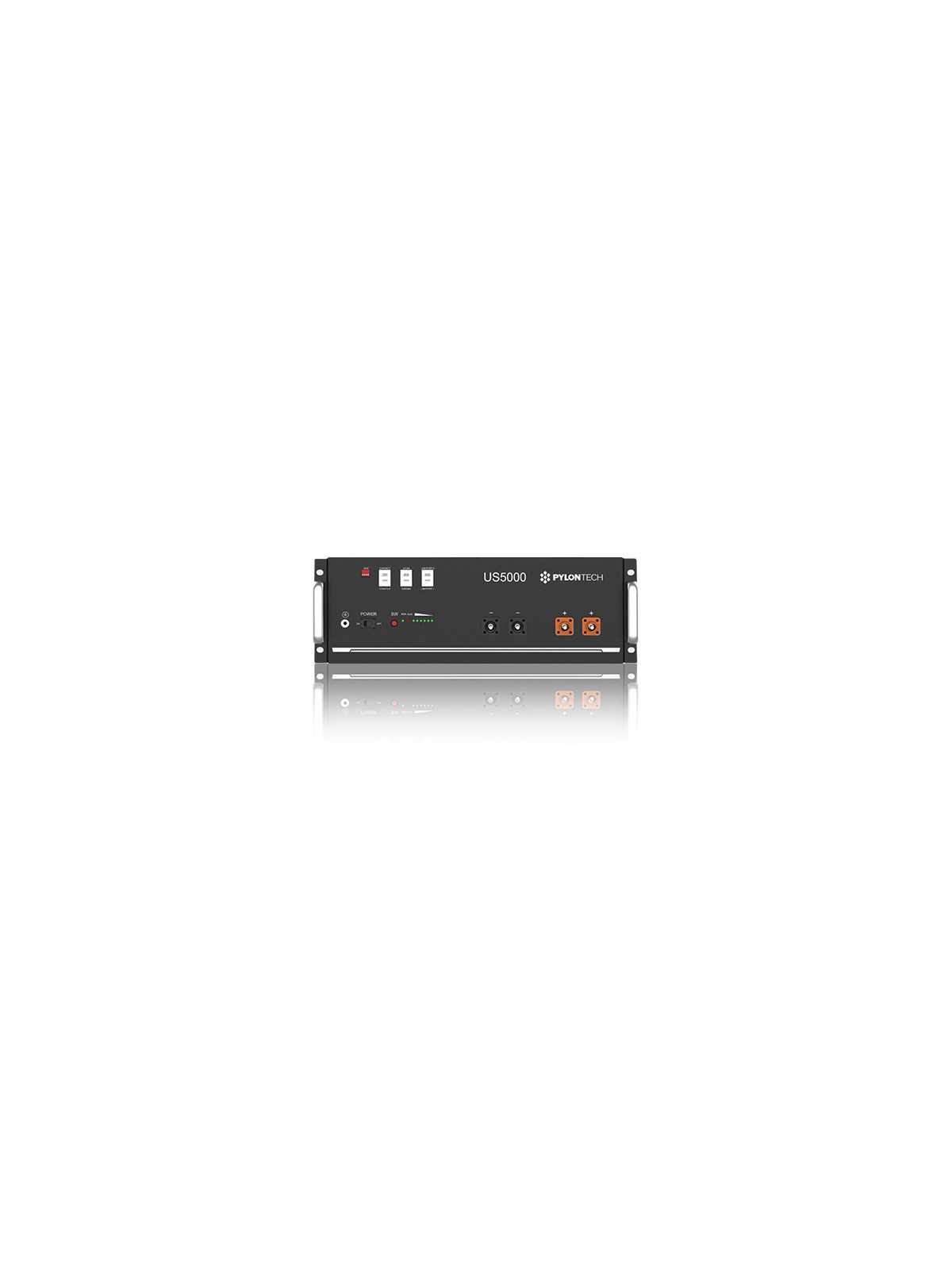

Battery storage Pylontech US5000

Rated capacity 74 Ah

DOD 95%

Rated capacity 100 Ah

DOD 95%

Tension 48 VDC

Charge/discharge 37 Ah (recommended) 37 Ah@ (Maximum)

Tension 48 VDC

Charge/discharge 80 Ah (recommended) 120 Ah@ 15min (Max.)

Cycle >6000, 25°C

Upgradable -> 16 batteries

Cycle >6000, 25°C

Upgradable -> 16 batteries

Benefits • Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 3.552KW  • Useful capacity of 4560Wh • Short current/time duration of <2000A/1ms • TüV CE UN38.3 safety certificate  • Price per kwh: 0.08 cent

Benefits • Over 6000 cycles at 95% discharge • Compact modular design for easy capacity expansion • Supplies up to 4.8KW  • Useful capacity of 3374Wh • Short current/time duration of <4000A/2ms • TüV CE UN38.3 safety certificate • Price per kwh: 0.08 cent

Single-phase connection diagram

Connection to
WKS EVO Circle inverter

---

Important notice for our customers in Belgium: As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental contribution. An amount of €114.73 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation. For more information, click here Here is the reference list and the corresponding fee! When purchasing lithium batteries, please add the following product Pylontech US5000 environmental fee corresponding to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.
