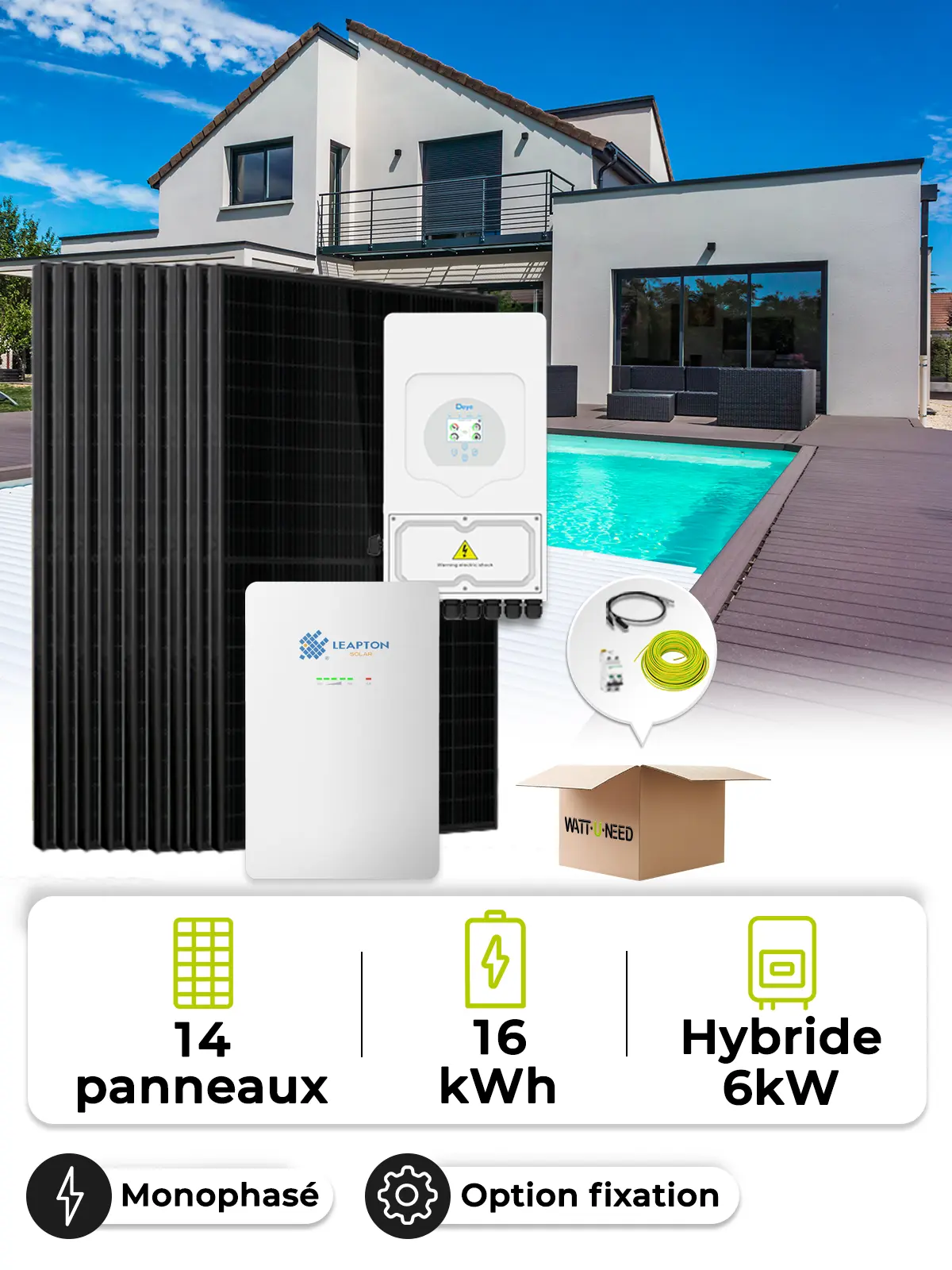

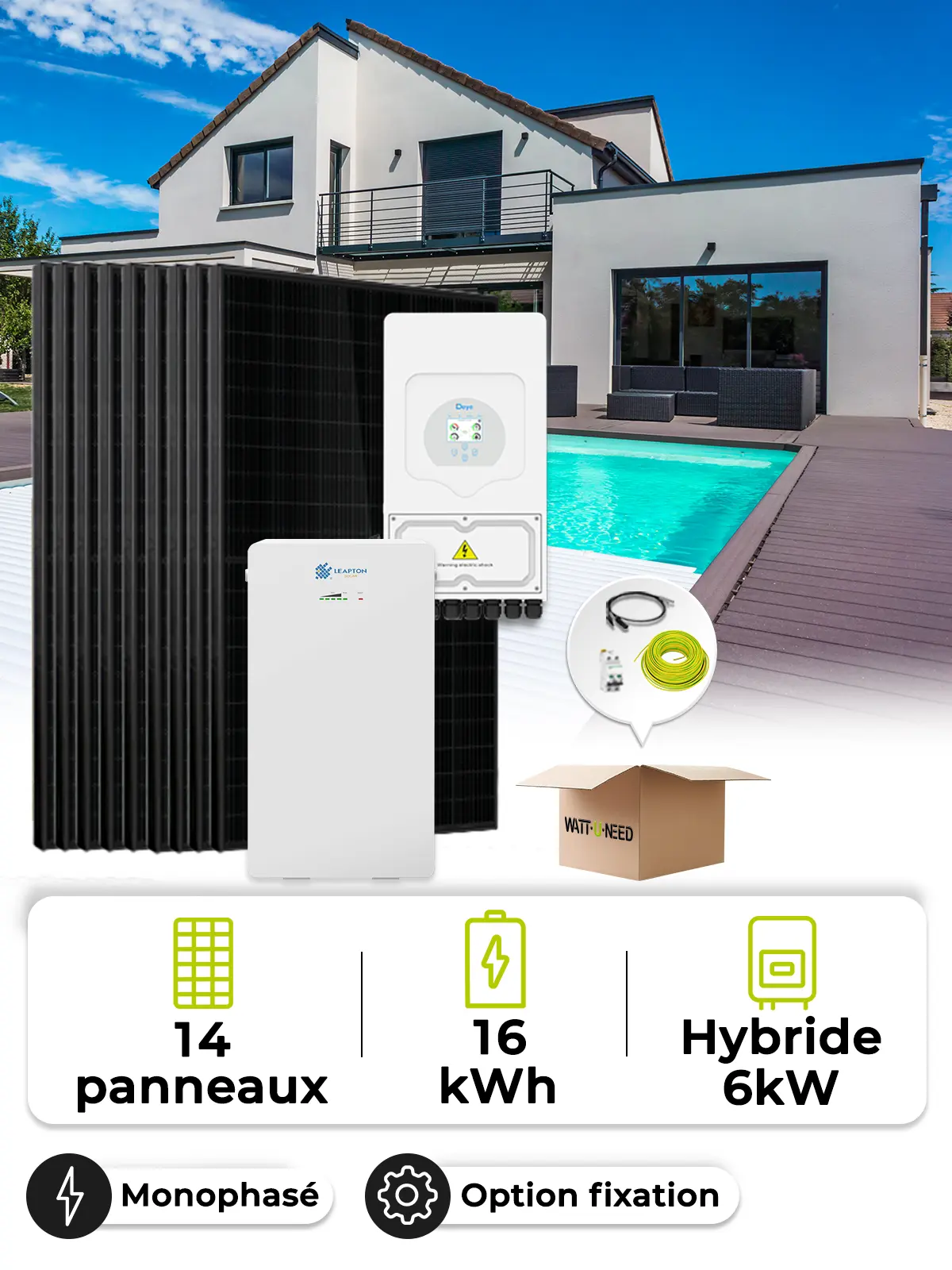

6.3 kWp Self-Consumption Solar Kit – 6 kW Mono – 16 kWh Battery
€5,851.36
Tax included
kit-solaire-6KW-avec-batterie-lithium
0768563823824
Self-consumption solar kit with battery: generate your own electricity and save money
Become energy self-sufficient with this complete solar kit with storage: 14 high-performance photovoltaic panels, a Deye 6 kVA single-phase hybrid inverter and a 16 kWh Leapton lithium battery. Generate your own electricity, store the surplus and use it in the evening or during peak consumption periods.
Key benefits:
- Optimised self-consumption: Use your solar-generated electricity directly and reduce your reliance on the grid.
- Smart storage: Energy available at all times thanks to the lithium battery.
- Adaptable installation: A kit that can be tailored to your needs and your home.
- Long-term savings: Reduce your electricity bill in the long term.
Production and savings:
Comprising 14 x 450 Wp solar panels, this kit delivers an estimated output of 6,930 kWh/year for central France, equating to savings of up to €2,079 per year based on an average tariff of €0.30/kWh.
Why choose this kit?
- High-performance technology: State-of-the-art solar equipment.
- Reliability: Durable components for a secure investment.
- Personalised support: Guidance at every stage of your project.
Switch to solar energy now and request your free, personalised quote tailored to your project.
This kit includes
- 14XQ-Sun Qrystal N8 N-Type 450Wp bifacial solar panel
- 1XDeye 6 kW Mono Hybrid Inverter – SUN-6K-SG05LP1-EU-AM2-P
- 2X2X4mm2 solar cable with MC4 type (sold per metre)
- 1X6mm² earth cable (sold by the meter)
- 1XZJBENY AC 16-25A 230V IP65 lightning arrester cabinet
- 1XBattery box with automatic fuse 125A DC 250V
- 1XLeapton EL-A16 LiFePO4 lithium battery, 16 kWh, 314 Ah – IP65
- 1XBattery cable 2x50mm² - 2m
- 1XZJBENY DC 1000V 32A surge protector box (2 inputs/2 outputs) – BHS-2/2
🔋
Cette batterie est-elle faite pour vous ?
Vérifiez que
16 kWh
correspond à vos besoins
Select products from the sections below
ZJBENY AC 16-25A 230V IP65 lightning arrester cabinet
Price per unit
€180.12 (Tax incl.)
€180.12 (Tax incl.)
Model circuit breaker
ZJBENY DC 1000V 32A surge protector box (2 inputs/2 outputs) – BHS-2/2
Price per unit
€249.26 (Tax incl.)
€249.26 (Tax incl.)
A smart choice for a sustainable and cost-effective future.
This kit is the ideal solution for powering a grid-connected home or an off-grid site. Operating alternately with the public grid or a generator, it ensures a reliable energy supply at all times. With this semi-autonomous system, you can control your consumption and gradually reduce your dependence on the grid.
The basic kit includes everything needed for a high-performance installation: 14 high-quality solar panels, a Deye 6 kVA single-phase hybrid inverter, a 16 kWh Leapton battery and the cables to connect the panels to the inverter. For greater flexibility, the mounting system, cabling and protection devices are fully customisable to suit your needs. Choose a bespoke solution and take control of your energy!
All our kits are fully configurable to meet your expectations. Thanks to the available options, you can click on each product to select a different model or adjust the quantities according to your specific needs. Furthermore, details of the selected products are displayed directly below the price for complete transparency. Enjoy a customisable solution tailored to your project!
 |
Important notice for our customers in Belgium:An environmental levy of €346.80 excluding VAT will be applied to the purchase of each Leapton EL-A16 lithium battery More information at the bottom of the page. |

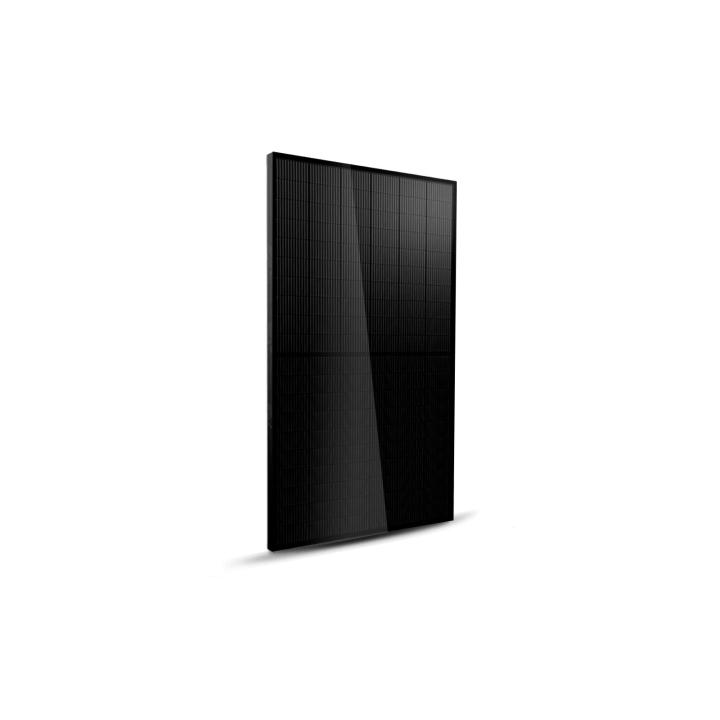

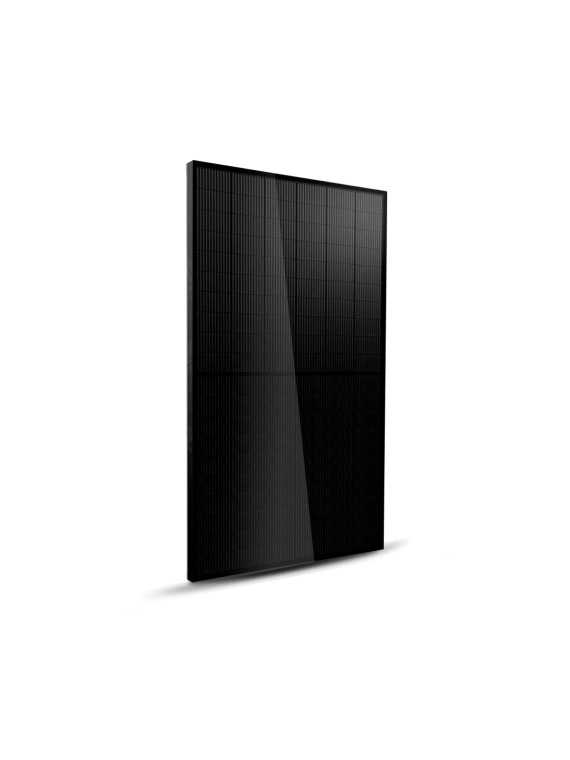

Solar panels
Selected from the latest technologies, this panel offers unrivalled efficiency.
Check out its product sheet in our panels section to find out more.
And don’t forget, we offer you the flexibility to choose the panel model that suits your preferences.
We invite you to use our solar production simulator to determine exactly how much solar energy you will generate.
Different types of cells
|
|
N-Type |
HJT |
|
|
Efficiency |
Approximately 19–22% | Approximately 20–23% | Approximately 21–24% |
|
Cost |
Moderate | High | Very high |
|
Temperature coefficient |
Approximately -0.3 to 0.4% per °C | Approximately -0.3% per °C | Approximately -0.2% per °C |
|
Annual degradation |
Approx. 0.5–0.7% | Approximately 0.4–0.5% | Less than 0.5% |
|
Durability |
Good | Very good | Excellent |

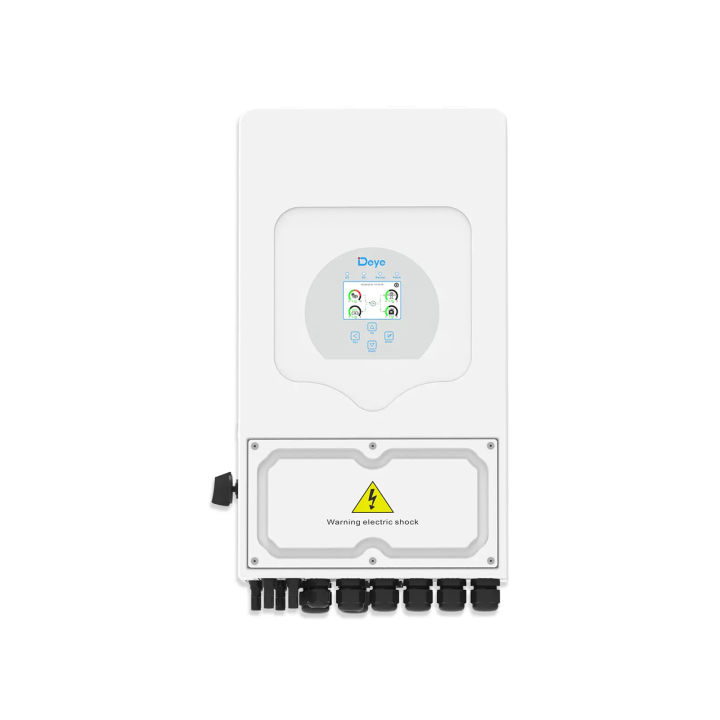

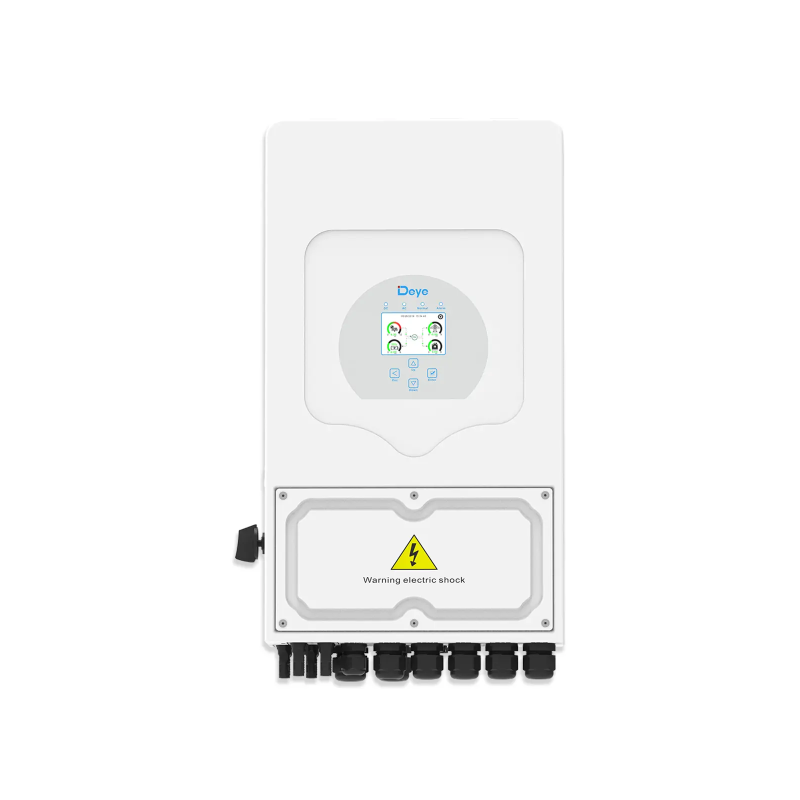

Deye 6 kW Single-Phase Hybrid Inverter – SUN-6K-SG05LP1-EU-AM2-P
The Deye 6 kW hybrid inverter (SUN-6K-SG05LP1-EU-AM2-P) is the go-to solution for high-performance single-phase residential installations. Capable of handling up to 9,000 W of photovoltaic power, it transforms your home into a smart self-consumption unit, capable of operating with or without the public grid.
The major innovation of this model is the integration of the AI-powered Deye Copilot system. This digital brain continuously analyses your consumption patterns, weather forecasts and electricity tariffs. Thanks to artificial intelligence, the inverter anticipates storage in your batteries and optimises energy flows in real time to guarantee you the greatest possible savings, completely autonomously.
Designed for flexibility, it supports low-voltage batteries (48V) and features an ultra-fast backup function (4ms), ensuring your essential appliances remain powered without any micro-outages in the event of a grid failure. Its compact and robust design allows for easy installation both indoors and outdoors.
Key benefits:
- Deye Copilot AI: Predictive and intelligent energy management to maximise savings.
- Power: 6 kW single-phase with PV input up to 9 kWp.
- Battery compatibility: 40–60 V system (lithium or lead-acid).
- High efficiency: Up to 97.6% conversion efficiency.
- Dual MPPT: Optimisation of output across two different roof orientations.
The ideal choice for a connected, self-sufficient home optimised by artificial intelligence.

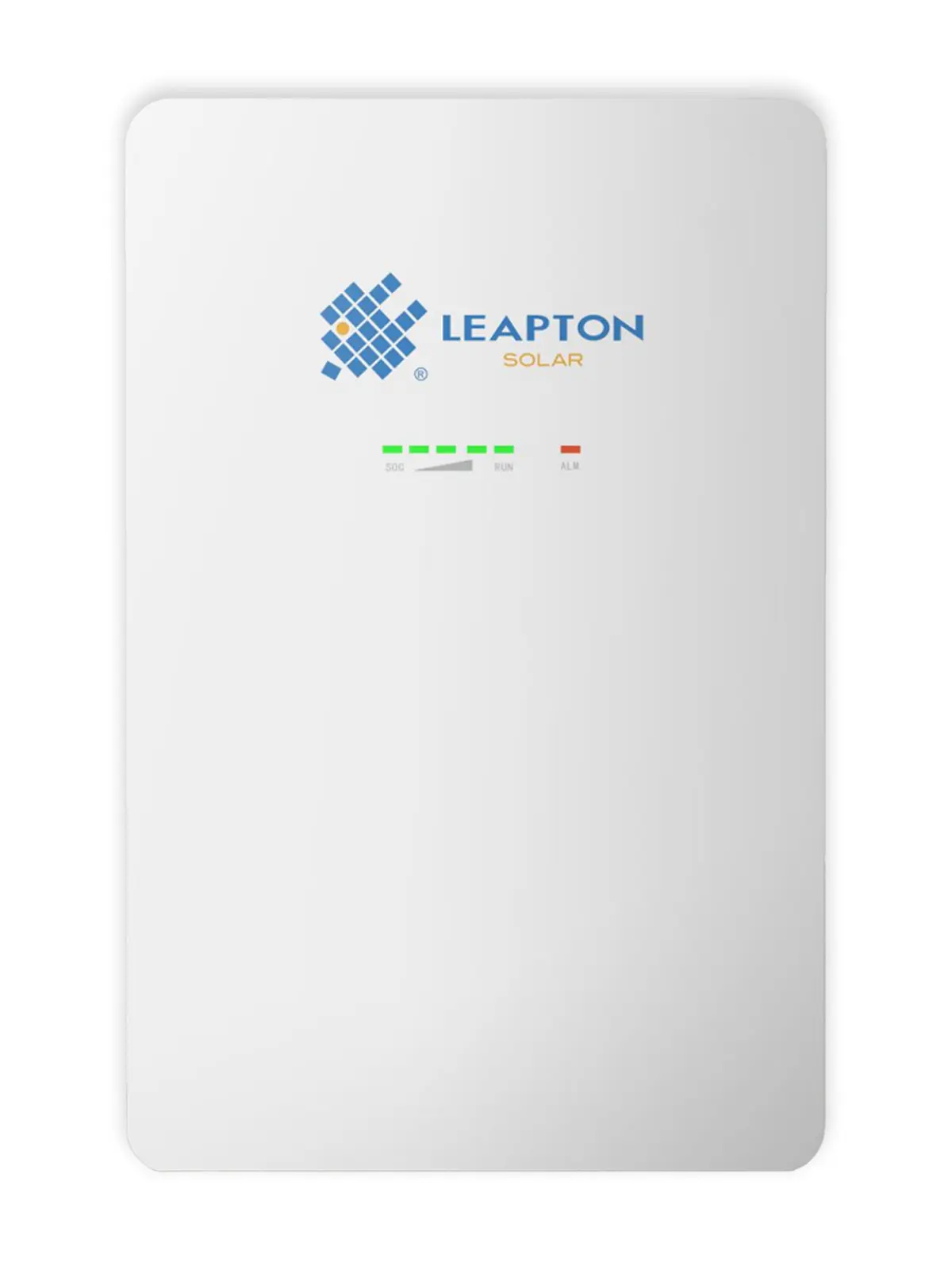

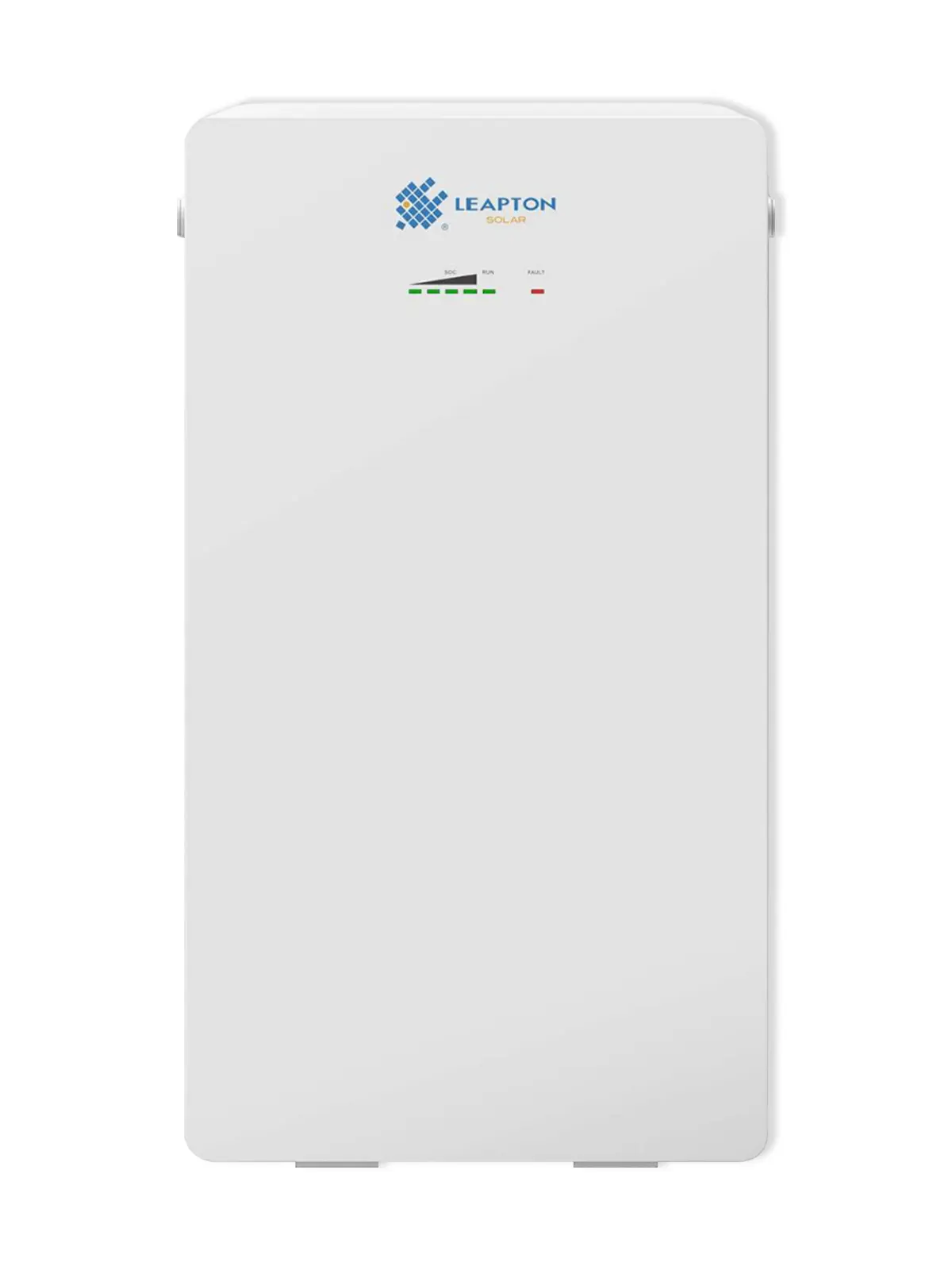

Leapton EL-A16 Lithium Battery – 16 kWh | 51.2 V | 314 Ah | IP65
The Leapton EL-A16 battery has established itself as the benchmark for high-capacity storage in modern photovoltaic installations. Designed to offer maximum energy density in a compact format, it utilises LiFePO4 technology to ensure complete thermal safety. Its exceptional robustness and 16 kWh capacity make it the ideal partner for high-power hybrid inverters, delivering uncompromising energy autonomy.
Key features and specifications:
- Massive capacity: 16 kWh of storage (314 Ah) to cover the night-time needs of even the most energy-intensive households.
- IP65-certified waterproofing: Robust design offering total protection against dust and water jets, ideal for installation in a utility room or garage.
- Exceptional scalability: Up to 15 units can be connected in parallel to achieve a storage capacity of over 240 kWh.
- Safe LiFePO4 technology: Uses Lithium Iron Phosphate cells guaranteeing over 6,000 cycles at 90% depth of discharge (DOD).
- Built-in intelligence: State-of-the-art BMS ensuring cell balancing and seamless communication via CAN/RS485 with Deye, Victron and many other inverters.
- Simplified installation: Stable floor-standing design with accessible connections for quick and safe commissioning.
With the EL-A16, Leapton offers a durable storage solution capable of handling high charge and discharge currents (150A), thereby ensuring the longevity of your solar investment.
Uses & needs it meets
This kit is perfect if you want to:
- Reduce your energy bill in the long term
- Cover a large proportion of your annual consumption
- Have an energy reserve for periods without sunshine
- Monetise surplus energy through grid feed-in
- Prioritise using your own energy
- Protect your home from grid fluctuations
- Invest in a sustainable, reliable and cost-effective solution
Suitable for:
• Detached house with three-phase power supply
• Workshop / SME / farm
• High consumption during the day and evening (electric heating, heat pump, household appliances, EV charging point, etc.)
Specific Information for Belgian Customers - Bebat Tax
As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Leapton EL-A16 battery is subject to a mandatory environmental levy.
A sum of €346.80 excluding VATmust be added for each battery purchased, as a direct contribution to Bebat, the organisation responsible for the management of batteries and accumulators in Belgium. This measure is in accordance with current Belgian environmental legislation.
Important:When purchasing a lithium battery, please add the corresponding product "Bebat Leapton EL-A16 Environmental Levy – 16 kWh" according to the number of batteries you are ordering. Otherwise, we will recalculate and invoice the amount after the purchase.
This tax applies only to Belgian customers.
FAQ - Single-Phase 6kVA / 16kWh Solar Kit
kit-solaire-6KW-avec-batterie-lithium
Data sheet
- Solar kit type
- Kit 230V AC avec batterie
- Inverter power in VA
- 6000 VA
- Kit output voltage
- 230V
- Type of need
- Off-grid
Self-consumption - Battery storage
- With storage
- Wind turbine
- Without
- Number of panels
- 14 panels
- Phase
- Monophasé
- Mains re-injection
- off-grid
With - Base power (kWp)
- 6,3 kWp
- Basic storage (kWh)
- 16 kWh
- Inverter power in kW
- 6,0 kW
Specific References
- UPC
- 768563823824
- EAN13
- 0768563823824
- MPN
- kit-solaire-6KW
6.3 kWp Self-Consumption Solar Kit – 6 kW Mono – 16 kWh Battery — Solar kit
6.3 kWp Self-Consumption Solar Kit – 6 kW Mono – 16 kWh Battery by Wattuneed is available in our Solar kit catalog. Technical specifications: solar kit type: Kit 230V AC avec batterie, inverter power in va: 6000 VA, kit output voltage: 230V, type of need: Off-grid Self-consumption, battery storage: With storage, wind turbine: Without, number of panels: 14 panels, phase: Monophasé, mains re-injection: off-grid With, base power (kwp): 6,3 kWp, basic storage (kwh): 16 kWh, inverter power in kw: 6,0 kW. Product weight: 700.0 kg.
