Kit autoconsommation 12 panels inverter Deye 5 kVA with lithium battery UZ Energy 5.12 kWh

Operation

Maximize the production of each panel by controlling the DC current before the central inverter.

Ideal for

Installations with partially shaded panels or panels exposed to varying conditions.

Benefits

• Improved yield: Even in shaded conditions.
• Lower cost:
• Cheaper than microinverters.
• Reduced maintenance: Fewer interventions on the roof.

A bright investment for a greener, less expensive future

Opt for simplicity and efficiency with our solar kit, and reduce your energy bills today!

Discover a solar kit for fast, efficient installation: 8 solar panels, a Deye 3.6 kVA hybrid inverter, a 5.12 kWh UZ Energy Power Lite lithium battery, and all the cables needed to connect each element, from the panel to your electrical panel.

Need more flexibility? No problem! Customize your kit by choosing the mounting system that's right for you. We'll also adjust cables, protectors and all components to meet YOUR specific needs. With our kit, solar energy becomes tailor-made, practical and efficient.

All our kits are fully customizable. In the options, you can easily select another model or adjust the quantities so that the kit perfectly matches your needs. And for greater transparency, you'll find all the details of the selected products just below the price. Tailor your solar kit to your requirements with ease!

Important notice for our customers in Belgium: An environmental contribution of €130.05 excl. VAT will be applied to the purchase of each UZ Energy Power Lite - 5.12kWh lithium battery. More information at the bottom of the page.

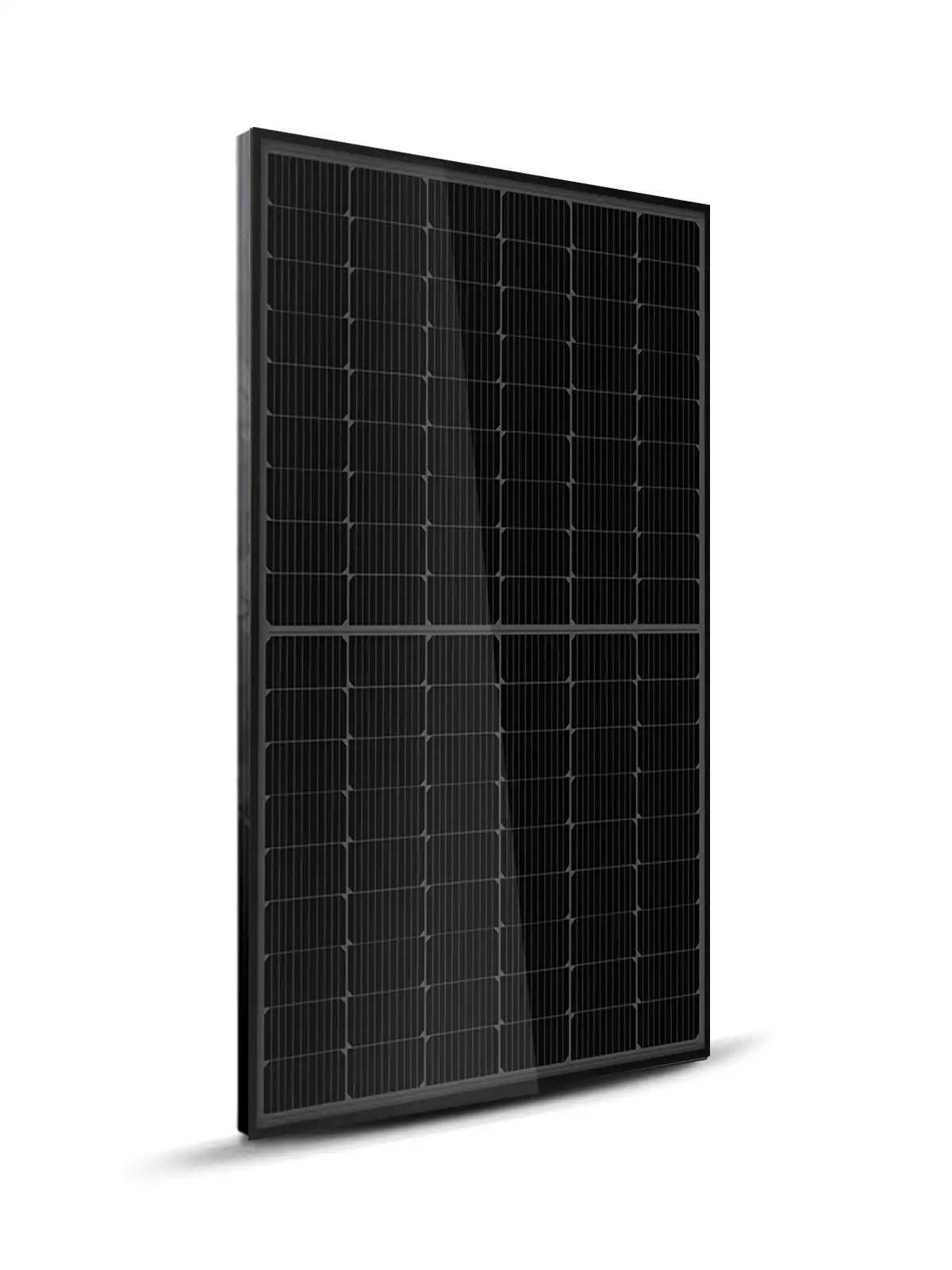

Solar panels

Single-phase inverter

A single-phase inverter is an electrical device that converts direct current (DC) electricity into alternating current (AC) with a single phase, typically used in domestic and light-duty applications. It is commonly used in residential solar energy systems to transform the energy produced by solar panels into a form compatible with standard electrical appliances.

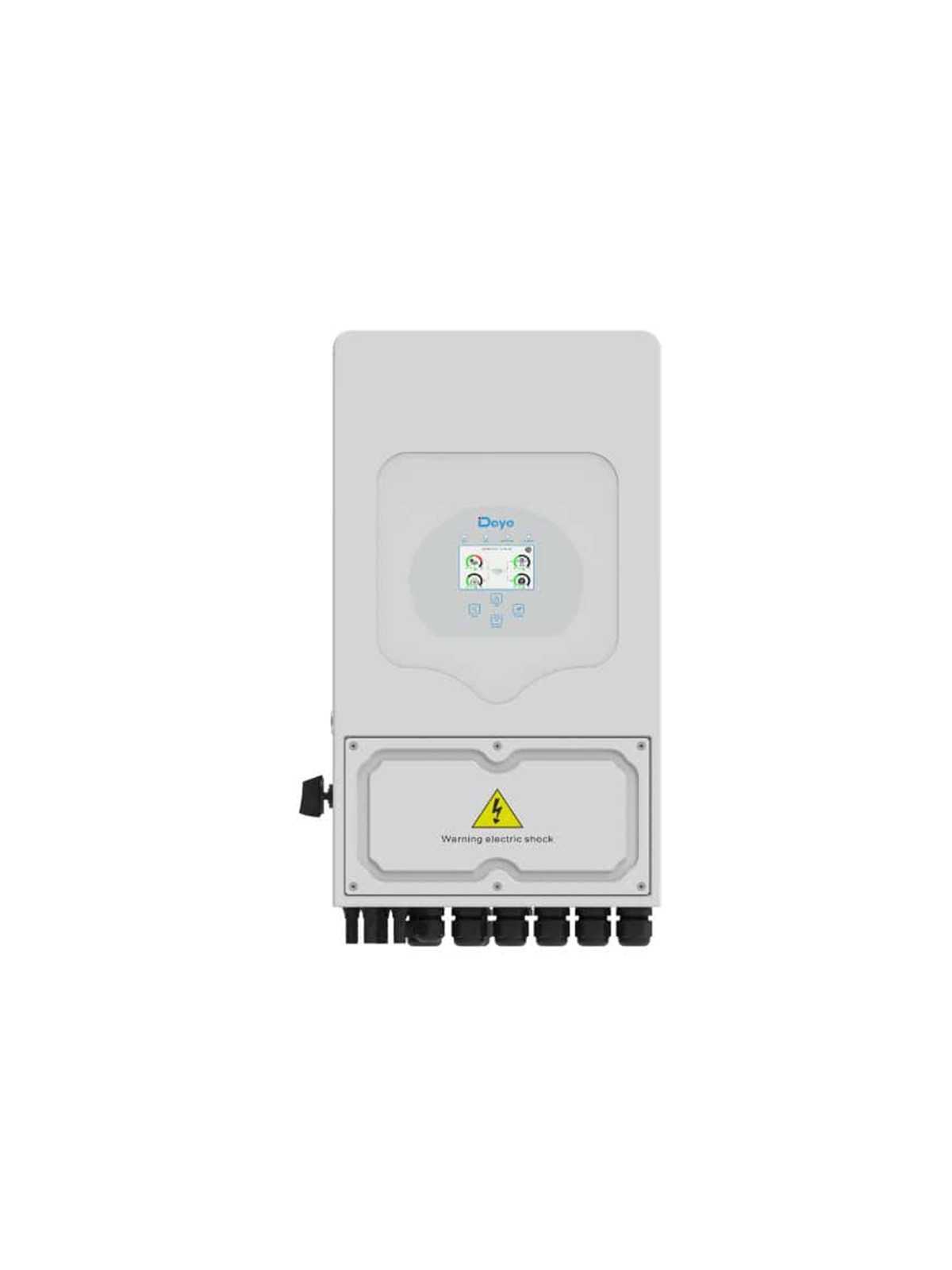

Deye 3.6 kVA - SUN-3.6K-SG03LP1-EU

The Deye 3.6 kVA - SUN-3.6K-SG03LP1-EU single-phase hybrid inverter is the ideal solution for optimizing self-consumption of solar energy in residential and small business installations. With an output of 3.6 kVA, this inverter guarantees efficient conversion of solar energy into usable electricity, while offering intelligent energy management. Thanks to its compatibility with storage systems, it can store excess energy for later use, reducing dependence on the electricity grid.

Equipped with advanced hybrid technology, it adapts to a variety of configurations, from a purely stand-alone solar installation to a battery-powered solution. Its compact, modern design facilitates installation and blends in perfectly with any configuration. What's more, it features protection against overvoltage, short-circuit and overheating, guaranteeing greater reliability and safety for your installations.

With high efficiency and optimized energy management, the Deye 3.6 kVA inverter ensures sustainable performance, while helping to reduce your carbon footprint and save money on your electricity bill.

Help with storage choices

Lead-acid GEL batteries (gel electrolyte) are ideal for daily discharge of 50% of their capacity, ensuring optimum performance. For example, if your fleet has a capacity of 4.8kWh, it's advisable to consume no more than 2.4kWh per day to comply with the manufacturer's recommendations. You can, however, allow for a slight margin, as these batteries can withstand faster discharges over shorter periods.

Lithium batteries, on the other hand, offer additional advantages: they can be discharged much faster than lead-acid batteries, and allow you to use up to 90% of their capacity. So you can count on greater flexibility of use with lithium batteries.

To determine the capacity of your battery, simply multiply its capacity (Ah) by its voltage (V). For example, 4 x 100Ah 12V batteries connected in series will give a voltage of 48V and a total capacity of 4.8kWh.

And to make your life easier, our sizing tool will help you calculate your precise battery requirements for your stand-alone solar kit. Rely on our expertise and embark on a customized energy solution!

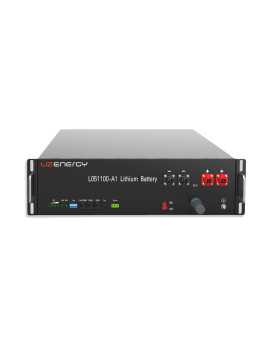

Lithium battery UZ Energy Power Lite L051100-A1 - 5.12kWh : Performance and reliability for your energy storage.

The 5.12 kWh UZ Energy Power Lite L051100-A1 lithium battery is the ideal solution for optimizing your energy storage system. Thanks to its LiFePO4 technology, it guarantees enhanced safety, optimum thermal stability and extended service life.

Key features:

• Energy capacity: 5.12 kWh
• Nominal voltage: 51.2 V
• Dimensions: 440 mm (width) x 530 mm (depth) x 132 mm (height)
• Weight: approx. 45 kg
• Number of cycles :
• up to 6000 cycles
• Battery management system (BMS): integrated, with active balancing
• Modularity: up to 16 units can be connected in parallel to suit your energy requirements

Why choose the UZ Energy Power Lite battery?

With a weight of 45 kg and compact dimensions (440 × 530 × 132 mm), this battery is easy to integrate into your installation. Its 51.2V nominal voltage and 100Ah capacity guarantee reliable, high-performance energy storage.

This battery offers installation flexibility and scalability to meet growing energy needs, while guaranteeing reliable performance and long service life.

---

Important notice for our customers in Belgium: As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a UZ Energy Power Lite - 5.12kWh battery is subject to a mandatory environmental contribution. An amount of €130.05 excl. VAT must be added for each battery purchased, as a direct contribution to Bebat, the organization responsible for battery and accumulator management in Belgium. This measure is in line with the applicable Belgian environmental legislation. More information available here. Here is the reference list and corresponding contribution fee! When purchasing a lithium battery, please make sure to add the following product to your order: Bebat Environmental Contribution – UZ Energy Power Lite 5.12kWh, matching the number of batteries you are ordering. Otherwise, we will recalculate and charge the amount after the purchase.

Personalization

Advice

Optimize your production with Tigo TS4-A-O

(available as an option)

Operation

Maximize the production of each panel by controlling the DC current before the central inverter.

Ideal for

Installations with partially shaded panels or panels exposed to varying conditions.

Benefits

• Improved yield: Even in shaded conditions.
• Lower cost:
• Cheaper than microinverters.
• Reduced maintenance: Fewer interventions on the roof.
