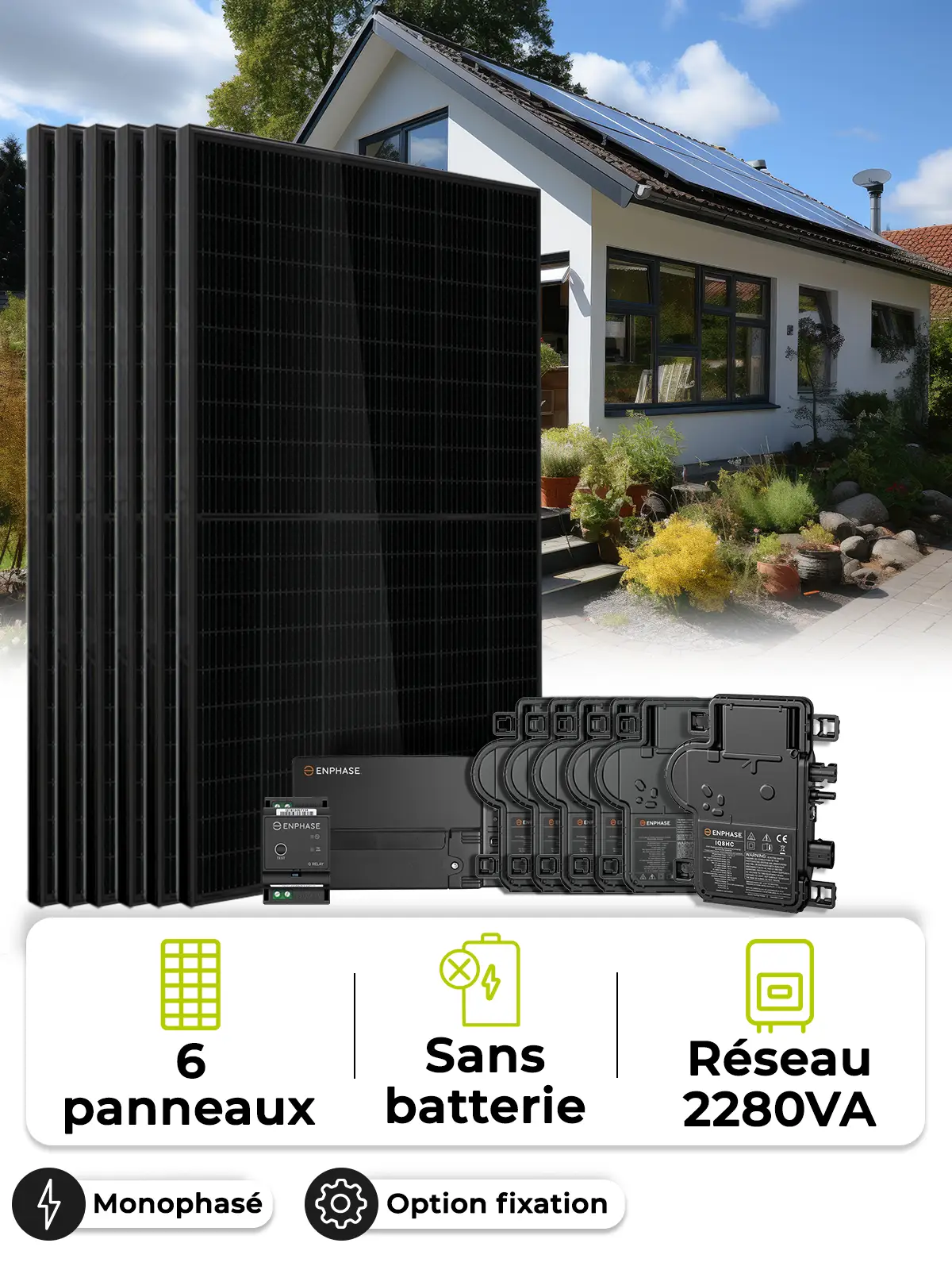

copy of 6-panel Enphase self-consumption / re-injection kit without storage
This kit includes
- 6XMULTIWAY Solar panel 435Wp HT54-18X
- 6XEnphase IQ 7+ and IQ 7A microinverters
- 1XBattery cable 2x95mm² - 2m
- 1XEnphase Envoy-S Standard communication gateway
- 1XEnphase Relay Q (single-phase)
- 1XEnd cap for Enphase Engage
- 10XRubber cable H07RN-F 3G4 -1m
- 6XCable Enphase IQ monophase Portrait/Landscape
All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs. You can also see details of the products you have chosen directly below the price.
This kit is sized with the general purpose of being installed with the public network.

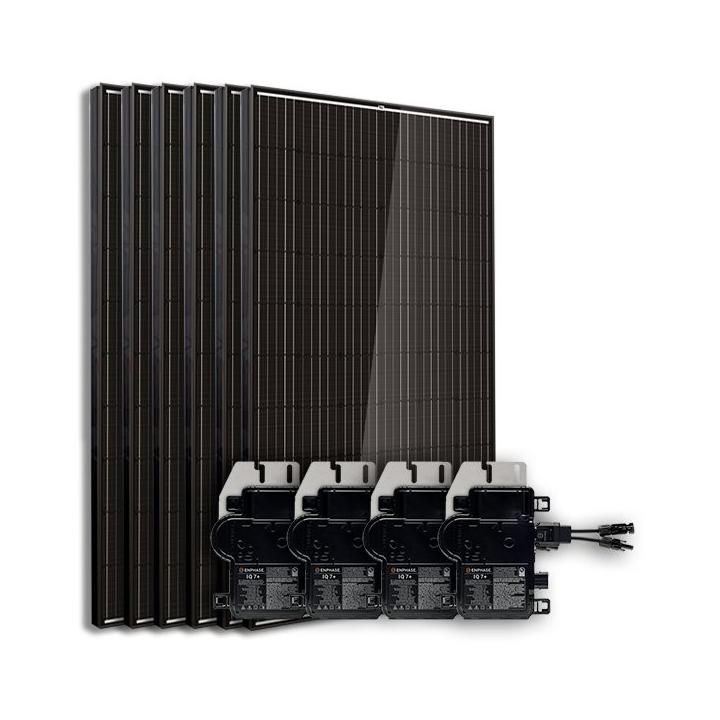

The basic kit contains 6 solar panels, 6 Enphase microinverters and the solar cable to connect the panels to the inverter (the mounting system, cabling and protections can be modified to suit your needs).
SOLAR PANELS :
In its basic version, this Photovoltaic system will provide you with an average of 7.2 Kwh per sunny day. Production will depend on the season (summer/winter), the geographical position and the inclination of the panels.
We invite you to consult our solar production simulator to find out exactly what your solar output will be.
25-year warranty at 80% of rated output.
MICRO-INVERTER :
Enphase micro-inverters are installed on the back of solar panels. Each device then takes care of a single module with a maximum of 310Wp, optimizing its production and efficiency. Monitor your system's activity precisely, thanks to the Envoy gateway that links the inverters together.
CABLE AND CONNECTORS:
All cables and connections are pre-wired in our workshops. Our kits are easy to assemble for beginners. If you're not sure about the technical side of things, our technical team is on hand to help you every day from 8am to 5pm.
ASSEMBLY:
Installation of this kit takes no more than 2 hours. Once you've positioned the VarioTwin structures, all you have to do is 'clip' the panels onto them. Fix the inverter to the wall and connect it to your electrical panel.
GUARANTEED:
All products are individually guaranteed.
Panels guaranteed for 25 years at 80% of rated power.
Solax inverter guaranteed 10 years.

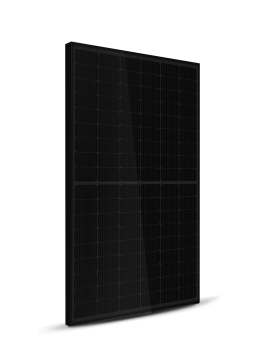

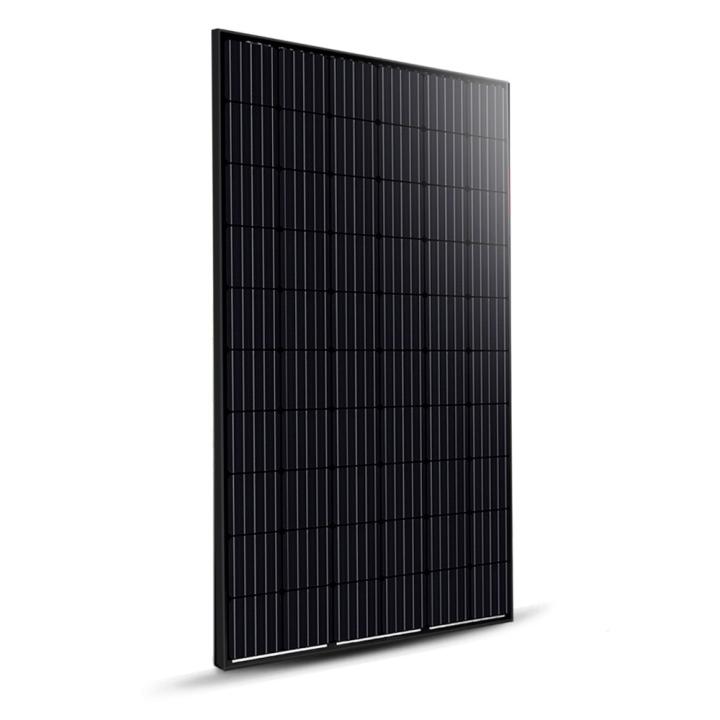

Solar panel
The basic panel selected for this kit has been chosen according to our supplies.
You'll find the panel's specifications in the panels category.

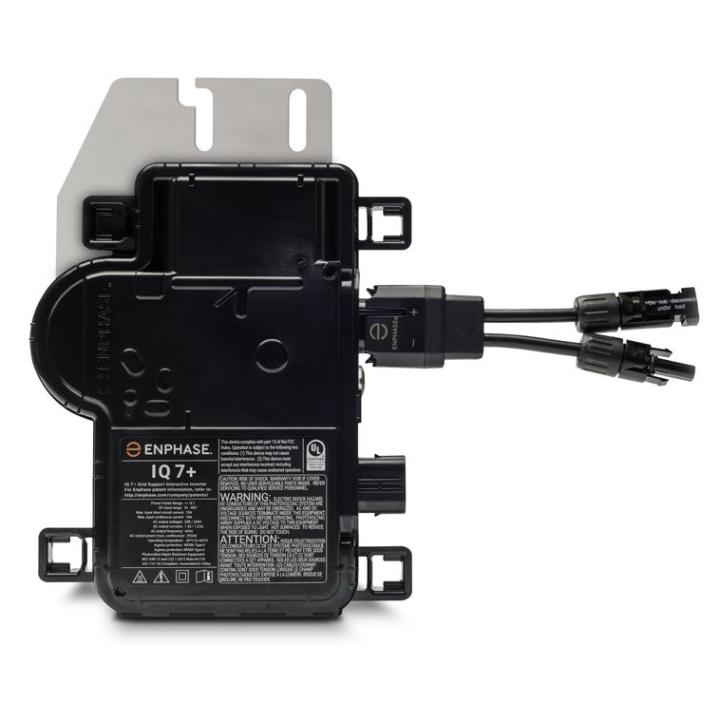

IQ7 Micro-Wavers
Microinverters revolutionize high-efficiencysolar technology Enphase IQ 7™ and Enphase IQ 7+™ are ready for Smarts Grids.
An integral part of the Enphase IQ system, the IQ 7 and IQ 7+ integrate seamlessly with the Envoy-S™ and Enphase Enlighten™ monitoring and analysis software. So get the best performance from each of your panels as well as detailed tracking.
The IQ 7 and IQ 7+ microinverters exceed the reliability and robustness standards set by previous generations of microinverters and undergo more than a million hours of load testing, enabling Enphase to offer an unrivalled warranty.
Features
INPUT DATA |
(DC) IQ7-60-2-INT |
Recommended module power (STC)¹ |
235 W - 350 W + |
Compatibility |
60- |
c
ells only |
DC input voltage max |
48 V |
MPP voltage range |
27 V - 37 V |
Operating voltage range |
16 V - 48 V |
Start voltage min/max |
22DC circuit max |
15 A |
DC port overvoltage class |
II |
DC port single-fault return |
0
A |
Generator configuration |
PV |
AC side protection requires a maximum of 20A per branch circuit |
DATA
OUTPUT |
(AC) |
I
Micro- |
Q 7 inverter |
Peak output power |
250 VA |
Maximum output power |
240 VA |
Rated voltage/voltage range² |
230 V / 184-276 V |
Maximum output current |
04 A |
Rated frequency |
50 Hz |
Frequency range |
45 - |
5
5 Hz |
Maximum number of units per 20 A³ branch |
16 (Ph+N) |
Overvoltage protection class |
III |
AC port return current |
0
A |
Fixed power factor |
xml-ph-0031@dee
0 |
Power factor (adjustable) |
0
.7 inductive to 0.7 capacitive |
PERFORMANCE
@230
V |
Efficiency EN 50530 (EU) |
96.5 % |

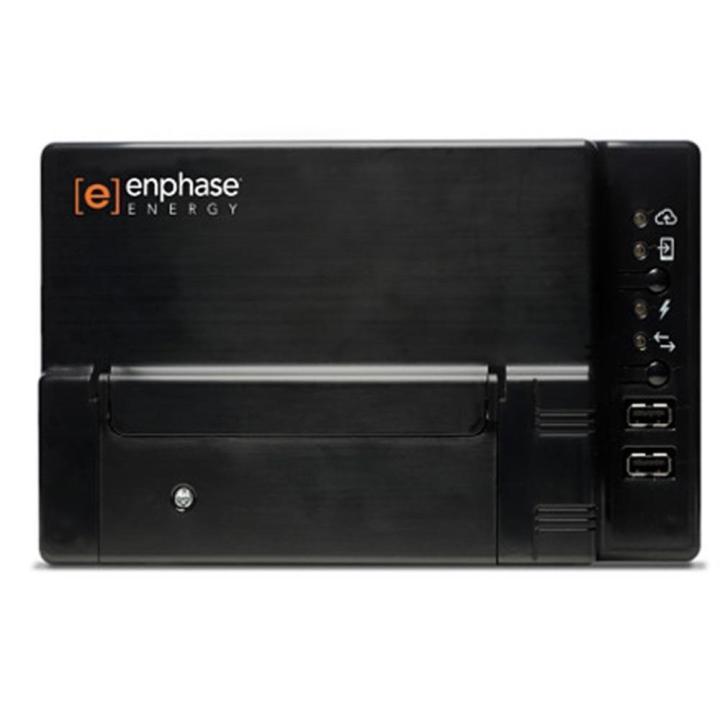

Enphase Envoy-S Standard Communication gateway
With its production and consumption measurement options, the Enphase Envoy-S is an intelligent platform for comprehensive management of your energy production.
This microinverter does not allow batteries in the system.
Features
MODEL REFERENCE |
Envoy-S Standard ENV-S-WM-230 | Enphase Envoy-S communication gateway with basic photovoltaic production monitoring (+/- 5%). |
A
CCESSORIES (to be ordered separately) |
CELLMODEM-02
Enphase Mobile Connect™ |
.
Industrial-grade Plug & Play modem with five-year data package for systems including up to 60 microinverters |
(Available in installation areas where adequate mobile service is available.) |
CONFIGURATION REQUIRED FOR POWER |
.
Cord connected | 230 V AC, 50 Hz. Max. 20 A overcurrent protection required |
W.
ired | 230 V AC, or 400 Y/230 V AC, 50 Hz. Overcurrent protection up to 20 A required |
C
APACITY |
Number of devices detected | Up to 600 microinverters |
DATA
MECHANICAL |
Dimensions (L x H x D) | 213 x 126 x 45 mm |
0
Weight |
.5 kg |

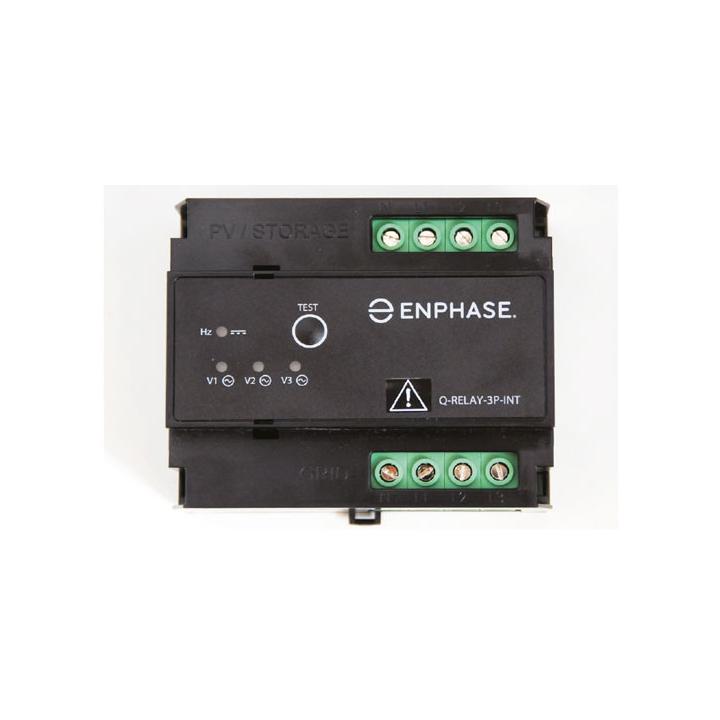

Enphase relay Q (Multiphase)
In Enphase IQ installations, the multiphase Q Relay functions as a grid monitoring and disconnection device.
The Q Relay physically isolates IQ series microinverters from the grid when anomalies are detected or in accordance with grid regulations, and automatically reconnects when valid grid conditions are restored.
The Tetrapolar Q Relay isolates all phase and neutral conductors, and works in conjunction with the Envoy-S gateway.
Features
SPECIFICATIONS Q-RELAY-3P-INT |
Four-pole decoupling protection (50Hz) with DC injection detection |
Overvoltage category (EN 61010-1) | III |
CAT III | GRID terminal is rated for measurement category III. |
P2
ollution degree (EN 61010-1) |
AC voltage operating range | from 85 to 265 Veff |
Nominal input voltage (Vnom) | 230 / 240 Veff |
Nominal frequency | 50 Hz |
for frequency and voltage values during operation
Acquisition time | |
frequency and voltage values in normal operation | 100 ms (5 line cycles @ 50Hz) |
Number of protected voltage inputs | Up to 3 |
Number of microIQ 7 microinverters per phase | Up to 19 Enphase IQ 7 microinverters or 16 Enphase IQ 7+ microinverters |
Number of Q relays per system | Limited to 20 active Q relays per system |
Type of electrical output |
Normally open tetrapolar relay (L1, |
L2, L3 and N) |
6
Output power |
kVA per phase |
Electrical output type | 230 / 240 Veff, 25A |
No-load power consumption | 18 VA |
LEDs | Four red/green LEDs: three for overvoltage and undervoltage trips, |
one for frequency tripping (min f/ max f) and DC injection |
)
Mounting | 35 mm DIN rail rail (standard |
Width | 107 mm |
Overvoltage - | |
L1 N output | Combination (1kV 2Ω) |
-40
Operating temperature range |
°C to 50 °C |
Protection class IP | IP 20 (For use in a protected environment) |
0
Humidity |
to 95 non-condensing |
Conformity | IEC 61010, |
EN 61010-1 |
EMCI conformity |
IEC 61326, BS EN 50065-1 & |
2-2, BS EN 61326-1&2, BS EN 61000-3-11&12 |
5
Warranty |
years |
Data sheet
- Inverter power
- 3000VA
- Kit output voltage
- 230V
- Type of need
- Self-consumption
- Battery storage
- Without storage
- Wind turbine
- Without
- Number of panels
- 6 panels
- Mains re-injection
- With
Specific References
- UPC
- 712971138926
- EAN13
- 0712971138926
